USER MANUAL 8 IN 1 UNIVERSAL LCD REMOTE CONTROL QUOTSOFT TOUCHQUOT VIVANCO

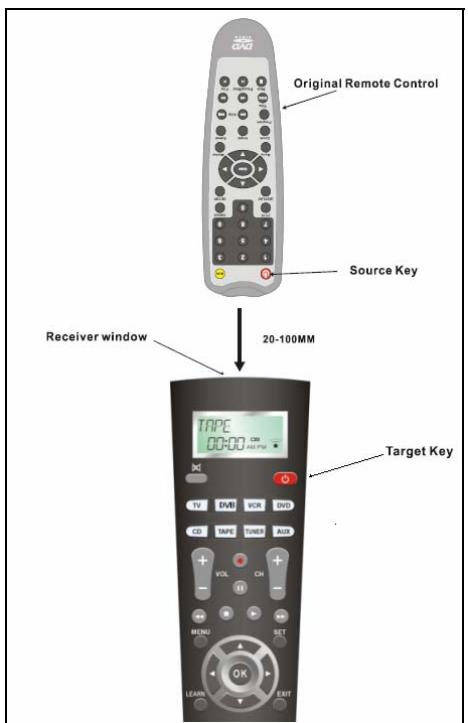

Fig. 4: Placing Remotes

Fig. 5: Delete Learnt/Programmed Keys

Fig. 6: Delete Learnt/Programmed Key Sets For Single Devices

Fig. 7: Delete All Learnt/Programmed Keys

Fig. 8: Clock Setting

Fig. 9: Set Volume Control Priority

Fig. 10: Lock Or Unlock Of Device Codes

Fig. 11: Program Macros

Fig. 12: Delete Macros

Fig. 13: Control Any Device By AUX

(GB) Instructions

VIVANCO UR 820 LCD remote control for almost all TV, audio, video and other infrared-controllable appliances

Inserting the batteries

Open the battery flap on the back of the remote control, press the flap lightly downwards, then insert 2 alkaline AAA batteries. Check that the polarity markings on the batteries and in the

battery compartment are correctly lined up (+=+) , then close the flap carefully. - Always use undamaged batteries.

Adapting to appliances

In order to control your appliances you must adapt or set the remote control to them. There are three ways of doing so: direct control code entry, code search or learn.

UR 820 LCD UNIVERSAL CONTROLLER

Direct control code entry

See also Fig. 1.

Example: setting the remote control for a Philips TV set:

1. Switch on your device, e.g. the TV, set to any station.
2. To prepare code entry, press the SET button and the required device button, e.g. TV. A brand and a code number appear, see diagram. - You cannot enter a new code if you have activated the code entry lock.
3. Select the brand of your device, in this example Philips, with or . The first available code in the device list is displayed.
4. Press a few buttons to determine whether you have found a suitable code. When the code corresponds to your device, press OK and the setting for this device is completed.
5. If the code you have found does not work at all or not properly, try another code by selecting the next code for the brand using the or button, then test the code as described above under 4. and, if successful, confirm with OK.

6. To set the remote control for other devices, proceed in the same way. Instead of the TV device button, press another button, e.g. DVB (DTT, CBL, SAT) VCR, DVD, CD, TAPE, TUNER, AUX).

7. Before setting a code and performing the subsequent test for recording or playback devices, please insert a medium (tape, CD, cassette, DVD, etc.).- You can interrupt code entry at any time by pressing EXIT.

Code search

See also Fig. 2.

If the brand of your appliance is not in the list or none of the codes given fits, we recommend the automatic code search.

Your remote control finds the correct control settings almost automatically in a few seconds:

1. Switch on the device to be controlled. For example, a program number appears in the display of your satellite receiver.
2. To start the code search, press and hold the SET button for approx. 3 seconds. CODE SETUP appears in the display. Confirm this function by pressing OK.
3. DEV SEARCH then appears in the display. Confirm this function by pressing OK.-If DEV SEARCH does not appear you can set the function with the or button.
4. Press the device button of the device to be controlled, e.g. DVD and confirm the function by pressing OK.

5. Then point the remote control at the device to be controlled while the remote control emits a different ON/OFF signal every 2 seconds. The respective code number is shown in the display.

6. When your device reacts, press a few buttons to determine, whether you have found a suitable code. If the code corresponds to your device, press OK. SUCCESS appears in the display, then you press the device button, e.g. DVD, to confirm the entry. The setting for this device is now completed.

7. If the code you have found does not work at all or not properly, press EXIT and DEV SEARCH appears again. Then proceed again as described under 3.

Please note: - You can reverse the search direction with the or button if you have reacted too slowly to a response from the device. - The Menu buttons cannot be used for testing. - Before setting a code and performing the subsequent test for recording or playback devices, please insert a medium (tape, CD, cassette, DVD, etc.).- You can interrupt code search at any time by pressing EXIT.

Learning, Programming, of Missing Control Functions

See also Fig. 3 & 4.

The LEARN function is used to supplement the preprogrammed codes. The standard code may provide most of functions needed, but you may miss some key functions. Or you didn't find any functioning preprogrammed code for a device. You can capture upto 100 key funtion codes, max 40 per device. The last captured function will overwrite the previous. learnt.

Please proceed as follows:

1. Press the device key of to be controlled device, e.g. TV.
2. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed.
3. Select LEARNING by pressing or key.
4. Press OK, LEARN KEY will be displayed and place the remotes top by top as shown in Fig.. . Distance appr. 30 mm.

5. Press OK, SELECT KEY will be displayed. Then press the target key, e.g. POWER, which you like to reprogram. WAITING will be displayed.

6. Press and hold the to be learnt key, e.g. Power=Stand by, on the original remote until the UR 820 LCD displays SUCCESS for 1 s. Then SELECT KEY is displayed and the next key can be programmed according to step 5 and 6. -If the programming fails, Failed is displayed, then repeat reprogramming from step 5.

7. You can stop learning procedure by pressing any device key (TV, DVB etc.), when SELECT KEY is displayed.

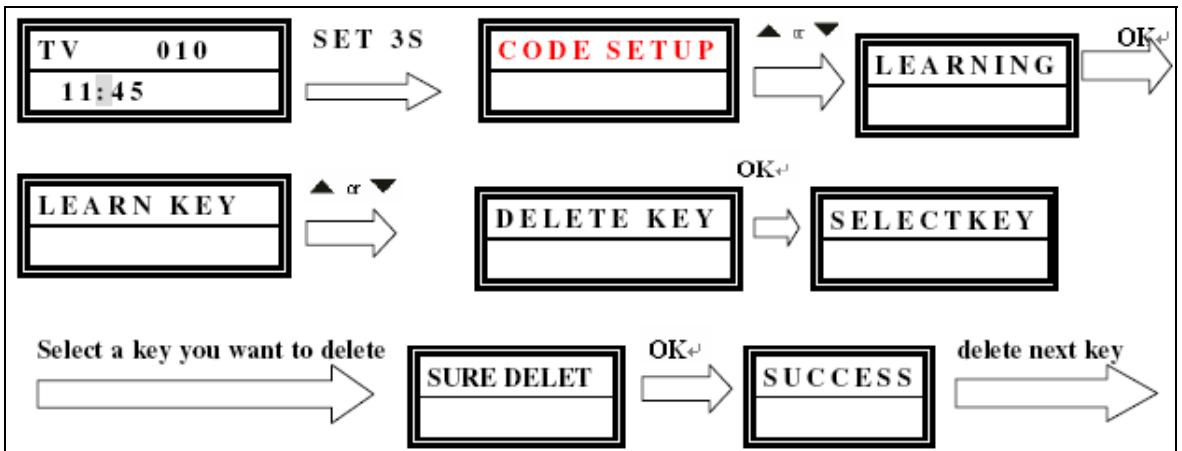

Delete Learnt/Programmed Keys

Please proceed as follows, see Fig. 5:

1. Press the device key of to be controlled device, e.g. TV.

2. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed.

3. Select LEARNING by pressing or keys.
4. Press OK, LEARN KEY will be displayed. Select DELETE KEY by pressing or keys.
5. Press OK, SELECT KEY will be displayed. Then press the target key, e.g. POWER, which you like to delete.
6. SURE DELET will be displayed. Please confirm by pressing OK. UR 820 LCD displays SUCCESS for 1 s. Then SELECT KEY is displayed and the next key can be deleted according to step 5 and 6. -If the deleting fails, WAITING and Failed are displayed, then repeat deleting from step 5.
7. You can stop deletion procedure by pressing any device key (TV, DVB etc.), when SELECT KEY is displayed.

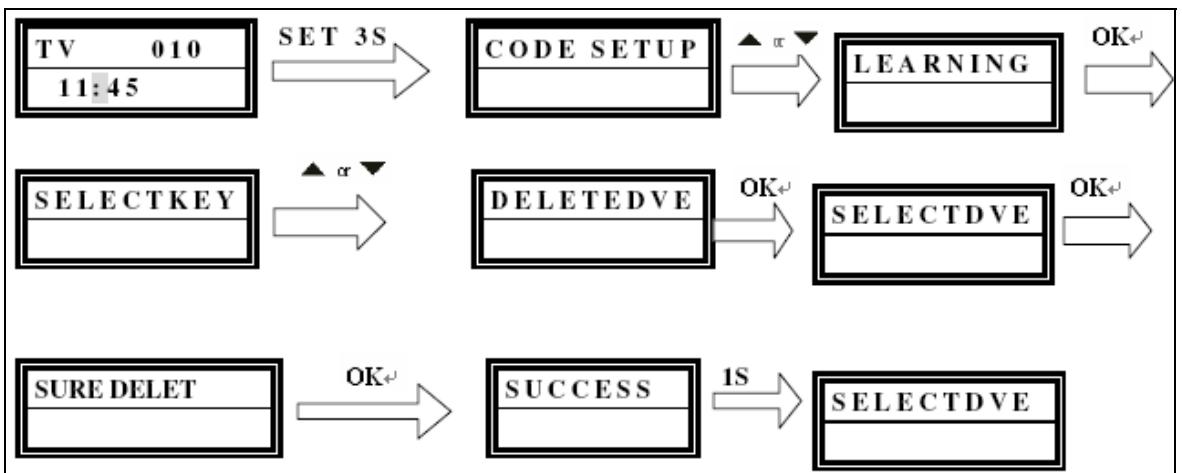

Delete Learnt/Programmed Key Sets For Single Devices

Please proceed as follows, see Fig. 6:
1. Press the device key of to be controlled device, e.g. TV.
2. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed.
3. Select LEARNING by pressing or keys.
4. Press OK, LEARN KEY will be displayed. Select DELETE DEV by pressing or keys.
5. Press OK, SELECT DEV will be displayed. Then press the corresponding device key key, e.g. TV.
6. SURE DELET will be displayed. Please confirm by pressing OK. UR 820 LCD displays SUCCESS for 1 s. Then SELECT DEV is displayed and the next device key set can be deleted according to step 5 and 6. -If the deleting fails, WAITING and Failed are displayed, then repeat deleting from step 5.
7. You can stop deletion procedure by pressing EXIT key several times.

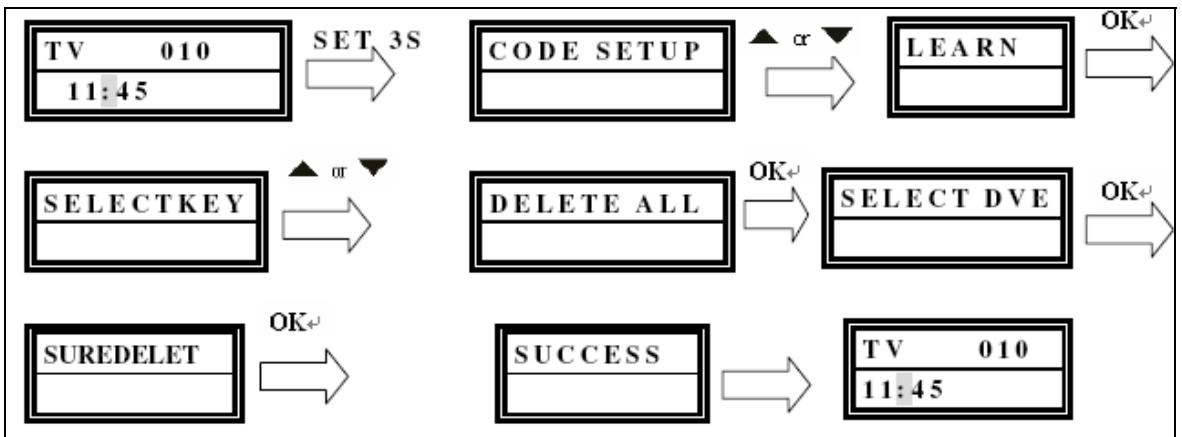

Delete All Learnt/Programmed Keys

Please proceed as follows, see Fig. 7:

1. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed.
2. Select LEARNING by pressing or keys.
3. Press OK, LEARN KEY will be displayed. Select DELETE ALL by pressing or keys.
4. Press OK, SURE DELET will be displayed. Please confirm by pressing OK. UR 820 LCD displays SUCCESS for 1 s. Then menu is displayed again.
5. You can stop deletion procedure by pressing EXIT key several times.

Other settings

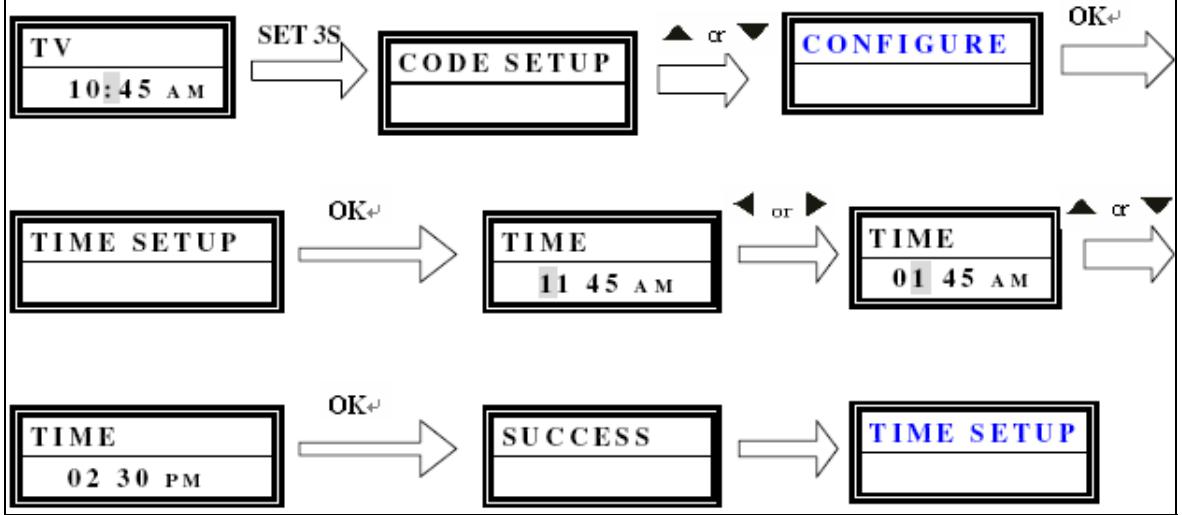

Clock Setting

Please proceed as follows, see Fig. 8:

1. Press SET for more than 3 seconds and release it, when CODE SETUP is displayed.
2. Select CONFIGURE by pressing or keys.
3. Press OK, TIME SETUP will be displayed.
4. Press OK, TIME hh:mm xx will be displayed. Please enter time and AM or PM for morning and afternoon. Use numerical and arrow keys for time input.
5. When time is displayed correctly press OK. SUCCESS and later TIME SETUP will be displayed.
6. You return to main menu by pressing EXIT key several times.

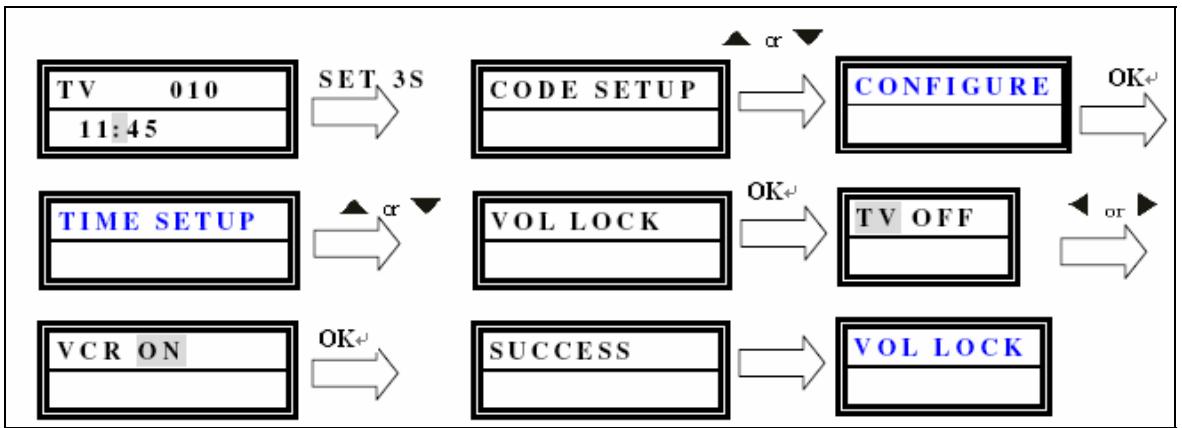

Set volume control priority

With this function you can determine a device exclusively for volume control, e.g. your audio amplifier. Then the buttons VOL +, VOL - and
always control the amplifier, regardless of which device you are controlling.
Please proceed as follows, see Fig. 9:
1 Press and hold SET for 3 seconds, then set CONFIGURE with the or button. Confirm this function by pressing OK
2 TIME SETUP appears in the display. Set VOL LOCK with the or button. Confirm this function by pressing OK.
3 Select the device button, e.g. AUX for the amplifier and set priority = ON using the or button. Confirm this function by pressing OK.
4 Then press EXIT several times to quit the setting mode.
- You can cancel the priority setting using the same procedure. Instead of ON, set OFF for all devices.

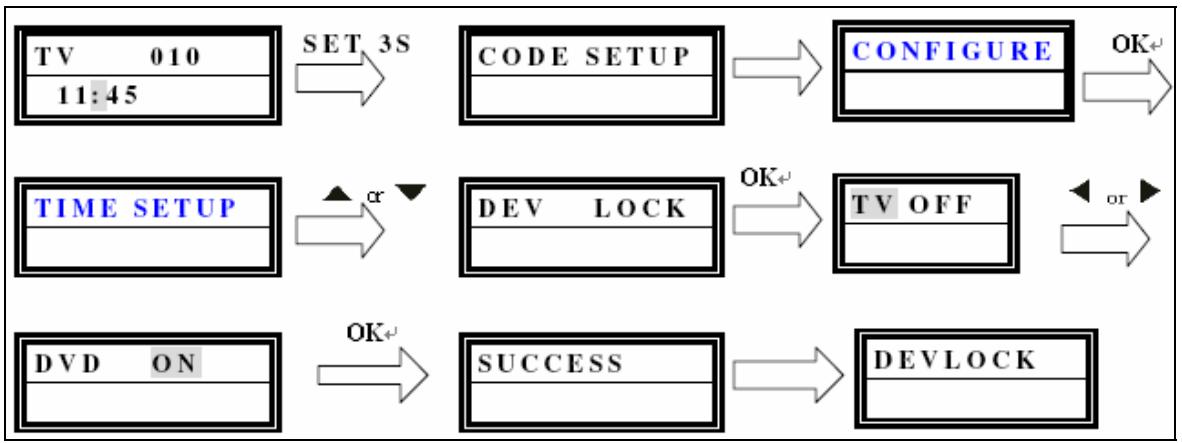

Lock Or Unlock Device Codes

1 To prevent settings from being changed accidentally, please proceed as follows, see Fig. 10:Press and hold SET for 3 seconds, then set CONFIGURE with the or button. Confirm this function by pressing OK.
2 TIME SETUP appears in the display. Set DEV LOCK using the or button. Confirm this function by pressing OK.
3 Select the device button, e.g. DVD for the television and set lock=ON using the or button. Confirm this function by pressing OK.
4 Then press EXIT several times to quit the setting mode.
- You can cancel the lock setting using the same procedure. Instead of ON, set OFF for all devices.

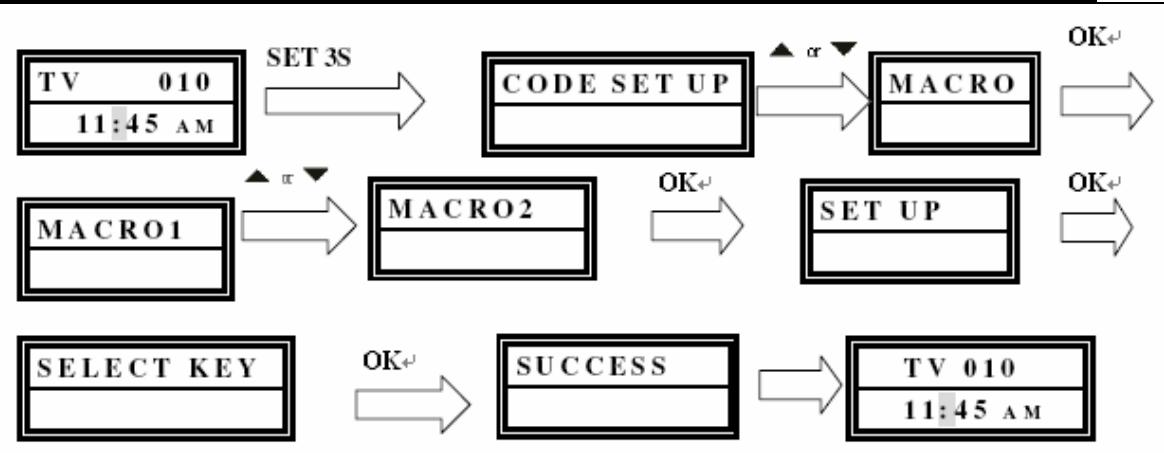

Program Macros (Home Cinema Application)

You can program a sequence of upto 10 control commands to be output on pressing one one single key called MACRO-key. Upto 3 MACRO-keys are available.

Please proceed as follows, see Fig. 11:

1 Press and hold SET for 3 seconds, then set MACRO with the or button. Confirm this function by pressing OK.
2 MACRO1 appears in the display. Set MACRO1, 2 or 3 using the or button. Confirm this function by pressing OK.
3 SET UP is displayed. Confirm this function by pressing OK.
4 SELECT KEys is displayed. Then press a sequence of keys, which shall be output later, when you press MACRO and 1 ,2 or 3. E.g. TV, POWER, DVD, POWER, AMP, POWER for all devices power off.
5 Press OK when sequence input is finished and macro shall be stored.

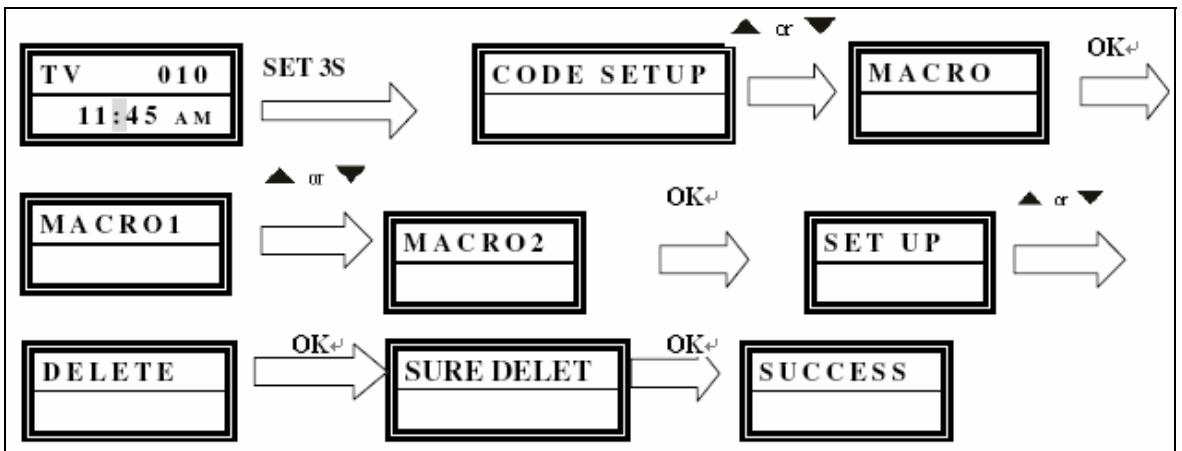

Delete Macros

Please proceed as follows, see Fig. 12:

1 Press and hold SET for 3 seconds, then set MACRO with the or button. Confirm this function by pressing OK.
2 MACRO1 appears in the display. Set MACRO1, 2 or 3 using the or button. Confirm this function by pressing OK.
3 SET UP is displayed. Confirm this function by pressing OK.
4 Select DELETE using the or button.
5 Then press OK and SURE DELET is displayed. Confirm this function by pressing OK. SUCCESS is displayed.
6 Then press EXIT several times to quit the deletion mode.

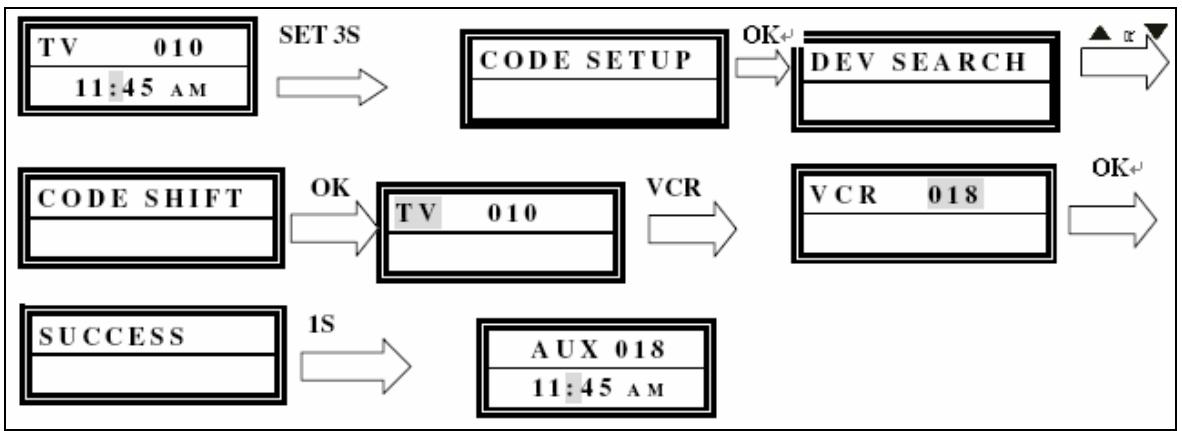

Control Any Device On AUX

You can use the AUX device key to control any device. E.g. if you want to control a 2^nd VCR by AUX key, please proceed as follows, see Fig. 13:

1 Press and hold SET for 3 seconds, then CODE SETUP is displayed. Confirm this function by pressing OK.
2 DEV SEARCH is displayed. Set CODE SHIFT using the or button. Confirm this function by pressing OK.
3 Any device, e.g. TV 010 is displayed. Press device key, e.g. VCR, OK and enter code number of required to be by AUX controlled device, e.g. VCR. Confirm this function by pressing OK. SUCCESS is displayed.
4 Then press EXIT several times to return to main control menu.

Backlight

To save battery capacity you can switch off the LCD illumination. To do so, proceed as follows:

1 Press and hold SET for 3 seconds, then set CONFIGURE with the or button. Confirm this function by pressing OK.
2 TIME SETUP appears in the display. Set LIGHT using the or button. Confirm this function by pressing OK.
3 Switch the light ON or OFF using the or button. Confirm this function by pressing OK.
4 Then press EXIT several times to quit the setting mode.

Adjusting the contrast

You can adjust the contrast to improve readability:

1 Press and hold SET for 3 seconds, then set CONFIGURE with the or button. Confirm this function by pressing OK.
2 TIME SETUP appears in the display. Adjust the CONTRAST using the or button. Confirm this function by pressing OK.

3 Set the contrast to the desired level using the or button. Confirm this function by pressing OK.
4 Then press EXIT several times to quit the setting mode.

Default settings

You can reset your remote control to its factory default setting, e.g. to correct a malfunction, as follows. This deletes all your settings.
- This function is recommended only in the event of your remote control malfunctioning seriously.
1 Press and hold SET for 3 seconds, then set CONFIGURE with the or button. Confirm this function by pressing OK.
2 TIME SETUP appears in the display. Set CLEAR ALL using the or button. Confirm this function by pressing OK.
3 The display then shows SURE CLEAR?. Confirm this function by pressing OK.

Operation

You operate your appliances basically in exactly the same way as if you were using the original remote controls, except that you must first press a device button (TV, DVD, etc.) to control the required device. As the symbols on the UR 820 LCD could differ from those on the original remote controls you may have to try out all the buttons in order to find the functions.

Scanning of Programs

You can scan the TV or DVB (SAT, CBL, DTT etc.) programs by:

1 Pressing TV or DVB key,
2 Press and hold the SCAN key for about 4 seconds.

3 When SCAN is displayed, release key. Then UR 820 LCD will automatically scan all channels quickly.
4 Press any key to stop scanning.

Use Macros: Control Home Cinema Set Ups With One Touch Only

When you have programmed key code sequences, read above, then you can start output by pressing MACRO and then 1,2 or 3 simultaneously.

Hotline

If you have any questions regarding the UR 850 LCD, please call the Vivanco Hotline: Tel: [phone] Alternatively, send an e-mail to: [e-mail]

Technical data

Batteries: 2x AAA – The UR 820 LCD indicates that the batteries need replacing by displaying a crossed-out battery symbol.

Range: max. 7 m

Not suitable for 400 kHz devices

2-year works guarantee

Should your UR 820 LCD cease to work within 2 years of purchasing you will receive a free replacement from Vivanco. Exceptions: missing codes, deliberate destruction and normal wear and tear of the housing and buttons.

Ver programas (SCAN)

CTnpaTb KONnpoBaHHbIe/BbluyEHHbIe KnaBnHbIe yHKcnn np6opa

CM. TaKke pnc.6.

IocTynpaTb,poKaanynCTa,CneDyUoUIM o6pa30M:

1. Haxmnte knaBnuy ynpabIyemoro npibopa, hapimep, TV (TeJeBn3Op).
2. Haxmte KnaBnSy SET 6oJee 3 cekyHn OtnyCTnte eTgda, KOrda yka3bIbaeTCa CODE SETUP.
3. YctaHOBtB LEARNING (BbluHTb) KlaBnAmn A JI N V.
4. Haxmte OK, 3aTem yka3bIbaETc8 LEARN KEY (Bbluyntb KnaBnUy). UctaHOBNTb DELETE DEV (ctnpaHne np6opa) KJIaBnUshaMn ▲ nII ▼.
5. Haxmnte OK, yka3bIbaeTcra SELECT DEV (BbIbOp npnbopa). 3aTeM Haxmnte KnaBnuy UR 820 LCD toro npnbopa,

Vivanco

UR 820 LCD UNIVERSAL CONTROLLER

Функцию КOTopoRo BыЖeJaTe CTnpaTb, HAnpIMep,TV(TeJIeBn3Op).

1. Yuka3bIbAeTc SURE DELETE (deiCTBnTeIbHO CTnpaTb). YTBepDnte HaxaTHeM KJIaBnUH OK. UR 820 LCD yka3bIbAeT SUCCESS (ycnex) B TeueHne 1 cekyHdbI. 3aTeM INdNkauNЯ nepenJET Ha SELECT DEV n COrJaCHo IlaRam 5 n 6 MoKHO CTnpaTb CJeDyUOuYIO KJIaBnUHyoФyHKuNIO.- FAILED (oWu6Ka) yka3bIbAeMcR e mom cnyae, ecnu npouecc cmupaHua OKa3bIbAeMcR HeydaunbIM. B 3mOM cnyae noemopume npouecc cmupaHua, hauHa c waa 5.

2. Пюцecc CTираня MOжET 6ытбпpeкрашен HeODHOKpaTHbIM HaxKaTNem KlaBnIeXIT (прекрашени).

CTnpaHne BCEx KOnnpoBaHHbIX/BblIyUeHHbIX KJIaBnUHbIX ΦyHKcni

Cm. TaKke 个 pnc.7.

IocTynatb, noKanyiNCTa, cJeNyUOuM o6pa3oM:

1. Haxmte KnaBnuy SET 60nee 3 cekyHn OtnyCTnte e e TOrda, KOrda yKa3bIbaeTcR CODE SETUP.
2. YctaHOBtB LEARNING (BblyHTb) KJIaBnShamn ▲ INI N
3. Haxmte KnaBnOy OK, 3aTeM yKa3bIbAeTcR LEARN KEY (Bbluyntb KlaBnOy). YctaHOBnTB DELETE ALL (CTnpaTB BCE) NocpeDCTBOM KlaBnU ▲ nJIN V.
4. Hαχmnte KλaBnùy OK. YΚa3bIbæTcSURE DELETE (ДeɪCTBnteJIbHO CTnpaTb).YΤΒερπιTe HακaTneM KλaBnùn OK. UR 820 LCD yΚa3bIbæT SUCCESS (ycnex) B TeueHne1 cEkyndbl. 3aTeM έнДиКацяп поЕндт Ha rλaBHOme MeHIO.
5. Пюцecc CTираня MOжeТ 6ытБпpeкрашен HeODHOKpaTHbIM HaxKaTNemКлавиш EXIT (прекрашени).

HactpoKa npOuNX yHKnui

HactpoKa BpeMeHH

Cm. TaKke 1 pnc.8.

IocTynpaTb,poXaanynCTa,CneDyUoUIM o6pa3OM:

1 Hαχmnte KλaBnμy SET 6oJee 3 cεKHy n OTnyCTnTe eë TOrda, KOrda yKa3bIbAeTcR CODE SETUP.
2 CONFIGURE (HaCTpOHTb) KlaBnIaMn ▲ nJIn ▼.
3 HaxMMTe KlaBnUy OK. YKa3bIbAeTcR TIME SETUP (HacTpoNka BpeMeH).
4 Haxmte KnaBnUy OK. Yka3bIbaETcR TIME hh:mm xx (hh = yac (00-12), mm = MInHyTbI (00-59), AM = B nepBoN noNoBnHe dHry - PM = BO BtopoN noNoBnHe dHry). BboDntb

BpeMc NOMOuI KnaBnU uNp N BblpaTb KnaBnAmu AM nJn PM.

5 Korda Bpemn npabuJbHo yka3bBaetc, TO yTBepdnte 3TO KJaBnWei OK.

Yka3bIbaeTcA SUCCESS, a no3xe TIME SETUP.

6 3aTeM HaxMMTe EXIT, TTo6bl BbIXoNDtB n3 peKIMa HAcTpoiKn.

YcTaHOBNTb npHOpHTeT peRyInpoBaHnra rpOMKoCTn

C 3TOI ΦyHKUeIe BBy 3KCKH03NBO MOKeTe ONpeDEINtB pnp6op DnIe peYIpOBAHnrgPOMKOCTn, HApPIMep, ayDIOUCNIteIb. B3TOM Cnyae, KlaBNIu npeyIpOBAHnrgPOMKOCTn VOL +, VOL - n Bcerda ynpabJIaHT ycINTEJem, He3aBNCmO OT TORO, KOtopbIM np6bpom Bby nppaBIAreTe.

CM. TaKKe 个 pnc.9.

IocTynaTb, noKaNyInCTa, cNeDyUOuIM o6pa3oM:

1 HaKMnTe KnaBnUy SET 6oJIe 3 cekyni; KJIaBnUaMn A nIIN yCTaHOBnTE CONFIGURE (HacTpoIka). HaxKaTneM KJIaBnUu OK yTBepDnTe 3Tu φyHKuIIO.
2 Yka3bIbAeTcR TIME SETUP (HacTroPkaBpeMeHn).KnaBnIaMn ▲ nJN▼ yCTaHOBInTeVOL LOCK (6JIOKNpOBKa rPOMKOCTn).HaxatneM KlaBnIu OK yTBepdnte 3TyФyHKUHO.
3 Bb6paTb KnaBnUy np6opa, HapnpMeP AUX IJIY cNIIHTeI Y UCTaHOBNTb npOpntET=ON KNaBnUshaM NIIH HaxateIM KnaBnU OK yTBepdnte 3Ty fYHKUHO.
4 3aTeM HeoDnHOKpaTHO HaxMMTe KJIaBnUg EXIT, YTO6bI BvIXoDnTb n3 pexmHaCTpOIKN. -3ToJxpeJeypoB Bbl MoKeTe cTnpaTb yCTaHOky npnoPteTa . BmecTo ON yCTaHOBtne dIy BCex npnbopOB OFF.

-3ToJxpeDpyoB Bbl MoXeTe CTnpaTb yCTaHOBky 6IokpOBKn . BmecTO ON yCTaHOBnTe dIЯ BCex npnbopOB OFF.

Makpo: YCTaHOBnTb aBTOMaTNky NOCNeIOBaTeJIbHOCTn KlaBnI (нриLOXeHne Home Cinema)

Bbl MoKeTe yCTaHOBnTb 3 nocJeIOBaTeJIbHOCrN, KaJdA Ha MaKc.10 KJIaBnHbIX KOMaHd, MaKpO, KOTopbIe BblDaOTcRaHa HaxKaTne KlaBnShn.

Cm. TaKke 1 pnc. 11. IocTynaTb, noKaIyIcTa, cJeDyUOuM o6pa3oM:

1. Hαχmnte KλaВишу SET 6oJIe 3 cεкУнДИ OTNyCtIte eе пи уkaЗанн CODE SETUP.

2. YctaHOBtB MACRO KJIaBnIe AIII N7. HaxMITE KJIaBnIy OK, yKa3bIBaETcR MACRO1. YctaHOBtE MACRO1, 2 IJI 3 KJIaBnIe AIII N

3. HaxMMTe KJIaBnUy OK, yKa3bIbAeTcR SET UP (yCTaHOBka). HaxMMTe KJIaBnUy OK.

5 Yka3bIbaeTc SELECT KEYS (BbIbOp KJIaBnU). 3aTeM Haxmnte Do 10 KnaBnU, KOtOpbIe DOJXHbI 6bITb BblDaHbI ABTomAtuYeCKn, Ha HaxKaTne KNaBnU. HanpImep, TV, POWER, DVD, POWER, AMP, POWER, IJRA TORO, YTO6bI BbIKJIOHTb BCE 3TN IIpn6bOpbl ODNHM HaxaTne M KnaBnU.

6 HauKmTe KnaBnUy OK KOrda 3aBeRpsnB BBOI COxpaHNTe IocJIeIOBaTeJbHOCTb.

CTnpaTb MaKpo

Cm. TaKke 1 pnc. 12.
IocTyNaTb, noKaJyNCTa, cJeDyUOuM
o6pa30M:

1. Haxmnte KnaBnuy SET 6oJee 3 cekyHn n OTnyCTnTe eepn yka3aHnn CODE SETUP.
2. YctaHOBInTe MACRO KJNaIBSeI ▲JIIN ▼
3. HaxMMTe KJIaBnUy OK, yKa3bIBaETcRA MACRO1. YCTaHOBtE MACRO1, 2 nJIn 3 KJIaBnUeI ▲ nJIn ▼.
4. HaxMMTE KJIaBnUy OK, yKa3bIbAeTcR SET UP (yCTaHOBka). YCTaHOBnTE DELETE (CTnpaHne) KJIaBnUeJ ▲ nJIn V.
5. Haxmnte KnaBnUy OK. Yka3bIbaeTcSURE DELETE (deiCTBnTeJbHO CTnpaTb).YtBePnte HaxaTneM KnaBnU N OK.Yka3bIbaeTc SUCCESS (ycnex) .
   6.ДЯ BO3BpaueHЯ B rIaBHOe MeHIO HEODHOKpATHO HaxMnte KJIaBnUy EXIT.

YnpaBnTb IIO6bIM np6bOpom Chepe3 np6bOpHyo KnaBnUy AUX

Bbl MOKTe yCTaHOBnTb KNaBnUy AUX TaK, TTO6bl ynpabJIaTB C eE NOMOuIIObIM npioBopom. Hanpimep, Bbl MOKTe uepe3 AUX ynpabJIaTB 2-M BuJeOMaHHTofoHOM.

IocTynTe, noXaynCTa, cJeDyUOuM o6pa3oM, cm. TaKke pnc. 13:

1 Haxmnte KnaBnuy SET 6oJee 3 cekyHn n OTnyCTnte e e npu yka3aHnN CODE SETUP. YtBepdnte HaxaTneM KnaBnU NK.
2 Yka3bIbaeTc yTaHOBnTe CODE SHIFT (pepeMeHneKoJa) KnaBnSei nN. YTBepnTe HaxkATnEM KlaBnO NK.
3 Yka3bIbAeTc KaKoJ-JIn6o np6Op, HapnpMep, TV 010. KnaBnWeAUX BBODInTe ynpabJIaEmbBnD np6Opa, HapnpMep, VCR, OK n KOd corJaIacHO nepeuHIO, cm. npINIOxHeH. YTBePdTe HaxKaTNm KNaBnUOK. 3aTeM yka3bIbAeTc SUCESS (ycnex).
4 3aTeM HeoHOKpaTHo HaxMnTe EXIT, YTO6bI BbIXOuNTb N3 peXIMa HaCTpOiKN.

OcbeHne poha

YTo6bl cKaOHOMtB eMKoCTb 6aTapei Bbl MOKeTe BBIKJIIOHTb OCBeUeHne JK.K. JIra 3TOrO NOCTyNITe, NOKaJyNCTa, CJeDyUOuM o6pa30m:

1 HaKMnTe KnaBnUy SET 6oJIe 3 cekyHd, KlaBnSei A nIu N yCTaHObITE CONFIGURE (HaCTpoIka). HaxaTneM KnaBnU OK yTbePnte 3Tu fYHKnIO.
2 Yka3bIbaeTc TIME SETUP (yCTaHOBka BpeMeHn).KlaBniSei AIIN V yCTaHOBInTe LIGHT (ocBeueHne).HaXaTneM KnaBnO NK OYTBepdnte 3Tu yHKuio.
3 ПосpeДCTВОМ Kлавиш > Или OСБешени ВКЛЮчаETСТ (ON) Или BыключаETСТ (OFF). HabkaTNem Kлавиш OK yTBPДNTe 3Tu ФуннцИ.
4 3aTeM HeoHOKpaTHO HaxMnTe EXIT, YTO6bI BbIXoNDtB n3 peXIMa HaCTpOiKN.

YctaHOBKa KOHTpacta

Дя lyшewи chtaemocn Bby moxete yctaHOBNTb KOHTpact INHdNkaunn:

1 Haxmnte KnaBnuy SET 6oJee 3 cekyH, KJIaBnUamN A INI N yCTaHOBNTe CONFIGURE (HaCToPoiKa). HaxaTeIM KJIaBnUO NKytBepDnTE 3Tu cyHKuIO.
2 Yka3bIbAeTcRA TIME SETUP (HactpoKa BpeMeHN).KnaBnUaMn ▲ nJN VyCTaHOBInTE CONTRAST (KOHTpAcT).HaxKaTHeM KlaBnUH OK yTBepDInTe 3Tu ΦyHKuHIO.
3 IocpeDCTBOM KJabuH 1NJn YcTaHOBInTe JKeJaembI KOHTpAcT. HaxKaTHeM KJIaBUNOkYTBepDInTe 3Ty cyHKUIO.
4 3aTeM HeoHOKpaTHO HaxMnTe EXIT, YTO6bI BbIXoNDtB n3 peXIMa HaCTpOiKN.

3aBoDcKne HacTpoIKn

HnKecIeDyUoIzM o6pa30M BbI MoXeTe BOCCTaHOBtB 3aBOJCKOE NCxOJHOe COCTOHNBE BaJero INCTaHcNIOHOrO ynpabJIeHnI, HapPIMep, DJIYcTpaHeHnI

Vivanco

UR 820 LCD UNIVERSAL CONTROLLER

OuH6OuyhIX yHKnI. Ipn 3TOM cTnpaOTcR BCE YCTaHOBJIeHHbIe 3HaueHnI.

-PekomeHoyemc npumehmb 3my fynkuio molboKo npu Hauuu cepb3hbx oU60hyx fynkuu ducmahuoHoo ynpaeneHua.

1 Haxmnte KnaBnuy SET 6oJee 3 cekyH, KnaBnWamN A INN yCTaHOBNTe CONFIGURE (HaCToPka). HaKaTneM KlaNBn OK yTBepnTe 3Tu cyHKuio.
2 Yka3bIbaeTc TIME SETUP (HactpoKa BpeMeH). KlaBnIaMNI ▲ nII N yCTaHOBInTe CLEAR ALL (BcE cTnpaTb). HaxKaTNem KJIaBnIu OK yTBepdnte 3Tu φyHKUIO.
3 3aTeM B INHДИКаци NOЯВЛЯETС: SURE CLEAR? (ДeйСТВИТЕЛьНО BCБ CTИРаТь?). Hжатием Клавиши OK yTВерДиTe 3Ту Функцию. aБmOMamuuecku .

UnpaBJeHne

Bbl ynpabnareTe npakTneckn Baunmnpnbopamn Takke, kak Bam 3TO 3HaKOMO CBaunx opnHnHaIbHbIX yCTpoiCTBdNCTAHIOHOHOro npabNeHnra. Pa3Hnca3aKnIOyaeTcR NlMb B TOM, YTO BamnpNJDeTcR, TTObI ynpabJIaTb XeJnaEMbIMnpnbOpom, HaxKaTb npexJe Bcero Ha KJIaBnUyTV, DVD nT.D. TaK kAc CNMBOJIbY cTPOiCTBAUR 820 LCD OTNIuAOTcR OT CNMBONOB BaunxopnHnAIBhIx yCTPOiCTB DInCTaHIOHOHOROynpaBHeHnRA Bo3MOXHo, YTO dJa HaxOXJdeHnFAyHKznn Bam notpe6yeTcR nCpnoobBat BCEKJIaBnIi.

Ioka3bBaTb nporpaMMbl (SCAN)

Bbl moKeTe noka3bIbAtb BCE nporpaMMbl, TV uNn DVB (SAT, CBL, DTT(DVB-T) nTd.) KOPOTKO dpyr 3a dpyrom:

1 Haxmnte TV- nDVB-Knabu,
2 HaxmTe SCAN-KnabuBy B TeueHne OKOJIo 4 ckyHd.
3 Otnyctnte KnaBnuy npu yka3aHnn SCAN. 3aTeM UR 820 LCD npyr 3a npyom noka3bIbaeT BCE TV- n DVB nporpaMMbl.
4ДЯпpekpaueHЯнжMITEIIO6yIO KJIaBnUy.

IcnoJb3ObaHne MaKpo: ynpaBnTbDOMaUSHM KINHO ODHNM HaxaTHEmKlaBnSh!

Ecni Bbl coxpani nocneobateIbHOCTn KJIaBnI, CMOTPi BblIe, To BblBblBaIeTe Ix HaxaTneM KJIaBnIIMAKPO,aOJHObpemehHO C 3TNIM HAXTneM KJIaBnI 1,2IuI3.

Topyaa JINHn

Ecni ecTb Bonpocbl no UR 820 LCD, to 3BOHnTe Ha ropayu loHHIO Vivanco: TeI.: (+007) 495 2325349. Ka aJIbTePHaTnBa, MOXHO NocnAeB TncbMo Ha aDpec 3JIeKTPoHNO nOHTbl: [e-mail].

TexHnueckne daHHbIe

БатAPEn: 2x мнкроэлем enta, AAA - Пумь ebчepкнуюс cumoona差别peu UR 820 LCD yka3b1Baem Heobxodumocmb 3amehi差别peu.

PdInyc DeIcTBn: Tm. 7 m

He nCnoJb3yETc IJI npI6OpOB 400 Kr.

3aBoDcKa rapaHTnJa 2 roDa

Ecni, B Teuehen 2 Iet nocne nokynki, Baunpnbop UR 820 LCD BbIeT n3 cTpo, To BVakom clyuae Bbl noJyUte ot fnpMbivanco becnplatHyO 3aMeHy. NckHoueHn:OTCYTCTByUoUne KObl, yMbIuJeHHoe pa3pyuWeHne HOpMaJIbHbI n3Hoc Kopnyca nKlaBnU.

(GR) Ośnyiecs xphoncs

Tnlexeiipotnpio Vivanco UR 820 LCD yia oukeues Tneopao, hou kai bivteo e xepuo eow utepuow oaw oxedov Tuv KAATAKEUaOTw.

ToTbeTnO mTaapiow

AvoiTe TO KATIaIK TNS UTOOxNc Tuv MIIATAPIWv OTO TIO WEPoC TNS OUAKEUNs, TIEOTa EALaOmuT EALaPPWc TPOCS TA KATW KAI TOITIOETEIOTE TIC 2 AkkalIKeG MIKPO-MIIATAPIEC (AAA). IPOOEETIG EVDEIEG DIATAEGS TIVIOWV OTIWCS AVAYPAPovTAl OTIG MIIATAPIECs KAI OTNV UTOOxN TIVW MIIATAPIW (+=+), KAI KLEIOTE TNV ΘKN TPOOEKTIKA. -XpnoIOTIOITE TAVTOTE MIIATAPIECS TIOU DEV EXOUV KAVEVA ATOLUTwElambda.

Euavion Tpoypaumatwv (SCAN)

MTOpeite va eTIaEETe Tn ouvtoun, diaoxikn Eupavion oawv Twv TnAOTIKWV TPoypaumatw, TV n DVB (SAT, CBL, DTT(DVB-T) kT.)
