USER MANUAL DRIVE HAUCK

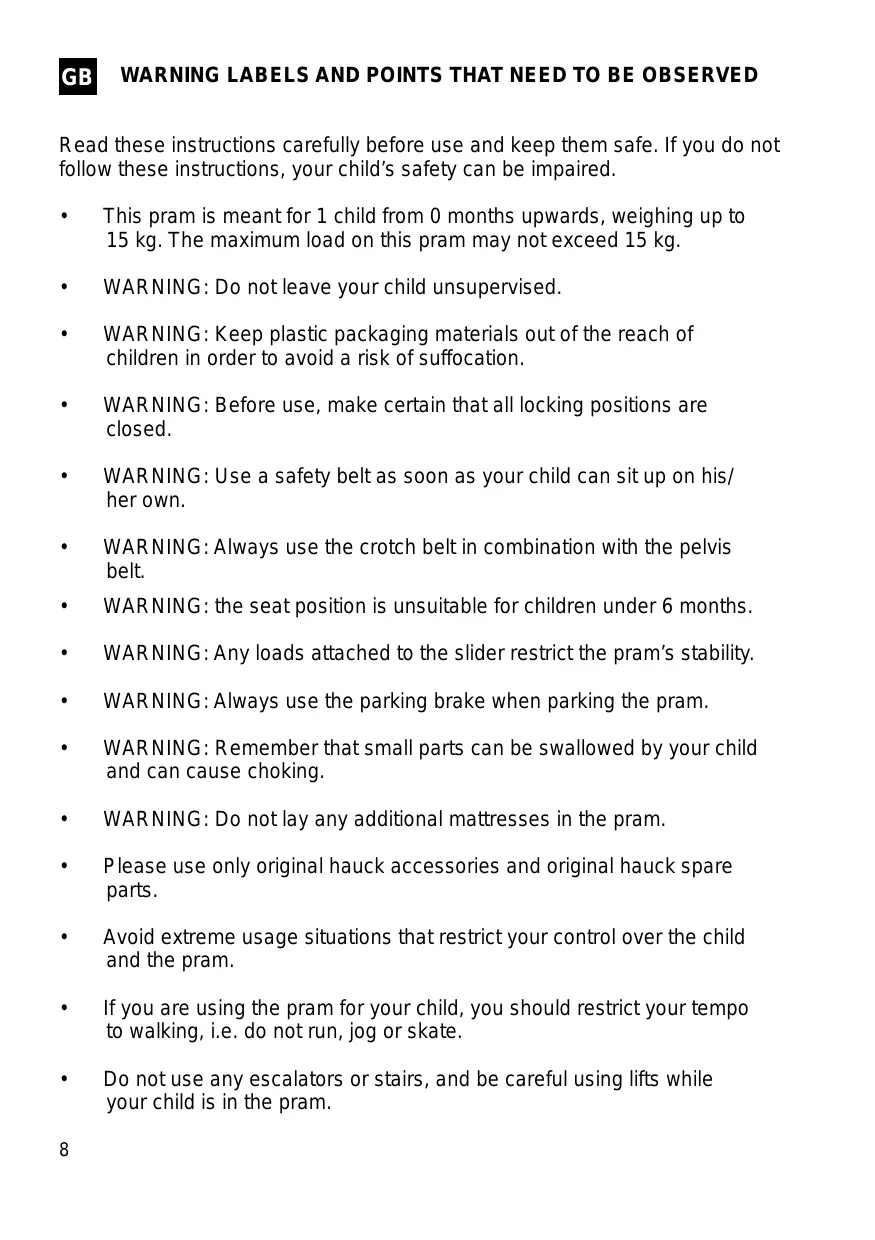

GB WARNING LABELS AND POINTS THAT NEED TO BE OBSERVED Read these instructions carefully before use and keep them safe. If you do not follow these instructions, your child’s safety can be impaired. •

This pram is meant for 1 child from 0 months upwards, weighing up to 15 kg. The maximum load on this pram may not exceed 15 kg.

WARNING: Do not leave your child unsupervised.

WARNING: Keep plastic packaging materials out of the reach of children in order to avoid a risk of suffocation.

WARNING: Before use, make certain that all locking positions are closed.

WARNING: Use a safety belt as soon as your child can sit up on his/ her own.

WARNING: Always use the crotch belt in combination with the pelvis belt.

WARNING: the seat position is unsuitable for children under 6 months.

WARNING: Any loads attached to the slider restrict the pram’s stability.

WARNING: Always use the parking brake when parking the pram.

WARNING: Remember that small parts can be swallowed by your child and can cause choking.

WARNING: Do not lay any additional mattresses in the pram.

Please use only original hauck accessories and original hauck spare parts.

Avoid extreme usage situations that restrict your control over the child and the pram.

If you are using the pram for your child, you should restrict your tempo to walking, i.e. do not run, jog or skate.

Do not use any escalators or stairs, and be careful using lifts while your child is in the pram.

Only use the space allowed for loading and do not exceed the maximum permitted weight of 15 kg.

The pram may only be used for transporting one child.

Please make sure that the child’s hands are nowhere near the folding area so as not to risk them being crushed if you have to fold up, unfold or otherwise change the pram or parts of it.

The maximum loading weight of the basket is 3 kg.

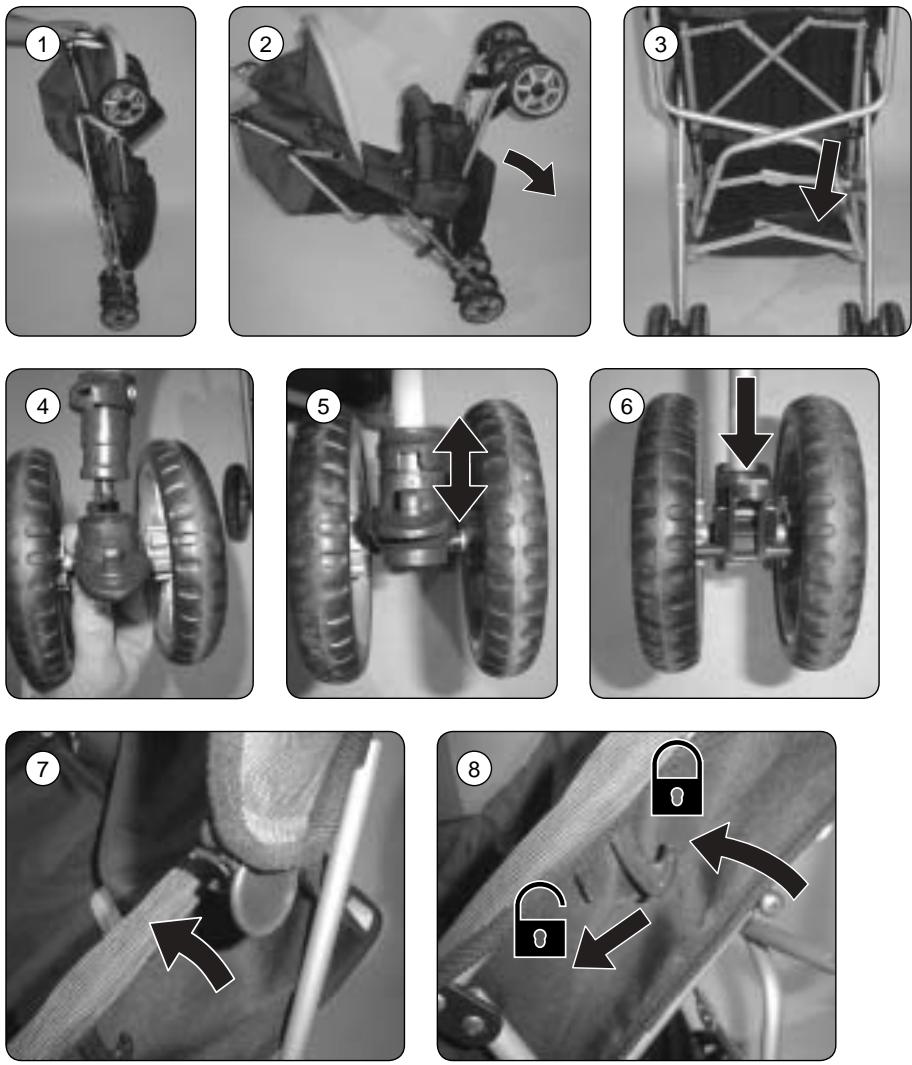

INSTRUCTIONS OF USE Assembly (fig. 1, 2, 3) Release the transport safety catch. Fold the pram forwards and press both cross-struts (1 top, 1 bottom) downwards until the supports are horizontally engaged.

Wheel assembly (fig. 4, 5) The rear wheels are already fitted. Push the front wheels on to the wheel joints until you see and hear them click into place. Make sure that the wheels are firmly attached. You can lock the swiveling wheels into place by pressing the plastic latching device.

Double-brake rear wheels (fig. 6) When parking the pram, press both parking brakes downwards.

Hood (fig. 7) Attach the hood to the frame using the hood clips. The hood can be tightened with the hood turnbuckles.

Adjusting the back rest (fig. 8) The back rest can be moved into two positions by pressing the latch-lever.

Folding Bring the backrest into the lying position. Open both cross-struts by pulling them upwards. Now fold the pram forwards. When transporting the pram, please hook in the transport safety catch.

UPKEEP AND MAINTENANCE GB In General Please check the pram functions on a regular basis. Make sure that the frame is stable, the screws are tight, the latching devices are safely locked, the wheels are securely attached and the brakes are in working order. Check the covers occasionally, making sure that the stitching is still firm, and inspect the quality of the plastic parts. Any defective or worn working parts should be replaced immediately. Proceed in the same manner with components that are broken, torn, defect or worn-out. Please use only original hauck replacement parts. Do not subject your pram to excessive solar radiation. This can lead to a fading of the textile covers and plastic parts. Cleaning the covers Remove the cover from the frame by loosening the loops, press studs or screws. Please read the instructions on the sewn-in washing label before washing. To clean the cover gently, wipe it down evenly using only a damp cloth. When cleaning cloth covers with non-removable lining, please take care not to drench everything. As long as there are no plastic, wood or metal parts on or in the cover, it can be machine-washed at 30° and spun at medium speed. The cover should be air-dried, but not exposed to blazing sun. Please do not dry the cover in the drier, so as to avoid shrinking. Do not re-fit the covers until they are completely dry. Cleaning the frame Dry the pram with a soft cloth after cleaning or after use in rain and snow. Use only mild soapy water or lukewarm water to clean the frame of your pram. Plastic parts can be cleaned with standard cleaners. Wheel maintenance Clean and service the wheels regularly. Treatment with a silicon or corrosion spray protects against rust and deposits. Please make sure in winter that road salt residue is removed immediately. Remove dirt from the wheels and axes on a regular basis. NL
