USER MANUAL COUNTRY SHOPPER 5 AIR HAUCK

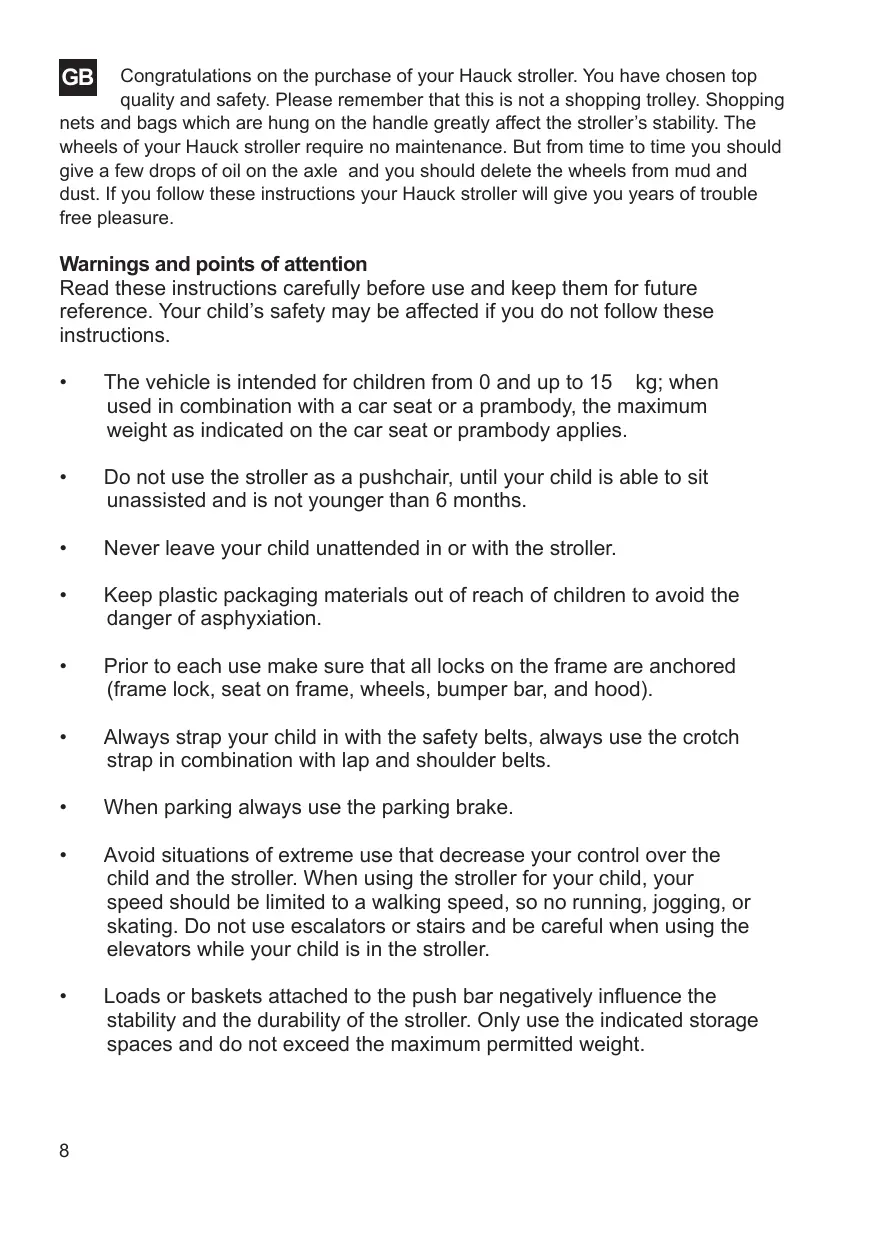

GB Congratulations on the purchase of your Hauck stroller. You have chosen top quality and safety. Please remember that this is not a shopping trolley. Shopping nets and bags which are hung on the handle greatly affect the stroller’s stability. The wheels of your Hauck stroller require no maintenance. But from time to time you should give a few drops of oil on the axle and you should delete the wheels from mud and dust. If you follow these instructions your Hauck stroller will give you years of trouble free pleasure.

Warnings and points of attention Read these instructions carefully before use and keep them for future reference. Your child’s safety may be affected if you do not follow these instructions. •

The vehicle is intended for children from 0 and up to 15 kg; when used in combination with a car seat or a prambody, the maximum weight as indicated on the car seat or prambody applies.

Do not use the stroller as a pushchair, until your child is able to sit unassisted and is not younger than 6 months.

Never leave your child unattended in or with the stroller.

Keep plastic packaging materials out of reach of children to avoid the danger of asphyxiation.

Prior to each use make sure that all locks on the frame are anchored (frame lock, seat on frame, wheels, bumper bar, and hood).

Always strap your child in with the safety belts, always use the crotch strap in combination with lap and shoulder belts.

When parking always use the parking brake.

Avoid situations of extreme use that decrease your control over the child and the stroller. When using the stroller for your child, your speed should be limited to a walking speed, so no running, jogging, or skating. Do not use escalators or stairs and be careful when using the elevators while your child is in the stroller.

Loads or baskets attached to the push bar negatively influence the stability and the durability of the stroller. Only use the indicated storage spaces and do not exceed the maximum permitted weight.

Check, clean and oil this stroller regularly. Use non-aggressive cleansing agents and lubricants.

The stroller may only be used for the transportation of one child.

No accessories may be used on the stroller unless they have been explicitly permitted by hauck for the stroller.

Make sure that the child’s hands stay out of range of possible pinching areas when the stroller or parts thereof are being folded, unfolded, or otherwise changed.

WARNING: Bear in mind that small parts, such as the valve caps on the wheels, can be swallowed by your child, and may cause your child to choke.

GB Please use only original hauck accessories and original hauck spare parts. THIS PRODUCT CONFORMS TO THE STANDARD: prEN 1888:2002-4

Instructions of use 1.

Front-/ Rear wheel assembly (fig. 2)

Release the transport safeguard. Tip forward to open until both catches can be seen and heard to engage.

2a. Push the wheel onto the axle until you hear a CLICK sound when the metal clamp catches groove on the axle.

2b. To remove the rear wheel, push the plastic lever up and pull the wheel off.

Adjustment of the frontbar (fig. 3)

Adjustment of the backrest (fig. 4, 5)

Push the frontbar below the locking on the frame. You will hear a click sound when they secure onto frame. Test front bar by pulling on it to make sure it is locked into place.

To bring the seat into a sitting position, press up the plastic adjustor on both sides at the same time. To set the seat in sitting position, push the adjuster upwards.

To apply the brake, press the brake lever down with your foot. To unlock, lift up with toe. Always use foot brake when the stroller is stopped.

Adjustment of the handle (fig. 6)

Footrest adjustment (fig. 7)

Checking tyre pressure

By pressing the buttons, you can adjust the handle.

To adjust the footrest, press the two buttons and bring it into the desired position.

Pull both latches upwards and tip the stroller backward to collapse. Secure with the transport safeguard. Make sure that the backrest is always in a recline position.

You can pump up the pneumatic tyres with a normal tyre pump. The tyre pressure must not exceed 2.0 bar.

Care and washing instructions

To clean the seat of your pram, remove the screws and plastic clips and wash the seat by hand using lukewarm soapy water. Do not put the seat in the tumble dryer as the seat contains plastic struts. Only attach the seat again when it is completely dry. To wash the removable cover (if your pram has one of these) we recommend hand laundry. PLEASE DO NOT USE BLEACH! Please check from time to time whether there are any loose screws, broken plastic parts or torn parts in your pram. Replace broken or worn parts immediately. Do not continue to use your pram if it is damaged. To clean the frame of your pram, please only use lukewarm water with a mild detergent! If your pram is exposed to excessive sunshine, the plastic parts and material covers can fade.
