WAARSCHUWINGSINSTRUCTIES

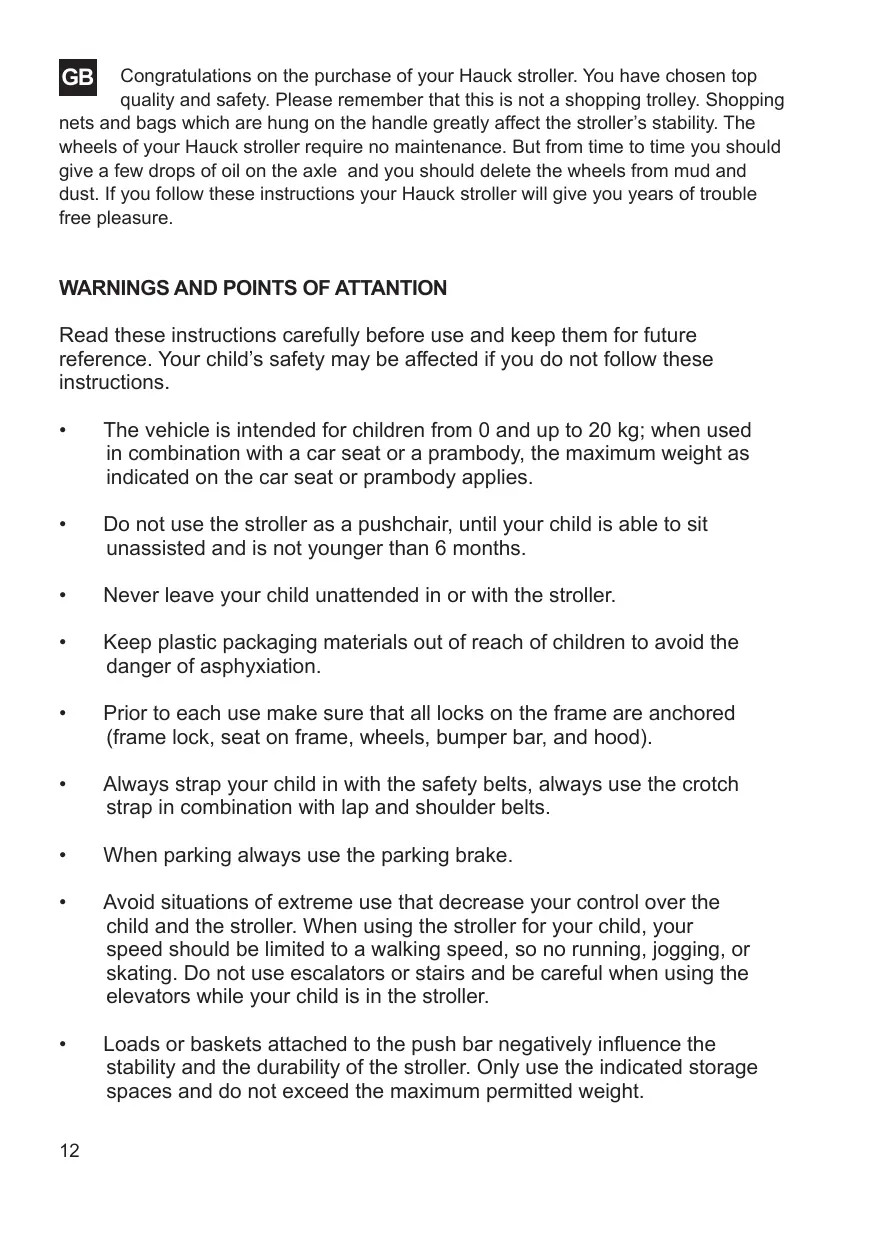

nets and bags which are hung on the handle greatly affect the stroller's stability. The wheels of your Hauck stroller require no maintenance. But from time to time you should give a few drops of oil on the axle and you should delete the wheels from mud and dust. If you follow these instructions your Hauck stroller will give you years of trouble free pleasure.

WARNINGS AND POINTS OF ATTANTION

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• The vehicle is intended for children from 0 and up to 20 kg; when used in combination with a car seat or a prambody, the maximum weight as indicated on the car seat or prambody applies.
• Do not use the stroller as a pushchair, until your child is able to sit unassisted and is not younger than 6 months.
  • Never leave your child unattended in or with the stroller.
• Keep plastic packaging materials out of reach of children to avoid the danger of asphyxiation.
• Prior to each use make sure that all locks on the frame are anchored (frame lock, seat on frame, wheels, bumper bar, and hood).
  • Always strap your child in with the safety belts, always use the crotch strap in combination with lap and shoulder belts.
• When parking always use the parking brake.
• Avoid situations of extreme use that decrease your control over the child and the stroller. When using the stroller for your child, your speed should be limited to a walking speed, so no running, jogging, or skating. Do not use escalators or stairs and be careful when using the elevators while your child is in the stroller.

• Loads or baskets attached to the push bar negatively influence the stability and the durability of the stroller. Only use the indicated storage spaces and do not exceed the maximum permitted weight.

• Check, clean and oil this stroller regularly. Use non-aggressive cleansing agents and lubricants.
  • The stroller may only be used for the transportation of one child.

• No accessories may be used on the stroller unless they have been explicitly permitted by hauck for the stroller.
• Make sure that the child's hands stay out of range of possible pinching areas when the stroller or parts thereof are being folded, unfolded, or otherwise changed.
• WARNING: Bear in mind that small parts, such as the valve caps on the wheels, can be swallowed by your child, and may cause your child to choke.

Please use only original hauck accessories and original hauck spare parts.

THIS PRODUCT CONFORMS TO THE STANDARD: EN 1888:2002-4

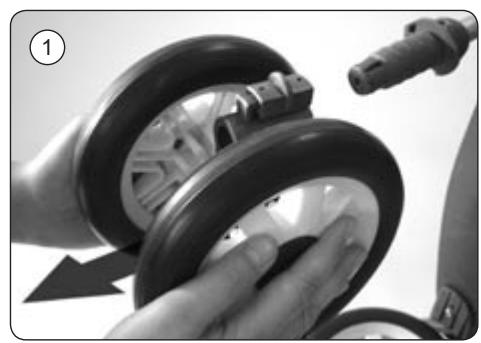

1. CHANGING THE WHEELS: INSTALLATION

Slide double wheel onto wheel axle and check that the double wheels engage properly.

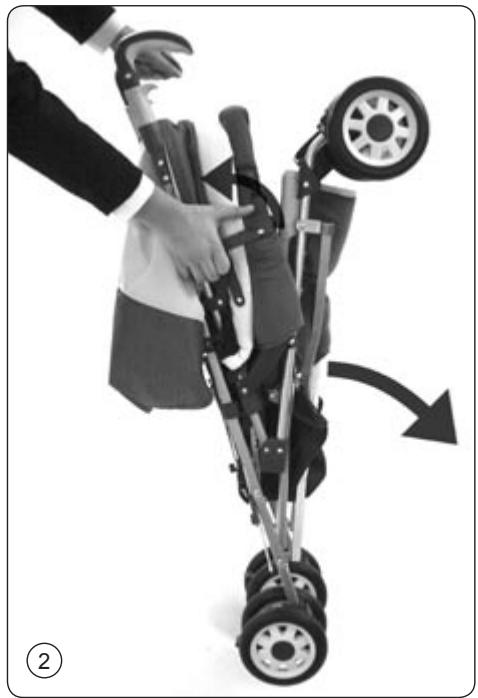

2. ERECTING

Release transport safeguard.

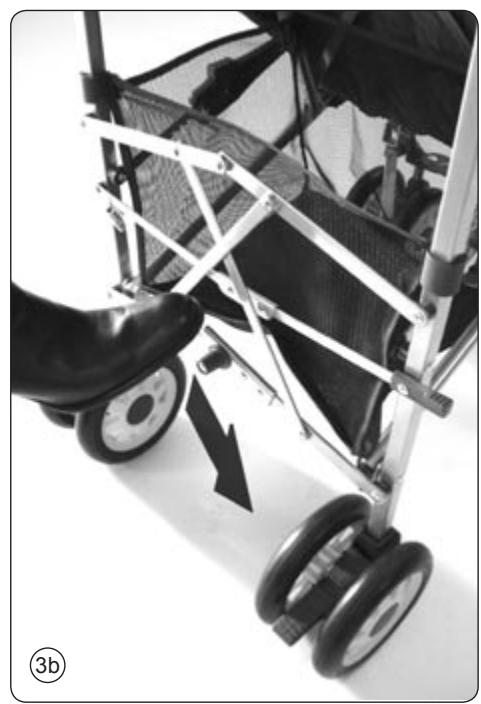

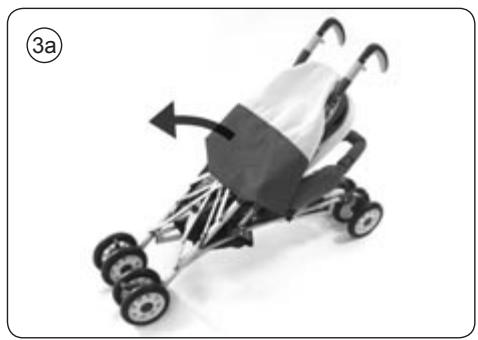

3. UNFOLDING

Tip forward to open and press both cross bars (top and bottom) down to the horizontal final position.

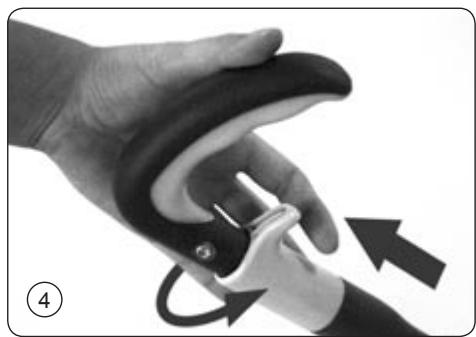

4. ADJUSTING THE HANDLEGRIPS

To adjust the handlegrips pull up the pistolgrips and turn the handlegrips into the desired position.

5. OPENING THE SAFETY BAR

Release the safety lever with your finger from below. Pull the safety bar forward.

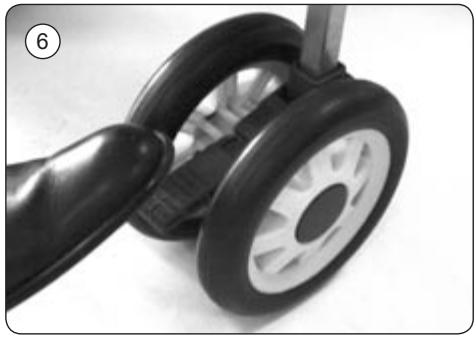

6. TWIN REAR WHEEL BRAKES

Both brakes must be locked down when stopping the stroller.

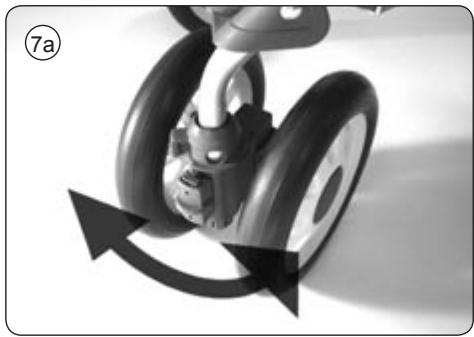

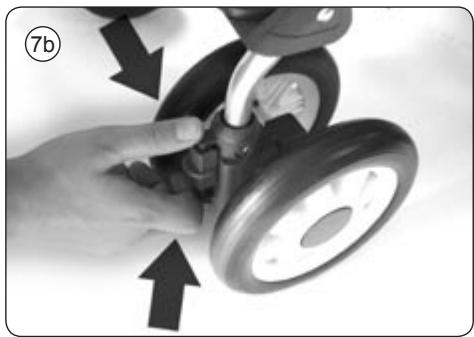

7. ADJUSTING THE FRONT WHEELS

If required, both front wheels can be turned to point in the right direction and locked.

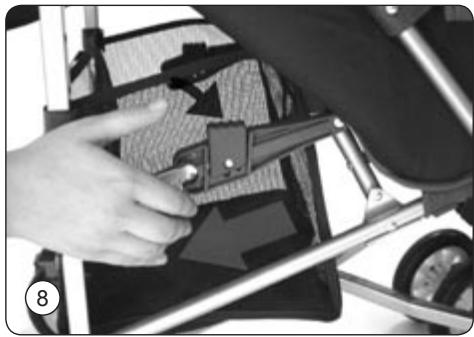

8. ADJUSTING THE BACK REST

Adjust the lever to alter the position of the back rest at five different heights.

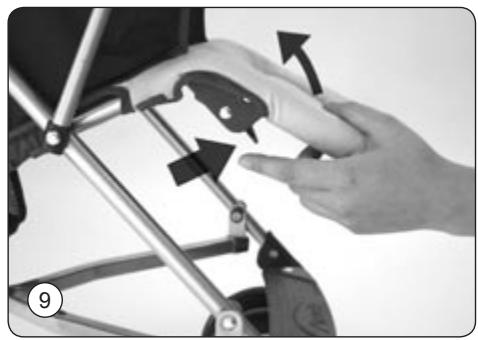

9. ADJUSTING THE FOOTREST

Press both levers to bring the footrest to the desired position.

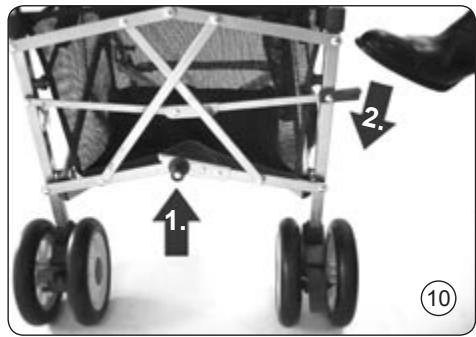

10. FOLDING AWAY

Return the back rest to sitting position. Open the safety bar on one side. Open both cross bars (top and bottom) and tip forward to collapse, holding one wheel firmly with your foot. Secure with the transport safeguard.

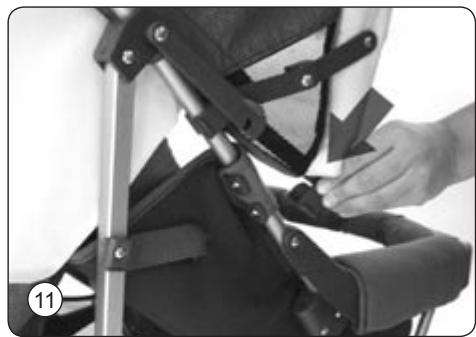

11. FITTING THE HOOD

Clamp the clamping device of the hood to both sides of the stroller frame.

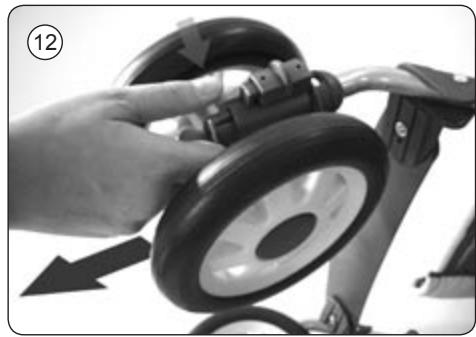

12. CHANGING THE WHEELS: REMOVAL

Lie stroller down in fully assembled state. Press both levers on the wheel frame and pull complete double wheel out to the front.

Care and washing instructions

To clean the seat of your pram, remove the screws and plastic clips and wash the seat by hand using lukewarm soapy water. Do not put the seat in the tumble dryer as the seat contains plastic struts. Only attach the seat again when it is completely dry. To wash the removable cover (if your pram has one of these) we recommend hand laundry.

PLEASE DO NOT USE BLEACH! Please check from time to time whether there are any loose screws, broken plastic parts or torn parts in your pram. Replace broken or worn parts immediately. Do not continue to use your pram if it is damaged. To clean the frame of your pram, please only use lukewarm water with a mild detergent! If your pram is exposed to excessive sunshine, the plastic parts and material covers can fade.

AVERTISSEMENTS ET MISES EN GARDE

IMPORTANT- KEEP IT FOR LATER READING

CONSERVER CE MODE D'EMPLOI POUR UN

USAGE ULTERIEUR ET LE LIRE ATTENTIVEMENT

TÜV Thüringen GS
