USER MANUAL ALPHA HAUCK

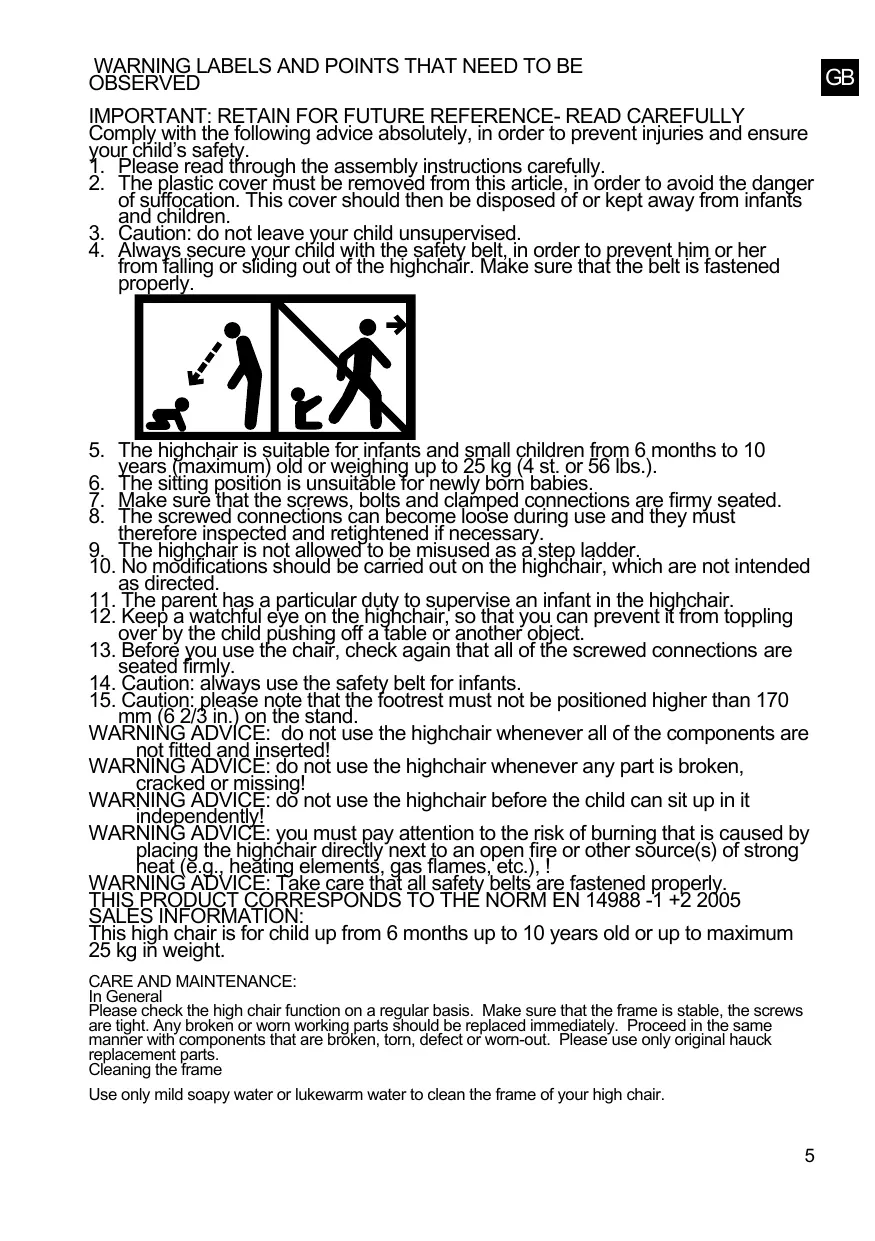

IMPORTANT: RETAIN FOR FUTURE REFERENCE- READ CAREFULLY Comply with the following advice absolutely, in order to prevent injuries and ensure your child’s safety.

1. Please read through the assembly instructions carefully.

2. The plastic cover must be removed from this article, in order to avoid the danger

of suffocation. This cover should then be disposed of or kept away from infants and children.

3. Caution: do not leave your child unsupervised.

4. Always secure your child with the safety belt, in order to prevent him or her

from falling or sliding out of the highchair. Make sure that the belt is fastened properly.

5. The highchair is suitable for infants and small children from 6 months to 10

years (maximum) old or weighing up to 25 kg (4 st. or 56 lbs.).

6. The sitting position is unsuitable for newly born babies.

7. Make sure that the screws, bolts and clamped connections are firmy seated.

8. The screwed connections can become loose during use and they must

therefore inspected and retightened if necessary.

9. The highchair is not allowed to be misused as a step ladder.

10. No modifications should be carried out on the highchair, which are not intended

11. The parent has a particular duty to supervise an infant in the highchair.

12. Keep a watchful eye on the highchair, so that you can prevent it from toppling

over by the child pushing off a table or another object.

13. Before you use the chair, check again that all of the screwed connections are

14. Caution: always use the safety belt for infants.

15. Caution: please note that the footrest must not be positioned higher than 170

mm (6 2/3 in.) on the stand. WARNING ADVICE: do not use the highchair whenever all of the components are not fitted and inserted! WARNING ADVICE: do not use the highchair whenever any part is broken, cracked or missing! WARNING ADVICE: do not use the highchair before the child can sit up in it independently! WARNING ADVICE: you must pay attention to the risk of burning that is caused by placing the highchair directly next to an open fire or other source(s) of strong heat (e.g., heating elements, gas flames, etc.), ! WARNING ADVICE: Take care that all safety belts are fastened properly. THIS PRODUCT CORRESPONDS TO THE NORM EN 14988 -1 +2 2005 SALES INFORMATION: This high chair is for child up from 6 months up to 10 years old or up to maximum 25 kg in weight. CARE AND MAINTENANCE: In General Please check the high chair function on a regular basis. Make sure that the frame is stable, the screws are tight. Any broken or worn working parts should be replaced immediately. Proceed in the same manner with components that are broken, torn, defect or worn-out. Please use only original hauck replacement parts. Cleaning the frame Use only mild soapy water or lukewarm water to clean the frame of your high chair.

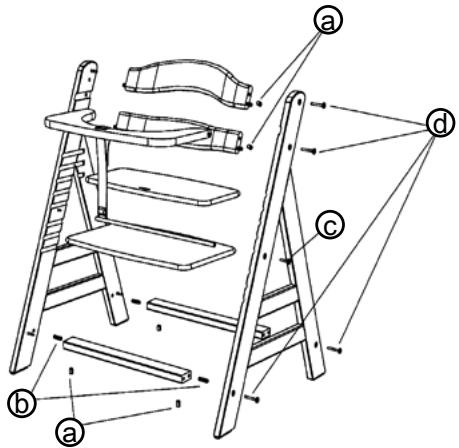

Frontbar Upper back rest Lower back rest Seat Footrest 2 no. wooden struts Right framed legs Left framed legs Metal rod Safety belt Fasteners: 1 no. 4 mm Allen key a. 8 no. transverse threaded bolts b. 4 no. wooden dowels c. Short metal screws d. Long metal screws

ASSEMBLY INSTRUCTIONS AND INSTRUCTIONS FOR USE

1. Inspect whether all of the listed parts are present.

2. Insert the transverse threaded bolts (a) into the provided openings on the wooden struts (F).

Take care while doing so, that the slots on the transverse threaded bolts face upwards.

3. Connect the wooden struts (F) to the left framed legs (H), by pushing the long metal screw (d)

through the lower opening of the framed legs and tightening it with the Allen key. Make sure that it cannot be pulled off !

4. Proceed in the same manner for fastening the right framed legs.

5. Connect the metal rod (I) to the left framed legs (H) by pushing a short metal screw (c) through

the central opening of the framed legs and tightening it with the Allen key. Make sure that it cannot be pulled off! Do not fasten the rod onto the right framed legs (G) yet!

6. Lay the backrests (B and C) down on the floor with their backs facing upwards. Insert the

remaining two transverse threaded bolts (a) into the provided opening on the back rest. Take care that the slots in the transverse threaded bolts face upwards.

7. Connect the back rests (B and C) to the left framed legs (H) by pushing a long metal screw (d)

through the upper opening of the framed legs (H) and tightening it with the Allen key. Make sure that it cannot be pulled off! Do not fasten the backrest onto the right framed legs (G) yet!

8. Push the frontbar (A) between the two framed legs (G and H). Pull the right framed legs (G)

slightly sideways if necessary. Caution: the wooden dowels on both ends of the frontbar (A) must be inserted into the holes that are provided for them on the inner sides of the framed legs (G and H).

9. Now connect the back rests (B and C) to the right framed legs (G) by pushing a long metal

screw (d) through the opening of the framed legs (G) and tightening it with the Allen key. Make sure that it cannot be pulled off! The frontbar is now seated firmly between both of the framed legs (G and H). Make sure that it cannot be pulled off!

10. Push the seat (D) into the notches at the desired height. Insert the footrest (E) at an

appropriate height. Make sure that the seat and footrest are aligned in parallel ! Tighten all of the screwed connections! Open the clasp on the safety belt (J) and push it through the seat (D) from below. Lay the safety belt (J) over the frontbar (A) and close it with the Velcro fastener.

11. If it is intended to adjust the height of the seat and footrest so that the highchair suits the

child’s size, then it suffices to loosen the belt as well as the upper and central screws on one side and subsequently reinsert the seat and footrest at the desired heights, as described previously. Then tighten the screws and tauten the safety belt. Always carry out a pulling test. The varied possibilities for adjustment ensure that your child can use this highchair from the age of approximately 6 months to about 10 years old. This chair fulfils the standard requirements of a highchair in the 1st and 2nd positions when it is used together with the frontbar (A) and the safety belt (J). The highchair can be converted into a chair by removing the frontbar (A) and the safety belt (J).
