USER MANUAL 173000 PIERRE PRINCESS

173000 Princess Cheese & Chocolate Fondue

• Clean the appliance. Refer to the section

"Cleaning and maintenance". • Place the appliance on a stable and flat surface. • Fill the fondue pot (4) with the required ingredients. • Place the fondue pot (4) onto the heating base (3). • Insert the mains plug into the wall socket. • Turn the thermostat dial (1) to the maximum temperature. • Wait for a few minutes until the temperature indicator (2) goes off. The heating base (3) has reached the required temperature. • After use, remove the mains plug from the wall socket and allow the appliance to cool down completely.

The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years.

Switching on and off (fig. A) • To switch on the appliance, insert the mains plug into the wall socket and turn the thermostat dial (1) to the required temperature. The temperature indicator (2) remains on while the fondue pot (4) is being heated. The temperature indicator (2) goes off when the heating base (3) has reached the required temperature. • While the appliance is switched on, the temperature indicator (1) will illuminate and extinguish as the thermostat switches on and off to maintain the required temperature. • To switch off the appliance, turn the thermostat dial (1) to the minimum temperature and remove the mains plug from the wall socket.

Description (fig. A)

Your 173000 Princess fondue set has been designed for fondueing. The appliance is equipped with a thermostat that keeps the fondue pot at the required temperature. The fondue set is suitable for cheese fondue and chocolate fondue. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only. 1. Thermostat dial 2. Temperature indicator 3. Heating base 4. Fondue pot 5. Fondue forks

Setting the temperature (fig. A)

• Turn the thermostat dial (1) to the right to increase the temperature of the heating base (3). • Turn the thermostat dial (1) to the left to decrease the temperature of the heating base (3).

Initial use (fig. A)

Before you proceed, we need you to pay attention to the following notes: - Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Hints for use (fig. A)

• Prepare the ingredients. • Place the appliance on a stable and flat surface.

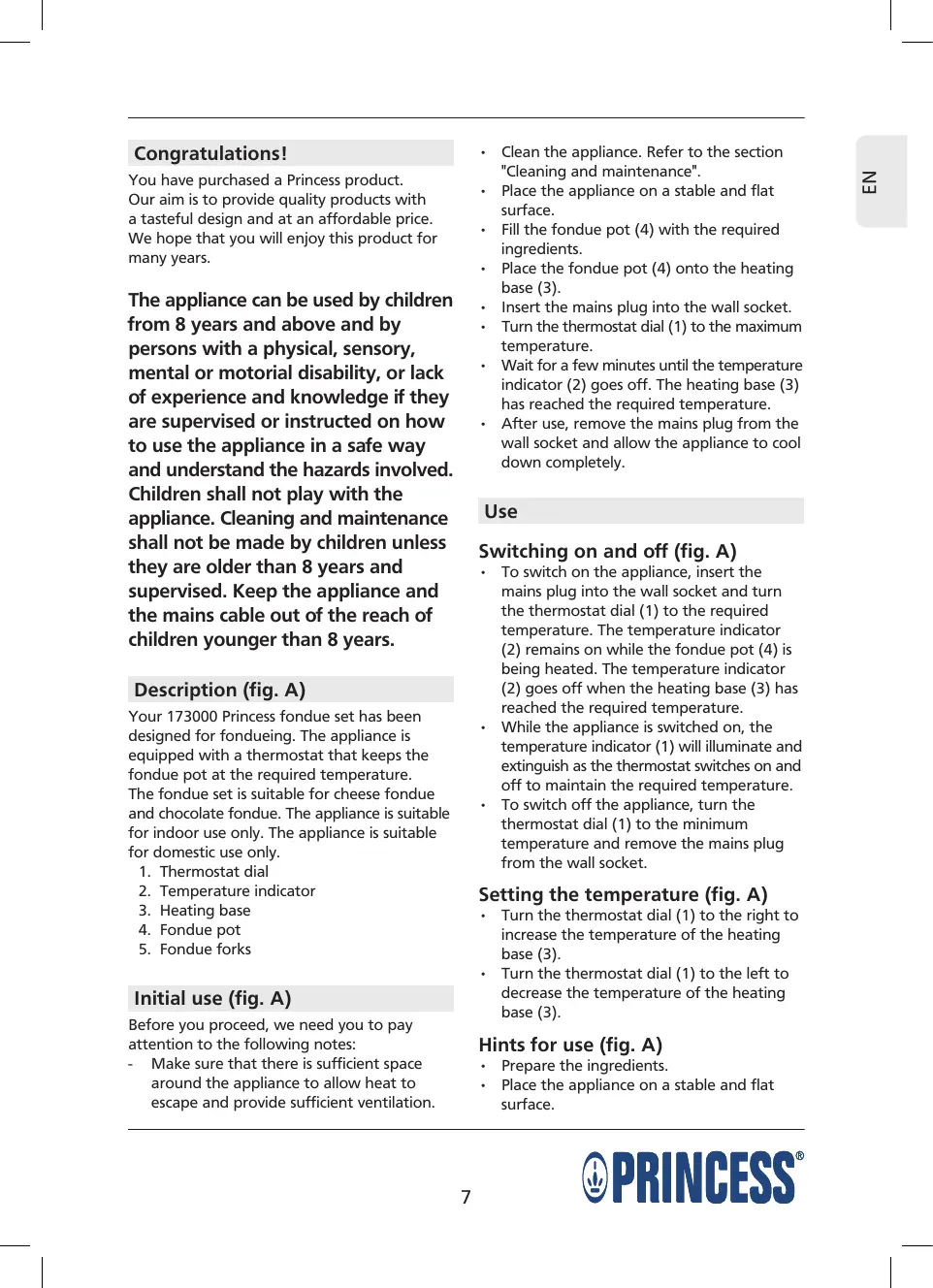

You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years.

• Clean the fondue pot (4) with a soft, damp cloth.

• Fill the fondue pot (4) with the required ingredients. • Place the fondue pot (4) onto the heating base (3). • Insert the mains plug into the wall socket. • Turn the thermostat dial (1) to the required temperature. • Wait for a few minutes until the temperature indicator (2) goes off. The heating base (3) has reached the required temperature. • Stir the fondue to make sure that it is fully melted. • Prick the food onto the fondue fork (5). • Dip the food into the fondue. • Stir the food into the fondue for a few seconds. • Remove the fondue fork (5) from the fondue pot (4) and move the fondue fork (5) to your fondue plate. • Remove the food from the fondue fork (5). • To switch off the appliance, turn the thermostat dial (1) to the minimum temperature and remove the mains plug from the wall socket. • Allow the appliance to cool down completely.

• Clean the appliance after each use:

- Remove any residues with a paper towel. - Clean the heating base with a soft, damp cloth. Thoroughly dry the heating base with a clean, dry cloth. - Clean the fondue pot in soapy water. Rinse the fondue pot to remove soap residue. Thoroughly dry the fondue pot with a clean, dry cloth. - Clean the fondue forks in soapy water. Rinse the fondue forks to remove soap residue. Thoroughly dry the fondue forks with a clean, dry cloth. • Put the appliance and the accessories in the original packaging. • Store the appliance with the accessories in a dry place, out of the reach of children.

General safety • Read the manual carefully before use. Keep the manual for future reference. • Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. • Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. • Children should be supervised to ensure that they do not play with the appliance. • The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance. • Do not use the appliance near bathtubs, showers, basins or other vessels containing water. • Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands.

Cleaning and maintenance

Before you proceed, we need you to pay attention to the following notes: - Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or other liquids. - Do not immerse the thermostat in water or other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. • Regularly check the appliance for possible damage.

Safety instructions for fondue sets

• Do not use the appliance outdoors. • Place the appliance on a stable and flat surface. • Place the appliance on a heat-resistant and splash-proof surface. • Do not place the appliance on a hob. • Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation. • Make sure that the appliance does not come into contact with flammable material. • Keep the appliance away from heat sources. • Do not cover the appliance. • Beware of steam and splashes when putting food into the hot fondue. • Always be careful when touching the appliance. Use oven gloves if you need to touch the appliance during or shortly after use. • The fondue pot becomes very hot during use. Do not touch the hot fondue pot. • The accessible surfaces of the appliance can become very hot during use. Do not touch the accessible surfaces. • Make sure that your hands are dry before touching the appliance. • Do not move the appliance while it is switched on or is still hot. Remove the mains plug from the wall socket and wait until the appliance has cooled down. • Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.

• Keep the appliance and the mains cable out of the reach of children younger than 8 years. • Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance. • Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1 mm2). • For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30 mA. • The appliance is not intended to be operated by means of an external timer or separate remote-control system. • Only use the appropriate connector to operate the appliance. • Make sure that water cannot enter the contact plugs of the mains cable and the extension cable. • Always fully unwind the mains cable and the extension cable. • Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over. • Keep the mains cable away from heat, oil and sharp edges. • Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. • Do not pull the mains cable to disconnect the mains plug from the mains.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE GREEN/YELLOW EARTH As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.

• This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-andbreakfast type environments.

EN The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or GREEN or GREEN/YELLOW.

If a 13Amp (BS1363) plug is used, a 13Amp

(BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. Warning! This appliance must be earthed.

Subject to change; specifications can be changed without further notice.
