Taipei - Suitcase PRINCESS - Free user manual and instructions

Product Type	Suitcase
Brand	Princess
Model	Taipei
Built-in Scale	Yes, maximum load 10/15/20 kg for sizes S/M/L
Scale Accuracy	±2.5 kg
Scale Units	kg and lbs (toggle with KG/LBS button)
Scale Battery	1 x CR2032
Lock Type	3-digit combination lock (pull lock and push lock)
Default Lock Code	0-0-0
Removable Charger	Yes, power bank unit (POWER BOX)
Charger Removal	Open inside zipper, cut zip tie if first time, slide out charger unit
Lock for Charger Compartment	Sliding cover that locks
Handle	Side handle for lifting when using scale
Scale Operation	Place on flat surface, press ON/OFF, lift by handle, read weight
Low Battery Indicator	Display shows 'LO'
Battery Replacement	Locate battery compartment inside suitcase, slide cover open
Water Resistance	Do not expose to rain or humidity
Compatible Battery Brand	Only use A-brand CR2032
Maintenance	Replace scale battery when 'LO' appears; keep dry
Safety Instructions	Never expose to moisture; use only specified battery

Frequently Asked Questions - Taipei PRINCESS

How do I set a custom combination on the lock?

For pull lock or push lock, the default code is 0-0-0. Press the A button in the direction of the arrow, hold it, set your desired 3-digit code by turning the wheels (B), then release the button. Do not release the button while setting the code.

How do I use the built-in scale?

Place the suitcase on a flat surface with the LCD screen facing up. Press the ON/OFF button. When '0' appears, lift the suitcase by the side handle and hold it still for a few seconds. The weight will be displayed. Press ON/OFF again to turn off.

What battery does the scale use?

The scale uses one CR2032 battery. Only use A-brand batteries.

How do I replace the scale battery?

The battery compartment is on the rear side of the scale, inside the suitcase. Slide open the cover, replace the battery with a CR2032, paying attention to polarity, then close the cover.

How do I remove the built-in charger?

Open the zipper inside the suitcase. If first use, cut the zip tie. Pull up the lid and slide out the charger unit. Then close and lock the sliding cover.

What is the maximum weight the scale can measure?

The maximum load depends on suitcase size: 10 kg for size S, 15 kg for size M, and 20 kg for size L. Tolerance is ±2.5 kg.

How do I switch between kilograms and pounds?

Press the KG/LBS button on the scale to toggle the display between kilograms (kg) and pounds (lbs).

Can I use the suitcase in the rain?

No. Never expose the suitcase to rain or humidity as it may damage the built-in scale.

What is the default lock code?

The default lock code for both pull lock and push lock is 0-0-0.

How do I lock the charger compartment?

After removing the charger, slide the cover back and lock it. This prevents unauthorized access to the interior of the suitcase.

USER MANUAL Taipei PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

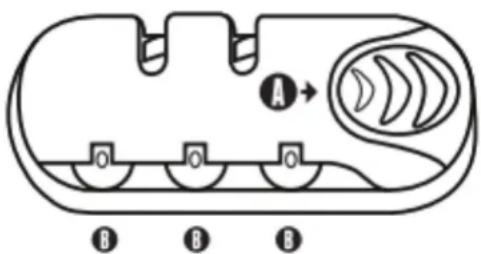

PULL LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.
• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

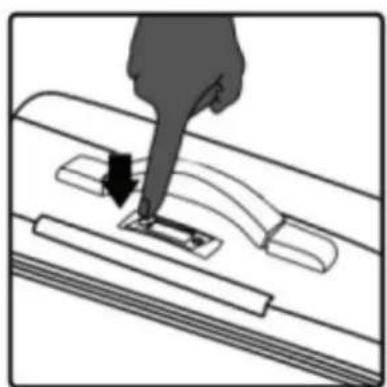

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

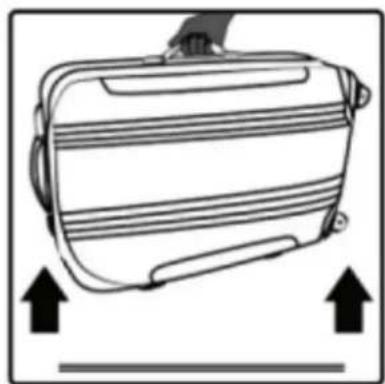

Line drawing of a suitcase with upward arrows indicating motion or movement (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

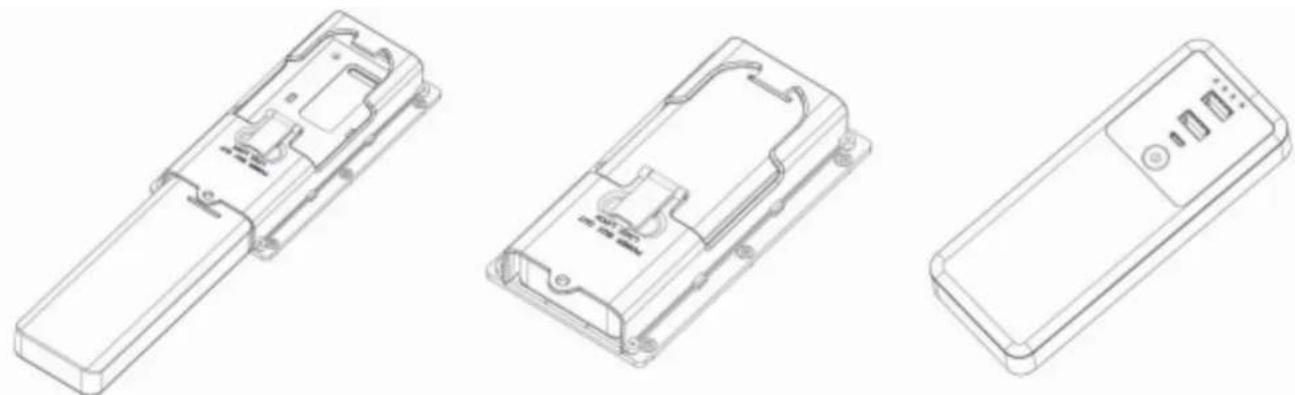

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
