Palermo - Suitcase PRINCESS - Free user manual and instructions

Product Type	Suitcase
Brand	Princess
Model	Palermo
Lock Type	3-digit combination lock (pull lock and push lock)
Built-in Scale	Yes, with LCD display
Scale Capacity (S size)	10 kg
Scale Capacity (M size)	15 kg
Scale Capacity (L size)	20 kg
Scale Tolerance	±2.5 kg
Scale Display Units	kg / lbs (switchable)
Scale Battery Type	CR2032 (A-brand recommended)
Scale Battery Location	Inside the suitcase, rear side of scale
Removable Charger	Yes, power box charger removes from inside compartment
Charger Compartment Lock	Sliding cover with lock for security
Usage Instructions	Place on flat surface, press ON/OFF, lift by side handle to weigh
Maintenance	Replace battery when display shows 'LO' or scale unresponsive
Safety Precautions	Do not expose to rain or humidity; use only specified battery
General Information	Travel like a royal with Princess Palermo suitcase

Frequently Asked Questions - Palermo PRINCESS

How do I set the combination lock on my Princess Palermo suitcase?

For both pull and push locks, the default code is 0-0-0. Press the button (A) in the direction of the arrow, hold it, and turn the wheels (B) to your desired 3-digit code. Release the button to set. Do not release while setting.

How do I use the built-in scale?

Place the suitcase on a flat surface with the LCD screen facing up. Press the 'ON/OFF' button. When '0' appears, lift the suitcase by the side handle and hold steady. The weight will display. Press 'ON/OFF' to turn off. Press 'KG/LBS' to switch units.

What type of battery does the scale use and how do I replace it?

The scale uses a CR2032 battery (A-brand recommended). Open the cover on the inside rear of the scale, remove old battery, insert new one respecting polarity. If display shows 'LO' or scale is unresponsive, replace the battery.

What is the maximum weight the scale can measure?

The maximum load depends on suitcase size: 10 kg for size S, 15 kg for size M, and 20 kg for size L. Tolerance is ±2.5 kg.

How do I remove the power box charger?

Open the zipper inside the suitcase. For first use, cut the zip tie. Pull up the lid and slide out the charger unit. Close and lock the sliding cover after removal.

Can I lock the charger compartment after removing the charger?

Yes, the sliding cover has a lock. Once the charger is removed, lock the cover to prevent unauthorized access to the compartment.

How do I clean my Princess Palermo suitcase?

Wipe with a damp cloth. Do not expose to rain or humidity, as this may damage the scale. Avoid harsh chemicals.

What should I do if the scale displays 'LO'?

'LO' indicates low battery. Replace the CR2032 battery as described in the manual. Use only A-brand batteries.

Is the scale waterproof?

No. Do not expose the suitcase to rain or humidity, as it may damage the scale. Keep in dry conditions.

Why does my scale show inaccurate weight?

Ensure the suitcase is on a flat, stable surface and you lift it steadily by the side handle. Tolerance is ±2.5 kg. If inaccurate, check battery or recalibrate (if possible) - refer to manual.

USER MANUAL Palermo PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

PULL LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.

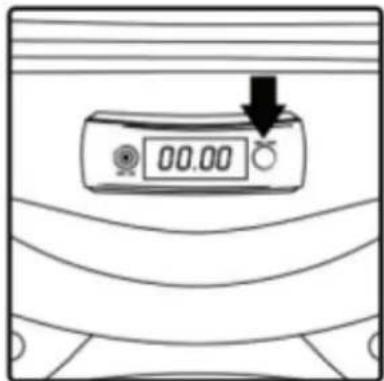

• Press the button marked 'ON/OFF'.

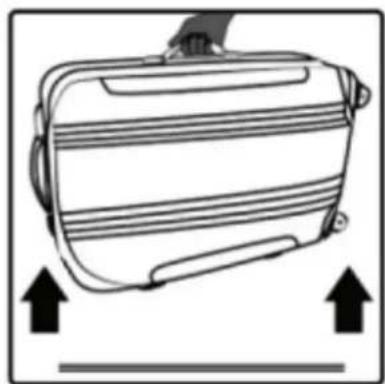

• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Illustration of a suitcase with upward arrows indicating motion or movement (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

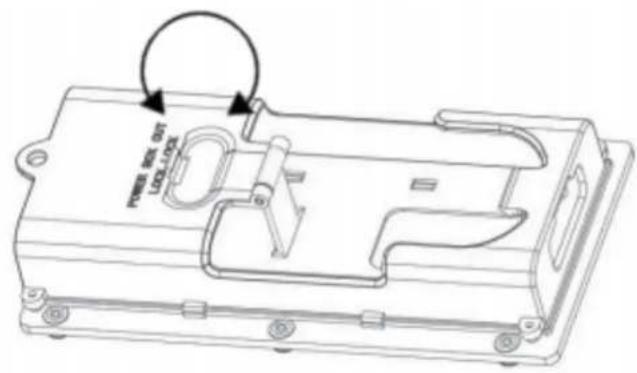

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
