Beijing - Suitcase PRINCESS - Free user manual and instructions

Product Type	Suitcase with built-in scale and detachable charger
Brand	Princess
Model	Beijing
Available Sizes	S, M, L
Scale Maximum Load (S)	10 kg
Scale Maximum Load (M)	15 kg
Scale Maximum Load (L)	20 kg
Scale Tolerance	±2.5 kg
Scale Units	kg / lbs (switchable)
Scale Display	LCD
Scale Battery Type	CR2032 (A-brand recommended)
Scale Battery Location	Inside the suitcase, rear side of the scale
Lock Type	Pull lock and push lock (both 3-digit combination)
Lock Default Code	0-0-0
Charger Type	Detachable, removable unit
Charger Access	Open zipper inside suitcase, slide out unit
Charger Lock	Sliding cover locks after removal
Maintenance	Replace scale battery when display shows 'LO'
Safety Precautions	Do not expose to rain or humidity
Included Manual Languages	English (PDF available)

Frequently Asked Questions - Beijing PRINCESS

How do I set the lock code on my Princess Beijing suitcase?

For both pull lock and push lock: the lock is initially set to 0-0-0. Press button A in the direction of the arrow, hold it, and turn the wheels (B) to your desired 3-digit code. Release button A to set the code. Do not release the button while setting the code.

How do I reset the lock to the default code 0-0-0?

To reset, press button A and hold it. Turn the wheels to 0-0-0, then release button A. The lock will reset to the default code.

How do I use the built-in scale on my suitcase?

Place the suitcase on a flat surface with the LCD screen facing up. Press the 'ON/OFF' button. When '0' appears, lift the suitcase by the side handle and hold still for a few seconds. The weight will be displayed. Press 'ON/OFF' again to turn off.

What is the maximum weight capacity for the scale?

The maximum load depends on the suitcase size: 10 kg for size S, 15 kg for size M, and 20 kg for size L. The tolerance is ±2.5 kg.

How can I switch between kilograms and pounds on the scale?

Press the button marked 'KG/LBS' to toggle the display between kilograms and pounds.

How do I replace the battery in the scale?

If the scale does not respond or shows 'LO', replace the battery. The battery is located on the rear side of the scale, inside the suitcase. Slide open the cover, replace with a CR2032 battery (A-brand recommended), paying attention to polarity, then close the cover.

How do I remove the detachable charger from the suitcase?

Open the zipper inside the suitcase. If it is the first use, cut the zip tie. Pull up the lid and slide out the charger unit. Close and lock the sliding cover after removal.

How do I lock the charger compartment after removing the charger?

Once the charger is removed, lock the sliding cover to prevent anyone from placing items inside without your knowledge.

What type of battery does the scale use?

The scale uses a CR2032 battery. It is recommended to use A-brand batteries.

How should I clean and maintain my Princess Beijing suitcase?

Avoid exposing the suitcase to rain or humidity. Clean with a damp cloth. For the scale, replace the battery when the display shows 'LO'. Store the instructions for future reference.

USER MANUAL Beijing PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

PULL LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.
• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

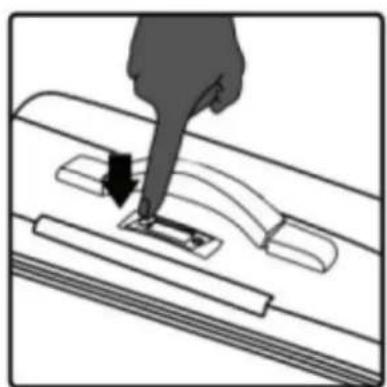

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a suitcase with upward arrows indicating motion or movement (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

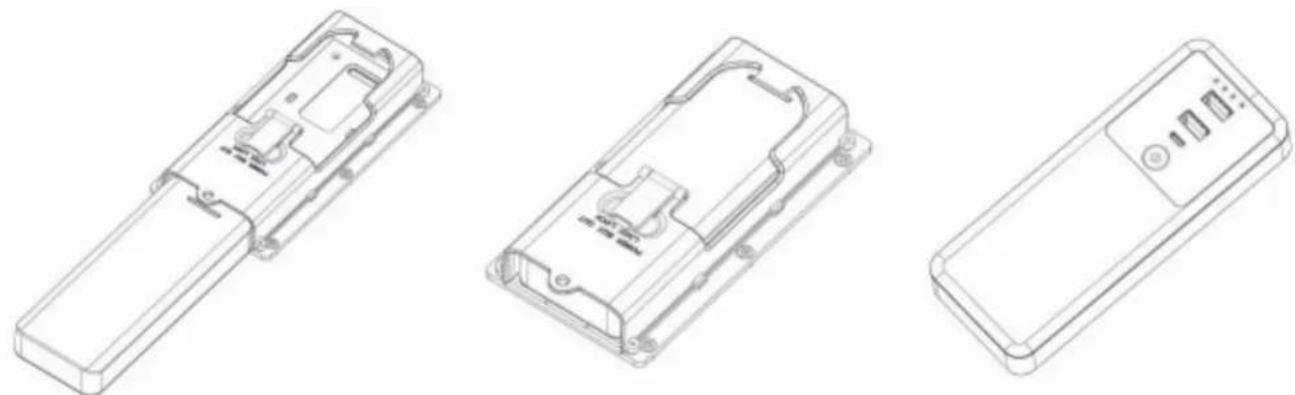

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
