USER MANUAL MR8HD FOSTEX

MR-8HD Owner's Manual (Safety instructions/Contents)

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "WARNING" "TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE." SAFETY INSTRUCTIONS Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions

should be retained for future reference.

3. Heed Wamings - All warings on the appliance and in the

operating instructions should be adhered to.

4. Follow Instructions - Al operating and use instructions should

5. Water and Moisture - The appliance should not be used

near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like.

6. Carts and Stands - The appliance should be used only with

a cartor stand that is recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overtum.

7. WallorCeiling Mounting - The appliance should be mounted

to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so thatits

location or position dose notinterfere with its proper ventilation. For example, the appliance should notbe situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinetthat may impede the flow of air through the ventilation openings.

9. Heat-The appliance should be situated away from heat

sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a

power supply only of the type described in the operating instructions or as marked on the appliance. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR ÉVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

11. Grounding or Polarization - The precautions that should be

taken so thatthe grounding or polarization means of an appliance is not defeated.

12. Power Cord Protection - Power supply cords should be

routed so thatthey are notlikely to be walked on or pinched by items placed upon or againstthem, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. Cleaning - The appliance should be cleaned only as

recommended by the manufacturer.

14. Nonuse Periods - The power cord of the appliance should

be unplugged from the outlet when left unused for a long period of time. Objectand Liquid Entry - Care should be taken so thatobjects do notfall and liquids are notspilled into the enclosure through openings.

16. Damage Requiring Service - The appliance should be

serviced by qualified service personnel when: A. The power supply cord orthe plug has been damaged: or B._ Objects have fallen, or liquid has been spiled into the appliance:

C.. The appliance has been exposed to rain: or D. The appliance does not appear to operate normally or exhibits_ a marked change in performance: or E. The appliance has been dropped, orthe enclosure damaged Servicing - The user should not attemptto service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. The appliance should be situated away from drops of water or spray of water. Objects containing liquid such as vase must not be put on the appliance. The appliance is not completely isolated from the power supply even ifthe power switch is at off position.

21. Apparatus shall not be exposed to dripping or splashing

and no objects filled with liquids, such as vases, shall be placed on the apparatus. Only use attachments/accessories specified by the manufacturer. An appliance with a protective earth terminal should be connected to a mains outlet with a protective earth connection. An appliance should be placed in a position where an AC plug /inlet can be easily pulled out by hand.

MR-8HD Owner's Manual (Safety instructions/Contents) 10) Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do notuse this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do notinstall near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade orthe third prong are provided for your safety. Ifthe provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protectthe power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) 12) 13) 14) Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cartis used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods oftime. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

EI MR-8HD Owner's Manual (Safety instructions/Contents) Input connection …….. Input channel INPUT A SEL switch Recording track combinations and available input channel(s) . Recording onto a single track … Preparation for recording . Starting recording Playing back the recorded trac Undoing recording (undo/redo) Overdubbing basics ….….. Preparation for recording . Adjusting the recording levels while listening to track 1. Starting recording Playing back recorded track. Undoing recording (undo/redo) Recording onto four tracks simultaneously Preparation for recording . Starting recording …… Playing back recorded tracks Undoing recording (undo/redo) Basic MIXAOWN mn Mixdown to an analog recorder Mixdown to a digital recorde Advanced playback and locates functions 3 X CUGINY sr Playback between LOCATE A and B points mens Play mode … Selecting a play mode. Auto play mode Auto return mode Loop mode Loop function in auto punch in/out mode Locate fUNCHION nent 48 Locating to the recording end point (REC END) of a song. Locating to the LOCATE A or LOCATE B point ….. Setting the LOCATE A or LOCATE B point! Locating …… ennnnnnnes Punch in/outusing the keys on the top panel … Punch in/outusing the footswitch nn D3 Auto punch in/out Setting the punch-in and punch-out points Rehearsal for auto punch in/out . Actual auto punch in/out

MR-8HD Owner's Manual (Safety instructions/Contents) | Using the inserteffects . Mic simulation effec Amp simulation effects Applying external effects een DO Using the reverb or delay een OÙ Selecting an effect type Selecting a delay type . Adjusting the delay/reverb time Adjusting the effect send levels Using the mastering effects Selecting the desired effect typ Track bouncin Preliminary knowledge. Track bouncing example … Signal flow of track bouncing Bouncing tracks 1 through 4 to tracks 5/1 Rehearsal of track bouncing . Actual track bouncing … Checking the bounced signals on tracks 5/6 Bouncing tracks 1through 6 to tracks 7/8 Rehearsal of track bouncing Actual track bouncing … re Checking the bounced signals on tracks 7/8 Bouncing tracks 1 through 8 to anew song. Rehearsal of track bouncing Actual track bouncing … Mixing signals ofinputs A through D. Connecting sound sources to INPUT A through INPUT D [TO STEREO BUSS ON/OFF] key setting ……. Panning setting for INPUT A through INPUT D Bouncing the desired partof a song Using the rhythm guide function Setting the time signature and tempo Creating the conductor map... Setting the signature map. Editing a time signature event Deleting an unnecessary time signature event. Editing the bar offset Setting the tempo map Editing a tempo event Deleting an unnecessary tempo event

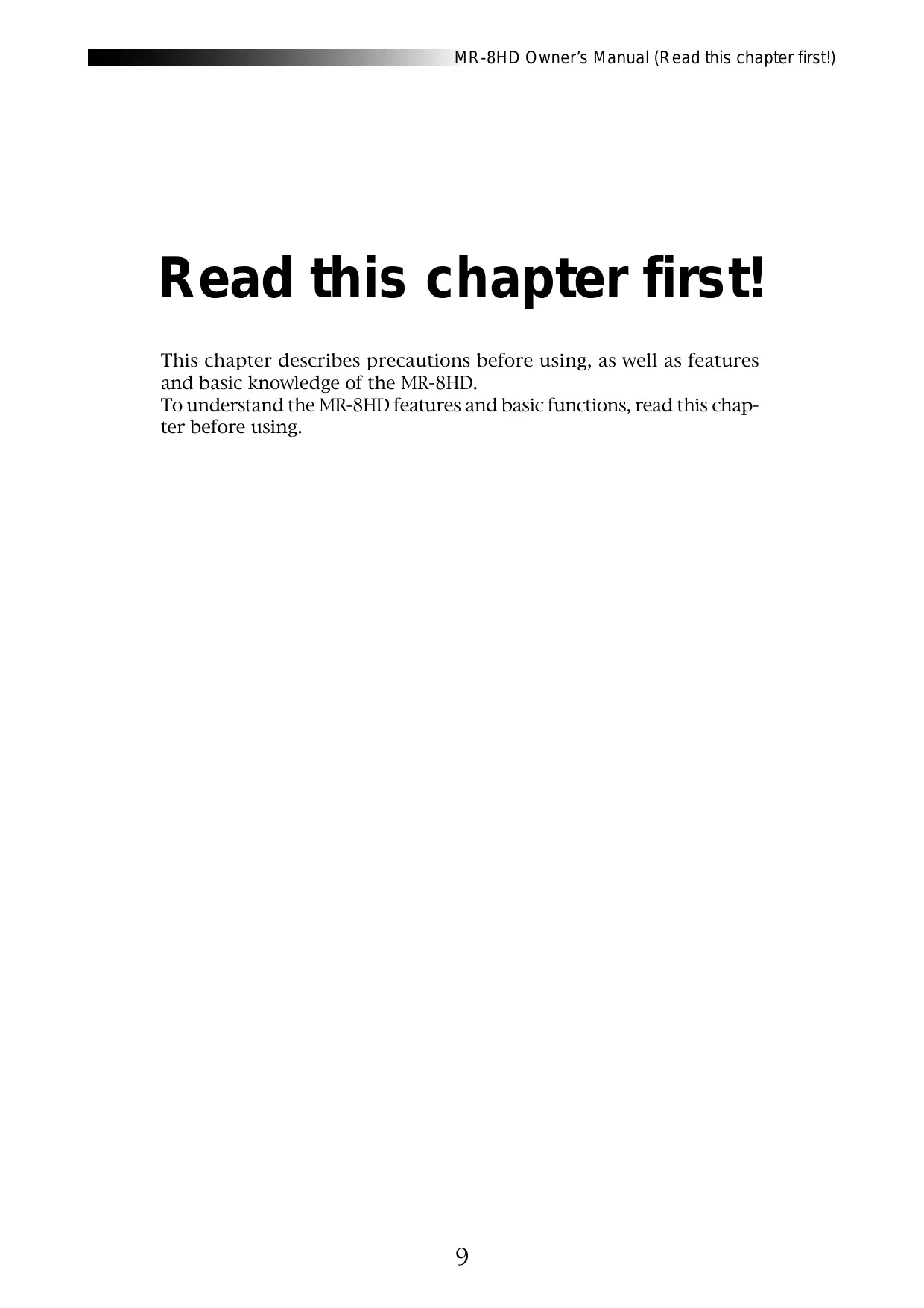

ES MR-8HD Owner's Manual (Read this chapter first!) Read this chapter first! This chapter describes precautions before using, as well as features and basic knowledge of the MR-8HD. To understand the MR-8HD features and basic functions, read this chap- ter before using.

MR-8HD Owner's Manual (Read this chapter first!) Introduction Thank you very much for purchasing the Fostex MR-8HD digital multitracker. The MR-8HD is a digital multitracker which can record 8-track audio at 44.1 KHz/16 bits on the internal 3.5-inch hard disk. Up to four tracks can be recorded simultaneously. The MR-8HD is also equipped with an 8-channel digital mixer, digital effects including the de- lay/reverb, mastering effects and insert effects (simulation effects). It allows you to carry out all the process for digital multitrack recording including overdubbing, track bouncing and mixdown Within the digital domain, ensuring no loss of sound quality. MR-8HD main features e You can record high quality audio to the built-in high performance 3.5-inch hard disk drive (40MB). You can also edit recorded audio later without sound deterioration. Up to 99 songs can be recorded. °_Provides four analog input channels and up to four tracks can be recorded simultaneously. Signals of four input channels ([INPUT A] through [INPUT D]) can be mixed to the stereo buss (Pre mastering effects). ° You can bounce all eight tracks to a new song, which is automatically created in the bouncing process. e An ASP digital effect processor (delay/ reverb) with the algorithm newly developed by Fostex is built in, allowing effect processing to tracks 1 through 4 during track bouncing. In addition, the MR-8HD also provides insert effects for microphone and amplifier simulation for coloring sounds. e The dedicated mastering effects are built in for the stereo buss, allowing you to process sounds during track bouncing or final mixdown. ° The adoption of self-illuminated keys allows intuitive operation. ° Phantom power is built in, allowing direct connection of condenser microphones.

The rhythm guide function is provided. You can make global time signature/tempo setting for a simple song or create a conductor map for a more complicate song, and output the guide click. Song data (on mono WAV files on tracks 7 and 8) mastered by the MR-8HD can be converted to a stereo WAV file easily. You can export the converted file to a personal computer and create an audio CD using the CD burn function of the PC. The [DIGITAL OUT] port outputs S/PDIF format digital signals. You can make mixdown or digital copy to an external DAT or MD recorder. The whole or a part of track data can be edited (i.e. copied, pasted, moved, exported, exchanged and erased). The [MIDI OUT] port is provided. You can synchronize the MR-8HD with external MIDI devices (MIDI sequencer, etc.) using MTC or MIDI clock.

MR-8HD Owner's Manual (Read this chapter first!) Precautions before using About power supply + Be sure to connect the MR-8HD to the power supply specified in the specifications section of this owner's manual. Do not use an AC outlet of any other voltage. + Do not connect the MR-8HD to the same AC outlet to which devices that could generate noise (such as a large motor or dimmer), or the devices that consume a large amount of power (such as an air conditioning system or large electric heater) are connected. +_If you use the MR-8HD in an area with a different power voltage, first consult your dealer or the nearest Fostex service station. + _ The [POWER] switch cannot turn off the power completely. When this switch is "up", the MR-8HD enters standby mode (i.e. the power does not completely turned off). Therefore, if you do not use the MR-8HD for a long time, we recommend unplugging the power cord from the AC outlet. + _Itis very dangerous to use a power cord that is frayed or damage. In such a case, stop using the MR-8HD immediately and ask your dealer to repair the cord. <important! > Model name, power requirement, serial number and other information for the MR-8HD are shown at the bottom of the unit. FOSTEX mooec MR-8HD DIGITAL MULTITRACKER FOSTEX CO.

Precautions upon installing the MR-8HD + Do not install the MR-8HD in locations subject to the following: *_ Extremely high or low temperature, or significant changes in temperature. *_ Excessive humidity or dust. *_ Excessive changes in power supply voltage. *_ Unstable or significantly vibrating or shaking surfaces. *_ Near a strong magnetic field (such as a TV or speaker).

+ _ The MR-8HD does not use any parts that user can repair easily. Contact your dealer or the nearest Fostex service station to ask about repairs.

Use the original packing carton of the MR-8HD when you transport or send the MR-8HD to the dealer or Fostex service station for repair. If you have discarded the packing carton, pack the MR-8HD using shock absorbing materials. Fostex is not responsible for malfunction or damage due to incomplete packaging or caused during transportation.

Because the MR-8HD is a consumer product, Fostex does not offer on-site service or provide a loaner unit while your MR-8HD is under repair. About copyrights *_Itis prohibited by law to use any part of a CD recording or video images or audio data for which copyright is possessed by a third party for commercial purposes such as contents, broadcasts, sales, or distribution-any purpose other than for your personal pleasure. About damages e _Fostex is not responsible for any "direct damage" or "indirect damage" caused by using the MR-8HD. Notes on audio interruption + _If you make recording or editing to a song many times, audio may be occasionally interrupted when the song is played back, due to data fragmentation. Note that this is not a malfunction. Note on USB connection with Mac OS + Before you connect the MR-8HD to a Macintosh computer, make sure that the OS is Mac OS X or higher. The MR-8HD supports only Mac OS X or higher. If you connect the MR-8HD to a Macintosh computer with Mac OS lower than "OS X", song data on the MR-8HD may be damaged.

MR-8HD Owner's Manual (Read this chapter first!) EE The basics of the MR-8HD This section describes the basics of the MR-8HD you should know before using the MR- 8HD. Recording method The MR-8HD is fitted with a 3.5-inch hard disk drive. Songs are recorded on a hard disk along with the ABS time (from 0O0m00s000ms to 99m59s999ms). 3.5-inch hard disk drive The ABS time shows the absolute time on a hard disk and you can start recording from any desired time within the range between 00m00s000ms and 99m59s999ms ABS time. The beginning of a song Om005000ms 15m005000ms (ABS ZERO) 05m00s000ms 10m00s000ms (REC END) 99m595999ms l I | ( | [ Recorded area |Non-recorded area| Recordedarea | Non-recorded area +

Fe You can start recording from any desired time within the range between 00m005000ms and 9m595999ms ABS time. As the MR-8HD does not consume the disk space when no audio is recorded, you can record audio effectively, while the recordable time for a tape recorder depends on the tape length. Non recorded area (shown in white) Om005000ms 99m595999ms

[s-minute recording |Eamnvt recording Non-recorded area (remain) Recorded area (shown in gray)

ES MR-8HD Owner's Manual (Read this chapter first!) About song To understand songs, imagine separated rooms as shown below. Each room can be regarded as a song. With the MR-8HD, you can create up to 99 rooms (songs) on the hard disk (although the available space may limit the number of songs). Songo1 smots| —— ! Recorded track data is stored in a song as mono WAV — : files, as shown below. Songo2| 4 ; LP ———————— — | ee Song03| 4 EE Songo01 LT LI 9 1 WAV files Songo4 sms] ] Each song is independent on a disk and you can record, play back or edit a song without affect- ing other songs. You can give a desired song name for managing recorded songs (see page 99). Recorded track data is stored in a song as mono WAV files. The MR-8HD can convert the two WAV files recorded on tracks 7 and 8 (L and R) to a stereo WAV file (see page 90). You can export the converted stereo WAV file to your USB-connected personal computer, and use the file by à music software application or make an original audio CD using a CD burn software application (see page 92). Remain (recordable space left on the disk) "Remain" shows how much time you can further record audio data to the available space left on the internal hard disk. As described earlier, the MR-8HD stripes ABS time from Om00s000ms to 99m59s999ms at maxi- mum for each song. However, the remaining time (= available recording time left) depends on the available space on the hard disk in actual use. The remaining time is shown as in the screen example below during recording or record standby. Note that it shows the remaining time for recording onto a mono track. — 2 bar 1. (8 (8 (8 Clk Remain value = Feria À Fi 1Eh$6miss Sons Ë À A "mono" track means a single track. Therefore, you can calculate the remaining time for record- ing to more than one track by dividing the displayed time by the number of tracks. Note that the remaining time shown on the screen is an approximate time.

MR-8HD Owner's Manual (Read this chapter first!) | The term, "time base", is used as the reference of recorder position information. Using the [TIME BASE SELECT] key, you can select from among two time base modes: ABS time and bar/beat mode. Each screen example below shows the recorder is located at the beginning of a song in each time base mode. <ABS time mode> Bar/beat mode> ABS time mode: ABS time stands for Absolute time, which is "striped" on the disk when creating a song. It starts from Om00s000ms (=ABS zero, the beginning of a song) and ends by 99m59s999ms at maxi- mum. Bar/beat mode: The bar/beat/clock information is created according to the internal tempo map. The ABS zero position is set to "bar -2/beat 1/cIk 000" by default (this is called "bar offset"). The MR-8HD determines the bar/beat/clock value in a song in referenced to the bar offset, as well as the time signature map and tempo map. You can set the bar offset between bar 1 to bar -8 via the menu mode (see page 81). The figure below shows the relation between two time base modes. The beginning of a song Om005000ms (ABS ZERO) 0m035000ms Om065000ms ABS time mode -2bar1 J000ck bar 1 J000ck 3bar 19 000ckk Bar/beat mode Input mon d repro Each of the MR-8HD tracks has two output modes: repro monitor and input monitor. In the repro monitor mode, the track playback signal is output. So if you want to listen to the track playback sound, select the repro monitor mode. In the input monitor mode, the input signal fed to the track is output. So you can check the level of the input signal to be recorded. To enter a MR-8HD track to input monitor mode, press the appropriate [REC SELECT] key to arm the track (i.e. make the track record-ready), then press only the [RECORD] key to enter the "RECORD READY" mode or press both the [RECORD] and [PLAY] keys simultaneously to start recording. Input signals for Output signals from recorder tracks recorder tracks Track 1 Playback signal (repro monitor) Track 2 Playback signal (repro monitor) Input signal (input monitor) Input signal (input monitor) Track 5 Playback signal (repro monitor) Track 6 Playback signal (repro monitor) Track 7 Playback signal (repro monitor) Track8 Playback signal (repro monitor)

ES MR-8HD Owner's Manual (Read this chapter first!) [TRIM] control You must pay great attention to the [TRIM] control adjustment when recording to the MR-8HD. INPUT A DISTORTION TRIM

E [TRIM] control PEAK LED The analog signal received at each input ([INPUT A] through [INPUT D|) is sent to the TRIM control, by which the signal level fed to the A/D converter of the MR-8HD is controlled. You can check this level by the PEAK indicator. If the level is too high, the PEAK indicator lights, while you may hear the sound distorted or noisy. This distortion (noise) generated at this stage cannot be eliminated, therefore, adjust the TRIM control properly so that the PEAK indicator does not light at the loudest part of the input signal. Proper level The level is too high.

MR-8HD Owner's Manual (Read this chapter first!)

ES MR-8HD Owner's Manual (Names and functions) Names and functions This chapter describes the names and functions of the controls, keys, connectors, etc. on the MR-8HD top panel and rear panel, as well as details of the display. See this chapter whenever you want to know the function of a control, key, etc.

MR-8HD Owner's Manual (Names and functions) Top panel 1

[INPUT A] input connectors (XLR connector and phone jack) Both the [BAL] XLR connector and [UNBAL/ GUITAR] phone jack are provided. You can connect a guitar, microphone, keyboard, etc. If you connect sources to both the XLR con- nector and phone jack, the phone input takes priority. When using the [INPUT A] section, select the [INPUT A SEL] switch on the rear panel appropriately according to your us- age (see page 33). [INSERT] connector (TRS phone jack) Connects an external effect processor (typi- cally, a compressor/limiter, etc.). For connection between the MR-8HD and the effect processor, use a Y-cable as shown be- low (see page 59). To the effect input. > TIP:SEND GND PE du — Sp 17 RING: RETURN From the effect output. #—

[INPUT B]input connectors (XLR connector and phone jack) You can connect a guitar, microphone, key- board, etc. to the [INPUT B] input. Both the [BAL] XLR connector and [UNBAL] phone jack are provided so you can use the appropriate connector according to the sound source. If you connect sources to both the XLR con- nector and phone jack, the phone input takes priority (see page 33). [INPUT C]input connectors (XLR connector and phone jack) You can connect a guitar, microphone, key- board, etc. to the [INPUT C] input. Both the [BAL] XLR connector and [UNBAL] phone jack are provided so you can use the appropriate connector according to the sound source. If you connect sources to both the XLR con- nector and phone jack, the phone input takes priority (see page 33).

[INPUT D] input connectors (XLR connector and phone jack) You can connect a guitar, microphone, key- board, etc. to the [INPUT D] input. Both the [BAL] XLR connector and [UNBAL] phone jack are provided so you can use the appropriate connector according to the sound source. If you connect sources to both the XLR connector and phone jack, the phone input takes priority (see page 33). ISTEREO OUT]jacks (L,R) These jacks output the stereo (L and R) buss signals. Connect these jacks to the monitor- ing equipment or master recorder (see pages 29 and 41). [PHONES]jacks (1, 2) Two jacks (1 and 2) are provided. You can use two pairs of stereo headphones with the MR-8HD (see page 29). [PHONES VOL] control Adjusts the headphone output level (see page 30). [POWER] switch Switches between standby mode and power on (see page 28). To turn off the power when the power is on, press and hold down the [POWER] switch for a few seconds. <Note>: This switch cannot turn off the power completely. When this switch is "up", the MR-8HD enters standby mode (i.e. the power does not completely turned off). Therefore, if you do not use the MR-8HD for a long time, we recommend unplugging the power cord from the AC outlet. [REVERB/DELAY TIME] control This control adjusts the reverb time or de- lay time. When you select "ROOM", "HALL" or "PLATE" for the effect type, it adjusts the reverb time.When you select "DELAY", it adjusts the delay time. (See page 61.) [EFFECT] keys These keys are used to select the effect type. You can select from three reverb types (ROOM, HALL and PLATE) and a delay (DELAY). The selected key is lit (see page 60). [MASTER] fader Adjusts the stereo (L and R) buss output level (see pages 30 through 39). Track faders Each fader adjusts the track playback level. Each of track faders 5/6 and 7/8 controls the stereo signal (see pages 30 through 39). MR-8HD Owner's Manual (Names and functions)

[REC SELECT] keys Used to select the recording track(s). You can record onto up to four tracks simultaneously. Pressing a key arms or unarms the corre- sponding track(s). Tracks 5/6 or 7/8 are armed or unarmed simultaneously (see pages 35 through 42). [PAN] controls Control panning for tracks 1 through 4. [EFFECT SEND] controls Control the amount of signals from tracks 1 through 4 sent to the internal effect (reverb or delay) (see page 61). Insert effect selection keys Used to select the insert effect (mic simula- tion or amp simulation) for the signal from the [INPUT A] jack. When setting the [INPUT A SELECT] switch on the rear panel to "MIC/LINE", you can use the mic simulation effect. When setting the switch to "GTR/DIST", you can use the guitar amp simulation effect (see page 58). [TO STEREO BUSS ON/OFF] keys Each key selects whether or not sending the corresponding input signal to the stereo L/ R busses (see page 72). Each press of the key alternates ON and OFF. When ON, the key illuminates in green. When OFF, it is unlit. When the corresponding input i signed to a recording track, the key flashes in green. Along press of the key enters the input menu of the MENU mode, in which you can set phantom power on/off, panning, etc. (see page 128). IPEAK]indicators Each indicator lights when the input signal is overloaded (see page 15). You should ad- just the input gain using the [TRIM] control So that the [PEAK] indicator does not light. [DISTORTION] control Controls the amount of the distortion effect for a guitar connected to the [XLR] connec- tor or [UNBAL/GUITAR] jack (phone type) on the [INPUT A] channel. This control is effective only when the [IN- PUT A SEL] switch is set to "GTR/DIST" (see pages 35 through 40). [TRIM] controls Each control adjusts the input gain of the corresponding input channel (see page 15, and 35 through 40).

MR-8HD Owner's Manual (Names and functions) Top panel 2

[RHYTHM GUIDE] key Switches on/off of the rhythm guide func- tion (see page 76). Each press of the switch alternates on and off. A long press of the key enters the rhythm guide menu, in which you can set the rhythm guide parameters (see page 76). [BOUNCE 1-4 >5/6, 1-6 >7/8]/ ABC1 key Selects the bounce mode (see page 63). In the menu mode, this key is used for char- acter entry of A, B, C, a, b, c and 1 (see pages 32 and 99). [TIME BASE SEL] key Selects the time base shown on the display (see page 24). Each press of the key switch between "time" and "bar/beat". [BOUNCE 1-8 >NEW SONG]/DEF2 key Selects the bounce mode (see page 63). In the menu mode, this key is used for char- acter entry Of D, E, F, d, e, f and 2 (see pages 32 and 99).

ICONTRAST] key By rotating the [MENU/ENTER] knob while holding down this key, you can adjust the display contrast (see page 24). [7/8 > STEREO WAV FILE] /GHI3 key This key is used when converting a mono WAV file recorded on tracks 7/8 to a stereo WAV file (see page 90). You can export the stereo WAV file to your personal computer over the USB connection (see page 92). In the menu mode, this key is used for char- acter entry of G, H, I g, h, i and 3 (see pages 32 and 99). LCD display This 132 x 64 dot LCD display shows vari- ous information (see page 23). IMENU/ENTER] rotary/push knob Pressing this knob enters the menu mode. In the menu mode, rotating this knob se- lects the item or numeric value, while press- ing this knob confirm the setting/selection.

[IMASTERING (POWERFUL/NATURAL/

BRIGHT] keys Used to select the desired mastering effect during track bounce or mixdown. You can select from three effect types by pressing an appropriate key (see page 62). In the menu mode, the [POWERFUL] key is used for character entry of J, K, L, j, k, Land 4, while the [NATURAL] key is used for char- acter entry of M, N, O, m, n, o and 5(see pages 32 and 99). [UNDO/REDOYIDELETE] key Used to undo or redo recording or editing (see pages 36, 38, 40). Each press of the key alternates "undo" and "redo". In the menu mode, this key is used for deleting a character(see pages 32 and 99). ISTORE]/+_0 key Stores the current recorder position (time data) as the LOCATE A/IN or LOCATE B/OUT point (see pages 49 and 54). In the menu mode, this key is used for char- acter entry of +, -, _ and O (see pages 32 and 99). ILOCATE B/OUT]J/GHI3 key Pressing this key while holding down the [STORE] key sets the LOCATE B point (or punch out point) (see page 49 and 54). In the menu mode, this key is used for char- acter entry of G, H, I and 3 (see pages 32 and 99). Transport keys [PLAY] key Starts playback of the recorder. Pressing this key while holding down the [RECORD] key starts recording of the armed (record-ready) track(s). Pressing this key during recording exits re- cording. ISTOP]key Stops the recorder. By pressing the [PLAY], [REWIND)] or [F FWD] key while holding down the [STOP] key, you can locate to a specific point or repeat play- back as below. *[STOP] + [PLAY] (A-B PLAY) Repeats playback between the LOCATE A and LOCATE B points (see page 44). + [STOP] +[REWIND] (LOCATE ABS ZERO) Locates to the beginning (ABS ZERO) of the current song (see page 48). MR-8HD Owner's Manual (Names and functions)

+[STOP] +[F FWD] (LOCATE REC END) Locates to the recording end of the current song (REC END) (see page 48). [RECORD] key Pressing the [PLAY] key while holding down the [RECORD] key starts recording of the armed (record-ready) track(s). By pressing only the [RECORD] key when any track(s) is armed (in record-ready), the in- put signal(s) of the armed track(s) can be monitored (i.e. input monitor mode). (see pages 35 through 40). [IF FWD] key Pressing this key fast forwards the recorder. During playback, pressing this key starts 3 x cueing (see page 44). While holding down the [STOP] key, press- ing this key locates to the recording end of the current song (REC END) (see page 48). IREWIND] key Pressing this key rewinds the recorder. During playback, pressing this key starts 3 x reverse cueing (see page 44). While holding down the [STOP] key, press- ing this key locates to the beginning (ABS ZERO) of the current song (see page 48). This key is also used to go up the menu screen layer while a menu screen is dis- played. ILOCATE A/IN]VWX8 key Pressing this key while holding down the [STORE] key sets the LOCATE A point (or punch in point) (see page 49 and 54). In the menu mode, this key is used for char- acter entry of V, W, X, v, w, x and 8 (see pages 32 and 99). [PLAY MODE ]J/STU7 key Selects a play mode. You can select from among normal, auto play, auto return and loop (see page 45). In the menu mode, this key is used for char- acter entry ofS,T, U,s, t, u and 7 (see pages 32 and 99). [AUTO PUNCH]JPQRG6 entry key Turns on or off the auto punch mode (see page 55). In the menu mode, this key is used for char- acter entry of P, Q,K, p, q, r and 6 (see pages 32 and 99).

MR-8HD Owner's Manual (Names and functions) Rear panel [AC IN] connector Connect the supplied power cord to this con- nector (see page 28). [INPUT A SELECT] switch This switch must be set appropriately accord- ing to the input source of the [INPUT A] chan- nel (see page 33). Either of the [BAL] XLR and [UNBAL/GUITAR] phone connec- tors can be used. Setthe switch to this position when the source is an external microphone or line level source. MIC/LINE Either of the [BAL] XLR and [UNBAL/GUITAR] phone connec- tors can be used. You can adjust the input level and distortion using the [TRIM] and [DISTORTION] controls respectively. You can also use the amp simulation insert ef- fect. Either of the [BAL] XLR and [UNBAL/GUITAR] phone connec- GTR CLEAN | t0'S Can be used. You can adjust the input level using the [TRIM] control. You can also use the amp simulation insert effect. GTR DIST [FOOT SW]jack (TRS phone jack) Used to connect with an unlatched-type footswitch (see page 53). unlatched-type footswitch

[DIGITAL OUT] connector (Toslink optical connector) Used to connect with an external digital de- vice using an optical cable (see page 42). nector when the unit is shipped. CD Remove the cap when you use this connec- tor. If you do not use this connector, attach the dust protection cap. Note>: The dust protec- tion cap is inserted to the [DIGITAL OUT] con- If you need to connect the unit to a digital device which only provides a coaxial type digital connector (typically, an RCA pin jack), use the ES Fostex COP-1/96k coaxial optical converter (shown right).

Model COP-1/96k Use an optical digital cable with Toslink plugs on both ends. e # [MIDI OUT] jack (DIN 5-pin connector) Used to connect to a MIDI IN jack of an ex- ternal MIDI device (such as a MIDI se- quencer) (see page 86). [USB HOST] connector (USB A type) Prepared for the future expansion. <Caution>: Do not connect your personal computer to the [USB HOST] port. [USB] port (USB B type) Used to connect with a personal computer using a standard USB cable for song file data transfer between the MR-8HD and the per- sonal computer (see page 92).

MR-8HD Owner's Manual (Names and functions) LCD display The following describes details about the LCD display, including screen contents and operation. me screen When turning on the MR-8HD, the display shows the startup screen (showing the startup status of the MR- 8HD), followed by the "home" screen, which is similar to the one below. In this condition, the previously loaded song is loaded and the recorder is located at the beginning of the song. The home screen provides the following information.

Time counter display Time information of the current recorder po- sition is shown in ABS or bar/beat mode (by default, bar/beat). Using the [TIME BASE SE- LECT] key, you can select a desired time base mode. When the recorder is moving (playing back, fast forwarding, etc.), the appropriate icon is also shown. While the hard disk drive is in access lights up. Character display Normally, the name of the song currently loaded is shown (up 16 characters can be shown at a time). It also shows following information. + A name of the operation mode currently being executed (such as "BOUNCE 1-6->7/8). + A (not-so-serious) Warning message + The "Remain” time when at least one track is record-armed (i.e. At least one of the [REC SELECT] keys is active). The remain time shows how much time you can further record audio data onto a mono track using the available space left on the hard disk. Track level display The recording or playback levels of tracks 1 through 8 are shown. When a track is record armed, the track number indication changes to the source input channel (any of A, B, C and D).

Stereo buss (L and R) level display During recording or playback, the output lev- els of the L/R stereo buss are shown. Song status display Lights up the following status icons when the appropriate modes (functions) are active. Atleast one ofthe tracks is in the input monitor mode (see pages 36, 38 and 40). The auto punch mode is active (see page 55). AUTO FUHCH The auto return mode is active (see page 45). IHFUT_ HIGH AUTO FTH The loop mode is active (see page 45). The auto play mode is active (see page 45). Song number display Shows the song number of the song currently loaded. Also, "FA" is lit when the phantom power is on.

ES MR-8HD Owner's Manual (Names and functions) Pressing the [MENU/ENTER] knob while the recorder is stopped enters the menu mode and brings up the menu screen. In the menu mode, you can make setting or editing via the appropriate screen. The top menu screen has two pages, in which you can select the desired menu by rotating the [MENU/ENTER] knob. MENU 1-23 Back |

IMENU/ENTER] knob Second page Warning message If a serious problem happens to the MR-8HD during operation, an appropriate warning message is shown on the display. Most warning messages are being shown until the [MENU/ENTER] knob is pressed. Note that there are also not-so-serious warning messages besides the following. This message is shown [2 arnina During recording, this [2 yarnina when you are going to Can't Delete message is shown if delete a song which is Protected Song there is no more space HEC Full protected. Press ENTER key lefcon the hard diskfor | pyces ENTER kew recording. This message is shown Uarnina This message is shown [2 _arira when the hard disk when you are going to This Sons is drive has a problem HOD Error make recording or ed- Protected Press ENTER kes ing to a Song which is Press ENTER key protected. This message is shown Warhins This message is shown Warhins when you are going to HOD Full when you are going to edit a track or part but Can°t Undo create a new song Tag Mans Sonss there is not enough Press ENTER key while 99 songs exist on Press ENTER keu space on the hard disk the hard disk. for executing the undo l'ananas function.

MR-8HD Owner's Manual (Names and functions)

ES MR-8HD Owner's Manual (Basic operations) Basic operations This chapter describes power connection, power on/off, demo song playback, etc., as well as basic multitrack recording. If it is the first time for you to use a Multitracker, read this chapter carefully first so that you are familiar with the MR-8HD basic opera- tions, then read other sections which describe advanced operations.

MR-8HD Owner's Manual (Basic operations) | About power The MR-8HD operates by AC power. Before you start using the MR-8HD, you must connect the supplied power cord. Power connection Connect between the [AC IN] connector on the MR-8HD rear panel and an AC outlet using the sup- plied power cord. The MR-8HD enters the standby mode when the power cord is connected. ——([J}ÿ ACoûtet —— Supplied power cord About the standby mode The standby mode is the condition when the power cord is connected and the [POWER] switch is set to OFF. In the standby mode, a small amount of power is consumed and the indicator of the [POWER] switch flashes slowly. <Note>: When you do not operate the MR-8HD for a long period of time, we recommend disconnecting the power cord. Turning on the unit You can turn on or off the MR-8HD power using the [POWER] switch (pointed by an arrow below). To turn off the power, press and hold down the [POWER] switch for a few seconds. IPOWER]switch When you press the [POWER] switch to turn on the power for the first time, the MR-8HD starts up and the display shows the screen as below (note that it takes some time until the screen as below is shown). This screen shows that the demo song is loaded and stopped at the beginning (ABS

0) of the song named "FOSTEX_ FEVER".

1823456718 LEA Follow the procedure described on the next page to play back the demo song.

ES MR-8HD Owner's Manual (Basic operations) Listening the demo song A demo song is pre-recorded on the hard disk of the MR-8HD when shipped. Before you make recording, let's listen to the demo song via headphones (or a monitor speaker). Connecting headphones ( monitor speaker system) Connect headphones to either of the two [PHONES] jacks of the MR-8HD. Both jacks feed the same signal so you may connect headphones whichever you like. If you have a powered monitor speaker, you may connect it to the [STEREO OUT] jacks of the MR-8HD. Powered monitor speaker Headphones l

<Note>: You can plug a 1/4" phone plug to the <Note>: When you connect a powered monitor [STEREO OUT] L or R jack. speaker to the unit, turn down the volume of the powered monitor speaker to minimum before you IT turn on the MR-8HD and the powered monitor speaker.

MR-8HD Owner's Manual (Basic operations) Playing ck the demo so In the demo song, approximately 1-minute audio is recorded on all eight tracks. Follow the procedure below for listening to the demo song. In the following procedure, it is assumed that the MR-8HD is turned on and a pair of headphones (or a monitor speaker system) is connected.

1,3 Raise the [MASTER] fader to th. position. Set the track faders at the lowest position. Press the [PLAY] key to start playback. Raise the track faders (1 through 8) gradually to adjust the playback level and balance. Also raise the [PHONES VOL] control gradually to adjust the headphones level. (If you are using a powered monitor speaker for monitoring, adjust the level control of the powered speaker.) “Hint1>: While listening to the playback) sound, adjust panning setting of tracks 1 through 4, as well as try to adjust the inter- nal effects (reverb/delay) (see page 60). When the demo song ends, press the [STOP] key to stop the recorder. <Hint-2>:To listen to the demo song again: When the recorder is stopped after listen- ing to the demo song, press the [REWIND] key while holding down the [STOP] key. The recorder instantly moves back to the be- ginning of the demo song (see page 48). Then pressing the [PLAY] key starts play- back from the beginning of the demo song.

<Note>: The demo song is protected and you can- not overwrite or erase it. Therefore, you cannot make recording in this condition. If you want to make new recording while keep- ing the demo tape on the hard disk, see "Creat- ing a song for recording" on the next page. If you do not keep the demo song, carry out ei- ther of the following operations. (1) Release the song protection (see page 101). Then, start recording (overwrite recording) from the beginning of the demo song, or delete the demo song from the hard disk. If you delete the demo song, create a new song (see the next page) and make recording to the new song. (2) Formatthe hard disk (see page 124) and make recording. Because a new song is automatically created after formatting the disk, you can start recording without the need of creating a new song manually.

MR-8HD Owner's Manual (Basic operations) Creating a song for recording This section describes how to create a new song for recording on the hard disk, while keeping the demo song. In the following procedure, it is assumed that the MR-8HD is stopped at the begin- ning (ABS ZERO) of the demo song.

While the recorder is stopped, press the [MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially.

Ésstem + Sons k Track Edit Part Edit + Fhathm Guide k <Note>: By selecting "<< Back" and press- ing the [MENU/ENTER] knob, the display returns to the previous screen. You can also return the display to the previous screen by pressing the [REWIND] key. Rotate the [MENU/ENTER] knob to select "Song", and press the [MENU/ENTER] knob. The display now shows the first page of the song menu screen, where "<< Back" is highlighted initially. MEHU£ 1-23 Sons A4Back . Égstem Track Edit Part Edit Fhathm Guide MhSonsci1-23#Back

Select Sons Fename Sons b Lelete Sons Protect = off Feserued Rotate the [MENU/ENTER] knob to select "Select Song", and press the [MENU/ENTER] knob. The display now shows the first page of the song selection screen. You can see the list of the song numbers/names on the hard disk. Currently, only the demo song is created, and "S01: FOSTEX_ FEVER" and "—:(New Song)" are shown. "(New Song)" is used to create a new song.

MkSonakSelectSonskh Heu Sons —— Sons Name : CSonsdg 1 CENTER] CCANCEL] Enter the desired song name. Use the character entry keys to enter the de- sired character at the flashing point. Rotate the [MENU/ENTER] knob to move the flashing point. Use the [UNDO/REDO/DELETE] key to delete the character at the flashing point. Therefore, when the rightmost character is flashing as in the screen example above, you can delete all characters by pressing the [UNDO/REDO/DELETE] key repeatedly. You can enter up to 16 characters for a song name. See <How to enter characters> on the next page for entering the song name as "My_Song”. <Note>: You may leave the default song name as it is. Also, you can edit the song name after creating a song using the "Re- name Song" menu item in the song menu of the menu mode (see page 99).

MR-8HD Owner's Manual (Basic operations) | How to enter characters > 7) While “[ENTER]"is flashing, press the IMENU/ENTER] knob. <Character entry keys> The display now shows the home screen of the Some keys on the MR-BHD top panel newly created song (My_Song). PRPMonE ct as character entry keys in the As shown in the lower screen example, the song ( 1 MODE La os ae Let) can name (My-_Song) and the song number |. be used for entering S, T, U, st, u (Song02) are shown. “ and 7. Each press of a character en- MkSonakSelect Sons pes sru? try key switches the character to be ——— Heu Sons —-- entered among those assigned to : the key. Sons Hame Ca Sons 1 CE CCANCEL] <Character entry example> The following procedure example shows how to en- ter "My_Song" as a song name. L Use the [NATURAL] key to enter "M".

2. Use the [LOCATE B/OUT] key to enter "y".

3. Use the [STORE] key to enter "_". 18345618 ‘ LR

4. Use the [PLAY MODE] key to enter Now, in addition to the demo song, a new

song on which no audio is recorded is cre-

3. Use the [NATURAL] key to enter "0". ated by the procedure above.

6. _Rotate the [MENU/ENTER] knob to move the It is a good idea to create more than one

cursor right. song before you start recording.

7. Use the [NATURAL] key to enter “n". After creating a song or songs for recording,

8. Use the [7/B>STEREO WAV FILE] key to connect the sound source to the MR-8HD (see

the next page) and start recording. enter "g". page) 8 <Notes on cursor movement> <Note>: After creating a new song, by ex- Pressing a different character entry key automati- ecuting procedure steps 1 through 3, the he cursor right. following song selection screen appears. ve characters are assigned to the This screen is used for loading the desired same character entry key, rotate the [MENU/EN- song from the list, as well as creating a new TER] knob after selecting the first character to song. move the cursor right. For example, by rotating the [MENU/ENTER] knob to highlight “SO1: FOSTEX_FEVER” and pressing the [MENU/ENTER] knob, you can

6) After completing song name entry, press the load the demo song.

IMENU/ENTER] knob. The cursor moves to “[ENTER]” at the bottom of the screen. HMkSonakSelectSonskNeul Heu Sons HkSonakSelectSonac 112 Sons H 5 Fu So El 1 For details about how to select the desired song, see "Song management" on page 97. CENTER CCAHCEL] HkSonskSelect Sons Heu ——- Heu Sons --- Sons Name ss Sons REY CCANCEL] <Note>: If you want to cancel creating a Song, rotate the [MENU/ENTER] knob to move the cursor to "[CANCEL]" and press the [MENU/ ENTER] knob.

ES MR-8HD Owner's Manual (Basic operations) Input connection The MR-8HD provides four input channels: [INPUT A], [INPUT B], [INPUT C] and [INPUT D]. Each channel provides both the XLR and 1/4" phone connectors.

Input channel Available input connectors Shapes of connectable connector INPUT A Either ofthe XLR (balanced) con- | INPUT B nector or phone (unbalanced) jack | | [ (= IT | can be used (if both connectors — INPUT C are plugged, the phone jack is ef- XLR-3-12C type PHONE plug INPUT D fective). + _ When you use the [INPUT A] channel, set the [INPUT A SEL] switch on the rear panel appropriately. + _If you use a condenser microphone, use the XLR (balanced) connector. The MR-8HD can supply the phantom power (see page 128). NPUT A SEL switch When you use the [INPUT A] channel, you must set the [INPUT A SEL] switch on the rear panel appropriately. “MIC/LINE" position Both the [BAL]XLR and [UNBAL/GUI- TAR] phone connectors can be used. DUC sem | Setthe switch to this position when the cd source is an external microphone or line level source. Both the [BAL]XLR and [UNBAL/GUI- TAR] phone connectors can be used. You can adjustthe input level and dis- INPUT À SEL tortion using the [TRIM]and [DISTOR- TION] controls respectively. You can also use the amp simulation insert ef- fect. “GTR DIST” position Both the [BAL]XLR and [UNBAL/GUI- TAR] phone connectors can be used. You can adjustthe input level using the [TRIM] control. You can also use the amp simulation insert effect. INPUT A SEL]switch

MR-8HD Owner's Manual (Basic operations) Recording track combinations and available input channel(s) The following shows the recording track combinations and available input channel(s) by the number of tracks simultaneously recorded. Recording to a single track Recording to two tracks simultaneously If you make recording to tracks 2, 4, 7 and 8, input-to- track assignment is as follows. INPUT A ->Track 2 INPUT B ->Track 4 INPUT C ->Track 7 INPUT D ->Track 8 ELLE Track1 CARO 71?

IDRDR RDS Track3 IDRDRDRMM:EMEN T5:n6 COCO ET Inn Fa Tk7ande Only [INPUT Alis available. HE E Trkland3 You can record only the [INPUT A] channel signal to the selected track. The channels from [INPUT B]to [INPUT L'RDRDE : RD] Trk land 4 D]are not available. Damme: Recording to three tracks simultaneously BRU : 20] Trk 2 and 4 E DE Trk 1, 2 and 3 - [INPUT A] and [INPUT B] are available. (| 1 2 RD : RO] Trk1,2and4 The [INPUT A] channel signal is assigned to the track - - with the lower number, while the [INPUT B] channel sig- CHOSE: :HDED| Trk 1, 3 and 4 nal is assigned to the track with the higher number. CHEB: TK 1,5 and 6 Recording to four tracks simultaneously 1 [7/8] Trk1,7 and 8 1 2 Oo EC Trk1,2,3and4 BE E EC Trk 2,3 and 4 12 5 Trk1,2,5 and 6 2 5] Trk 2,5 and 6 12] (718) Tk1,2,7and8

DURE :MMMA KA 7ans CHOC : 5: Trk 1, 4, 5 and 6 INPUT AJ, [INPUT B]and [INPUT CJ]are available. CHDSUR:HMMA) TkL47ands The [INPUT A] channel signal is assigned to the track . with the lowest number, the [INPUT B] signal assigned 21: (54 Trk2,3,5and6 to the track with the next lowest number, and the [IN- = PUT CJsignal is assigned to the track with the highest IDR2R: MOMDMRAI 723 7an8 number.

IDR :R0R:M:HI T2 45206

<Æxample of input assignment to tracks> En OR :| M7: Trk 2, 4,7 and 8 All input channels are available. The [INPUT A] channel signal is assigned to the track with the lowest number, the [INPUT B] signal assigned to the track with the next lowest number, the [INPUT C] signal is assigned to the track with the second highest number, and the [INPUT D] signal is assigned to the track with the highest number.

MR-8HD Owner's Manual (Basic operations) Recording onto a single track You can record onto any one of tracks 1 through 4. When making recording to a single track, you can record a signal fed to the [INPUT A] channel. The following describes the procedure for recording an acoustic guitar onto track 1 via a micro- phone. We assume that SongO2 is loaded and no sound is recorded to Song02. See "Creating a song for recording" on page 31 for details about how to create a song.

Connect a microphone to the [BAL]or [UNBAL/GUITAR] input connector of the [INPUT A] channel. <Note>: You can supply the phantom power to a condenser microphone connected to the [BAL] XLR connector (see page 128). Note that you cannot supply the phantom power via the [GUITAR/UNBAL] phone con- nector. Set the [INPUT A SEL] switch to "MIC/LINE". <Note>: You can apply the mic simulation as insert effects when the [INPUT A SEL] switch to "MIC/LINE" (see page 58).

Press the [REC SELECT] key for track 1. Track 1 is record armed and the [REC SELECT] key for track 1 starts flashing. On the home screen, the remaining time is shown, while "1" for the track number changes to "A". Set track fader 1 and [MASTER] fader to the nominal position (marked by =). Raising these faders allows you to monitor the input sound. If these faders are not raised, you cannot monitor the sound via headphones.

MR-8HD Owner's Manual (Basic operations) <Note>: The fader for track 1 is used to ad- just the monitor level. To adjust the record- ing level, use the [TRIM] control of the [IN- PUT A] channel.

5) Press the [RECORD] key once (the key indicator

starts flashing). Track 1 (which is record armed) now enters the input monitor mode and "MEN" is shown on the home screen. IHFUT MOI

6) While playing the guitar, adjust the recording level

using the [TRIM] control of the [INPUT A] channel. Adjust the level appropriately so that the PEAK indicator does not light. Turning the [PHONES VOL] control clockwise raises the headphone monitor level. The screen shows the input level of track 1, as well as the stereo L and R output levels.

Sonate Me34s618 LE DIM t t <Note>: Adjust the [TRIM] control properly so that the PEAK indicator does not light at the loudest part of the guitar sound. If the input level is too high, the PEAK indicator lights and the sound may be distorted or NOiSY.

<Tip>: When receiving a line level signal, set the [TRIM] control to left ("LINE") to get the appropriate level. When receiving a micro- phone signal, set the [TRIM] control to right ('MIC") to get the appropriate level.

[PLAY] key to start recording. The guitar is recorded.

8) When recording completes, press the [STOP] key

to stop the recorder. <Note>: We recommend to press the [REC SELECT] key for track 1 to unarm track 1. Playing back the recorded track

9) Press the [RE WIND] key while holding down the

[STOP] key to locate the recorder to the beginning of the song.

10) Press the [PLAY] key to start playback.

You can adjust the monitor level using the track 1 fader, as well as the [MASTER] fader and [PHONES VOL] control. If you are not satisfied with the result, use the undo/redo function to cancel the re- cording and try again. Undoing recording (undo/redo) If you press the [UNDO/REDO)] key after finishing recording, you can return to the condition before the recording started (UNDO operation). Therefore, you can try recording again. If you press the [UNDO/REDO] key again (after UNDO), the undo operation is canceled and you can return to the condition when the recording finished (REDO operation).

Notes>: The undo/redo function is available for all kind of recordings, however, if you carry out any of the following operations after making re- cording, you cannot undo the recording. + Carrying out new recording. + Carrying out track or part editing. + Turning off the power. + Selecting another song or editing the song name.

MR-8HD Owner's Manual (Basic operations) Overdubbing basics Overdubbing is recording something new while listening to the previously recorded track(s). It is a very important method in multitrack recording. The following describes an example of over- dubbing for recording a stereo keyboard to tracks 7/8 while listening to the guitar on track 1. See the procedure previously described in "Recording onto a single track" for details about how to record a guitar on track 1. In the procedure below, we assume that the song of which the guitar has been recorded on track 1 is loaded. Note that you can make overdubbing to another track or other tracks in the same manner as described below.

8,11 Connect the L and R outputs of the keyboard to input connectors of the [INPUT A] and [INPUT B] channels. Connect the L and R outputs to the [INPUT A] and [INPUT B] channels respectively. Set the [INPUT A SEL] switch to "MIC/LINE". Press the [REC SELECT] key for tracks 7/8. Tracks 7/8 are record armed and the [REC SELECT] key for tracks 7/8 starts flashing. On the home screen, the remaining time is shown, while "7" and "8" for the track numbers change to "A" and "B" respectively.

5 8,10 6,12 This indicates you can now record the [INPUT A] and [INPUT B] channel signals to tracks 7 and 8 respectively. Settrack faders 1 and 7/8 and the [MASTER] fader to the nominal position (marked by =). Raising these faders allows you to monitor the input sound. If these faders are not raised, you cannot monitor the sound via headphones.

MR-8HD Owner's Manual (Basic operations) Note>: Track 1 and 7/8 faders are used to adjust the monitor level. To adjust the re- cording levels, use the [TRIM] controls of the [INPUT A] and [INPUT B] channels.

5) Press the [RECORD] key once (the key indicator

starts flashing). The armed tracks 7/8 now enter the input monitor mode, while "CHIMIE" is shown on the home screen. CHEN Adjusting the recording levels while listening to track 1 1823456fE L F!

6) Press the [PLAY] key to play back the song from

the beginning. Though tracks 7/8 are in the input monitor mode, you can hear the track 1 signal by rotating the [PHONES VOL] control clockwise (while the meter for track 1 shows the playback level).

7) While playing the keyboard, adjust the recording

levels using the [TRIM] controls of the [INPUT A] and [INPUT B] channels. Adjust the levels appropriately so that the PEAK indicators for these input channels do not light. The home screen shows the playback level of track 1 and the input levels of tracks 7 and 8, as well as the stereo L and R output levels. LF [CN to tt 123456f <Note>: Adjust each [TRIM] control prop- erly so that the corresponding PEAK indi- cator does not light at the loudest part of the keyboard sound. <Tip>: When receiving a line level signal, set the [TRIM] control to left ("LINE") to get the appropriate level. When receiving a micro- phone signal, set the [TRIM] control to right ('MIC") to get the appropriate level.

8) After adjusting the recording levels properly,

press the [RE WIND] key while holding down the [STOP] key to locate the recorder to the beginning of the song.

[PLAY] key to start recording. The recorder records the keyboard while playing back track 1 (guitar).

10) When recording completes, press the [STOP]key

to stop the recorder. <Note>: We recommend to press the [REC SELECT] key for tracks 7/8 to unarm tracks 7/8. Playing back the recorded track

11) Press the [REWIND] key while holding down the

[STOP] key to locate the recorder to the beginning of the song.

12) Press the [PLAY] key to start playback.

You can adjust the monitor level using the track faders, as well as the [MASTER] fader and [PHONES VOL] control. <Note>: If you are not satisfied with the re- sult, use the undo/redo function to cancel the recording and try again. Undoing recording (undo/redo) If you press the [UNDO/REDO] key after finishing recording, you can return to the condition before the recording started (UNDO operation). Therefore, you can try recording again. If you press the [UNDO/REDO] key again (after UNDO), the undo operation is canceled and you can return to the condition when the recording finished (REDO operation).

D OM —— UNDOREDO]key Notes>: The undo/redo function is available for all kind of recordings, however, if you carry out any of the following operations after making re- cording, you cannot undo the recording. + Carrying out new recording. + Carrying out track or part editing. + Turning off the power. + Selecting another song or editing the song name.

MR-8HD Owner's Manual (Basic operations) Recording onto four tracks simultaneously You can simultaneously record up to four tracks. See page 34 for the available combinations of four recording tracks. The following describes the procedure for recording different sound sources simultaneously to tracks 1 through 4. You can make four-track simultaneous recording with any available track combination in the same manner. Preparation for recording

UTA SEL Connect the following sound sources to the [INPUT A] through [INPUT D] channels. [INPUT AJ > Electric guitar [INPUT B] -> Electric bass [INPUT C] > Microphone (vocal) [INPUT D] > Drum machine <Note>: If you connect a condenser micro- phone to the [BAL] XLR connector of the [IN- PUT C] channel, you can supply the phan- tom power to the microphone (see page 128). Set the [INPUT A SEL] switch to "GUIT DIST". You can add distortion of the internal effects to your guitar sound. <Note>: You can apply the amp simulation as insert effects when the [INPUT A SEL] switch is set to "GUIT DIST" (see page 58).

Press the [REC SELECT] key fortracks 1 through

Tracks 1 through 4 are record armed and the [REC SELECT] keys for tracks 1 through 4 start flashing. On the home screen, track numbers "1" through "4" changes to "A" through "D" respectively, showing that each input is assigned to the appropriate track. The remaining time of the hard disk is shown. Set the track faders 1 through 4 and [MASTER] fader to the nominal position (marked by Raising these faders allows you to monitor the input sound. If these faders are not raised, you cannot monitor the sound via headphones.

MR-8HD Owner's Manual (Basic operations) <Note>: Track faders 1 through 4 are used to adjust the monitor levels. To adjust the recording level, use the [TRIM] controls for ENPUT A] through [INPUT D].

5) Press the [RECORD] key once (the key indicator

starts flashing). Tracks 1 through 4 (which are armed) now enter the input monitor mode and QIHEUT D" is shown on the home screen.

6) While playing the music, adjust the recording

level of each track using the [TRIM] control of each input channel. Adjust the level appropriately so that the PEAK indicator does not light. Turning the [PHONES VOL] control clockwise raises the headphone monitor level. The screen shows the input level of tracks 1 through 4, as well as the stereo L and R output levels. <Note>: Adjust the [TRIM] control of each input channel properly so that the PEAK indicator does not light at the loudest part of the sound.

<Tip>: You can add distortion to an electric guitar connected to [INPUT A]. Use the [DIS- TORTION] control to adjust the distortion level. When you add distortion, readjust the [TRIM] control. <Tip>: When receiving a line level signal, set the [TRIM] control to left ("LINE") to get the appropriate level. When receiving a micro- phone signal, set the [TRIM] control to right ('MIC") to get the appropriate level. L J

[PLAY] key to start recording. The recorder starts recording.

8) When recording completes, press the [STOP] key

to stop the recorder. <Note>: We recommend to press the [REC SELECT] key for tracks 1 through 4 to un- arm these tracks. Playing back the recorded track

9) Press the [RE WIND] key while holding down the

[STOP] key to locate the recorder to the beginning of the song.

10) Press the [PLAY] key to start playback.

You can adjust the monitor level using track faders 1 through 4, as well as the [MASTER] fader and [PHONES VOL] control. <Tip>: If you are not satisfied with the re- sult, use the undo/redo function to cancel the recording and try again. Undoing recording (undo/redo) If you press the [UNDO/REDO)] key after finishing recording, you can return to the condition before the recording started (UNDO operation). Therefore, you can try recording again. If you press the [UNDO/REDO] key again (after UNDO), the undo operation is canceled and you can return to the condition when the recording finished (REDO operation). <@——= (UNDO/REDO]key Notes >: The undo/redo function is available for all kind of recordings, however, if you carry out any of the following operations after making re- cording, you cannot undo the recording. e Carrying out new recording. + Carrying out track or part editing. < Turning off the power. + Selecting another song or editing the song name.

ES MR-8HD Owner's Manual (Basic operations) Basic mixdown This section describes basic mixdown which is the final process of multitrack recording. Mixdown mixes recorded materials on tracks 1 through 8 down to stereo. The mixdowned material can be recorded to an external master recorder. The MR-8HD is equipped with the [DIGITAL OUT] connector, so you can record a mixdowned signal to a digital master recorder (DAT, MD, etc.) which can accept an S/P DIF digital signal in digital domain. With the MR-8HD, you can also record a mixdowned signal internally to a new song of the MR-8HD using the track bouncing function, without the need of an external master recorder (see "Track bouncing" described later). aarou 2 fera 11] [Track 1 (Playback) À Track 2 (Playback) Track 6 (Playback) Track 3 (Playback) a Track 4 (Playback = ê Ne) ypack) É ê mn OSTEREO OUT os cm Track 5 (Playback) El 3 STEREO OUT (R)

Track 7 (Playback) Track 8 (Playback) [A DIGITAL OUT —+ igia signal

The following describes how to make mixdown recording to an external analog recorder.

Analog master recorder

1) Connectthe [STEREO OUT (L,R)] connectors of 3) Adjust the recording level of the master recorder

the MR-8HD to the input connectors of an while rehearsing mixdown. analog master recorder. See the manual of the master recorder for details about how to adjust the recording level.

2) While playing back the MR-8HD, rehearse mixing

down the recorded sounds by adjusting the level 4) After rehearsing mixdown and adjusting the and panning of each track, applying effects to recording level, locate the MR-8HD to the tracks 1 through 4 and applying the mastering beginning of the song. effects to the L/R stereo mix, etc. The output levels from the [STEREO OUT (L, 5) Startthe master recorder recording and then start R)] connectors can be controlled by the the MR-8HD playing back. [MASTER] fader. Adjust the levels appropriately so that the 6) After finishing recording, stop both recorders. highest segments of Land R meters do not light. See "Using effects" on page 57 for details about <Tip>: By sliding up or down the MR-8HD the delay/reverb and mastering effects. [MASTER] fader gradually, you can fade in You can also mix sound sources connected to or fade out recording. ENPUT A] through [INPUT D] during mixdown. See page 73 for details.

MR-8HD Owner's Manual (Basic operations) [DIGITAL OUT]

1) Connect the [DIGITAL OUT] connector of the 3)

MR-8HD to the digital input connector of a digital master recorder using an optical cable. <Note>: The [DIGITAL OUT] connector of the MR-8HD is the Toslink optical type. If your digital recorder provides only the coaxial type connector, use the Fostex COP- 1/96 kHz coaxial-optical converter. Contact Fostex or our dealer for details about the Model COP-1/96 kHz.

2) Setthe master recorder to accept the digital

input. Make sure that the recorder accepts the digital 6) signal output from the MR-8HD, which is 44.1- kHz, 16-bit, S/P DIF signal. Generally, a digital recorder cannot adjust the digital input level.

While playing back the MR-8HD, rehearse mixing down the recorded sounds by adjusting the level and panning of each track, applying effects to tracks 1 through 4 and applying the mastering effects to the L/R stereo mix, etc. See "Using effects" on page 57 for details about the delay/reverb and mastering effects. You can also mix sound sources connected to [INPUT A] through [INPUT D] during mixdown. See page 72 for details. Use the [MASTER] fader of the MR-8HD to adjust the output level. Adjust the level appropriately so that the level meter of the master recorder shows "O" when the MR-8HD outputs the biggest signal. If the level meter exceeds "0", the sound may be distorted. Startthe master recorder recording and then start the MR-8HD playing back. <Tip>: By sliding up or down the MR-8HD [MASTER] fader gradually, you can fade in or fade out recording. After finishing recording, stop both recorders.

0 NS MR-8HD Owner's Manual (Advanced playback and locate functions) Advanced playback and locate functions This chapter describes advanced playback functions including cue- ing, partial playback (between points À and B), special play modes, as well as the locate function.

MR-8HD Owner's Manual (Advanced playback and locate functions) 3 x cueing By holding down the [F FWD] or [REWIND] key during playback, the recorder enters cueing mode and you can monitor playback at 3 x speed. It may be useful for searching a specific position. . By holding down the [F FWD] key during play back, the recorder starts cueing forwards at 3 x speed. During forward cueing, ">>" is shown on the display. IF FWD]key IREWIND] key . By holding down the [RE WIND] key during play back, the recorder starts cueing backwards at 3 x speed. During backward cueing, "<<" is shown on the display. Playback between LOCATE A andB points When the LOCATE A and LOCATE B points are set, you can playback between these points once. This function is always available regardless of the play mode setting (see "Play mode" on next page). This function allows you to check the editing part (between LOCATE A and B points) for copy/paste, erase, etc. See "Part editing" described later. ISTOP]key IPLAYIkey , While the recorder is stopped, press the [PLAY] key while holding down the [STOP] key. | The MR-8HD plays back audio data between the LOCATE A and LOCATE B points once, then stops. LOCATE 4 point

Prayoack <Note>: Note that this function is available only when the LOCATE À and B points are set. See page 49 for details about how to set the LO- CATE A and B points. Note>: If you carry out the operation above when the LOCATE A point is set ahead of the LOCATE B point (i.e. LOCATE À > LOCATE B), the MR-8HD plays back audio data from the LOCATE A point to the REC END points once, then stops.

While the recorder is playing back between the LOCATE A and B points, the display shows the icon as below. During playback, you can monitor playback audio of the desired track(s) by raising the ap- propriate track fader(s), the [MASTER] fader and the [PHONES] control.

BD MR-8HD Owner's Manual (Advanced playback and locate functions) Play mode The MR-8HD offers special play modes including the auto play, auto return and loop playback modes in addition to the normal playback mode. Selecting a play mode Lf While the recorderis stopped, "AE you can choose the desired play mode by pressing the [] (PLAY MODE] key as many times as needed. While the recorder is stopped, each time you press the [PLAY MODE] key, the play mode switches among "Off", "Auto Play", "Auto return" and "Loop". The current mode is shown on the screen as follows (when "Off" is selected, there is no indication). Play mode "off" Auto play mode EEE EU <— Lighting Sons —— Lighting ERA GE <— Lighting 18345618 LA Loop mode Auto return mode

MR-8HD Owner's Manual (Advanced playback and locate functions) | Auto play mode In the Auto play mode, when locating to the ABS ZERO, REC END, LOCATE A or LOCATE B point, the recorder automatically starts playback from the point. The following shows the auto play function after locating to the LOCATE A point (see page 48 for the locate function). The point where you LOCATE À point The point where you execute the locate function execute the locate function Locate : PPLLILLELLELEE Playback When locating to the LOCATE A point, the recorder automaticaly starts playback immediately Auto retum mode The auto return mode is active when the LOCATE A and LOCATE B points are set. In the auto return mode, when reaching at the LOCATE B point during playback, the recorder automatically locates to the LOCATE A point and stops. LOCATE A point LOCATE B point playback

When reaching atthe LOCATE B point during playback, the recorder automatically locates to the LOCATE A point and stops. As With the auto return mode, the loop mode is active when the LOCATE A and LOCATE B points are set. In the loop mode, when reaching at the LOCATE B point during playback, the recorder automatically locates to the LOCATE A point and starts playback. The recorder repeats this behavior until you stop the recorder. You may find it very convenience to use the loop function together with the auto punch in/out function (see the next page). LOCATE À point LOCATE B point

When locating to the LOCATE À point, the recorder automatically starts playback.

e point during playback, the recorder automatically locates to the LOCATE À point.

RD MR-8HD Owner's Manual (Advanced playback and locate functions) op function in auto pun: /out mode When the loop mode is active (while the auto punch in/out mode is inactive), the LOCATE A and LOCATE B points are used as the loop start and end points. When the auto punch in/ out mode is active (while the loop mode is inactive), the LOCATE A and LOCATE B points are used as the punch-in and punch-out points. When both the auto punch in/out and loop modes are active, the LOCATE A and LOCATE B points are used as the punch-in and punch-out points, while the loop function starts at "the LOCATE A point minus the pre-roll time" and ends at "the LOCATE B point plus the post-roll time, as shown below. The pre-roll time is initially set to four seconds, while the post-roll time is set to one second. <Note>: If you set the LOCATE A point to the beginning of a song (ABS ZERO) or set the LOCATE B point to the recording end point (REC END) of a song, the pre-roll or post-roll time is ignored. LOCATE A point LOCATE B point

—æ dec. Le a LOOP START point LOOP END point Using the loop function in the auto punch in/out mode reduces the number of key presses, allowing you to concentrate on playing. LOCATE À point LOCATE B point Punch in point) (Punch out point) LOOP START point LOOP END point You can change the pre-roll and post-roll time within the range between 0.1 and 10.0 seconds (in 0.1 second steps) in the menu mode (see page 126).

MR-8HD Owner's Manual (Advanced playback and locate functions) | Locate function The following describes the locate functions, which allow you to immediately skip to a specified point in a song. Regardless of the current recorder position, you can locate to the beginning (ABS ZERO) of the song or the recording end (REC END) of the song. Locating to the beginning (ABS ZERO) of a song +. While the recorder is stopped, press the IREWIND] key while holding down the [STOP]key. The MR-8HD immediately locates to the beginning of the song (ABS ZERO) and stops. ABS ZERO The current postion REC END ! Locate i ÉPRPTECELCECECLCELEETEL ISTOP]key +[REWIND]key Locating to the recording end point (REC END) of a song + While the recorder is stopped, press the [F FWD] key while holding down the [STOP] key. The MR-8HD immediately locates to the recording end of the song (REC END) and stops. ABS ZERO The current position REC END ISTOP]key +[F FWD]key

RD MR-8HD Owner's Manual (Advanced playback and locate functions) ocating to the LOCATE A or LOCATE B point You can set the desired point of a song as the LOCATE A or LOCATE BB point. The LOCATE A and B points can be used not only for locating, but also for auto punch in/out, play modes and part editing, etc. Setting the LOCATE A or LOCATE B point You can set the LOCATE A or LOCATEB point while the recorder is running or stops at the desired point, regardless of time base setting. Note>: You cannot set the LOCATE A or B point for a protected song. If you are going to do so, the warning message ("This song is protected!") is shown. To set the LOCATE A or B point for a protected song, release the protection first (see page 101). <Note>: The LOCATE A point must be earlier than the LOCATE B point. If not, you cannot carry out the auto punch in/out or loop function correctly. <Tip>: While the time base is set to the bar/beat mode, if you set the "Beat resolution" menu item in the menu mode to "On", you can store the LOCATE A or B point in beat resolution. In other words, the clock digit of the Bar/Beat/CIk value is automatically rounded down or up, so that the clock digit is always "000". See page 127 for details about how to make the beat resolution active or inactive.

ISTORE]key +ILOCATE A/IN] key ISTORE]key +ILOCATE B/OUT] key + ___ Tosetthe LOCATE A point: When the recorder is playing back (or stopped), press the [LOCATE A/IN] key at the desired point while holding down the [STORE] key. The display briefly shows "Store LOCATE A", and the point when pressing the [LOCATE A/IN] key is stored as the LOCATE A point. + __ Tosetthe LOCATE B point: When the recorder is playing back (or stopped), press the [LOCATE B/OUT] key at the desired point while holding down the [STORE] key. The display briefly shows "Store LOCATE B", and the point when pressing the ILOCATE B/OUT] key is stored as the LOCATE B point.

MR-8HD Owner's Manual (Advanced playback and locate functions) | Locating While the recorder is stopped, press the [LOCATE A/IN] (or [LOCATE B/OUT]) key. The recorder instantly locates to the appropriate point. +When the current recorder position is between the LOCATE A and LOCATE B points: LOCATE A point The current position LOCATE B point Locate Locate

PR ELLLCLELEEE CELECCCECELET CS

+When the current recorder position is before the LOCATE A and LOCATE B points: The current position LOCATE A point LOCATE B point CELLE Locate : «When the current recorder position is after the LOCATE A and LOCATE B points: LOCATE A point LOCATE B point The current position <Tip>: By selecting the play mode to "Auto play", the recorder automatically starts playback after locating the LOCATE A or LOCATE B point.

RE MR-8HD Ouwner's Manual (Punch in/out) Punch in/out Using the punch in/out function of the MR-8HD, you can overwrite the desired part of the recorded track. "Punch in" means switching from playback to recording, while "punch out" means switching from recording to playback. The MR-8HD offers three methods for making punch in/out recording.

The following description assumes that the song you are going to make punch in/out recording to is loaded and the preparations for recording is completed.

MR-8HD Owner's Manual (Punch in/out) Punch in/out using the keys on the top panel You can make punch in/out manually by using the [RECORD] and [PLAY] keys on the MR-8HD top panel.

<Note>: The punch in/out operation by yourself using the keys on the top panel sometimes prevents you from concentrating on playing. In such a case, ask someone to operate the MR- 8HD, or use either of the other two punch in/out methods described later. 2,4 Press the [RECORD]key while holding down the [P LAY ]key. {Punch in) Press only the [PLAY ]key. Punch out)

Playback Recording Playback” Press the [REC SELECT] key for the track you are going to make punch in/out recording. The track is record-armed. Locate the recorder to the point before the punch- in point and press the [PLAY] key to start playback. 4 It may be a good idea to play the instrument along with the playback sound, so that you can get the tempo and feel. When the recorder reaches at the point you want 5) to punch in, press the [RECORD] key while holding 6) down the [PLAY] key (see importantnote>below>). The armed track is punched in (i.e. starts recording).

<important note> You cannot punch in by only pressing the [RECORD] key. You need to hold down the [PLAY] key when pressing the [RECORD] key. When the recorder reaches at the point you want to punch out, press only the [PLAY] key. The recorder status switches from recording to playback. Press the [STOP] key to stop the recorder. Rewind the recorder and play back the part you performed the punch in/out recording to check the result. If you are not satisfied with the result, use the undo function to cancel the punch in/out recording and try again.

MR-8HD Owner's Manual (Punch in/out) Punch in/out using the footswitch You can make hands-free punch in/out recording using an unlatched-type footswitch.

Press the footswitch. {Punch out}

Playback Connect the footswitch to the [FOOT SW] jack on the MR-8HD rear panel. Press the [REC SELECT] key for the track you are going to make punch in/out recording. The track is record-armed. Locate the recorder to the point before the punch- 6) in point, and press the [PLAY] key to start play back. 7) It may be a good idea to play the instrument along with the playback sound, so that you can get the tempo and feel. When the recorder reaches atthe point you want to punch in, press the footswitch. The armed track is punched in (i.e. starts recording). When the recorder reaches atthe point you want to punch out, press the footswitch again. The recorder status switches from recording to playback.

<Note>: You cannot perform another punch in/out recording successively. To perform punch in/out recording in an- other part, stop the recorder and perform the steps above again. Press the [STOP] key to stop the recorder. Rewind the recorder and play back the part you performed the punch in/out recording to check the result. If you are not satisfied with the result, use the undo function to cancel the punch in/out recording and try again.

MR-8HD Owner's Manual (Punch in/out) Auto punch in/out By setting the punch-in and punch-out points in advance, The recorder automatically makes punch in/out recording for you. You can rehearse punch in/out recording as many times you like. Setting the punch-in and punch-out points You can set the punch-in and punch-out points on-the-fly while playing back the recorder (as well as you can set them while the recorder is stopped at the desired position). Punch-in point Punch-out point

| Part replaced with a new recording | <Note>: You cannot make punch-in/out recording on a song which is protected. Release the song pro- tection before making punch-in/out recording.

Start playback from the beginning of the song 4 (or from a point before the point where you want to make punching in) by pressing the [PLAY] key. When the recorder reaches at the point where you want to make punching in, press the ILOCATE A/IN] key while holding down the [STORE] key. The display briefly shows "Store LOCATE A" and the time data when you press the [LOCATE A/IN] key is set as the punch-in point. When the recorder reaches at the point where you want to make punching out, press the ILOCATE B/OUT] key while holding down the [STORE] key. The display briefly shows "Store LOCATE B" and the time data when you press the [LOCATE B/OUT] key is set as the punch-out point. auropunes ua unooneno Por onsre

<Note>: If you are not satisfied with the punch-in or punch-out point you set, sim- ply redo the operation above. The new time data overwrites the previous one. Stop the recorder after setting the punch-in and punch-out points, and rewind the recorder to the beginning of the song (or to a point before the point where you want to make punching in). <int>: To rewind the recorder to the be- ginning of the song after setting the punch-out point, press the [REWIND] key while holding down the [STOP] key. To locate before the punch-in point, carry out the following. (1) While the recorder is stopped, press the [LOCATE A/IN] key. The recorder immediately locates to the punch-in point and stops. (2) Press the [RE WIND] key to move back the recorder and press the [STOP] key atthe desired point. <Hint>: The punch-in and punch-out points you set also can be used for the locate function, playback by the play mode and part editing (see pages 45 and 111).

Rehearsal fo uto punc MR-8HD Owner's Manual (Punch in/out) /out After setting the punch-in and punch-out points appropriately, you can rehearse the auto punch in/out for checking the punch-in and -out points or practicing punch-in and -out timing.

Playback Locate the recorder to the point before the punch- 4) in point (or the beginning of the song). <Tip>: You can immediately locate to the punch-in point by pressing the [LOCATE AIN] key. Therefore, by pressing the [LO- CATE A/IN] key, followed by the [RE- WIND] key then the [STOP] key, you can easily locate to the point before the punch-in point. Press the [REC SELECT] key of the track you are going to make punch in/out operation to arm the track. Press the [AUTO PUNCH] key to make the auto punch mode active. The "CEE" icon is now shown on the screen.

Press the [PLAY] key. The recorder starts punch in/out rehearsal. The "EEE" icon on the display changes to the "EEE" icon. In the rehearsal mode, the recorder automati- cally switches the monitor of the armed track from "repro" to "input" at the punch-in point, but actual recording is not made (the [RECORD] key flashes while "CRE" is shown on the display. By repeating the operation above, you can prac- tice auto in/out operation as many times as you like. After the punch-out point is passed, locate the recorder back to the beginning position. <Note>: By using the loop function when rehearsing the auto punch in/out operation, you can concentrate on playing without the need of troublesome operation of the MR- 8HD. See page 45 for details about the loop function.

MR-8HD Owner's Manual (Punch in/out)

Actual auto punch in/out After rehearsing the auto punch-in/out operation, it's time for executing actual auto punch in/ out operation. Punch in point Punch out point Playback” | "77 Recording" Pay” Locate the recorder to the point before the punch- in point. Make sure that "AUTO PUNCH" is shown on the screen (i.e. the auto punch mode is active). fit is not shown, press the [AUTO PUNCH] key. Press the [RECORD] key while holding down the [PLAY] key. The recorder starts executing actual punch in/ out operation. The "| icon on the display changes to the "RETEN" icon. Unlike the rehearsal, the recorder automatically starts recording when it reaches the punch-in point, then automatically stops recording and exits the auto punch mode at the punch-out point. <Note>: You can cancel the auto punch in/ out recording you made by pressing the [UNDO/REDO] key. <Note>: In addition to the punch in/out func- tion, the MR-8HD allows you to edit the re- corded material using the following editing functions. e Deleting the whole data on the desired track (using the "Erase Track" menu item). See page 104. Copying all data on a track and pasting it to another track (using the "Copy Paste Track" menu item). See page 105. Moving the desired track data to the other track(s) (using the "Move Track" menu item). See page 107. Exchanging all track data between tracks (using the "Change Track" menu item). See page 108. Deleting the desired part (using the "Erase Part" menu item). See page 113. Pasting the desired part(s) to the other track(s) (using the "Copy Paste Part" menu item or the "Copy Part" and "Paste Part" menu items). See pages 114 and 116. Moving the desired part(s) to the other track(s) (using the "Move Part" menu item). See page 119. Exchanging parts between tracks (using the "Change Part" menu item). See page 121. <About "part"> A "part" is defined as audio data between the "LOCATE A" and "LOCATE B" points. Therefore, you have to set the "LOCATE A"'and "LOCATE B" points when editing a "part". The punch-in and punch-out points set for the auto punch in/out function also can be used as the "LOCATE A" and "LO- CATE B" points.

MR-8HD Owner's Manual (Using effects) Using effects The MR-8HD provides the insert effects for recording (microphone and amplifier simulation effects), the delay/reverb effects for track bounce or mixdown (for tracks 1 through 4 only), and the master- ing effects for L/R mix. You can also use an external effect device connected to the [INSERT] connector.

MR-8HD Owner's Manual (Using effects) a Using the insert effects The [INPUT A] channel of the MR-8HD provides two types of insert effects: microphone and amplifier simulation effects. These effects can be used during recording. These effects simulate popular microphones and guitar amplifiers. If you use the microphone simulation effect when you record an acoustic guitar through your microphone, you can make recording as if you are using a famous microphone. If you use the guitar amplifier simulation effect when you record an electric guitar directly connected to the MR-8HD, you can make recording as if you are using a famous guitar amplifier. Note that you cannot get exactly the same sound as the original microphone/guitar amplifier by using simulation effects. ulation effects You can use mic simulation effects when the [INPUT A SELECT] switch on the rear panel is set to "MIC/LINE". INPUT A SEL (EE ss et to the "MIC/LINE" position Cru

“DYNAMIC” “CONDENSER" “TUBE"

By pressing the appropriate key, you can + Details of each mic simulation effect choose from among three mic simulation ef- n Simulates th d of lar dy- fects: DYNAMIC, CONDENSER and TUBE (the DYNAMIC | 2MHSS DIE SOUNG Of & Popurar cy namic microphone. indicator of the key lights up). : Y18 p) CONDENSER Simulates the sound of a popular con- denser microphone for professional use. Simulates the sound of a popular tube microphone for professional use. TUBE Amp simulation effects You can use mic simulation effects when the [INPUT A SEL] switch on the rear panel is set to "GTR DIST" or "GTR CLEAN". Only when the switch is set to "GTR DIST", you can also use the distortion (adjusted by the [DISTORTION] control), as well as the insert effects.

“BRIT STACK" ‘US METAL" “605 COMBO”

INPUTASEL [] Qt non ne Suitch is set to INPUTASEL [] Cane Le such is set to + Amp simulation effects details i Ï BRIT STACK Simulates a popular British 800-series tube guitar amp head. Simulates a popular US high gain metal guitar amplifier. US METAL You can choose from three guitar amp simu- = lation effects: BRIT STACK, US METAL and 60's 60 comBO | SIMIRIES à Popular tube combo guiar COMBO (the selected key lights up). per.

MR-8HD Owner's Manual (Using effects) Applying external effects During recording, you can apply external effects to a sound source connected to an input con- nector in the [INPUT A] channel. The [INPUT A] channel has the [INSERT] connector (phone jack). You can connects an external effect unit (typically, a compressor/limiter) to this connector using a Y-cable, as shown below. EFFECTOR (COMP/LIMITER) etc. n + ae CEE m_. OS

Sound Source ——"< | | | The source (dry) signal fed to the [INPUT A] channel is sent to the external effect unit connected to the [INSERT] connector and the wet (effect) signal re- turns to the [INPUT A] channel. Thus, you can apply effects to the "INPUT A" signal by connecting an external effect unit. EFFECTOR Input Output Sound Dry (original) sound source INPUT À Wet (effect) sound See the manual of your effect unit for details about how to use it. A Y-cable is not supplied with the MR-8HD, therefore, purchase an appropriate Y-cable available in the market.

MR-8HD Owner's Manual (Using effects) Using the reverb or delay The MR-8HD has the original built-in reverb/delay processor featuring the newly-developed algorithm. You can apply the reverb or delay to playback signals of tracks 1 through 4 during mixdown and track bouncing. Selecting an effect type You can select an effect type from among three reverb options (ROOM, HALL and PLATE) and a delay (DELAY) by using the keys in the [EF- FECT] section shown below.

Details of each effect type Simulates reverberation in a medium-sized ROOM | "00m. When you select "ROOM", you can adjust the reverb time using the IREVERB/ DELAY TIME]control. Simulates reverberation in a hall with moder- ate early reflection. HALL | When you select"HALL", you can adjustthe reverb time using the [REVERB/DELAY TIME] control. Simulates a plate reverb with a wide fre- quency range. PLATE | \Vhen you select "PLATE", you can adjustthe reverb time using the [REVERB/DELAY TIME] control. Adds delay effects. You can select the de- sired delay types using the "Delay Type" item ofthe System menu in the menu mode (you can easily access to the "Delay Type" setting DELAY screen by a long press of the [IDELAY ] key). Three delay types are available: Mono, L-R and Diff. See below for details. When you select "ROOM", you can adjust the delay time using the [REVERB/DELAY TIME] control

Selecting a delay type When you use the delay effect, you can select a delay type.

1) While the recorder is stopped, press the

IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. System + Sons + Track Edit k Part Edit k Fhathm Guide

"Delay Type" and press the [MENU/ENTER] knob. The current delay type starts flashing and you can now select from among three options shown below ("L-R" is initially selected). HkSastemel 236LY Ture] A4Eack Pre Roll Time peste Tire 4.8s

You can choose from among the following three delay types. L-R L-R delay (default) Mono Mono delay Diff Diffusion delay

4) Rotate the [MENU/ENTER] knob to select the

desired delay type and press the [IMENU/ENTER] knob. The selected delay type is set, while the display returns to the previous screen.

Adjusting the delay/reverb time You can adjust the reverb time or delay time using the [REVERB/DELAY TIME] control, de- pending on the selected effect type. Press the [STOP] key to quit the menu mode.

Adjusts the reverb time within the range between

1.0 s and 6.0 s (center position: 3.0 s)

Adjusts the reverb time within the range between

0.1 s and 2.0 s (center position: 1.0 s)

Adjusts the reverb time within the range between

0.5 s and 4.0 s (center position: 2.0 s)

Adjusts the delay time within the range between 100 ms to 1000 ms (center position: 300 ms) HALL ROOM PLATE DELAY MR-8HD Owner's Manual (Using effects) Adjusting the effect send levels To apply the effect (reverb or delay) to tracks 1 through 4, adjust the [EFFECT SEND] con- trol for each track to adjust the level of the track signal sent to the effect processor. In the example as illustrated below, tracks 1 and 2 signals are sent to the effect processor. As shown in the signal flowchart below, a track (playback) signal after the track fader is fed to the [EFFECT SEND] control and adjusted, then fed to the effect processor input. The effect processor's stereo output signals (wet signals) and stereo (L/R) signals (dry sig- nals) are merged together and then output from the [STEREO OUT] jacks. AS you can see in the flowchart below, the signal sent to the effect processor is affected by the track fader (i.e. a track fader must be raised to send track signal to the effect pro- cessor). The signal which passes through a fader is generally called a "post fader signal". Playback Dry sound Track 1 Adjusts the track playback level Adjusts the send level to the effect processor Signal flow from a track to the effect processor (only Track 1- 4)> STEREO BUSS —— Wet sound

MR-8HD Owner's Manual (Using effects) Using the mastering effects The MR-8HD provides the dedicated mastering effects for the L/R stereo buss. You can use the mastering effects when bouncing more than one track to stereo tracks or when mixing down tracks 1 through 8 to stereo and sent to an external master recorder for recording. <Bouncing tracks 1 through 4 to track 5/6> Mastering effects Trk 1 Playback Trk 2 Playback Trk 3 Playback Trk 4 Playback amur a =ineur D —tttt TrK5 Record Trk6 Record Bupan

spa Gusasen bouncing ouncing tracks 1 through 8 to the New song> —>| rave rS fl Mastering effects

TRI ro <Bouncing tracks 1 through 6 to track 7/8> Mastering effects [Trk 1 Playback [Trk 2 Playback [Trk 3 Playback ITrk 4 Playback Euvan [R: Trk 5 spoye Baume Playback Trk 6 Playback

TK 7 Record Douncing Trk 8 Record

ixing down tracks 1 through 8> Mastering effects ÉD 7 [Trk 1_ Playback ITrk 2 Playback srétoouran [Trk 3 Playback Sup FAns

Trk 4 Playback £ Le ÿ où O [Trk 5 Playback é re re) ITrk 6 Playback à FTrk 7 Playback à ü ÎTrk 8 Payack DST our ameur a neur o— tt tt TIKB8 Recon auras See "Track bounce" on page 63 for details about track bounce which allows mixing multiple tracks to stereo. See "Mixdown" on page 41 for details about mixdown. Three mastering effect types are available. You can select the desired type using the [MAS- TERING] keys (POWERFUL, NATURAL and BRIGHT). Each effect type has the following character. Select the appropriate type. POWERFUL Adds power to the sound. Good for rock. NATURAL Slightiy adds power to the sound. Good for acoustic music. BRIGHT Add brightness to the sound. Good for use when the mixed sound is dark. Note>: By activating the mastering effect, the out- put level raises. Therefore, be careful of the level change when monitoring via headphones or moni- tor speakers, as well as when adjusting the record- ing level of an external recorder.

RE" MR-8HD Owner's Manual (Track bouncing) Track bouncing This chapter describes track bouncing which is an important function in the recording process. The track bouncing mixes several tracks and records onto other two tracks. By using this function, you can record more sound materials to the MR-8HD tracks. Three track bouncing modes are available: (1) Bouncing tracks 1 through 4 to tracks 5/6. (2) Bouncing tracks 1 through 6 to tracks 7/8 (3) Bouncing tracks 1 through 8 to tracks 7/8 of a new song. In any mode, you can apply a reverb (or delay) to tracks 1 through 4 when bouncing to two tracks in stereo. Further- more, you Can apply the mastering effect to the mixed signals. You can also execute track bouncing while mixing sound sources from inputs À through D.

MR-8HD Owner's Manual (Track bouncing) | Preliminary knowledge Before executing track bouncing, read "Track bouncing example" below and "Track bouncing signal flow" on the next page. Track You can record more than eight materials using the track bouncing function as shown in the following example. uncing example <Step1> Step 2> Step 3> Make recording to tracks 1 through 6. Bounce tracks 1 through 6 to tracks 7/8. Delete tracks 1 through 6. Track 1 Track 2 Track 3 Track 4 Track 5 Track 6 Track 7 Track 7 Track 7 Track 8 Track 8 Track 8 <Step4> Step 5> Step 6> Overdub new materials to tracks 1 Bounce tracks 1 through 4 to tracks 5/6. Delete tracks 1 through 4. through 4. Track 1 Track 2 Track 3 — Track 4 Track 5 Track 5 Track 6 Track 6 Track 7 Track 7 Track 7 Track 8 Track 8 Track 8 In this step, you can make track Step7> bouncing while listening to Overdub new materials to tracks 1 tracks 7/8 as well. through 4. Track 5 Track 6 Track 7 Track 8

RE" MR-8HD Owner's Manual (Track bouncing) Signal flow of track bouncing The following shows the signal flow for each of three track bouncing modes. ."1-4>5/6" mode (see page 66) In the "1-4 > 5/6" mode, tracks 1 through 4 are played back, mixed down to stereo, pie and bounced to tracks 5/6. £ | Deby El

You can apply a reverb (or delay) to tracks TK I rame ff 1 through 4, as well as the mastering effect to the mixed signals. 7; You can also mix signals from the [INPUT A] through [INPUT D] channels during track pypyr a -inpur D FFE} bouncing. ——— From headphones (or monitor speakers), L you can hear the signals bounced to tracks = STEREO OUT (LR) 5/6 (i.e. mixed signals) as well as playback signals of tracks 7/8.

says Suuasen .+"1-6 >7/8" mode (see page 68) In the "1-6 > 7/8" mode, tracks 1 through —" 6 are played back, mixed down to stereo, | 7] and bounced to tracks 7/8. LS UE -7 In this mode, you can apply a reverb (or , 5 delay) to tracks 1 through 4, as well as the L a € mastering effect to the mixed signals. El HE à You can also mix signals from the [INPUT re Ê A] through [INPUT D] channels during track D © bouncing. ameur a =inpur D ETF From headphones (or monitor speakers), rene you can hear the signals bounced to tracks C 7/8 (i.e. mixed signals). stereo our tm ü | +"1-8 > NEW SONG" mode (see page 70) In the "1-8 > NEW SONG" mode, tracks 1 lis, through 8 are played back, mixed down to k < nl stereo, and bounced to tracks 7/8 of a new ar | song which is automatically created. So this g bouncing mode allows you to internally n sg z record a stereo master without the need of ni £ z y Ë srence our an external master recorder. ; E FA ä In this mode, you can apply a reverb (or Tes rare e à

delay) to tracks 1 through 4, as well as the = mastering effect to the mixed signals. DK mr You can also mix signals from the [INPUT [TRE roma A] through [INPUT D] channels during track "PLTA-MPUTD —————— "tt bouncing. 5, Pre From headphones (or monitor speakers), LE New Song you can hear the signals bounced to tracks î 7/8 of the new song. Trac vounce

MR-8HD Owner's Manual (Track bouncing) | Bouncing tracks 1 through 4 to tracks 5/6 You can bounce tracks 1 through 4 to tracks 5/6. Before executing track bouncing, you can rehearse track bouncing as many times as you like. Rehearsal of track bouncing Before executing track bouncing, you can rehearse it. While rehearsing track bouncing, you can control the playback level, panning and reverb (or delay) send setting of each source track, as well as apply the mastering effect to the mixed L/R signals. We recommend to make rehearsal thoroughly until you are satisfied with the sound. The following assumes that the song you are going to execute track bouncing is loaded. 4 (il ÉPRRORO TO Oh 0 O7 | pr

1) Use the [1-4 > 5/6, 1-6 > 7/8] key to select the 3) Press the [PLAY] key to start playback from the

“1-4 >5/6" bounce mode. beginning of the song. Selecting this bounce mode automatically arms tracks 5/6 and changes the monitoring mode 4) While playing back the song, adjust playback for these tracks to input monitoring mode. levels of tracks 1 through 4 using the track The display looks like this: faders. You can also adjust panning for tracks 1 through 4 and apply the reverb or delay to these tracks, as well as apply the mastering Lighting effect to the mixed sound. During rehearsal and actual track bouncing, the track faders and [MASTER] fader control Lighting the following signals. Flashing Faders Playback levels oftracks 1 through 1through 4 |4 for bouncing.

2) Raise the [5/6] fader and [MASTER] fader to the

"Æ" position. Set all the other track faders down to the minimum position. Fader 5/6 | Monitor levels oftracks 5/6. [MASTER] | Recording master level of tracks fader 5/6.

During rehearsal and actual track bouncing, level meters on the screen show the following signal levels. Meters Playback levels oftracks 1 through Lthrough 4 |4. Meters 5/6 | Recording levels of tracks 5/6. Meters Monitor output levels of STEREO LandR |OUTIL,R). By raising the [PHONES VOL] control, you can hear the signals bounced to tracks 5/6. Use the [5/6] fader to control the monitor out- put levels, and use the [MASTER] fader to ad- just the recording levels of the bounced sig- nals appropriately while checking meters 5/6. You can apply the delay/reverb to tracks 1 through 4 and the mastering effects to the ste- reo Land R signals. See "Using effects" on page 57 for details about the delay/reverb and mas- tering effects. <Panning control> You can freely adjust panning for tracks 1 through 4 using the PAN controls. For example, a guitar to left, a vocal to center, etc. After finishing rehearsal, press the [STOP] key to stop the recorder and locate it to the beginning of the song. Do not move the controls and faders after finishing rehearsal. Actual track bouncing After finishing rehearsal, let's carry out ac- tual track bouncing. Make sure that the re- corder stops at the beginning of the song.

Before carrying out actual track bouncing, make sure that the bounce mode is selected to “1-455/6". Press the [PLAY] key while holding down the [RECORD] key. Track bouncing starts with the effect/level settings made in the rehearsal mode. The mixed signals are recorded onto tracks 5/6. After track bouncing completes, press the [STOP] key to stop the recorder. Stopping the recorder automatically turns off the input monitoring mode of tracks 5/6.

MR-8HD Owner's Manual (Track bouncing) Checking the bounced signals on tracks 5/6 You can check the bounced signals while the bounce mode is active.

Press the [RE WIND] key while holding down the [STOP] key to locate the recorder to the beginning of the song. Make sure that the input monitoring mode is turned off. Press the [PLAY] key to start playback from the beginning of the song. Use the [5/6] fader to control the playback level of the bounced signals. By playing back the recorder while the bounce mode ("1-4 > 5/6") is active, only tracks 5/6 can be monitored. In this condition, you cannot monitor playback signals of tracks 1 through 4 even if you raise their faders. If you want to redo track bouncing, use the undo function to go back to the condition before carrying out track bouncing, and try again. <Auto punch in/out of track bouncing> You can bounce only the desired part (between the IN and OUT points) using the auto punch in/out function (see page 74). <Track bouncing while mixing signals from [INPUT Althrough [INPUT DJ> When you bounce tracks 1 through 4 to tracks 5/6, you can also mix signals from [INPUT A] through [INPUT D] together (see page 72).

MR-8HD Owner's Manual (Track bouncing) | Bouncing tracks 1 through 6 to tracks 7/8 You can bounce tracks 1 through 6 to tracks 7/8. As described earlier in "Bouncing tracks 1 through 4 to tracks 5/6", you can rehearse track bouncing as many times as you like before executing actual track bouncing. Rehearsal of track bouncing Before executing track bouncing, you can rehearse it. While rehearsing track bouncing, you can control the playback level, panning and reverb (or delay) send setting of each source track, as well as apply the mastering effect to the mixed L/R signals. We recommend to make rehearsal thoroughly until you are satisfied with the sound. The following assumes that the song you are going to execute track bouncing is loaded.

"1-6 >7/8" bounce mode. Selecting this bounce mode automatically arms tracks 7/8 and changes the monitoring mode 4 for these tracks to input monitoring mode. The display looks like this: Lighting BOUNCE 1-6+7.5 Sans 1 LR DRNETIEN = Lighting Flashing

2) Raise the [5/6] fader and [MASTER] fader to the

position. Set all the other track faders down to the minimum position.

Press the [PLAY] key to start playback from the beginning of the song. While playing back the song, adjust playback levels oftracks 1 through 6 using the track faders. You can also adjust panning for tracks 1 through 4 and apply the reverb or delay to these tracks, as well as apply the mastering effect to the mixed sound. During rehearsal and actual track bouncing, the track faders and [MASTER] fader control the following signals. Faders | Playback levels of tracks 1 through 1 through 4 | 4 for bouncing. Fader 5/6 | Playback levels of tracks 5/6 for bouncing. Fader 7/8 | Monitor levels oftracks 7/8. [MASTER] fader Recording master level of tracks 7/8.

During rehearsal and actual track bouncing, the level meters on the screen show the fol- lowing signal levels. Meters 1 through 4 Playback levels oftracks 1 through 4. Meters 5/6 |Recording levels of tracks 5/6. Meters 7/8 |Recording levels oftracks 7/8. Meters L andR Monitor output levels of STEREO OUTIL,R) By raising the [PHONES VOL] control, you can hear the signals bounced to tracks 7/8. Use the [7/8] fader to control the monitor out- put levels, and use the [MASTER] fader to ad- just the recording levels of the bounced sig- nals appropriately while checking meters 7/8. You can apply the delay/reverb to tracks 1 through 4 and the mastering effects to the ste- reo Land RK signals. See "Using effects" on page 57 for details about the delay/reverb and mas- tering effects. <Panning control> You can freely adjust panning for tracks 1 through 4 using the PAN controls. For example, a guitar to left, a vocal to cen- ter, etc. MR-8HD Owner's Manual (Track bouncing) Checking the bounced signals on tracks 7/8 You can check the bounced signals while the bounce mode is active.

Press the [RE WIND] key while holding down the [STOP] key to locate the recorder to the beginning of the song. Make sure that the input monitoring mode is turned off. Press the [PLAY] key to start playback from the beginning of the song. Use the [7/8] fader to control the playback level of the bounced signals. By playing back the recorder while the bounce mode ("1-6 > 7/8") is active, only tracks 7/8 can be monitored. In this condition, you can not monitor playback signals of tracks 1 through 6 even if you raise their faders. If you want to redo track bouncing, use the undo function to go back to the condition before carrying out track bouncing, and try again. <Auto punch in/out of track bouncing> You can bounce only the desired part (between the IN and OUT points) using the auto punch in/out function (see page 74). After finishing rehearsal, press the [STOP] key to stop the recorder and locate it to the beginning of the song. Do not move the controls and faders after finishing rehearsal. Actual track bouncing After finishing rehearsal, let's carry out ac- tual track bouncing. Make sure that the re- corder stops at the beginning of the song.

Before carrying out actual track bouncing, make sure thatthe bounce mode is selected to "1-6>7/8". Press the [PLAY] key while holding down the [RECORD] key. Track bouncing starts with the effect/level settings made in the rehearsal mode. The mixed signals are recorded onto tracks 7/8. After track bouncing completes, press the [STOP] key to stop the recorder. Stopping the recorder automatically turns off the input monitoring mode of tracks 7/8.

<Track bouncing while mixing signals from [INPUT Althrough [INPUT DJ> When you bounce tracks 1 through 6 to tracks 7/8, you can also mix signals from [INPUT A] through [INPUT D] together (see page 72). <Æxporting bounced data to a PC> Song data bounced to tracks 7/8 can be ex- ported to a PC. You can use the exported data as a source when burning an original audio CD using a CD-RW drive, or use it with a computer's music soft- ware. Before exporting song data on tracks 7/8 to a PC, you must convert the two mono WAV files on tracks 7/8 to a stereo WAV file (see page 90).

MR-8HD Owner's Manual (Track bouncing) Bouncing tracks 1 through 8 to a new song You can bounce tracks 1 through 8 to tracks 7/8 of a new song. À new song is automatically created when executing track bouncing (<Note>: In the “1-8 > NEW SONG” mode, you cannot bounce the desired part of a song by using the track bouncing and auto punch in/out functions together). Rehearsal of track bouncing Before executing track bouncing, you can rehearse it. While rehearsing track bouncing, you can control the playback level, panning and reverb (or delay) send setting of each source track, as well as apply the mastering effect to the mixed L/R signals. We recommend to make rehearsal thoroughly until you are satisfied with the sound. The following assumes that the song you are going to execute track bouncing is loaded.

3 TO OO Om 3 OROROI Raise the [MASTER] fader to th. Set all the track faders down to the position. Press the [PLAY] key to start playback from the beginning of the song. While playing back the song, adjust playback levels of tracks 1 through 8 using the track faders. You can also adjust panning for tracks 1 through 4 and apply the reverb or delay to these tracks, as well as apply the mastering effect to the mixed sound. During rehearsal and actual track bouncing, the track faders and [MASTER] fader control the following signal levels. Faders 1 through 8 Playback levels of tracks 1 through 8 for bouncing. [MASTER] | Recording master levels of bounc- fader ing.

During rehearsal and actual track bouncing, the level meters on the screen show the fol- lowing signal levels. Meters Playback levels oftracks 1 through Lthrough 8 |8. Meters Output levels of STEREO OUT (= LandR recording levels of bouncing) By raising the [PHONES VOL] control, you can hear the bounced signals. Use the track faders (1 through 8) to control the track output levels, and use the [MASTER] fader to adjust the master recording levels of the bounced signals appropriately while check- ing meters L/R. See "Using effects" on page 57 for details about the delay/reverb and mastering effects. After finishing rehearsal, press the [STOP] key to stop the recorder and locate it to the beginning of the song. Do not move the controls and faders after finishing rehearsal.

MR-8HD Owner's Manual (Track bouncing) Actual track bouncing After finishing rehearsal, let's carry out actual track bouncing.

While the recorder is stopped, press the [1-8 > NEW SONG] key. The [1-8 > NEW SONG] key lights up and the display shows the screen below. If you execute track bouncing, press the IMENU/ENTER] knob while holding down the [RECORD] key. If you cancel track bouncing, press the [STOP] key. Bounce 1-52 Heu Sons Bounce 411 Tracks & Analos Inputs. Are vou Sure?l “estRECOURD+ENTER Kes No+STOP Key Press the [MENU/ENTER] knob while holding down the [RECORD] key. Track bouncing starts. The mixed (bounced) signals are recorded to tracks 7/8 of a new song. The screen example below shows that tracks 1 through 8 of Song0O2 (whose name is “Moonlit”) is now being bounced to tracks 7/8 of the new song (Song04). Meters 1 through 8 show the playback levels of tracks 1 through 8, while the L and R meters shows the recording levels of tracks 7/8 of Song04. <Note>: To stop track bouncing, press the [STOP] key. Pressing the [STOP] key also turns off the bounce mode. If you stop track bouncing in the middle, the new song is automatically deleted. Note>: When you are going to execute track bouncing, if there is not enough space on the hard disk or 99 songs already exist on the disk, a warning message appears and the operation is canceled. When track bouncing to a new song completes, the recorder automatically stops and the dis- play shows the home screen of the new song. The song name of the new song is given by the name of the original song with “-**” (** is a two-digit number). You can check the result by following the pro- cedure described in “Checking the bounced signals on tracks 7/8” on page 69. <Track bouncing while mixing signals from [INPUT Althrough [INPUT DJ> When you bounce tracks 1 through 8 to tracks 7/ 8 of the new song, you can also mix signals from [INPUT A] through [INPUT D] together (see page 72). <Æxporting bounced data to a PC> Song data bounced to tracks 7/8 of the new song can be exported to a PC. You can use the exported data as a source when burning an original audio CD using a CD-RW drive, or use it with a computer's music software (see page 90).

MR-8HD Owner's Manual (Track bouncing) | Mixing signals of inputs A through D The MR-8HD can mix input signals of [INPUT A] through [INPUT D]. The following diagram shows an example of mixing signals of INPUT A through INPUT D when bouncing tracks 1 through 6 to tracks 7/8. As you can see, the signals of INPUT A through INPUT D are mixed to the L/R stereo buss together with the bounced signals. [Trk 2 LLE] Trk 4 Plyoack A EM, [RE on H] Playback MOT BURXIN speya Buuersen

INPUT C Oo INPUT D ENT Le — L Connecting sound sources to INPUT A through INPUT D Before starting track bouncing, connect the desired sound source(s) to any desired input(s) between INPUT A and INPUT D. [TRIM] control Adjust the input level of each input using the [TRIM] control to match the balance with the bounced track levels. Also, you can adjust panning of each input for stereo mix. See the next page for details about how to set panning. Ta up STEREO OUT {LR} LT 8 rec |} [TO STEREO BUSS ON/OFF] key setting To mix the input signal of an input channel (any of INPUT A through INPUT D) to the L/R stereo buss, turn on the corresponding [TO STEREO BUSS ON/OFF] switch. [TO STEREO BUSS ON/OFF]key When the [TO STEREO BUSS ON/OFF] key is turned on, the key illuminates in green. That is, when the key illuminates, input signal is sent to recording tracks. (Note that when the key flashes, the corresponding input is as- signed to any recording track.) Note>: If you press the [TO STEREO BUSS ON/OFF] key when make recording other than track bouncing, the key lamp may flash. This shows the input signal is routed to the armed track. That is, the input signal will be recorded to the armed track, in stead of mixed to the stereo buss.

MR-8HD Owner's Manual (Track bouncing) Panning setting for INPUT A through INPUT D You can independently set panning for each of INPUT A through INPUT D. Each input signal is positioned in the mix according to the panning setting here.

Inrut 4 Pan Input BE Fan Input € Fan Input D Pan Phantom Power = off The default panning settings are as below. You can set each input to the desired panning position from L10 (hard left) to R1O (hard right). InputA CNT (center position) Input B CNT (center position) Input C CNT (center position) Input D CNT (center position) <Tip>: You can directly access to the in- put menu screen by a long press of the [TO STEREO BUSS ON/OFF] key of the desired input channel. On the input menu screen accessed in this way, the panning setting item for the corresponding input is highlighted. For example, a long press of the [TO STE- REO BUSS ON/OFF] key of [INPUT D] di- rectly accesses to the screen shown be- low. Mklneuthinpeut C Pan 44 Eack Inrut 4 Pan Input E Fan Inrut C Pan Input D Pan ue Phantom Power = Cff

Rotate the [IMENU/ENTER] knob to select the desired item (any one of "Input A Pan" through “Input D Pan"), and press the [MENU/ENTER] knob. The display shows the screen for making panning setting of the selected input. The current setting flashes. In the screen example below, "Input A Pan" is selected and the default "CNT" is flashing. Mkineutoi-12kIna Pan Input E Pan Input C Pan Input D Fan Phantom Power = Off

Input À Pan Input E Pan Input C Pan Ineut D Pan Phantom Power = You can select the desired panning value from among R0O1 through R10 and LO1 through L10, as well as "CNT" (center). Rotate the [IMENU/ENTER] knob to select the desired value, and press the [MENU/ENTER] knob. The panning is set and the display returns to the previous screen. In the screen example below, "Input A Pan" is set to "R10". Mklneuthkinput À Pan 44 Eack Input À Fan Input E Pan Input C Pan Input D Pan Phantom Power = Off Mkinputklneut 4 Pan ic Esck Ineut E Pan CHT Input C Pan CHT Input D Pan CHT Phantom Power = Off You can also make panning setting of another input in the same manner as above. Press the [STOP] key to exit the menu mode. By selecting "<< Back" and pressing the [NETER] key, the display returns to the previous screen. Therefore, you can also exit the menu mode by repeating this operation.

MR-8HD Owner's Manual (Track bouncing) Bouncing the desired part of a song Typically, bouncing is executed from the beginning to the end of a song, as shown in Figure 1 below. However, you can bounce only the desired part by using the track bouncing and punch in/out functions together. The following assumes that the song you are going to execute track bouncing is loaded and you finished rehearsal of track bouncing. The following procedure shows the example of bouncing the desired part of a song in the "Bounce 1-6 > 7/8" mode (<Note>: In the “1-8 > NEW SONG” mode, you cannot bounce the desired part of a song by using the track bouncing and auto punch in/out functions together).

Bouncing the desired part (Fig. 2)

Setthe punch-in and punch-out points (see page 54). By pressing the [PLAY] key while holding down the [STOP] key, you can play back the part between the punch-in and punch-out points (see page 44).

Locate the recorder to a position before the punch-in point. Press the [1-4>5/6, 1-6>7/8] key to setthe bounce mode to "1-6>7/8". When setting the bounce mode to "1-6>7/8", tracks 7/8 automatically enter the input monitor mode and "GIE" lights on the home screen. Lighting Lighting Flashing Press the [AUTO PUNCH] key to activate the auto punch mode. When the auto punch mode is active, "OREREET" lights on the home screen.

Press the [RECORD] key while holding down the [PLAY] key. The "SEM" icon is shown and the recorder starts playback. It automatically starts recording (bouncing) when it reaches the punch-in point. Punch-in point (HLOCATE À paint) Punchrout point (LOCATE 8 point) TRK1 TRK2 TRK3 TRK 4 TRK5 TRK 6 TRK7 TRK8 Recording {rack bouncing) Playback i Playback {input monitor: * The recorder stops recording (bouncing) at the punch-out point and returns to playback, while the auto punch mode exits and "NET" in the screen turns off. <Note>: During playback in the operation above, you cannot monitor the sound. You can monitor the sound (bounced sound) only during recording between punch-in and punch-out points. Press the [STOP] key to stop the recorder. Check the result by playing back the bounced tracks, as described earlier. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to redo the operation.

ES MR-8HD Owner's Manual (Rhythm guide function) Rhythm guide function The MR-8HD offers the rhythm guide function, which allows out- putting the rhythm guide click during recording. This chapter describes how to output the rhythm guide, set the time signature/tempo and create the conductor map.

MR-8HD Owner's Manual (Rhythm guide function) | Using the rhythm guide function The MR-8HD provides the metronome function which can output the rhythm guide click during recording. You Can easily output the guide click from the [STEREO OUT] jacks by pressing the [RHYTHM GUIDE] key on the top panel. Two types of the rhythm guide are available: one has the constant time signature/tempo throughout a song, while the other has the programmed time signature/tempo map. To output the rhythm guide click, turn on the [RHYTHM GUIDE] key. By default, the guide click is output at time signature=4/4, RHYTHM tempo=120. En You can outputthe rhythm guide click according to the desired constant time signature and tempo, as well as the pro- grammed rhythm guide click based on the conductor map. When recording starts, the MR-8HD simultaneously starts feeding the rhythm guide click from the [STEREO OUT (L, R)] jacks at the selected level (the default is 80). Note that the rhythm guide click is not output during track bouncing. The output level of the rhythm guide click is shown on the L and R level meters. Note that you can monitor the rhythm guide click via headphones or (a) monitor speaker(s). You cannot record the rhythm guide click to any MR-8HD track(s). If you do not want to output the rhythm guide click, turn off the [RHYTHM GUIDE] key. Setting the time ature and tempo You can set the default rhythm guide (time signature: 4/4, tempo: 120), output level, etc. using the "Rhythm Guide" menu in the menu mode.

1) While the recorder is stopped, press the

“Rhythm Guide", and press the [MENU/ENTER] knob. Tip!: While the home screen is shown and The display now shows the screen for setting the recorder is stopped, long press of the the rhythm guide, where "<< Back" is [RHYTHM GUIDE] key directly brings up the highlighted. screen for setting the rhythm guide.

desired item, and press the [MENU/ENTER] knob. The current setting of the selected item starts flashing. On the screen examples below, the "Rhythm Guide" item is highlighted (see the upper screen) and the [MENU/ENTER] knob is pressed (see the lower screen). Ra th € 1213 Guide dE Back Conduc to Sisnature Tempo = Int Click, Levels 84 MREra time 1 12 +3 44 Eack Fhathm Guide Conductor Mar Sisnature F Tempo = 128bem Int Click Leuel= 54

4) Rotate the [MENU/ENTER] knob to select the

desired option, and press the [MENU/ENTER] knob. The selected option (in the example above, "On" or "Off") is confirmed and the display returns to the previous screen. You can make setting for each item similarly. The rhythm guide setting screen has the following items. @ DRE ] @ | L = 4 7 ERs thin Guide = Off _ j Conductor Mar = Off G) Éianature = 4-4 à | [7er = 128brm @ int Click Leusl= 54 L Rhythm Guide: On/off selection of the rhythm guide The setting you make here is reflected to the [RHYTHM GUIDE] key (the key is lit when ON, while it is unlit when OFF). Conversely, when you turn on or off the rhythm guide using the [RHYTHM GUIDE] key, the status is reflected to this screen. See the table on the right for details.

Conductor Map: On/off selection ofthe conductor map This item enables or disables the conductor map (see "Conductor map" described later). The default is "Off". See the table on the right for details.

Signature: Time signature setting The default is "4/4". You can select from among 1/4 through 5/4 and 1/8 through 8/8. The setting here is effective from the beginning to the end of the song when the "Conductor Map" item is set to "Off" (i.e. the same time signature all through the song). When the "Conductor Map" item is set to "On", the setting here is ineffective. See the table on the right for details. MR-8HD Owner's Manual (Rhythm guide function)

4. Tempo: Tempo setting

The default is "120bpm". You can select between 30 and 250 bpm. The setting here is effective from the beginning to the end of the song when the "Conductor Map" item is set to "Off" (ie. the same tempo all through the song). When the "Conductor Map" item is set to "On", the setting here is ineffective. See the table on the below for details.

Int ClickLevel: Internal click output level The default is "80". You can set it between 0 and

To exit the menu mode, press the [STOP] key, or se- lect "<< Back" and press the [MENU/ENTER] knob repeatedly. The table below shows how the "Rhythm Guide" and "Conductor Map" item settings affect the conditions of rhythm guide output and bar/beat indication. il ï Bar/beat Rhythm guide Onvoff conditions ythm gui indication Rhythm Guide: Off The Signature" Nooutput | and "Tempo Conductor Map: Off item settings are effective. Rhythm Guide: Off No output The conductor Conductor Map: On map is effective. Output: Rhythm Guide: On |The tempo and | The "Signature" time signature | and "Tempo" Conductor Map: Off | setting on this | item settings are screen is effec- | effective. tive. Output: The conductor | The conductor Conductor Map: On |Map setting is | mapis effective. effective. Rhythm Guide: On <Note>: When “Conductor Map” is set to “On”, the “Signature” and “Tempo” fields show “---” as below. This indicates that the signature and tempo values set on this screen are ineffective, while the conductor map setting is effective. Mere thin 113 Back Fhathmn Guide Conductor Mar Sisnature Tempo = Int Clickieuel= 54 See the next page for details about how to set the conductor map.

MR-8HD Owner's Manual (Rhythm guide function) | Creating the conductor map The MR-8HD can output the rhythm guide click which follows the "conductor map" during recording. It can also output MIDI clock and song position pointer which follows the "conductor map" from the [MIDI OUT] connector. The conductor map consists of the time signature map and tempo map. You can add "events" to each map. Each event specifies the time signature or tempo, as well as the position from which the specified time signature or tempo is effective. The time signature or tempo specified by each event is effective until the next event in the map appears. For example, if the time signature map has two events -- one sets "4/4" at the first bar 1, while the other sets "2/4" at the third bar --, the song is played in 4/4 from bar 1 to 2, and played in 2/4 from bar 3 to the end. For another example, if the tempo map has two events -- one sets "120" at the first bar 1/first beat while the other sets "90" at bar 12/beat 2 --, the song is played at 120 bpm from bar 1 to bar 12/beat 1, while it is played at 90 from bar 12/beat 2 to the end.

IMENU/ENTER] knob to enter the menu mode. “Signature Map" on the second page, and press The display now shows the first page of the the [MENU/ENTER] knob. menu selection screen, where "<< BacK" is high The display shows the signature map screen lighted initially (selecting "<< Back" returns to on which the current time signature events are the previous screen). You can also return to listed. Each event specifies the bar number and the previous screen by pressing the [REWIND] time signature. By default, "1Bar -> 4/4" and key. "Bar -> —-" are listed. In this condition, the MENU 125 Back song is played in 4/4 from the beginning to the end. Sasten + ". "i Sons + —Bar -> —"is used to create a new event. Track Edit + Part Edit. h HrSonse223h5js. Mar | Fhathm Guide ke

2) Rotate the [MENU/ENTER] knob to select "Song", Tenco Me +

and press the [MENU/ENTER] knob. Bar Offset =-2Bar The display now shows the song editing screen, where "<< Back" is highlighted. MENU 1-25 Some

Track Edit + Part Edit + Ehathm Gyide kb néons HET The procedure example below shows how to add the following events to the signature map. He w rl Delete Sons Protect Feserued

Bar 1 through bar 3: aa 7 Bar 4 through bar 7: 3/4 Bar 8 through bar 11: aa Bar 12 through bar 15: 5/8 Bar 16 through the last bar: 3/4 Rotate the [MENU/ENTER] knob to select "Bar->-", and press the [MENU/ENTER]knob. The display now shows the screen for setting the new time signature event, where "<< Back" is highlighted. MkSonskSis.Maréisi 44 Eack 1Ear + 4-4

MR-8HD Owner's Manual (Rhythm guide function) Rotate the [MENU/ENTER] knob to select "Sig. =4/4", and press the [MENU/ENTER] knob. "4/4" starts flashing and you can now set the time signature. HkSonak£is. Mar 44 Back CENTER] [CELETE] HhkSonaksis. Mar 44 Back Bar Sis, = CENTER] [CELETE] Rotate the [IMENU/ENTER] knob to select the desired time signature, and press the IMENU/ENTER] knob. In this procedure example, enter "3/4". The display returns to the previous screen. HkSonakSis, Mar 44 Back Bar Sis. CENTER] [DELETE] 4Ear MhSomaksis. Mar 44 Back CENTER] LOELETE] Rotate the [MENU/ENTER] knob to select "[ENTER]" atthe bottom, and press the IMENU/ENTER] knob. The new time signature event is set and the display shows the screen as below. In this condition, the song is played in 4/4 from bar 1 to bar 3 and in 3/4 from bar 4. HkSonakSis. Mar 44 Eack Bar = Bar Sis. = 3-4 ASE] LCELETE] MhkSonskSis. Mar 113 4 Eack 1Ear + 4-4

Repeat steps 5 through 9 until creating all nec- essary events.

MR-8HD Owner's Manual (Rhythm guide function) *Editing a time signature event +Deleting an unnecessary time signature event You can edit a time signature event.

On the time signature map screen, rotate the IMENU/ÆENTER]knob to select the event you want to edit, and press the [MENU/ENTER] knob. As with the description on the previous page, the display now shows the screen for setting the event. For example, let's select "8Bar -> 4/4". MkSonakSis. Maré1#23 #4 Back 1Ear dd 4Ear 3-4

You can delete an unnecessary time signature event.

On the time signature map screen, rotate the IMENU/ENTER]knob to select the event you want to delete, and press the [MENU/ENTER] knob. As with the description on the previous page, the display now shows the screen for setting the event. For example, let's select "8Bar -> 4/4". HkSonskSis. Mari 12 A4 Back 1Ear 4-4

HhSonskSis. Mar ] CREER Bar. SBar Sis, = d4#4 CENTER] COELETES Rotate the [MENU/ENTER] knob to select "IDELETE]" atthe bottom, and press the IMENU/ENTER] knob. The event is immediately deleted and the display returns to the signature map screen. MkSonsaksis. Mar 44 Back Bar = SEar Sis,. = d“4 [ENTER]

ES MR-8HD Owner's Manual (Rhythm guide function) Editing the bar offset By default, the bar/beat value at the beginning (ABS ZERO) of the song is set to "bar -2/beat 1". This offset (the bar/beat value at ABS ZERO) is called "bar offset". You can change the default bar offset to the desired value.

1) On the second page of the song editing menu _

screen, highlight "Bar Offset' and press the You can see the bar offset value on the home [MENU/ENTER] knob. screen when the recorder is at the beginning The current offset value (by default, "-2Bar") of the song (ABS 0). starts flashing. The screen example below shows the home screen when the bar offset is set to “-4 bars”. MrSonatz-2)kBasr Offset A4Eack Sianature Mark Temro Mar | 1823456718 LR HrSonshEsr Dffset The default home screen (bar offset = -2 bars). A4Eack Sianature Mark Temro Mar

MR-8HD Owner's Manual (Rhythm guide function) Setting the tempo map After setting the time signature map, you have to create the tempo map by adding the necessary tempo event(s). Like a time signature event, a tempo event specifies the tempo at the tempo changing point. Each tempo specified by a tempo event is effective until the next event appears. For example, you can set the tempo to 120 at the third beat in bar 4, and set to 90 at the second beat in bar 12, etc.

1) While the recorder is stopped, press the

IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). You can also return to the previous screen by pressing the [REWIND] key. MENU 1-25 +EacE

"Tempo Map" on the second page, and press the IMENU/ENTER] knob. The display shows the tempo map screen on which the current tempo events are listed. Each event specifies the bar/beat position and tempo. By default, "1Bar 14-> 120 bpm" and "Bar -/-> —-bpm" are listed. In this condition, the song starts in 120 bpm and there is no tempo change. "—Bar -/-> —bpm" is used to create a new tempo event. HkSomatz#25kTemec Mar A4Back Si LA M Bar Nffset =-2Ear

MkSonakTemeoMar CENTERJ CDELETE] Rotate the [MENU/ENTER] knob to select "[ENTER]" atthe bottom, and press the IMENU/ENTER] knob. The new tempo event is set and the display shows the screen as below. In this condition, the song is played in 120 bpm from the beginning to bar 4/beat 1 and in 180 from bar 4/beat 2 to the end. MkSonakTemeoMar 44 Eack Bar Beat Tempo Bar 186brm COELETE] MkSonabTemeoMar 115 A4 Back Bar

——-Ear -J + Fri Repeat steps 4 through 11 until creating all necessary tempo events.

To exit the menu mode, press the [STOP] key, or select "<< Back" and press the [MENU/EN- TER] knob repeatedly. +Deleting an unnecessary tempo event You can delete an unnecessary tempo event.

On the tempo map screen, rotate the IMENU/ENTER]knob to select the event you want to delete, and press the [MENU/ENTER] knob. As with the description on the previous page, the display now shows the screen for setting the event. For example, let's select "12Bar 1 /->120bpm".

ES MR-8HD Owner's Manual (MIDI synchronization) MIDI synchronization By connecting the external MIDI devices (such as a sequencer, sound module, computer, etc.) via the [MIDI OUT] connector of the MR- 8HD, you can make powerful recording. For example, by synchronizing a sequencer with the MR-8HD dur- ing playback, you can mix down signals (such as a vocal, guitar, etc.) recorded on the MR-8HD tracks and audio from a sound mod- ule. You can synchronize MIDI with the MR-8HD by connecting a MIDI device to the [MIDI OUT] connector on the MR-8HD and sending out MTC (MIDI time code) or MIDI clock (with Song Position Pointer) from the MR-8HD.

MR-8HD Owner's Manual (MIDI synchronization) Synchronization using MTC The following describes how to synchronize a sequencer to the MR-8HD which supports MTC (MIDI Time code). Connection Connect the [MIDI OUT] connector of the MR-8HD to the [MIDI IN] connector of an external MIDI sequencer using a MIDI cable. (Note that no MIDI cable is supplied with the MR-8HD. Use a commercially available MIDI cable.) MIDI sequencer, etc. MIDI IN ettings of the MR-8HD and MIDI sequencer

1) Setthe "Midi Sync Out" item in the "System"

menu of the menu mode to "MTC" and the "MTC Frame Rate" to an appropriate frame rate. See "MIDI sync/MTC frame rate settings" described below for details.

2) Enable the external MIDI sequencer to

synchronize to MTC. See the operation manual of the sequencer for details.

3) Press the [PLAY] key of the MR-8HD to start

playback. The sequencer automatically starts playback while synchronizing to the MR-8HD. MIDI sync/MTC frame rate settings While the MR-8HD is stopped, you can set the reference of MIDI synchronization to "MTC" and the MTC frame rate appropriately to match the sequencer. <MTC start time> The MTC from the MR-8HD has one hour offset to the ABS time (the offset value is fixed). There- fore, when you start the MR-8HD from the be- ginning of a song (ABS ZERO), the MTC starts from "O1h00mO00s00f".

1) While the recorder is stopped, press the

IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). Part Edit Fhathm Guide

"System", and press the [MENU/ENTER] knob. The display now shows the first page of the system menu screen, where "<< BACK" is highlighted initially. HEHUC1 23 +5 v9s tem Sons Track Edit Part Edit Fhathm Guide MkSustemé1/29kBack

The current option (the default is "Off") flashes. You can now select the desired option (the available options are Off, CLK and MTC). MhSas tem 1-25 kMidiSance] A4Eack Fre Roll Time = 4-6s t RollTime = 1.8s |, Delas Tire = LE HTC FrameRate = 25 MkSss tembidiSane A4Eack Fre Roll Time = 4-6s t RollTime = 1.8s 33 Tare = LE i_Ssnc Out = EE Te FrameRate = 25 off No signal is output from the [MIDI OUT] connector. This is the default. CLK |MIDI clock with Song Position Pointer is output from the [MIDI OUT] connector. MTC |MIDI time code is output from the [MIDI OUT] connector. Rotate the [MENU/ENTER] knob to select"MTC", and press the [MENU/ENTER] knob. "Midi Sync Out" is now set to "MTC", while "Midi Sync Out" is highlighted on the screen. MR-8HD Owner's Manual (MIDI synchronization)

Rotate the [MENU/ENTER] knob to select “MTC FrameRate", and press the [MENU/ENTER] knob. The current option (the default is "25") flashes. You can now select the desired frame rate (the options are "24", "25", "30nd" and "30df"). 1-23kFrame KR. Pre Roll Time Post RallTime MkSsstemkFrame FR.

Pre Roll Time Post RollTime Delas Tape Midi Sune Out = Be HTC Fr. ate Rotate the [IMENU/ENTER] knob to select the desired frame rate, and press the [MENU/ENTER] knob. The selected frame rate is now effective, while "MTC FrameRate" is highlighted on the screen. Press the [STOP] key to exit the menu mode. Synchronization using MIDI clock Notes> To synchronize a sequencer to the MR-8HD using MIDI clock, you have to make the signature/tempo map in the MR-8HD. The MIDI clock is output based on the signature/tempo map in the MR-8HD. When you record MIDI sounds, synchronize the sequencer to the MIDI clock fed from the MR-8HD. Generally, a sequencer supporting MIDI song position pointer as well as MIDI clock can synchronize to the MR-8HD when you start playback of the MR-8HD from the middle of a song. It locates the current song position and chases the MR-8HD. However, note that some sequencer may not synchronize to the MR-8HD. As with the connection for MTC synchroniza- tion, connect the [MIDI OUT] connector of the MR-8HD to the [MIDI IN] connector of an ex- ternal MIDI sequencer using a MIDI cable.

The following describes how to synchronize a sequencer to the MR-8HD using MIDI clock. Use this method if the sequencer does not support MTC (MIDI Time code) gs of the MR-8HD and MIDI sequencer Set the "Midi Sync Out" item in the "System" menu of the menu mode to "CIk". See "MIDI sync/MTC frame rate settings" described above about how to set. Create the signature/tempo map by setting "Signature Map" and “Tempo Map" items in the "Song" menu of the menu mode appropriately. See "Using the rhythm guide function" on page 76 for details about how to set these items. Enable the external MIDI sequencer to synchronize to MIDI clock. See the operation manual of the sequencer for details. Press the [PLAY] key of the MR-8HD to start playback. The sequencer also starts playback in sync with the MR-8HD.

CS MR-8HD Owner's Manual (Data exportto a personal computer) Data export to a personal computer This chapter describes how to export song data on tracks 7/8 to a personal computer. To export the desired song data to a personal computer, you must convert the song data to a stereo WAV file. You can export the converted (WAV) file to the personal computer and create an audio CD using a CD burning function on the per- sonal computer. <Notes on USB connection with Mac OS> When making USB connection with a Macintosh computer, note that only Mac OS X or higher is supported. Do not connect to a Macintosh computer With the earlier version. The song data on the MR-8HD may be damaged.

MR-8HD Owner's Manual (Data export to à personal computer) WAV file conversion By converting track data recorded on tracks 7/8 (which consists of an L/R pair of mono WAV files) to a stereo WAV file, you can export the data to a personal computer. The following describes how to convert data on tracks 7/8 (which may be bounced from other tracks or simply recorded in stereo) to a stereo WAV file. See page 92 for details about how to export a converted WAV file to a personal computer. Two mono WAV files recorded on tracks 7/8 are converted to a stereo WAV file as shown below. (Note that only files recorded on tracks 7/8 can be converted to a stereo WAV file.) Track7 || Track 8 > | Si ch} || (R ch) (LR) Note>: If you are going to make conversion when no WAV data exists on tracks 7/8, the error message ("Track 7/8 Empty!") appears and the operation is canceled. You can convert all track data (from ABS ZERO to REC END) or data of a specified part (be- tween the LOCATE À and LOCATE B points). <Note>: If you want to convert a part of track data, you have to set the LOCATE A and LO- CATE B points in advance. Enabling the file conversion You can enable or disable the WAV file con- version function by pressing the [7/8 > STE- REO WAV FILE] key. qu veu STEREO Lez 18>06N6 7e>HAV Le ABCI DEF2 [7/8 >STEREO WAV FILE]key Each press of the [7/8 > STEREO WAV FILE] key enables or disables the conversion func- tion. The key lights when the conversion func- tion is enabled. Procedure of file conversion The following assumes that the song whose track data you want to convert is loaded.

1) While the recorder is stopped, press the

[7/8 > STEREO WAV FILE] key to enable the file conversion function. The display shows the "7/8 > STEREO WAV FILE" screen, on which "ABSO-Rec End" is highlighted.

"ABSO-Rec End" starts flashing, and you can now select the conversion range between "ABSO-Rec End" and "LOCATE A - LOCATE B".

conversion range and press the [MENU/ENTER] knob. The selection is confirmed and the display returns to the previous screen. "NAME = **%#####"" shows the name for the con- verted file, and you can enter a desired name. Initially, it shows the name of the source file, therefore, if you do not change the name, the same file name is given. The following assumes that the file name is not changed. For details about how to edit a name, see "Editing a file name" on the next page. When you convert data in the same song more than once, you have to give a different name for each converted file. See the <Note> on the next page.

Press the [MENU/ENTER] knob while holding down the [RECORD] key. The file conversion starts and the percent number on the screen counts up as the conversion progresses. To cancel the conversion in the middle, press the [STOP] key.

MP#EYSTEREO WAU FILE

Convert WAU File- Convertins...

Cancel + STOP Ken <Note>: If you cancel the conversion in the middle, no file (incomplete file) is created. When the conversion is completed, the display shows "Completed!".

Convert WAU File- Comrleted Press ENTER Ke Press the [MENU/ENTER] knob. The MR-8HD quits the conversion function and the display returns to the home screen. <Note>: If you convert data with the same name as previously converted data, the following screen appears on the display. This screen warns you that the WAV file with the same name already exists and asks you to carry out the conversion by overwriting the ex- isting file or cancel the conversion. MPSkSTERES WAU FILE — Convert HNAU File - Same file name exists! Overurite Pres File? [CH 1] CYE51 If you carry out the conversion by overwriting the existing file, rotate the [MENU/ENTER] knob to move the cursor to "[YES]", and press the [MENU/ENTER] knob. If you do not want to overwrite the existing file, rotate the [MENU/ENTER] knob to move the cur- sor to "[NO]", then press the [MENU/ENTER] knob. The display returns to show the screen for editing the file name, so you can enter a dif- ferent file name and then carry out the conver- sion. If you want to cancel the conversion when the screen above is shown, rotate the [MENU/ENTER] knob to move the cursor to "[NO]" and press the [MENU/ENTER] knob to show the screen for ed- iting the file name, and then press the [7-8>STE- REO WAV FILE] key to quit the conversion func- tion.

MR-8HD Owner's Manual (Data export to a personal computer) <Æditing a file name> You can edit à file name by the following procedure.

1) After selecting the range of track data to be

converted, rotate the [MENU/ENTER] knob to move the cursor to "Name" and press the [MENU/ENTER] knob. The rightmost character of the file name starts flashing. You can now start editing.

EntersREC+ENTER Kes Exit + STOP Kes CeB?STEREO WAU FILE | Convert AU File- MÔCE = AESG-Rec End HAME os Ë) HEAR HE SEL + MENU dial Exit + STOF Key LFlashing While the rightmost character is flash- ing, pressing the [UNDO/REDO]/[DE- LETE] key repeatedly deletes the cur- rent file name.

2) Enter a new name using the character

entry keys. Pressing a different character entry key automatically moves the cursor right. If two successive characters are assigned to the same character entry key, rotate the [MENU/ENTER] knob after selecting the first character to move the cursor right.

3) After entering a new name, press the

[MENU/ENTER] knob. Then, by pressing the [MENU/ENTER] knob while holding down the [RECORD] key to carry out the WAV file conversion.

MR-8HD Owner's Manual (Data export to à personal computer) Exporting data to a personal computer The MR-8HD is equipped with the USB port for direct connection to a personal computer using a USB cable. The USB connection allows you to export the stereo WAV file data, which is converted from a pair of mono WAV files on tracks 7/8, to your computer. The exported data can be played back or edited using a computer's music software application, or used as a source when burning an original audio CD using a CD-R/RW drive. You can also use this exporting capability for backing up data to a personal computer when the remaining space of a hard disk becomes small. USB cable Connection to a personal computer Connect the [USB] port of the MR-8HD to the USB port of a personal computer using a USB cable, as shown above. (AUSB cable is not supplied with the MR-8HD.) <Caution>: Use the [USB] port for connection to a personal com- puter. Do not con- nect the [USB HOST] port to a personal com- puter. <Note>: Only Windows Me, 2000 and XP comput- ers, as well as Macintosh computers with OS X or higher, can be used with the MR-8HD. Other com- Puters cannot be used. Check your computer before making connection. Notes on USB connection with Mac OS> When making USB connection with a Macintosh computer, note that only Mac OS X or higher is supported. Do not connect to a Macintosh com- puter with the earlier version. The song data on the MR-8HD may be damaged.

Windows Me/2000/XP machine supporting USB connection Notes on exporting a file <Note>: You can export only a stereo WAV file which is converted from a pair of mono WAV files on tracks 7/8, as described earlier in "WAV file conversion". A mono WAV file or undo file cannot be exported to a personal computer. See the next page for details about the export- able files. <isk protection> By default, the “disk protect” function which is effective in the USB mode is set to “On”. In this condition, the MR-8HD can export data to a personal computer but cannot import data from a computer. This is for protecting the MR-8HD internal hard disk from importing a file from a computer inappropriately and de- stroying the MR-8HD song data. You can enable or disable this function, how- ever, we recommend using the MR-8HD by setting it to “On”. If you use the MR-8HD by setting the “disk protect” function to “Off”, read “Archiving a song” on page 95 before using. See page 94 for details about how to make the “disk pro- tection” setting. Note on backup> When exporting song data on the hard disk to a personal computer for backup, always export the whole song folder. You cannot export individual track data. See page 95 for details. See “Archiving a song” on page 95 for details about song data backup.

BR MR-8HD Owner's Manual (Data exportto a personal computer) Exporting a WAV file to a personal computer The following describes the procedure for exporting a WAV file to a Windows ME com- puter. <important note> Converted stereo WAV files are located in the "2 MIX" folder in the Song folder, as shown below. So you can export only a ste- reo WAV file in the "2 MIX" folder (indicated by lan arrow). Note that, if you export a WAV file which is located in a folder other than the "2 MIX" folder, the MR- 8HD may malfunction.

1) Turn on the power of the personal computer and

mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. HEHUÉ 1-23 Eack

cursor to “USB Device Mode”, and press the [MENU/ENTER] knob. The MR-8HD enters the USB mode and the display shows the screen as below.

MMISEL1-11kDevice AAEacE Disk Protect Off à [ = k MOUSE Deuice ——-- USE Mode ---- ÉDISK PROTECTED: STOF Key + Exit <Note>: By default, the disk protect func- tion is enabled. In this condition, when the MR-8HD enters the USB mode, “<DISK PRO- TECTED>” is shown in the USB screen, as above. <Note>: While the MR-SHD is in the USB mode, all keys except the [STOP] key are ineffective. Pressing the [STOP] key exits the USB mode. Connect the MR-8HD to a personal computer using a USB cable. Open "My computer" on the computer screen. You see the "Removable disk" drive added on the computer. The first time you connect the MR-8HD, the device driver is installed automatically. Open the added Removable disk drive, and select the stereo WAV file in the desired song folder, then copy to the computer. When you open the added Removable disk drive, the contents of the MR-8HD hard disk are shown, in which you can see all the song folders. Open the "2 MIX" folder in the desired song folder, and select the stereo WAV file, then copy it to the computer. While copying data, the [RECORD] key indicator of the MR-8HD lights (flashes), showing that the hard disk is being accessed. When data copy completes, the indicator turns off. Note>: After copying a WAV file in the folder to a computer, the original file remains. How- ever, if you execute "move to another folder",the original file on the disk is lost. When the data export completes, disconnect the MR-8HD from the personal computer. <Note>: To disconnect the MR-8HD from the personal computer after completing the data export, make sure that the [RECORD] key indicator is not lit, and follow the procedure for hardware disconnection of Windows. Press the [STOP] key to exit the menu mode.

MR-8HD Owner's Manual (Data exportto a personal computer) | Protecting the hard disk The MR-8HD internal hard disk is protected by default. The protection is effective only in the USB mode in which the MR-8HD is used with a personal computer. You can make the hard disk “read only” (protected) or “read/write enabled” (unprotected). The default is “read only”. As mentioned earlier in “Disk protection” on page 92, if you transfer song data from a computer to the MR-8HD improperly, the data may be damaged. To avoid such an accident, we recommended enabling hard disk protection. To disabling the disk protection, follow the procedure below.

1) While the recorder is stopped, press the

IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. Sas tem + Sons + Track Edit + Part Edit F Guide _k Rtra

2) Rotate the [MENU/ENTER] knob to select “USB”

on the second page, and press the IMENU/ENTER] knob. The display now shows the USB menu screen, where “<<Back” is highlighted. Selecting “<<Back” returns to the previous screen. You can also return to the previous screen by pressing the [REWIND)] key. MENLEZ #25 USE 44 Back IEut h

and press the [MENU/ENTER] knob. The selection is confirmed and the display returns to the previous screen. MRISEC1-13kProtect A4Back Disk Protect = USE Deuice HModek MRUSEC1-13kProtect The disk is “read/write enabled” Off | (unprotected). You can transfer data between the MR-8HD and a computer in both ways. The disk is ‘read only” (protected). On | You can transfer data only from the MR- 8HD to a computer (default setting).

5) Press the [STOP] key to exit the menu mode.

<Note>: When you enter the USB mode while the disk protection is disabled, the screen as below is shown. In this condition, the hard disk is “read/ write enabled” and you can bi-directionally trans- fer song data between a computer and the MR- 8HD. Pib-Ll Device — SE Hode -—-- STÛP Keu + Exit

CS MR-8HD Owner's Manual (Data exportto a personal computer) Archiving a song You can archive song data recorded by the MR-8HD by using either of the following methods. (1) Using the WAV Manager supplied by Fostex The WAV Manager converts each track data to a single mono file. Data is compressed so you can save the file in small size to a personal computer. This method is useful for exporting data to a PC software application for multitrack recording. For details about how to use the WAV Manager, see the owner's manual supplied with the WAV Manager. You can download the WAV Manager from Fostex web site (http:www.fostex.co.jp). (2) Using drag & drop technique You can copy a song folder using drag & drop technique. This method allows saving all data in the folder (including the history data, etc.). *Exporting data to a personal computer

1) Connect the MR-8HD to a personal computer via USB, and open the root folder.

You can copy each song folder in the root folder to the personal computer.

2) Copy a desired song folder to the personal computer using drag & drop

3) After making copy, exit the USB mode.

Note>: When drag & drop the folder on your personal computer, use the "copy" func- tion. If you use the "move" function, not only the song on the MR-8HD is deleted but also other songs on the MR-8HD may be destroyed. We recommend to enable the disk protection (the default is "enabled") when executing data Copy. Using this method, you can also copy the hidden folder which includes hidden files "deleted" by the MR-8HD song management operation. Copied hidden files can be used as a normal song files by turning off the hidden attribute by the computer. <Note>: If you cannot see the hidden folder, consult the manual of your personal com- puter. +Importing data from a personal computer When importing data from a personal computer to the MR-8HD, there is the danger that the MR-8HD file system may be destroyed. Especially, deleting or adding files many times may cause the fragmentation of FAT32, resulting in sound jump caused by performance deteriora- tion. Therefore, before loading data from a personal computer to the MR-8HD, save all neces- sary folders to the personal computer and format the MR-8HD hard disk.

1) Format the MR-8HD internal hard disk (see page 124).

3) Connect the MR-8HD to a personal computer via USB (see page 93).

4) Copy the desired song folder on the personal computer to the root folder of the

MR-8HD hard disk. <Note>: Do not use "move" operation, as with saving data to a computer.

5) Repeat step 4) as many times as required.

<Note>: Usually, the song order follows the copied order. However, it may be dif- ferent depending on a computer OS.

6) After making copy of all necessary folders, exit the USB mode.

ES MR-8HD Owner's Manual (Song management) Song management This chapter explains the following five operation procedures for song management.

1) Selecting the desired song.

2) Editing a song name.

3) Deleting an unnecessary song.

4) Protecting a song.

<Notes> While à menu screen is shown, you can go up the menu screen level or directly exit the menu mode by the following operations. (1) Select“<<Back” on a menu screen and press the [MENU/ENTER]knob. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (2) Press the [REWIND] key. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (3) Press the [STOP] key. The menu mode exits and the display shows the home screen.

MR-8HD Owner's Manual (Song management) Selecting the desired song The following describes how to select the desired song from the disk when more than one song is created on the disk. You can also create a new song by the similar procedure. See "Basic operations" (page 31) for details about how to create a new song.

While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). Ssstem + Sons + Track Edit Part Edit + Fnatnm Guide k Rotate the [MENU/ENTER] knob to select "Song", and press the [MENU/ENTER] knob. The display now shows the song menu screen, where "<< Back" is highlighted. MENUC 1253 Sons Part Edit Ehaythm Guide HkSonsi1-25 Hack

Select Sons Rename Song Lelete Sons Frotect Feserued

[RL off Rotate the [MENU/ENTER] knob to select "Select Song >" and press the [MENU/ENTER] knob. The display now shows the song list screen. MhkSonmatl-21kSelect Fename Sons Lelete Sons Protect = Feserved, SALE ARE SOS: Appt The screen example above shows that four songs are currently created on the hard disk. The song list is shown on a single page.

When more songs are created, the song list screen has more than one page, and you can scroll the list by rotating the [MENU/ENTER] knob. "---:(New Song)" at the bottom of the screen is used when you create a new song. Rotate the [IMENU/ENTER] knob to selectthe desired song number/song name, and press the IMENU/ENTER] knob. The display returns to the song menu screen, where "Select Song >" is highlighted. HkSonak£electSomac 113 A ee =— Heu fona HkSona(1#25 Select LRISET ES Rename Sons Lelete Sons Frotect Feserved Press the [STOP] key to exit the menu mode. The display shows the home screen of the selected song.

MR-8HD Owner's Manual (Song management) Editing a song name You can edit a current song name save the edited song name. Only the current song can be edited.

Load the desired song of which you are going to edit the song name. While the recorder is stopped, press the [MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). Ssstem + Sons k Track Edit + Part Edit k Fhathm Guide ke Rotate the [MENU/ENTER] knob to select "Song >", and press the [MENU/ENTER] knob. The display now shows the song menu screen, where "<< Back" is highlighted. MENU 1-23 kS0na Part Edit

Track Edit À Rhathm Guide k Hh£onsc1#23 Select Sons Fename Sons Lelete Sora Frotect Reserved wwe Off Rotate the [MENU/ENTER] knob to select "Rename Song >", then press the [MENU/ENTER] knob. The display now shows the screen for song name editing of the current song, on which the rightmost character of song name flashes. MhSons 1-21 kenameSonel 44Eack , Select Sora + lbélete Sons Protect = Off Reserved HééonakRename Sons —- Fename Sons -- Sons Hañe =Cktitt4f} 1 CENTER] CCANCEL]

Use the character entry keys to enter the desired character to the flashing point. You can move the cursor (flashing point) by rotating the [MENU/ENTER] knob (or by pressing another character entry key). <Character entry keys> Some keys on the MR-8HD top panel act as character entry keys in the menu mode. For example, the [PLAY MODE] key (shown on the left) can be used to enter, T,U,s,t,u and 7. Each press of a character entry key switches the character to be entered from among those assigned to the key. PLAY MODE r | LU ” STU7 <DELETE]key> Pressing the [UNDO/REDO - DELETE] key deletes the character atthe flashing point. By pressing this key repeat- edly, you can delete all char- acters under the flashing point. UNDO/REDO

<Note>: If you enter the same name as an existing song or do not enter a name in step 5 and press the [MENU/ENTER] knob in step 6 below, the display shows "Illegal Song Name!" and returns to the song name edit- ing screen. After entering the name, press the [MENU/ENTER] knob. The cursor moves to "[ENTER]" at the bottom of the screen. To cancel the operation, use the [MENU/ENTER] knob to highlight “[CANCEL]” and press the [MENU/ENTER] knob. HkSonakRen. Sons —- Fenane Sons —- Sons Hame = Cat 1 BEN CCAHCELI Press the [IMENU/ENTER] knob again. The edited name is stored and the display returns to the song menu screen, where “Rename Song >” is highlighted. Press the [STOP] key to exit the menu mode. The MR-8HD exits the menu mode and the display shows the home screen where the edited song name is displayed.

MR-8HD Owner's Manual (Song management) Deleting an unnecessary song You can delete à song created on the hard disk.

<Notes> the song first (see the next page). the computer (see page 95). e__ You cannot delete a song which is protected. To delete such a song, release the protection of + A deleted song file still remains as a “hidden file” on the hard disk. So deleting a song file does not increase the remaining (recordable) space of the hard disk. e__ You can export a “hidden file” to your personal computer via USB connection and use it on While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). MENU 123 hack Êsstem + Sons k Track Edit Part Edit + Ehsthm Guide _k Rotate the [MENU/ENTER] knob to select "Song", and press the [MENU/ENTER] knob. The display now shows the song menu screen, where "<< Back" is highlighted. MENU 1-23 k5ona AAEacEk , Sustem

Track Edit À Part Edit Phythm Guide k HkSonsci1/25 rt Select Sons Fename Sons Lelete Sons Frotect Reserved wwe Rotate the [MENU/ENTER] knob to select "“Delete Song", and press the [MENU/ENTER]knob. The display now shows the list of songs created on the hard disk, from which you select a song to be deleted. In the screen example below, five songs are created so the list has only one page. (If more than five songs are created, the list has more than one page.) MkSomail#2ikbelete A4Back Select Sons FRename Sons

MrSonskDeleteSoms( 11) S81 : AAA Saz: BBBEE 543: CCCCCEC 564 DODOGCC Rotate the [MENU/ENTER] knob to select a song to be deleted, and press the [MENU/ENTER]knob. The display shows warning and confirmation for deleting the song. MrSonskDeleteSomac #1) A4Eack 581 : AAAAAA HhSonshbeleteSonst£e | Lelete Sons --- Can°t Undol Are You Sure 7 Wes+RECORD+ENTER Kes Ho+STOP Ken Press the [MENU/ENTER] knob while holding down the [RECORD] key. The selected song is deleted, and the display returns to the song list screen. HkionakbeleteSonse1# 15 44 Eack 591: AAAABA 5833 CGGDDDOC Any song number greater than the song num- ber of the deleted song is moved up. In the screen example above, after Song 03 is deleted, ex-Song 04 is moved up to Song 03 and ex-Song 05 is moved up to Song 04. Press the [STOP] key to exit the menu mode. In the example above, the display now shows the home screen of new Song 03 (ex-Song 04).

If you delete all songs on the hard disk by repeating the procedure above, ":(New Song") is shown. Then, create a new song (see page 31). MkSonarneleteSonac 11 il MR-8HD Owner's Manual (Song management) Protecting a song You can protect a song to prevent an accidental erasure. The protection can be released when- ever you want. To keep a recorded song safely, we recommend protecting it. You can make protection setting only for the current song.

Load the song you want to protect. While the recorder is stopped, press the [MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). MENU 1-23kBack Ssstem + Sons + Track Edit Part Edit + Fnathm Guide k Rotate the [MENU/ENTER] knob to select "Song", and press the [MENU/ENTER] knob. The display now shows the song menu screen, where "<< Back" is highlighted. MENU 1-23r560ns A4Eack Eus ter

MkSona(1-23kProtect 4+Eack Select Sons Rename Sons , Delete Sons + Feserued HrÉonakProtect A4Eack Select Sons + Ferame Sons Lelete Sons + Protect Reserved Rotate the [MENU/ENTER] knob to select "On", and press the [MENU/ENTER] knob. The current song is now protected. The display returns to the previous screen. MrSonakProtect A4Eack Select Sons + Fername Sons h Lelete Sons + Protect Reserved MhSomall-23kProtect AAEaCE Select Sons h Fename Sons , belete Sons +

Feserued To release the protection, carry outthe same pro- | cedure above but select "Off" and press the IMENU/ENTER] knob in step 5.

MR-8HD Owner's Manual (Song management)

<Note>: You cannot make recording or editing to a protected song. If you want to make recording or editing to a protected song, you must release the protection first. <Note>: When you set the protection to "On", all the recording-related keys, such as the [REC SELECT] and [BOUNCE] keys, are turned off. Press the [STOP] key to exit the menu mode. <Tips> When the protected song is loaded, “dk” is shown in the upper left comer of the Home screen (in- dicated by the arrow in the screen example be- low). When this icon is shown, you cannot make re- cording or edit the song,

ES MR-8HD Owner's Manual (Track editing) Track editing This chapter describes how to edit whole data of a selected (mono or stereo) track. Track editing does not consume the hard disk space. Therefore, the remaining space of the disk does not change by ex- ecuting track editing. <Undo/redo of track editing> By pressing the [UNDO/REDO)] key after executing track editing, you can undo the editing. By pressing the [UNDO/REDO] key after the undo operation, you can return the track(s) to the condition after being edited. <Notes> Also note that, if you carry out any of the following UNDO/REDO after editing, you cannot undo the editing anymore. E 1. Making new recording J 2. Making new editing CHE 3.Turning off the power

4. Loading another song

<Notes> While à menu screen is shown, you can go up the menu screen level or directly exit the menu mode by the following operations. (1) Select “<< Back” on a menu screen and press the [MENU/ENTER] knob. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (2) Press the [REWIND] key. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (3) Press the [STOP] key. The menu mode exits and the display shows the home screen.

MR-8HD Owner's Manual (Track editing) Erasing track data You can erase whole data (from ABS ZERO to REC END) of the desired track(s) of the song cur- rently loaded.

<Note>: You cannot erase track data of a song pro- tected.

1) Load the song you want to edit.

2) While the recorder is stopped, press the

IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). MENUS1-2:kEack Sas ter + Sons + Track Edit + Part Edit + Rhathm Guide k

3) Rotate the [MENU/ENTER] knob to select

"Track Edit >", and press the [MENU/ENTER] knob. The display now shows the track edit menu screen, where "<< Back" is highlighted. MEMUC1-2)Track Edit A4Eack Ssstem + Soi k LT k Part Edit + Fhathm Gide ack C1" 1#Eack Erase Track + £ors-Paste Trkk Houe Track + Chanse Track

"Erase Track >", and press the [MENU/ENTER] knob. The display now shows the screen for selecting the track(s) to be erased.

MéTrack(1-1hErase TRE Ti k Cors-Paste Trkk Mouse Track + Chanse Track HéTrackkErase Track Erase Track Erase Track = 1 CENTER] CCBNCEL 1 Rotate the [MENU/ENTER] knob to select "Erase Track =*", and press the [MENU/ENTER] knob. The currently selected option flashes and you can now select the desired option by rotating the [MENU/ENTER] knob. The available options are: *1through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks) CENTER] CORNCEL 1 MkTrackkErase Track —-- Erase Track --- 44 Eack Erase Track = CENTER] CCAMNCELI Rotate the [IMENU/ENTER] knob to selectthe desired option, and press the [MENU/ENTER] knob. “Erase Track = *” is now highlighted on the screen. Rotate the [MENU/ENTER] knob to move the cursor to "[ENTER]" on the screen, and press the IMENU/ENTER] knob. The display shows "Please Wait", immediately followed by "Completed" when the MR-8HD completes erasing. <Note>: If you want to cancel the erase op- eration, move the cursor to "ICANCEL]" on the screen, and press the [MENU/ENTER] knob.

MR-8HD Owner's Manual (Track editing) Press the [MENU/ENTER] knob. The display now returns to the track edit menu screen, where “Erase Track >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the result, press the [UNDO/REDO] key to undo the operation (see page 103). Copying/pasting track data You can copy whole data (from ABS ZERO to REC END) of the desired track(s) of the song cur- rently loaded and paste it to the other desired track(s). The data on the source track(s) still remains after the copy/paste operation. Copy/paste operation can be done within the currently loaded song.

Load the song you want to edit. While the recorder is stopped, press the [MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). MEHUE 1-25 Back Sas tem + Sons + Track Edit Part Edit + Ehathm Guide k

Erase Track + Cora-Paste Trkk Move Track + Chanse Track

Guide Rotate the [MENU/ENTER] knob to select “Copy-Paste Track >", and press the IMENU/ENTER] knob. The display now shows the screen for selecting the source track(s) and destination track(s) of copy/paste operation. "Source Track" selects the copy source track(s), while "Dest. Track" selects the paste destination track(s).

MR-8HD Owner's Manual (Track editing)

= Track Lest. Track CENTER] CCAHCEL] You can select the same number of tracks as the copy source track(s). For example, if you select a mono track for the source, you can only select a mono track for the destination. <Note>: You cannot select the same track(s) for the copy source and destination.

Rotate the [MENU/ENTER] knob to select the destination track(s), and press the [MENU/ENTER] knob. “Dest. Track = *” is now highlighted on the screen. —— Cey-Pst Track —- 44 Eack Source Track = 1 Lest. Track = CENTER] | CCAHCEL 1 HTrack her #4 Back See Track 1 CENTER] CCANCEL] Rotate the [MENU/ENTER] knob to move the cursor to "ENTER" at the bottom of the screen, then press the [MENU/ENTER] knob. The display shows "Please Wait", immediately followed by "Completed" when the MR-8HD completes the copy/paste operation. <Note>: If you want to cancel the copy/paste operation, move the cursor to "[CANCEL]" on the screen, and press the [MENU/ENTER] knob. HTrackkCrs-Pst Track = Cra-Pst Track -- 44 Eack Source_Track best. Track ILENTER 1] LCA MkTrack Cr: —- Crs-Pst Track —- Please Wait HkTrackkCra-Pst Track —- Cra-Pst Track —- Comeleted Press ENTER Ke <Note>: If a destination track has recorded data, pasting the copied data overwrites the previous data. Press the [MENU/ENTER] knob. The display now returns to the track edit menu screen, where “Copy-Paste Trk >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 103).

MR-8HD Owner's Manual (Track editing) Moving track data You can move whole data (from ABS ZERO to REC END) of the desired track(s) to the other desired track(s). After the data is moved, the original track(s) is(are) silent. You can only move track data within the current song.

TRK1 N TRK2 Vs TRK3 ON TRK4 TRK5 TRK6 TRK7 TRK8 Note>: You cannot move track data of a song pro- tected. Release the protection before moving track data.

1) Load the song you want to edit.

2) While the recorder is stopped, press the

[MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). MEHUE 1-25 Back (F| Ssstem + Sons + Track Edit Part Edit + Ek'athm Guide k

"Move Track >", and press the [IMENU/ENTER] knob. The display now shows the screen for selecting the source track(s) and destination track(s) of the move operation. "Source Track" selects the move source track(s), while "Dest. Track" selects the move destination track(s).

MeTrack 1138 AAEacE Erase Track + RS Trk Chanse Track MéTrack boue Track — Moses Track Source Track Dest, Track = 1 CENTER] CCANCEL] Rotate the [MENU/ENTER] knob to select “Source Track =*", and press the [MENU/ENTER] knob. You can now select the desired move source track(s) by rotating the [MENU/ENTER] knob. The available options are: *1through 8 (mono track) *1/2, 3/4, 5/6 and 7/8 (stereo tracks) MeTrackkhous Track Move Track 4 Eack

Lest,. Ck Î CENTER] CCBNCEL1 MeTrackkMous Track == Move Track -— 44 Back Source _Track best, Track CENTER] LC Rotate the [IMENU/ENTER] knob to select source track(s), and press the [MENU/ENTER] knob. You can now select the desired destination track(s). MeTrackkMous Track == Move Track 44 Back Source _Track Dest, Track CENTER] CCANCEL] MeTrackkMoue Track er Mouse Track -— CENTER] CCANCEL]

MR-8HD Owner's Manual (Track editing)

You can select the same number of tracks as the move source track(s). For example, if you select a mono track for the move source, you can only select a mono for the move destina- tion. <Note>: You cannot select the same track(s) for the move source and destination. Rotate the [MENU/ENTER] knob to select destination track(s), and press the IMENU/ENTER] knob. “Dest. Track = *” is now highlighted on the screen. HéTrackkMose Track —-- Mouse Track —- 44 Eack Source Track = 1 Dest. Track = Ki CENTER] ,CCANCEL 7 HkTrackkMoue Track == Mouse Track —- 44 Eack pures Tract = _i CENTER] CCAHCEL] Rotate the [MENU/ENTER] knob to move the cursor to "[ENTER]" on the screen, and press the IMENU/ENTER] knob. The display shows "Please Wait", immediately followed by "Completed" when the MR-8HD completes the move operation.

10) Note>: If you want to cancel the move opera- tion, move the cursor to "[CANCEL]" on the screen, and press the [MENU/ENTER] knob. Métrackkoue Track == Move Track 44 Eack Source Track Lest. ack SEA |[ CAHCEL 1 HéTrackkMoue Track ——- Moue Track Please Wait HéTrackeMoue Track Mouse Track Compieted Press ENTER Ke <Note>: If a destination track has recorded data, moving data overwrites the previous data. Press the [MENU/ENTER] knob. The display now returns to the track edit menu screen, where “Move Track >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 103). Exchanging whole track data You can exchange whole data (from ABS ZERO to REC END) between the desired track(s). REC END ABS ZERO <Note>: You cannot exchange track data of a song protected. Release the protection before exchang- ing track data.

Load the song you want to edit. While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). MENU 1-2kBack SSs tem + Sons + Track Edit Part Edit + Fhathm Guide k Rotate the [MENU/ENTER] knob to select “Track Edit >", and press the [MENU/ENTER] knob. The display now shows the track edit menu screen, where "<< BacK" is highlighted.

Erase Track + Cora-Faste Trkhk Move Track + Chanse Track E

Rotate the [MENU/ENTER] knob to select "ChangeTrack >", and press the [MENU/ENTER] knob. The display now shows the screen for select- ing the source track(s) and destination track(s) of the exchange operation. "Source Track" selects the exchange source track(s), while "Dest. Track" selects the ex- change destination track(s). 7) HkTrack (1413kChanseTRE 44Eack Erase Track + Cors-Paste Trkk Mouse Track k

HTrackkChanse Track —— Chanse Track Source_Track Lest. Track CENTER] CCAHCEL] Rotate the [MENU/ENTER] knob to select "Source Track =*"', and press the [MENU/ENTER] knob. You can now select the desired exchange source 8) track(s) by rotating the [MENU/ENTER] knob. The available options are: +1through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks) Source_Track Dest, Track CENTERZ ECAHCEL] Rotate the [MENU/ENTER] knob to select the source track(s), and press the [MENU/ENTER]knob. You can now select the desired destination track(s).

LENTER] CCANCEL] You can select the same number of tracks as the exchange source track(s). For example, if you select a mono track for the exchange source, you can only select a mono track for the exchange destination. <Note>: You cannot select the same track(s) for the exchange source and destination. Rotate the [IMENU/ENTER] knob to select the destination track(s), and press the IMENU/ENTER] knob. “Dest. Track = *” is now highlighted on the screen. HiTrackhEhanse Track | = Chanse Track —- 441 Back Source Track = 1 Lest. Track CENTER] JCCAHCEL 1 MéTrackkChanse Track -- Chanae Track —- 441 Back urce Track 1 CENTER] CCANCEL] Rotate the [MENU/ENTER] knob to move the cursor to "[ENTER]" on the screen, and press the IMENU/ENTER] knob. The display shows "Please Wait", immediately followed by "Completed" when the MR-8HD completes the exchange operation. <Note>: If you want to cancel the exchange operation, move the cursor to "[CANCEL]" on the screen, and press the [MENU/ENTER] knob. HerrsckkChanse Track = Chanse Track —- 441 Back Source Track = 1 Dest. Track 4 C'CAHCEL 1 MéTrackkChanse Track Chanse Track —- Please Wait

MR-8HD Owner's Manual (Track editing)

10) MTrackkChanse Track —- Chanse Track -- Comeleted Press ENTER Ke Press the [MENU/ENTER] knob. The display now returns to the track edit menu screen, where “Change Track >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 103).

MR-8HD Owner's Manual (P art editing) Part editng This chapter describes how to edit a "part" (*) of recorded song. You can edit data of a track or tracks between the "LOCATE A" and "LOCATE B"' points. Part editing does not consume the hard disk space. Therefore, the remaining space of the disk does not change by executing part editing. <(*) About "part'> A "part" is defined as audio data between the "LOCATE A" and "LOCATE B" points. You can edit a "part" as described later. Therefore, before carrying out part editing, the "LOCATE A" and "LOCATE B" points must be set. See page 49 for details about how to set these points. You can set these points after entering the part editing mode (see the next page for details). <Undo/redo of editing> You can undo part editing. By pressing the [UNDO/REDO] key after executing part editing, the song returns to the original condition before editing. By pressing the [UNDO/REDO] key after undoing part editing, you can again return the song to the condition after being edited. <Notes> CNBORERO Also note that if you carry out any of the following after | editing, you cannot undo the editing anymore. } Making new recording

© DELETE 2. Making new editing

3. Turning off the power

IUNDO/REDO] key Loading another song <Notes> While a menu screen is shown, you can go up the menu screen level or di- rectly exit the menu mode by the following operations. (1) Select“<<Back” on a menu screen and press the [MENU/ENTER] knob. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (2) Press the [REWIND] key. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (2) Press the [STOP]key. The menu mode exits and the display shows the home screen.

MR-8HD Owner's Manual (P art editing) tween LOCATE A OCATE B) to be edited You can play back audio of the "part" before carrying out edit operation. After setting the LOCATE A and LOCATE B points, follow the procedure below for checking the part. You can check the part before entering the menu mode, as well as while the part editing screen is shown.

You can change the LOCATE A and LOCATE B points during the edit operation, as well as before entering the editing mode (see the following for details). Press the [PLAY] key while holding down the [STOP] key. The MR-8HD starts playback between the LOCATE A and LOCATE B points (see also page 44). During playback, raise the appropriate track fader(s) and the [MASTER] fader. You can monitor only the "part" to be edited, so you can check the editing range. Changing an edit p On the screen for selecting the target track(s) to be edited, you can see the cur- rent recorder position information (in ABS time or bar/beat/clock). The following screen example shows the screen for select- ing the track(s) for part erasing. HE, Hd ÆHHCIE]

CENTER] CCANCEL] Erase Track = The time (or bar/beat/clock) value changes in realtime as the recorder moves (i.e. when it plays, fastforwards, rewinds, locates, etc.). When you carry out the locate operation to the LOCATE A or LOCATE B point and the current position matches the locate point, "LocA=" (or "LocB=") is shown to the left of the current position information, as shown below. This shows that the recorder is now at the LOCATE A (or LOCATE B) point.

Erase Track CENTER] CCANCEL1 The LOCATE A or LOCATE B point can be changed while this screen is shown by fol- lowing the procedure below.

1) Move the recorder to the desired point

by using the [PLAY], [RE WIND] or [F FWD] key.

2) While the recorder is at the desired point,

press the [STORE] key and followed by the [ILOCATE A/IN] or [LOCATE B/OUT] key. The old editing point is overwritten by the new point. After setting the new editing point, "LocA=" (or "LocB=") is shown to the left of the current position information, as shown left. After setting the new editing points, you can edit (erase, paste, move or exchange) data of newly specified part.

MR-8HD Owner's Manual (P art editing) Erasing the part(s) You can erase the part(s) on the selected track(s) of the current song.

joint point REC END 1 Sient jan <Note>: You cannot erase the part(s) of a song which is protected. Release the song protection before erasing the part(s).

Load the song you want to edit. Setthe LOCATE A and LOCATE B points (see page 49). You can check the part(s) by playing back the recorder between the LOCATE A and LOCATE B points (see page 44). While the recorder is stopped, press the [MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). Sastenm + Sons + Track Edit + Part Edit + Rhathm Guide k Rotate the [MENU/ENTER] knob to select "“PartEdit >", and press the [MENU/ENTER] knob. The display now shows the part edit menu screen, where "<< Back" is highlighted. MENDE1-29#Part Edit 44Eack Sus te + Sons + Track Edit + Rhsthn Guide MkPart(1-23hBack

Rotate the [MENU/ENTER] knob to select "“Erase Part >", and press the [MENU/ENTER] knob. The display now shows the screen for selecting a track or tracks of which you want to erase the part(s). On the screen, "<< Back" is initially highlighted. MkParté1-23kErase Part

MR-8HD Owner's Manual (P art editing)

Rotate the [MENU/ENTER] knob to move the cursor to "[ENTER]" on the screen, and press the IMENU/ENTER] knob. The display shows "Please Wait", immediately followed by "Completed" when the MR-8HD completes erasing. If you want to cancel the part erase operation, move the cursor to "[CANCEL]" on the screen, and press the [MENU/ENTER] knob. HtkEar 4 #keclk Erase Part 44 Back Erase Track = 3 DRE | CCANCEL 1 MkParthkErase Part —-- Érase Part ——- Please Wait

10) MéPartbErase Part —-- Erase Part Comeleted Press ENTER Ken Press the [MENU/ENTER] knob. The display now returns to the part edit menu screen, where “Erase Part >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 111). Copying/pasting the part(s)-1 You can copy the desired part(s) of the selected track(s) and paste it(them) to the same time position of the other desired track(s). The copy/paste operation of a part or parts can be made only within the current song. You can also make the copy/paste operation of a part or parts using another method described later in "Copying/pasting the desired part(s) (2)".

point point TRK1 TRK2 NS TRK3 : à i TRK4 i ] i TRKS5 i TRK6 /_]: TRK7 2 Ji TRKB8 CRE <Note>: You cannot copy/paste track data of a song protected. Release the protection before making the copy/paste operation. <Note>: If you want to paste the copied part(s) to the desired time position of other track(s) other than the position between the LOCATE A and LO- CATE B points, use the method described later in "Copying/pasting the desired part(s) (2)".

Load the song you want to edit. Setthe LOCATE A and LOCATE B points for specifying the desired part(s) (see page 49). You can check the part(s) by playing back between the LOCATE A and LOCATE B points (see page 44).

While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). MENUÉT/22#Eack

Move Party + bb #9 HHClk Ce Part Source Track = 1 Dest. Track = 1 CENTER] CCAHCEL] Rotate the [MENU/ENTER]knob to select "Source Track =*", and press the [MENU/ENTER] knob. The display now shows the screen for selecting the copy source track(s). You can select the copy source track(s) by rotating the [MENU/ENTER] knob. The available options are: +1 through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks) HkkEar +) ###clE —— Crs- est.

HhtEar 4) HHhHclE = Cra-Pst Part —- 44 Eack Source Track = Dest. Track = 1 CENTER] CCAHCEL] Rotate the [MENU/ENTER] knob to select the source track(s) to be copied, and press the [MENU/ENTER] knob. You can select the destination track(s) by rotating the [MENU/ENTER] knob. The available options are: +1 through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks) HhtEar 4) #HhHclE = Cra-Pst Part —- 44 Eack Source Track = Dest. Track = 1 CENTER] , CCAHCEL] HkkEar #9 ###clE = Crs-Pst Part —- 44 Eack Source Track = 1 best, Track = CENTER] CCAHCEL]

10) 11) MR-8HD Owner's Manual (P art editing) <Note>: You cannot select the same track(s) for the copy source and destination. Rotate the [IMENU/ENTER] knob to select the destination track(s), and press the IMENU/ENTER] knob. The display returns to the previous screen. HhtEar #4) HkHkCIE = Cra-Pst Part —- 44 Eack Source Track 1 Dest. Track CENTER] , CCANCEL1 HkkEar #9 #4kkclk CENTER] CCANCEL1 Rotate the [MENU/ENTER] knob to move the cursor to "[ENTER]" atthe bottom of the screen, then press the [MENU/ENTER] knob. The display shows "Please Wait", immediately followed by "Completed" when the MR-8HD completes the copy/paste operation. To cancel the copy/paste operation, move the cursor to "[CANCEL]" at the bottom of the screen, and press the [MENU/ENTER] knob. HkkEar #9 #kkclk î Part —- Source Track = 1 Dest. Track = 4 HE ,[ CAHCEL 1 HbPartkCru-Pst Part —— Cra-Fst Part — Please Wait MéPartkCru-Pst Part —- Cra-Pst Part Comeleted Press ENTER Ken Press the [MENU/ENTER] knob. The display now returns to the part edit menu screen, where “Copy-Paste Part >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 111).

MR-8HD Owner's Manual (P art editing) Copying/pasting the part(s)-2 You can copy the desired part(s) of the selected track(s) and paste it(them) to the other time position of the desired track(s). Unlike the method described above in "Copying/pasting the desired part(s) (1)", the part data is copied to the (virtual) clipboard and then pasted to the specified position of the other specified track(s). The copy/paste operation of a part or parts can be made only within the current song.

joint point ABS ZERO ! REC END Clipboard (Virtual) LOCATE À point <Note>: If you paste the part(s) to the same time position of the other track(s), we recommend us- ing the method described above in "Copying/past- ing the desired part(s) (1)", because it works faster. Note>: You cannot copy/paste track data of a song protected. Release the protection before making the copy/paste operation. Note>: If you turn off the MR-8HD after copying the part data to the clipboard, the data on the clipboard is lost. Also note that you cannot undo copying data to the clipboard. Copying to the clipboard

Load the song you want to edit. Set the LOCATE A and LOCATE B points (see page 49). You can check the edited part(s) by playing back between the LOCATE A and LOCATE B points (see page 44). While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). Part Edit Fhathm Guide

MR-8HD Owner's Manual (P art editing) To cancel the part copy operation, move the cursor to "[CANCEL]" at the bottom of the screen, and press the [MENU/ENTER] knob. HhkEar #9) Hkkolk = Lors Part ——- 44 Eack Cors Track = 2 BEN, [CENCEL1 MkPartkCors Part —— Lors Part —- Please lait MbParthCors Part —- Coprs Part —- Comrleted Press ENTER Key The display now returns to the part edit menu screen, where “Copy Part >” is highlighted. The procedure example below shows how to paste the copied part data on the clipboard to the LOCATE A point of the selected track. ENTER] pe Pasting clipboard data The following procedure is assumed that the TE Corg Part ——— LOCATE A point, the paste destination, is set 44 Eack Lors Track = 1 Rotate the [MENU/ENTER] knob to select “Paste Part >", and press the [MENU/ENTER] knob. The display now shows the screen for selecting the paste destination track(s). "<< Back" is initially highlighted . HPart(i-#hPaste F ABC Erase Part + Cory-FasteParth , Cars Fart k [Move Part > bts #4) HkHkCIE ——- Paste Part Paste Track = 1 CENTER] CCAMNCEL1 Rotate the [MENU/ENTER] knob to select “Paste Track =*", and press the [MENU/ENTER] knob. You can now select the desired paste destination track(s) by rotating the [MENU/ENTER] knob. The available options are: +1 through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks)

MR-8HD Owner's Manual (P art editing)

<Note>: If you are going to carry out the paste operation when no data is pasted on the clipboard, the error message (“Clip- board Empty!) is shown on the display and the MR-8HD does not accept the operation. Press the [STOP] key to exit the menu mode and copy the desired data to the clipboard before carrying out the paste operation. Press the [MENU/ENTER] knob. The display now returns to the part edit menu screen, where “Paste Part >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 111).

MR-8HD Owner's Manual (P art editing) Moving the part(s) You can move the desired part(s) of the desired track(s) to the other desired track(s). The part move operation Can be made only within the current song. After the part move operation is carried out, the source part(s) becomes silent.

1) Load the song you want to edit.

2) Setthe LOCATE A and LOCATE B points (see

page 49). You can check the part(s) by playing back between the LOCATE A and LOCATE B points (see page 44).

3) While the recorder is stopped, press the

[MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially (selecting "<< Back" returns to the previous screen). Ssstenm Sons Track Edit Part Edit Ehathm Gu

Rotate the [MENU/ENTER] knob to select “Move Part >", and press the [MENU/ENTER] knob. The display now shows the screen for selecting the source track(s) and destination track(s) of the move operation. Initially, "<<Back" is highlighted. MkParti1#23kMoue Part A4Eack Erase Part + Cory-FasteParth Goes Pai + Bar 4) #kclk — Move Part — Source Track = 1 Le: Track = 1 CENTER] CCBNCEL 1 Rotate the [MENU/ENTER] knob to select “Source Track =*", and press the [MENU/ENTER] knob. You can now select the move source track(s) by rotating the [MENU/ENTER] knob. The available options are: +1 through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks) HikEar +) ##kclk == Mouse Fart 4 Back CENTER] CCAHCEL] HikEar +) ##kclk == Move Far 44 Eack Source_Track Lest. Track CENTER] CCAHCEL] Rotate the [IMENU/ENTER] knob to select the move source track(s), and press the IMENU/ENTER] knob. You can now select the move destination track(s) by rotating the [MENU/ENTER] knob. The available options are: +1 through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks)

MR-8HD Owner's Manual (P art editing)

HtkEar #9) He lk = Mouse Part —-- 44 Eack Source Track Lest. Track CENTER] CCANCEL1 HtkEar #9) He lk Houe Pa 4 Bac 10) Source Track = 1 Cest, Track = CENTER] CCANCEL] 11) <Note>: You cannot select the same track(s) for the move source and destination. Rotate the [MENU/ENTER] knob to select the destination track(s), and press the IMENU/ENTER] knob. The display returns to the screen where "Dest. Track = *" is highlighted. [ ##+Ear #9 ###c IE] = Mouse Part —-- 44 Eack Source _Track 1 Lest. Track CENTER] CCANCEL1 HtkEar #9) He lk = Mouse Part —-- 44 Eack Source Track = 1 CENTER] CCANCEL] Rotate the [MENU/ENTER] knob to move the cursor to "[ENTER]" on the screen, and press the IMENU/ENTER] knob. The display shows "Please Wait", immediately followed by "Completed" when the MR-8HD completes the move operation. If you want to cancel the move operation, move the cursor to "[CANCEL]" on the screen, and press the [MENU/ENTER] knob. Bar 4) Htc lk == Move Part ——- 44 Eack Source Track 1 Lest. Track d BE LCAHCEL] HkParthkMoses Part —- Mouse Part Please Wait

MkParthious Part —-- Mouse Part ——- £omrleted Press ENTER Ke Press the [MENU/ENTER] knob. The display now returns to the part edit menu screen, where “Move Part >” is highlighted. Press the [STOP] key to exit the menu mode. <Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 111).

MR-8HD Owner's Manual (P art editing) Exchange the part(s) You can exchange the parts between the desired tracks. The part exchange operation can be made only within the current song. LOCATE A point LOCATE 8 ABS ZERO parts. <Note>: You cannot exchange data of a song pro- tected. Release the protection before exchanging

1) Load the song you want to edit.

2) Setthe LOCATE A and LOCATE B points (see

page 49). You can check the parts by playing back between the LOCATE A and LOCATE B points (see page 44).

3) While the recorder is stopped, press the

[MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu on screen, where "<< Back" is highlighted

Rotate the [MENU/ENTER] knob to select “Change Part >" in the second page, and press the [MENU/ENTER] knob. The display now shows the screen for selecting the source track(s) and destination track(s) of the exchange operation. Initially, "<< BacK" is highlighted. HkParti2#23kChanael art HtEar #9 ###clE Chase Part Source_Track Dest. Track = 1 CENTER] CCAHCEL] Rotate the [MENU/ENTER] knob to select “Source Track=*", and press the [MENU/ENTER] knob. You can now select the exchange source track(s) by rotating the [MENU/ENTER] knob. The available options are: +1 through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks) HtEar #9 ###clE = Chanse Part ——- 44 Eack

Rotate the [IMENU/ENTER] knob to select the source track(s) to be exchanged, and press the IMENU/ENTER] knob. You can now select the exchange destination track(s) by rotating the [MENU/ENTER] knob. The available options are: +1 through 8 (mono track) +1/2, 3/4, 5/6 and 7/8 (stereo tracks)

<Note>: You cannot select the same track(s) for the exchange source and destination.

MR-8HD Owner's Manual (P art editing)

HkBar + #Hkolk Chase Part ——- 44 Back Source Track = 1 Dest. Track = CENTER] CCAHCEL] Rotate the [MENU/ENTER] knob to select the destination track(s), and press the IMENU/ENTER] knob. The display shows the screen where "Dest. Track = **" is highlighted. HtBar + ##eclk ——— Chanse Part 44 Back Source Track Lest. Track

The display now returns to the part edit menu screen, where “Change Part >” is highlighted.

11) Press the [STOP] key to exit the menu mode.

<Note>: If you are not satisfied with the re- sult, press the [UNDO/REDO] key to undo the operation (see page 111).

MR-8HD Owner's Manual (Other functions) Other functions This chapter describes the following functions which are important for using the MR-8HD. (1) Hard disk formatting (2) Peak hold time setting (3) Pre-roll/post-roll time setting (4) Beat resolution mode on/off (5) Phantom power on/off (6) Initializing the MR-8HD <Notes> While à menu screen is shown, you can go up the menu screen level or directly exit the menu mode by the following operations. (1) Select“<<Back” on a menu screen and press the [MENU/ENTER]knob. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (2) Press the [REWIND] key. The display returns to the previous (upper level) screen. Repeating this operation finally exits the menu mode. (3) Press the [STOP] key. The menu mode exits and the display shows the home screen.

MR-8HD Owner's Manual (Other functions) | Hard disk formatting You can reformat the MR-8HD internal hard disk by using the FAT32 file system. By reformatting the hard disk, all existing song data on the hard disk is erased, while all setting data including the menu settings are initialized, and a new song (Song01) is automatically created.

<Note>: You cannot undo hard disk formatting. Therefore, before executing hard disk format- ting, make sure that all song data on the hard disk is not necessary. While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. You can select between "O.1s" and "10s" in O.1 second steps. P: 4) Ssstenm + Sons + Track Edit + Part Edit + Fhathm Guide Rotate the [MENU/ENTER] knob to select "System", and press the [MENU/ENTER] knob. The display now shows the first page of the system menu screen, where "<< Back" is highlighted. HEMLIET A4Eack

Sons + Track Edit + Part Edit + Ehathm Guide k MhSusienel-27 ace 6) Rotate the [MENU/ENTER] knob to select "Disk Format" on the second page and press the IMENU/ENTER] knob. The display show the screen where "Are You Sure?" flashes. As this screen indicates, formatting the hard disk deletes all songs on the disk and you cannot undo disk formatting. To stop formatting, press the [STOP] key to exit the menu mode. HkSsstemés#23kPormat A4Eack PeskHold Time 4 Éesplution

MR-8HD Owner's Manual (Other functions) Peak hold time setting The level meters shown on the display have the peak hold function. When it is enabled, the meter peak value during recording is held for the specified time. The default meter peak hold time is three seconds. You can disable the peak hold function or change the peak hold time.

Peak hold indication By default itis held forthree seconds. BÜ5618

n " Clk Sons) LE Dam in While the recorder is stopped, press the [MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. You can select between "O.1s" and "10s" in 0.1 second steps. MEHUÉT#22#6ack

Sons + 4 Track Edit + Part Edit + Ehathm Guide k MkSustemé1-23 Back L = 5) MTC Frame Rate= 25 Rotate the [MENU/ENTER] knob to select "PeakHold Time" on the second page and press the [IMENU/ENTER] knob. The currently selected peak hold time (by default, "3s") flashes. You can now make the desired peak hold setting.

ibPesk Hold diEsck Disk Format Init Memors + You can select from "3s" (3 seconds, default), "1s", "25", "5s" and "Off". When "Off" is selected, the peak hold function is disabled (the peak value is not held). Rotate the [IMENU/ENTER] knob to select the desired hold time, and press the [MENU/ENTER] knob. The peak hold setting is confirmed and the display returns to the previous screen. Press the [STOP] key to exit the menu mode. The peak hold setting is effective to all songs.

MR-8HD Owner's Manual (Other functions) Pre-roll/post-roll time setting As described earlier on page 47, when both the auto punch in/out and loop modes are active, the pre-roll and post-roll are effective in the loop function. You can set the pre-roll and post-roll time value by the following procedure.

When both the auto punch in/out and loop modes are active, the loop starts from "the LOCATE A point minus the pre-roll time" and ends by "the LOCATE B point plus the post-roll time", The pre-roll time is initially set LOCATE À Point LOCATE 8 Point to four seconds, while the post-roll time is set to one second. In other words, with the default pre-roll and post-roll time settings, when executing auto punch in/out, the MR-8HD starts playback four seconds before the punch-in point, and ends playback one second after the punch-out point. —æi sec LOOP START point

LOOP END point While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. You can also return to the previous screen by pressing the [REWIND)] key. Sssten + Sons F Track Edit F Part Edit + Ehathm Guide k Rotate the [MENU/ENTER] knob to select "System", and press the [MENU/ENTER] knob. The display now shows the first page of the 4) system menu screen, where "<< Back" is highlighted. MENU 1-20 System Sons + Track Edit + 5 Part Edit k ) Ehathm Guide k Midi Sunc Out H MTC Frame Fate= 25

Rotate the [MENU/ENTER] knob to select “Pre Roll Time" and press the [MENU/ENTER] knob. The currently selected pre-roll time (by default, "4.0s") flashes. You can now set the desired 7 pre-roll time.

You can select between "O.1s" and "10s" in 0.1 second steps. HkSsstemt1/23kPre Roll A4Eack

Delas Tape Midi Sune Out = MTC Frame Rate= MkSaste A4Eac. Pre Roll Time PostRoll Time Delas Tres Midi Sane Out MTC Frame Este= El“E)bFre Eoil uuu Rotate the [IMENU/ENTER] knob to selectthe pre-roll hold time, and press the [MENU/ENTER] knob. The pre-roll time setting is confirmed and the display returns to the previous screen. To set the post-roll time, follow the procedure below. Rotate the [MENU/ENTER] knob to select “Post Roll Time" and press the [MENU/ENTER] knob. The currently selected post-roll time (by default, "1.0s") flashes. You can now set the desired post-roll time. You can select between "O.1s" and "10s" in 0.1 second steps. Rotate the [IMENU/ENTER] knob to selectthe post-roll hold time, and press the [MENU/ENTER] knob. The post-roll time setting is confirmed and the display returns to the previous screen. Press the [STOP] key to exit the menu mode.

RE MR-8HD Owner's Manual (Other functions) Beat resolution mode on/off While the time base is set to the bar/beat mode, if you set the "Beat resolution" item in the menu to "On", the LOCATE A and B points are set in beat resolution. When "Beat resolution" is set to "On", the clock digit in the bar/beat/clock value is automatically rounded down or up, so that the clock digit is always "000". Let's see an example when the time base is set to the bar/beat mode and the "Beat resolution" is set to "On". If you set the LOCATE A point to "Bar 1/14/clock 468" and the LOCATE B point to "Bar 12/ 4J/clock 485", the rounded values are stored as below. "Bar 1/1// clock 468" ->"Bar 1 / 1// clock 000" (The clock value "468" is rounded down.) “Bar 12/4// clock 485" ->"Bar 3 / 1// clock 000" (The clock value "485" is rounded up.)

1) While the recorder is stopped, press the HhSsstemiz-21hJ Reso

[MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. You can also return to the previous screen by pressing the [REWIND)] key. HkSusteméz-23h Peso 5 A4Eack sus ten k PeakHold Time = _3s Sons A F 4 Fesolution = grack tit ; Disk Format k art Edit i Rhythm Guide Init Menors

2) Rotate the [MENU/ENTER] knob to select

"System", and press the [MENU/ENTER] knob. 4) Rotate the [MENU/ENTER] knob to select "On" The display now shows the first page of the or "Off", and press the [MENU/ENTER] knob. system menu screen, where "<< Back" is The selection is confirmed and the display highlighted. returns to the previous screen. MEHUE T2 Sue tem 5 5) Press the [STOP] key to exit the menu mode. Sons + Track Edit + Part Edit + Fkathm Guide b “23 Back Pre Roll T ss PostRoll T Delas Tape FR Midi Sanc Out = Off MTC Frame Rate= 25

3) Rotate the [MENU/ENTER] knob to select

"JResolution" on the second page and press the [IMENU/ENTER] knob. The current option (by default, "Off") flashes. You can now set the desired option.

MR-8HD Owner's Manual (Other functions) | Phantom power on/off The MR-8HD can supply phantom power (+48 V) to the XLR balanced connectors of [INPUT A] through [INPUT D]. So you can connect condenser microphones which require phantom power. You can turn on or off phantom power to the XLR connectors via the menu mode. <Note>: The phantom power can be supplied to the XLR balanced connectors of [INPUT A] through [INPUT D]. Therefore, to connect a sound source which does not require the phantom power, use any of the unbalanced phone input jacks on [INPUT A] through [IN- PUT D]. If any plug is inserted to the unbalanced phone input jack, the phantom power is not supplied to the balanced XLR connector on the same channel. The phantom power setting returns to "Off" (default) when you turn off the MR-8HD power. <Notes on using phantom power> ° _ Confirm that the connected microphone needs +48 V phantom power. ° Turn on the phantom power after making microphone connection. + Mute the outputs of the MR-8HD when turning on or off the phantom power or plugging/unplugging the microphone. ° Do not supply the phantom power to a microphone such as below. *__ A microphone whose output is unbalanced A high impedance microphone A microphone whose pin 1 and pin 2 or pin1 and pin 3 are short-circuited. A microphone with the grounded center tapout such as an old-fashioned ribbon microphone

While the recorder is stopped, press the [MENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. You can also return to the previous screen by pressing the [REWIND)] key. Sastenm Sons Track Edit Part Edit Fhathm Guide

Rotate the [MENU/ENTER] knob to select "Input" on the second page, and press the [MENU/ENTER] knob. The display now shows the input menu screen. CEE) +Ineut Input 4 Pan Input E Pan Input C Pan Input D Pan Phantom Power Rotate the [MENU/ENTER] knob to select “Phantom Power", and press the [MENU/ENTER] knob. The current option (by default, "Off") flashes. You can now set the desired option. Mrineute115kPhantom | A4Eack Input À = Input E = lnrut C = Inrut DC MbineuthPhantom A4Eack Input À Pan = CNT Input E Fan = CNT Input C'Ean = CNT Input C Pan = CNT Fhantom Pouer = Rotate the [MENU/ENTER] knob to select "On", and press the [MENU/ENTER] knob. The screen shows a warning message for few seconds, and returns to the previous screen. While the message is shown, all input channels are muted. When the message is dismissed, the mute is released. If you select “Off” from “On”, a warning message appears and all channels are muted.

MR-8HD Owner's Manual (Other functions) IneutPhanton AAEaCE Input À Pan Input E Pan Input C Pan Input D Pan Phantom Power = Hkineuté1-13#Phantom Warrinai Phantom Power On, Mutina... Ineut D Fan ÊPhan to BkIneuts1-13#Phanton A4Back Input & Fan = CHT Input E Pan = CHT Input C Pan = CHT Inrut D Pan à QE After making "Phantom Power" setting, press the [STOP] key to exit the menu mode. The display returns to the home screen. When "Phantom Power" is set to "On", lights on the home screen, as below. —2 52" 1,000: FOSTE“_FEUER F Eboët

MR-8HD Owner's Manual (Other functions) Initializing the MR-8HD By initializing the MR-8HD, you can initialize all global menu settings common to all songs, as well as the time base and display contrast level.

Initialized item Default setting Pre-roll time setting 4 seconds Post-roll time setting 1 second Delay type setting L-R (stereo) delay MIDI sync out setting Off MTC frame rate setting 25 frames Beat resolution mode setting Off Peak hold time setting 3 seconds Time base (shown when tuning on the power) Bar/Beat Display contrast level Factory present level While the recorder is stopped, press the IMENU/ENTER] knob to enter the menu mode. The display now shows the first page of the menu selection screen, where "<< Back" is highlighted initially. You can also return to the previous screen by pressing the [REWIND)] key. Sssten + Sons F Track Edit F Part Edit + Fhathm Guide k Rotate the [MENU/ENTER] knob to select "System", and press the [MENU/ENTER] knob. The display now shows the first page of the system menu screen, where "<< Back" is highlighted. HEHUC 1253 5e tem # k Sons + Track Edit + Part Edit + Fhathm Guide k HkSustemé1l#23kBack

off MkSastemkinit Mem - Initislize Memors - Initislize Ssstem 5 i Ves+RECORL+ENTER Ke Ho+STOP Ke Press the [MENU/ENTER] knob while holding down the [RECORD] key. The settings are immediately initialized. The initialize is confirmed and the display returns to the previous screen. To cancel the initialization, press the [STOP] key. HkSustemiz-2h+Init Men A4Eack PeakHold Time d Fesolution isk Format

Off Press the [STOP] key to exit the menu mode.

CS MR-8HD Owner's Manual (Troubleshooting) Troubleshooting If you encounter any problem while operating the MR- 8HD, check the following for the possible cause of the problem before contacting our service station or dealer.

MR-8HD Owner's Manual (Troubleshooting) Troubles for recording <Trouble 1> 1 cannot record the sound source connected to [INPUT B]to track 1. <Trouble 5> The meter shows very low level and the recording level is too low. + When recording a sound source to a mono track, you can only use the [INPUT A] section. Connect the source to [INPUT A]. <Trouble 2> 1 cannot record the sound sources connected to [IN- PUT CJand [INPUT D]to tracks 1 and 2.

+ When recording two sound sources simultaneously, you mustuse [INPUT A]and [INPUT B].You cannot use [INPUT C]and [INPUT D]. Reconnect the sources to [INPUT A]and [INPUT B] <Trouble 3> The input level ofthe track to which | am going to record is too low. + _Is the [TRIM] control of the input to which the sound source is connected adjusted appropriately? To set the input level (= recording level) appropriately, use the [TRIM] control so thatthe peak indicator does not light continuously. <Trouble 4> I cannothear the input signal via the headphones though the [REC SELECT]keyis active + _ Did you press the [RECORD] key to make the armed track in the input monitor mode? Is the [PHONES VOL] control raised? You cannot hear the input signal unless the assigned track is in the input monitor mode by pressing the corresponding [REC SELECT] key to turn on the indicator. Also, you cannot hear any signal ifthe [IPHONES VOL] control is set to minimum.

+ _Is the [TRIM] control for the input section the sound source is connected adjusted appropriately? Setthe [TRIM] control just below the position where the [PEAK]indicator in the [INPUT A]section lights atthe loudest part. <Trouble 6> The meter shows good level for recording, but no sig- nal can be monitored via headphones though the [PHONES VOL] control is raised. + _ Are the track fader for the recording track and the [MASTER] fader raised? Both ofthese faders, as well as the [PHONES VOL] control, have to be raised in order to monitor the recording signal via headphones. We recommend to raise both the track fader for the recording track and the [MASTER ] fader to the =" position. +_Is the recording track in the input monitor mode? Make sure thatthe [RECORD] key flashes and “GHMEN" is shown on the display. If not, press the [RECORD] key to setthe armed track to the input monitor mode. <Trouble 7> During overdubbing, | cannot monitor the playback sig- nal of the recorded track. +_Is the track fader for the playback track raised? During overdubbing, raise the faders for both the playback and recording tracks appropriately. Otherwise, you cannot make overdubbing while listening to the recorded track(s).

MR-8HD Owner's Manual (Troubleshooting) <Trouble 8> I cannot execute auto punch in/out. + Is"EEMI shown on the screen? Ifitis not, press the [AUTO PUNCH]key to make the auto punch in/out function active + _ Are the punch-in and punch-out points set correctiy? To check each point, press the [LOCATE A/IN] or ILOCATE B/OUT]key. The recorder locates to the punch-in or punch-out point, while the screen shows the appropriate time data. Ifthe punch-out point is earlier than the punch-in point, setthese points appropriately so that the punch-in point is earlier than the punch-out point. <Trouble 9> 1 cannot record audio data of a song onto an external digital recorder. + _Is the connection between the [DIGITAL OUT] connector on the MR-8HD and the optical input connector of the digital recorder made correctly? Check the connection, as well as the optical cable. + _Is the digital recorder set correctiy for recording the signal fed to the digital input? See the manual of the digital recorder for details about the setting. Troubles for playback <Trouble 1> During playback, the recorder suddenly executes locat- ing. <Trouble 3> lpress the [PLAY] key while holding down the [STOP] key, but! cannot execute loop playback. + ISERE or "EEE" shown on the display? Ifs0, the play mode is set to the auto return or loop mode. Press the [PLAY MODE] key until "Off" is selected. <Trouble 2> Cannot monitor the playback sound. + _ Are the track fader(s) for the playback track(s) and the [MASTER] fader brought up to the appropriate positions? Raise the fader(s) for the track(s) you want to monitor, as well as the [MASTER] fader. If you monitor via headphones, also raise the IPHONES VOL] control.

+ Are the LOCATE A and LOCATE B points set correctiy? By default, both ofthese points are set to the beginning of a song (i.e. "Om00s000ms" or "-2bar 1ÂÙ 00clk'). In this condition, you cannot execute loop playback. Also, ifthe LOCATE B point is earlier than the LOCATE A point, you cannot execute loop playback.

MR-8HD Owner's Manual (Troubleshooting) Troubles for effect <Trouble 1> 1 cannot apply the effects. <Trouble 2> 1 cannot apply the mic simulation effects. + _Arethe [EFFECT SEND]control forthe track you want to apply the effect and track fader raised appropriately?

Raise the [EFFECT SEND]control(s) for the track(s) {1 through 4) you want to apply the effect to send signal(s) to the internal digital effects. Also, make sure that the fader(s) for the track(s) you want to apply the effect is(are) raised. Is the [INPUT A SEL]switch on the rear panel is set to "MIC/LINE" position?

To apply the mic simulation effects to [INPUT A], the [INPUT A SEL]switch on the rear panel must be set to "MIC/LINE" position. When you setthe switch to any other position, you can use the amp simulation effects for insert effects Troubles for USB connection <Trouble 1> Cannot export a WAV file to a personal computer. *_Is the USB cable connected correctiy? Check the connection, as well as the USB cable. + _Is the personal computer meets the requirement? The MR-8HD can export a WAV file to a personal computer which runs on any of the following OS systems. Windows Me, 2000 or XP Macintosh 0S X or higher <Trouble 2> The MR-8HD drive icon is not shown on the personal computer screen

It may take some times for showing a removable drive depending on a personal computer. It may take some times for reading the drive data Wait for a while until the drive icon appears. On à Windows machine, the MR-8HD is shown as “removable drive". On a Macintosh machine, itis shown as "MR-8HD"

MR-8HD Owner's Manual (Troubleshooting) Other troubles <Trouble 1> 1 cannot hear the rhythm guide click. +_Is the [RHYTHM GUIDE] key is illuminated? When the [RHYTHM GUIDE]key is notilluminated, the rhythm guide function is not active and you cannot hear the rhythm guide click. + Is the "Int Click level" item in the" Rhythm Guide" menu set correctiy? Ifthe "Int Click level" item is setto "00" or a small value, you cannot hear the rhythm guide click. <Trouble 2> I want to hear the rhythm guide click based on the "Sig- nature" and "Tempo" settings on the rhythm guide set- ting screen but the rhythm guide click based on the conductor map is output.

+_Is the "Conductor Map" setting on the rhythm guide setting screen set to "On"? As shown on the screen below, if "Conductor Map" on the rhythm guide setting screen is set to "On", the rhythm guide click based on the conductor map is output. In this condition, the "Signature" and "Tempo" fields on this screen indicate "---" as below, showing that they are disabled. MbEha the 1-13 +Bacr Fhathm Guide Conductor Mar Sianature Tera = Int ClickLeuel= Set "Conductor Map" to "Off" (see page 77).

MR-8HD Owner's Manual (Troubleshooting)

ES MR-8HD Owner's Manual (Specifications) MR-8HD Specifications

MR-8HD Owner's Manual (Specifications) | Specifications [nputs/Outputs] Audio recording type : Conformed to AES-31 OdBu=0.775Vrms, OdBV=1.0Vrms, Reference level: -12dBfs The number of tracks : 8 . *the number of simultaneously recordable tracks: 4 Analog input [INPUT A - INPUT D] Connectors :XLR-3-31 type (#2: hotbalanced) ADC : 24-bits, delta-sigma :1/4-inch, phone type . : : Input level :-48dBu (MIC) to +4dBu (LINE) DAC : 24-bits, delta-sigma Inputimpedance :1.5kQ or more Frequency response : 20Hz to 20kHz :400kQ or more (When the INPUT A SEL switch is setto “GTR".) Dynamic range : 90dB or more (TYPICAL) Phantom power :P48V (Phantom power ON/OFF is Le selected in the “Input” menu ofthe Total harmonic distortion : 0.06% or less (TYPICAL) MENU mode.) Insert [INSERT (input A only)] [General] Connector : L/4-inch, TRS phone type Weight (net) :Approx. 3.0 kg (Tip: output, Ring: input) Norminal output level : -10dBV Dimensions :312 (W) x 264 (D) x 88 (H ) mm Load impedance :10kQ or more Norminal input level _: -10dBV Power supply :120VAC 60Hz, 230VAC 50/60Hz Input impedance :10kQ or more Power consumption: 14W Stereo analog output [STEREO OUT (L, R)] Supplied Accessaries : Power cord, Owner's Manual Connectors :1/4-inch, phone type Norminal output level : -10dBV (unbalanced) * Changes in specifications and features may be made Load impedance :10kQ or more without notice or obligation. Headphones output [PHONES 1, 2] Connectors : 1/4-inch, stereo phone type Max. output power _: 30mW or more (at 32Q load) [Pin assignment of XLR connectors] Load impedance :16Q or more MIDI output [MIDI OUT] 2 1 ï END Connector : DIN 5-pin Format : Conformed to the MIDI standard KZ 2 HOT 3 COLD Digital output [DIGITAL OUT] Connector : Toslink optical type Format :IEC 60958 (S/P DIF) Footswitch [FOOT SW] [Pin assignment of USB port] Connector :1/4-inch, phone type Level : TTL level @ © 1} vVBUS 2 D- USB 3 D+ Connector :B type (standard) ® © 4 GND USB HOST Connector :Atype (standard) [Pin assignment of USB HOST port] [Record / playback] — 1 |] veus 3 +. Recording medium : 3.5-inch hard disk drive mu 3 D+ Sampling frequencies: 44.1kHz 4 GND Quantization :16-bits, linear (non expanded) File format : FAT32

[I MR-8HD Owner's Manual (Specifications) Physical dimensions

Bounce. 63 Bar/Beat .14, 24,127 Beginning a song 14, 48 Bar offset... 81

Cueing. Conductor map Changing track Character entry key Creating a song.

Delay Distortion Display . Demo song. Digital mixdown Delete song . Damage … <Æ> Effector. Effectsen Erasing track Erase part. Event Exchange the track. Exchange the parts .

MR-8HD Owner's Manual (Specifications) Song name Synchronization . Song protect SIP DIF <T> Track Trouble shooting Trim Track fader Time base . Tempo map 15, 35 to 40 35 to 40 14,24

Undo USB USB HOST .…. 36, 38, 40, 103, 113 <W> WAV file WAV file conversion Warning …

Y cable Declaration of EC Directive This equipmentis compatible with the EMC Directive (89/336/E EC) - Directive on approximation of member nation's ordinance conceming the electromagnetic compatibility and with the Low Voltage Directive (73/23/EEC) - Directive on approximation of member nation's ordinance conceming electric equipment designed to be used within the specified voltage range. The Affect of Immunity on This Equipment specification) on this equipment are as shown below. The affect of the European Specification EN61000-6-1 (coexistence of electromagnetic waves - common immunity affected by generation of noise in some cases. In the electrical fasttransient/burstrequirements, surge, conducted disturbances by radio-frequency fields, power frequency magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be <AUSTRIA> NAME: ATEC Audio-u. Videogeraete VertriebsgesmbH. ADD: Im Winkel 5, A-2325 Velm, Austria

• Including non-EU countries (as of January, 2005) ATALY> NAME: Proel S. p. A. ADD: Zona Via Alla Ruenia, 37/43 64027 - Sant'Omero (Teramo), Italy

SCV London 0 Chigwell Lane, Oakwood Hill Industrial Estate, Loughton, Essex 1G10 3NY U.K.
