USER MANUAL DV4610 MARANTZ

For warranty information, contact your local Marantz distributor.

RETAIN YOUR PURCHASE RECEIPT

Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Marantz.

IMPORTANT

When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.

FOR U.K. ONLY

This undertaking is in addition to a consumer's statutory rights and does not affect those rights in any way.

FRANÇAIS

GARANTIE

The 2-4 voltage is in conformity with the entire directive and low-voltage directive.

Français

• Do not expose the equipment to rain or moisture.
  – Do not remove the cover from the equipment.
• Do not insert anything into the equipment through the ventilation holes.
  – Do not handle the mains lead with wet hands.
• Do not cover the ventilation with any items such as tablecloths, newspapers, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the equipment.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
• Do not place anything about 1 meter above the top panel.
  – Make a space of about 0.2 meter around the unit.
• Never spill liquid of any kind on this unit. If liquid is spilled into the unit, consult qualified service engineer.
• No objects filled with liquids, such as vases, shall be placed on the equipment.
• When the switch is in the OFF position, the equipment is not completely switched-off from MAINS.

Français

AVERTISSEMENTS

A NOTE ABOUT RECYCLING:

This product's packaging materials are recyclable and can be reused. This product and the

accessories packed together are the applicable product to the WEEE directive except batteries.

Please dispose of any materials in accordance with your local recycling regulations.

When discarding the unit, comply with your local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.
• You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

TABLE OF CONTENTS

■ PRECAUTIONS ...... 2

WARNINGS FOR LASER RADIATION....4

■ INTRODUCTION....5

About Copyright. 5

Notice for the Progressive Scan Outputs .... 5

Supplied Accessories 5

Symbols Used in this Manual....5

■ ABOUT THE DISCS 6

Playable Discs....6

■ FEATURES....7

■ FUNCTIONAL OVERVIEW 8

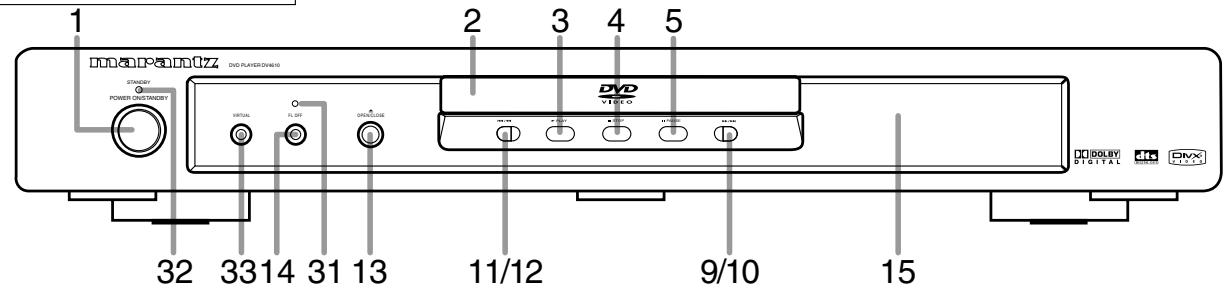

FRONT PANEL 8

REMOTE CONTROL....8

Tour of the Remote Control 9

Panel Display....11

Displays during Operation 11

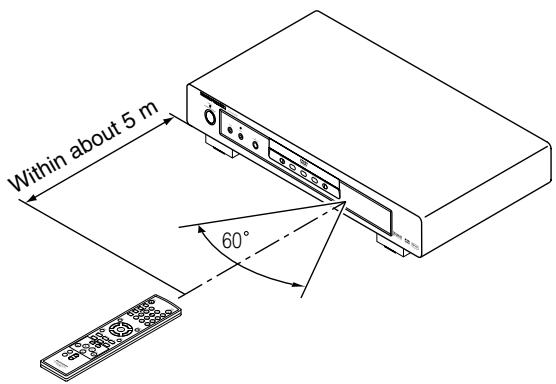

Using the Remote Control 11

Loading the Batteries....11

■ CONNECTIONS 12

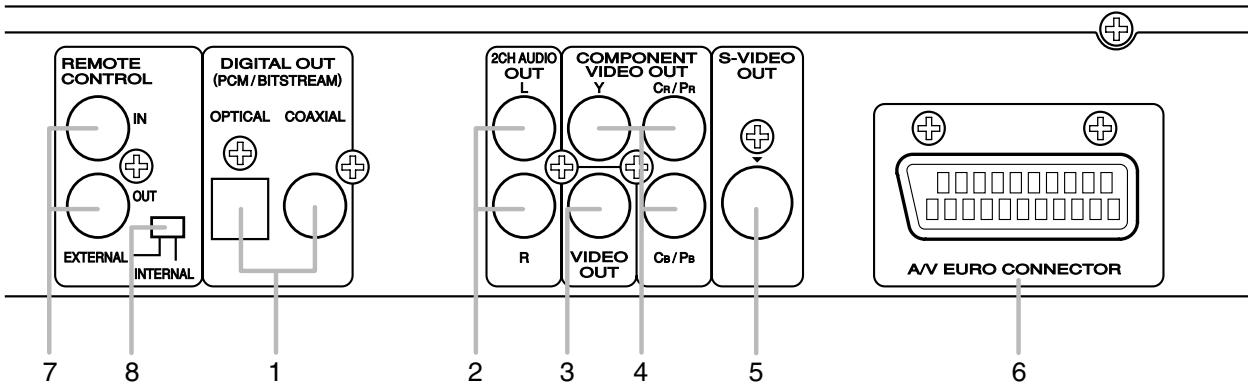

Description - Rear Panel 12

Connection to an Audio System....13

Connection to a TV (for Video)....14

■ PLAYING A DISC 15

Basic Playback 15

CANCELLING AND CALLING BACK

THE PBC FUNCTION 15

General Features.... 15

FL OFF Mode 15

Disc Menus 15

Title Menu....15

CALLING UP A MENU SCREEN DURING

PLAYBACK 15

Still / Pause 15

Step by Step Playback....16

Resume....16

Playing the Disc Recorded in VR Mode

(Video Recording Format) 16

Fast Forward / Reverse Search ..... 16

Slow Forward / Slow Reverse 16

Zoom....16

Title / Chapter Search 17

BY USING THE SEARCH MODE BUTTON ..... 17

BY USING THE SKIP BUTTONS ◀◀▶▶1 ..... 17

Track Search 17

BY USING THE SEARCH MODE BUTTON ..... 17

BY USING THE SKIP BUTTONS ◀◀▶▶I ..... 17

Time Search 17

Repeat 18

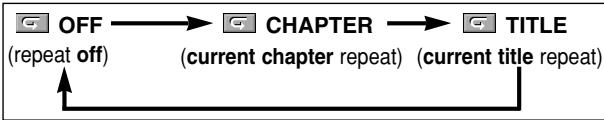

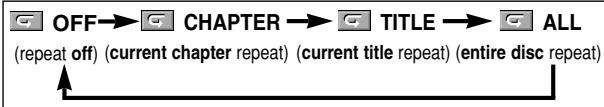

REPEAT TITLE / CHAPTER....18

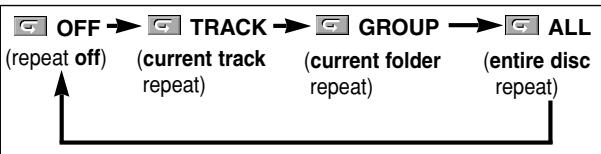

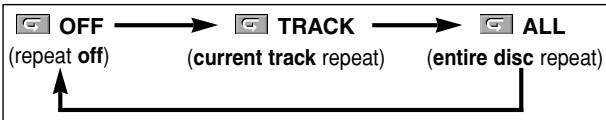

REPEAT TRACK / GROUP / ALL 18

A-B REPEAT 18

Programme Playback (CD) 18

Random Playback (CD)....19

MP3 / JPEG / WMA Playback 19

DivX® Playback 20

Slide Show Mode....21

On-Screen Information. 21

Programme Playback (MP3 / JPEG / WMA)....22

Random Playback (MP3 /JPEG / WMA)....22

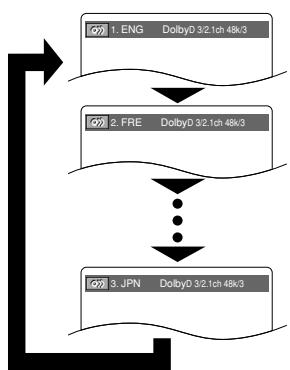

Audio Language 22

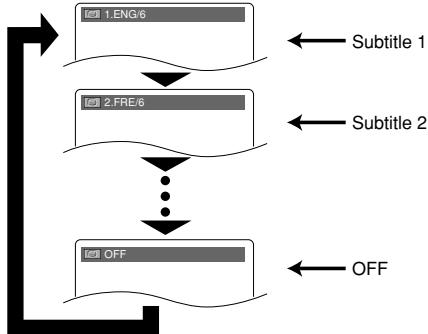

Subtitle Language 23

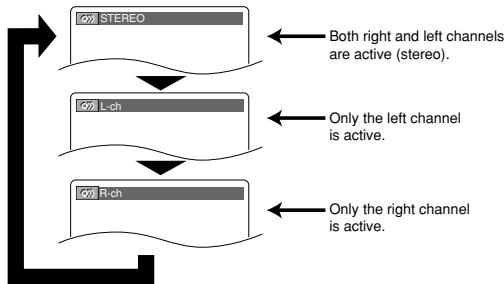

Stereo Sound Mode....23

Camera Angle 23

Marker Setup Screen....23

Virtual Surround 24

■ DVD SETUP 24

Language Setting 24

Display Setting. 24

Audio Setting....25

Parental Control....25

PARENTAL LEVEL....25

IF YOU FORGET THE PASSWORD....26

CONTROL LEVELS....26

Others Setting 26

Reset to the Default Settings (except for

PARENTAL and VIDEO OUT) 26

Language Code List 27

■ MAINTENANCE 27

■ TROUBLESHOOTING GUIDE....28

■ SPECIFICATIONS....29

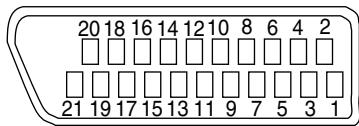

■ PIN CONNECTION (A/V EURO CONNECTOR).....29

The serial number of this product may be found on the back of the DVD player. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.

Apparatus Claims of U. S. Patent Nos, 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only.

Notice for the Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 or 625 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p or 625p DVD player, please contact our customer service centre.

Supplied Accessories

Please check to make sure the following items are included with the main unit in the carton.

Remote control......1

“AA” (R6P) batteries ...... 2

Audio (Red and White) cable...... 1Video (Yellow)cable...... 1

Remote control bus cable (Orange)...... 1

User Guide...... 1

Product registration card ...... 1

Symbols Used in this Manual

The following symbols appear below in some headings and notes in this manual, with the following meanings.

DVD-V :

Description refers to playback of DVD-Video discs.

JPEG :

Description refers to viewing of JPEG discs.

VCD :

Description refers to playback of Video CDs.

WMA :

Description refers to playback of discs formatted with WMA.

CD :

Description refers to playback of Audio CDs.

DivX® :

Description refers to playback of discs formatted with DivX ^® .

MP3 :

Description refers to playback of discs formatted with MP3.

DVD-RW :

Description refers to playback of the VR mode (Video Recording format).

DVD

is a trademark of DVD Format/Logo Licensing Corporation.

Kodak Picture CD COMPATIBLE

is trademark of Eastman Kodak Company.

This label indicates playback compatibility with DVD-RW discs recorded in VR mode (Video Recording format).

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

playable Discs

Playable discs	Mark (logo)	Region code	Recorded signals	Disc size	Disc types
DVD-Video* 1, 2, 3, 5		or	Digital video (MPEG2) DivX®	12 cm or 8 cm
DVD-RW DVD-R* 1, 3, 4, 5, 6, 7, 8
Video CD* 1, 3, 5, 9		-	Sound and Pictures	12 cm or 8 cm	MP3, JPEG, WMA,
Audio CD* 4, 5		-	Digital audio
CD-RW CD-R* 4, 5, 7, 8, 9		-	Digital audio MP3 WMA*10 Digital picture (JPEG) DivX®
Picture CD	Kodak Picture CD COMPATIBLE	-	JPEG	12 cm

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This player conforms to the PAL colour system. Also you can play discs recorded with the NTSC system via a PAL system TV set.
*2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc's producers.
*3: Scratched or stained discs may not be played back.
*4: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.
*5: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.
*6: Only the discs recorded in the video format or Video Recording format, and finalized can be played back. Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may be distorted, etc.).
*7: If there is too much recordable space left on a disc (the used portion is less than 55mm across), it may not play back properly.
*8: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.
*9: This unit conforms to ver.1.1 and ver.2.0 of Video CD standard with PBC function.

Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD.

Ver.2.0 (with PBC function): While using a Video CD with PBC function, "Pbc" appears on the screen and the display.

NOTE: When playing Video CDs with PBC function, some operations (e.g., track search and repeat tracks) cannot be performed. Cancel PBC function temporarily to perform those operations (refer to page 15).

What is PBC? "PBC" stands for Playback Control.

You can play interactive software using menu screens. Refer to instructions in the Video CD.

*10: This player cannot play the disc contents protected by Windows Media Digital Rights Management (DRM).
NOTE: This player cannot play the DVD-RW discs that supports CPRM (Content Protection for Recordable Media). This player cannot play the DVD-R discs recorded in VR mode (Video Recording format).

- NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM / CD-I / Photo CD / DVD with region codes other than 2 or ALL / DVD-ROM for personal computers / CD-ROM for personal computers

- On the following disc, the sound MAY NOT be heard.

Super Audio CD

NOTES:

- Only the sound recorded on the normal CD layer can be delivered.

- The sound recorded on the high density Super Audio CD layer cannot be delivered.

- Any other discs without compatibility indications

CAUTION:

• Use caution not to pinch your finger in the disc slot.
• Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player.

- Progressive Scan system

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional 625i (576i) television signals.

- Dolby Digital Sound

By hooking this player up to a Multi-Channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital 5.1 channel surround sound as heard in the movie theatres.

• DTS (Digital Theater System)

When this player is connected to the DTS decoder, you can enjoy 5.1 channel surround system which reproduces the original sound as truthfully as possible. 5.1 channel surround system is developed by the Digital Theater System, Inc.

- Still/Fast/Slow/Step Playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

- Random Playback for Audio CD, MP3, JPEG, and WMA

This player can shuffle the order of tracks to play them in random order.

- Programme Playback for Audio CD, MP3, JPEG, and WMA

You can programme the order of tracks to play them in any desired order.

• DVD menus in a desired language

You can display DVD menus in a desired language if the language is available on the DVD.

- Auto Power Off

The power turns off automatically if there is no activity at the player or its remote control for more than 30 minutes. (Refer to page 26.)

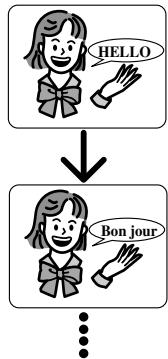

- Subtitles in a desired language

You can select a desired language for subtitles if the language is available on the disc.

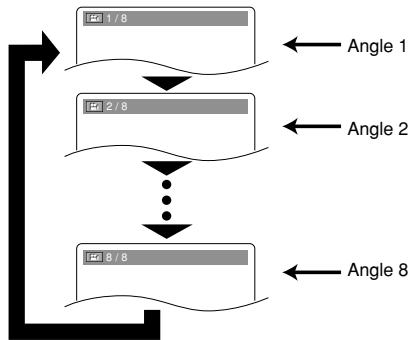

- Selecting a camera angle

You can select a desired camera angle if a disc contains sequences recorded from different angles.

- Choices for audio language and sound mode

You can select a desired audio language and sound mode if different languages and modes are available on the disc.

- Parental Lock

You can set the control level to limit playback of discs which may not be suitable for children.

• Automatic detection of discs

This player automatically detects if a loaded disc is DVD-Video, Video CD, Audio CD, MP3, JPEG, WMA, or DivX®.

- Playing an MP3 disc

You can enjoy MP3 files which are recorded on CD-R/RW.

- Direct Search

You can search a desired title, chapter, and track with the numeric buttons during playback or in stop mode.

- On-screen display

Information about the current operation can be displayed on the TV screen, allowing you to confirm the currently active functions (such as programme playback).

- FL OFF Mode

You can turn off the panel display.

- Search

Chapter search: Search for a desired chapter.

Title search: Search for a desired title.

Group search: Search for a desired group.

Page search: Search for a desired page.

Track search: Search for a desired track.

Time search: Search for a desired time point of a title or track.

- Repeat

Chapter: Repeated playback of a chapter of the disc.

Title: Repeated playback of a title of the disc.

Track: Repeated playback of a track of the disc.

All: Repeated playback of the entire disc. (exclude DVD-Video)

A-B: Repeated playback of a part between two points.

Group: Repeated playback of a folder of the MP3/JPEG/WMA/DivX® disc.

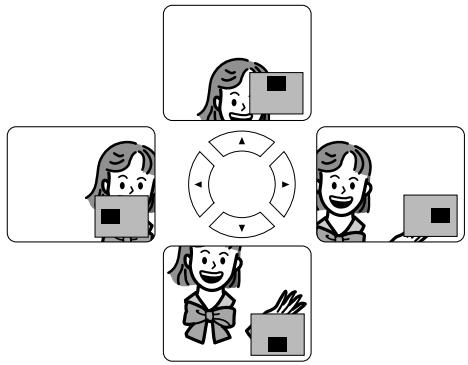

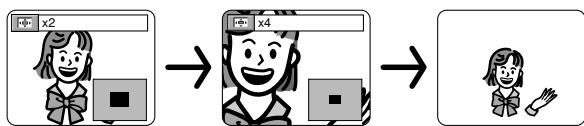

- Zoom

2-time or 4-time magnified screen can be displayed.

- Marker

The part designated by user can be called back.

- Resume Play

You can resume playback from the point at which the play has been stopped even if the power is turned off.

- Component Video Out Jacks

Jacks located on the back of the DVD player which are used to send high-quality video to a TV via Component Video In Jacks.

- Bit rate indication

• DRC (Dynamic Range Control)

You can compress the range of sound volume.

- MPEG sound

This player can handle a disc that supports MPEG audio when it is connected to an MPEG decoder.

- Displaying JPEG files

Kodak Picture CDs can be played. Still images stored in JPEG format on CD-R/RW can also be played.

● Reproducing WMA files

You can enjoy WMA files which are recorded on CD-R/RW.

- Reproducing DivX® files

You can enjoy DivX ^® files which are recorded on DVD-R/RW or CD-R/RW.

• Official DivX Certified™ product

- Plays DivX®5, DivX®4, DivX®3, and DivX® VOD video content (in compliance with DivX Certified™ technical requirements).

• This player supports Quarter Pixel.

• This player does not support GMC.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

"WMA" (Windows Media Audio) is a new audio codec developed by Microsoft® in the United States of America.

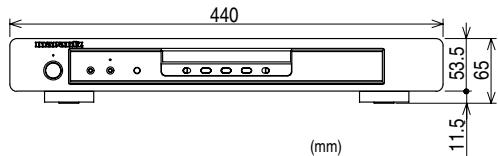

FRONT PANEL

MARANTZ STANDARD POWER CHANDER DVD PLAYER/DIVERS 2 3 4 5 DVO 11/12 9/10 15 32 33 14 31 13 DVX DIGITAL DOOLBY 15

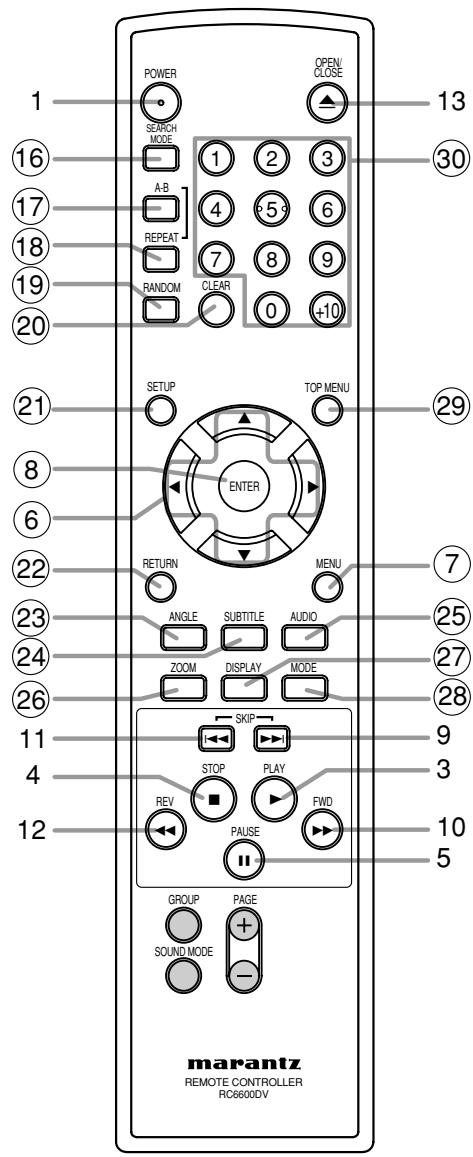

REMOTE CONTROL

POWER SEARCH MODE A-B REPEAT RANDOM OPEN CLOSE 13 16 17 18 19 20 1 2 3 4 5 6 7 8 9 0 +10 SETUP TOP MENU ENTER RETURN MENU ANGLE SUBTITLE AUDIO ZOOM DISPLAY MODE SKIP STOP PLAY REV PAUSE FWD GROUP PAGE SOUND MODE marantz REMOTE CONTROLLER RC6600DV

NOTES:

• The buttons in gray (○) do not function on this player.

• The buttons with circled numbers can only be operated with the remote control.

• POWER (ON/STANDBY) Button [page 15]

• Disc loading tray
• PLAY Button [page 15]
• STOP Button [page 15]
• PAUSE Button [page 15]
• Cursor Buttons [page 15]

Use when making settings while watching the display on a TV screen.

1. MENU Button [page 15]
2. ENTER Button [page 15]
3. ▶▶▶(SKIP) Button [page 17]

Plays back from the beginning of the next chapter or track.

1. ▶▶(FWD) Button [page 16]

Press more than 2 seconds when you use the front panel button for this function.

1. |◀◀(SKIP) Button [page 17]

Plays back from the beginning of the current chapter or track.

1. ◀◀(REV) Button [page 16]

Press more than 2 seconds when you use the front panel button for this function.

1. OPEN/CLOSE Button [page 15]

2. FL OFF Button [page 15]

3. Panel Display, Remote Sensor Window

4. SEARCH MODE Button [page 17]

5. A-B REPEAT Button [page 18]

6. REPEAT Button [page 18]

7. RANDOM Button [page 19]

8. CLEAR Button [page 17]

9. SETUP Button [page 24]

10. RETURN Button [page 15]

11. ANGLE Button [page 23]

Press to change the camera angle to see the sequence being played back from a different angle.

1. SUBTITLE Button [page 23]

Press to select a desired subtitle language.

1. AUDIO Button [page 22]

Press to select a desired audio language or sound mode.

1. ZOOM Button [page 16]
2. DISPLAY Button [page 21]
3. MODE Button [page 18]
4. TOP MENU Button [page 15]
5. Numeric Buttons [page 15]
6. FL OFF Indicator
   This indicator lights when the FL OFF button is ON.
7. STANDBY Indicator
   This indicator lights when the DVD player turns off.
8. VIRTUAL Button [page 24]

Tour of the Remote Control

Buttons on remote control work in different ways for DVD, Video CD, Audio CD, MP3, JPEG, WMA and DivX®. Refer to the following table for correct use.

	DVD	VCD	CD, MP3, JPEG, WMA	DivX®
POWER ButtonPOWER	To turn on or to standby the unit.	To turn on or to standby the unit.	To turn on or to standby the unit.	To turn on or to standby the unit.
A-B REPEAT Button	To mark a segment between A and B for repeated playback.	To mark a segment between A and B for repeated playback.	To mark a segment between A and B for repeated playback.(CD)	To mark a segment between A and B for repeated playback.
REPEAT ButtonREPEAT	To repeat playback of a title, chapter, group or track.	To repeat playback of a track or disc.	To repeat playback of a track or disc. (CD)To repeat playback of a track, group, or disc.(MP3, JPEG, WMA)	To repeat playback of a track, group or disc.
RANDOM ButtonRANDOM[ ]	—	—	To play back tracks in random order.	—
MODE ButtonMODE	To activate the 3D sound (Virtual Surround system).	To activate the 3D sound (Virtual Surround system).	To programme a specific playback order.To activate the 3D sound (Virtual Surround system).(CD, MP3, WMA)To activate the Slide Show Mode. (JPEG)	—
ZOOM ButtonZOOM[HKKG]	To magnify part of the picture (x2/x4).	To magnify part of the picture (x2).	To magnify part of the picture (x2). (JPEG)	To magnify part of the picture (x2).
ANGLE ButtonANGLE[ ]	To access various camera angles on the disc.	—	—	—
SUBTITLE ButtonSUBTITLE[HSTT]	To select a subtitle language on the disc.	—	—	To select a subtitle language on the disc.
AUDIO ButtonAUDIO[ ]	To access various audio functions on the disc.	To select STEREO, L-ch or R-ch.	To select STEREO, L-ch or R-ch. (CD)	To access various audio functions on the disc.
DISPIButtonDISPLAY[ ]	To display the current disc mode.	To display the current disc mode.	To display the current disc mode.	To display the current disc mode.
SEARCH MODE Button[CXSH][ ]	To search for a chapter, title, time or marker.	To search for a track, time or marker.	To search for a track.To search for time or a marker. (CD)	To search for a track or time.
OPEN/CLOSE ButtonOPEN/CLOSE	To open or close the disc tray.	To open or close the disc tray.	To open or close the disc tray.	To open or close the disc tray.
Numeric Buttons1234546789810	To select a chapter, title or group directly.	To select a track directly.	To select a track directly.	To select a track directly.

Tour of the Remote Control

	DVD	VCD	CD, MP3, JPEG, WMA	DivX®
CLEAR Button	To clear the markers.To clear the numbers entered incorrectly.To cancel the A point for A-B Repeat.	To clear the markers.To clear the numbers entered incorrectly.To cancel the A point for A-B Repeat.	To clear the markers.(CD)To clear the numbers entered incorrectly.To cancel the A point for A-B Repeat. (CD)	To clear the numbers entered incorrectly.To cancel the A point for A-B Repeat.
MENU ButtonMENU	To call up the menu on a disc.	—	To call up the FILE LIST.(MP3, JPEG, WMA)	To call up the FILE LIST.
TOP MENU ButtonTOP MENU◯	To call up the top menu on a disc.	—	To return to the first item in the highest hierarchy of the FILE LIST.(MP3, JPEG, WMA)	To return to the top file in the highest hierarchy of the FILE LIST.
ENTER, Cursor Buttons	To move the cursor and determine its position.	To move the cursor and determine its position.	To move the cursor and determine its position.	To move the cursor and determine its position.
RETURN ButtonRETURN◯	To return to the previous operation in the setup menu.	To return to the previous operation in the setup menu.	To return to the previous operation in the setup menu.	To return to the previous operation in the setup menu.
SETUP ButtonSETUP◯	To call up the setup menu.	To call up the setup menu.	To call up the setup menu.	To call up the setup menu.
SKIP Buttons[KDAB]	To skip chapters/titles.	To skip tracks.	To skip tracks.	To skip tracks.
REV / FWD Buttons [007A]	To search forward/backward through a disc.To begin slow forward/slow reverse.	To search forward/backward through a disc.To begin slow forward.	To begin fast forward/reverse search.(except JPEG)	To search forward/backward through a disc.To begin slow forward.
STOP Button	To stop playback.	To stop playback.	To stop playback.	To stop playback.
PLAY Button	To begin playback.	To begin playback.	To begin playback.	To begin playback.
PAUSE Button	To pause playback.To advance playback frame by frame.	To pause playback.To advance playback frame by frame.	To pause playback.	To pause playback.To advance playback frame by frame.

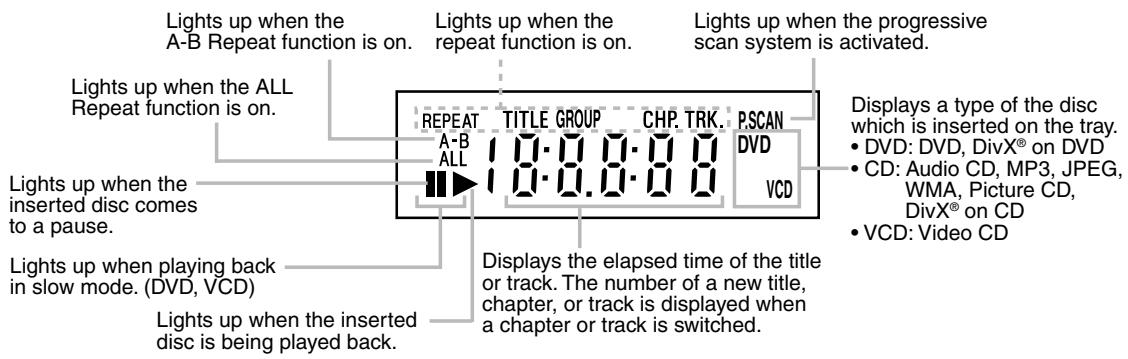

Panel Display

Lights up when the A-B Repeat function is on. Lights up when the ALL Repeat function is on. Lights up when the inserted disc comes to a pause. Lights up when playing back in slow mode. (DVD, VCD) Lights up when the inserted disc is being played back. Lights up when the repeat function is on. Lights up when the progressive scan system is activated. REPEAT TITLE GROUP CHP. TRK PSCAN DVD A-B ALL 10:00:00 Displays the elapsed time of the title or track. The number of a new title, chapter, or track is displayed when a chapter or track is switched. Displays a type of the disc which is inserted on the tray. • DVD: DVD, DivX® on DVD • CD: Audio CD, MP3, JPEG, WMA, Picture CD, DivX® on CD • VCD: Video CD

Displays during Operation

	Power on
	No disc inserted or cannot read
	Tray open
	Tray closed
	Loading the Disc
	Lights up when the playback control is activated (VCD)
	Power off

Using the Remote Control

Keep in mind the following when using the remote control:

• Make sure that there is no obstacle between the remote control and the remote sensor on the unit.
• Use within the operating range and angle, as shown.

Within about 5 m 60°

Loading the Batteries

1. Open the battery compartment cover.

1. Insert two "AA" (R6P) batteries, with each one oriented correctly.

1. Close the cover.

Cautions On Batteries

• Use “AA” (R6P) batteries in this remote control unit.
• Replace the batteries with new ones approximately once a year, though this depends on the frequency with which the remote control unit is used.
• If the remote control unit does not operate close to the main unit, replace the batteries with new ones, even if less than a year has passed.

- The included batteries are only for verifying operation. Replace them with new batteries as soon as possible.

- When inserting the batteries, be careful to do so in the proper direction, following the and marks in the remote control unit's battery compartment.

- To prevent damage or battery fluid leakage:

• Do not use a new battery with an old one.
• Do not use two different types of batteries such as alkaline and manganese.
• Do not short-circuit, disassemble, heat or dispose of batteries in flames.

- Remove the batteries when not planning to use the remote control unit for a long period of time.

- If the batteries should leak, carefully wipe off the fluid from the inside of the battery compartment, then insert new batteries.

Description - Rear Panel

REMOTE CONTROL IN OUT EXTERNAL INTERNAL DIGITAL OUT (PCM/BITSTREAM) OPTICAL COAXIAL 2CH AUDIO OUT L R VIDEO OUT COMPONENT VIDEO OUT Ca/Pr Cb/Pb S-VIDEO OUT A/V EURO CONNECTOR 7 8 1 2 3 4 5 6

1. DIGITAL OUT Jacks

Use either an optical or coaxial digital cable to connect to an AV amplifier.

2. 2CH AUDIO OUT Jacks

Connect to the Audio input jacks of your TV or Stereo system.

3. VIDEO OUT Jack

Use a video cable to connect the jack to the Video input jack of your TV or Stereo system.

4. COMPONENT VIDEO OUT Jacks

Use these jacks if you have a TV with Component Video input jacks. These jacks provide C_R/P_R , C_B/P_B and Y video. Component Video provides the best picture quality.

5. S-VIDEO OUT Terminal

Use the S-Video cable to connect this terminal to the S-Video input terminal of your TV for higher picture quality.

6. A/V EURO CONNECTOR

Connect to the 21-pin Scart jack of a TV.

7. REMOTE CONTROL IN/OUT Jacks

By connecting this DVD player to another Marantz audio component using a supplied Remote control bus cable, you can remotely operate the components as a signal system.

8. REMOTE CONTROL EXTERNAL / INTERNAL Switch

Set this switch to “INTERNAL” when using this DVD player independently. If you use this DVD player in a system with a Marantz receiver equipped with a remote sensor, set the switch to “EXTERNAL”.

NOTES:

• Be sure not to use both the A/V EURO CONNECTOR and COMPONENT VIDEO OUT jacks for video output at the same time.
• When changing the “VIDEO OUT” setting (“SCART”, “COMPONENT INTERLACE” or “COMPONENT PROGRESSIVE”), connect to a Video jack or an S-Video terminal on the TV. If the setting is changed, for example, to “COMPONENT INTERLACE” or “COMPONENT PROGRESSIVE” while the A/V EURO CONNECTOR is connected to the TV, a distorted video signal may be output.
• When connecting to a component with a remote sensor, be sure to connect the REMOTE CONTROL IN jack of this DVD player to the REMOTE CONTROL OUT jack of the component.
• When connecting to a component which is not equipped with a remote sensor, be sure to connect the component to the REMOTE CONTROL OUT jack of this DVD player.

Selecting Progressive Scan (625p <576p> or Interlaced 625i <576i>) Playback

• If your TV is compatible with progressive scanning (625p <576p>), connect the TV to the COMPONENT VIDEO OUT jacks of the DVD player and set “VIDEO OUT” to “COMPONENT PROGRESSIVE” in the display setting. Next, set your TV to the progressive scan mode.
  Refer to pages 24-25 for instructions on changing the display setting.
• If your TV is not compatible with progressive scan, set "VIDEO OUT" to "COMPONENT INTERLACE".
• Use a commercially available adaptor if the Video input jacks of your TVs or monitors are the BNC type.

What is Progressive Scanning?

- Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional (625i <576i>) television signals.

The following show examples of connections commonly used to connect the DVD player to the TV and other components.

If using this DVD player to play back a DVD in a Dolby Digital 5.1 channel surround or DTS surround format, the DVD player outputs a Dolby Digital or DTS data stream from its OPTICAL or COAXIAL DIGITAL OUT jacks. By hooking the player up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard, which can be heard in movie theatres. Use an audio coaxial digital or optical cable (commercially available) for the audio connections.

NOTES:

• Be sure to turn off the power of all components in the system before connecting another component.
• Refer to the instruction manuals for your TV, Stereo system and any other components to be connected to the DVD player.

Connection to an Audio System

Method 1

Line drawing of a two-tiered audio amplifier with speakers and buttons (no text or symbols)

Stereo system

Method 2

Dolby Digital decoder, DTS decoder or MPEG decoder

AUDIO

Audio Input Jacks

Audio Cable (supplied)

R L

Digital Audio Input Jacks

Optical Cable (commercially available)

DIGITAL OUT

Audio Coaxial Digital Cable (commercially available)

DVD

AUDIO OUT (Analog)

• Method 1 DVD Player + Stereo system
- Method 2 DVD Player + Dolby Digital decoder, DTS decoder or MPEG decoder

NOTES (for method 2 only):

• When using an AV amplifier with a built-in decoder (Dolby Digital, DTS, or MPEG decoder) as shown in the Method 2, set "DOLBY DIGITAL", "DTS" or "MPEG" to "BITSTREAM" accordingly for audio output in the setup menu (refer to page 25). Set it to "PCM" or "OFF" for the decoder that is not used currently. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.
• The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD deck or DAT deck.
• Set “DOLBY DIGITAL” and “MPEG” to “PCM”, and “DTS” to “OFF” for audio output in the setup menu for connecting to an MD deck or DAT deck (refer to page 25).
• Harsh noise that could harm your ears or the speakers is generated when a DVD recorded in DTS is played while using a decoder, etc., that is not DTS-compatible.

Optical cable (not supplied)

• Optical cable (not supplied) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15 cm or more when storing them.
• Use a cable which is 3m or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

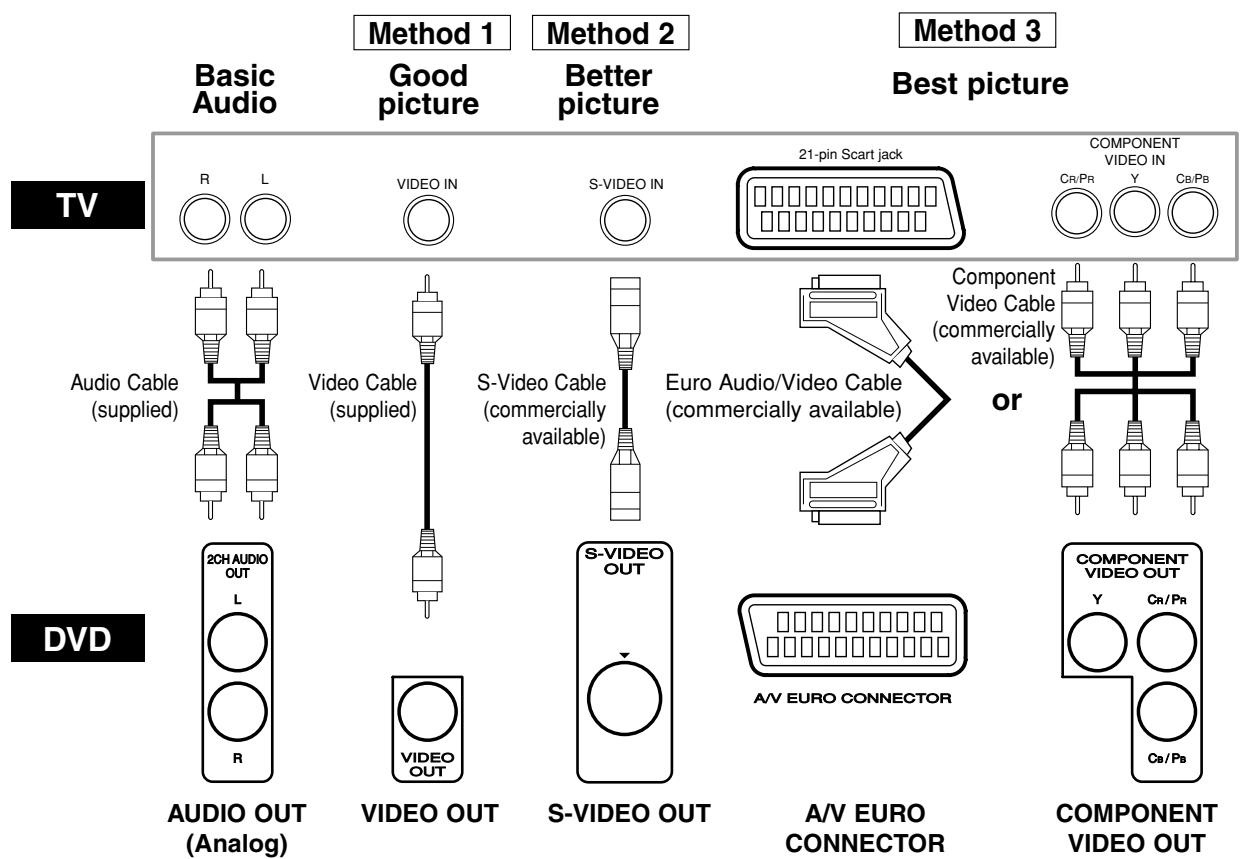

Connection to a TV (for Video)

• Method 1 DVD Player + TV with Video input jack
- Method 2 DVD Player + TV with S-Video input terminal
- Method 3 DVD Player + TV with AV1 (21-pin Scart) jack or Component Video input jacks

NOTES:

• Connect the DVD player directly to a TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.
  • S-Video output terminal

The video signals are divided into colour (C) and brightness (Y) signals, achieving a clearer picture.

If the TV is equipped with an S-Video input terminal, we recommend connecting it to this unit's S-Video output terminal using a commercially available S-Video connection cord.

HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS

If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD player to your TV's 75-ohm coaxial antenna terminal using an optional Stereo Audio/Video RF Modulator (not included). Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and then connect the coaxial output of the RF Modulator (usually marked "TO TV") to the 75 ohm coaxial antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details.

If your TV's 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that cable from your TV's antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator (usually marked "ANT IN"), then connect the RF modulator to your TV's antenna terminal as described above.

NOTE:

- The picture quality from DVD discs will not be as good if the DVD player is connected to the TV's antenna terminal through an RF Modulator.

Basic Playback

DVD-V

DVD-RW

VCD

CD

MP3

JPEG

WMA

DivX®

Getting started

• Turn on the power of the TV, amplifier and any other components which are connected to the DVD player.
• Make sure the TV and audio receiver (commercially available) are set to the correct channel.

Line drawing of a hand operating a circular mechanical component on a base, with no visible text or symbols.

1 Press the POWER button.

- "P-ON" will appear briefly on the display panel.

2 Press the OPEN/CLOSE button to open disc loading tray.

3 Place the disc in the tray, with the label facing up.

4 Press the PLAY button.

• The tray will close automatically, and playback will start from the first chapter or track of the disc. If the playback does not start automatically, press the PLAY button.
• When you play back the DVD with a title menu, it may appear on the screen. In this case, refer to “Title Menu”.

5 Press the STOP button to stop playback.

NOTES:

• A “prohibited icon” may appear at the top-right on the TV screen during operation, warning that a prohibited operation has been done to the DVD player or the disc.
• With DVDs that use some titles for play-back programme signals, playback may start from the second title, or it may skip these titles.
• During the playback of two layered disc, pictures may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.
• The operation may vary when you playback DVDs with disc menu or Video CDs with PBC. Refer to the manual accompanying the disc for details.
• A DVD-RW disc recorded in the VR mode may freeze momentarily during playback depending on how the playlist was made and edited (deleted titles, repeated recording).

CANCELLING AND CALLING BACK THE PBC FUNCTION

VCD

1 Insert a Video CD.

2 Press the STOP button.

3 Press the Numeric buttons to enter the desired track number.

- The PBC function is now cancelled and the playback of the Video CD will start.

4 To call back the PBC function, press the STOP button twice, and then press the PLAY button.

- Title menu will appear on the display.

General Features

DVD-V

DVD may contain menus to navigate the disc and access special features. Press the appropriate Numeric buttons or use the Cursor buttons (▼/▲/►/◄) to highlight your selection in the DVD main menu and press the ENTER button to confirm.

NOTE:

- Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

FL OFF Mode

1 Press the FL OFF button on the front panel to turn off the panel display.

- The FL OFF indicator will light up.

NOTES:

• In setup menu, the FL OFF mode is not available.
• The FL OFF mode will be released when you press the buttons listed below.
  OPEN/CLOSE button (on both the remote and the front panel), SETUP, POWER or DISPLAY button (on the remote), POWER ON/STANDBY or FL OFF button (on the front panel)

Disc Menus

DVD-V

1 Press the MENU button.

• The DVD main menu will appear.

2 If the feature is not available, Ⓞ symbol may appear on the TV screen.

3 If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.

4 Press the Cursor buttons (▼/▲/►/◄) to select an item, and the ENTER button to confirm selection.

Title Menu

DVD-V

1 Press the TOP MENU button.

• The title menu will appear.

2 If the feature is not available, Ⓞ symbol may appear on the TV screen.

3 Press the Cursor buttons (▼/▲/▶/◀) to select an item, and the ENTER button to confirm selection.

- Playback will begin at the selected title.

VCD

When playing a Video CD with PBC function, the title menu will appear automatically.

2 Press the Numeric buttons to select the desired title.

- Playback will begin at the selected title.

3 Press the RETURN button to go back to the title menu.

CALLING UP A MENU SCREEN DURING PLAYBACK

DVD-V

- Press the MENU button to call up the DVD main menu.

- Press the TOP MENU button to call up the title menu.

NOTE:

- Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

Still / Pause

DVD-V

DVD-RW

VCD

CD

MP3

JPEG

WMA

DivX®

1 During playback, press the PAUSE button.

- Playback will pause and sound will be muted.

2 To continue playback, press the PLAY button.

NOTE:

- On DVDs, set "STILL MODE" to "FIELD" on the display menu if pictures in the pause mode are blurred. (Refer to pages 24-25.)

Step by Step Playback

DVD-V DVD-RW VCD DivX®

1 During playback, press the PAUSE button.

- Playback will pause and sound will be muted.

2 The disc advances by one frame each time the PAUSE button is pressed.
3 To exit Step by Step Playback, press the PLAY button.

NOTE:

- On DVDs, set "STILL MODE" to "FIELD" on the display menu if pictures in the pause mode are blurred. (Refer to pages 24-25.)

Resume

DVD-V DVD-RW VCD CD MP3

JPEG WMA DivX®

1 During playback, press the STOP button.
- Resume message will appear on the TV screen.
2 Press the PLAY button, playback will resume from the point at which playback w
- To cancel Resume, press the STOP button twice.

NOTES:

• Some Video CDs with the PBC function resume playback from the beginning of the track.
• The resume information will be saved even when the power is switched off.
• For MP3, JPEG or WMA, playback will resume from the beginning of the current track.

Playing the Disc Recorded in VR Mode (Video Recording Format)

DVD-RW

DVDs recorded in VR mode can have a PLAYLIST assigned to alter the order or content to be played. If a PLAYLIST has been created, you can choose the ORIGINAL or PLAYLIST option.

1 Press the MENU button in stop mode.

• The current setting screen will appear.
• Pressing the MENU button during playback is not valid.

2 Press the Cursor buttons (◀ or ▶) to select ORIGINAL or PLAYLIST.

• PLAYLIST will not be displayed when it has not been made.
• Resume playback will not be possible if you change the setting.

3 Press the Cursor buttons (▲ or ▼) to select a title, then press the ENTER button.

- Playback will start.

NOTE:

• ORIGINAL: A list of titles which are recorded with a DVD recorder.

PLAYLIST: A list of titles which is made based on the ORIGINAL edited list.

Fast Forward / Reverse Search

DVD-V DVD-RW VCD CD MP3

WMA DivX®

1 During playback, press the FWD ▶▶ or REV ◀◀ button repeatedly to select the required forward or reverse speed.

- For DVDs, Fast Forward or Reverse Search speed is different depending on the disc. The approximate speed is 1 (x2), 2(x8), 3 (x20), 4 (x50) and 5 (x100).

- For Video CDs, Audio CDs, MP3, WMA and DivX®, Fast Forward or Reverse Search speed is different depending on the disc. The approximate speed is 1(x2), 2(x8) or 3(x30).

2 To return to normal playback, press the PLAY button.

NOTES:

• Picture quality of DivX® files in fast reverse is lower than that in fast forward.
• For some DivX® files, Fast Forward/Reverse Search may not function.

Slow Forward / Slow Reverse

DVD-V DVD-RW VCD DivX®

1 During playback, press the PAUSE button.
2 Press the FWD ▶▶ or REV ◀◀ button.

- Slow motion playback will begin and sound will be muted.

3 Press the FWD ▶▶ or REV ◀◀ button repeatedly to select the required speed.

- Slow Forward or Reverse speed is different depending on the disc. Approximate speed is 1 (1/16), 2 (1/8), and 3 (1/2).

4 To return to normal playback, press the PLAY button.

NOTES:

• On DVDs, set "STILL MODE" to "FIELD" on the display menu if pictures in the pause mode are blurred. (Refer to pages 24-25.)
• Only Slow Forward is available when playing Video CD and discs with DivX® files.

Zoom

DVD-V DVD-RW VCD JPEG DivX®

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1 Press the ZOOM button during playback.
- Playback will continue.
2 Press the ZOOM button repeatedly to select the required zoom factor: x2, x4 or off.
- Only x2 zoom is available on Video CDs, JPEG and DivX®.

3 Use the Cursor buttons (▼ / ▲ / ▶ / ◀) to move the zoomed picture across the screen.

4 To exit Zoom mode, press the ZOOM button.

NOTES:

• Zooming function does not work while disc menu is shown.
• x4 zoom is not available on some discs.
• Playback will pause in the zoom mode on JPEG.
• Navigation screen is not available on JPEG.
• You cannot move the zoomed picture on some JPEG files.

Title / Chapter Search

DVD-V DVD-RW

BY USING THE SEARCH MODE BUTTON

1 Press the SEARCH MODE button repeatedly until the Chapter Search, or the Title Search appears during playback.
2 Enter the desired chapter/title number with the Numeric buttons.

BY USING THE SKIP BUTTONS

During playback, press the SKIP ▶▶ button to move to the next chapter. Press it repeatedly to skip subsequent chapters. Press the SKIP ◀◀ button to go back to the beginning of the current chapter. Press it repeatedly to go to the previous chapter.

• Chapter number will appear briefly on the front panel display.
• If the SKIP ◀◀ or ▶▶ button is pressed while the playback is paused, the playback after skipping to the next chapter will be also paused.

NOTES:

• Depending on the disc being played, the Numeric buttons can be used to search for a desired chapter by entering the chapter number directly. Refer to the manual accompanying the disc.
• The SKIP ◀◀◀ and ▶▶◀I buttons are not available when playback is stopped.
• A disc that does not contain chapters within titles, the SKIP ◀◀◀ and ▶▶◀I buttons change the titles.

Track Search

VCD CD MP3 JPEG WMA DivX®

There are three ways to begin playback on a disc at a specific track.

BY USING THE SEARCH MODE BUTTON

1 Press the SEARCH MODE button.

• The Track Search display appears.

2 Within 30 seconds, select a desired track number using the Numeric buttons.

TR _/15

• For the disc with less than 10 tracks, press the track number directly.
• For discs with 10 or more but less than 100 tracks, to play a single-digit track, press 0 first, then the track number (e.g. for track 3, press 0, 3). To play a double-digit track, press the track number.
• For discs with 100 or more tracks, to play a single- or a double-digit track, press 0 first, then the track number (e.g. for track 3, press 0, 0, 3, and for track 26, press 0, 2, 6). To play a triple-digit track, press the track number.
• Press the CLEAR button to erase the incorrect input.

NOTE:

- The +10 button can also bring up the Track Search display except for the disc with less than 10 tracks. For such a disc, Track Search can be done by just pressing the track number.

BY USING THE SKIP BUTTONS

During playback, press the SKIP ▶▶▶I button to move to the next track. Press it repeatedly to skip subsequent tracks. Press the SKIP ◀◀◀ button to go back to the beginning of the current track. Press it repeatedly to go to the previous tracks.

• Track number will appear briefly on the panel display.
• If the SKIP ◀◀ or ▶▶ button is pressed while the playback is paused, the playback will be also paused after skipping to the next track.

NOTE:

- The SKIP ◀◀◀ and ▶▶▶I buttons are not available when playback is stopped.

Time Search

1 During playback, press the SEARCH MODE button until the Time Search screen appears on the TV screen.

2 Within 30 seconds, enter a desired disc time with the Numeric buttons.

- Playback will start at the specified time.

- For Time Search, "0" appears automatically when there is no need to enter a number. For example, "0:0_: _" appears in the Time Search screen if the total time of the disc is less than 10 minutes.

- Press the CLEAR button to erase the incorrect input.

NOTE:

- For some DivX ^ files, Time Search may not function.

1:23:45

Repeat

- The REPEAT button is available only during playback.

REPEAT TITLE / CHAPTER

To activate the Repeat function, press the REPEAT button during playback.

- The Repeat mode changes as described below every time you press the button.

NOTES:

• The Repeat Title/Chapter setting will be cleared when moving to other title or chapter.
• Repeat playback does not function during A-B Repeat playback.
• Repeat Title/Chapter is not available with some scenes.
• "ALL" is not displayed when playing the DVD-RW discs recorded in Video mode.

REPEAT TRACK / GROUP / ALL

To activate the Repeat function, press the REPEAT button during playback.

- The Repeat mode changes as described below every time you press the button.

NOTES:

• The Repeat Track setting will be cleared when moving to other track.
• Repeat playback does not function during A-B Repeat playback.
• Repeat playback is not available when playing the Video CD with PBC function.

NOTE:

- The Repeat Track/Group setting will be cleared when moving to other track or group.

A-B REPEAT

1 Press the A-B REPEAT button at your chosen starting point.

- A- appears briefly on the TV screen.

2 Press the A-B REPEAT button again at your chosen end point.

• A-B appears briefly on the TV screen, and the repeat sequence begins.

3 To exit the sequence, press the A-B REPEAT button.

NOTES:

• The A-B Repeat section can only be set within the current title (for DVD), or current track (for Video CD, Audio CD and disc with DivX® files).
• A-B Repeat is not available with some scenes in DVD.
• To cancel the A point which was set, press the CLEAR button.
• A-B Repeat playback does not function during title, chapter, track or all repeat playback.
• For some DivX ^ files, A-B Repeat playback may not function.

Programme Playback

This function allows you to programme a playback order in a desired sequence.

1 In stop mode, press the MODE button.

- The PROGRAM screen will appear.

2 Press the Cursor buttons (▲ or ▼) to select a track, then press the ENTER button.

- Press the CLEAR button to erase the most recently entered track.

3 Press the PLAY button to start programmed playback.

NOTES:

• While the programme is being played back, the STOP button works as follows.
• Press the STOP button once and then the PLAY button again. Playback will restart from the point where the STOP button was pressed. (Programme continued.)
• Press the STOP button twice and then the PLAY button again. Playback will restart from the first track in the usual way. Your programmes will be stored unless either the disc tray is opened or power is turned off.

- Up to 99 tracks can be entered.

- To erase all tracks in the programme at once, select ALL CLEAR at the bottom of the list at step 2.

- If you wish to repeat the current track in the programme, press the REPEAT button repeatedly until TRACK appears during playback. If you wish to repeat the entire programme, press the REPEAT button repeatedly until ALL appears during playback.

- Refer to page 22 for Programme Playback of MP3, WMA, and JPEG.

- If eight or more tracks have been set in a programme, the user can switch the right part of the screen with the SKIP ◀◀◀ or ▶▶◀ button.

A -

A - B

OFF

Random Playback

This shuffles the playing order instead of playback in the original sequence.

CD

1 In stop mode, press the RANDOM button.

• The RANDOM screen will appear.

2 Press the PLAY button to start Random Playback.

RANDOM CD-DA TOTAL 0:45:55 RANDOM PROGRAM --no indication--

NOTES:

- If you wish to repeat the current track in the random selection, press the REPEAT button repeatedly until TRACK appears during playback. If you wish to repeat the entire random selection press the REPEAT button repeatedly until ALL appears during playback.

- You cannot go back to the previous track during Random Playback.

- Refer to page 22 for Random Playback of MP3, WMA, and JPEG.

MP3 / JPEG / WMA Playback

MP3

JPEG

WMA

When a CD-R or CD-RW disc with MP3, JPEG or WMA files is inserted in the DVD player and the MENU button is pressed, the FILE LIST will appear on the display. The number of tracks is also displayed on the front panel.

1 Press the Cursor buttons (▲ or ▼) to select the desired group (folder) or track.

• If a group (folder) is selected, press the Cursor button (▶) or ENTER button to go on to the track selection screen. Press the Cursor buttons (▲ or ▼) to choose a track, then press the PLAY or ENTER button.
• To return to the previous screen, press the Cursor button (◀).
• If a track is selected, press the PLAY or ENTER button. The selected track and the subsequent tracks will be played back.
• When selecting the folders:

-Press the Cursor button (▶) when you want to go to the next hierarchy.
-Press the Cursor button (◀) button when you want to go back to the previous hierarchy (except for the top hierarchy).
- Press the TOP MENU button to return to the first item.

2 Press the STOP button to stop playback.

NOTES:

• Folders are known as groups; files are known as tracks.
• A symbol of “☐” is shown on the top of the group name.
• A symbol of “リ” is shown on the top of MP3 files.
• A symbol of “💡” is shown on the top of JPEG files.
• A symbol of “♪” is shown on the top of WMA files.
  • Maximum of 255 folders can be recognised.
• If the track extends beyond the scope of screen, a down arrow “▼” appears, indicating that the user can view another part on the previous page. The current page number and the number of total pages are shown on the right of the down arrow “▼”. Use the SKIP ◀◀◀ or ▶▶◀ button to view the previous or next page.
  • Maximum of 999 files can be recognised.
• Up to 8 hierarchies can be recognised.
• If no MP3, JPEG or WMA files are found in the group, the group is not displayed.
• The DVD player can reproduce data recorded as per ISO 9660 Level 1, Level 2 or Joliet on the disc.

• It can also run a disc on which data is recorded in a multi-session.

• For more details of recording systems, refer to the instruction manual for the CD-R/CD-RW drive or the writing software.

• For MP3 and WMA file recorded in Variable Bit Rate (VBR), the unit may not display the actual elapsed time.

This player recommends the use of files recorded at the below specifications:

Applicable MP3 file		Remarks
Sampling frequency	44.1kHz48kHz	• It is prohibited to record MP3 sound on a digital device when connection is made digitally.
Type	MPEG1audio layer 3	• MP3 files recorded at fixed bit rate of 32 kbps to 320 kbps are recommended.

Applicable JPEG file		Remarks
Size of image	Upper limit: 6300x5100 dotsLower limit: 32x32 dots	• A JPEG image that extends beyond the screen is reduced so that it will be displayed within the screen.

Applicable WMA file		Remarks
Sampling frequency	44.1kHz48kHz	Those frequencies are applicable to WMA version 9.
Bit rate	48–192kbps	Ensure that the copyright function is set to off when preparing a WMA disc.
Type	WMA version 9	A prohibition symbol will appear if the user attempts to run a non-reproducible file such as copyright-protected.Recorded in 5.1 channel format cannot be played back.

Information on MP3, JPEG and WMA discs

• This DVD player can play back images and sounds from data recorded in MP3, JPEG and WMA formats on CD-R and CD-RW discs.
• A file with an extension of “.mp3 (MP3)” is called an “MP3 file”.
• A file with an extension of “.jpg (JPG)” or “.jpeg (JPEG)” is called a “JPEG file”.

The DVD player can run an image file conforming to the Exif specification. Exif is a file format, Exchangeable Image File format established by Japanese Electronic Industry Development Association (JEIDA).

• A file with an extension of “.wma (WMA)” is called a “WMA file”.
• Files whose extension is other than “.mp3 (MP3)”, “.jpg (JPG)” and “.jpeg (JPEG)” or “.wma (WMA)” will not be listed in the MP3, JPEG or WMA menu.
• If the file is not recorded in MP3, JPEG or WMA format, noise may be produced even if the file extension is either ".mp3 (MP3)", ".jpg (JPG)", ".jpeg (JPEG)" or ".wma (WMA)".
• The name of group and track can be displayed in up to 25 characters. Unrecognisable characters will be replaced with asterisks. The ninth and deeper hierarchies cannot be displayed.
• Unplayable groups or tracks may be displayed depending on the recording conditions.
• If the TOP MENU button is pressed when FILE LIST is displayed, the first item will be highlighted.

Kodak Picture CD

The DVD player can also run JPEG files stored on Kodak Picture CDs. The Picture CD is a service to convert photographs taken by a conventional film camera into digital data and write the data on a CD. The user can enjoy picture images on the television set by playing back the Picture CDs. For details of Kodak Picture CD, contact a shop that deals with developing service of Kodak Inc.

1 Press the MENU button. Kodak Picture CD menu appears.

- If all menu items cannot be displayed in the screen scope, “▶▶1” appears at the right bottom of the screen, indicating that the user can view remaining items on the next page. “◀◀” appears, it

Picture1 Picture2 Picture3 Picture4 Picture5 Picture6 1/32

Current track number / the number of total tracks

indicates that the user can view other items on the previous page. The track number of the currently highlighted item and the total tracks are shown at the centre bottom of the screen.

• If “▶▶” is shown at the right bottom, use the SKIP ▶▶▶ button to view the next page. If “◀◀” is shown at the left bottom, use the SKIP ◀◀◀ button to view the previous page.
• Press the TOP MENU button to get back to the first page.
• It may take some time until all menu items are displayed on the menu screen.

2 Press the Cursor buttons (▼ / ▲ / ▶ / ◀), select a desired track to be played, then press the PLAY or ENTER button.

- If a Kodak Picture CD file is selected, an image will be played back from the selected track and go to the next one in turn.

3 Press the STOP button, to stop playback.

Notes on JPEG and Kodak Picture CD:

• A track is displayed for 5 or 10 seconds and then the next track is displayed. Refer to page 26 for SLIDE SHOW.
• Every press on the Cursor button (▶) will turn the image clockwise by 90 degrees when an image is displayed. A press on the Cursor button (◀) will turn the image counterclockwise by 90 degrees.
• To change the size of the playback image, press the MODE button twice. The size change mode appears on top of the TV screen during playback. Then press the Cursor buttons (◀ or ▶) or ENTER button to switch between NORMAL (100%) and SMALL (95%).

- Progressive JPEGs (JPEG files saved in the progressive format) will not be played back on this DVD player.

• High resolution JPEG files take longer to be displayed.

- The size change mode may have no effect on some files (e.g. files with a small picture size).

Notes on WMA:

• The DVD player can reproduce data recorded as ISO 9660 level 2 with 31 characters file name included punctuation marks. The name of a file can be displayed in up to 25 characters.
  • Maximum of 8 subfolders can be recognised.
• It can also display tag information of WMA 64 characters at maximum.
• A file with an extension of Joliet as Unicode format in up to 64 characters can be recognised.
• This unit cannot play back copyright protected WMA files.

DivX® Playback

DivX®

This DVD player can play back DVD-R/RW and CD-R/RW discs recorded in DivX® Format. When a DVD-R/RW or CD-R/RW with DivX® files is inserted in the DVD player and the MENU button is pressed, the FILE LIST will appear. The number of tracks will be also displayed on the front panel.

1 Press the Cursor buttons (▲ or ▼) to select the desired group (folder) or track.

• To return to the previous screen, press the Cursor button (◀).
• If a group (folder) is selected, press the Cursor button (▶) or ENTER button to go on to the track selection screen. Press the Cursor buttons (▲ or ▼) to choose a track, then press the PLAY or ENTER button.
• If a track is selected, press the PLAY or ENTER button. The selected track and the subsequent tracks will be played back.
• When selecting the folders:
  -Press the Cursor button (▶) when you want to go to the next hierarchy.
  -Press the Cursor button (◀) when you want to go back to the previous hierarchy (except for the top hierarchy).
• Press the TOP MENU button to return to the first item.

2 Press the STOP button to stop playback.

NOTES:

• DivX® is a codec (compression/decompression) that can compress images to a very small amount of data. The software can compress video data from almost any sources to the size that can be sent on the Internet without compromising visual quality of the images.
• A file with an extension of “.avi” or “.divx” is called a DivX® file. All files with the “.avi” extension are recognised as MPEG 4.
• Files with the extension other than “.avi” and “.divx” will not be listed on the DivX® menu. However, unplayable groups or tracks may be displayed, depending on the recording conditions.
• Even if the file has an extension of either “.avi” or “.divx”, this player cannot play it back if it is recorded in the format other than DivX®.
• Folders are known as groups; files are known as tracks.
• A symbol of D_x is shown on the top of the group name.
  • Maximum of 255 folders can be recognised.
  • Maximum of 999 files can be recognised.
• If the track extends beyond the scope of screen, a down arrow “▼” appears, indicating that the user can view another part on the previous page. The current page number and the number of total pages are shown on the left of the down arrow “▼”.
• The name of a group and track can be displayed up to 25 characters. Unrecognizable characters will be replaced with asterisks. The ninth and deeper hierarchies cannot be displayed.
• You can play back the disc recorded in multi-session.
• Playback will be paused if the FILE LIST is displayed during the playback.
• It may take a while for audio and images to be output after you inserted a disc and pressed the PLAY button.
• When playing back the files recorded in high bit rates, the images can be interrupted on some occasions.

• Although DivX ^ logo has been obtained for this player, it may not be able to play back some data, depending on the disc characteristics, bit rates, or audio format settings, etc.

• Use the software recognised by DivX®, Inc. when you make DivX® files.

• When using tools or utilities to make up DivX® files, read their instruction manual beforehand.
• A DivX ^ file whose file size exceeds 2GB cannot be played back.
• If a large-sized DivX ^ file is selected, it may take a while to start the playback (over 20 seconds sometimes).
• If DivX® files wrote on CD discs cannot be played back, rewrite them on a DVD disc and try to play back.
• For more information for DivX®, please visit http://www.divx.com.
• If you insert a CD-R/RW with DivX® files that are mixed with MP3, JPEG, or WMA files, the Playback Media Selection screen will be displayed. Please select Video and proceed to Step 1.

Please select the media to play back. Video Audio & Picture

- Press the TOP MENU button to call up the Playback Media Selection screen in stop mode.

- If you select Audio & Picture, instead of Video on the Playback Media Selection screen, the DVD player can play back MP3/JPEG/WMA files. Refer to page 19 for details.

This player recommends the use of files recorded at the following specifications:

Applicable DivX® file		Remarks
Playable Codec of AVI files	DivX®3.1.1, DivX®4.x, DivX®5.1.1	• They are recognised as MPEG4.
Maximum size of image	720 x 480 @30 fps 720 x 576 @25fps
Sampling frequency of audio	8 kHz - 48kHz	• It is prohibited to record MP3 sound on a digital device when the connection is made digitally.
Audio type	MPEG1 audio layer 3 (MP3) MPEG1 audio layer 2	• MP3 files recorded at fixed bit rate of 32 kbps to 320 kbps are recommended.

Slide Show Mode

JPEG

You can switch to the Slide Show Mode during playback.

1 Press the MODE button during playback.

• The Slide Show Mode screen will appear.
• The Slide Show Mode cannot be switched when it is stopped, or from the FILE LIST screen or the Picture CD menu screen.

2 Press the Cursor buttons (◀ or ▶) or ENTER button.

• The Slide Show Mode will change. CUT IN/OUT: The entire image appears in one time. FADE IN/OUT: The image appears gradually and then disappears.

3 Press the MODE button twice to exit.

On-Screen Information

You can check information about the current media by pressing the DISPLAY button on the remote control.

1 Press the DISPLAY button during playback to show the current chapter.

- The elapsed and remaining playing time of the current chapter will be displayed.

2 Press the DISPLAY button again to show the current title.

- The elapsed and remaining playing time of the current title will be displayed.

3 Press the DISPLAY button again to show the bit rate and the current repeat setting.

- If you are playing a dual layered disc, the layer number will also be displayed (L0: Layer 0 is played. L1: Layer 1 is played).

- If you are playing a DVD-RW with setting the PLAYLIST, the following will also be displayed. ORG: Playing the ORIGINAL.—PL: Playing the PLAYLIST.

4 Press the DISPLAY button again to remove the display.

VCD CD

1 Press the DISPLAY button during playback, the current track will be displayed on the TV screen.
- The elapsed and remaining playing time of the current track will be displayed.

2 Press the DISPLAY button again to show the total tracks.

- The elapsed and remaining playing time of the disc will be displayed.

3 Press the DISPLAY button again to remove the display.

- During Programme or Random Playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button again to remove the display.

MP3 | JPEG | DivX®

1 Press the DISPLAY button during playback.

- The name of the file currently played will be displayed.

2 Press the DISPLAY button again to show the track number, the elapsed time (MP3 and DivX®), the repeat status, and the playback status at the

3 Press the DISPLAY button again to remove the display.

- During Programme or Random Playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button again to remove the display.

WMA

1 Press the DISPLAY button during playback.

- The name of the file currently played will be displayed.

2 Press the DISPLAY button again.

- Title name based on tag information currently played will be displayed.

3 Press the DISPLAY button again.

- Artist name based on tag information currently played will be displayed.

4 Press the DISPLAY button again to show the track number, the elapsed time, the repeat status, and the playback status at the top of the s

5 Press the DISPLAY button again to remove the display.

- During Programme or Random Playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button again to remove the display.

NOTE:

- If the file does not contain tag information, "NOT AVAILABLE" will be displayed.

Hints for repeat indications

• C - indicates Chapter repeat
• T - indicates Title or Track repeat
• G - indicates Group (folder) repeat
• A - indicates Disc repeat
• A B- indicates A-B repeat

Programme Playback

MP3

JPEG

WMA

This feature allows you to programme an MP3, JPEG or WMA disc to play in a desired sequence.

1 In stop mode, press the MODE button.

- The PROGRAM screen will appear.

2 Press the Cursor buttons (▲ or ▼) to select a group, then press the Cursor button (▶) or ENTER button.

- A track selection screen appears.

3 Press the Cursor buttons (▲ or ▼) to select a track, then press the ENTER button to save it in a programme.

• Press the CLEAR button to erase the most recently entered track.
• The programmed track is displayed in the right-hand screen.
• If the entire programme cannot be displayed at once on the screen, “▼” appears to go to the next page.
• Pressing the Cursor button (◀) will show a list of folders that belong to the one-level upper hierarchy than the currently selected folder.

4 Press the PLAY button to start programmed playback.

NOTES:

• To erase all tracks in the programme at once, select ALL CLEAR at the bottom of the list at step 2.
• During the display of the PROGRAM screen, press the RETURN button, and the stop screen will show up with the programme contents in memory.
• Press the STOP button once and then the PLAY button again. Playback will restart from the beginning of the track played previously. (Programme continued.)
• Press the STOP button twice and then the PLAY button again. Playback will restart from the first track in the usual way. Your programmes will be stored unless either the disc tray is opened or power is turned off.
• Up to 99 tracks can be set in a programme.
• If an inserted disc contains mixed MP3, JPEG and WMA files, Programme function allows 99 tracks in combination of MP3, JPEG and WMA files.
• If eight or more tracks have been set in a programme, the user can switch the right part of the screen with the SKIP ◀◀◀ or ▶▶◀ button.

Random Playback

MP3

JPEG

WMA

1 In stop mode, press the RANDOM button.

• The RANDOM screen will appear.

2 Press the PLAY button to start Random Playback.

- For a disc containing mixed MP3, JPEG and WMA files, Random Playback of those files will be performed.

Audio Language

DVD-V

DVD-RW

DivX®

The DVD player allows you to select a language during DVD disc playback if multiple languages are available.

1 Press the AUDIO button during playback.
2 Press the AUDIO button repeatedly to select your desired language.

NOTES:

• The sound mode cannot be changed during playback of discs not recorded in double sound.
• Some discs allow Audio Language setting on the disc menu. (Operation varies between discs. Refer to the manual accompanying the disc.)
• For discs with DivX ^ files, the screen only displays MP3 audio or MPEG1 audio layer 2. (MPEG1 audio layer 2 will be displayed as "MP2".) Other audio sounds will be displayed as “---”.
• Pressing the AUDIO button may not work on some DVDs with multiple audio languages (e.g. DVDs which allow Audio Language setting on the disc menu).

• If you choose a language that has a 3-letter language code, the code will be displayed every time you change the Audio Language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 27.)

• If the disc has no audio language, 'NOT AVAILABLE' will be displayed.

• For DVD-RW (VR mode), pressing the AUDIO button cycles the sound mode through MAIN, SUB and MAIN + SUB.
• For DVD-RW (VR mode), discs recorded in double sound (two languages) can be played back in sound mode of MAIN, SUB or MAIN + SUB.
• With the digital connection, the audio language of DVD-RW (VR mode) with double sound will not be affected even though you can change the setting on the display.

Subtitle Language

DVD-V DivX®

The DVD player allows you to select a language for subtitle during DVD disc playback if multiple languages are available.

1 Press the SUBTITLE button during playback.
2 Press the SUBTITLE button repeatedly to select your desired subtitle language.

- The selected language will be displayed on the display bar at the top of the screen.

- Press the Cursor buttons (◀ or ▶) to turn ON or OFF subtitles during playback.

3 To turn off subtitles, press the SUBTITLE button repeatedly until OFF appears.

NOTES:

• Some discs allow Subtitle Language setting on the disc menu. (Operation varies between discs. Refer to the manual accompanying the disc.)
• Pressing the SUBTITLE button may not work on some DVDs with multiple subtitle languages (e.g. DVDs which allow Subtitle Language setting on the disc menu).
• If the desired language is not shown after pressing the SUBTITLE button several times, the disc does not have subtitles in that language.
• If you choose a language that has a 3-letter language code, the code will be displayed every time you change the Subtitle Language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 27.)
• If the disc has no subtitle language, 'NOT AVAILABLE' will be displayed.
• For discs with DivX ^ files, the screen only displays the number of subtitle languages.

Stereo Sound Mode

VCD CD

1 Press the AUDIO button repeatedly during playback to select between STEREO, L-ch or R-ch.

STEREO - both right and left channels are active (stereo)

L-ch - only left channel is active

R-ch - only right channel is active

NOTE:

- Stereo sound mode will not be changed when playing DTS CD.

Camera Angle

DVD-V

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the Camera Angle when the mark (☐) appears on the screen.

1 Press the ANGLE button during playback.

- The selected angle will be displayed on the display bar at the top of the screen.

2 Press the ANGLE button repeatedly to select your desired angle.

NOTE:

- If the "ANGLE ICON" setting is "OFF" in the display menu, the mark (☐) will not appear. (Refer to page 26.)

Marker Setup Screen

DVD-V DVD-RW VCD CD

Use markers to memorise your favourite places on a disc.

1 Press the SEARCH MODE button repeatedly until the display screen and markers appear during playback.
2 Press the Cursor buttons (◀ or ▶) to select 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10 and ensure that “_ : _ the display.
③ When the disc reaches the desired point, press the ENTER button.
- The title or track and elapsed playing time will appear on the TV screen.
4 To return to the marker later, press the SEARCH MODE button repeatedly during playback and the Cursor buttons (◀ or ▶) to choose a desired marker, then pressing the ENTER button.

Screenshot of a software toolbar with icons and text labels, likely from an older application or design tool.

NOTES:

• Opening the disc tray, turning off the power or selecting AC at step 2 and pressing the ENTER button will erase all markers.
• To clear a marker, use the Cursor buttons (◀ or ▶), position the cursor on to the marker number to be cleared and press the CLEAR button.
• You can mark up to 10 points.

5 Press the SEARCH MODE or RETURN button to exit.

Virtual Surround

DVD-V

DVD-RW

VCD

CD

MP3

WMA

You can enjoy stereophonic virtual space through your existing 2 channel stereo system.

1 Press the MODE button during playback.

2 Press the Cursor buttons (◀ or ▶) or ENTER button to set it 1 (Natural effect), 2 (Emphasised effect) or OFF.

OFF

3 Press the MODE or RETURN button to exit.

NOTES:

• You can also use the VIRTUAL button on the front panel. Press it repeatedly to select the required effect: 1, 2 or OFF.
• Select Virtual Surround OFF or adjust the volume down if the sound is distorted.
• Virtual Surround will not be effective if the sound mode is set to something other than “STEREO”. (for Audio CDs or Video CDs playback only)
• The setting will be saved even if the player is turned off.

DVD SETUP

In setup menu, QUICK mode, CUSTOM mode and INITIALIZE mode (refer to pages 24-26) are available. QUICK mode consists of the setting menus often needed, and you can make all settings required in CUSTOM mode.

You can make the settings of the items with QUICK mark in QUICK mode.

Language Setting

Language options are not available with some discs.

1 Press the SETUP button in stop mode.

2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press the ENTER button.

- The CUSTOM mode will appear.

3 Press the Cursor buttons (◀ or ▶) to select LANGUAGE, then p button to confirm.

4 Press the Cursor buttons (▲ or ▼) to select the below items, then press the ENTER button.

LANGUAGE AUDIO ENGLISH SUBTITLE ENGLISH DISC MENU ENGLISH PLAYER MENU ENGLISH

AUDIO (Default : ENGLISH)

- Sets the audio language.

SUBTITLE (Default : ENGLISH)

- Sets the subtitle language.

DISC MENU (Default : ENGLISH)

- Sets the language for DVD menu.

LANGUAGE AUDIO ORIGINAL ENGLISH FRENCH SPANISH GERMAN ITALIAN SWEDISH

PLAYER MENU (Default : ENGLISH) QUICK

- Sets the language for the on-screen display.

5 Press the Cursor buttons (▲ or ▼) to select a setting, then press the ENTER button.
- If OTHER is selected in the AUDIO, SUBTITLE or DISC MENU screen, press 4-digit number to enter the code for the desired language. (Refer to the Language Code List on page 27.)
- Only the languages supported by the disc can be selected.

6 Press the SETUP button to exit.

NOTE:

- Language Setting for AUDIO and SUBTITLE is not available with some discs. Then use the AUDIO and SUBTITLE buttons. Details are on pages 22-23.

Display Setting

You can change certain aspects of the DVD display screens, and various display mode settings.

1 Press the SETUP button in stop mode.
2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press the ENTER button. • The CUSTOM mode will appear.

3 Press the Cursor buttons (◀ or ▶) to select DISPLAY, then press the ENTER button to confirm.

4 Press the Cursor buttons (▲ or ▼) to select the below items, then press the ENTER button.

TV ASPECT (Default : 16:9 WIDE) QUICK

• Press the Cursor buttons (▲ or ▼) for an item selection, then press the ENTER button.
• Select 16:9 WIDE if a wide-screen TV is connected to the DVD player.
• Select 4:3 LETTER BOX for a black bars appears on top and be
• Select 4:3 PAN & SCAN for a full height picture with both sides trimmed.

STILL MODE (Default : AUTO)

• Press the Cursor buttons (▲ or ▼) for an item selection (AUTO, FIELD, or FRAME), then press the ENTER button.
• This adjusts the resolution of pictures in the still (PAUSE) mode.
• If you select AUTO, automatically select the best resolution setting (FRAME or FIELD) based on the data characteristics of the pictures.

DISPLAY TV ASPECT 16:9 WIDE STILL MODE AUTO VIDEO OUT SCART

DISPLAY TV ASPECT 4:3 LETTER BOX 4:3 PAN & SCAN 16:9 WIDE

DISPLAY STILL MODE AUTO FIELD FRAME

• If you select FIELD, pictures in the still mode will be stabilized although they will be coarse due to a little amount of data.
• If you select FRAME, pictures in the still mode will be highly defined although they will be blurred due to output of two fields at the same time.

NOTE:

- An individual picture on TV screen is called as “frame”, which consists of two separate images called as “field”. Some pictures may be blurred at the AUTO setting in the still mode due to their data characteristics.

VIDEO OUT

(Default : SCART)

- Press the Cursor buttons (▲ or ▼) for an item selection (SCART, COMPONENT INTERLACE or COMPONENT PROGRESSIVE), then press the ENTER button.

- This setting will be effective when you exit the setup screen by pressing the SETUP button.

- When VIDEO OUT is COMPONENT PROGRESSIVE, "P.SCAN" appears on the DVD player's panel display after you exited the setup screen.

• Refer to page 12 for more details.

5 Press the SETUP button to exit.

NOTES:

• Be sure to press the SETUP button, or the setting will not work.
• When changing the VIDEO OUT setting (SCART, COMPONENT INTERLACE or COMPONENT PROGRESSIVE), connect to a VIDEO jack or an S-VIDEO terminal on the TV. If the setting is changed, for example, to SCART while the Component Video jacks are used to connect to the TV, a distorted video signal may be output.

Audio Setting

Choose the appropriate Audio Setting for your equipment as it only affects during the playback of DVD discs of the DVD player.

1 Press the SETUP button in stop mode.

2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press the ENTER button.

- The CUSTOM mode will appear.

3 Press the Cursor buttons (◀ or ▶) to select AUDIO, then the ENTER button to confirm.

4 Press the Cursor buttons (▲ or ▼) to select the below items, then press the ENTER button.

DRC (Dynamic Range Control) (Default : ON)

• To compress the range of sound volume.
• DRC function is available only on the discs that are recorded in the Dolby Digital format.

DOWN SAMPLING (Default : ON)

• Set to ON when outputting in 48kHz.
• This function is available only on digital outputting of a disc recorded in 96kHz.

When playing disc with copyright protection

- The sound will be down-sampled at 48kHz, even if you set to OFF.

DISPLAY VIDEO OUT SCART COMPONENT INTERFACE COMPONENT PROGRESSIVE

AUDIO DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM DTS BITSTREAM MPEG PCM

AUDIO DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM DTS BITSTREAM MPEG PCM

AUDIO DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM DTS BITSTREAM MPEG PCM

DOLBY DIGITAL (Default : BITSTREAM) QUICK

• Set to BITSTREAM when the player is connected to a Dolby Digital decoder.
• This function is effective only for the COAXIAL and OPTICAL connections.

AUDIO DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM DTS BITSTREAM MPEG PCM

BITSTREAM:

Output by Dolby Digital.

PCM: Convert Dolby Digital to PCM.

DTS (Default : BITSTREAM) QUICK

• Set to BITSTREAM when the unit is connected to a DTS decoder.
• This function is effective only for the COAXIAL and OPTICAL connections.

AUDIO DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM DTS BITSTREAM MPEG PCM

BITSTREAM:

Output DTS sound.

OFF: No DTS sound will be output.

MPEG (Default: PCM) QUICK

• Set to BITSTREAM when the unit is connected to an MPEG decoder.
• This function is effective only for the COAXIAL and OPTICAL connections.

AUDIO DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM DTS BITSTREAM MPEG PCM

BITSTREAM:

Output MPEG sound.

PCM: Convert MPEG sound to PCM.

5 Press the SETUP button to exit.

Parental Control

Parental Control limits playback of discs with unsuitable audience ratings. A 4-digit password established by the user will unlock the Parental Lock. This feature allows you to prevent your children from playing discs with objectionable scenes.

PARENTAL LEVEL

Parental Level allows you to set the rating level of your DVD discs. Playback will stop if the disc's ratings exceed the level you set.

1 Press the SETUP button in stop mode.

2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press the ENTER button.

3 Press the Cursor buttons (◀ or ▶) to select PARENTAL, then press the ENTER button.

4 Press the Numeric buttons to enter your 4-digit password.

• When doing this for the first time, enter any 4-digit number by pressing the Numeric buttons (except for 4737), then press the ENTER button. That number will be used as the password from the second time onward. Record your password in case you forget it.

PARENTAL PASSWORD Please enter a 4-digit password.

5 Press the Cursor buttons (▲ or ▼) to select PARENTAL LEVEL, then press the ENTER button.

6 Press the Cursor buttons (▲ or ▼) to select the desired level, then press the ENTER button.

PARENTAL PARENTAL LEVEL ALL PASSWORD CHANGE

PARENTAL PARENTAL LEVEL ALL 8 7 6 5 4 3

7 Press the SETUP button to exit.

NOTE:

- This function may not work on some DVDs. Be sure if the ratings operate in the way you have set.

To Change the Password:

1) Follow the steps 1 to 4 above.
2) Press the Cursor buttons (▲ or ▼) to select "PASSWORD CHANGE", then press the ENTER button.
3) Enter a new 4-digit password, then press the ENTER button.
4) Press the SETUP button to exit.

1 Press 4, 7, 3, 7 at step 4.

- The original password will be cleared and the Parental Level will be set to "ALL". Enter a new 4-digit password, then press the ENTER button.

2 Repeat steps 5 to 7 to re-establish the Parental Level.

CONTROL LEVELS

• ALL
Parental Lock is cancelled.
- Level 8
DVD softwares of any grades (adult/general/children) can be played back.
- Levels 7 to 2
Only DVD softwares intended for general use and children can be played back.
- Level 1
Only DVD softwares intended for children can be played back. DVD softwares intended for adult and general use will be prohibited.

Others Setting

This function allows you to adjust Angle Icon availability, Auto Power Off, brightness of the player's display panel, Slide Show Mode and to obtain DivX® registration code.

1 Press the SETUP button in stop mode.
2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press ENTER.

- The CUSTOM mode will appear.

3 Press the Cursor buttons (◀ or ▶) to select OTHERS, then press the ENTER button to confirm.
4 Press the Cursor buttons (▲ or ▼) to select an item, then press

ANGLE ICON (Default : ON)

- Press the ENTER button repeatedly to turn ANGLE ICON ON or OFF.

OTHERS ANGLE ICON ON AUTO/POWER OFF ON PANEL DISPLAY BRIGHT SLIDE SHOW 5sec Dix(R) VOD

ENTER.

OTHERS ANGLE ICON ON AUTO POWER OFF ON PANEL DISPLAY BRIGHT SLIDE SHOW 5sec DivX(R) VOD

AUTO POWER OFF (Default : ON)

• Press the ENTER button repeatedly to turn AUTO POWER OFF ON or OFF.
• It will turn the DVD player off automatically after 30 minutes of no use.

PANEL DISPLAY

(Default : BRIGHT)

• Press the Cursor buttons (▲ or ▼) to select an item among BRIGHT, DIMMER and AUTO, then press the ENTER button.
• When AUTO is selected, the display dims only during playback.

OTHERS ANGLE ICON ON AUTO POWER OFF ON PANEL DISPLAY BRIGHT SLIDE SHOW 5sec DivX(R) VOD

OTHERS PANEL DISPLAY BRIGHT DIMMER AUTO

SLIDE SHOW (Default : 5sec)

• This adjusts the playback speed of the JPEG SLIDE SHOW.
• Press the Cursor buttons (▲ or ▼) to select between 5 sec and 10 sec, then press the ENTER button.

OTHERS SLIDE SHOW 5sec 10sec

DivX(R) VOD

- This player allows you to use the DivX® Video-On-Demand (VOD) services. You can play back the files purchased or rental from the VOD services. You need to have a registration code to purchase or rental VOD files. Please visit www.divx.com/vod for more details.

OTHERS DivX(R) VOD Your registration code is: 1 2 3 4 5 6 7 8 To learn more visit www.divx.com/vod

NOTES:

• You cannot play back the DivX® VOD files obtained with different registration codes on this player.
• You cannot play back the DivX® VOD files, of which rental period has been expired. In such case, press the MENU button and select other files that can be played back.
• Some DivX® VOD files are restricted with the limited playable times (you cannot play them back beyond the limit). If your DivX® VOD file has such limit, the playback confirmation screen will appear. Use the Cursor button (◀ or ▶) to select YES if you want to play back the file, or to select NO if you do not wish to play it back. Then, press the ENTER button to confirm the selection.
• Please send your inquiries regarding the VOD files to DivX®, Inc.

5 Press the SETUP button to exit.

Reset to the Default Settings (except for PARENTAL and VIDEO OUT)

This allows you to return all selections of SETUP (except for PARENTAL and VIDEO OUT) to their default settings.

1 Press the SETUP button in stop mode.
2 Press the Cursor buttons (◀ or ▶) to select INIT., then press the ENTER button.
3 Press the Cursor buttons (▲ or ▼) to select YES, then press the ENTER button.
4 Press the SETUP button to exit.

NOTE:

- If you like to cancel initializing, select NO at step 3.

Language Code List

Language	Code	Language	Code	Language	Code	Language	Code
A-B		Frisian	5271	Malay	5965	Somali	6561
Abkhazian	4748	Galician	5358	Malayalam	5958	Spanish [SPA]	5165
Afar	4747	Georgian	5747	Maltese	5966	Sundanese	6567
Afrikaans	4752	German [GER]	5051	Maori	5955	Swahili	6569
Albanian	6563	Greek [GRE]	5158	Marathi	5964	Swedish [SWE]	6568
Amharic	4759	Greenlandic	5758	Moldavian	5961	T
Arabic	4764	Guarani	5360	Mongolian	5960	Tagalog	6658
Armenian	5471	Gujarati	5367	Nauru	6047	Tajik	6653
Assamese	4765	Hausa	5447	Nepali	6051	Tamil	6647
Aymara	4771	Hebrew	5569	Norwegian [NOR]	6061	Tatar	6666
Azerbaijani	4772	Hindi	5455	O-R		Telugu	6651
Bashkir	4847	Hungarian [HUN]	5467	Occitan	6149	Thai	6654
Basque	5167	I-K		Oriya	6164	Tibetan	4861
Bengali;Bangla	4860	Icelandic [ICE]	5565	Oromo(Afan)	6159	Tigrinya	6655
Bhutani	5072	Indonesian	5560	Panjabi	6247	Tonga	6661
Bihari	4854	Interlingua	5547	Pashto;Pushto	6265	Tsonga	6665
Bislama	4855	Interlingue	5551	Persian	5247	Turkish [TUR]	6664
Breton	4864	Inupiak	5557	Polish	6258	Turkmen	6657
Bulgarian	4853	Irish [IRI]	5347	Portuguese [POR]	6266	Twi	6669
Burmese	5971	Italian [ITA]	5566	Quechua	6367	U-Z
Byelorussian	4851	Japanese [JPN]	5647	Rhaeto-Romance	6459	Ukrainian	6757
C-E		Javanese	5669	Romanian [RUM]	6461	Urdu	6764
Cambodian	5759	Kannada	5760	Russian [RUS]	6467	Uzbek	6772
Catalan	4947	Kashmiri	5765	S		Vietnamese	6855
Chinese [CHI]	7254	Kazakh	5757	Samoan	6559	Volapuk	6861
Corsican	4961	Kinyarwanda	6469	Sangho	6553	Welsh	4971
Croatian	5464	Kirghiz	5771	Sanskrit	6547	Wolof	6961
Czech	4965	Kirundi	6460	Scots Gaelic	5350	Xhosa	7054
Danish [DAN]	5047	Korean [KOR]	5761	Serbian	6564	Yiddish	5655
Dutch [DUT]	6058	Kurdish	5767	Serbo-Croatian	6554	Yoruba	7161
English [ENG]	5160	L-N		Sesotho	6566	Zulu	7267
Esperanto	5161	Laothian	5861	Setswana	6660
Estonian	5166	Latin	5847	Shona	6560
F-H		Latvian; Lettish	5868	Sindhi	6550
Faroese	5261	Lingala	5860	Singhalese	6555
Fiji	5256	Lithuanian	5866	Siswat	6565
Finnish [FIN]	5255	Macedonian	5957	Slovak	6557
French [FRE]	5264	Malagasy	5953	Slovenian	6558

If you choose a Language that has a 3-letter language code, the code will be displayed every time you change the Audio or Subtitle Language setting on pages 22-23. If you choose any other languages, ‘---’ will be displayed instead. (3-letter language code is written in bracket.)

MAINTENANCE

Cleaning the Cabinet

- Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

Cleaning the disc lens

- If the player does not perform properly while referring to the relevant sections and to “TROUBLESHOOTING GUIDE” in this User Guide, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Centre for inspection and cleaning of the laser optical pickup unit.

Disc Handling

• Use discs with the following logos on them.
• Handle the discs carefully so that fingerprints and dust do not adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is not used.
• Note that discs with special shapes (heart-shaped discs, octagonal discs, etc.) cannot be played on this player. Do not attempt to play such discs, as they may damage the player.

If the DVD player does not perform properly when operated as instructed in this User Guide, check the player, consulting the following checklist.

Problem	Solution
No power	-Check if the AC power cord is properly connected.-Unplug the AC power cord, and wait for 5-10 seconds and then plug it in again.
No sound or picture	-Check if the TV is switched on.-Check the video connection.-Check the VIDEO/AUDIO cable connections to the TV.(Refer to page 14 for Connection to a TV (for video).)-Check if the VIDEO OUT mode is set correctly. See pages 12 and 25.
Distorted picture	-Sometimes a small amount of picture distortion may appear.This is not a malfunction.-Connect the player directly to the TV.-Check if the VIDEO OUT mode is set correctly. See pages 12 and 25.
Completely distorted picture or black/white picture with DVD	-Connect the player directly to the TV.-Make sure the disc is compatible with the player.
No sound or distorted sound	-Adjust the volume.-Check if the speakers are connected correctly.
No audio at digital output	-Check the digital connections.-Check the Audio Setting.
No DTS audio output	-Use DIGITAL OUT jacks when outputting the DTS audio.
Picture freezes momentarily during playback	-Check the disc for fingerprints/scratches and clean with a soft cloth wiping from centre to edge.-Clean the disc.
Disc can't be played	-Clean the disc.-Ensure the disc label is facing up.-Check if the disc is defective by trying another disc.-Cancel the Parental Lock or change the control level.-Insert a correct disc that can be played on this player.
No return to start-up screen when disc is removed	-Reset the player by switching the player off, then on again.
The player does not respond to the remote control	-Aim the remote control directly at the sensor on the front of the player.-Reduce the distance to the player.-Replace the batteries in the remote control.-Re-insert the batteries with their polarities (+/- signs) as indicated.
Buttons do not work or the player stops responding	-To completely reset the player, unplug the AC cord from the AC outlet for 5-10 seconds.
The remote control doesn't seem to work	-Check if the REMOTE CONTROL IN jack on the rear panel is connected.-Check if the REMOTE CONTROL switch is set to the correct position.
The player does not respond to some operating commands during playback	-Operations may not be permitted by the disc.Refer to the instructions of the disc.
The player cannot read CDs/DVDs	-Use a commercially available CD/DVD cleaner to clean the lens before sending the player for repair.
Angle does not switch	-The angle cannot be switched for DVDs which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes.
Playback does not start when the title is selected	-Check the "PARENTAL" setting.
The password for rating level has been forgotten	-Enter the default password "4737", then your forgotten password will be cleared.
The player does not recognise DivX® files	-Check if the file name, including an extension, consists of more than 136 characters. If that does, the player does not recognise the file.

NOTES:

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this User Guide for details of correct operations.
• Playback from a desired track and Random Playback are not available during Programme Playback.
  • Some functions are prohibited on some discs.
• When playing back Video CDs with PBC function, some operations (e.g., select and track repeat) cannot be performed. Cancel PBC function temporarily to perform those operations. See page 15.

SIGNAL SYSTEM

PAL colour

APPLICABLE DISCS

(1) DVD-Video Discs

1-layer 12cm single-sided discs, 2-layer 12cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side) 1-layer 8cm single-sided discs, 2-layer 8cm single-sided discs, 2-layer 8cm double-sided discs (1 layer per side)

(2) DVD-R/DVD-RW
(3) Compact discs (Audio CD, Video CD) 12cm discs, 8cm discs
(4) CD-R/CD-RW

S-VIDEO OUTPUT

Y output level: 1Vp-p (75Ω/ohms)

C output level: 0.3Vp-p

Output connectors: S connectors, 1 set

VIDEO OUTPUT

Output level: 1Vp-p (75Ω/ohms)

Output connector: Pin jacks, 1 set

COMPONENT OUTPUT

Y output level: 1Vp-p (75Ω/ohms)

C_B / P_B output level: 0.7Vp-p (75Ω/ohms)

C_R/P_R output level: 0.7Vp-p (75Ω/ohms)

Output connector: Pin jacks, 1 set

AUDIO/VIDEO

21-pin scart jack

AUDIO OUTPUT

Output level: 2Vrms

2 channel (L, R) output connector: Pin jack, 1 set

AUDIO OUTPUT PROPERTIES

(1) Frequency response

1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling)

: 4Hz to 44kHz (96 kHz sampling)

2 CDs : 4Hz to 20kHz

(2) S/N ratio : 115dB

(3) Total harmonic distortion : 1kHz CD: 0.0045%

(4) Dynamic range : DVD: 100dB

CD: 98dB

DIGITAL AUDIO OUTPUT

Optical digital output: Optical jack, 1 set

Coaxial digital output: Pin jack, 1 set

POWER SUPPLY

AC 200-240V, 50Hz

POWER CONSUMPTION

12 W

MAXIMUM EXTERNAL DIMENSIONS

440 (width) x 65 (height) x 313 (depth) mm

MASS

2.4 kg (5.3 lbs)

REMOTE CONTROL UNIT

RC6600DV

Infrared pulse type

Supply: DC 3V, 2 R6P/AA batteries

Contacts, signal levels and impedances

Contact 1
Audio Output (Right):	2.0Vrms/ 1kΩ
Contact 3
Audio Output (Left):	2.0Vrms/ 1kΩ
Contact 4
Audio, Ground
Contact 5
RGB, Ground (Blue)
Contact 7
RGB Output (Blue):	0.7Vp-p/75Ω
Contact 8
Function Select Switching Control
	L: 0.0~2.0V DCPower OffM: 4.5~7.0V DCWide-Screen Mode(16:9)H: 9.5~12.0V DCNormal Mode (4:3)
Contact 9
RGB, Ground (Green)
Contact 11
RGB Output (Green):	0.7Vp-p/75Ω
Contact 13
RGB, Ground (Red)
Contact 14
RGB Switching Control, Ground
Contact 15
RGB Output (Red):	0.7Vp-p/75Ω
Contact 16
RGB Switching Control
H: 3.3V DC	RGB Mode
Contact 17
Video Output Signal, Ground
Contact 18
Video Input Signal, Ground
Contact 19
Video Output (CVBS):	1.0Vp-p/75Ω
Contact 21
Common Ground (shielding)

7 303 313 3

440 53.5 65 11.5 (mm)

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

U.S.A Marantz America, Inc.

1100 Maplewood Drive, Itasca, IL 60143, U.S.A.

EUROPE Marantz Europe B.V.

P.O. Box 8744, 5605 LS Eindhoven, The Netherlands

marantz®

is a registered trademark.

2005/10

00M38BW851320 R
