"Success is not the result of spontaneous combustion; you must set yourself on fire."

-Neil Peart

There's more than just product information in this brochure. There's a vision.

For more than half a century, the name Marantz has identified the best in home entertainment. And today, even in the midst of burgeoning and often confusing technology, Marantz components still emulate the vision that originally drove Saul Marantz to expand the sensory horizons of even the most demanding aficionados.

Today's Marantz fulfills more than just an audio heritage. As you'll soon see, that original vision now extends to video equipment; DVD players, DLP projectors and flat screen plasma monitors.

But we haven't forgotten about audio by any means. The multi-channel audio/video components proudly described here are direct descendants of our original vision. Our Reference Series audio components emulate and update both the sonic and aesthetic excellence that merited accolades from generations of music lovers.

Marantz. Inspired by history. Driven by vision. Brought to life through today's best technology.

Marantz. The finest answer to you home entertainment needs.

marantz®

Life amplified!

Close-up of a digital analog meter dial with scale markings and a star indicator (no readable text or symbols beyond measurement labels)

AV RECEIVERS/HOME THEATER SYSTEMS

Power and Precision....Page 3

SR9600 Page 4

SR8500 Page 5

SR7500 Page 6

SR5500 Page 7

SR4500 Page 8

BW-1/ER2500S Page 9

VIDEO SOURCE PRODUCTS

The Beauty of Sound and Vision ..... Page 10

DV9500 Page 11

DV7600 Page 12

DV6500/DV4500....Page 13

VC5400 Page 14

MV8300 Page 15

REMOTES

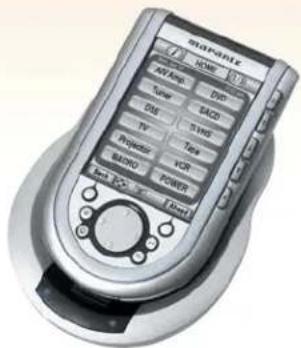

Control Your World!....Page 16

RC9500/RC5400/RC3200/RC1400/RX-77...Page 16

DLP PROJECTORS

Project a Better Image .... Page 17

VP-10S1 Page 18

VP-12S4 Page 19

FLAT PANEL DISPLAYS

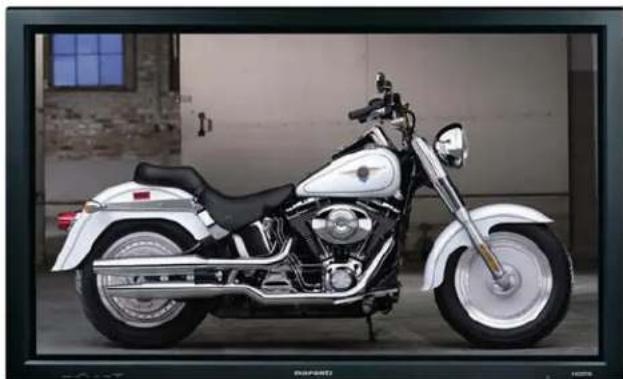

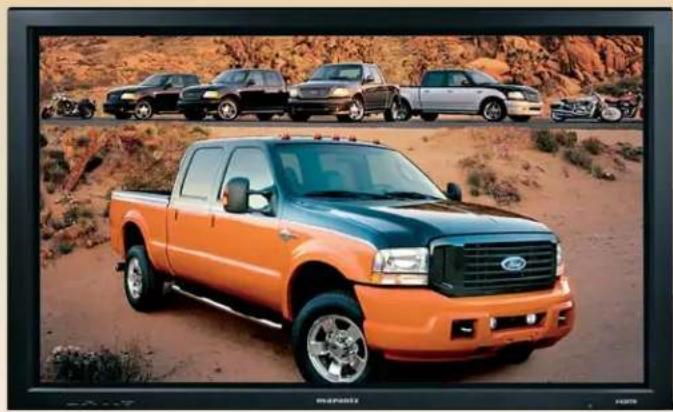

The Flat Panel Experience/PD6140D ... Page 20

PD5050D/PD4250D/PD4230V.....Page 21

HI-FI COMPONENTS

There are no Limits....Page 22

SC-7S1/MA-9S1/ST-17....Page 23

PM-11S1/SA-11S1 Page 24

PM7200/ST6000 Page 25

SR4320/ZS5300....Page 26

SA8260/CD5400 Page 27

CC4300/SD4050 Page 28

MM9360/MM9340....Page 29

Accessories....Page 30

Technical Specifications.....Page 31 - 35

AV Receivers

For over half a century, Marantz home entertainment components have earned respect and admiration from professionals and consumers alike. And these A/V receivers are no exception. Built to satisfy the most demanding audio/videophile, yet accessible to even the casual user, these remarkable products combine the finest of today's technology with Marantz's long tradition of excellence.

Here you'll find full 7.1 channel capability across the board. So you'll be able to enjoy the most advanced surround sound reproduction available. And you'll find a rare level of amplifier capability, too. That's because Marantz doesn't believe that quantity alone is enough. Our engineers, guided by the spirit of the company's founder, have raised the bar once again to give you audiophile-grade reproduction of both stereo and multi-channel sources. They have guaranteed your satisfaction with rigorous power specifications that are rooted in the world you live in, not some esoteric "laboratory-only" conditions never duplicated in your home.

We also extend our same demanding standards to video. Every receiver includes full-bandwidth video switching for the most demanding high definition sources, and built-in video transcoding that makes it easy to enjoy the finest picture your favorite video sources can provide.

We've also paid close attention to the way you use your home entertainment system. From simple yet elegant front panel design to features like "quick setup," we've worked hard so you and your entire family can enjoy these products with intuitive ease.

Look over the following receivers. You'll find unique touches in every one, a common history of exceptional performance in all. Anything less would simply not be Marantz.

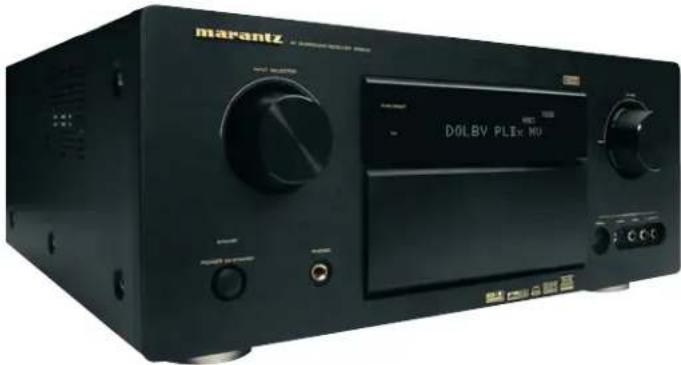

Black Marantz audio amplifier device with control knobs and a digital display (no readable text or symbols beyond branding)

marantz®

Composite image showing a woman in a casual setting, a close-up of a microphone with 'Jazz' logo, and a close-up of an acoustic guitar with strings (no visible text or symbols)

Power and Precision

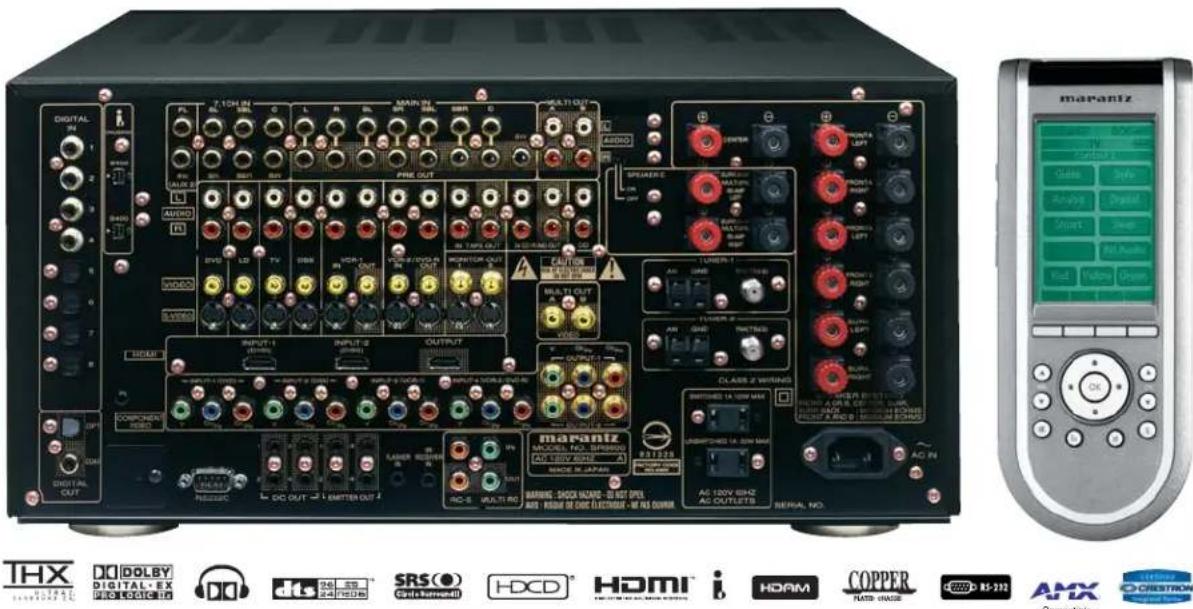

marantz AV SURROUND RECEIVER SPRO HDMI OUTPUT SELECTOR SODC DVD: HDMI2-AUTO DOLBY DIGITAL EX USB1 USB2 DC DIGITAL EX L C L M -100 VCC DLD 500 VOLUME POWER OUTPUT RANGE HOTCD SRSO TREX COMPUTER COMPUTER TECK 1.177 g

The SR9600 is simply the best surround receiver we've ever offered. It surpasses the performance levels of even separate components in both sheer brawn and subtle sophistication. THX Ultra2® certification - and power output of 140 Watts RMS from each of its seven current-feedback amplifiers - means the SR9600 will recreate the sonic impact of dynamic movie soundtracks in the largest rooms. Intelligent cooling assures long term stability, even under the most demanding conditions. Analog preamp circuitry features wideband HDAM-SA2 modules. The oversized power supply includes a toroidal transformer and Marantz-designed storage capacitors for quick response to rapidly varying sources. Dual 32-Bit microprocessors handle surround decoding and 9-band parametric M.R.A.C. (Marantz Room Acoustic Calibration) adjustments with outstanding speed and accuracy. Two AM/FM tuners let you listen to different stations in different areas of your home. Connectivity includes IEEE 1394 and HDMI for accurate data transfer. The high resolution display makes control and adjustment easy. Dolby Headphone produces a private, natural, non-fatiguing surround experience. An RS232 port (for both control and upgrade) and 4 programmable 12 volt "triggers" let the SR9600 function in virtually any custom-designed home theater system.

• THX Ultra2 ^® Certified
• 140 Watts x 7 - All Discrete Amplifier Stages
• THX Surround EX ^® Processing
• Dolby Digital EX ^® , Pro Log IIx ^® (Movie/Music/Game)
• DTS 96/24, ES* (Discrete 6.1/Matrix 6.1), Neo:6 (Cinema/Music)
• SRS Circle Surround II ^9 (Cinema/Music/Mono)

• All Discrete "Current Feedback" Amplifier Stages
• Dual 32-Bit Digital Surround Processing Chipsets
• 192kHz/24-Bit Cirrus Logic® DACs for all 7 Channels
  • M.R.A.C. (Marantz Room Acoustic Calibration) System
  • Massive, High Energy Power Supply, Huge Toroidal Transformer
  • Copper Plated Chassis

• HDMI Switching (2 in/1 out)
• Video Up-conversion: Composite/S-Video to Component with TBC
• Built-in Dual AM/FM Tuners
- Dual Multi-room/Multi-source Capabilities with Discrete Commands
- Speaker A/B Switching
- Multi Speaker "C" Output
• RS232C Connection for System Control and Future Upgrades

• Lip Sync Control
  • HD Compatible Component Video Switching (4 in/1 out)
  • 8 Assignable Digital Inputs (9 in Total)
  • 1 IR Flasher Input and 1 IR Receiver Input
  • 4 IR Emitter Outputs
  • 4 Assignable DC Trigger Outputs
• Gyro-Touch Tuning

Digital 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200

marantz AV SURQUARD RECEIVER SABSS HOCO PUE DIRECT COM THE DOLBY PLIX MV POWER INTHOR MIONS RUN OUTPUT SRS(0) dC DC CC TJX 2.4V 1.5V 1.7V 1.8V 1.9V 2.0V 2.1V 2.2V 2.3V 2.4V 2.5V 2.6V 2.7V 2.8V 2.9V 3.0V 3.1V 3.2V 3.3V 3.4V 3.5V 3.6V 3.7V 3.8V 3.9V 4.0V RUM OUTPUT

The SR8500 combines extraordinary flexibility and rarely found simplicity. The THX Select designation assures accurate reproduction of movie soundtracks. With 125 Watts per channel RMS, you can enjoy that sound in virtually any room through virtually any loudspeakers. The copper-plated chassis isolates internal circuits from interference. The oversized toroidal transformer keeps electromagnetic emissions to a minimum. Specially chosen storage capacitors assure long-term energy supply so amplifiers can reproduce the most demanding passages. Marantz Room Acoustic Calibration (M.R.A.C.), uses an internal signal generator and a separate calibrated microphone to bring you the best audible performance in any room. HDCD circuitry decodes your HDCD discs. Dolby Headphone surrounds you even when your source is stereo. The SR8500 includes advanced transcoding with Line Memory and Time Base Correction to bring you the best video image. DVI (Digital Video Interface) switching is standard. Lip Sync lets you enjoy sound and image simultaneously. An RS232 connector for external control. There are two IR inputs, D-Bus (RC-5) connectors, and a pre-programmed/learning hand-held controller. Then there's Marantz sound quality. Refreshing, invigorating, relaxing. Because the SR8500 is simply a Marantz.

• TIX Select Certified
• 125 Watts (into 8 ohms) x 7-ch Amps
- Dolby Digital EX ^® , Pro Logic IIx ^® (Movie/Music/Game),
• DTS 96/24, ES ^® (Discrete 6.1/Matrix 6.1), Neo:6 (Cinema/Music)
- SRS Circle Surround II ^3 (Cinema/Music/Mono)
- All Discrete "Current Feedback" Amplifier Stages
• 32-Bit DSP
- 192kHz/24-Bit D/A Converters for all Channels
• M.R.A.C. (Marantz Room Acoustic Calibration) System

• Massive, High Energy Power Supply, Huge Toroidal Transformer
• Copper Plated Chassis
• HDCD Decoder Built-in
• Dolby Headphone
• DVI-D Switching (2 in/1 out)
• Video Up-conversion: Composite/S-Video to Component with TBC
- Multi-room/Multi-source Capability with Discrete Commands
- Speaker A/B Switching
- Multi Speaker "C" Output
- Lip Sync Control
• HD Compatible Component Video Switching (4 in/1 out)

• 6 Assignable Digital Inputs (7 in Total)
• RS232C Terminal for System Control and Future Upgrades
• 2 Direct IR Flasher Inputs
• 2 DC Triggers for Custom Installation Applications
• D-BUS (RC-5 In/Out) Remote Connection

Compatible

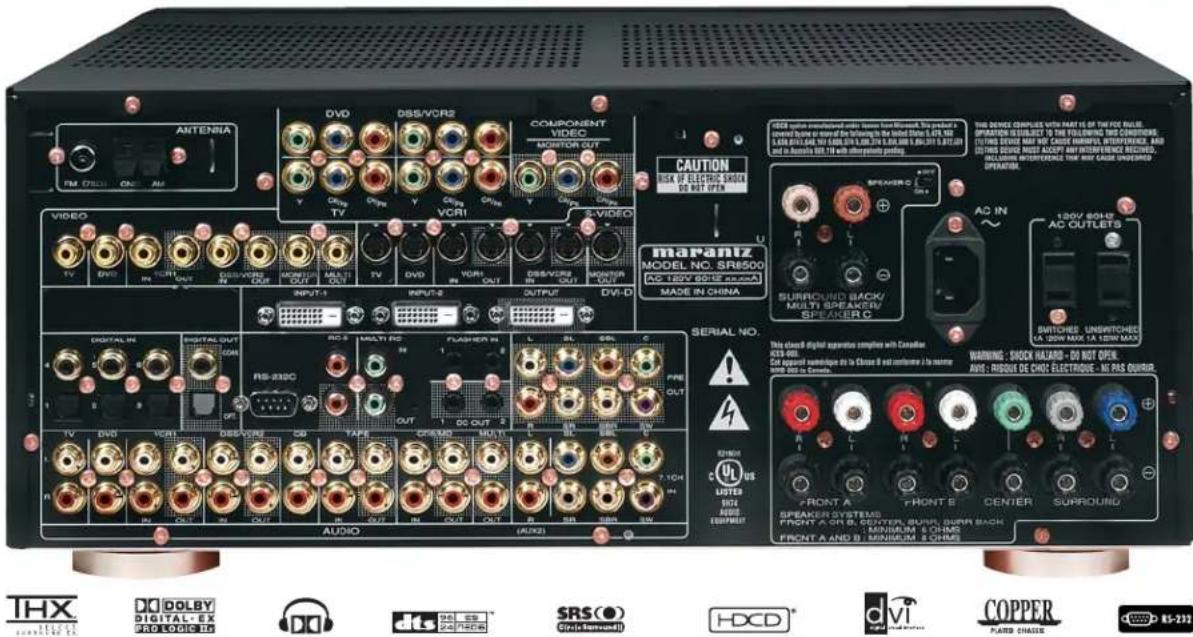

ANTENIA FM CTRL CN AU DVD DBS/VCR2 COMPONENT VIDEO TV TV VDRC VCR1 VBR VIDEO TV DVD IN VCR1 OUT OLS/VORE OUT MOUNT OUT MULT OUT TV DVD VDR OUT VDR OUT DSS/VCR1 OUT MONITOR OUT DVI-D INPUT 1 INPUT 2 OUTPUT DVI-D SERIAL NO. Digital IN SIBITAL OUT SIBITAL OUT SIBITAL OUT RS-232C MULTI RS FLASHER IN OUT DC OUT PRE OUT TV DVD VCR1 DSS VCR1 OUT VCR OUT COLD OUT HM/TH T-104 AUDIO (A292) CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN MARANZ MODEL NO. SR8500 AC 180V 60Hz AC/DC Made IN CHINA SPEAKER C AVI BURCK AND BACK/ MULTI SPEAKER/ SPEAKER C AG IN 120V 80Hz AC OUTLETS SWITCHES UNSWITCHES (A) 180W MAX 1A 180W MAX WARNING: SHOCK HAZARD - DO NOT OPEN. ANS : RHQUE DE CHIC ELECTROUE - MI PAS OUQUIR. FRONT A FRONT B CENTER SURROUND SPEAKER SYSTEMS FRONT A OR B, CENTER, SWITCH, SWITCHBack (Omit-Renewell) HDCD dvi COPPER PLATE CHARGE WWD RS-232 DHX DOLBY DIGITAL-EX PRO LOGE III DO sR(S) HDCD dvi COPPER PLATE CHARGE

THX Select Dolby Digital EX®/DTS ES® Surround Receiver

marantz AV SURROUND RECENER 50/500 INPUT SELECTION PURE DIRECT SPICK MAX. 100% This DOLBY PLIX MV POWER OUTSTOCK PHONES VOLUME MINI INPUT SRS(O) drs Power THX 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 24000 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2475 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2476 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2478 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2479 2480

The SR7500 features THX Select certification and Marantz Room Acoustic Calibration (M.R.A.C.). THX Select certification means that you'll hear movie soundtracks as the director and sound editor intended. You'll hear the Marantz touch brought by using the finest capacitors, resistors, and other internal components. Seven 105 Watt "Current Feedback" amplifiers deliver immediacy and impact. M.R.A.C. corrects the acoustic variables in every home theater system by analyzing your room with microprocessor accuracy and correcting for anomalies. The SR7500's video pedigree derives from format conversion with Line Memory and Time Base Correction to eliminate artifacts that mar reproduction on today's "fixed pixel" monitors. Other features include a pre-programmed learning remote, front panel A/V inputs, RS232 port for extreme control, 2 direct IR inputs, and 2 DC "triggers" for custom installation applications. And, of course, the peace of mind that our three-year warranty gives you.

• THX Select Certified
• 105 Watts (into 8 ohms) x 7 ch Amps
• Dolby Digital EX ^ , Pro Logic IIx ^ (Movie/Music/Game),
• DTS 96/24, ES * (Discrete 6.1/Matrix 6.1), Neo:6 (Cinema/Music)
• SRS Circle Surround II
- All Discrete "Current Feedback" Amplifier Stages
• 32-Bit DSP
• 192kHz/24-Bit D/A Converters for all Channels

• M.R.A.C. (Marantz Room Acoustic Calibration) System
• Dolby Headphone
• Video Up-conversion: Composite/S-Video to Component with TBC
- Multi-room/Multi-source Capability with Discrete Commands
- Speaker A/B Switching
- Multi Speaker "C" Output
• Lip Sync Control
• Variable Cross-over
- HD Compatible Component Video Switching (4 in/1 out)

• 6 Assignable Digital Inputs (7 in Total)
• Front Panel A/V and Digital Inputs
• RS232C Terminal for System Control
• 2 Direct IR Flasher Inputs
• 2 DC Triggers for Custom Installation Applications
• D-BUS (RC-5 In/Out) Remote Connection

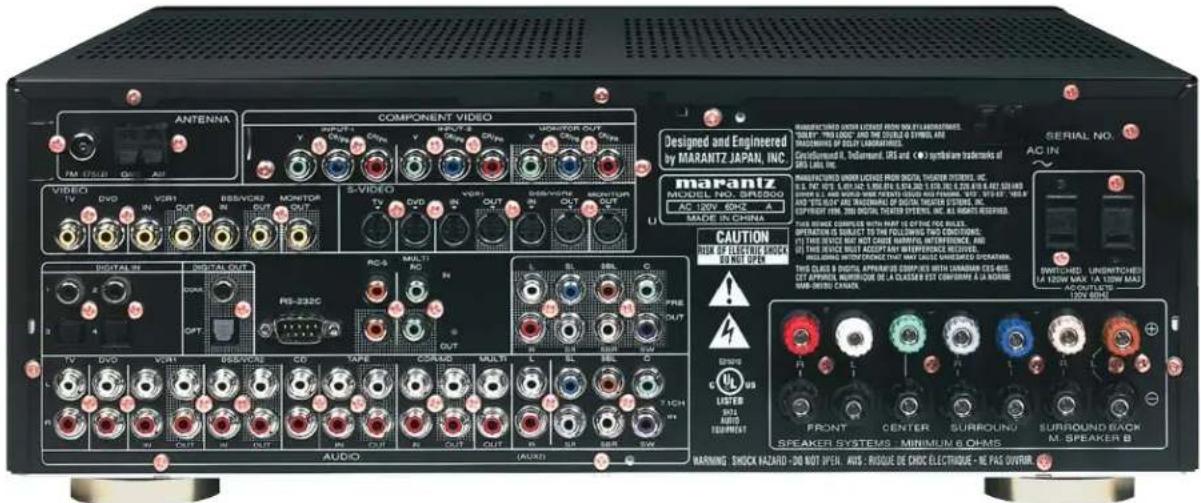

ANTENNA FM C2564 QRS AM DVD DSSVCR2 COMPONENT VIDEO TV VCR1 MONITOR OUT S-VIDEO Video TV DVD IN VCR1 OUT DISVCR2 OUT MONITOR OUT TV DVD VCR1 OUT DISVCR2 OUT MONITOR OUT CAUTION RISK OF ELECTRIC SHOCK BE NOT OPEN MARANTZ MAX/UL NO. SPIT 500 AC 3.20V 60Hz DC 600A MADE IN CHINA SERIAL NO. DIGITAL BI DIGITAL OUT RUN OUT RC-S MULTI RC FLASHER IN L SL SEL C RS-233C OUT OUT FARE C/R/MO MULTIL PRE OUT R S B S B S C TV PVD VCR1 DISVCR2 SD FAPE C/R/MO MULTIL T NCH U/R OUT R OUT R S B S B S C AUDIO (AUDIO) CONSENSUS FRONT A FRONT B CENTER SURROUND SPEAKER SYSTEMS FRONT A ONE CENTER SUR SURBACK MINIMUM 6 CHMS FRONT A AND B MINIMUM 8 CHMS THIS SERVICE COMPLIES WITH PART TO OF THE ACC RELIS, CHARGING IS NOT BUT IT ARE FOR ANY CHANGE THIS CONDITION: (1) THIS SERVICE NOT NOT CABBARAMETER INTERFERENCE, AND (2) THIS SERVICE NOT ACCEPT ANY REFERENCE ORDER, INCLUDING INTERFERENCE THAT MAY CABB UNEURD OPERATION. AC IN AC OUTLETS SURROUND BACK MULTI SPEAKER/ SPEAKER C WARNING: SHOCK HAZARD - DO NOT OPEN. AVB : RISSUE OF CHOC ELECTROSE - BE PAS OVERT. AC IN AC OUTLETS SWITCHED UNSWITCHED TA 120N MAX 1A 120N MAX WARNING: SHOCK HAZARD - DO NOT OPEN. AVB : RISSUE OF CHOC ELECTROSE - BE PAS OVERT. FRONT A FRONT B CENTER SURROUND

marantz AV SURROUND RECEIVER SRS000 INPUT SELECTION MOUNT M. SPEAKER R STRAWER Cognitive output DVOL EX SRRS (R) DC HORU BY SRS000 S-VIDEO VIDEO L AUDIO R DVOL EX SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT SOUT

The SR5500 is an embarrassment of riches. Each "current feedback" amplifier produces 90 Watts RMS, sufficient for all but the largest rooms or most inefficient speakers. The 32-Bit microprocessor decodes all Dolby, DTS surround sound formats, and SRS' Circle Surround II. Consider the SR5500's multi-source/multi-room capabilities. Look no further than the front panel inputs to conveniently plug in a camcorder, portable DVD player and/or game console. You'll appreciate the SR5500's enhanced video conversion capabilities as you watch a full complement of sources through your monitor's high quality component video input. Want a customized system? The RS232 port allows total control for external sources. The on-screen display quickly guides you through setup. The SR5500's "Lip Sync" circuit assures you that sounds reach your ears at exactly the moment your eyes say they should. And its all covered by a three-year warranty.

• 90 Watts (into 8 ohms) x 7 ch Amps
- Dolby Digital EX ^9 , Pro Logic IIx ^9 (Movie/Music/Game),
• DTS 96/24, ES® (Discrete 6.1/Matrix 6.1), Neo:6 (Cinema/Music)
- SRS Circle Surround II ^v
- All Discrete "Current Feedback" Amplifier Stages
• 32-Bit DSP
- 192kHz/24-Bit D/A Converters for all Channels
• Dolby Headphone
• Video Up-conversion: Composite/S-Video to Component
- Multi-room/Multi-source Capability with Discrete Commands
- Multi Speaker "B" Output
- Lip Sync Control
- On Screen Display
• Pure Direct Mode

• Video Off Mode
• Variable Cross-over
• Assignable HD Compatible Component Video Switching (2 in/1 out)
  • 4 Assignable Digital Inputs (2 optical/2 coaxial)
  • 2 Digital Outputs (1 optical/1 coaxial)
• Front Panel A/V Inputs
• 50 Station Presets
• Manual Station Naming
  • RS232C Terminal for System Control
• 1 Switched and 1 Un-switched AC Convenience Outlets
  • D-BUS (RC-5 In/Out) Remote Connection
• Includes Pre-programmed System Remote

Snowboarder mid-air performing a jump against a snowy mountain backdrop (no text or symbols visible)

Black remote control with black buttons and a red circular button (no visible text or symbols)

ANTENNA COMPONENT VIDEO DESIGNED AND Engineered by MARANTZ JAPAN, INC. MARANTZ MICHEL NO. 600200 AC 120V 60Hz A MADE IN CHINA CAUTION NEW OF ELECTRIC SHOCK DO NOT OPEN DISCREAL OUT RS-333C PC-5 MULTI NC OUT L BL BRL PRE OUT TV DVQ VCM1 68S/VCS CO TAPE CCRMD MULTI L BL BRL C AVIO (AUX) WARNING: SHOCK HAZARD -20 NOT OPEN. AUS - RISQUE DE CROIC ÉLECTRIQUE - NE PAS OVERTIR. SERIAL NO. AC IN 2 10 SCHUTED UNSWITCHES LA ZOOM MAX. LA ZOOM MAX. ACQUIS LOTS 10V INTU FRONT CENTER SURROUND SURROUND BACK M. SPEAKER B

DOLBY DIGITAL·EX PROLOGICIT

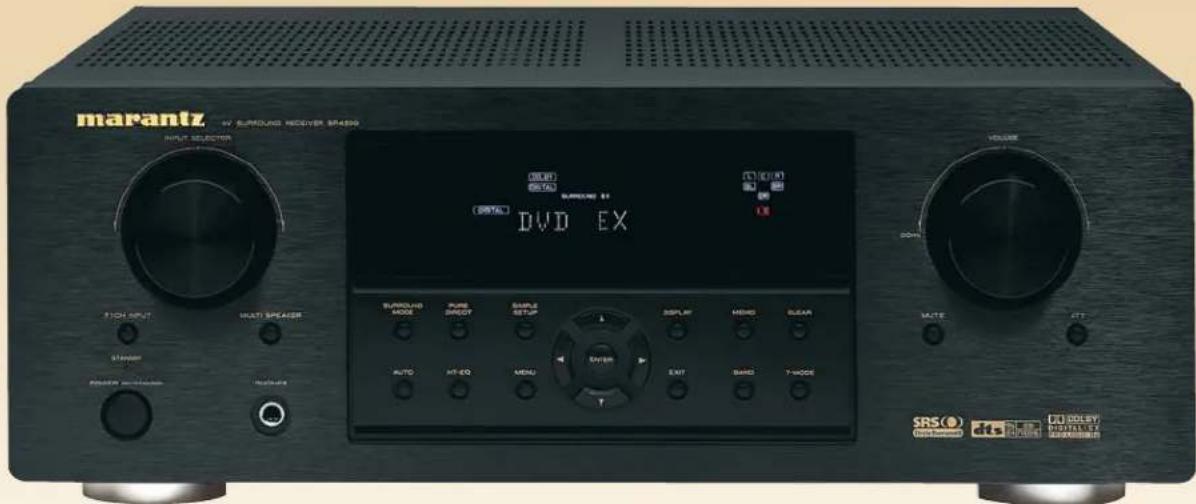

marantz +/- SURROUND RECEIVER SP4800 INPUT SELECTOR DOUT SETAO SURROUND 51 SIGNAL DVD EX VOLUME OFF MATE ATT SRS(○) dts DTI DOLBY SURROUND SP4800 MULTI SPEAKER STANDARD GOLDEN AMOUNTED HOLDEN AVOC AUTO INT-EO MENU EXTR EXIT BAND 7-HODE

The SR4500 boasts 7.1 channel capability. Each of the 7 built-in amplifiers produces 80 watts RMS. You'll enjoy Dolby Digital EX and DTS ES soundtracks thanks to 32-Bit processing. Other surround formats include Dolby Pro Logic IIx, dts Neo:6, and SRS Circle Surround II. Advanced 192kHz/24-Bit D/A converters mean you'll hear everything with total accuracy. Connectivity? Extensive. There's a battery of audio and video inputs and outputs. Full Composite to S-Video conversion, too, for optimal picture clarity. Want audiophile performance? Depend on Pure Direct and Video Off modes to help you listen further into the music. Other features include a unique Simple Setup so you can enjoy your system quickly and effortlessly. The AM/FM tuner has 50 custom-name presets. The SRS TruSurround headphone output means you can be surrounded without disturbing anyone. There's a remote control and a three-year warranty for your peace of mind.

• 80 Watts (into 8 ohms) x 7 ch Amps
- Dolby Digital EX ^ , Pro Logic IIx ^ (Movie/Music/Game)
• DTS 96/24, ES ^® (Discrete 6.1/Matrix 6.1), Neo:6 (Cinema/Music)
• SRS Circle Surround II ^® (Cinema/Music/Mono)
- All Discrete Amplifier Stages - 192kHz/24-Bit D/A Converters for all Channels

• 32-Bit DSP
- Multi Channel Stereo Mode
• SRS TruSurround Headphone
- Surround Speaker "B" Output
- Simple Setup Menu
• Pure Direct Mode
- Video Off Mode
- Simple Video Up-conversion: Composite to S-Video
• S-Video Switching (2 in/1 out)

• Component Video Switching (2 in/1 out)
  • Composite Video Switching (4 in/3 out)
  • 8 Ch Preamplifier Outputs
• 8 Ch Direct Inputs
  • 4 Assignable Digital Inputs (2 optical/2 coaxial)
  • 2 Digital Outputs (1 optical/1 coaxial)
• 50 Station Presets
• Manual Station Naming
  • D-BUS (RC-5 In/Out) Remote Connection
  • 1 Switched and 1 Un-switched AC Convenience Outlets
• Includes Pre-programmed System Remote
  • Available in Black and Silver

Black remote control device with multiple ports and buttons (no visible text or labels)

Front view of a silver audio streaming device with dual speakers and control knobs (no visible text or symbols)

PRU CF500 ANTENIA CO TAPE OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT OUT AVISO AUDIO PINE OUT L SL C SBK R SPI SW SBK Dspeaker Systems MINIMUM & CHMS VIDEO IN OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT OUT VOLT IN AC IN marantz MODEL NO. SR4500 AC 120V 80Hz @A MADE IN CHINA Designed and Engineered by MARANTZ JAPAN, INC. DIGITAL COMPONENT VIDEO TWO DEVICE COMPLIES WITH PART IS OF THE FCEL RADIUS. OPPATION IS SUBJECT TO THE FOLLOWING TWO CONTENTS. (1) TUBE STANCE MAY NOT CATING MACHINES, EXTERIORANCE AND EXTERIOR DIVER MUST ACCEPT ANY INTERFERENCE RESULTS. INCLUDING WITHSANCE THIS WAVE CASE ENBRIDGE OPERATION. THIS CLASS DIGITAL APPARATIVE COMPLIES WITH CANADIAN COD-03A. CAT APPARIAL NURASSURE ON LA CLARES B SET FLOWING A LA NUMBER MINI DO SHAFA. MANUFACTURED UNDERLEARN FROM DELBILI LABORATORIE, "DO/BY", "PRO/DIC" AND THE SHAKLA E ZHYPER AND TRANSFORM OF SON BY LABORATORIES. COC Served B, Trademarks, Re carved Rescptions, SEE NAME OF MANUFACTURED BY SIGNATURES BY SERVICE, INC. MANUFACTURED CODES / CYC/FRM FROM DIGITAL TENDER SYSTEMS, INC. UP FOR BLK LCKY NCX, 90K GATE, 97A/98 5.57E, 6.72K 5.48E, 6.65A, 6.65B, 6.65C, 6.65D, 6.65E, 6.65F, 6.65G, 6.65H, 6.65I, 6.65J, 6.65K, 6.65L, 6.65M, 6.65N, 6.65O, 6.65P, 6.65Q, 6.65R, 6.65S, 6.65T, 6.65U, "WOLD" AND "RES HAID" ARE TRANSFORMS OF SODUS. MANUFACTURED SYSTEMS, OPTRANT TIME, AND SWITCH, PROCESSED SYSTEMS, INC. ALL RIGHTS RESERVED. SERIAL NO. WARNING: SHOCK HAZARD-DO NOT OPEN. AVIS: RSQUE DE CHOC ÉLECTRIQUE-WE PAS DUVIR. AUDIO

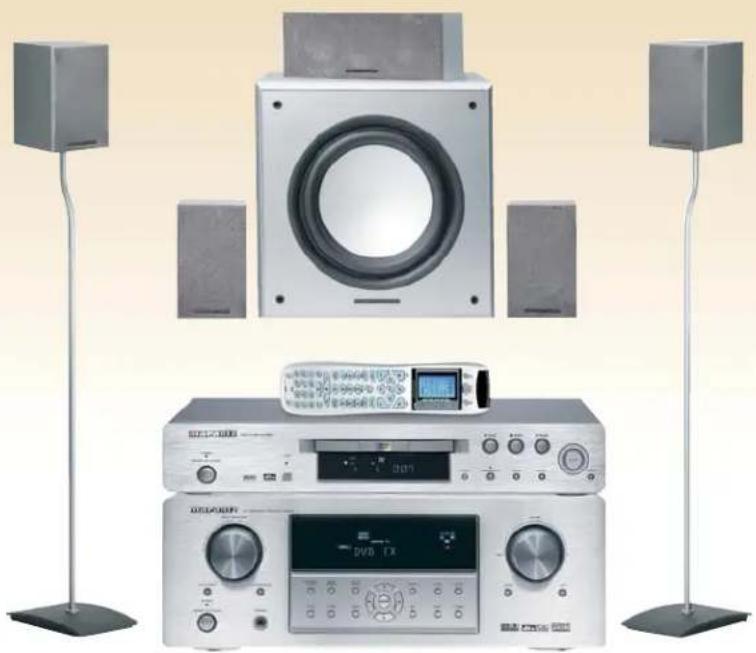

Home Theater Made Simple

When you think of Marantz, you think of component systems, with separate pieces for each function. This might imply complexity, but while it's true that big systems consisting of many different boxes can be intimidating, with Marantz components that is never the case. And this point can be emphasized with our home theater systems. These systems couldn't be easier to setup and use and still deliver the performance that Marantz is famous for. Whether it is the all-in-one FR2500S system or the beautiful BW-1, you will enjoy true multi-channel performance from all of your music and video. With Marantz, a killer Home Theater doesn't have to scare you.

Product photo of a multi-tiered audio amplifier setup with speakers, a speaker chamber, and a digital display (no visible text or symbols)

BW-1 Component Based Home Theater System

Package consists of the following components (Silver Finish): SR4500 Home Theater Receiver, DV4500 Progressive Scan DVD Player, RC1400 Learning Remote Control, MS300 Speaker Package, MS309w Subwoofer, MS300P Front L/R Speaker Stands, MS300M Surround Speaker Wall Brackets.

ER2500S Home Theater System

Package consists of the following components: ER2500 Progressive Scan DVD/Receiver and SS2500 6.1ch Speaker system package (5 satellite speakers and Sub-woofer setup). See below for individual product descriptions.

ER2500 Progressive Scan DVD/Receiver

• 6.1ch DVD/AM/FM Receiver
- Silver Finish
• 100 Watts x7 in 6 ohm
• High Efficiency Digital Amplifier
- Plays DVD-Video, DVD-R/RW (Video Mode), SVCD, VCD, CD, CD-R/RW, MP3, WMA and JPEG Discs
• Dolby Digital EX, Pro Logic IIx (Movie/Music)
• DTS ES (Discrete 6.1/Matrix 6.1, Neo:6 (Cinema/Music)
• Progressive Scan Component Video Output with 3:2 Pull Down Film Detection

• 54MHz/10-Bit Video D/A Converter
  • 192kHz/24-Bit Audio D/A Converters
• Powered Sub-woofer Output
• Simple Setup Menu
  • Color Coded Speaker Terminals
  • NTSC PAL. Converter
  • External A/V Inputs/Output
  • Digital Audio Inputs/Output
  • TV Codes Pre-coded System Remote Control

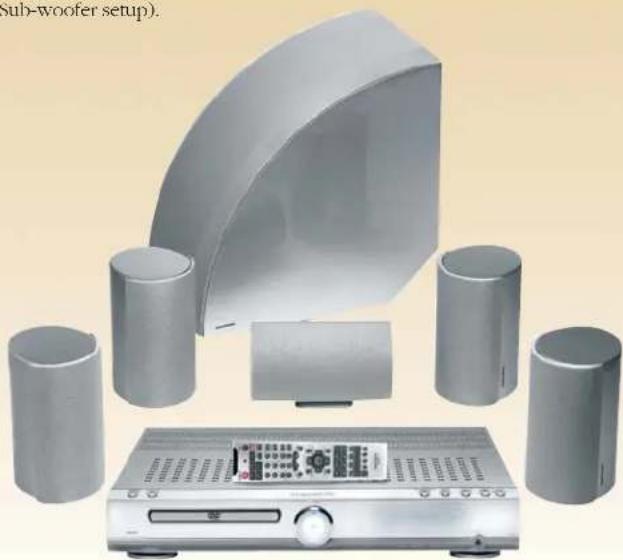

Product photo of a silver audio streaming setup with speakers and a control unit (no visible text or symbols)

DOLBY DIGITAL·EX PROLOGIC HS

SS2500 6.1 Channel Speaker System Package

• 5 Satellite Speakers and Sub-woofer Setup
• 6.1ch Surround Sound by The Phantom Surround Back Speaker in the Surround L & R Speakers
• Sleek Looking Passive Sub-woofer
  • Real Wood Speaker Enclosures

Video Source

Thinking of adding a new DVD player to your system? Or upgrading to a more sophisticated unit? Marantz has the answers. And they're all built to our same demanding standards to give you much more in performance and reliability. They virtually define the word "value."

Every Marantz DVD player includes progressive scan output capability for the finest picture your monitor can display. Even if you're used to the merely good image of earlier DVD players, you'll marvel at the picture you'll see, thanks to advanced Marantz technology.

You'll enjoy the added flexibility, too. With a Marantz DVD player, you'll enjoy far more than just movies. When you listen to your favorite music CDs, you'll hear why Marantz has led the world in sound quality for more than half a century.

While just about everything that DVD has to offer is wonderful, it is still not High Definition. There are those who simply want the very best picture, hands down. If that is you, then Marantz has the perfect product, the MV8300 High Definition D-VHS player with D Theater copyright protection. Look at it as your very own HD recording studio. The MV8300 is the perfect companion to any HD system. It can record any off air HDTV broadcast, HD satellite broadcast or an HD cable broadcast from any decoder box with an IEEE1394 output.* Because it is D-Theater compliant, it will also playback any High Definition D-Theater movies like you have never seen them before.

So look at the individual model descriptions you'll see here. Better yet, look at the image and listen to the sound each Marantz DVD player delivers. That's an even better way to experience Marantz magic.

*This assumes the programming is not copy protected.

The Beauty of Sound and Vision

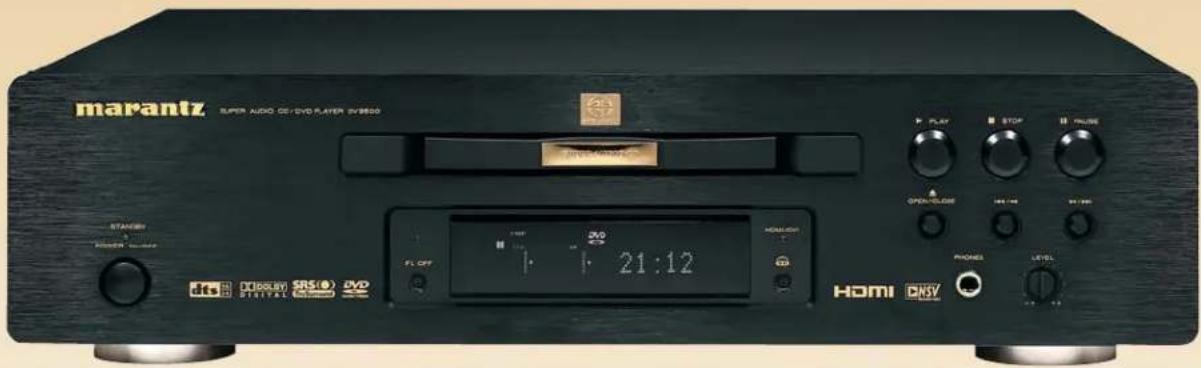

marantz SUPER AUDIO CD/DVD PLAYER 21:5500 STANDARD POWER OFF 21:12 HOMI DNSY OPEN/BLUE PHONE LEVEL JDS DUBSLEY SRS.O DVD

The DV9500 includes many examples of Marantz's best engineering and refined circuitry with carefully chosen internal components. It supports DVD, DVD-A, SACD (stereo and multi-channel), CD, CD-R, CD-RW, VCD 2.0, SVCD, and MP-3 discs with built-in Dolby Digital and dts decoders and true DSD processing for all SACIDs. A dual-transformer power supply separates circuits to eliminate interference. Analog audio circuitry includes unique high current HDAM modules mounted on a separate circuit board for extra isolation. The chassis includes a double-layer bottom plate to minimize vibrations and the transport mechanism is highly damped to minimize tracking problems that can affect both picture and sound. Video circuitry includes a separate progressive-scan 10-bit video processing in addition to the main 216MHz/14-Bit video decoding. NSV (Noise Shaped Vidco) circuits further reduces video noise for extraordinary reproduction. Conveniences abound. There's a customizable start-up screen, parental controls, an HDMI video output. And an RS232 port for total system control. The DV9500. Proof that Marantz values your total satisfaction.

• Plays Back DVD-Video/Audio, SACD-Stereo/Multi-channel, DVD-R/RW, CD, CD-R/RW, SVCD, VCD, MP3 and JPEG Discs
  • 216MHz/14-Bit Video D/A Converter
  • 192kHz/24-Bit Audio D/A Converters
• HDMI Output
  • Built-in 10-Bit Progressive Scan (w/3:2 Pull Down)/Scaler for 1080i, 720p and 480p Output
  • NSV Technology for Optimization of Video Signal
• Newly Developed High Precision Mechanism

• HDAM ^® Audio Output Circuits
- Bass Management for Both SACD and DVD-A w/Delay
- Lip Sync Control
- Fine Video Adjustments
• DTS 96/24 Decoder
• Dolby Digital®/ DTS Decoder
• Dolby Headphone
- DSD Based SACD
• Simultaneous Live Video Outputs
• Video/Digital Circuit Off Mode
• Exclusive Power Transformer for Audio Circuit
- Zero-impedance Copper Ground Plate for 6 Channel Analog Output Jacks

• Double Layer Bottom Plate
- Customizable Start Up Screen
- Parental Control
- On Screen Display
- Component, S-Video and x2 Composite Outputs
• 5.1 ch Analog Audio Output
• Stereo Analog Audio Output
• Digital Audio Outputs (coaxial, optical)
• RS232C Terminal for System Control
• D-BUS (RC-5 In/Out) Remote Connection

maranti FRY-2017-03-05 16:00:00

DANGER MACHINE LEADER REQUATION VIEW, OFF, AVOC DIRECT EXPRIOR TO SEMI COMPLIES WITH FOR REGULATION PERFORMANCE STANDARD, TYPE SUBCHAPTER 1. COX OPT DIGITAL OUT HDMI OUT RS-232C REMOTE CONTROL AUDIO OUT THIS CLUSTER DIGITAL APPRAVATOR NOTES ALL REQUIREMENTS OF THE CANADIAN INTERPRENCE- CACT REFERENCE IN ACCORDANCE CIT APPRAVERS, ANOVADE DE LA CLARGE 8 REFRICE ENTER LED ENSACTIONS DU RECORDER SUI 10 MACHINIC REQUIFER OR GRADES RESPONSE CIRLS OF U.S. POWER NO. 4,651,360, 4,971, 270, 4,870,000 and 4,987,000 continue for control viewing 300 MHz. THIS DEVICE COMPLIES WITH PART OF THE PEER ORDER. OPERATION IS GOURT TO THE FOLLOWING THIS CONDITION: (1) THIS DEVICE MAINT HOLD CABLES INTERPRENE AND (2) THIS DEVICE MUST ADDY ANY INTERPRENESE PROCESSED INCLUDING INTERPRENESE THAT MAP CASE UNBEDER OPERATION. Manufactured under conditions from Siding Laboratory, "Bray" and the enable symbol are determined at DIY information. TOURANT, 100 and the 100 were used on Indicators of SRS Ltd., Inc. Manufactured under names: Interspectral Theater Systems, Inc., 30 PM, No.1,451,962, 1,554,974, 4,974,360 & 8,870,000 are reprinted with instructions used and binding. "350" and "355" Digital Systems are reprinted underlines of Digital Theater Systems, Inc. 01988,388 Digital Theater System, Inc. All Rights Reserved. COMPONENT Y Ce/Pa Cin/Fn SERIAL NO. MANUFACTURED WARNING - SHOCK HAZARD - DO NOT OPEN. AVIS - RISQUE DE CHOC ELECTRIQUE - KE PAS OUWIR. AC IN ~ MACORY NO. DIVISION AC 120V 60HZ 25W MARTANTZ AMERICA, INC. 1160 MATA PROC-COC DAVIRI TASCOLA E. 60/43 MADE OF ARROW

Progressive Scan Universal DVD Player

marantz SUPER AUDIO Q250D PLAYER IV780C HOME POWER Q250D DVD 10 159m04 SSO

The DV7600 combines audio expertise with advanced video circuitry to satisfy the most avid home entertainment enthusiast. It handles DVD, DVD-A, SACD (stereo and multi-channel), CD, CD-R, CD-RW, VCD 2.0, SVCD, and MP3 discs! With true DSD processing for SACD discs. Video circuitry includes a 216MHz/12-Bit D/A converter supplemented by the separate 10-bit progressive processor. NSV (Noise Shaping Video) adds detail and dimensionality. Adjustable Lip Synch insures that sound and image blend perfectly. The DV7600 benefits from Marantz's proprietary HIDAM® audio circuits. There's adjustable-delay bass management. A double-layered chassis bottom plate controls micro-vibrations that could affect both audio and video. Enhanced connectivity includes simultaneous HDMI, Component, S-Video, and Composite video outputs. Analog audio outputs include both 5.1 and stereo supplemented with coaxial or optical digital. The custom-conscious will appreciate discrete on/off command codes, D-BUS and RS232 connections. Three-year warranty, of course.

• Plays Back DVD-Video/Audio, SACD-Stereo/Multi-channel, DVD-R/RW, CD, CD-R/RW, SVCD, VCD, MP3 and JPEG Discs
  • 216MHz/12-Bit Vidco D/A Converter
  • 192kHz/24-Bit Audio D/A converters
• HDMI Output
  • Built-in 10-Bit progressive scan (w/3:2 Pull down)/scaler for 1080i, 720p and 480p Output

• NSV technology for Optimization of Video Signal
- HDAM ^® Audio Output Circuits
- Bass Management for both SACD and DVD-A w/Delay
- Lip Sync Control
- Fine Video Adjustments
• Dolby Digital/ DTS Decoder
- DSD Based SACD
• Simultaneous Live Video Outputs
• Video/Digital Circuit Off Mode

• Parental Control
• On Screen Display
• Component, S-Video and x2 Composite Outputs
• 5.1ch Analog Audio Output
• Stereo Analog Audio Output
  • Digital Audio Outputs (coaxial, optical)
  • RS232C Terminal for System Control
  • D-BUS (RC-5 In/Out) Remote Connection

Black remote control with black buttons and a red play button (no visible text or symbols)

Center Apparition Channels 2.5. Solar Res. 4.037,682 4.677, 216, 4.819,000 and 4.367,000 connected for solid charging bus (bit) DANGER MISCELL LASER NUDATION WHEN SPEL AVOID SHEET EXPOSURE TO SEMA. COAX OPT HDMI OUT DIGITAL OUT SALES VIDEO VIDEO OUTPUT VIDEO CONTROL WARNING: DISCK HAZARD AUTO SWITCHER AUTO SWITCHER ON THE COLDEN SERVICE CACS/PUo CACS/PUo COMPONENT VIDEO OUTPUT AC IN ~ SAPHERED UNDER HARRIANTZ JAPAK INC. COMPLEX WITH FOR BECAUTION PROMFORMANCE STANDERS, PDDR SMCMPPTER J. Technomed. GPS and/or (M) in the following of DCL Liths, Inc. LISTED AUDIO EQUIPMENT PREMOT EDITION DISCUPT DIGITAL VIDEO DIGITAL VIDEO DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL DIGITAL

marantz SUPER AUDIO CD DVD PLAYER DIVISION SUPERAUDIO CD STANDING POWER OUESTHORN AUDIO EX. AVOCO EX. DVD 0:21129 CD PLAY STOP PULSE ALDOC EX OPEN-CLOSE 345.00 MARE

DV6500. Even though there are more "universal" disc players every day, quality players are difficult to find. The DV6500 combines universality and quality in a uniquely Marantz fashion. First, the DV6500 handles movie DVDs, DVD-As, SACDs, conventional music CDs, recordable CD-Rs and CD-RWs, VCD 2.0 discs, MP3 and WMA audio discs, and JPEG-format picture discs! Then, the way the DV6500 handles these discs truly sets it apart. The Marantz audio tradition extends well into the 21st Century with internal Dolby Digital and DTS decoders. Six of the finest 192k11z/24-Bit digital-to-analog converters make everything you play sound exceptionally lifelike. And you can even shut off the DV6500's video circuitry completely for the purest audio signal path possible. Internal bass management circuits route DVD-A and SACD audio channels directly to the proper speakers. Video technology includes advanced 3:2 pull down circuitry and wide bandwidth video D/A converters for exceptional picture quality. Composite, S-Video, and component outputs? Progressive scan? Of course! We haven't forgotten conveniences either. There's an advanced on-screen display, parental controls, front panel menu operation, and a new hand-contoured remote. Connectivity options include audio and video outputs as well as a D-BUS connector for total system control. The three-year warranty shows our confidence and increases your peace of mind. Would you expect anything less from Marantz?

• Plays Back DVD-Video/Audio, SACD-Stereo/Multi-channel, DVD-R/RW, CD, CD-R/RW, SVCD, VCD, MP3, WMA and JPEG Discs
  • Progressive Scan with 3:2 Pull Down Film Detection

• 54MHz/10-Bit Video D/A Converter

• 192kHz/24-Bit Audio D/A Converters

• Audio EX Mode (Video Off)
  • Dolby Digital ^3 /DTS Decoder
• On Screen Display
• Parental Control
• Menu Operation From Front Panel

• Discrete Power On/Off

• Component, S-Video, Composite Outputs
  • 5.1 ch Analog Audio Output
  • Stereo Analog Audio Output
  • Digital Audio Outputs (coaxial, optical)
  • D-BUS (RC-5 In/Out) Remote Connection

• Remote Control

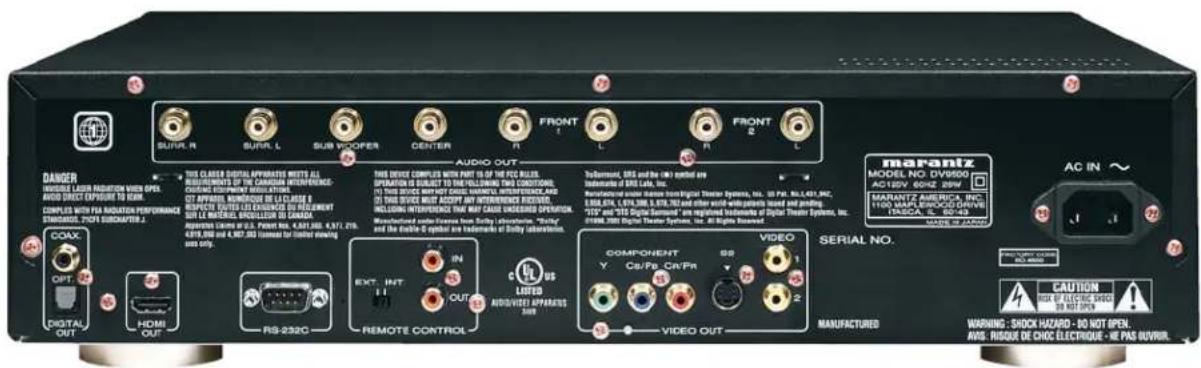

AC 60 NO CLASS I: DIGITAL APPARANTIC CORNATE OF THE COLDING PROCESSED OUT OF OFFICIAL MOUNTED OUT BEANS WINDS DO CAMILA. MANUFACTURED DIGITAL OUT PUMMIT/STRAW OFFLINE GONCH R VIDEO OUT SP/VIDEO OUT SWASH OUT COMPONENT VOLUME OUT R VIDEO OUT S VIDEO OUT R SWASH OUT S 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1200 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz R 1250 MHz MATERIALS AND CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS CONTMENTS

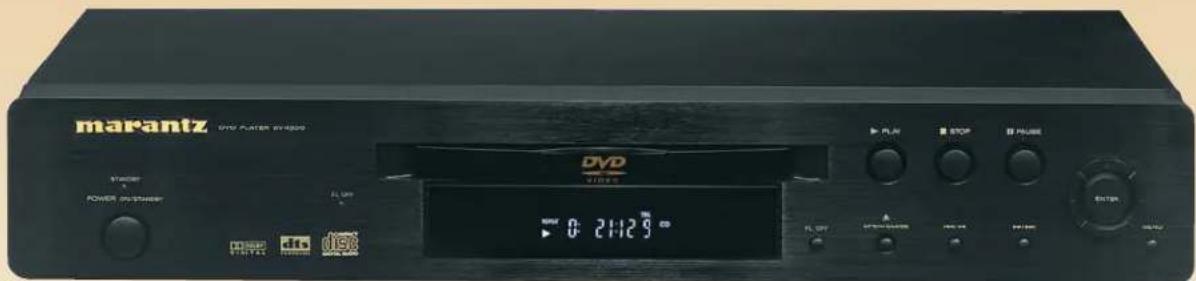

marantz DVD PETER EPDDR POWER OUTPUT DVD 0:21:29 OUTR Power Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTR Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUTS Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT S Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUT T Power OUTT

DV4500. More than just a DVD player: it handles movie DVDs, CDs (and their -R and -RW cousins), VCDs, MP-3 and WMA music discs, and photo discs with JPEG pictures. It delivers high image quality thanks to a true progressive scan output. You'll also appreciate the flutter-free movie reproduction provided by the 3:2 pull down circuitry. Of course you can select composite, S-Video, or component outputs. Sound quality is Marantz-standard, whether you choose stereo or multi-channel analog or coaxial or optical digital outputs. Conveniences range from on-screen display through parental control to front-panel menu operation. The remote control fits your hand perfectly. Our three-year warranty provides peace of mind. You've chosen a Marantz. You can't get better than that.

• Plays DVD-Video, CD, CD-R/RW, VCD, MP3, WMA and JPEG Discs
• Progressive Scan with 3:2 Pull Down Film Detection
• 54MHz/10-Bit Video D/A Converter

• 192kHz/24-Bit Audio D/A Converter
  • Dolby Digital ^® Decoder
  • Aluminum Front Panel

• On Screen Display

• Display Off Mode
• Parental Control
• Menu Operation From Front Panel
  • Discrete Power On/Off
• Component, S-Video,
  Composite Outputs

• Stereo Analog Audio Output
• Digital Audio Outputs (coaxial, optical)
• D-BUS (RC-5 In/Out) Remote Connection
- Remote Control
• Available in Black and Silver

Front view of a silver electronic device with control knobs and a digital display (no visible text or symbols)

marantz 5 DVD DVD CHANSER VCT400 DVD AUDIO/VIDEO S DISC CHANGE OPEN CLOSE POWER CHANTINERY DSO EX-CHANGE DISE S&P TLE WITH 240 C 1 CHC dts Digital FLAT STOP PAUSE

The difference between watching a movie and living it, lies in the quality of the source components. With the VC5400 changer, you're not just a spectator, you're a participant. Enjoy hours of uninterrupted entertainment with this new 5 disc DVD changer, featuring progressive scan outputs and 3:2 pull down technology. Beyond its ability to playback DVDs, this changer is also an excellent CD player. Whether you shuffle, program or repeat, it is compatible with DVD Video, CD, CD-R/RWs and MP3 based CD-Roms.

• Ultimate Versatility - Plays DVD-Video/Audio, DVD-R/RW, CD, CD-R/RW, MP3, WMA and JPEG Discs
- Slim Profile - 5 Disc Changer
• 54MHz/10-Bit Video D/A Converter
• 192kHz/24-Bit Audio D/A Converters
- Capable of Exchanging 4 Discs While a 5th is Playing

• Built-in IIDCD Decoder
• Progressive Scan Output with 3:2 Pull Down
- 5.1 Channel Outputs for DVD Audio and Dolby Digital®
• Gold Plated Connectors
• RS232C Terminal for system control
• Component, S-Video, Composite Outputs

• Stereo Analog Audio Output
  • Digital Audio Outputs (coaxial, optical)
  • D-BUS (RC-5 In/Out) Remote Connection
• Remote Control

Black remote control device with labeled buttons and ports, showing status LEDs and function keys

CAUTION SHE ELECTRIC SWITCH ON 12V FACTORY CODE ON 12V COXIAL FRONT SUBCASE CAP/TW C/R/PB VIDEO DUST S-W/O/DOUT CURBER SUB/ORDER AUDIO OUT (5 120) AUDIO OUT (600)OUT C/R/PB VIDEO OUT COT 20000 MHz/Hz REMOTE CONTROLS DIGITAL OUT OPTICAL R5232C TITLES OF PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED PROCESSED CONTROL TO EXCEPT TO THE FOLLOWING TWO CONTINENTS. TO THIS SERVICE AND ANY OTHER MANUAL IN ACCORDANCE AND TO THIS SERVICE MUST ACCEPT ANY INTERFERENCE REQUIRED. INCLUDING INTERFERENCE THAT MAY CASE DUCTED PROCESSED ADDITIONAL ROUTE OF E.D. Pulsed Note, A.D.T. A.D.R. A.D.S.T. 216, A.D.T.R.D.R. AND A.D.R.P. ANGEL FOR BEATLED Minority Start Mode. Manufactured under license from Outer Laboratory. "Only" and the double-2 symbol are manufactured in Outer Laboratory. "Water" and "Water Digital Rate" are Industrials at Digital Theater Systems, Inc. CAMERA MODEL NO: V02406/U18 AC 120V 6CHZ 14 W MARANTZ AMERGA, INC. 1700MAK TWO DO DRIVE (TASCA, IL 80143) MADE INCHINA WARNING: SHOCK HAZARD - DO NOT OPEN. ANS: RISQUE DECHOC ELECTRIQUE - NE PAS OEVRRL. THIS PRODUCTION COMPLIES WITH APPLIABLE EQUIPMENT OF THE NEW PERFORMANCE STANDARD FROUERER PRODUCTS. FOR SURCHAPTER 3 MINO CODE: Designed and Engineered by MARANTZ JAPAN, INC. MANUFACTURED SOLY 2003 SERIAL NO. MODEL NO: VCE403-UEB SEK NO: N2003327000096

Interior scene of a room with people watching a large screen displaying a baby; framed artworks on the wall behind them (no visible text or symbols)

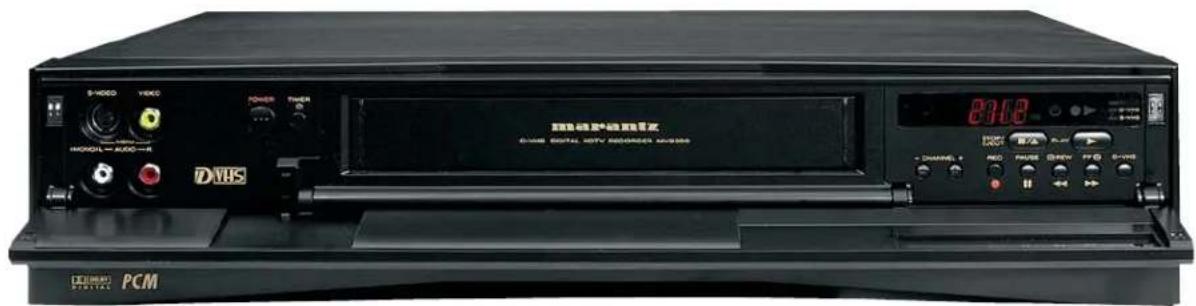

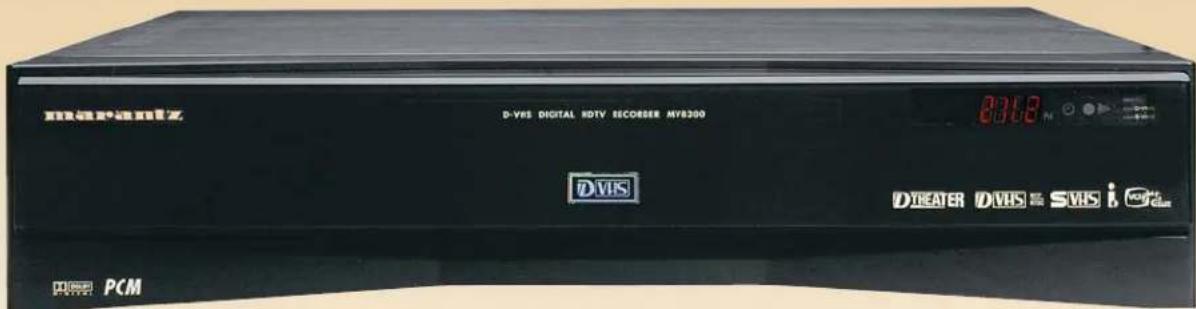

High Definition Digital VCR MV8300

marantz D-VBS DIGITAL MDTV RECORDER MYB200 DVBS DTEATER DVBS 最 SVBS i PCM PCM

The High Definition revolution has arrived, and it is brought to you by Marantz. With the ability to record HD content from cable, satellite or off air antenna via an IEEE output (assuming the program is not copy protected), you can finally archive all of your favorite shows in glorious High Definition. Because the MV8300 is D-Theater compliant, it will play all of the IID movies that are available today. Worried about the past? With the MV8300, you don't need to be. It is completely compatible with your entire library of VIIS and S-VIIS tapes. Better yet, it will still record in VIIS and S-VIIS for those "classic" programs that are not yet offered in IID. If you thought DVD and IID broadcasts looked good, wait until you see the pictures produced by the MV8300.

• D-Theater Compliant with the Advanced D-VHS Security System
- Digital Set-top Box Ready with Digital-to-Digital Connection via i.Link (IEEE 1394) Terminal
• HDTV Digital Broadcast Bit Stream Recording/Playback
• Built-in MPEG2 Decoder for Direct Connection to HDTV
- Can Record Any Type of Broadcast Including HD, SD or Analog
• 1 Recording Modes (HS, STD, LS3, LS5) for D-VHS
- Highest Quality Recording with IIS Mode (28.2 Mbps) for up to 3.5 Hours
- Longest Recording with LS5 Mode (2.8 Mbps) for up to 35 Hours
• 2 Recording Modes (SP, EP) for S-VIIS/S-VIIS ET/VIIS
• Full Spec HIDTV Compatible (with all 18 ATSC Broadcasting Formats)

• High Resolution Analog Recording and Playback
• 5.1 Dolby Digital Output (Optical)
• 2 Channel Linear PCM Audio Output Capability
• 1080i, 720P, 480P and 480i Video Output
• Video Navigation- Tape Number, Record Date and Category Sorting
• MTS Decoder for SAP Programs
• VCR Plus+ with Provided Cable Box Controller
• Express Programming
- Plug and Play for Automatic Tuner and Clock Set-up
• 1-year/24-event Programmable Timer
• 2 i.Link Terminal (IEEE 1394), DV Input Only for Camcorders
• 3 S-Video Inputs
• 3 Composite Video Inputs

• 3 Analog Audio Inputs
• 1 Component Video Output (Y, Pb, Pr)
• 2 S-Video Outputs
• 2 Composite Video Outputs
• 2 Analog Audio Outputs
• 1 Optical Digital Output
- Front A/V Input

Optional RS232 Cable for Crestron® or AMX® Control

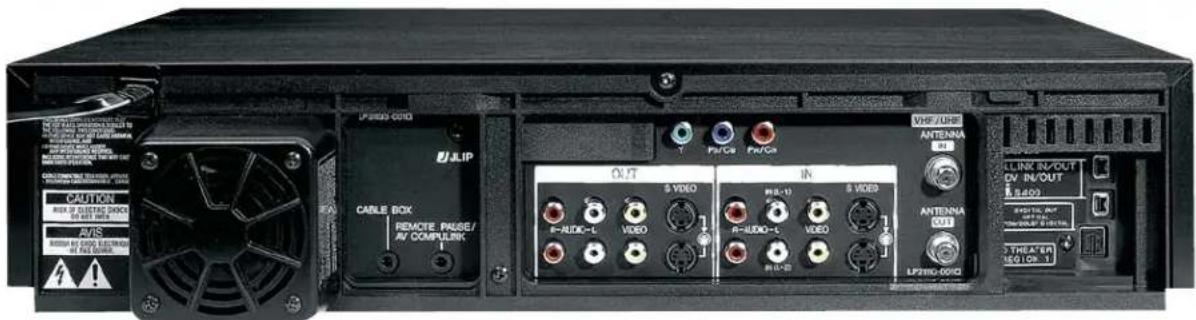

VCR/TV/CATV/DIS VCR/TV/CATV/DIS

DWIS DWIS DIGITAL KDTV ADDIGES M2010A 8318 DC DINAMOS + 1 RND PHASE SP-NEW PTG PC-VBS DC DWIS DIGITAL KDTV ADDIGES M2010A DWIS DIGITAL KDTV ADDIGES M2010A DC DWIS DIGITAL KDTV ADDIGES M2010A DWIS DIGITAL KDTV ADDIGES M2010A DC DWIS DIGITAL KDTV ADDIGES M2010A DWIS DIGITAL KDTV ADDIGES M2010A DC DWIS DIGITAL KDTV ADDIGES M2010A DWIS DIGITAL KDTV ADDIGES S2010A DWIS DIGITAL KDTV ADDIGES S2010A DWIS DIGITAL KDTV ADDIGES S2010A DWIS DIGITAL KDTV ADDIGES S2010A DWIS DIGITAL KDTV ADDIGES S2010A DWIS DIGITAL KDTV ADDIGES S2010A DWIS DIGITAL KDTV ADDIGES S2015A DWIS DIGITAL KDTV ADDIGES S2015A DWIS DIGITAL KDTV ADDIGES S2015A DWIS DIGITAL KDTV ADDIGES S2015A DWIS DIGITAL KDTV ADDIGES S2015A DWIS DIGITAL KDTV ADDIGES S2015A DWIS DIGITAL KDTV ADDIGES S2015A DWI PCM

CABLE BOX REMOTE PAUSE/ AV COM/LINK OUT 5 VIDEO IN R-AUDIO-L VIDEO R-AUDIO-L VIDEO R-U-23 8 VIDEO VREF/UXE ANTENNA BI LPLINK IN/OUT EN IN/OUT BLADO ANTENNA OUT LPFRIU-001D 3 VOLT (A) SEC 109-1

DVHS DTHEATER SVHS Super VHS ET iD DOLBY VCR RS-232 AMX CREDITED CRESTRON Integrated Version Compatible

Control Your World!

Marantz offers a complete line of programmable system remotes. Want to control your system at the touch of a button? No problem! Every remote features one button "macro" operation and is pre-programmed to operate an entire Marantz audio/video system. In addition, they all feature powerful learning capabilities. The intuitive "hard" buttons provide instant access to critical functions and easy navigation between screens. Our touch screen remotes provide many enhanced features. The high resolution black and white or color displays feature anti-glare coatings so you can read them easily even under difficult conditions. If you're into computer technology, Marantz-supplied software and your PC can create custom icons, graphics, even animations so the remote you choose is truly yours. Marantz remote controllers are versatile and expandable. Look for new and innovative downloads @ www.marantz.com.

The family of Marantz remote controls are versatile and expandable. Look for new and innovative downloads @ www.marantz.com

miRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX MiRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX miRPTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRTX fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSXT fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMRSATx fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT fiMSRTXT

RC9500 COLOR LEARNING UNIVERSAL REMOTE

moderate HOME ADDING DIP Taper EACH TV SNO Power VCR BASINO POWER Back 100 Top 1

RC5400 UNIVERSAL LEARNING REMOTE

Exterior view of a modern mobile phone with green screen and control buttons (no visible text or symbols)

RC3200 PROGRAMMABLE TOUCHSCREEN LEARNING REMOTE

White mobile phone with black keypad and a small screen displaying a blue logo (no visible text or symbols)

RC1400 UNIVERSAL LEARNING REMOTE

• Large TFT Color Touch Screen
• High Resolution 320 x 240 Pixels LCD Display
- 61k Color Pallet
- Massive 16MB Non-volatile Flash Memory (Expandable up to 48MB by Future Firmware Update)
- Advanced Transparent Graphics by PNG File
- Programmable Timers
• IR/RF Transmission Capability
• Digital Brightness Control
- Editable Macros (250 Commands per Macro)
• Virtually Limitless Number of Devices, Macros, Panels and Buttons
• Pre-programmed Marantz Product Templates
- Setup Protection
• USB Port for PC Connection
• Auto-On Pickup Sensor
• Device/Page Navigation by Cursor Keys
- Adjustable Auto Shut off Timer
• Recharging Dock Station
- Ni-MI I Rechargeable Batteries Included
• Utilizes New Edit Software: Wizz.it 9
- Black Metallic/Silver Finish
• Optional: RX-77 RF Extender

• Large Monochrome Touch Screen
- High Resolution 320 x 240 Pixels LCD Display
- 16 Gray Scales
- Huge 8MB Non-volatile Flash Memory
• IR/RF Transmission Capability
• Digital Contrast Control
- Editable Macros (250 Commands per Macro)
• Virtually Limitless Number of Devices, Macros, Panels and Buttons
• Pre-programmed Marantz Product Templates
- Setup Protection
• USB Port for PC Connection
• Auto-On Pickup Sensor
• Device/Page Navigation by Cursor Keys
- Adjustable Auto Shut off Timer
• Recharging Dock Station
- Ni-MH Rechargeable Batteries Included
- Utilizes New Edit Software: Wizz.it
• Silver/Pearl Finish
• Optional: RX-77 RF Extender

• Monochrome Touch Screen
• 160 x 100 Pixels LCD Display
• 4 Gray Scales
• Digital Contrast Control
- Blue EL Backlighting for LCD and Hard Buttons
• Pre-Programmed Marantz IR Codes
• 3-Wire (RS232C) Serial Port Connector
• IR Sending and Learning LEDs
• Learning Frequency: up to 56kHz and 455kHz
- 1 MB Non-volatile Flash Memory Macro, Beep and Timer Function
- Two-way IR Communication Capability with Marantz SR9600/SR9300/SR9200/SR8300/SR8200 Home Theater Receivers

• Easy-to-Read LCD Display with Adjustable Contrast
• Backlighting Feature for LCD and Buttons
• Simplified Programming, Naming & Control Functions
• Separate Channel and Volume Up/Down Keys Located for Easy, Comfortable Access
  • Large Memory Capacity
  • Non-volatile Memory Assures Programmed Commands will not be Erased from Memory
• Macro Capability
  • Programmable Timer function
  • Built-in Commands for Marantz A/V Components and Other Major Manufacturers Products

RX-77 RF Extender

• Operation via RI. This Allows for Control of Components that are in a Different Room or not in Line-of-sight
  • 4channels and 16 IDs Selectable
  • Supplied with IR Blasters
• Optional with the RC9500 and RC5400

Exterior view of a silver and black electronic device (no visible text or symbols)

Project a Better Image

DLP® Technology

For several years now, Marantz has set the standards for video quality and accuracy in the world of consumer digital front projection. The VP-12 series has rapidly become a legend and has now made a quantum leap in picture quality and flexibility. For 2005, the VP-12S4 has a new video processing section, the first of its kind, and offers a level of deinterlacing and scaling of even high definition sources that was previously reserved for processors that cost as much as some folks' entire systems. This new chip was co-developed by Marantz and a company called Gennum® and promises to have everyone else scrambling to play catch up. In addition there are now three Minolta-Konica lens options in the VP-12S4 for unmatched flexibility. But let's not forget about the VP-10S1, a projector for the ultimate home theater designed using the same 3-chip DLP® technology which was formerly reserved exclusively for digital cinema. Reduced in size and weight and customized for the home environment, this flagship DLP® projector offers the same rich detailed image as the VP-12S4, but with even better smoothness and color accuracy, along with enough light output to effectively illuminate even the largest of screens. By eliminating the color wheel and incorporating the best Faroudja processing, the VP-10S1's picture is further improved by providing smooth, flicker free motionwhile preserving all of thedetail present in the original source. With multiple lens options and both vertical and horizontal lens shift, the VP-10S1 is very flexible with regard to stallation. All of the adjustments can be made in the dark due to its redesigned ergonomically friendly backlit remote control. Now that we have the two best DLP® front projectors, Marantz can easily satisfy the needs of the most discriminating video customer, regardless of price.

VP-10S1 3 Chip DLP ^™ High Definition Projector

Exterior view of a black Marantz projector with visible lens and control buttons (no text-heavy elements)

The soon-to-be legendary VP-10S1 uses 3-chip DLP ^a technology which uses a separate DMD ^™ device to process each primary color. This is the same technology used in the big DLP Cinema ^b projectors found in many of the state-of-the-art movie palaces worldwide. By combining this proven methodology with Marantz's expertise in video projector design, the VP-10S1 will display an image that truly must be experienced to be believed. Colors so saturated that you will want to pinch yourself to see if you are dreaming, and a black level that can be approximated by outer space — barely. If you were waiting for digital projection to become better than CRT, your wait has ended.

• Texas Instruments 3-chip DLP® Technology
- High Definition DMD™ HD-2 "Mustang" Chipset
• 3 Chip, 10-Bit Faroudja DCDi™ Processing
• 14-Bit Gamma Correction
- 12-Bit Color Path
• 1200 ANSI Lumens Brightness
- >3600:1 Contrast Ratio

• Custom Optics by Marantz
• 3 Lens Options
• Motorized Lens (Shift H/V, Zoom, Focus)
  • Exclusive O.R.C.A.™ Color Corrected Light Source
  • Coated and Painted Combining Prism
  • 250 Watt VIP Lamp
  • DVI Input with HDCP

• Auto Color Temperature Calibration System
• 2 Multi-scan Component Inputs (RCA and BNC)
• RS232C Terminal for System Control
• 2 DC Triggers
• D-BUS Remote Connection (3.5mm Mini-jack)
- Illuminated I/O Terminal Panel

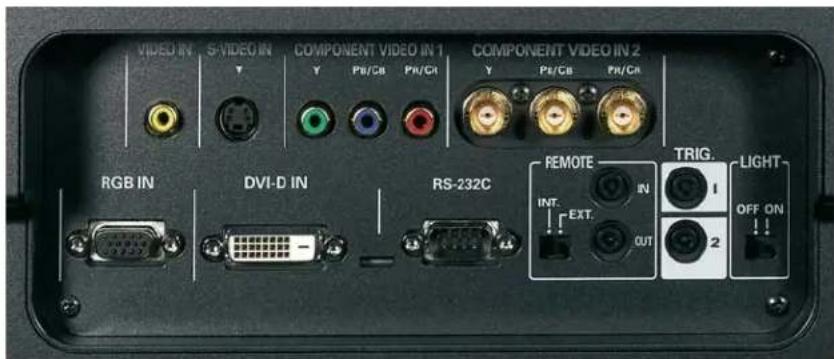

START PATTERN OPEN ENTER INPUT MODI ADJUST USB USB USB USB USB USB MapSense REMOTE CONTROLS IN CHINA

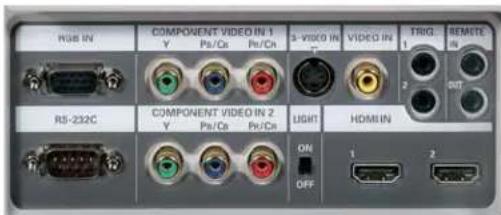

VIDEO IN S-VIDEO IN COMPONENT VIDEO IN 1 COMPONENT VIDEO IN 2 RGB IN DVI-D IN RS-232C REMOTE TRIG. LIGHT INT. EXT. OUT 1 OFF ON 2

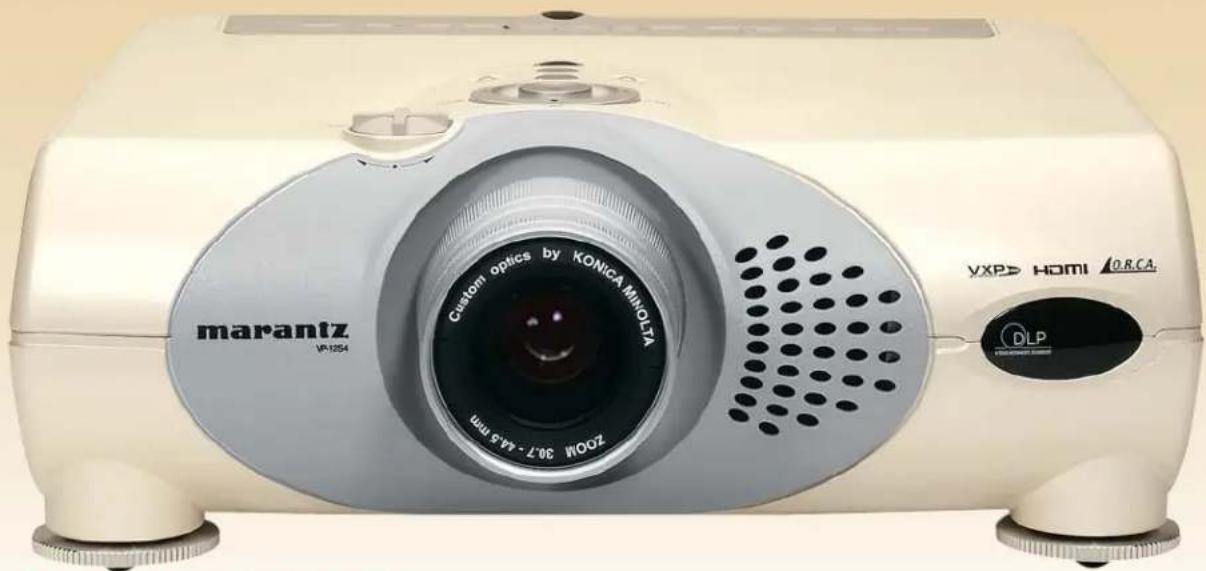

Exterior view of a white Marantz VR-1254 projector with visible lens and control buttons (no readable text beyond branding)

A Quantum Leap in Projector Performance

After the continuing evolution and success of the VP-12 series, people were asking, "how much better can it possibly get?" Upon witnessing the VP-12S4, you will wonder how that could even be asked. The VP-12S4 will make your jaw drop with the smoothest, most seamless and lifelike image ever delivered from a single chip solid state video projector. First, we start with the already proven platform of Texas Instruments' HD2+ DLP® chipset. This year it has been improved by using their DarkChip 3 design, which tightens the space between the mirrors for even less pixelization than before. In addition this chipset operates at a higher speed, reducing dither noise in low light portions of the image. As in the previous generation, it also utilizes the seven segment color wheel which also aids in the reduction of temporal dithering. Then we add a new lens to the already legendary and award winning lineup of optics from Konica-Minolta. This new lens is a middle throw distance lens and fits comfortably between the original standard lens (now called the Short Throw) and the Long Throw lens. To improve flexibility we increased the amount of vertical lens shift for all three lenses to allow mounting as much as fifty percent of the screen height above the top of the viewable area. But the crowning achievement is a completely new video processing engine. This new processing chip was developed by Gennum® (specifically for the VP-12S4) and is the most powerful video processor ever included in a video display device—consumer or professional. It offers true motion adaptive deinterlacing of all non-progressive sources – HD included – with inverse telecine (3:2 pull down), jagged edge reduction circuitry, 4:4:4 processing at a true 10 bit color depth (over 1 billion colors displayed) and a new level of flexibility for the installer including sizing and blanking controls. This level of smoothness and filmlike realism has been previously reserved for professional 3-chip type devices and of course, film. But reading about it here won't do it nearly as much justice as experiencing it for yourself at your nearest authorized dealer.

• Texas Instruments DLP™ Technology
- High Definition 720p DarkChip3" DMD™ Chipset
- New High-Fidelity Video Processing Engine by GENNUM®
- GENNUM ^ GF9350 VXP ^TM Technology is Composed by 4 Major Functions,
- TruMotionHD™: Deinterlacing Technology for Full HD Signal
- FineEdge™: Adaptive Edge Correction/Enhancement Technology
- Reality Expansion™; Advanced Color/Resolution Reproduction Technology by Full 10-Bit Processing and 4:4:4 Sampling
- FidelityEngine™: Noise Reduction and Image Enhancement Technology

• Newly Developed Custom Optics by Konica-Minolta with Three Throw Ratios
• Larger Vertical Lens Shift to a Max of 80% of Screen Height Above the Screen

• Exclusive O.R.C.A.™ Color Corrected Light Source
- >4500:1 Contrast Ratio
• >700 ANSI Lumens Brightness
• Brightness Uniformity: 90%
• 2 HDMI Inputs
- Adjustable Iris
- Sealed Optical Path
- No Light Leakage (Double Sealed Cabinet Structure)
- Extremely Quiet (Noise Canceling Construction, Sealed Color Wheel Motor)
• Vertical Keystone Correction
• NTSC, PAL, SECAM, and ATSC Compatible
• VGA to SXGA PC Signal Compatible
- 5 Gamma Selections
• Auto Color Temperature Calibration System
• 18 Picture Memories
- Black Level Selection
• 2 Multi-scan Component Inputs
• RS232C Terminal for System Control
• 2 DC Triggers Outputs
• D-BUS Remote Connection (3.5mm Mini-jack)
- Illuminated I/O Terminal Panel

Cross-sectional diagram of a mechanical device showing internal components (no text or labels)

14 Element Custom Optical Assembly from Konica-Minolta

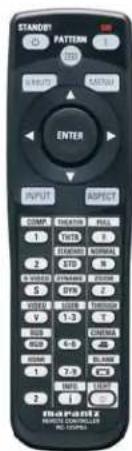

STANDAY PATTERN 1 STARTED 2 SENDED 3 FATIEN 4 ENTER 5 INPUT 6 ASPECT COMP TOMS RUS 1 ITEMS 0 EIGHTS NORMS 2 STD M GND V DINES 0 DATA 1-3 Y RGB CINEMA RGB 4-6 Z RANGE BLANK 1-2-3 WINS LEEK 2 1 Blue Phone X RANGE CONTROL 2.0x100%

GENNUM ^® GF9350 VXP ^™ Chip

RGB IN COMPONENT VIDEO IN 1 Y Ps/Cs Pr/Cn 3-VIDEO IN VIDEO IN TRIG REMOTE IN RS-232C COMPONENT VIDEO IN 2 Y Ps/Cs Pr/Cn LIGHT HOM/IN ON OFF 1 2

VXP BY GENNUM

HDMI™

O.R.C.A.

RS-232

AMX.

Compatible

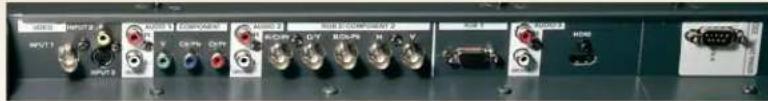

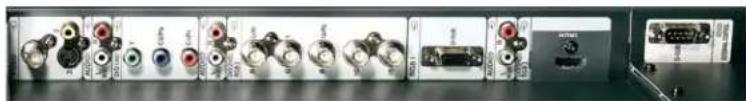

The Flatscreen Experience

Marantz plasma monitors do two things extraordinarily well. First, they are superb examples of the finest flat screen technology you can enjoy in your home. Second and perhaps even more importantly, they symbolize – in the most concrete way possible – Marantz's continuing dedication to complement the legendary performance of our audio components with the finest in video-based home entertainment.

Each widescreen monitor combines impressive design and benchmark technologies in a seamless blend to expand your viewing pleasure. The Marantz reference-grade image begins with a proprietary high-contrast glass screen that benefits from an advanced anti-reflective coating. Internal circuitry includes the best color filters and processing to virtually eliminate the jagged edges and color bleeding that often mar other plasma displays. There's even special circuitry and high quality phosphors to safeguard the screen from image retention artifacts. Every Marantz plasma display accommodates an almost-astonishing array of video sources. The internal scaler transparently matches source and screen characteristics for unsurpassed clarity, contrast, and color purity.

Ready to illuminate your home with the finest images from all of your favorite sources, the Marantz plasma monitors provide an ideal solution for any home entertainment and multimedia application. The slim and stylish bezels combine sophisticated aesthetics and easy installation. Thanks to internal amplifiers, these plasma monitors are waiting for you to add complementary speakers. Or you can connect the audio outputs of your favorite multi-media sources to a Marantz surround receiver for sound that's as authoritative as the images you'll see.

In short, our plasma monitors simply extend more than a half-century of commitment and expertise into the video age. We are proud to present them for your consideration.

Yellow sports car against a clear blue sky, no visible text or symbols

At 61", the PD6140D virtually defines the word "involving." In fact, this plasma monitor is almost impossible to ignore. With resolution that takes you into the High Definition Era and a precision internal scaler to optimize any video signal, you'll enjoy the finest images your favorite video sources can supply. In fact, you'll be stunned by this monitor's contrast and deep, vibrant colors. This image quality is a result of an almost-fanatical insistence on the best materials like a precision extruded glass screen. We utilize the most advanced electronics to bring a full "plasma-perfect" image into your viewing room. Improvements include a menu system that simplifies initial calibration so you're sure of getting the best picture. You'll also find the latest DVI inputs so you'll be able to enjoy even the newest digital video sources with absolute fidelity. Technology without compromise. Execution without blemish. That's the PD6140D plasma monitor. In other words, nothing less than a Marantz.

Back panel of a network equipment interface showing ports, connectors, and external control labels

Orange Ford 500 trucks parked on a desert road with other vehicles in the background (no visible text or symbols)

HV10 HV20 HV30 HV40 HV50 HV60 HV70 HV80 HV90 HV100 HV110 HV120 HV130 HV140 HV150 HV160 HV170 HV180 HV190 HV200 HV210 HV220 HV230 HV240 HV250 HV260 HV270 HV280 HV290 HV300 HV310 HV320 HV330 HV340 HV350 HV360 HV370 HV380 HV390 HV400 HV410 HV420 HV430 HV440 HV450 HV460 HV470 HV480 HV490 HV500 HV510 HV520 HV530 HV540 HV550 HV560 HV570 HV580 HV590 HV600 HV610 HV620 HV630 HV640 HV650 HV660 HV670 HV680 HV690 HV700 HV710 HV720 HV730 HV740 HV750 HV760 HV770 HV780 HV790 HV800

Exterior view of a speedboat on water with passengers cruising (no visible text or symbols)

Front view of a rack-mounted electronic device with multiple ports and connectors (no visible text or labels)

Side view of a white Honda motorcycle parked indoors, no visible text or symbols

Front view of a rack-mounted electronic device with multiple ports and connectors (no visible text or labels)

All Marantz Plasmas on This Page Feature:

PD5050D HD Ready Plasma Monitor

The PD5050D brings the same outstanding technology as the 61" plasma to more "intimate" proportions. The high resolution screen presents an exciting and panorama-like widescreen experience and provides a totally new dimension when viewing your favorite video sources. The built-in de-interlacer/scaler makes sure every source looks as good as it possibly can. Speaking of sources, the PD5050D has all the inputs you'll need for even the most advanced home entertainment system. You'll find analog RGB (via BNC connectors) in addition to Composite, S-Video and Component inputs (via both RCA and BNC connectors). Computer-ready input capabilities range from VGA to Wide XGA. There's also HDMI input for the most up-to-date digital data transfer from source to screen. Styled with a thin black "gunmetal" bezel, the PD5050D blends with almost any décor. The wide viewing angle means you can sit almost anywhere you like and not miss any of the color or contrast. But that's probably just what you'd expect, isn't it? After all, this is a Marantz.

PD4250D HD Ready Plasma Monitor

Here's a major contender in the ultra-popular 42" screen size sweepstakes. You'll appreciate the high definition 1024 x 768 16:9 widescreen display. You'll see virtually all the details your favorite video sources bring into your home. And those older analog sources like NTSC TV broadcasts - even VCR tapes - will benefit from the internal line doubler/scaler. The PD4250D comes complete with an HDMI input so it will accept the most advanced digital sources. The PD4250D is framed with a black gunmetal bezel. So it will look almost as good turned off as it does when you're watching your favorite program. You'll also appreciate the simplified set-up menu. The wide viewing angle means you don't have to be right in front of the set to fully enjoy it, either. The PD 4250D plasma monitor. It's your window to the rest of the world. And it gives you all the fidelity you've come to expect from Marantz.

PD4230V Plasma Monitor

Want to add the drama of a 42" plasma display to a smaller area of your home but don't want to invest a lot of money? The PD4230V may be your answer. This extended definition plasma panel is no slouch in the video department and you needn't take our word for it, either. (A well respected consumer publication gave it a "best in class" review.) Of course, we're flattered. But the best review is the one you'll give the PD4230V in your own home. You'll benefit from the same wide viewing angle, the same line doubler/scaler circuitry for optimum pictures from NTSC broadcasts or videotapes, and the same connectivity advantages as our more expensive monitors. So sit back, start your DVD player and settle in for a most rewarding experience. And when the movie's over, you'll notice the trim black gunmetal bezel that makes the PD4230V blend so easily with your room furnishings. After all, a Marantz has to be dressed to appear anywhere.

There Are No Limits!

The recreation of sound has been the passion that has driven Marantz for more than half a century. It is this commitment that has motivated us to produce some of the finest components in the history of consumer electronics. This desire has kept us at the forefront of the industry by leading the way with new and exciting products.

Whether you're talking about amplifiers or CD players, Marantz has been the benchmark. The legendary Model 9 mono block amplifiers, for example, were so incredible that NASA utilized a variation of them in the Apollo space program (and if you thought the model 9's were wonderful, wait until you see their replacements – the MA-9S1).

Our current amplifiers are so well thought out that they are the perfect choices for any high-end two channel system, home theater system or elaborate whole-house audio distribution system.

The model 10b tuner, introduced 1963 is still considered one of the best tuners ever made, even by today's standards. Today's ST-17 takes a page from the 10b's book, and it's even better looking too!

In the early 80's, Marantz was the first company in the world to announce a CD player, the CD-63 top loader. A few years later, we followed that introduction up with the world's first two piece CD player – the CD-12, arguably the best CD player ever produced. Continuing with our desire to lead, Marantz was one of the first companies to introduce SACD technology. The rave reviewed SA-1 paved the way for our current SA8260 multi-channel SACD player, the brand new SA-11S1, as well as our audiophile “on a budget” players such as the CC4300 5 disc CD changer and the CD5400 single disc CD player.

For 2005, Marantz continues to innovate the distributed audio world with the ZS5300 Multi-zone Control Amplifier. This and every other one of these products adheres to our design philosophy over the past 50+ years...the reproduction of music, exactly as the artist had intended.

marantz stereo control amplifier scint -485 input selector power volume marantz stereo control amplifier scint marantz power amplifier scint For more Information on the Marantz Reference Products, please see our dedicated brochure.

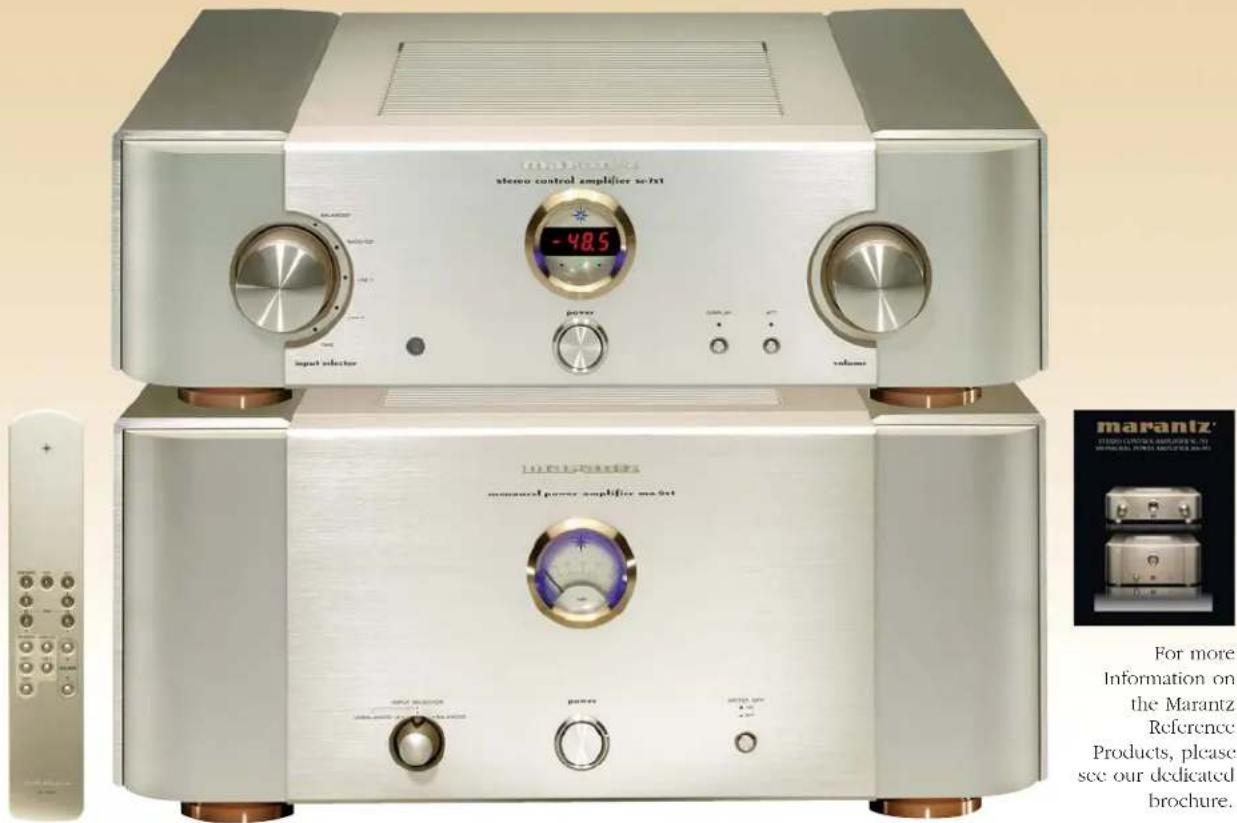

SC-7S1/MA-9S1. The audio community has never forgotten the Marantz. Model 7 preamplifier and Model 9 monophonic power amplifier. Now, more than 40 years later, these products still stand as an ideal fusion of original circuit design and outstanding aesthetic appeal. Indeed, they were one of the main forces that established the Marantz reputation - and remain a source of inspiration for many designers and enthusiasts.

Today, the distinctive voices of the original Model 7 and Model 9 are reborn in the SC-7S1 stereo preamplifier and MA-9S1 monaural power amplifier. These works of art define new horizons in both musical performance and contemporary elegance. They are enduring testaments to the synergy of today's advances in physics, electronic circuitry, and metallurgy guided by our unwavering respect for the past.

That is why we assigned to these products model numbers directly traceable of our heritage. When you hear them, you'll understand.

Improvements, while maintaining original integrity include:

• Enhancement of Channel Separation in the High Frequency Range
• Significant Reduction of Cross Talk
- Low Impedance Drive Capability

• High-speed Signal Handling Capability
• High Instantaneous Current Delivery Capability
• Highest Reproduction Capability

Front and back views of a beige electronic device with control panels, buttons, and a central display unit (no visible text or symbols)

Front panel of a power supply or control unit with labeled buttons and indicators

HORMSOLATE FA 9685. HDRM STOCKS PLANS 2017

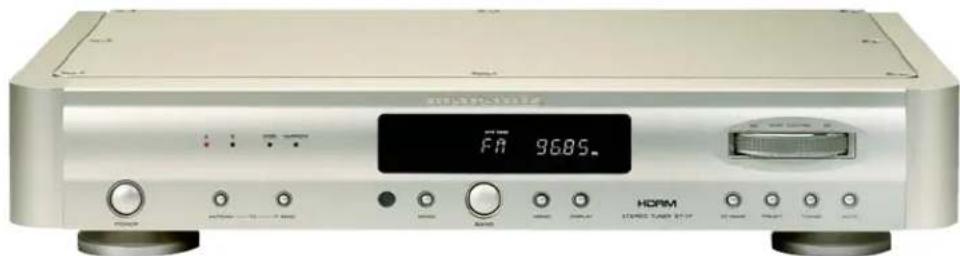

ST-17. The Marantz ST-17 AM/FM Tuner continues our tradition of providing the ultimate performance as it incorporates a number of engineering and design innovations that make it ideal for receiving even weak FM broadcasts. Specifically tuned for crystalline reception, the ST-17 features a segmented power supply, careful internal component choice, short signal paths, and our exclusive HDAM output devices all housed in a rigid chassis that shields the interior from electromagnetic and vibration interferences. It is a tuner fully in the Marantz tradition and one of the best you can place in your system.

PM-11S1/SA-11S1

Reference Integrated Amplifier/Super Audio CD Player

marantz AUTORIZED AMPLIERS TAI-131 BALANCED -38.5 OFFICE RELATION PONES POWER CHAIR AUTO OUT PHOTO OUT PHOTO VD Cablecom

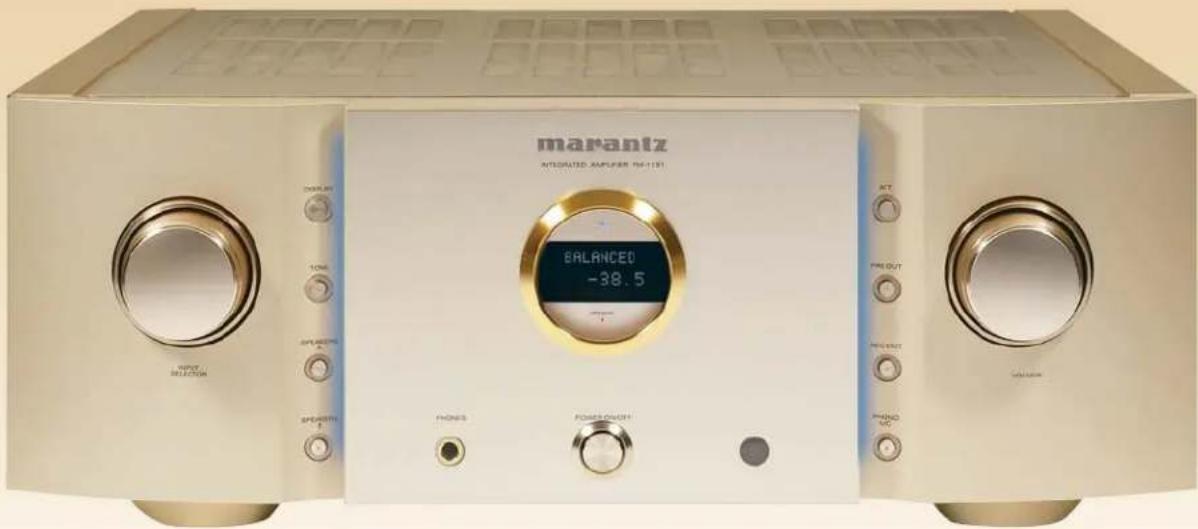

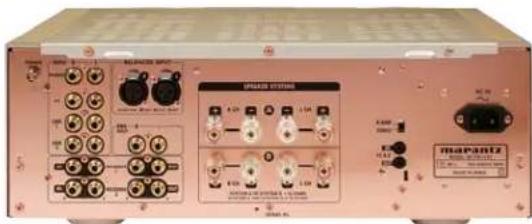

PM-11S1. A ground-up design, the PM-11S1 fulfills the promise of no-compromise sound with the finest wideband sources. It also preserves the simple yet elegant design that has distinguished Marantz for more than half a century. An unequalled array of technology and craftsmanship reside inside the champagne-finished, copper-plated chassis. The PM-11S1's circuitry draws directly from the SC-9S1 precamplifier and MA-9S1 monoblock power amplifier. A toroidal transformer forms the heart of a prodigious multi-segmented power supply that thoroughly isolates each stage and allows the wideband amplifier section to double its output as speaker impedance drops. All inputs and outputs, including the MM/MC phono, are buffered with Marantz's HDAM-SA modules to insure satin-smooth signal transfer. The precision Wolfson WM8816 volume control and WBT speaker terminals merely hint at further refinements. A floating control bus synchronizes multiple PM-11S1s for use in the finest multi-channel music systems.

MAPANTZ SINN 1000

• SC-7S1/MA-S1 Inherited Design
• Massive Hybrid Toroidal Transformer
- Choke Input System Power Supply Circuit
• Fully Balanced Pre-Amplifier Construction
• Dual Mono-block Power Amplifier Construction

• Evolved New HDAM® SA2
• High-precision Liner Volume Control
- Marantz F.C.B.S (Floating Control Bus System) for the Ultimate Multi-Ch Configuration
• Zero Noise LCD Display

marantz SUPER AUDIO COMPUTER SA-T181 SUPER-VINOC 1:1 21:12 Sound AC/DC Power On/off A PULSE

SA-11S1. This is the ultimate music disc player. The SA-11S1 joins other products in Marantz's vaunted Reference Series to fulfill the dream of every music-conscious audiophile: A system that simply passes music from the artist's mind to the listener's ear. The heavy copper-plated chassis damps unwanted mechanical resonances while it shields delicate internal circuits from destructive radio frequency and electromagnetic radiation. The resonance-free disc mechanism provides an ultra-stable platform for both disc and laser optical system. In addition to Marantz's proprietary HDAM-SA signal transfer modules, audio path circuits boast custom-selected and, in some cases, custom-made internal components chosen for their combined contribution to overall signal quality. Output filters, long the downfall of other supposedly "top shelf" players, are custom-configured and individually selectable for both SACD and conventional CD playback. The result? Sound from your treasured CDs approaches that of today's most advanced SACDs!

Back panel of a vintage audio amplifier with labeled components and control buttons

• New Precision Drive Mechanism with vibration Free Stabilizing Plate
  • Accurate Selectable Digital Filters
  • Over-sized Troidal Transformer
• Triple HDAM*/Channel Construction

- PEC (Phase Error Compensation) Circuit to Eliminate the Phase Delay Error

• Gold Plated Solid Brass Terminals

• Zero Noise LCD Display

marantz INTENSATED AMPLIFIER PPT800 OUTPUT SELECTOR VOLUME HDAM TAFE PHOLO 2D TUNER AUX AUX E CO-V/MD TAFE MUTE CO-V/MD POWER CHAP PAKES ST-MOP SPEAKER REC SELECTOR SASS THREELE +ON OFF +ON OFF + +ON OFF +ON OFF + BALANCE

Back panel of a black electronic device with labeled ports, switches, and audio equipment

Front view of a black remote control with keypad and buttons (no visible text or symbols)

PM7200. The Marantz PM7200 Stereo Integrated Amplifier offers music enthusiasts uncompromising audiophile sound quality and flexibility without the high price. It delivers 2 x 95 Watts (RMS into 8 ohms), rising to 155 Watts with 4 ohm speakers. A single push-pull amplifier, symmetrical circuitry with independent heat sinks, anti-resonant, metal front panel and hand selected customized components including HDAM, assures extremely dynamic sound reproduction with accurate tonal and image balance. It also offers 25 Watts of pure Class A operation for distortion-free sound at low volume levels, gold-plated input and output terminals and heavy duty speaker terminals. With full system remote control operation, the PM7200 is the ideal center piece for the true audiophile music system on a budget.

• Output Power 2 x 95 Watts/2 x 25 Watts in Class A Operation
• Linear Drive Power Supply, for Stable but Responsive Power Delivery
- Propriety HDAM in Output Stages for Superb Dynamics and High Slew Rate

• Five Source Inputs, Including MM (Moving Magnet) Phono Input
  • Dual Mono Construction with Separate Solid Heatsinks for Improved Stereo Image
  • High Quality Bass and Treble Tone Controls

• Source Direct Option

• Record Out Selector
  • Two Sets of Speaker Terminals
  • Non-tarnishing Gold Plated Terminals
  • D-BUS (RC-5 In/Out) Remote Connection

• Remote Control Included

marantz TUNER ST8000 N 6:44 FM10 L10 ST-2/2000 ST-2/2000 POWER OUTSTOCK ANTENIX — PM — IF SADD SHORTT — TIMER SET + DIMM — PRESET — UP | FM MODE GND

Back panel of a black electronic device with labeled ports and control buttons, including Chinese text and warning labels.

ST6000. The ST6000 provides legendary Marantz tuning performance. Incorporating a high-sensitivity digitally synthesized tuning section for clear reception and outstanding audio quality, it offers a variety of convenience features that make it ideal for high-performance audio systems and custom installations.

Stereo Receiver/Multi-Zone Control Amplifier

marantz RECOVIER GRASS MULTI-JOS SPEAKERS F14 10:10 DISPLAY VOLUME 800m POWER OUTSTOCK RHOES JOS MODE SPEAKERS S-OBJECT SLIPP MUTE DVD VOR GAS GROUND TAFE OP PHONO TUNER

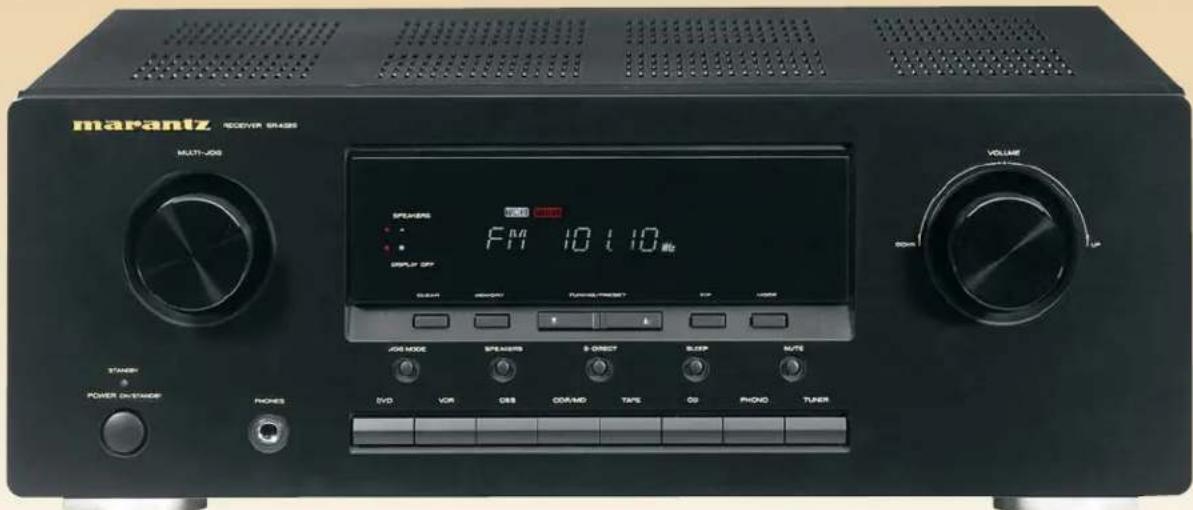

SR4320. A full-featured stereo control center that combines exceptional sound quality with a host of performance and convenience features including remote control operation. The SR4320 provides seven audio inputs including phono to accommodate a variety of music sources, and features a fully discrete amplifier section for clear and powerful sonic performance. This enables it to form the core of a stand alone hi-fi system, but also to be added in to high quality Multi-zone installations.

• 80 Watts x 2 - Discrete Amplifier Stages

• Oversized Power Transformer
  • Heavy Duty Speaker Terminals

• Preamp Outputs/Main-amp Inputs (for the addition of a More Powerful Amplifier - Perfect for Whole House Audio Distribution Systems)
  • Video Inputs for DSS, VCR and DVD

• Video Output for VCR and Monitor
- Speaker Outputs: - A, B, A+B, OFF
• D-BUS (RC-5 In/Out) Remote Connection
• Full Function Remote Control

marantz MULTI ZONE SELECTOR 250000 ZONE 1 INPUT DIRECTION LEVEL MUTE STANDER ZONE 2 INPUT DIRECTION LEVEL MUTE STANDER ZONE 3 INPUT DIRECTION LEVEL MUTE STANDER

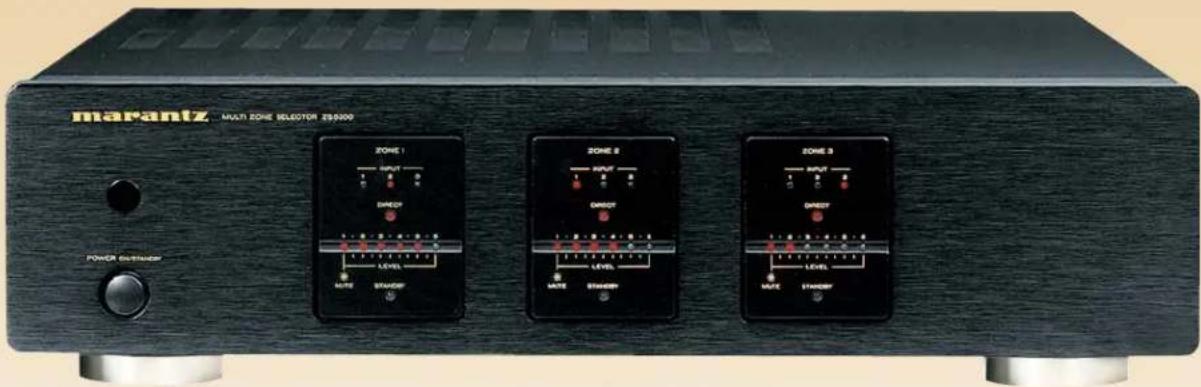

ZS5300. A 6-Channel Multi-Zone Control Amplifier designed specifically for an all-in-one solution to Custom Distributed Audio. When combined with a Marantz AV Receiver and/or other source components (eg. Music Server, CD Player and Cassette Deck), the ZS5300 transforms your main system into a 'Whole House Audio System'. Add another ZS5300 (up to 3) for a total of 9 zones. Ease of use and installation make the ZS5300 one of the most flexible, comprehensive and perfect audio products ever invented. In terms of sound quality, Custom Retailer (N/D, 2003) thought that the ZS5300 "had the speed and clarity" of our old mono-block amplifiers, the MA500's. They also said, "there was a sense of authority that is missing from lesser amps designed for multi-room use."

• 6 x 60 Watts (All Discrete Amplifier Section)
• Identical Amplifier Stages for all 6 Channels
• Matrix Audio Selector
  • Multiple Zone/Source Indicators

• Share the 3 Source Components
• 3 Independent Zones/Rooms
• Major Keypad Compatibility
- Expandable to 9 Independent Zones with Loop Outputs and Selectable 3 IDs
- Party Mode

• Dedicated Pre-out Connection (for the Addition of a High Powered Amplifier such as the MM9340)
• DC Status Trigger Outputs for Keypad
- Local Input/Zone
• D-BUS (RC-5 In/Out) Remote Connection

CAUTION VOUT OF ELECTRIC SHEET DO NOT OPEN AUDIO IN AUDIO OUT CONE DIRECT IN ZONE 3 PNE OUT STATUS OUT ZONE 1 ZONE 0 REMOTE CONTROL IO SEEDITION ZONE 2 ZONE 3 SPEAKERS (MINIMUM & CHASE) ZONE 1 ZONE 2 ZONE 3 SERIAL NO. MATERIAL NO. MODEL NO. ZS6000458 RANGE IN JNAN VOLTAGE SELECTOR HEAVI 20kV ACO 98 WARNING: SHOCK/HAZARD - DO NOT OPEN

marantz SUPER AUDIO CD PLAYER SANSI HDPM 11 21:12 POWER DRINKER POWER DRINKER PLAY STOP II PAUSE OPERATION PICKS LEVEL

MULTI CHANNEL AUDIO OUT SURROUND L R CENTER SUB WOOPER MARANTZ AMERICA, INC. 110G MAPLEWOOD DRIVE TAROCA, IL 90149 MANUFACTURED L R FRONT FILTER STAIN: CUS- LHNU: TUM OPT. COAX. OUT REST. INT. REMOTE CONTROL MODEL NO:SAB280/U1B AC 120V GONE 0.35A MADE IN JAPAN CONTROL WITH FLA ACTION PERFORMANCE WARNING: REACH RAZARE - DO NOT OPEN. AUTO: RAGUE DECHOC ELECTRIQUE - ME PAS OUTRUN. SERIAL No. WARNING: DROCK RAZARE - DO NOT OPEN. AUTO: RAGUE DECHOC ELECTRIQUE - ME PAS OUTRUN.

RECOMMENDED "CLASS A" BY STEREOPHILE MAGAZINE (APRIL 2004)

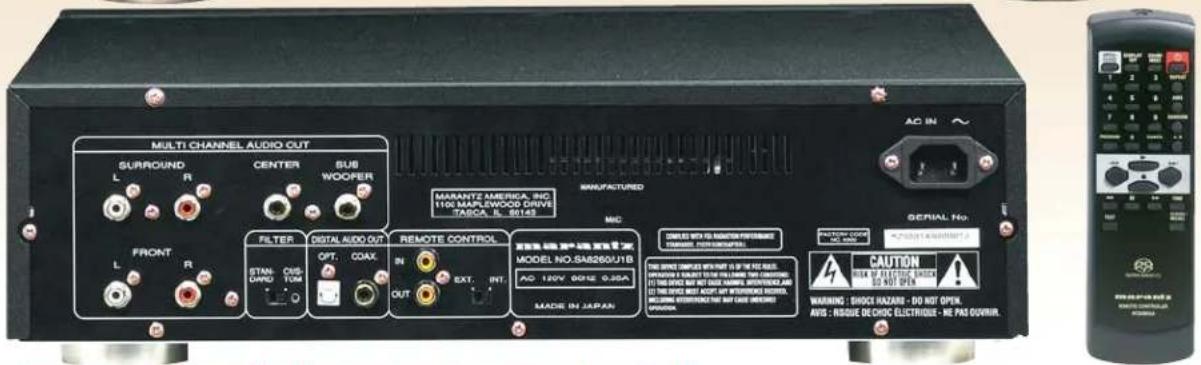

SA8260. Marantz proudly presents a triumphant achievement: the remarkable SA8260 Super Audio CD player. By incorporating our vast knowledge with the development of the SA-1, SA-12S1, SA-14, and SA-14v.2 SACD players, Marantz is now able to deliver the depth, dynamics and sonic accuracy at a remarkable new price. Reflecting the success of the highly acclaimed CD-63SE, the SA8260 is destined to be the next legend.

SIPAR AUDIO CD

• Plays Back: SACD-Stereo/Multi-Channel, CD, CD-R/RW Discs

• Marantz Original High Accuracy SACD Drive Module
  • CS4397 DACs by Cirrus Logic®

• Current Feed Back HDAM Circuits for All Analog Audio Outputs
  • Audiophile Grade Capacitors
  • Double Layered Chassis Construction

• "Zero Impedance" Copper Ground Plate for Analog Output Terminals
  • Gold Plated Terminals
  • D-BUS (RC-5 In/Out) Remote Connection

marantz CD PLAYER CD5400 1:56 10 21:12 TIME SOUT PEAS DISPLAY OFF OPEN/CLOSE PLAY STOP PAUSE POWER OUTDOOR

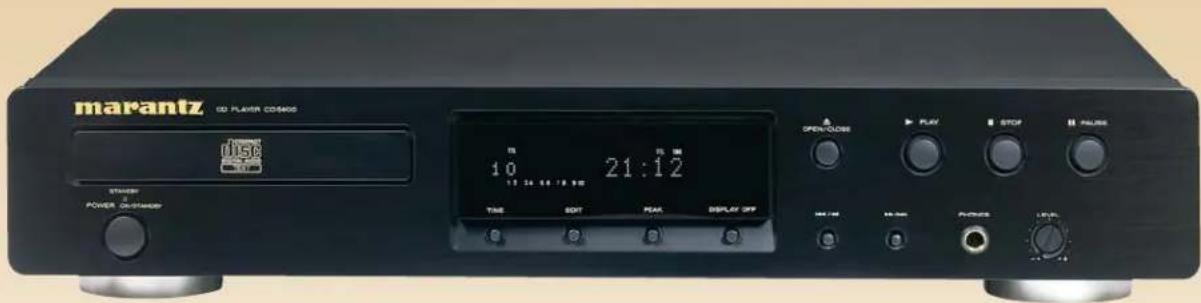

CD5400. If budget audiophilic sound quality is what you're looking for, then the Marantz CD5400 is the ideal CD player to upgrade your system. It combines our latest CD transport mechanism for superb CD playback with customized components such as state of the art digital-to-analog converters improved detail, imaging and sound stage. The CD5400 also features the ability to playback CD-R and CD-RW discs and displays CD-Text information such as artist name, and track titles. A choice of gold plated outputs, including coaxial digital, guarantees the best connection to your system. Also included is a dedicated remote control.

• Plays Back; CD, CD-R/RW Discs
• CD Text Compatible
  • Variety of Programming Options
  • Random and Repeat Functions

• Pitch Control
  • High Quality Headphone Jack

• Convenient Record Functions Such as Peak Search and Track Edit
  • Optical and Coaxial Digital Output

• Remote Control Included
  • D-BUS (RC-5 In/Out)
  Remote Connection

Close-up of a single acoustic guitar with visible fret lines and keyway (no text or symbols)

marantz 800 CD CHANGER CC4300 OPEN-CLOSE 1 2 3 4 5 DISC DISC COMMER POWER ON/OFFER INT 1.000 TIME PROGRAM DELETE HINO 1 2 6 4 5 12 242 REPEAT P-TE 242 PHONES LEVEL

CC4300. The CC4300 incorporates premium Marantz parts and construction, to deliver uncompromising audio performance - rivaling more expensive single-disc players. Featuring high quality optics, audiophile-grade internal components and strengthened mechanical construction, the CC4300 offers the best of both worlds - pure high-end audio clarity and the convenience of multi-disc playback. If system integration is important, then the CC4300 is for you. It features a RS232C terminal as well as discrete commands for flawless operation.

• 1-Bit 8 Times Oversampling DACs
• Dedicated "Changer" Mechanism
• Random and Repeat Modes

• Exchange 4 Discs While a 5th Disc is Playing
• RS232C Terminal for System Control (1-Way)
• Optical and Coaxial Digital Output

• High Quality Headphone Jack
• D-BUS (RC-5 In/Out)

Remote Connection

CAUTION RIVER OF ELECTRIC SWITCH BE NOT OPEN MATERIALS, INC., COORDING AFTER NO. 2007, BONE, USA MARRANTZ AMERICA, INC. 1600 MAX. EVOCED DRIVE ITASCA, IL 85143 MADE IN CHINA UNITED CORNER THE CORNADO ELECTRIC QUIPMENT WARNING - SHOCK HAZARD - DO NOT OPEN. BUTS - MANNER OF COLD ELECTRIC - BY PAS OLIVIR SERIAL NO. DESIGNED AND ENPIERED BY RARRANTZ JAPAN INC. MANUFACTURING

Compatible

marantz CASSETTE DECK SO40S COOPER LEFT 2H2 COOPER LEFT DUBBING SPEED SIMO KEY MODERN MINI RED LEVEL PAGE AUTO REVERSE AUTO TARE SLEEP / HIGH SPEED SABBING STOP PLAY STOP PLAY AUTO REVERSE AUTO TARE SLEEP / HIGH SPEED SABBING POWER DUOFF EJECT RICH CONTROLS POCKES EJECT RE-COUNT

SD4050.

• Autoreverse Twin-deck Design Allows Continuous Play and Record (Deck B) from One Loaded Tape to Another
• Super-Hard Permalloy Heads and Anti-resonant Front Panel Ensure Faithful Reproduction with Wide Dynamic Range and Minimal Wow and Flutter
• Peak Level Read-out, Fine Bias Tuning and Syncro Start of Tape and CD Ensure Accurate and Professional Style Home Recordings

• One-touch Dubbing with Hi-speed Option
• Dolby B/C Noise Reduction and Dolby HX-Pro for Low Noise and Extended High Frequency Respon
- Manual Recording Level Allows User Adjustment
- Pitch Control for Changing Key and Tempo
- Timer Option for Unattended Recording

by HXC Noise Reduction and by HX-Pro for Low Noise and ended High Frequency Response ual Recording Level Allows User stment on Control for Changing Key and po er Option for Unattended ording

With the vast array of home theater and custom products being specified into a diverse mix of complex installations, the need for flexible, powerful, reliable multi-channel amplifiers has never been greater. Marantz rises to the occasion with two power amplifiers, the MM9360 and the MM9340. Utilizing state of the art, high-speed MOSFET designs with spectrum spread switching technology, Marantz has created a pair of multi-channel power amps that provide power, up to 5 times more efficient than convention class A or AB amps. This efficiency means reduced heat (waste) that instead is transformed into clean, stable, musical power, designed to drive virtually any speaker system available today.

marantz CIG POWER AMPLIATED MACHS Manufactured in the USA by Ashly Audio Incorporated Stereo Mode: 1200V/3Hz - 0 Ohms 250V/3Hz - 4 Ohms Bridge Mode: 900V/600V - 0 Ohms Bridge Mode: Tube Output From Type to Format Do Not Connect Other-Input Ware To Grunt. Ch1 Ch2 Ch3 Ch4 Ch5 Ch6 115V or 250V 30000 14000 Reverse Only With Stereo Type Power Ruler To Denser / Differential Full Power Power/Rating CAUTION Bridge Bridge Bridge (+) (+) Ch1 Ch2 Ch3 (+) (+) (+) (+) Ch4 Ch5 (+) (+) (+) Ch6 (+)

Two black metal bracket panels with mounting holes, shown side by side (no text or symbols visible)

RM9360 - Optional Rack mount kit, available for either the MM9360 or the MM9340

MM9360.

• All Discrete Amplifier Design
  • Massive Toroidal Power Transformer
  • MOSFET High Speed Output Devices
• 150 Watts (Continuous) x 6-All Channels Driven Simultaneously into 8 ohms
• 250 Watts (Continuous) x 6-All Channels Driven Simultaneously into 4 ohms

• Bridged Mono Mode
- 500 Watts (Continuous) x 3-All Channels Driven Simultaneously into 8 ohms
- Flexible Output Configurations
- Rack Mountable
- "Zero" Top/Bottom Clearance Design
• Gold Plated RCA Inputs

• XLR Inputs
• RC-5 Jacks
  • 12 Volt DC Triggers
• 5-Way Binding Posts
  • Home Theater/Custom Install Ready
• Designed and Built in the United States

• All Discrete Amplifier Design
  • Massive Toroidal Power Transformer
  • MOSFET High Speed Output Devices
  • 275 Watts (Continuous) x 4-All Channels Driven Simultaneously into 8 ohms
• 400 Watts (Continuous) x 4-All Channels Driven Simultaneously into 4 ohms

• Bridged Mono Mode
- 800 Watts (Continuous) x 2-All Channels Driven Simultaneously into 8 ohms
- Flexible Output Configurations
- Rack Mountable
- "Zero" Top/Bottom Clearance Design
• Gold Plated RCA Inputs

• XLR Inputs
  • RC-5 Jacks
  • 12 Volt DC Triggers
  • 5-Way Binding Posts
  • Home Theater/Custom Install Ready
  • Designed and Built in the United States

PD6140D ACCESSORIES

Metal bar with two side supports and a central horizontal bar (no text or symbols)

AS6140 Accessory Stand for PD6140D

Black rectangular electronic device casing with ventilation slots and mounting holes (no visible text or symbols)

WB6100 Tilting Wall Mount Bracket for PD6140D

Black rectangular electronic device with ventilation slots and mounting holes (no visible text or symbols)

WB6200 Flush Wall Mount Bracket for PD6140D

PD5050D/PD4250D/PD4230V ACCESSORIES

Black rectangular panel with two side panels, each containing a white interior and small holes (no text or symbols visible)

WB5400 Flush Wall Mount Bracket for PD5050V/PD4250v/PD4230v

Black plastic enclosure with cutouts and mounting holes (no text or symbols visible)

WB4000 Tilting Wall Mount Bracket for PD5050V/PD4250V/PD4230V

Black metal-framed display stand with two vertical supports and a central rectangular frame (no text or symbols visible)

AS5400 Accessory Stand for PD5050V/PD4250V/PD4230V

AJ8300 RS-232 CABLE FOR MV8300

Coiled black cable with a USB port connector (no text or symbols visible)

VP-10S1/VP-12S4 ACCESSORIES

MOUNT12

Ceiling Mount Bracket for VP-12S4

MOUNT10 Ceiling Mount Bracket for VP-10S1

Exterior view of a white plastic electronic device casing with mounting holes and internal slots (no text or symbols visible)

EXT10 Extension Rod for MOUNT 10 Ceiling Bracket

Two vertical metal structural beams with mounting holes, one labeled 'Ceiling Bracket' (no other text or symbols visible)

EXT81 Extension Rod for MOUNT 12 Ceiling Bracket
VQ2400 HD COMPATIBLE VIDEO UP CONVERTER WITH TBC

This groundbreaking product was designed to make every home theater a lot less complicated. To use, simply connect the Composite Video, S-Video, and/or Component Video outputs from your existing receiver/preamp to the corresponding inputs on the VQ2400 and then connect one cable from the Component Video output on the VQ2400 to your display device. Power it with the included 12 volt power supply and the VQ2400 will seamlessly "upconvert" all the signals to component level, eliminating the need to run multiple cables from your equipment rack to the video display. From then on, you will never need to switch inputs on your display device again. It's that easy and it is compatible with virtually any Receiver/Pre Amp available, regardless of brand. The VQ2400 also incorporates Time Based Correction for compatibility with fixed pixel devices such as plasma displays and DLP projectors.

marantz VIDEO L-MOTO T G1 G2

OUTPUT T Cr Cd +170dB

AV Receivers

SR9600 SR8500 SR7500 SR5500 SR4500

FEATURES
MULTICHANNEL/SURROUND

Number of Channels	7	7	7	7	7
THX	Ultra 2	Select	Select	-	-
DTS (ES, Discrete 6.1/ Matrix 6.1, Neo-6)	(+96/24)	(+96/24)	(-96/24)	(+96/24)	(+96/24)
Dolby Digital EX
Dolby Pro Logic Hx
Circle Surround II
SOUND ENHANCEMENTS
HDCD Decoder			-	-	-
Current Feedback Topology
Discrete Amplification	(All 7ch)	(All 7ch)	(All 7ch)	(All 7ch)	X (All 7ch)
Power Transformer	Toroidal	Toroidal	EI	EI	EI
D/A Conversion	192kHz/24-Bir	192kHz/24-Bir	192kHz/24-Bir	192kHz/24-Bir	192kHz/24-Bir
Digital Signal Processing	Cirrus Logic* Dual 32-Bit	Cirrus Logic* 32-Bit	Cirrus Logic* 32-Bit	Cirrus Logic* 32-Bit	Cirrus Logic* 32-Bit
Video Off
Source Direct
Chassis	Copper Placed with Double Bottom Plate	Copper Placed with Double Bottom Plate	Metal	Metal	Metal
Variable X-over
Display Off
Video Up-conversion	Up to Component with TBC	Up to Component with TBC	Up to Component with TBC	Up to Component	Up to S-Video
M.R.A.C. (Marantz Room Acoustic Calibration)				-	-
Dual AM/FM Tuner		-	-	-	-
Bass Management		-	-	-	-
Lip-sync (digital Audio Delay)					-
Software Upgradeable (RS232)				-	-

IN/OUTPUTS

VIDEO
HDMI In	2	2 (DVI)	-	-	-
Component In	4 (Assignable Inputs)	4	4	2 (Assignable Inputs)	2
S-Video In	7	5	5	5	3
Composite In	7	5	5	5	4
HDMI Out	1	1 (DVI)	-	-	-
Component Out	2	1	1	1	1
S-Video Out	4	3	3	3	2
Composite Out	6	4	4	3	3
AUDIO
Analog L&R In	10	8	8	8	7
Analog L&R Out	6	5	5	5	4
Digital Optical In	5	4	4	2	2
Digital Coaxial In	4	3	3	2	2
Digital Optical Out	1	1	1	1	1
Digital Coaxial Out	1	1	1	1	1
IEEE1394 Connection	2		-	-	-
OTHER
Pre-Amplifier Out	8ch	8ch	8ch	8ch	8ch
Main Amplifier In	8ch	-	-	-	-
Multi-Channel In	8ch	8ch	8ch	8ch	8ch
Multi-Room Audio Out	2 (L&R)	1 (L&R)	1 (L&R)	1 (L&R)	-
Multi-Room Video Out	2 (Composite)	1 (Composite)	1 (Composite)	-	-
Multi-Room Speaker Out	●	●	●	●	-
Speaker A/B	●	●	●	-	Surround Speaker "B"
Extruct Control (RS232C)	●	●	●	●	-
DC Triggers	4	2	2	1	-
D-Bus Remote (RC-5) In/Out	2 / 2	2 / 2	2 / 2	2/2	1/1
External IR In/Out	2 / 4 (Flasher & Emitter In/Emitter Out)	2/- (Flasher Input)	2/- (Flasher Input)	-	-
Front Panel A/V Inputs	● (+ Digital Opr.)	● (+ Digital Opr.)	● (+ Digital Opr.)	●	-
Headphone Out	● (Dolby Headphone)	● (Dolby Headphone)	● (Dolby Headphone)	● (Dolby Headphone)	● (SRS TruSurround Headphone)
AC Outlets (Switched/Unswitched)	1/1	1/1	1/1	1/1	1/1

SPECIFICATIONS

AUDIO SECTION
Power Output (8 Ohm)	140W x 7(<0.08%, 20Hz - 20kHz/THD)	125W x 7(<0.08%, 20Hz - 20kHz/THD)	105W x 7(<0.08%, 20Hz - 20kHz/THD)	90W x 7(<0.08%, 20Hz - 20kHz/THD)	80W x 7(<0.08%, 20Hz - 20kHz/THD)
S/N Ratio	105dB	105dB	105dB	105dB	105dB
Freq. Response (Analog In)	8Hz - 100kHz (+/- 3 dB)	8Hz - 100kHz (+/- 3 dB)	8Hz - 100kHz (+/- 3 dB)	8Hz - 100kHz (+/- 3 dB)	8Hz - 100kHz (+/- 3 dB)
Freq. Response (Dig In)	8Hz - 45kHz (+/- 3 dB)	8Hz - 45kHz (+/- 3 dB)	8Hz - 45kHz (+/- 3 dB)	8Hz - 45kHz (+/- 3 dB)	8Hz - 45kHz (+/- 3 dB)
TUNER SECTION FM
Frequency Range	87.5 - 108.0MHz	87.5 - 108.0MHz	87.5 - 108.0MHz	87.5 - 108.0MHz	87.5 - 108.0MHz
S/N Ratio (Mono/Stereo)	Mono/Stereo 75/70 dB	Mono/Stereo 75/70 dB	Mono/Stereo 75/70 dB	Mono/Stereo 75/70 dB	Mono/Stereo 75/70 dB
TUNER SECTION AM
Frequency Range	520 - 1710kHz	520 - 1710kHz	520 - 1710kHz	520 - 1710kHz	520 - 1710kHz
S/N Ratio	50 dB	50 dB	50 dB	50dB	50 dB
VIDEO SECTION
Video Freq. Response (Component)	5Hz - 80MHz (- 1 dB)	5Hz - 80MHz (- 1 dB)	5Hz - 80MHz (- 1 dB)	5Hz - 80MHz (- 1 dB)	5Hz - 80MHz (- 1 dB)
Video Freq. Response (Composite, S-Video)	5Hz - 8MHz (- 1 dB)	5Hz - 8MHz (- 1 dB)	5Hz - 8MHz (- 1 dB)	5Hz - 8MHz (- 1 dB)	5Hz - 8MHz (- 1 dB)
Signal to Noise	60dB	60dB	60dB	60dB	60dB

GENERAL

Color	Black	Black	Black	Black	Black
Front Panel	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Remote Control	Programmable Teach Screen LCD RC3200	Learning Pre-coded with LCD RC8500SR	Learning Pre-coded with LCD RC8500SR	Pre-Gobal System Remote RC5500SR	Pre-Gobal System Remote RC5500SR
Power Requirement	AC 120V/60Hz	AC 120V/60Hz	AC 120V/60Hz	AC 120V/60Hz	AC 120V/60Hz
Power Consumption	780W	700W	680W	450W	314W
Dimensions W x H x D (Inches)	1712 " x 812 " x 1912 "	1712 " x 712 " x 1812 "	1712 " x 712 " x 1812 "	1712 x 612 " x 1812 "	1712 x 612 " x 1512 "
Weight (lbs.)	57.3	33.1	32.6	28.7	26.5

DVD/High Definition VCR

DVD Players

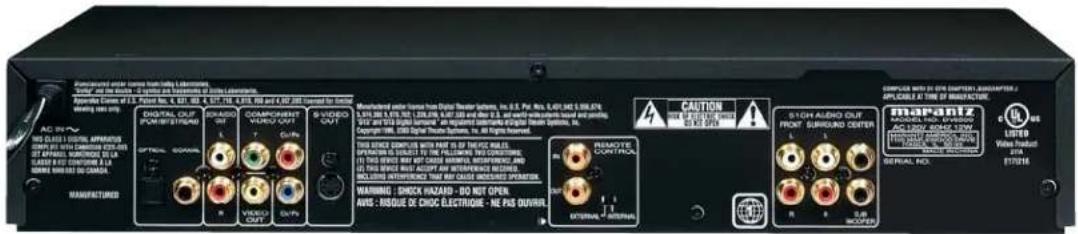

DV9500 DV7600 DV6500 DV4500 VC5400
FEATURES

DTS Decoder	(96/24)
Dolby Digital Decoder	(+ Dolby Headphone)
Disc Capacity	1	1	1	1	5
Progressive Scan
3.2 Pulldown
Playback Formats	DVD-V, DVD-A, SACD-Multi,SACD-Stereo, DVD-R/RW, SVCD,VCD, CD, CD-R/RW, MP3, JPEG	DVD-V, DVD-A, SACD-Multi,SACD-Stereo, DVD-R/RW, SVCD,VCD, CD, CD-R/RW, MP3, JPEG	DVD-V, DVD-A, SACD-Multi,SACD-Stereo, DVD-R/RW, VCD,CD, CD-R/RW, MP3, WMA, JPEG	DVD-V, DVD-A,SACD-Multi,SACD-Stereo, DVD-R/RW, VCD,CD, CD-R/RW, MP3, WMA, JPEG	DVD-V, DVD-A, DVD-R/RW, SVCD,VCD, DCD, CD, CD-R/RW,MP3, WMA, JPEG
Video DAC	216MHz/14-Bit	216MHz/12-Bit	54MHz/10-Bit	54MHz/10-Bit	54MHz/10-Bit
Audio DAC	192kHz/24-Bit	192kHz/24-Bit	192kHz/24-Bit	192kHz/24-Bit	192kHz/24-Bit
HDAM
Video Circuit Off
Display On/OFF
Power Transformer	EI	EI	EI	EI	EI
Gold Plated Terminals
Chassis	Metal	Metal	Metal	Metal	Metal
Zero Impedance Plate
Double Layered Bottom Plates
Front Panel Cursor Keys
Video Scaler
Bass Management
Lip Sync (Digital audio delay)
Separate Power Supply for Audio

INPUTS/OUTPUTS

VIDEO
HDMI Out	1	1	-	-	-
Component Our	1	1	1	1	1
S-Video Our	1	1	1	1	1
Composite Out	2	2	1	1	1
AUDIO
Analog Out (RCA)	1	1	1	1	1
5.1ch Analog Out	1	1	1	1	1
Optical Digital Out	1	1	1	1	1
Coaxial Digital Out	1	1	1	1	-
OTHERS
External Control (RS232C)	●	●	-	-	●
D-Bus Remote (RC-5) In/Our	1 / 1	1 / 1	1 / 1	1 / 1	1 / 1

SPECIFICATIONS

Freq. Response (Digital Audio)	41Hz - 88kHz(DVD-Audio, fs: 192kHz)	41Hz - 88kHz(DVD-Audio, fs: 192kHz)	41Hz - 88kHz(DVD-Audio, fs: 192kHz)	41Hz - 88kHz(DVD-Audio, fs: 192kHz)	41Hz - 88kHz(DVD-Audio, fs: 192kHz)
S/N Ratio	130 dB	125 dB	115 dB	115 dB	100 dB
Dynamic Range	110 dB	110 dB	100 dB	100 dB	100 dB
THD (1kHz)	0.0008%	0.0012%	0.0045%	0.0045%	0.008%

GENERAL

Color	Black	Black	Black	Black	Black
Front Panel	Aluminum	Aluminum	Aluminum	Aluminum	Brushed Plastic
Remote Control	RC8500DV	RC7600DV	RC6500DV	RC6500DV	RC5400VC
Power Requirements	AC120V 60Hz	AC120V 60Hz	AC120V 60Hz	AC120V 60Hz	AC120V 60Hz
Power Consumption	29W	29W	12W	10W	14W
Dimensions W x H x D (Inches)	17^ " x 4^ " x 15^ "	17^ " x 3^ " x 12^	17^ " x 2^ " x 8^ "	17^ " x 2^ " x 8^ "	17^ " x 4^ " x 16^ "
Weight (lbs.)	18.7	9.9	4.9	4.9	11.4

Digital VHS MV8300 High Definition Video Recorder

FEATURES

D-Theater Comparable	●
D-VHS (HD) Recording	●
S-VHS ET Recording	●
Video Output Modes	480i, 480p, 720p, 1080i
Recording Modes (D-VHS)	HS, STD, LS3, LS5
Channel Coverage	Air. 2 - 69 ch, CATV: 1 - 125 ch
VCR Plus Programming	●
Video Navigation	●
Auto Channel Program	●
Auto Clock Setting	●
OSD Menu	●

IN/OUTPUTS

VIDEO
S-Video In	3
Composite In	3
Component Out	1
S-Video Out	2
Composite Out	2
OTHERS
i-Link Connection	2
Antenna In	1
Antenna Out	1
RS-232C	1

SPECIFICATIONS
VIDEO/AUDIO SECTION (D-VHS)

Video Format	MPEG-2 Standard
Audio Format	Encode: MPEG 1 Layer 2Decode: MPEG1 Layer 2,Delby Digital, Liner PCM
Main Data Input Rate	28.2 Mbps (HS Mode)14.1 Mbps (STD Mode)4.7 Mbps (LS3 Mode)2.8 Mbps (LS5 Mode)

VIDEO/AUDIO

SECTION (VIIIS/S-VIIS)

Format	NTSC Standard
Resolution (S-VHS / VHS)	400 / 230 Lines
Audio Frequency Response	20Hz to 20kHz
Audio S/N Ratio	45 dB

GENERAL

Color	Black
Front Panel	Smoked Acrylic
Remote Control	Pre-Coded System Remote RC8300MV
Power Requirements	AC 120V 60Hz
Power Consumption	42W
Dimension
W x H x D (Inches)	17^1/8 × 3^5/8 × 15^1/8
Weight (lbs.)	12.2

DVD Receiver ER2500

FEATURES

Number of Channels	7
DTS (ES, Discrete 6.1/Matrix 6.1, Neo-6)	●
Dolby Digital EX	●
Dolby Pro Logic 11x	●
Progressive Scan	●
3:2 Pulldown	●
Playback Formats	DVD-V, DVD-R/RWSVCD, VCD, CD,CD-R/RW, MP3,WMA, JPFG
Video DAC	54MHz/10-Bit
Audio DAC	192kHz/24-Bit
Easy Speaker Setup	●
NTSC - PAL Conversion	●
Color Coded Speaker Terminals	●
Sleep Timer	●
Preset Station Memory	30
Chassis	Metal

IN/OUTPUTS

AUDIO
Analog L&R In	3
Digital Optical In	1
Digital Coaxial In	1
Analog L&R Out	2
Digital Optical Out	1
Digital Coaxial Out	-
Phone In	-
Headphone Out	●
VIDEO
S-Video In	-
Composite In	2
Component Out	1
S-Video Out	1
Composite Out	1

AUDIO SECTION

Power Output (8 ohms)	100W x7
Frequency Response (1/- 3dB)	20Hz - 22kHz
THD (20 Hz - 20 kHz, 8 ohms)	< 0.1%
S/N Ratio	80 dB
TUNER SECTION FM
Frequency Range	87.5 - 108.0MHz
S/N Ratio (Mono/Stereo)	70/70 dB
Distortion (Mono/Stereo)	0.3/0.3 %
Stereo Separation	40 dB (1kHz)
TUNER SECTION AM
Frequency Range	520 - 1710kHz
Distortion	2%
S/N Ratio	35 dB

GENERAL

Color	Silver
Front Panel	Brushed Acrylic
Remote Control	System Remote RC2500ER
Power Requirements	AC 120 V, 60Hz
Power Consumption	155W
Dimension
W x H x D (Inches)	1618 " x 2110 " x 1412 "
Weight (lbs.)	12.1

Remotes/Tuners/Home System

Remotes
RC9500 RC5400 RC3200 RC1400
FEATURES

IR/RF Transmission Capability	• / •	• / •	• / -	• / -
Pre-Programmed	• (Marantz IR Codes)	X (Marantz IR Codes)	X (Marantz IR codes)	X (Marantz and Major Modulactics)
Touch Screen LCD	•	•	•	-
LCD Type	Color	B&W	B&W	B&W - Semi Dot Matrix
LCD Backlight	White	Blue	Blue	Blue
Programmable Macro Command	•	•	•	•
Programmable Timer	•	-	-	•
Software Upgradeable	•	•	•	-
Non-Volatile Flash Memory	•	•	•	•
Edit Software	• (Wirz.it 9)	• (Wirz.it)	• (RC3200 Setup)	-
PC Connection	USB	USB	Serial	-
Battery	Rechargeable	Rechargeable	Dry-cell	Dry-cell

SPECIFICATIONS

LCD Size (W x H)	2[3]n × 3[3]n	2[4]n × 3[4]n	1[3]n × 2[3]n	1[3]n × 1[3]n
LCD Resolution	240 x 320	240 x 320	100 x 160	-
Color/Gray Scale	64k Color	16 Gray Scales	4 Gray Scales	Black & White
Memory Size	16MB	8MB	1MB	512kB
IR Operating Distance	33ft	33ft	33ft	24ft
RF Operating Distance	66ft	66ft	-	-
RF Frequency Range	418MHz	418MHz	-	-

ACCESSORIES

Recharging Dock Station	●	●	●	-
PC Connection Cable	●	●	●	-
Ni-MH Rechargeable Battery	●	●	-	-
AC Power Adapter	●	●	-	-
RX-77 RF Extender	(Option)	(Option)	-	-

GENERAL

Color	Black Metallic	Silver	Dark Silver	Light Grey
Dimensions W x H x L (Inches)	3^10 × 6" × 1^10	3^10 × 6" × W_u	3^10 × 6" × 1^10	2^10 × 8^10 × 1^10
Weight (oz.)	10.6 (With Battery)	10.6 (With Battery)	10.6 (With Battery)	6.1

Cassette Deck SD4050
FEATURES

Transport	2
Auto Reverse	●
DC Servo Control	●
Super-Hard Permalloy Head	●
2-Speed Syncro Reverse Dubbing	●
Automatic Tape Selector	●
Dolby HX-Pro	●
Noise Reduction	Dolby B & C
Quick Music Search	●
Auto Continuos Play	●
Timer Record & Play	●

IN/OUTPUTS

AUDIO
Analog L&R In (Line In)	1
Analog L&R Out (Line Out)	1
Headphone Out	1

SPECIFICATIONS

AUDIO SECTION
S/N Ratio	74 dB (3% THD)
Recording Bias	100kHz
Frequency Response (+/- 3 dB)	25Hz - 18kHz
Channel Separation	40 dB
Wow & Flutter	< 0.09%

GENERAL

Color	Black
Front Panel	Brushed Plastic
Remote Control	RC45551D
Power Requirements	AC 120V 60Hz
Power Consumption	16W
Dimension W x H x D (Inches)	1712 ," x 4712 "," x 1112 ","
Weight (lbs.)	8.8

Multi-Zone Control Amplifier ZS5300
FEATURES
SPECIFICATIONS

Number of Channels	6 (Stereo x 3)
Output Power/Channel (6 ohm)	60W
Power Transformer	R-Core
Compact Class-D Amplifier	●
Discrete Amplifier Stage	●
Matrix Source Switcher	●
Common Input Source	3
Direct Input/Zone	1
Zone Expandable Connection	●
Global Control Function	●
Majority Keypads Compatibility	●
Dual Voltage Capability	●

IN/OUTPUTS

AUDIO
Analog L&R In (Common Source)	3
Analog L&R In (Zone Direct)	3
Analog L&R Out	3
Pre Amplifier L&R Out	1 (Zone-3)
Speaker Out	3
OTILERS
D-Bus Remote (RC-5) In/Out	3
External Control In (Flasher In)	1
Status Out (DC 12V)	3

Stereo Receiver SR4230
FEATURES
SPECIFICATIONS

Number of Channels	2
Discrete Amplifier Stage	●
Power Transformer	11
Speaker A/B	●
Tone Control (Base/Trouble)	●
Preset Station Memory	30
Chassis	Metal

IN/OUTPUTS

AUDIO
Analog I&R In	7
Analog I&R Our	3
Pre Amplifier Out	●
Main Amplifier In	●
Phone In	●
Headphone Our	●
VIDEO
Composite In	3
Composite Out	2
OTHER
D-Bus Remote (RC-5) In/Out	1/1
AC Outlets (Switched/Unswitched)	1/1

AUDIO SECTION

Power Output (8 ohms)	80W x2
Frequency Response (+/- 3 dB)	201Hz - 20kHz
THD (20Hz - 20kHz, 8 ohms)	< 0.08%
S/N Ratio	95 dB
TUNER SECTION FM
Frequency Range	87.5 - 108.0MHz
S/N Ratio (Mono/Stereo)	70/65 dB
Distortion (Mono/Stereo)	0.2/0.3 %
Stereo Separation	40 dB (1kHz)
TUNER SECTION AM
Frequency Range	520 - 1710kHz
Usable Sensitivity	1. loop 400 _V
S/N Ratio	50 dB

GENERAL

Color	Black
Front Panel	Brushed Plastic
Remote Control	Device Remote RCA320SR
Power Requirements	AC 120 V, 60Hz
Power Consumption	220 W
Dimension W x H x D (Inches)	17^1/2 × 6^1/2 × 14^1/2
Weight (lbs.)	18.5

Tuners
ST-17 (Ref.) ST6000
FEATURES

Gyro-Touch Tuning	●
Dual Gate MOSFET	●	●
High Alternate Channel Selectivity	●	●
HDAM	●
Chassis	Metal	Metal
Customized Components	●
Preset Station Memory	60	60
Station Naming	●	●
Sleep Timer	●	●

IN/OUTPUTS

AUDIO
Analog L&R OUT	1	1
D-Bus remote (RC-5) In'Out	●	●
FM Antenna	A/B	A/B
AM Antenna	●	●

SPECIFICATIONS
TUNER SECTION FM

Frequency Range	87.5 - 108.0MHz	87.5 - 108.0MHz
S/N Ratio (Mono/Stereo)	80/73 dB	80/75 dB
Distortion (Mono/Stereo)	0.05/0.08 %	0.08/0.15 %
Selectivity (Wide/Narrow)	55/70 dB	65/85 dB
Usable Sensitivity	1.0 _V	1.2 _V
Stereo Separation	55 dB	50 dB
TUNER SECTION AM
Frequency Range	520 - 1710kHz	520 - 1710kHz
S/N Ratio	52 dB	50 dB
Distortion	0.2 % (1kHz)	1.0 % (1kHz)
Sensitivity	35 dB	50dB

GENERAL

Color	Gold	Black
Front Panel	Aluminum	Aluminum
Remote Control	Device Remote RC-17ST	Device Remote ROC000ST
Power Requirements	AC 120V 60Hz	AC 120V 60Hz
Power Consumption	8.5W	7.5W
Dimension W x H x D (Inches)	18N" x 31⁄2" x 12 N"	17N" x 31⁄2" x 121⁄2"
Weight (lbs.)	15	8.4

Amplifier/SACD/CD

Control/Integrated Amps SC-7S1 (Ref.) PM-11S1 (Ref.) PM7200
FEATURES

Number of Channels	2	2	2
Output Power/Channel (20Hz - 20kHz) @ 8Ω	1.7V	100W	95W/25W (Class AB/ Class A)
HDAM	(HDAM SA)	(HDAM SA2)	●
Power Transformer	Toroidal	Toroidal	EI
Discrete Amplifier Stage	●	●	●
Individual Level Adjust	●	●	-
Tone Control	-	●	●
Phono Input	-	(MM/MC)	(MM)
Source Direct	●	●	●
Speaker A/B	●	●	●

IN/OUTPUTS

AUDIO
Analog L&R In	1/3 (Balanced/Unbalanced)	1/4 (Balanced/Unbalanced)	7
Main Channel Amp In	-	-	●
Bridge Mono Mode	● (Bi-Ampnock)	-	-
Analog L&R Out	2/1/1(Balanced/Unbalanced/Roc Out)	3	2
Headphone Out	-	●	●
OTHERS
D-Bus Remote (RC-5) In/Out	Marantz Floating Control Bus	Marantz Floating Control Bus	1/1
External Control (RS232C)	-	-	-
AC Outlets (Switched/Unswitched)	- / -	- / -	3/0

SPECIFICATIONS

THD (20Hz - 20kHz, 8Ω)	0.0015% (Balanced)	0.01%	0.03%
Input Sensitivity/Impedance	420mV/20kΩ	240mV/20kΩ	150mV/40kΩ
Frequency Response	3Hz - 150kHz (+0, -3 dB)	5Hz - 120kHz (-/- 3 dB)	10Hz - 50kHz
S/N Ratio	105 dB (Unbalanced)	95 dB (C/D, Line)	88dB

GENERAL

Color	Gold	Gold	Black
Front panel	Aluminum	Aluminum	Aluminum
Remote Control	Aluminum Top RC-7S1SC	Aluminum Top RC-11S1PM	RC8000PM
Power Requirement	AC 120V 60Hz	AC 120V 60Hz	AC 120V 60Hz
Power Consumption	18W	380W	250W
Dimensions (Inches) W x H x D	18'' × 7' × 1712''	1712'' × 612'' × 17' 14''	1712'' × 612'' × 1414''
Weight (lbs.)	46.3	57.2	27.1

Power

Amplifiers
MA-9S1 (Ref.) MM9360 MM9340
FEATURES

Number of Channels	1	6	4
Output Power/Channel (20Hz - 20kHz) @ 8Ω	300W	150W	275W
HDAM	• (HDAM SA)	-	-
Power Transformer	Toroidal	Toroidal	Toroidal
Discrete Amplifier Stage	•	•	•
Individual Level Adjust	•	-	-

IN/OUTPUTS

AUDIO
Analog L&R In	-	-	-
Main Channel Amp In	1/1 (Balanced Mono/Unbalanced Mono)	6	4
Bridge Mono Mode	-	●	●
Analog L&R Out	-	-	-
Headphone Out	-	-	-
OTHERS
D-Bus Remote (RC-5) In/Out	-	1/1	1/1
External Control	-	12V DC Trigger	12V DC Trigger

SPECIFICATIONS

THD (20Hz - 20kHz, 8Ω)	0.01%	0.02%	0.02%
Input Sensitivity/Impedance	1.7V/20kΩ	100mV/20kΩ	100mV/20kΩ
Frequency Response	3Hz - 120kHz (+0, -3dB)	20Hz - 20kHz (+/- 3dB)	20Hz - 20kHz (-/- 3dB)
S/N Ratio	120dB	90dB	90dB

GENERAL

Color	Gold	Black	Black
Front Panel	Aluminum	Aluminum	Aluminum
Remote Control	-	-	-
Power Requirement	AC 120V 60Hz	AC 120V 60Hz	AC 120V 60Hz
Power Consumption	500W	500W	600W
Dimensions (Inches) W x H x D	18'' × 7^3/n'' × 17^3/l''	17^3/n'' × 5^3/s' × 13^3/s'	17^3/s'' × 5^3/s' × 13^3/s'
Weight (lbs.)	78.9	45	44

CD Players CD5400 CC4300
FEATURES

Disc Capacity	1	5
Playback Formats	CD, CD-R/RW	CD, CD-R/RW
Power Transformer	EI	EI
Display Off	●	● (Dimmer)
CD Text	●	-
Random/ Repeat Play	●	●
Recording Edit Mode	●	●
AMS (Auto Music Scan) Mode	●	●
Peak Search	●	-
Disc Changeable In Play	-	● (4 Discs)
Pitch Control	●	-
Headphone Level Control	●	●

IN/OUTPUTS

AUDIO
Analog L&R Out	1	1
Digital Opt. Out	1	1
Digital Coax. Our	1	1
Headphone Out	●	●
OTHERS
D-Bus Remote (RC-5) In/Out	1/1	1/1
External Control (RS232C)	-	● (1-way)

SPECIFICATIONS

AUDIO
Format	16-Bit Liner PCM	16-Bit Liner PCM
Sampling Frequency	44.1kHz	44.1kHz
Dynamic Range	100 dB	95 dB
S/N Ratio	110 dB	105 dB
Frequency Response	2Hz - 20kHz	2Hz - 20kHz
THD	0.0025%	0.0050%

GENERAL

Color	Black	Black
Front Panel	Brushed Plastic	Brushed Plastic
Remote Control	RC5400CD	RC6300CC
Power Requirements	AC 120V 60Hz	AC 120V 60Hz
Power Consumption	12W	12W
Dimension W x H x D (Inches)	17^' × 3^'' × 12^''	17^'' × 3^'' × 15^''
Weight (lbs.)	8.1	12.8

SACD Players SA-11S1 (Ref.) SA8260
FEATURES

Disc Capacity	1	1
Multi-ch Capability	-	●
Playback Formats	SACD-Stereo, CD,CD-R/RW	SACD-Multi/Stereo,CD, CD-R/RW
HDAM	●	●
Power Transformer	Troidal	EI
Zero-Impedance Plate	-	●
Double Layered Bottom Plates	●	●
Audio DAC	192kHz/24-Bit	192kHz/24-Bit
Display On/Off	●	●
Spectable Filters	●	●
SACD/CD Text	●	●

IN/OUTPUTS

AUDIO
Analog L&R Out	1/1 (Balanced/Unbalanced)	1
Analog 5.1ch Out	-	●
Digital Opt. Out	1	1
Digital Coax. Out	1	1
Headphone Out	-	●
OTHER
D-Bus Remote (RC-S) In/out	1/1	1/1

SPECIFICATIONS

SACD
Format	1-Bit DSD	1-Bit DSD
Sampling Frequency	2.8224MHz	2.8224MHz
Dynamic Range	114 dB	113 dB
Frequency Response (-3 dB)	2Hz - 50kHz	2Hz - 50kHz
THD	0.0009%	0.0015%
CD Audio
Format	16-Bit Liner PCM	16-Bit Liner PCM
Sampling Frequency	44.1kHz	44.1kHz
Dynamic Range	100 dB	100 dB
Frequency Response	2Hz - 20kHz	2Hz - 20kHz
THD	0.0020%	0.0020%

GENERAL

Color	Gold	Black
Faceplate	Aluminum	Aluminum
Remote	Aluminum Top RC-11S15A	RC8260SA
Power Requirement	AC 120V 60Hz	AC 120V 60Hz
Power Consumption	25W	28W
Dimensions W x H x D (Inches)	17^th b'' x 4^th d x 167m^3	17^th x 4^th d x 124n^3
Weight (lbs.)	30.8	17

Plasma/DLP Projectors

Plasma Display	PD6140D	PD5050D	PD4250D	PD4230V
FEATURES
Screen Size (Diagonal)	61"	50"	42"	42"
Aspect Ratio	16:9	16:9	16:9	16:9
Resolution	1365 (V) x 768 (H)	1365 (V) x 768 (H)	1024 (V) x 768 (H)	853 (V) x 480 (H)
Pixel Pitch (H x V)	0.039" (V) x 0.039" (H)	0.032" (V) x 0.032" (H)	0.036" (V) x 0.027" (H)	0.04" (V) x 0.04" (H)
Brightness	320cd/m2	400cd/m2	400cd/m2	400cd/m2
Contrast Ratio (Dark Environment)	>860:1	1000:1	1000:1	1500:1
Color Reproduction	256 Steps, 16.770.000 Colors	4096 Steps, 68.7 Billion Colors	4096 Steps, 68.7 Billion Colors	4096 Steps, 68.7 Billion Colors
Off-Axis Viewing Angle (H / V)	160° / 160°	160° / 160°	160° / 160°	160° / 160°
Video Signal Capability	NTSC, PAL, SECAM	NTSC, PAL, SECAM	NTSC, PAL, SECAM	NTSC, PAL, SECAM
Computer Signal Capability	VGA, SVGA, XGA, SXGA, UXGA	VGA, SVGA, XGA, SXGA, UXGA	VGA, SVGA, XGA, SXGA, UXGA	VGA, SVGA, XGA, SXGA, UXGA
DTV/HDTV Capability	480i, 480p, 720p, 1080i	480i, 480p, 720p, 1080i	480i, 480p, 720p, 1080i	480i, 480p, 720p, 1080i
3D Motion Adaptive Scan Converter	●	●	●	●
3.2 Pull Down Converter	●	●	●	●
Picture Mode	Default, Theater1, Theater2, Normal, Bright	Default, Theater1, Theater2, Normal, Bright	Default, Theater1, Theater2, Normal, Bright	Default, Theater1, Theater2, Normal, Bright
Color Temperature	High, Middle, Middle-Low, Low	High, Middle, Middle-Low, Low	High, Middle, Middle-Low, Low	High, Middle, Middle-Low, Low
Gamma	4 Selections	4 Selections (2.1, 2.2, 2.3, 2.4)	4 Selections (2.1, 2.2, 2.3, 2.4)	4 Selections (2.1, 2.2, 2.3, 2.4)
Digital Zoom	●	●	●	●
HDMI Input	● (DVI-D)	●	●	●
OSD Menu	●	●	●	●
Off Timer	●	●	●	●
Internal Audio Amplifier	● (9W + 9W at 6 ohms)	● (9W + 9W at 6 ohms)	● (8W + 8W at 6 ohms)	● (8W + 8W at 6 ohms)
IN/OUTPUTS
VIDEO
Component In	2 (RCA, BNC)	2 (RCA, BNC)	2 (RCA, BNC)	2 (RCA, BNC)
S-Video In	1	1	1	1
Composite In	1	1	1	1
RGB In	3 (D-Sub 15-pin, BNC, DVI)	3 (D-Sub 15-pin, BNC, HDMI)	3 (D-Sub 15-pin, BNC, HDMI)	3 (D-Sub 15-pin, BNC, HDMI)
AUDIO
Analog I&R In	3	3	3	3
Speaker Our (I&R)	1	1	1	1
OTHER
Extrmal Control (RS232C)	●	●	●	●
GENERAL
Color	Chrome	Black Metallic	Black Metallic	Black Metallic
Remote Control	RC6140DPD	RC5050DPD	RC5050DPD	RC5050DPD
Power Requirement	AC120V 50/60Hz	AC120V 50/60Hz	AC120V 50/60Hz	AC120V 50/60Hz
Power Consumption	660W	435W	305W	280W
Dimensions W x H x D (Inches)	57", * x 34", * x 4", *	48", * x 29", * x 3", *	40", * x 24", * x 3", *	40", * x 24", * x 3", *
Weight (lbs)	134.4	98.1	65	62.8

FEATURES			IN/OUTPUTS
Display Device	DMD (TI DLPTM Technology)HD2 x3 chip	DMD (TI DLPTM Technology).8 720p with DarkChip3TM x1-chip	VIDEO
			Composite Video In	1
			S-Video In	1
Panel Size	0.81"	0.81"	Component In	2 (RCA / BNC)
Aspect Ratio	16:9	16:9	RGB/HD In	1 (D-Sub 15-Pin)
Resolution	1280x720	1280x720	Digital Video In	1 (DVI-D with HDCP)
Brightness	1000 / 1200 ANSI Lumen(Lamp Mode Low / High)	600 / 700 ANSI Lumen(at F5.0 / F3.0)	OTHERS
			D-Bus Remote (RC-5) In/Out	1 / 1 (3.5 mm mini jacks)
Brightness Uniformity	90%	90%	External Control (RS232C)
Contrast Ratio	3600 :1	4500 : 1 (at F5.0)	DC Trigger Out	2 (3.5 mm mini jacks)
Projection Size	60° - 300°	60°-250°(VP-12S/SVP-12S/L) 60°-250°(VP-12S/I)
Throw Distance 100"	125" - 156" (LN10VP32)	128" - 149" (VP-12S4S)	GENERAL
	156" - 209" (LN10VP40)	150" - 219" (VP-12S4I)	Color	Gun Metallic
	209" - 313" (LN10VP53)	199" - 270" (VP-12S4L)	Remote Control	RC-12VP3
TV System	NTSC, PAL, SECAM	NTSC, PAL, SECAM	Power Requirement	AC 100-120 V: 220-240 V, 50/60Hz
Computer Signal Capability	VGA, SVGA, XGA, SXGA	VGA, SVGA, XGA, SXGA	Power Consumption	< 380W
DTV / HDTV Capability	480i, 480p, 720p, 1080i	480i, 480p, 720p, 1080i	Dimensions W x H x D (Inches)	20" X 26" " X 12"
Video Processor	Faroudja DCDTM Processing	GENNUM VXPTM Processing	Weight (lbs.)	90.3
3:2 Pull Downa
Optics	Marantz Custom	Custom by Konica-Minolta
O.R.C.A Filter
Life Lamp	1500 Hours (Average)	2000 Hours (Average)
Picture Memories	●(12)	●(18)
Keystone Correction	●(H/V)	●(V)
Fine Picture Ment
Picture Modes	● (Theater, Standard, Dynamic and Uscr)	●(Theater, Standard, Dynamic and Uscr 1 - 9)
Color Temperatures	● (5 Steps)	● (5 Steps)
Black Level Selection
Optical Zoom	●(x1.25: LN10VP32)	●(x1.2VP-12S(S))
	●(x1.33: LN10VP40)	●(x1.45: VP-12S3L)
	●(x1.5: LN10VP53)	●(x1.35: VP-12S4L)
Lens Shift	●(V: +115% / -20%, H: +/- 25%)	● (V: +120% / -100%)
		●(V: +150% / -100%)
		●(V: +170% / -100%)
Dust-Free Sealed Optics
Noise Cancel Structure
Chassis	Extruded Aluminum Frame	Aluminum Diecast
Illuminated I/O Terminal Panel
Auto Color Temp. Calibration
FCC	Class B	Class B

marantz®

(dB) marentz HOMI

Life Amplified

Empty white rectangle with black border (no text or symbols)

Printed on recycled paper because trees matter.

*All specifications, dimensions and weights are subject to change without notice. D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors in this full line catalog which may result in consequential errors being made by retail dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document.

The information contained herein is protected by United States and foreign copyright laws. This document is intended for the exclusive use of authorized Marantz America dealers only. Reproduction in whole or in part of any information contained herein is strictly prohibited. Violators will be prosecuted to the full extent of the law. Both civil and criminal penalties apply.

marantz®

Marantz America, Inc. • 1100 Maplewood Drive • Itasca, IL 60143 Phone [phone] • Fax [phone] • www.marantz.com ©2005 Marantz America, Inc.

Marantz Canada, Inc. • 5-505 Apple Creek Blvd. • Markham, ON L3R 5B1 Phone [phone] • Fax [phone] • www.marantz.com ©2005 Marantz Canada, Inc.

Designed and Printed in The United States
