USER MANUAL DV4500 MARANTZ

For warranty information, contact your local Marantz distributor.

RETAIN YOUR PURCHASE RECEIPT

Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Marantz.

IMPORTANT

When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.

FOR U.K. ONLY

This undertaking is in addition to a consumer's statutory rights and does not affect those rights in any way.

FRANÇAIS

GARANTIE

The DV4500 is in conformity with the EMC directive and low-voltage directive.

Français

• Do not expose the equipment to rain or moisture.
• D o not remove the cover from the equipment.
• Do not insert anything into the equipment through the ventilation holes.
• Do not handle the mains lead with wet hands.
• Do not cover the ventilation with any items such as tablecloths, newspapers, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the equipment.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
• Do not place anything about 1 meter above the top panel.
• Make a space of about 0.2 meter around the unit.
  – Never spill liquid of any kind on this unit. If liquid is spilled into the unit, consult qualified service engineer.

Français

AVERTISSEMENTS

■ INTRODUCTION .... 5 About Copyright.... 5 Notice for the progressive scan outputs.... 5 Supplied Accessories.... 5 Symbols Used in this Manual.... 5

■ ABOUT THE DISCS ....6 Playable Discs....6 Disc Types....6

■ FEATURES....7

■ FUNCTIONAL OVERVIEW ....8 FRONT PANEL ....8 REMOTE CONTROL ....8 Tour of the remote control ....9 Panel display ....11 Displays During Operation ....11 Using the remote control ....11 Loading the Batteries....11

■ CONNECTIONS .... 12 Description - rear panel .... 12 Connection to an audio system .... 13 Connection to a TV (for video) .... 14

■ PLAYING A DISC .... 15 Basic Playback .... 15 CANCELLING AND CALLING BACK THE PBC FUNCTION .... 15

General Features. 15
FL OFF Mode. 15
Still / Pause. 15
Disc Menus. 15
Title Menu. 15

CALLING UP A MENU SCREEN DURING PLAYBACK....15 Step by Step Playback....16 Resume....16 Playing the disc recorded in VR mode (Video Recording format)....16

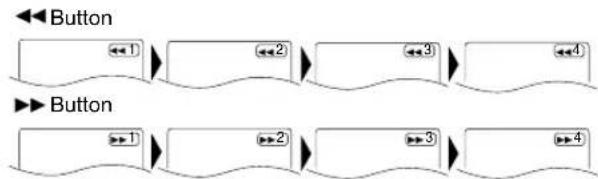

Fast Forward / Reverse Search ..... 16

Slow Forward / Slow Reverse ..... 16

Zoom. 16

Title / Chapter Search 17

Track Search 17

Time Search 17

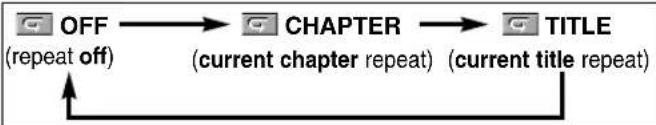

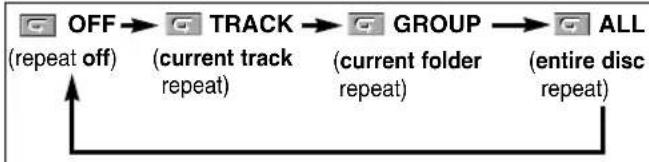

Repeat....17 REPEAT TITLE / CHAPTER....17 REPEAT TRACK / GROUP / ALL....17 A-B REPEAT....18

Programme Playback (CD) 18

Random Playback (CD) 18

MP3 / JPEG / WMA Playback 18

Slide Show Mode....20

On-Screen Information....20

Programme Playback (MP3/JPEG/WMA) ..... 20

Random Playback (MP3/JPEG/WMA) 20 Audio Language 21

Stereo Sound Mode. 21

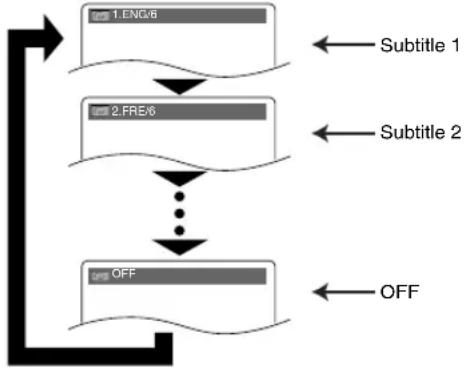

Subtitle Language 21

Camera Angle 21

Changing the On-Screen Display 22

Marker Setup Screen. 22

Virtual Surround 22

Display Setting....23

Audio Setting....24

Parental Control....24
PARENTAL LEVEL....24
IF YOU FORGET THE PASSWORD....24
CONTROL LEVELS....24

Returning all selections of SETUP(except for PARENTAL and VIDEO OUT) to their default settings. . 24

■ MAINTENANCE 25

■ TROUBLESHOOTING GUIDE. 26

■ SPECIFICATIONS 27

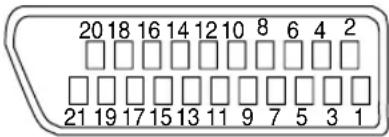

■ PIN CONNECTION (A/V EURO CONNECTOR).....27

INTRODUCTION

A NOTE ABOUT RECYCLING:

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the DVD player. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Apparatus Claims of U. S. Patent Nos, 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only.

Notice for the progressive scan outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 625 progressive scan picture problems, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding our TV set compatibility with this model 625p (576p) DVD player, please contact our customer service centre.

Supplied Accessories

Please check to make sure the following items are included with the main unit in the carton.

Remote control......1

“AA” (R6P) batteries ......2

Audio (Red and White) cable......1Video (Yellow)cable......1

Remote Control bus cable (Orange)......1

Operating Instruction....1

Product Registration Card......1

Symbols Used in this Manual

The following symbols appear below in some headings and notes in this manual, with the following meanings.

DVD-V: Description refers to playback of DVD-Video discs.

CD : Description refers to playback of Audio CDs.

MP3 : Description refers to playback of discs formatted with MP3.

VCD : Description refers to playback of Video CDs.

JPEG: Description refers to viewing of JPEG discs.

WMA : Description refers to playback of discs formatted with WMA.

DVD-RW: Description refers to playback of the VR mode (Video Recording format).

playable Discs

The following discs can be played back on this DVD player.

Usable discs	Mark (logo)		Recorded signals	Disc Size
DVD-Video (NOTE 1)	VIDEO		Digital video (MPEG2)	12 cm
	R
	KW			8 cm
CD CD-R CD-RW (NOTE 4)	COMPACTDISCGDIGITAL AUDIO	COMPACTDISCGDIGITAL AUDIO	Digital audio MP3 WMA (NOTE 5) Digital picture (JPEG)	12 cm
				8 cm
Video CD	COMPACTDISC		Sound and Pictures	12 cm
				8 cm (Singles)
Picture CD	KodakPicture CDCOMPATIBLE		JPEG	12 cm

NOTE 1: Some DVD-Video discs do not operate as described in this manual due to the intentions of the discs' producers.

NOTE 2: This unit can play DVD-RW discs recorded in DVD video format or DVD video recording format. * The disc may not be played back due to recording quality or properties of the disc, dirt on the disc or the pickup lens, or condensation on the pickup lens.

NOTE 3: Discs that have not be finalized cannot be played. Depending on the disc's recording status, the disc may not be accepted or may not be played normally (the picture or sound may not be smooth, etc.).

NOTE 4: Some of CD-R/CD-RW discs may be incompatible because of "scratch and stain of disc", "Recording condition", and "Characteristic of Recorder".

NOTE 5: Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This player conforms to the PAL colour system. Also you can play discs recorded with the NTSC system via a PAL system TV set.

- Some discs include region codes as shown below.

- The number inside the symbol refers to a region of the world, and a disc encoded in a specific region format can only be played back on DVD players with the same region code.

- RW This label indicates playback compatibility with DVD-RW discs recorded in VR mode (Video Recording Format).

- On the following discs, only the sound can be heard (picture cannot be viewed). CDV

CD-G

- NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM

CD-I

Photo CD

DVD with region codes other than 2 or ALL

DVD-ROM for personal computers

CD-ROM for personal computers

- On the following disc, the sound MAY NOT be heard. Super Audio CD

NOTE:

Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

- Any other discs without compatibility indications.

Disc Types

[DVD-Video]

Data on a DVD is divided into sections called "titles" and then into subsections called "chapters" each of which is given a title or chapter number. Playback conditions are preset on some DVD-Video discs, and these playback conditions take priority over user operations on this player. If a function you selected does not run as desired, refer to the manual accompanying the disc.

Example Title 1 Title 2 Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3 Chapter 4

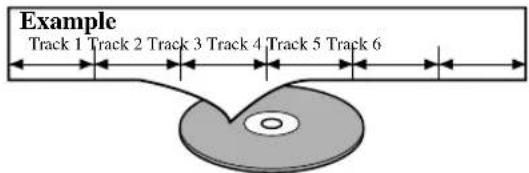

[Audio CD, Video CD]

Data on an Audio CD, or a Video CD is divided into sections called "tracks" each of which is given a track number.

Example Track 1 Track 2 Track 3 Track 4 Track 5 Track 6

ABOUT THE PBC FUNCTION OF VIDEO CD

This unit conforms to ver.1.1 and ver.2.0 of Video CD standard, with PBC function.

Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD.

Ver.2.0 (with PBC function): While using a Video CD with PBC function, "PBC" appears on the screen and the display.

What is PBC? "PBC" stands for the Playback Control. You can play interactive software using menu screens. Refer to instructions in the Video CD.

NOTE:

When playing Video CDs with PBC function, some operations (e.g., track search and repeat tracks) cannot be performed unless the function is cancelled temporarily (Refer to page 15).

[MP3, JPEG, WMA]

Data on an MP3, JPEG or WMA are divided into sections called "groups" and then into subsections called "tracks" each of which is given an group or track number.

Example Group 1 Group 2 Track 1 Track 2 Track 3 Track 4 Track 5 Track 6

CAUTION:

• Use caution not to pinch your finger in the disc slot.
• Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the DVD player.

- Progressive Scan system

Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional 625i (576i) television signals.

• Dolby Digital Sound

By hooking this player up to a Multi - Channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital 5.1 channel surround sound as heard in the movie theatres.

• DTS (Digital Theater System)

When this player is connected to the DTS decoder, you can enjoy 5.1 channel surround system which reproduces the original sound as truthfully as possible. 5.1 channel surround system is developed by the Digital Theater System, Inc.

- Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

- Random playback for audio CD, MP3, JPEG, and WMA

This player can shuffle the order of tracks to play them in random order.

- Program playback for audio CD, MP3, JPEG, and WMA

You can program the order of tracks to play them in any desired order.

• DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

- Auto Power Off

The power turns off automatically if there is no activity at the player or its remote for more than 35 minutes. (Refer to page 23.)

- Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

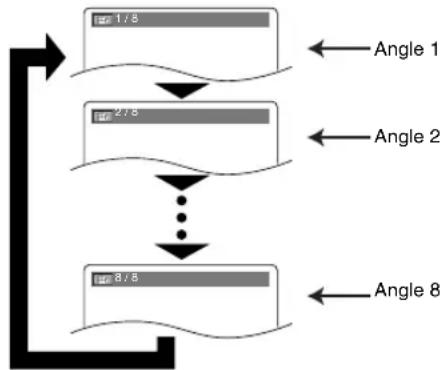

- Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

- Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

- Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

● Automatic detection of discs

This player automatically detects if a loaded disc is DVD-Video, Video CD, Audio CD, MP3, JPEG, or WMA.

- Playing an MP3 disc

You can enjoy MP3 files which are recorded on CD-R/RW.

- Direct Search

You can search the desired title, chapter, and track with numeric button during playback or in stop mode.

- On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

- FL OFF Mode

You can turn off the panel display.

- Search

Chapter search: Search for the chapter designated by user is possible.

Title search: Search for the title designated by user is possible.

Track search: Search for the track designated by user is possible.

Time search: Search for the time designated by user is possible.

- Repeat

Chapter: Repeated playback of the chapter of the disc being played is possible.

Title: Repeated playback of the title of the disc being played is possible.

Track: Repeated playback of the track of the disc being played is possible.

All: Repeated playback is possible (exclude DVD-Video).

A-B: The part between A and B designated by user is possible.

Group: Repeated playback of the folder of the MP3/JPEG/WMA disc being played is possible.

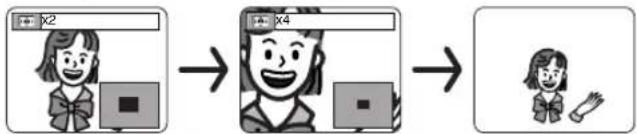

- Zoom

2-time or 4-time magnified screen can be displayed.

- Marker

The part designated by user can be called back.

- Resume Play

You can resume playback from the point at which the play has been stopped even if the power is turned off.

- Component Video Out Jacks

Jacks located on the back of the DVD Player which are used to send high-quality video to a TV via Component Video In Jacks.

- Bit rate indication

• DRC (Dynamic Range Control)

You can control the range of sound volume.

- MPEG sound

This player can handle a disc that supports MPEG audio and the DVD player is connected to an MPEG decoder.

- Displaying a JPEG picture

Kodak Picture CDs can be played. Still images stored in JPEG format on CD-R/RW can also be played.

● Reproducing WMA data

You can enjoy WMA files which are recorded on CD-R/RW.

"Kodak Picture CD COMPATIBLE" is trademark of Eastman Kodak Company.

"WMA" (Windows Media Audio) is a new audio codec developed by Microsoft® in the United States of America.

FRONT PANEL

1 2 3 4 5 6 7 32 31 15 14 13 11/12 9/10 8

REMOTE CONTROL

POWER OPEN CLOSE 13 16 17 18 19 20 1 2 3 4 5 6 7 8 9 0 +10 RESET MODE A-B REPEAT- RANDOM CLEAR SETUP TOP MENU ENTER RETURN MENU 29 22 23 24 26 SUBTITLE AUDIO/AXLE DISPLAY MODE/ROOM SKIP STOP PLAY FWDREV PULSE GROUP PAGE SOUND MODE MARantz REMOTE CONTROLLER RC6500DV

NOTES:

• The buttons in gray (○) do not function on this player.

• The buttons with circled numbers can only be operated with the remote control.

• POWER (STANDBY) Button [page 15]

• Disc loading tray
• PLAY Button [page 15]
• STOP Button [page 15]
• PAUSE Button [page 15]
• Cursor Buttons [page 15] Use when making settings while watching the display on a TV screen.
• MENU Button [page 15]
• ENTER Button [page 15]
• ▶▶I(SKIP UP/FWD) Button [page 17] Plays back from the beginning of the next chapter or track. Hold down to fast forward playback.
• ▶▶(FWD SEARCH) Button [page 16]
• |◀◀(SKIP DOWN/REV) Button [page 17] Plays back from the beginning of the current chapter or track. Hold down to fast reverse playback.
• ◀◀(REV SEARCH) Button [page 16]
• OPEN/CLOSE Button [page 15]
• FL OFF Button [page 15]
• Panel Display, Remote Sensor Window
• SEARCH MODE Button [page 17]
• A-B REPEAT Button [page 18]
• REPEAT Button [page 17]
• RANDOM Button [page 18]
• CLEAR Button [page 17]
• SETUP Button [page 23]
• RETURN Button [page 15]
• ANGLE Button [page 21] Press to change the camera angle to see the sequence being played back from a different angle.
• SUBTITLE Button [page 21] Press to select a desired subtitle language.
• AUDIO Button [page 21] Press to select a desired audio language or sound mode.
• ZOOM Button [page 16]
• DISPLAY Button [page 20]
• MODE Button [page 18]
• TOP MENU Button [page 15]
• Numeric Buttons [page 17]
• FL OFF Indicator This indicator lights when the FL OFF button is ON.
• STANDBY Indicator This indicator lights when the DVD player turns off.

Tour of the remote control

Buttons on remote control work in different ways for DVD, VCD, CD, MP3, JPEG, and WMA: Refer to the following table for correct use.

	DVD	VCD CD, MP3, JPEG, WMA
POWER ButtonPOWER	Press this to switch the power between on and standby.	Press this to switch the power between on and standby.	Press this to switch the power between on and standby.
A-B REPEAT Button	Marks a segment between A and B for repeated playback.	Marks a segment between A and B for repeated playback.	Marks a segment between A and B for repeated playback (CD).
REPEAT Button	Allows you to repeat play back of a Title or Chapter.	Allows you to repeat play back of a Track or Disc.	Allows you to repeat play back of a Track or Disc.
RANDOM Button[274W]	—	—	Allows you to play tracks in random order.
MOD	To activate the 3D sound (Virtual surround system).	To activate the 3D sound (Virtual surround system).	Allows you to programme a specific order or random playback.To activate the 3D sound (Virtual surround system) (CD, MP3, WMA).
ZOOM ButtonZOOM	To magnify part of the picture (x2/x4).	To magnify part of the picture (x2).	To magnify part of the picture (x2) (JPEG).
ANGL	Accesses various camera angles on the disc.	—	—
SUBT1 [SD36]	Accesses various subtitles on the disc.	—	—
AUD	Accesses various audio functions on the disc.	To select STEREO, L-CH or R-CH.	To select STEREO, L-CH or R-CH.
DISPL Button[H40S]	Displays the current disc mode.	Displays the current disc mode.	Displays the current disc mode.
SEARCH MODE Button	To search for a chapter, title, time or marker.To rapidly return to a location on disc.	To search for a track, time or marker.To rapidly return to a location on the disc.	To search for a track.To search for time or a marker (CD).To rapidly return to a location on the disc.
OPEN/CLOSE Button[4X7Z]	To open or close the disc tray.	To open or close the disc tray.	To open or close the disc tray.
Numeric Buttons1 34 67 [D64A] 8 +10	To select chapter or title directly.	To select tracks directly.	To select tracks directly.
CLEAN Button	Clear the markers.Clear the numbers entered incorrectly.To cancel the A point for A-B Repeat.	Clear the markers.Clear the numbers entered incorrectly.To cancel the A point for A-B Repeat.	Clear the markers.Removes a status number in program input.Clear the numbers entered incorrectly.To cancel the A point for A-B Repeat.

Tour of the remote control

	DVD	V	CD CD, MP3, JPEG, V
MENU Button	To call up the Menu on a disc.	—	To call up the FILE LIST (MP3, JPEG, WMA).
TOP MENU ButtonTOP MENU	To call up the Top Menu on a disc.	—	To return to the first item in the highest hierarchy of the FILE LIST.
ENTER, Cursor Buttons	Moves the cursor and determines its position.	Moves the cursor and determines its position.	Moves the cursor and determines its position.
RETURN ButtonRETURN	To return to the previous menu.	To return to the previous menu.	—
SETUP ButtonSETUP	To call up the DVD player's Setup menu.	To call up the DVD player's Setup menu.	To call up the DVD player's Setup menu.
SKIP Buttons[OKWY]	To skip Chapters.	To skip Tracks.	To skip Tracks.
REV / FWD Buttons	Allows you to search forward/backward through a disc.To begin slow forward/slow reverse.	Allows you to search forward/backward through a disc.To begin slow forward/slow reverse.	Allows you to search forward/backward through a disc (CD, MP3, WMA).
STOP Button	To stop playback.	To stop playback.	To stop playback.
PLAY Button	To begin disc play.	To begin disc play.	To begin disc play.
PAUSE Button	To pause disc play.Advances playback one frame at a time.	To pause disc play.Advances playback one frame at a time.	To pause disc play.

Panel display

Lights up when the A-B repeat function is on. Lights up when the ALL repeat function is on. Lights up when the inserted disc comes to a pause. Lights up when playing back in slow mode. (DVD, VCD) Lights up when the inserted disc is being played back. Lights up when the repeat function is on. Lights up when the progressive scan system is activated. REPEAT TITLE GROUP CHP TRK P SCAN DVD ALL 10.0.0.0.0 P-SCAN VCD Displays a type of the disc which is inserted on the tray. • DVD: DVD • CD: Audio CD, MP3, JPEG, WMA • VCD: Video CD

Displays During Operation

	Power on
	No disc inserted or cannot read
	Tray open
	Tray closed
	Loading the Disc
	Lights up when the playback control is activated (VCD)
	Power off

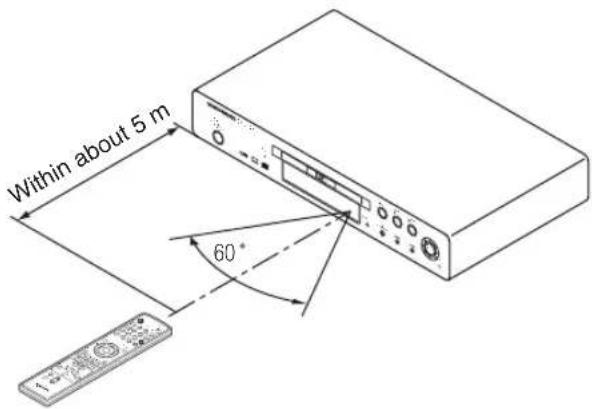

Using the remote control

Keep in mind the following when using the remote control:

• Make sure that there is no obstacle between the remote and the remote sensor on the unit.
• Use within the operating range and angle, as shown.

Within about 5 m 60°

Loading the Batteries

1. Open the battery compartment cover.
2. Insert two "AA" (R6P) batteries, with each one oriented correctly.
3. Close the cover.

Cautions On Batteries

• Use "AA" (R6P) batteries in this remote control unit.
• Replace the batteries with new ones approximately once a year, though this depends on the frequency with which the remote control unit is used.
• If the remote control unit does not operate from close to the main unit, replace the batteries with new ones, even if less then a year has passed.
• The included batteries are only for verifying operation. Replace them with new batteries as soon as possible.
• When inserting the batteries, be careful to do so in the proper direction, following the and marks in the remote control unit's battery compartment.
  • To prevent damage or battery fluid leakage:

- Do not use a new battery with an old one.

- Do not use two different types of batteries such as alkaline and manganese.

- Do not short-circuit, disassemble, heat or dispose of batteries in flames.

• Remove the batteries when not planning to use the remote control unit for a long period of time.
• If the batteries should leak, carefully wipe off the fluid from the inside of the battery compartment, then insert new batteries.

Description - rear panel

DIGITAL OUT (PCM/BTSTREAM) OPTICAL COAXIAL 2C/AUDIO OUT L R VIDEO VIDEO OUT COMPONENT VIDEO OUT Y Ca/Pa S-VIDEO OUT

A/V EURO CONNECTOR

6 85431 27

1. DIGITAL OUT JACKS

Use either an optical or coaxial digital cable to connect to an AV amplifier with a built-in decoder (AV control center).

2. 2CH AUDIO OUT JACKS

Connect to the Audio input jacks of A/V-compatible TV or wide screen TV, Stereo system.

3. VIDEO OUT JACK

Use a video cable to connect one of the jack to Video input on your A/V-compatible TV or wide screen TV, Stereo system.

4. COMPONENT VIDEO OUT JACKS

Use these jacks if you have a TV with Component Video in jacks. These jacks provide G/P_R , C_B/P_B and Y video. Along with S-Video, Component Video provides the best picture quality.

5. S-VIDEO OUT JACK

Use the S-Video cable to connect this jack to the S-Video jack on your A/V-compatible TV or wide screen TV for a higher quality picture.

6. A/V EURO CONNECTOR

Connect to the 21-pin scart jack of a TV.

7. REMOTE CONTROL IN/OUT JACKS

By connecting this DVD player to another Marantz audio component using a supplied System Control cable, you can remotely operate the components as a signal system.

8. REMOTE CONTROL EXTERNAL / INTERNAL SWITCH

Set this switch to "INTERNAL" when using this DVD player independently. If you use this DVD player in a system with a Marantz receiver equipped with a remote sensor, set the switch to "EXTERNAL".

NOTES:

• Be sure not to use both the A/V EURO CONNECTOR jack and component Video jacks for video output at the same time.
• When changing the VIDEO OUT setting (SCART or Component(I)/Component(P)), connect to a VIDEO jack or an S-VIDEO jack on the TV. If the setting is changed, for example, to Component(I)/Component(P) while the Euro A/V(SCART) jack is connected to the TV, a distorted video signal may be output.
• When connecting to component with a remote sensor, be sure to connect the component to the "REMOTE CONTROL IN" jack of this DVD player to the "REMOTE CONTROL OUT" jack of the component with the remote sensor.
• When connecting to component which is not equipped with a remote sensor, be sure to connect the component to the "REMOTE CONTROL OUT" jack of this DVD player.

Selecting Progressive Scan (625p <576p> or Interlaced 625i <576i>) Playback

• If your TV is compatible with progressive scanning (625p <576p>), connect the TV to the Component Video jacks of the DVD player and set "VIDEO OUT" to "Component (P)" in the display setting. Next, set your TV to the progressive scan mode. Refer to page 23 for instructions on changing the display setting.
• If your TV is not compatible with progressive scan, set "VIDEO OUT" to "Component (I)".
• Use a commercially available adaptor if the video input jacks of your TVs or monitors are the BNC type.

What is Progressive Scanning?

- Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution than that of traditional (625i/576i) television signals.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

CONNECTIONS

The following show examples of connections commonly used to connect the DVD player to TV and other components.

If using this DVD player to playback a DVD in a Dolby Digital 5.1 channel surround or DTS surround format, the DVD player outputs a Dolby Digital or DTS data stream from its OPTICAL or COAXIAL DIGITAL AUDIO OUT jacks. By hooking the player up to a Dolby Digital or DTS decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound of a professional standard, which can be heard in movie theaters. Use an audio coaxial or optical digital cable (not included) for the audio connections.

NOTES:

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Instruction Manuals for your TV, stereo system and any other components to be connected to the DVD player.

Connection to an audio system

Method 1 Method 2

Line drawing of a two-tiered audio amplifier with speakers and buttons (no text or symbols)

Stereo system

Dolby Digital decoder, DTS decoder or MPEG decoder

AUDIO

Audio Input Jacks

R L 20mA/D OUT L R

Digital Audio Input Jacks

OPTICAL COAXIAL DIGITAL OUT (PCM/BITSTREAM) OPTICAL COAXIAL

DVD

Analog Audio Out

Digital Audio Out

• Method 1 DVD Player + Stereo system
• Method 2 DVD Player + Dolby Digital decoder, DTS decoder or MPEG decoder

NOTES:

• When using Dolby Digital, DTS, or MPEG decoder, set "DOLBY DIGITAL", "DTS" or "MPEG" to "ON" accordingly for audio output in the setup mode (Refer to page 24). Set it to "OFF" for the decoder that is not used currently. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers.
• The audio source on a disc in Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.
• Set "DOLBY DIGITAL" and "DTS" to "OFF" for audio output in the setup mode for method 1 only. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers (Refer to page 24).

Optical cable (not supplied)

• Optical cable (not supplied) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15 cm or more when storing them.
• Use a cable which is 3m or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has minor scratches or is dirty, clean it with a soft cloth before inserting it into a connector.

Connection to a TV (for video)

Method 1 Method 2 Basic Audio Good picture Better picture Method 3 Best picture TV R L VIDEO IN S-VIDEO IN 21-pin Scart jack COMPONENT VIDEO IN Audio Cable Video Cable S-Video Cable Component Video Cable or DVD 2CHAUDIO OUT Video Out S-Video Out A/V Euro Connector COMPONENT VIDEO OUT Analog Audio Out Video Out S-Video Out A/V Euro Connector Component Video Out DVD

• Method 1 DVD Player + TV with Video Input Jack
• Method 2 DVD Player + TV with S-Video Input Jack
• Method 3 DVD Player + TV with AV1 Jack or DVD Player + TV with Component Video Jacks

NOTES:

• Connect the DVD player directly to a TV. If the A/V cables are connected to a VCR, pictures may be distorted due to the copy protection system.
  • S-Video output connector

The video signals are divided into color (C) and brightness (Y) signals, achieving a clearer picture.

If the TV is equipped with a S-Video input connector, we recommend connecting it to the this product's S-Video output connector using a commercially available S-Video connection cord.

HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS

If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD player to your TV's 75-ohm coaxial antenna terminal using an optional Stereo Audio/Video RF Modulator, not included. Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and then connect the coaxial output of the RF Modulator (usually marked "TO TV") to the 75 ohm coaxial antenna terminal on your TV. Follow the instruction supplied with the RF Modulator for more details.

If your TV's 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that cable from your TV's antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator (usually marked "ANT IN"), then connect the RF modulator to your TV's antenna terminal as described above.

NOTE:

- The picture quality from DVD discs will not be as good if the DVD player is connected to the TV's antenna terminal through an RF Modulator.

Basic Playback

DVD-V

DVD-RW

VCD

CD

MP3

WMAJPEG

Getting started

• T urn on the power of the TV, amplifier and any other components which are connected to the DVD player.
• Make sure the TV and audio receiver (commercially available) are set to the correct channel.

1 Press the POWER button.

- "P-ON" will appear briefly on the display panel.

2 Press the OPEN/CLOSE button to open disc loading tray.

3 Place the disc in the tray, with the label facing up.

4 Press the PLAY button.

• The tray will close automatically, and playback will then start from the first chapter or track of the disc. If the playback does not start automatically, press the PLAY button.
• When you playback the DVD with a title menu, it may appear on the screen. In this case, refer to "Title menu".

5 Press the STOP button to stop playback.

NOTES:

- A “prohibited icon” may appear at the top-right on the TV screen during operation, warning that a prohibited operation has been encountered by the DVD player or the disc.

- With DVDs that use some titles for playback program signals, playback may start from the second title, or it may skip these titles.

- During the playback of two layered disc, pictures may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

- The operation may vary when you playback DVDs with disc menu or Video CDs with PBC. Refer to the manual accompanying the disc for details.

- A D VD-RW disc recorded in the VR mode may freeze momentarily during playback depending on how the playlist was made and edited (deleted titles, repeated recording).

CANCELLING AND CALLING BACK THE PBC FUNCTION

VCD

1 Insert a Video CD.

2 Press the STOP button.

3 Press the Numeric buttons to enter the desired Track number.

- The PBC function is now cancelled and the playback of the Video CD will start.

4 To call back the PBC function, press the STOP button twice, and then press the PLAY button.

• Title menu will appear on the display.

General Features

DVD-V

DVD may contain menus to navigate the disc and access special features. Press the appropriate numerical key or use the Cursor buttons (▼/▲/▶/◀) to highlight your selection in the DVD main menu and press the ENTER button to confirm.

NOTE:

- Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

FL OFF Mode

Press the FL OFF button on the front panel to turn off the panel display.

- The FL OFF indicator will light up.

NOTES:

• In SETUP menu, the FL OFF mode is not available.
• The FL OFF mode will be released when you press the buttons listed below.
  OPEN/CLOSE button (on both the remote and the front panel), SETUP, POWER or DISPLAY button (on the remote), POWER ON/STANDBY or FL OFF button (on the front panel)
• To call back the setting in SETUP menu, turn off (STANDBY) the DVD player first and turn it on again.

Still / Pause

DVD-V

DVD-RW

VCD

CD

MP3

WMAJPEG

During playback, press the PAUSE button.

- Playback will pause and sound will be muted.

2 To continue playback, press the PLAY button.

NOTE:

- On DVDs, set "STILL MODE" to "FIELD" on the display menu if pictures in the pause mode are blurred. (Refer to page 23.)

Disc Menus

DVD-V

1 Press the MENU button.

• The DVD main menu will appear.

2 If the feature is not available, Ⓧ symbol may appear on the TV screen.

3 If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.

4 Press the Cursor buttons (▼/▲/►/◄) to select an item, and the ENTER button to confirm selection.

Title Menu

DVD-V

1 Press the TOP MENU button.

• The title menu will appear.

2 If the feature is not available, Ⓧ symbol may appear on the TV screen.

3 Press the Cursor buttons (▼/▲/▶/◀) to select an item, and the ENTER button to confirm selection.

- Playback will begin at the selected Title.

VCD

When playing a Video CD with PBC function, the title menu will appear automatically.

2 Press the Numeric buttons to select the desired title.

- Playback will begin at the selected title.

3 Press the RETURN button to go back to the title menu.

CALLING UP A MENU SCREEN DURING PLAYBACK

DVD-V

• Press the MENU button to call up the DVD main menu.
• Press the TOP MENU button to call up the title menu.

NOTE:

- Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

Step by Step Playback

1 During playback, press the PAUSE button.

- Playback will pause and sound will be muted.

2 The disc advances by one frame each time the PAUSE button is pressed.

3 To exit step by step playback, press the PLAY button.

NOTE:

- On DVDs, set "STILL MODE" to "FIELD" on the display menu if pictures in the pause mode are blurred. (Refer to page 23.)

Resume

DVD-V DVD-RW VCD CD MP3 WMAJ

1 During playback, press the STOP button.

- Resume message will appear on the TV screen.

2 Press the PLAY button, play-back will resume from the point at which playback was stopped.

- To cancel resume, press the STOP button twice.

NOTES:

• Some Video CDs with the PBC function resume play-back from the beginning of the track.
• The resume information will be saved even when the power is switched off.
• F or MP3, JPEG or WMA, playback will resume from the beginning of the current track.

Playing the disc recorded in VR mode (Video Recording format)

DVD-RW

DVDs recorded in VR mode can have a PLAYLIST assigned to alter the order or content to be played. If a PLAYLIST has been created, you can choose the ORIGINAL or PLAYLIST option.

1 Press MENU in stop mode.

• The current setting screen will appear.
- Pressing MENU during playback is not valid.

TITLE NAME TITLE C:\WINDOWS\1\WINDOWS\2\WINDOWS\3\WINDOWS\4 TITLE NAME TITLE C:\WINDOWS\1\WINDOWS\2\WINDOWS\3\WINDOWS\4 TITLE C:\WINDOWS\1\WINDOWS\2\WINDOWS\3\WINDOWS\4 TITLE C:\WINDOWS\1\WINDOWS\2\WINDOWS\3\WINDOWS\4

2 Press ◀ or ▶ to select ORIGINAL or PLAYLIST.

• P LAYLIST will not be displayed when it has not been made.
• Resume playback will not be possible if you change the setting.
  3 Press ▲ or ▼ to select a title, then press ENTER.
• Playback will start.

NOTE:

- [ORIGINAL]: A list of titles which are recorded with a DVD recorder. [PLAYLIST]: A list of titles which is made based on the ORIGINAL edited list.

Fast Forward / Reverse Search

WMA

During playback, press the ▶▶ or ◀◀ button repeatedly to select the required forward or reverse speed. • F or DVDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1 (x2), 2(x8), 3 (x50), and 4 (x100).

• F or video CDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(x2), 2(x8) or 3(x30).
• F or audio CDs, the approximate speed is x16.
• F or MP3 and WMA, the approximate speed is x8.
  2 To return to normal playback, press the PLAY button.

Slow Forward / Slow Reverse

During playback, press the PAUSE button.

2 Press the ▶▶ or ◀◀ button.

EG • Slow motion playback will begin and sound will be muted.

3 Press the ▶▶ or ◀◀ button repeatedly to select the required speed.

- Slow forward or reverse speed is different depending on the disc. Approximate speed is 1 (1/16), 2 (1/8), and 3 (1/2).

4 To return to normal playback, press the PLAY button.

NOTES:

• On DVDs, set "STILL MODE" to "FIELD" on the display menu if pictures in the pause mode are blurred. (Refer to page 23.)
• Only Slow Forward is available when playing Video CD.

Zoom

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1 Press the ZOOM button during playback.

- Playback will continue.

2 Press the ZOOM button repeatedly to select the required zoom factor: x2, x4 or OFF.

- Only x2 zoom is available on Video CDs and JPEG.


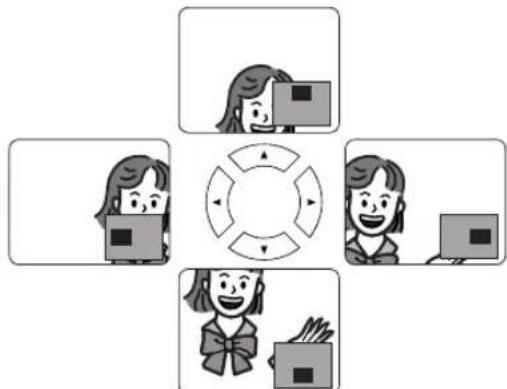

3 Use the Cursor buttons (▼ / ▲ / ▶ / ◀) to move the zoomed picture across the screen.

4 To exit zoom mode, press the ZOOM button to OFF. NOTES:

• Zooming function does not work while disc menu is shown.
• x4 zoom is not available on some discs.
• N avigation screen is not available on JPEG.
• You cannot move the zoomed picture on some JPEG files.

Title / Chapter Search

DVD-RW

By using the SEARCH MODE button

1 Press the SEARCH MODE button repeatedly until the Chapter search, or the Title search appears during playback.

2 Enter the desired chapter/title number with the Numeric buttons.

By using the SKIP buttons ◀◀◀◀

During playback, press the SKIP ▶▶I button to move to the next chapter. Press it repeatedly to skip subsequent chapters. Press the SKIP ◀◀ button to go back to the beginning of the current chapter. Press it repeatedly to go to the previous chapter.

Track Search

There are three ways to begin playback on an Audio CD, Video CD, MP3, JPEG or WMA disc at a specific Track.

By using the Numeric buttons

Press the Numeric buttons to enter the desired Track number.

• Playback will start at the selected track.
• F or single digit tracks (1-9), press a single number (eg. track 3, press 3).
• To play track 26, press +10, 2, 6 on the Numeric button.

By using the SEARCH MODE button

Press the SEARCH MODE button. • The track search display appears.

2 Within 30 seconds, select a desired track number using the Numeric buttons. For single digits press "0" first if the total track of the disc is more than 10 tracks.

- Playback will start at the selected track.

By using the SKIP buttons |◀◀▶▶

During playback, press the SKIP ▶▶ button to move to the next track. Press it repeatedly to skip subsequent tracks. Press the SKIP ◀◀ button to go back to the beginning of the current track. Press it repeatedly to go to the previous tracks.

• Track number will appear briefly on the panel display.
• If any SKIP button is pressed while the playback is paused, the playback will be paused again after skipping to the next track.

NOTE:

- The SKIP I◄◄►►I buttons are not available when play-back is stopped.

Time Search

DVD-V

DVD-RW

CD

VCD

Press the SEARCH MODE button until the Time Search screen appears on the TV screen.

2 Within 30 seconds, enter a desired disc time with the Numeric buttons. - Playback will start at the specified time.

- F or Time Search, "0" appears automatically when there is no need to enter a number. For example, "0:0 : _"

D-V appears in the Time Search screen if the total time of the disc is less than 10 minutes.

3 Press the CLEAR button to erase the incorrect input.

Repeat

- The REPEAT button is available only during playback.

REPEAT TITLE / CHAPTER

DVD-V

To activate the repeat function, press the REPEAT button during playback.

- The repeat mode changes as described below every time you press the button.

WMAJPEGMP3VCDCD

DVD-RW

NOTES:

• The Repeat Title/Chapter setting will be cleared when moving to other title or chapter.
• Repeat playback does not function during A-B repeat playback.
• Repeat Title/Chapter is not available with some scenes.

REPEAT TRACK / GROUP / ALL

VCDCD

To activate the repeat function, press the REPEAT button during playback.

- The repeat mode changes as described below every time you press the button.

NOTES:

• The Repeat Track setting will be cleared when moving to other track.
• Repeat playback does not function during A-B repeat playback.
• Repeat playback is not available when playing the Video CD with PBC function.

MP3 JPEG WMA

NOTE:

- The Repeat Track / Group setting will be cleared when moving to other Track or Group.

A-B REPEAT

DVD-V

DVD-RW

CD

VCD

1 Press the A-B REPEAT button at your chosen starting point.

• A- appears briefly on the TV screen.

2 Press the A-B REPEAT button again at your chosen end point.

• A-B appears briefly on the TV screen, and the repeat sequence begins.

3 To exit the sequence, press the A-B REPEAT button.

NOTES:

• The A-B Repeat section can only be set within the current title (for DVDs), or current track (for Audio CDs, Video CDs).
  • A-B Repeat is not available with some scenes in DVD.
  • To cancel the A point which was set, press the CLEAR button.
• A-B Repeat playback does not function during title, chapter, track or all repeat playback.

Programme Playback

CD

You may determine the order in which tracks will play.

In stop mode, press the MODE button.

• The PROGRAM screen will appear.

2 Press the Cursor buttons (▲ or ▼) to select a track, then press the ENTER button.

- Press the CLEAR button to erase the most recently entered program.

3 Press the PLAY button to play the programmed tracks.

NOTES:

• While the programme is being played back, the STOP button works as follows.
• Press the STOP button once and then the PLAY button again, playback will restart from the point where the STOP button was pressed. (Programme continued)
• Press the STOP button twice and then the PLAY button again, playback will restart from the first track in the usual way. Your programmes are still stored until either the disc tray is open or power is turned off.
• Up to 99 programmes can be entered.
• T o erase all tracks in the programme at once, select ALL CLEAR at the bottom of the list at step 2.
• If you wish to repeat the current track in the programme, press the REPEAT button repeatedly until TRACK appears during playback. If you wish to repeat the entire programme press the REPEAT button repeatedly until ALL appears during playback.
• Refer to page 20 for programme playback of MP3, WMA, and JPEG.
• If eight or more tracks have been set in a programme, the user can switch the right part of the screen with the SKIP button ◀◀ or ▶▶.

Random Playback

CD

This shuffles the playing order of tracks instead of playback in the original sequence.

In stop mode, press the RAN-DOM button.

• The RANDOM screen will appear.

2 Press the PLAY button to start random playback.

NOTES:

• If you wish to repeat the current track in the random selection, press the REPEAT button repeatedly until TRACK appears during playback. If you wish to repeat the entire random selection press the REPEAT button repeatedly until ALL appears during play-back.
• Refer to page 20 for random playback of MP3, WMA, and JPEG.

MP3 / JPEG / WMA Playback

WMAJPEGMF

When a CD-R or CD-RW disc with MP3, JPEG or WMA files is inserted in the DVD player and the MENU button is pressed, the FILE LIST will appear on display. The number of tracks is also displayed on the front panel.

1 Press the Cursor buttons ( ▲ or ▼ ) to select the desired group (folder) or track.

• To return to the previous screen, press the ◀ button.
• If a group (folder) is selected, press the ▶ or ENTER button to go on to the track selection screen. Press the Cursor buttons ( ▲ or ▼ ) to choose a track, then press the PLAY or ENTER button.
• If a track is selected, press the PLAY or ENTER button to start playing tracks. Starting from the one that has been chosen and the subsequent tracks will be played.
• Press the TOP MENU button to return to the first item.

2 Press the STOP button to stop playback.

NOTES:

• Folders are known as Groups; files are known as Tracks.
• A symbol of "☐" is shown on the top of the group name.
• A symbol of “” is shown on the top of MP3 files.
• A symbol of “” is shown on the top of JPEG files.
• A symbol of “” is shown on the top of WMA files.
  • Maximum of 255 folders can be recognised.
• If the track extends beyond the scope of screen, a down arrow “▼” appears, indicating that the user can view another part on the previous page. The current page number and the number of total pages are shown on the left of the down arrow “▼”.
  • Maximum of 512 files can be recognised.
• Up to 8 hierarchies can be created.
• If no MP3, JPEG or WMA files are found in the group, the group is not displayed.
• The DVD player can reproduce data recorded as per ISO 9660 Level 1, Level 2 or Joliet on the disc.
• It can also run a disc on which data is recorded in a multi-session.
• For more details of recording systems, refer to the instruction manual for the CD-R / CD-RW drive or the writing software.

This player recommends the use of files recorded at the below specifications:

Applicable MP3 file Remarks
Sampling frequency	44.1kHz48kHz	• It is prohibited to record MP3 sound on a digital device when connection is made digitally.
Type	MPEG1audio layer 3	• MP3 files recorded at fixed bit rate of 112 kbps or higher are recommended.

Applicable JPEG file Remarks
Size of image	Upper limit: 6300x5100 dotsLower limit: 32x32 dots	• A JPEG image that extends beyond the screen is reduced so that it will be displayed within the screen.

Applicable WMA file Remarks
Sampling frequency	44.1kHz48kHz	Those frequencies are applicable to WMA version 9.
Bit rate 48–192kbps		Ensure that the copyright function is set to off when preparing a WMA disc.
Type	WMA version 9	A prohibition “disable” symbol will appear if the user attempts to run a non-reproducible file such as copyright-protected.Recorded in 5.1 channel format cannot be played back.

Information on MP3, JPEG and WMA discs

• This DVD player can play back images and sounds from data recorded in MP3 and JPEG formats on CD-R and CD-RW discs.
• A file with an extension of “.mp3 (MP3)” is called an “MP3 file”.
• A file with an extension of “.jpg (JPG)” or “.jpeg (JPEG)” is called a “JPEG file”.
  The DVD player can run an image file conforming to the Exif specification. Exif is a file format, Exchangeable Image File format established by Japanese Electronic Industry Development Association (JEIDA).
• A file with an extension of “.wma (WMA)” is called a “WMA file”.
• Files whose extension is other than “.mp3 (MP3)”, “.jpg (JPG)” and “.jpeg (JPEG)” or “.wma (WMA)” will not be listed in the MP3, JPEG or WMA menu.
• If the file is not recorded in MP3, JPEG or WMA format, noise may be produced even if the file extension is either ".mp3 (MP3)", ".jpg (JPG)", ".jpeg (JPEG)" or ".wma (WMA)".
• The name of group and track can be displayed in up to 25 characters. Unrecognisable characters will be replaced with asterisks. The ninth and deeper hierarchies cannot be displayed.
• Unplayable groups or tracks may be displayed depending on the recording conditions.
• If the TOP MENU button is pressed when a file list is displayed, the first item will be highlighted.

Kodak Picture CD

The DVD player can also run JPEG files stored on Kodak Picture CDs. The Picture CD is a service to convert photographs taken by a conventional film camera into digital data and write the data on a CD. The user can enjoy picture images on the television set by playing back the Picture CDs. For details of Kodak Picture CD, contact a shop that deals with developing service of Kodak Inc.

Press the MENU button.

Kodak Picture CD menu appears.

- If all menu items cannot be displayed in the screen scope, “▶▶” appears at the right bottom of the screen, indicating that the user can view remaining items on the

Picture1 Picture2 Picture3 Picture4 Picture5 Picture6 1/32 Current track number / the number of total tracks

next page. "◀◀" appears, it indicates that the user can view other items on the previous page. The track number of the currently highlighted item and the total tracks are shown at the centre bottom of the screen.

• If “▶▶” is shown at the right bottom, use the SKIP ▶▶I button to view the next page. If “|◀◀” is shown at the left bottom, use the SKIP |◀◀ button to view the previous page.
• It may take some time until all menu items are displayed on the menu screen.

2 Press the Cursor buttons (◄/►/ ▲/ ▼), select a desired track to be played, then press the PLAY or ENTER button.

- If a Kodak Picture CD file is selected, an image will be played back from the selected track and go to the next one in turn.

3 Press the STOP button, to stop playback.

Notes on JPEG and Kodak Picture CD:

• A track is displayed for 5 seconds and then the next track is displayed.
• Every press on the ▶ button will turn the image clockwise by 90 degrees when an image is displayed. A press on the ◀ button will turn the image counterclockwise by 90 degrees.

Notes on WMA:

• The DVD player can reproduce data recorded as ISO 9660 level 2 with 31 characters file name included punctuation marks. The name of file can be displayed in up to 25 characters.
  • Maximum of 8 subfolders can be recognised.
  • Maximum of 255 folders can be recognised.
  • Maximum of 512 files can be recognised.
• It can also be displayed tag information of WMA 64 characters at maximum.
• A file with an extension of Joliet as Unicode format in up to 64 characters can be recognised.

Slide Show Mode

JPEG

You can switch to the slide show mode during playback.

1 Press the MODE button during playback.

• The slide show mode screen will appear.
• The slide show mode cannot be switched when it is stopped, or from the file list screen or the Picture CD menu screen.

2 Press the ENTER button.

• The slide show mode will change.
  CUT IN/OUT: The entire image appears in one time.
  FADE IN/OUT: The image appears gradually and then disappears.

3 Press the MODE button to exit.

On-Screen Information

JPEGMPS

You can check each file during playback.

Press the DISPLAY button.

- The name of the file currently in play will be displayed.

2 Press the DISPLAY button to show the track number, the elapsed time, the repeat status, and the playback status at the top of the screen.

- will be displayed when the repeat play has been selected.

T - indicates Track repeat
G - indicates Group (folder) repeat
A - indicates Disc repeat

3 Press the DISPLAY button to exit.

- During program or random playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button to exit.

WMA

You can check each file during playback.

Press the DISPLAY button.

- The name of the file currently in play will be displayed.

2 Press the DISPLAY button.

- Title name based on tag information currently in play will be displayed.

3 Press the DISPLAY button.

- A r tist name based on tag information currently in play will be displayed.

4 Press the DISPLAY button to show the track number, the elapsed time, the repeat status, and the playback status at the top of the screen.

- will be displayed when the repeat play has been selected.

T - indicates Track repeat
G - indicates Group (folder) repeat
A - indicates Disc repeat

5 Press the DISPLAY button to exit.

- During program or random playback, each playback status will be displayed when you press the DISPLAY button. Then press the DISPLAY button to exit.

NOTE:

- If the file does not contain tag information, "NOT AVAILABLE" will be displayed.

Programme Playback

JPEGMROMA

This feature allows you to programme an MP3, JPEG or WMA disc to play in a desired sequence.

In stop mode, press the MODE button.

- The PROGRAM screen will appear.

2 Press the Cursor buttons (▲ or ▼) to select a group, then press the ENTER button.

• A track selection screen appears.

3 Press the Cursor buttons (▲ or ▼) to select a track, then press the ENTER button to

save it in a programme.

• Press the CLEAR button to erase the incorrect input.
• The programmed track is displayed in the right-hand screen.
• If the entire programme cannot be displayed at once on the screen, “▼” appears to go to th
• Pressing the ◀button will show a list of folders that belong to the one-level upper hierarchy than the currently selected folder.

4 Press the PLAY button to start programmed playback.

- Programmed play starts.

NOTES:

• Press the CLEAR button, and the last-programmed entry will be deleted.
• To erase all tracks in the programme at once, select ALL CLEAR at the bottom of the list at step 2.
• Press the RETURN button, and the STOP screen will show up with the programme contents in memory.
• Press the STOP button once and then press the PLAY button, playback will restart from the beginning of the track being played previously. (programme continued.)
• Press the STOP button twice and then the PLAY button again, playback will restart from the first track in the usual way. Your programmes are still stored until either the disc tray is open or power is turned off.
• Up to 99 tracks can be set in a programme.
• If a disc in inserted that contains mixed MP3, JPEG and WMA files, programme setting allows 99 tracks for combination of MP3, JPEG and WMA files.
• If eight or more tracks have been set in a programme, the user can switch the right part of the screen with the SKIP button ◀◀◀ or ▶▶◀.

Random Playback

JPEGMRSMA

In stop mode, press the RANDOM button.

• The RANDOM screen will appear.

2 Press the PLAY button to play the tracks in random order.

• Random play starts.
• F or a disc containing mixed MP3, JPEG and WMA files, random play of those files will be performed.

Audio Language

DVD-RWDVD-

your desired subtitle language.

- The selected language will be displayed on the display v bar at the top of the screen.

Press the Cursor buttons (◀or▶) to turn ON or OFF subtitles during playback.

The DVD player allows you to select a language during DVD disc (if multi language available) playback.

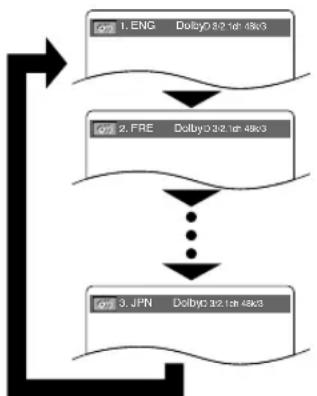

1 Press the AUDIO button during playback.
2 Press the AUDIO button repeatedly to select your desired language.

NOTES:

• The sound mode cannot be changed during playback of discs not recorded in double sound.
• Some discs allow audio language setting on the disc menu. (Operation varies between discs. Refer to the manual accompanying the disc.)
• Pressing the AUDIO button may not work on some DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu).
• If you choose a Language that has a 3-letter language code, the code will be displayed every time you change the Audio language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 25.)

Stereo Sound Mode

VCDCD

Press the AUDIO button repeatedly during play-back to select between STEREO, L-CH or R-CH.

STEREO - both right and left channels are active (stereo) L-CH - only left channel is active

R-CH - only right channel is active

NOTES:

• If the Virtual Surround setting is 1 or 2, the sound mode will be fixed to STEREO.
• Stereo sound mode will not be changed when playing DTS -CD.

Subtitle Language

DVD-V

The DVD player allows you to select a language for subtitle during DVD disc (if available) playback.
1 Press the SUBTITLE button during playback.
2 Press the SUBTITLE button repeatedly to select

3 To turn off subtitles, press the SUBTITLE button repeatedly until OFF appears.

NOTES:

• Some discs allow subtitle language setting on the disc menu. (Operation varies between discs. Refer to the manual accompanying the disc.)
• Pressing the SUBTITLE button may not work on some DVDs with multiple subtitle languages (e.g. DVDs which allow subtitle language setting on the disc menu).
• If the desired language is not shown after pressing the SUBTITLE button several times, the disc does not have subtitles in that language.
• If you choose a Language that has a 3-letter language code, the code will be displayed every time you change the Subtitle language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 25.)
• If the disc with no subtitle language, 'NOT AVAILABLE' will be displayed.

Camera Angle

DVD-V

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the camera angle when the mark ( ) appears on the screen.

Press the ANGLE button during playback.

- The selected angle will be displayed on the display bar at the top of the screen.

2 Press the ANGLE button repeatedly to select your desired angle.

NOTE:

- If the "ANGLE ICON" setting is "OFF" in the Display menu, the mark ( ) will not appear.

Changing the On-Screen Display

Marker Setup Screen

DVD-RWDVD-V

DVD-V DVD-RW

VCD CD

You can check information about the current disc by pressing the DISPLAY button on the remote control.

1 Press the DISPLAY button during playback to show the current chapter.

• The elapsed and remaining playing time of the current chapter will be displayed.

2 Press the DISPLAY button to show the current title.

- The elapsed and remaining playing time of the current title will be displayed.

3 Press the DISPLAY button to show the BIT RATE and the current repeat setting.

- If you are playing a dual layered disc, the layer number will also be displayed (L0: Layer 0 is playing. L1: Layer 1 is playing).

- If you are playing a DVD-RW with setting the PLAYLIST, the following will also be displayed. ORG: Playing the ORIGINAL.—PL: Playing the PLAYLIST.

4 Press the DISPLAY button to remove the display.

VCDCD

1 Press the DISPLAY button during playback, the current track will be displayed on the TV screen.

- The elapsed and remaining playing time of the current track will be displayed.

2 Press the DISPLAY button to show the total tracks.

- The elapsed and remaining playing time of the disc will be displayed.

3 Press the DISPLAY button to remove the display.

Hints for the On-Screen Display

• indicates Chapter repeat
• indicates Title or Track repeat
  • A - indicates Disc repeat
• A ⊆ B - indicates A-B repeat

Use markers to memorise your favourite places on a disc.

Press the SEARCH MODE button repeatedly until the display screen and Markers appear during playback.

2 Press the Cursor buttons (◀ or ▶) to select 1, 2, 3, 4, 5, 6,

7, 8, 9, or 10 and ensure that “_:__:__” appears in the display.

3 When reaches the desired point, press the ENTER button.

- The Title or Track and elapsed playing time will appear in the TV screen.

4 To return to the Marker later, press the SEARCH MODE button repeatedly during playback and the ◀ or ▶ button to choose the desired marker, then press the ENTER button.

NOTES:

• Opening the disc tray or turning off the power or select AC at step 2 and press the ENTER button will erase all Markers.
• To clear a marker, using the ◀ or ▶ button, position the cursor on to the marker number to be cleared and press the CLEAR button.
• You can mark up to 10 points.

5 Press the SEARCH MODE or RETURN button to exit.

Virtual Surround

DVD-V

DVD-RW

VCD

CD

MP3

WMA

You can enjoy surround-sound effect over two speakers.

1 Press the MODE button during playback.

2 Press the ENTER button to set it 1(Natural effect), 2(Emphasised effect) or OFF.

3 Press the RETURN button to exit.

NOTES:

• Select Virtual Surround OFF or adjust the volume down if the sound is distorted.
• Virtual Surround will not be effective if the sound mode is set to something other than "STEREO". (for Audio CDs or Video CDs play only)
• The setting will be saved even if the player is turned off.

In Setup menu, QUICK mode, CUSTOM mode and INITIALIZE mode (Refer pages 23 and 24) are available. QUICK mode consists of the setting menus often needed, and you can make all settings required in CUSTOM mode. You can make the settings of the items with QUICK in QUICK mode.

Language Setting

Language options are not available with some discs.

1 Press the SETUP button in STOP mode.
2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press the ENTER button.
- CUSTOM mode will appear.
3 Press the Cursor buttons (◀ or ▶) to select LANGUAGE, then press the EN-TER button to confirm.
4 Press the Cursor buttons ( ▲ or ▼ ) to select the below items, then press the ENTER button.

AUDIO (Default : ENGLISH)

- Sets the audio language.

SUBTITLE (Default : ENGLISH)

- Sets the subtitle language.

DISC MENU (Default : ENGLISH)

- Sets the language for DVD Menu.

PLAYER MENU

(Default : ENGLISH) QUICK

• Sets the language for the On-Screen display.
  5 Press the Cursor buttons ( ▲ or ▼ ) to select a setting, then press the ENTER button.
• If OTHER is selected in the AUDIO, SUBTITLE or DISC MENU screen, press 4-digit number to enter the code for the desired language. (Refer to the language code list on page 25).
• Only the languages supported by the disc can be selected.

6 Press the SETUP button to exit.

NOTE:

- Language Setting for AUDIO and SUBTITLE is not available with some discs. Then use the AUDIO and SUBTITLE buttons. Details are on pages 21.

Display Setting

You can change certain aspects of the DVD display screens, on-screen messages and the display panel on the front of the DVD player.

1 Press the SETUP button in STOP mode.
2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press the ENTER button. • CUSTOM mode will appear.

3 Press the Cursor buttons (◀ or ▶) to select DISPLAY, then press the ENTER button to confirm.

4 Press the Cursor buttons ( ▲ or ▼ ) to select the below items, then press the ENTER button.

TV ASPECT (Default : 16:9 WIDE) QUICK

• Press the Cursor buttons ( ▲ or ▼ ) for an item selection, then press the ENTER button.
• Select 16:9 WIDE if a wide-screen TV is connected to the DVD player.

DISPLAY TV ASPECT 18.8 WIDE STILL MODE AUTO ANGLE ICON ON AUTOPOKON/ROFF ON PANEL DISPLAY BRIGHT WINDOUT SCART

• Select 4:3 LETTER BOX for a black bars appears on top and bottom of the screen.
• Select 4:3 PAN & SCAN for a full height picture with both sides trimmed.

STILL MODE (Default : AUTO)

• Press the Cursor buttons ( ▲ or ▼ ) for an item selection (AUTO, FIELD, or FRAME), then press the ENTER button.
• This adjusts the resolution of pictures while in the still (PAUSE) mode.
  • A UTO is normally selected (default).
• If you select FIELD, pictures in the still mode will be stabilised although they will be coarse due to little amount of data.
• If you select FRAME, pictures in the still mode will be highly defined although they will be blurred due to output of two fields at the same time.

ANGLE ICON (Default : ON)

- Press the ENTER button repeatedly to turn Angle mark ON or OFF.

AUTO POWER OFF(Default : ON)

• Press the ENTER button repeatedly to turn Auto Power ON or OFF.
• It will turn the DVD player to off automatically after 35 minutes of no use.

PANEL DISPLAY

(Default : BRIGHT)

• Press the Cursor buttons ( ▲ or ▼ ) for an item select BRIGHT, DIMMER and AUTO, then press the ENTER button.
• When AUTO is selected, the display dims only during playback.

VIDEO OUT

(Default : SCART)

• Press the Cursor buttons ( ▲ or ▼ ) for an item selection (SCART, COMPONENT INTERLACE or COMPONENT PROGRESSIVE), then press the ENTER button.
• This setting will be effective when you exit the setup screen by pressing the SETUP button.
  • The default setting is SCART.
• When VIDEO OUT is COMPONENT PROGRESSIVE, "P.SCAN" appears on the DVD player's panel display after you exited the setup screen.
  • Refer to page 12 for more details.

5 Press the SETUP button to exit.

NOTES:

• Be sure to press the SETUP button, or the setting will not work.
• When changing the VIDEO OUT setting (SCART, COMPONENT INTERLACE or COMPONENT PROGRESSIVE), connect to a VIDEO jack or an S-VIDEO jack on the TV. If the setting is changed, for example, to SCART while the Component Video jacks is used to connect to the TV, a distorted video signal may be output.

Audio Setting

Choose the appropriate Audio settings for your equipment as it only affect during the playback of DVD discs of the DVD player.

1 Press the SETUP button in STOP mode.
2 Press the Cursor buttons (◀ or ▶) to select CUSTOM, then press the ENTER button.
- CUSTOM mode will appear.
3 Press the Cursor buttons (◀ or ▶) to select AUDIO, then the ENTER button to confirm.
4 Press the Cursor buttons ( ▲ or ▼ ) button to select the below items, then press the E

DRC (Dynamic Range Control) (Default : ON)

• T o compress the range of sound volume.
• DRC function is available only on the discs that are recorded in the Dolby Digital format.

DOWN SAMPLING (Default : ON)

• Set to ON when outputting in 48kHz.
• This function is available only on digital outputting of a disc recorded in 96 kHz.

When playing disc with copyright protection

- The sound will be down sampled at 48 kHz, even if you set to OFF.

DOLBY DIGITAL (Default : ON) QUICK

Set to ON when the player is connected to Dolby Digital decoder.

ON: O utput by Dolby Digital.

OFF: Convert the Dolby Digital to PCM.

ON: O output by DTS sound Set to ON when the unit is connected to DTS decoder.

OFF: No DTS sound will be output.

MPEG (Default: OFF) QUICK

ON: Output MPEG sound. Set to ON when the unit is connected to an MPEG decoder.

OFF: Convert the MPEG sound to PCM.

5 Press the SETUP button to exit.

AUDIO DRC ON DOWN STAMPLING ON DOWN DIGITAL ON GTS ON MPEG OFF

AUDIO DRC ON DOWN SAMPUNG ON DOLSY DIGITAL ON DTS ON MPEG OFF

Parental Control

Parental Control limits playback of discs with unsuitable audience ratings. A 4-digit password established by the user will unlock the parental lock.

This feature allows you to prevent discs with objectionable scenes from being played by your children.

PARENTAL LEVEL

Parental Level allows you to set the rating level of your DVD discs. Playback will stop if the disc's ratings exceed the level you set.

Press the SETUP button in STOP mode.
2 Press the Cursor buttons (◀or▶) to select CUS-TOM, then press the ENTER button.
3 Press the Cursor buttons (◀or▶) to select PARENTAL, then press the ENTER button.

4 Press the Numeric buttons to enter your 4-digit password.

• When doing this for the first time, enter any 4-digit number by pressing the number buttons (except for 4737), then press the ENTER button. That number will be used as the password from the second time onward. Record you forget it.
• If you forget the password, press 4, 7, 3, 7. The original password will be cleared and parental levels will be set to "ALL". Enter a new 4-digit password, then press the ENTER button.

5 Press the Cursor buttons (▲ or ▼) to select PARENTAL LEVEL, then press the ENTER button.

PARENTAL PASSWORD Please enter a 4-digit password.

6 Press the Cursor buttons (▲ or ▼) to select the desired level, then press the ENTER button.
7 Press the SETUP button to exit.

NOTE:

- This function may not work on some DVDs. Be sure if the RATINGS operates in the way you have set.

To Change the Password:

1) Follow the steps 1 ab4 e.
2) Press the Cursor buttons ( ▲ or ▼ ) to select "CHANGE", then press the ENTER button.
3) Enter a new 4-digit password, then press the ENTER button.
4) Press the SETUP button to exit.

Press 4, 7, 3, 7 at step 4.
- Password will be cleared and rating level will be set to ALL.
2 Repeat steps 5 to 7 to re-establish the parental lock.

CONTROL LEVELS

• ALL
Parental lock is cancelled.
- Level 8
DVD software of any grade (adult/general/children) can be played back.
- Levels 7 to 2
Only DVD software intended for general use and children can be played back.
- Level 1
Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

Returning all selections of SETUP (except for PARENTAL and VIDEO OUT) to their default settings

This allows you to return all selections of SETUP (except for PARENTAL and VIDEO OUT) to their default settings.

Press the SETUP button in STOP mode.
2 Press the Cursor buttons (◀ or ▶) to select INITIALIZE, then press the ENTER button.
3 Press the Cursor buttons ( ▲ or ▼ ) to select YES, then press the ENTER button.
4 Press the SETUP button to exit.

NOTE:

- When you cancel to INITIALIZE at step 3 select NO.

DVD SETUP

Language	Code	Language	Code	Language	Code	Language	Code
A-B		Frisian 5271		Malay	5965	Somali	6561
Abkhazian 4748		Galician	5358	Malayalam	5958	Spanish [SPA]	5165
Afar 4747		Georgian	5747	Maltese	5966	Sundanese	6567
Afrikaans 4752		German [GER]	5051	Maori	5955	Swahili	6569
Albanian 6563		Greek [GRE]	5158	Marathi 5964		Swedish [SWE]	6568
Amharic 4759		Greenlandic	5758	Moldavian	5961	T
Arabic 4764		Guarani 5360		Mongolian	5960	Tagalog	6658
Armenian 5471		Gujarati	5367	Nauru	6047	Tajik	6653
Assamese 4765		Hausa	5447	Nepali 6051		Tamil	6647
Aymara 4771		Hebrew	5569	Norwegian [NOR]	6061	Tatar	6666
Azerbaijani 4772		Hindi	5455	O-R		Telugu 6651
Bashkir 4847		Hungarian [HUN]	5467	Occitan 6149		Thai	6654
Basque 5167		I-K		Oriya	6164	Tibetan 4861
Bengali;Bangla 4860		Icelandic [ICE]	5565	Oromo(Afan)	6159	Tigrinya 6655
Bhutani 5072		Indonesian	5560	Panjabi	6247	Tonga	6661
Bihari 4854		Interlingua 5547		Pashto;Pushto	6265	Tsonga 6665
Bislama 4855		Interlingue 5551		Persian 5247		Turkish [TUR]	6664
Breton 4864		Inupiak	5557	Polish	6258	Turkmen	6657
Bulgarian 4853		Irish [IRI]	5347	Portuguese [POR]	6266	Twi	6669
Burmese	5971	Italian [ITA] 5566		Quechua	6367	U-Z
Byelorussian	4851	Japanese [JPN]	5647	Rhaeto-Romance	6459	Ukrainian 6757
C-E		Javanese 5669		Romanian [RUM]	6461	Urdu	6764
Cambodian	5759	Kannada	5760	Russian [RUS]	6467	Uzbek 6772
Catalan	4947	Kashmiri 5765		S		Vietnamese	6855
Chinese [CHI]	7254	Kazakh 5757		Samoan	6559	Volapuk 6861
Corsican	4961	Kinyarwanda	6469	Sangho	6553	Welsh	4971
Croatian	5464	Kirghiz	5771	Sanskrit	6547	Wolof 6961
Czech 4965		Kirundi	6460	Scots Gaelic	5350	Xhosa 7054
Danish [DAN]	5047	Korean [KOR]	5761	Serbian	6564	Yiddish	5655
Dutch [DUT]	6058	Kurdish 5767		Serbo-Croatian	6554	Yoruba	7161
English [ENG]	5160	L-N		Sesotho 6566		Zulu	7267
Esperanto	5161	Laothian	5861	Setswana	6660
Estonian 5166		Latin	5847	Shona	6560
F-H		Latvian; Lettish	5868	Sindhi	6550
Faroese	5261	Lingala	5860	Singhalese 6555
Fiji	5256	Lithuanian	5866	Siswat	6565
Finnish [FIN]	5255	Macedonian	5957	Slovak 6557
French [FRE]	5264	Malagasy 5953		Slovenian	6558

If you choose a Language that has a 3-letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 21. If you choose any other languages, ‘---’ will be displayed instead. (3-letter language code is written in bracket.)

MAINTENANCE

Cleaning the Cabinet

- Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion.
• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

Cleaning the disc lens

- If the player still does not perform properly when it is operated while referring to the relevant sections and to "TROUBLESHOOTING GUIDE" in this Operating Instruction, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

Disc Handling

• Use discs which have the following logos on them. (Optical audio digital discs.)
• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.
• Always store the disc in its protective case when it is not used.
• Note that discs with special shapes (heart-shaped discs, octagonal discs, etc.) cannot be played on the this product. Do not attempt to play such discs, as they may damage the player.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.
- You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

If the DVD player does not perform properly when operated as instructed in this Operating Instruction, check the player, consulting the following checklist.

Problem Solution

No power -Check if the AC power cord is properly connected.
	-Unplug the outlet once, and wait for 5-10seconds and then plug it in again
No sound or picture -Check if the TV is switched on.
	-Check the video connection-Check the VIDEO/AUDIO cable connections to the TV(Refer to on page 14 for Connecting to a TV (for video))-Check if the INTERLACE/PROGRESSIVE mode is set correctly according to your TV. See page 23.
Distorted picture	-Sometimes a small amount of picture distortion may appear.This is not a malfunction.-Connect the player directly to the TV.
Completely distorted picture or -Connect DVD player directly to the TV.black/white picture with DVD	-Make sure the disc is compatible with the DVD player.
No sound or distorted sound -Adjust the volume.	-Check that the speakers are connected correctly.
No audio at digital output -Check the digital connections.
	-Check if the audio format of the selected audio language matches your receiver capabilities.
No DTS audio output -Use a DIGITAL AUDIO OUT jack when outputting the DTS audio.
Picture freezes momentarily during playback	-Check the disc for fingerprints/scratches and clean with a soft cloth wiping from center to edge.-Clean the disc
Disc can't be played	-Clean the disc-Ensure the disc label is facing up.-Check if the disc is defective by trying another disc.-Cancel the parental lock or change the control level.-Insert a correct disc that plays on this player.
No return to start-up screen when disc is removed	-Reset the player by switching the player off, then on again.
The player does not respond to the remote control	-Aim the remote control directly at the sensor on the front of the player.-Reduce the distance to the player.-Replace the batteries in the remote control.-Re-insert the batteries with their polarities (+/- signs) as indicated.
Buttons do not work or player stops responding	-To completely reset the player, unplug the AC cord from the AC outlet for 5-10 seconds.
The remote control doesn't seem to work	-The REMOTE CONTROL IN jack on the rear panel is connected.-Check that REMOTE CODE setting is set to the correct position.
Player does not respond to some operating commands during playback	-Operations may not be permitted by the disc.Refer to the instructions of the disc.
DVD player cannot read CDs/DVDs	-Use a commonly available cleaning CD/DVD to clean the lens before sending the DVD player for repair.
Angle does not switch	-The angle cannot be switched for DVDs which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes.
Playback does not start when the title is selected	-Check the "PARENTAL" setting.
The password for rating level has been forgotten	-Enter the default password "4737", then your forgotten password will be cleared

NOTE:

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Operating Instruction for details on correct operations.
• Playback from a desired track and random playback are not available during program playback.
• Some functions are prohibited on some discs.

SIGNAL SYSTEM

PAL color

APPLICABLE DISCS

(1) DVD-Video Discs
1-layer 12cm single-sided discs, 2-layer 12cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side) 1-layer 8cm single-sided discs, 2-layer 8cm single-sided discs, 2-layer 8cm double-sided discs (1 layer per side)

(2) DVD-R/DVD-RW

(3) Compact discs (CD-DA, Video CD) 12cm discs, 8cm discs

(4) CD-R/CD-RW

S-VIDEO OUTPUT

Y output level: 1Vp-p (75Ω/ohms)

C output level: 0.30Vp-p

Output connectors: S connectors, 1 set

VIDEO OUTPUT

Output level: 1Vp-p (75Ω/ohms)

Output connector: Pin jacks, 1 set

COMPONENT OUTPUT

Y output level: 1Vp-p (75Ω/ohms)

C_B/P_B output level: 0.7Vp-p (75Ω/ohms)

C_R/P_R output level: 0.7Vp-p (75Ω/ohms)

Output connector: Pin jacks, 1 set

AUDIO/VIDEO

21-pin scart jack

AUDIO OUTPUT

Output level: 2Vrms

2 channel (L, R) output connector: Pin jack, 1 set

AUDIO OUTPUT PROPERTIES

(1) Frequency response

1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling)

: 4Hz to 44kHz (96 kHz sampling)

2 CDs : 4Hz to 20kHz

(2) S/N ratio : 115dB

(3) Total harmonic distortion: 1kHz CD: 0.0045%

(4) Dynamic range : DVD: 100dB

CD: 98dB

DIGITAL AUDIO OUTPUT

Optical digital output: Optical connector, 1 set

Coaxial digital output: Pin jack, 1 set

POWER SUPPLY

AC 230V, 50Hz

POWER CONSUMPTION

12 W

MAXIMUM EXTERNAL DIMENSIONS

440 (width) x 75 (height) x 211 (depth) mm

MASS

2.1 Kg (4.6 lbs)

REMOTE CONTROL UNIT

RC6500DV

Infrared pulse type

Supply: DC 3V, 2 R6P/AA batteries

20 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1

Contacts, signal levels and impedances

Contact 1
Audio Output (Right):	2.0Vrms/ 1kΩ
Contact 3
Audio Output (Left):	2.0Vrms/ 1kΩ
Contact 4
Audio, Ground
Contact 5
RGB, Ground (Blue)
Contact 7
RGB Output (Blue):	0.7Vp-p/75Ω
Contact 8
Function Select Switching Control
	L:0.0~2.0V DCPower OffM: 4.5~7.0V DCWide-Screen Mode(16:9)H: 9.5~12.0V DCONormal Mode (4:3)
Contact 9
RGB, Ground (Green)
Contact 11
RGB Output (Green):	0.7Vp-p/75Ω
Contact 13
RGB, Ground (Red)
Contact 14
RGB Switching Control, Ground
Contact 15
RGB Output (Red):	0.7Vp-p/75Ω
Contact 16
RGB Switching Control
H: 3.3V DC	RGB Mode
Contact 17
Video Output Signal, Ground
Contact 18
Video Input Signal, Ground
Contact 19
Video Output (CVBS):	1.0Vp-p/75Ω
Contact 21
Common Ground (shielding)

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

JAPAN	Marantz Japan, Inc.	35-1 Sagami Ohno 7-Chome, Sagamihara-shi, kanagawa 228-8505, Japan
U.S.A	Marantz America, Inc.	1100 Maplewood Drive, Itasca, IL 60143, U.S.A.

EUROPE Marantz Europe B.V. P.O. Box 8744, 5605 LS Eindhoven, The Netherlands

marantz®

is a registered trademark.

2004/05 12BW851310
