Product type	Pedestal fan
Brand	SOLAC
Model	VT8810
Number of speeds	3
Oscillation	Yes, with oscillation control
Vertical tilt	45°
Blade diameter	40 cm (estimated)
Total height	45 cm (estimated)
Weight	3 kg (estimated)
Power supply	220-240 V ~ 50 Hz
Rated power	50 W (estimated)
Blade material	Plastic (estimated)
Carrying handle	Yes, integrated
Cleaning	Damp cloth, do not immerse
Safety	Protective grilles, automatic shut-off in case of tipping (not specified)
Usage	Household use only
Included accessories	Base, grilles, blades, fixing screws
Warranty	2 years (estimated)

Frequently Asked Questions - VT8810 SOLAC

How to assemble the SOLAC VT8810 fan?

Insert the motor shaft into the base and secure with the fixing screw. Then, remove the cap and ring, place the rear grille on the shaft aligning the protrusions, then secure with the ring. Insert the blades and tighten the cap. Mount the front grille into the assembly ring and screw in the safety screw.

How to use the different speeds?

Turn the speed regulator to select the desired setting. The VT8810 model offers three speeds. To stop the fan, set the regulator to position 0.

How to activate oscillation?

Press the oscillation button (control 10) to activate the left-right movement. To stop oscillation, gently pull the control. To reactivate, press again.

How to tilt the fan vertically?

Gently press the upper part of the motor shaft forward or backward to adjust the tilt up to 45°.

How to clean the fan?

Unplug the appliance before cleaning. Use a slightly damp cloth to wipe the surfaces. Never immerse the appliance in water and avoid drops entering the motor. Do not use solvents or abrasive products.

What to do if the fan does not work?

Check that the appliance is plugged in and the speed regulator is not on 0. Ensure the power cord is not damaged. If the problem persists, contact an authorized Technical Service.

The fan is making noise, is this normal?

A slight operating noise is normal. If the noise becomes abnormal, check that the blades are properly secured and that nothing is obstructing the grilles. Improper assembly may cause vibrations.

Can I use the fan outdoors?

No, this fan is designed for indoor household use only. Do not expose it to rain, humidity, or extreme temperatures.

How to store the fan in winter?

Clean and dry it thoroughly. Store it in a dry, dust-free place, preferably in its original packaging or covered with a cloth.

Where can I find spare parts for the SOLAC VT8810?

Spare parts (blades, grilles, etc.) are available from SOLAC after-sales service or authorized dealers. Contact customer support for more information.

USER MANUAL VT8810 SOLAC

Black and white photo of a SOlac Vento 30 air conditioner fan on a stand (no text or symbols on the fan body)

5- 7 • ESPAÑOL

8-10 • ENGLISH

11-13 • FRANÇAIS

14-16 • DEUTSCH

17-19 • PORTUGUÊS

20-22 • ITALIANO

23-25 • NEDERLANDS

26-28 • ČESKY

29-31 • POLSKA

32-34 • SLOVENSKY

35-38 • MAGYAR

39-41 • българск

42-43 • HRVATSKA

44-46 • ROMANA

Line drawing of a mechanical component with a central protrusion and concentric rings (no text or symbols)

Fig. 1

Line drawing of a hand using a tool to adjust or install a circular component (no text or symbols present)

Fig. 2

Circular diagram with radial lines and central symbol, no readable text or labels

Fig. 3

Diagram of a mechanical component with internal flow patterns, no text or symbols present

Fig. 4

Line drawing of a hand using a tool to lift a net above a cylindrical object (no text or symbols)

Fig. 5

ATENCIÓN

• Read these instructions carefully before using your appliance, and keep them for future reference.
• Check that the voltage on the specifications plate matches the mains voltage in your home.
• Remove all elements used for protection during transport or for sales promotions, such as paper or plastic bags, plastic sheets, cardboard and stickers from inside or outside the appliance.
• Do not introduce any object inside the appliance. Position the appliance away from objects that could penetrate the grilles.
• Never immerse the appliance in water or any other liquid. Do not put near a bathtub, shower or swimming pool.
• Do not position the device near an open flame or inflammable gases.
• Do not place the cable under carpets or any other kind of material.
• While the appliance is in operation, keep out of reach of children, animals and disabled people. If the appliance is used in their presence, keep a watchful eye on such operations.
• The appliance is destined solely for home use; it may not be used for industrial purposes.
• Unplug when not in use.
• If the appliance does not work properly or if the power cable is damaged, take it to a Specialised Technical Service Centre.
• Before starting the appliance, check that it is on a stable surface and is in its normal operating position (on its base).

WARNING!!: When you want to dispose of the appliance, NEVER throw it in the bin. Take it to your nearest RECYCLING POINT or waste collection centre for treatment. If you do that, you will be helping to look after the environment.

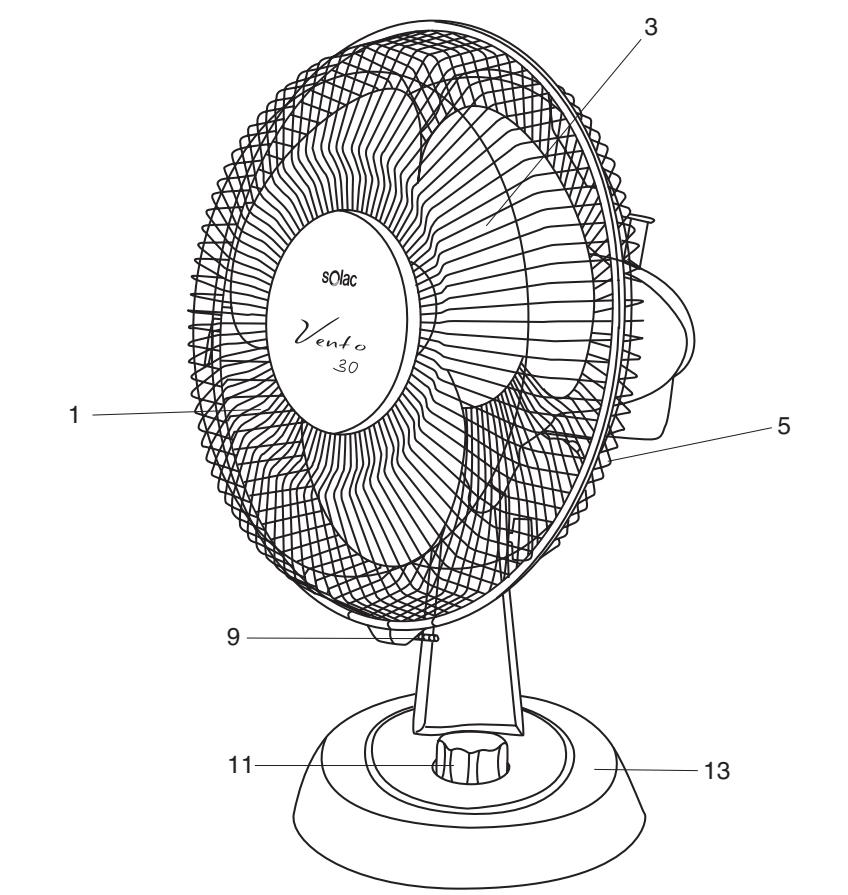

MAIN COMPONENTS

1. Front grille
2. Hood
3. Blades
4. Ring
5. Shaft protector

6. Rear grille

7. Motor shaft

8. Connecting ring
9. Safety screw
10. Oscillation button
11. Speed regulator
12. Carry handle
13. Base
14. Base attachment screw

ASSEMBLY

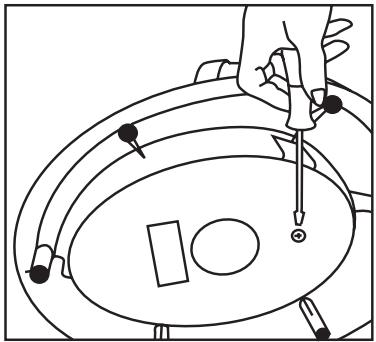

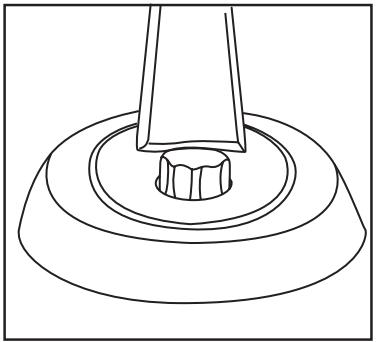

1. Fit the motor shaft (7) into the base (13) (Fig. 1) and join both parts using the base attachment screw (14) (Fig. 2)
2. Unscrew and remove the hood (2) and ring (4) from the motor shaft (7), and also remove the shaft protector (5).

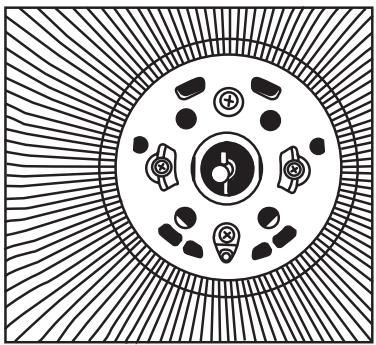

3. Fit the rear grille (6) over the shaft (7) so that the projections on the motor shaft coincide with the orifices on the rear grille (6) (Fig. 3). Fix the grille to the shaft using the ring (4), tightening it in a clockwise direction.

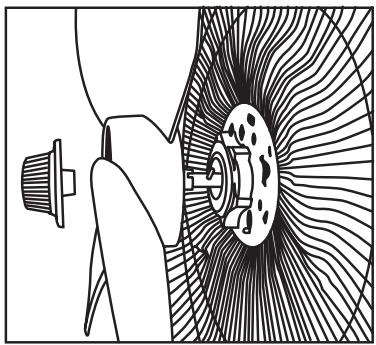

4. Insert the blades (3) and lock them in place by turning the hood (2) anticlockwise (Fig. 4). Check that they turn correctly.
5. Mount the front grille (1) using the guide on the connecting ring (8). You will hear a "click". Proceed to tighten the safety screw (9). (Fig. 5)

OPERATING INSTRUCTIONS

• Turn the regulator control to select the desired speed. The VT8805 model has 2 speed settings, while the VT8810 and VT8815 models have 3 speed settings.
• The fan can be turned off by turning the regulator control to position 0.
• The fan will oscillate automatically when the button (10) is pressed; pull the oscillation button (10) gently to stop the oscillation. To resume the oscillating function, simply press this button again.
• The fan may also be inclined at an angle of 45^ to the vertical. Adjust this inclination pressing gently on the upper part of the motor shaft (7), forwards or backwards.

CLEANING AND MAINTENANCE

- Your appliance must be disconnected from the mains before any cleaning operation is performed.

• Clean with a slightly damp cloth.
• Never immerse the appliance in water or any other liquid. Check that no drops of liquid enter the motor area.
• Do not use solvents or abrasive cleaners to clean the device, since they could damage its plastic parts.
• When the appliance is not in use it should be kept in a damp-proof location.
