VT8805 - Fan SOLAC - Free user manual and instructions

Brand	SOLAC
Model	VT8805
Product Type	Pedestal Fan
Power Supply	Mains 220-240V ~ 50Hz
Number of Speeds	2 (model VT8805)
Oscillation	Yes, button control
Vertical Tilt	45° forward or backward
Main Material	Plastic
Number of Blades	3 blades
Protective Grille	Front and rear grille
Assembly	Requires assembly of base, grilles and blades
Carrying Handle	Yes, integrated
Cleaning	Slightly damp cloth, do not immerse
Storage	Away from moisture
Usage	Household use only
Warranty	Authorized technical service for repairs
Safety	Do not use near water, unplug before cleaning
Weight	Approx. 3 kg (estimated)
Dimensions (H x W x D)	Approx. 45 x 30 x 30 cm (estimated)

Frequently Asked Questions - VT8805 SOLAC

How to assemble the VT8805 fan?

Insert the motor shaft into the base, secure with the base screw. Attach the rear grille with the ring, insert the blades and secure with the cap. Mount the front grille onto the assembly ring until it clicks, then screw in the safety screw.

How many speeds does the VT8805 have?

The VT8805 model has 2 speeds. Models VT8810 and VT8815 have 3.

How to operate the oscillation?

Press the oscillation button to activate automatic oscillation. To stop it, gently pull the same button. To resume, press again.

Can the fan tilt?

Yes, the fan allows a vertical tilt of 45°. Adjust it by gently pressing the upper part of the motor shaft forward or backward.

How to clean the fan?

Unplug the appliance before cleaning. Use a slightly damp cloth. Never immerse the appliance in water and avoid any infiltration into the motor. Do not use abrasive products.

What if the fan does not turn on?

Check that the mains socket works and that the power cord is not damaged. Make sure the speed regulator is not on 0. If the problem persists, contact an authorized technical service.

The fan makes noise, what to do?

Check that the blades are properly secured and that no object obstructs the grille. Ensure the appliance is on a stable surface. If the noise persists, stop the appliance and contact technical service.

Is it dangerous to leave the fan running unattended?

It is recommended not to leave the appliance unattended in the presence of children, disabled persons or animals. Unplug it when not in use.

Can I use the fan outdoors?

No, the appliance is intended for indoor household use only. Do not use it near water or in humid conditions.

How to recycle the fan at end of life?

Do not throw the appliance in the trash. Take it to a recycling point or waste disposal center for proper treatment and to contribute to environmental preservation.

USER MANUAL VT8805 SOLAC

Black and white photo of a SOlac Vento 30 air conditioner fan on a stand (no text or symbols on the fan body)

5- 7 • ESPAÑOL

8-10 • ENGLISH

11-13 • FRANÇAIS

14-16 • DEUTSCH

17-19 • PORTUGUÊS

20-22 • ITALIANO

23-25 • NEDERLANDS

26-28 • ČESKY

29-31 • POLSKA

32-34 • SLOVENSKY

35-38 • MAGYAR

39-41 • българск

42-43 • HRVATSKA

44-46 • ROMANA

Line drawing of a mechanical component with a central knob and concentric rings (no text or symbols)

Fig. 1

Line drawing of a hand using a tool to adjust or install a circular component (no text or symbols present)

Fig. 2

Circular diagram with radial lines and central symbol, no readable text or labels

Fig. 3

Diagram of a mechanical component with fluid flow patterns around a central rotating wheel (no text or symbols)

Fig. 4

Line drawing of a hand using a tool to lift a net above a cylindrical object (no text or symbols)

Fig. 5

ATENCIÓN

• Read these instructions carefully before using your appliance, and keep them for future reference.
• Check that the voltage on the specifications plate matches the mains voltage in your home.
• Remove all elements used for protection during transport or for sales promotions, such as paper or plastic bags, plastic sheets, cardboard and stickers from inside or outside the appliance.
• Do not introduce any object inside the appliance. Position the appliance away from objects that could penetrate the grilles.
• Never immerse the appliance in water or any other liquid. Do not put near a bathtub, shower or swimming pool.
• Do not position the device near an open flame or inflammable gases.
• Do not place the cable under carpets or any other kind of material.
• While the appliance is in operation, keep out of reach of children, animals and disabled people. If the appliance is used in their presence, keep a watchful eye on such operations.
• The appliance is destined solely for home use; it may not be used for industrial purposes.
• Unplug when not in use.
• If the appliance does not work properly or if the power cable is damaged, take it to a Specialised Technical Service Centre.
• Before starting the appliance, check that it is on a stable surface and is in its normal operating position (on its base).

WARNING!!: When you want to dispose of the appliance, NEVER throw it in the bin. Take it to your nearest RECYCLING POINT or waste collection centre for treatment. If you do that, you will be helping to look after the environment.

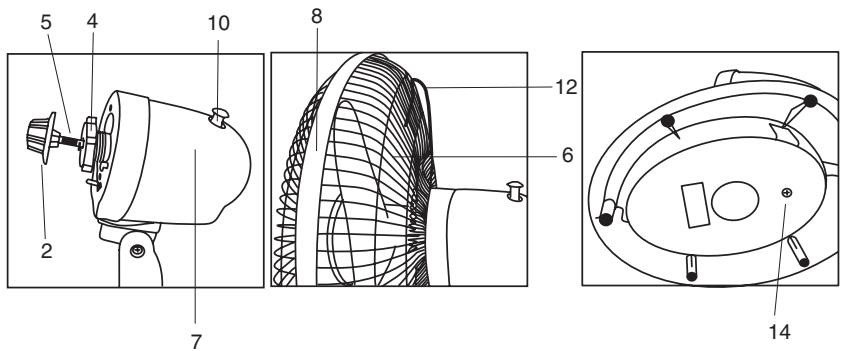

MAIN COMPONENTS

1. Front grille
2. Hood
3. Blades
4. Ring
5. Shaft protector

6. Rear grille

7. Motor shaft

8. Connecting ring
9. Safety screw
10. Oscillation button
11. Speed regulator
12. Carry handle
13. Base
14. Base attachment screw

ASSEMBLY

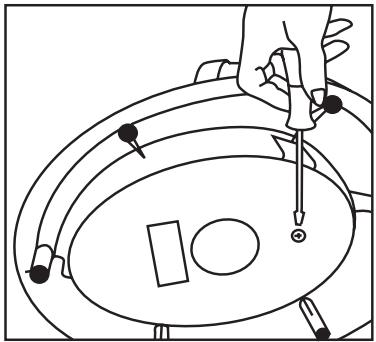

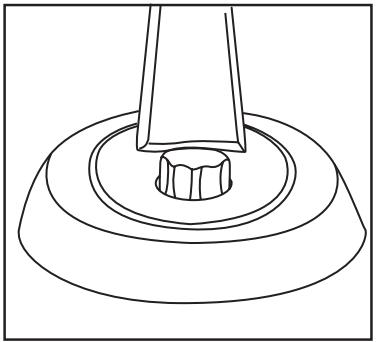

1. Fit the motor shaft (7) into the base (13) (Fig. 1) and join both parts using the base attachment screw (14) (Fig. 2)
2. Unscrew and remove the hood (2) and ring (4) from the motor shaft (7), and also remove the shaft protector (5).

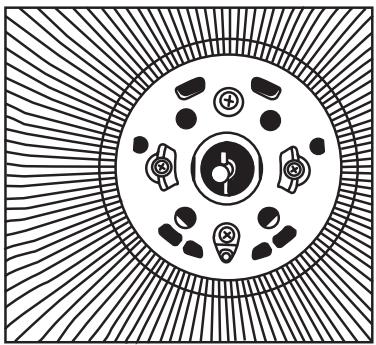

3. Fit the rear grille (6) over the shaft (7) so that the projections on the motor shaft coincide with the orifices on the rear grille (6) (Fig. 3). Fix the grille to the shaft using the ring (4), tightening it in a clockwise direction.

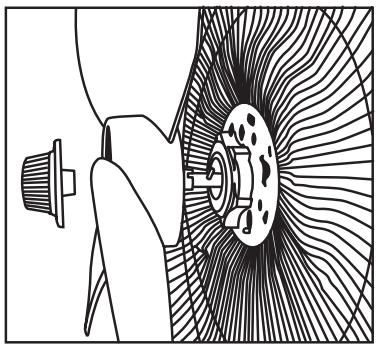

4. Insert the blades (3) and lock them in place by turning the hood (2) anticlockwise (Fig. 4). Check that they turn correctly.
5. Mount the front grille (1) using the guide on the connecting ring (8). You will hear a "click". Proceed to tighten the safety screw (9). (Fig. 5)

OPERATING INSTRUCTIONS

• Turn the regulator control to select the desired speed. The VT8805 model has 2 speed settings, while the VT8810 and VT8815 models have 3 speed settings.
• The fan can be turned off by turning the regulator control to position 0.
• The fan will oscillate automatically when the button (10) is pressed; pull the oscillation button (10) gently to stop the oscillation. To resume the oscillating function, simply press this button again.
• The fan may also be inclined at an angle of 45^ to the vertical. Adjust this inclination pressing gently on the upper part of the motor shaft (7), forwards or backwards.

CLEANING AND MAINTENANCE

- Your appliance must be disconnected from the mains before any cleaning operation is performed.

• Clean with a slightly damp cloth.
• Never immerse the appliance in water or any other liquid. Check that no drops of liquid enter the motor area.
• Do not use solvents or abrasive cleaners to clean the device, since they could damage its plastic parts.
• When the appliance is not in use it should be kept in a damp-proof location.

ATTENTION
