USER MANUAL NBG-419N ZYXEL

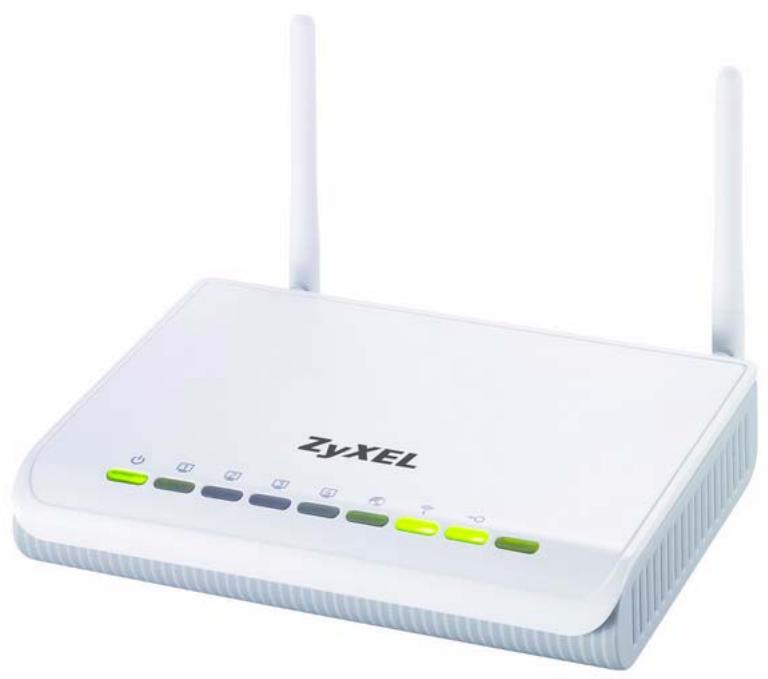

Wireless N Home Router

User's Guide

Default Login Details
IP Address	http://192.168.1.1
Password	1234

Firmware Version 1.0

Edition 2, 5/2009

www.zyxel.com

ZyXEL

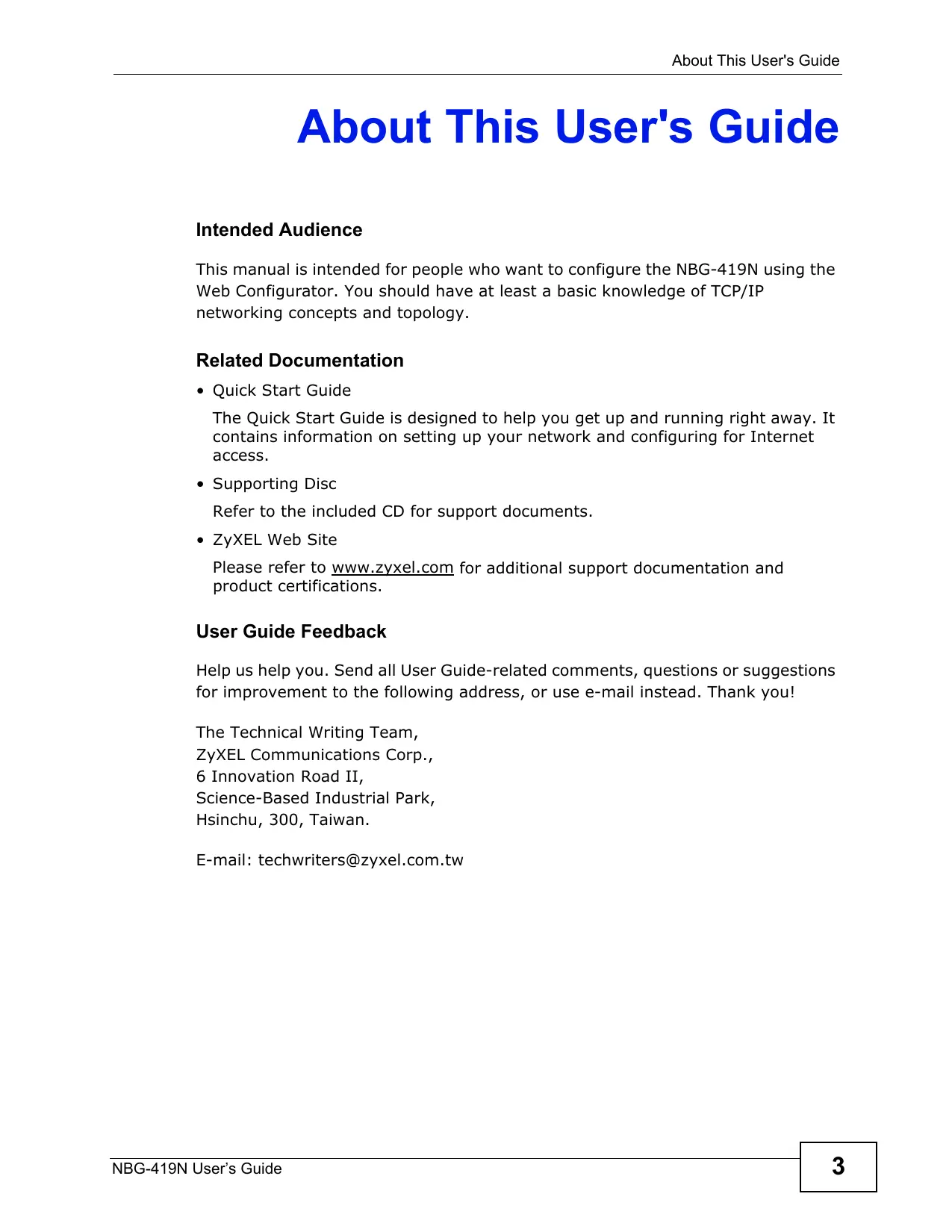

About This User's Guide

Intended Audience

This manual is intended for people who want to configure the NBG-419N using the Web Configurator. You should have at least a basic knowledge of TCP/IP networking concepts and topology.

Related Documentation

• Quick Start Guide

The Quick Start Guide is designed to help you get up and running right away. It contains information on setting up your network and configuring for Internet access.

• Supporting Disc

Refer to the included CD for support documents.

ZyXEL Web Site

Please refer to www.zyxel.com for additional support documentation and product certifications.

User Guide Feedback

Help us help you. Send all User Guide-related comments, questions or suggestions for improvement to the following address, or use e-mail instead. Thank you!

The Technical Writing Team,

ZyXEL Communications Corp.,

6 Innovation Road II,

Science-Based Industrial Park,

Hsinchu, 300, Taiwan.

E-mail: [e-mail]

Customer Support

In the event of problems that cannot be solved by using this manual, you should contact your vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in which you bought the device. See http://www.zyxel.com/web/contact_us.php for contact information. Please have the following information ready when you contact an office.

• Product model and serial number.
  Warranty Information.
• Date that you received your device.

Brief description of the problem and the steps you took to solve it.

Document Conventions

Warnings and Notes

These are how warnings and notes are shown in this User's Guide.

Warnings tell you about things that could harm you or your device.

Note: Notes tell you other important information (for example, other things you may need to configure or helpful tips) or recommendations.

Syntax Conventions

• The NBG-419N may be referred to as the "NBG-419N", the "device", the "product" or the "system" in this User's Guide.
• Product labels, screen names, field labels and field choices are all in bold font.
• A key stroke is denoted by square brackets and uppercase text, for example, [ENTER] means the "enter" or "return" key on your keyboard.
• "Enter" means for you to type one or more characters and then press the [ENTER] key. "Select" or "choose" means for you to use one of the predefined choices.
• A right angle bracket ( > ) within a screen name denotes a mouse click. For example, Maintenance > Log > Log Setting means you first click Maintenance in the navigation panel, then the Log sub menu and finally the Log Setting tab to get to that screen.
• Units of measurement may denote the "metric" value or the "scientific" value. For example, "k" for kilo may denote "1000" or "1024", "M" for mega may denote "1000000" or "1048576" and so on.
• "e.g.," is a shorthand for "for instance", and "i.e.," means "that is" or "in other words".

Icons Used in Figures

Figures in this User's Guide may use the following generic icons. The NBG-419N icon is not an exact representation of your device.

NBG-419N	Computer	Notebook computer
Server	Modem	Firewall
Telephone	Switch	Router

SafetyWarnings

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device.
• Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.
• If the power adaptor or cord is damaged, remove it from the power outlet.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.
• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
• Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s).

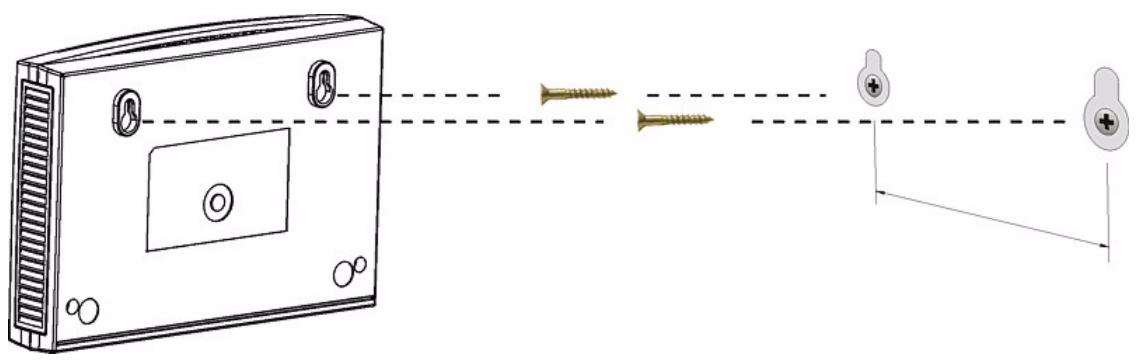

• If you wall mount your device, make sure that no electrical lines, gas or water pipes will be damaged.

Your product is marked with this symbol, which is known as the WEEE mark. WEEE stands for Waste Electronics and Electrical Equipment. It means that used electrical and electronic products should not be mixed with general waste. Used electrical and electronic equipment should be treated separately.

Contents Overview

Introduction 19

Getting to Know Your NBG-419N 21

Connection Wizard 25

Introducing the Web Configurator 37

Monitor 43

NBG-419N Modes 49

Easy Mode 51

Router Mode 63

Access Point Mode 71

WISP Mode 79

Tutorials 89

Network 97

Wireless LAN 99

WAN 119

LAN 135

DHCP Server 139

Network Address Translation (NAT) 143

Dynamic DNS 151

Static Route 153

RIP 157

Security 159

Firewall 161

Content Filter 167

Management 171

Bandwidth Management 173

Remote Management 183

Universal Plug-and-Play (UPnP) 187

Maintenance and Troubleshooting 195

Maintenance 197

Password 199

Time 201

Firmware Upgrade 205

Backup/Restore 207

Reset/Restart 211
Sys OP Mode 213
Troubleshooting 217

Appendices and Index 231

Table of Contents

About This User's Guide 3
Document Conventions 5
SafetyWarnings 7
Contents Overview 9
Table of Contents 11

Part I: Introduction 19

Chapter 1

Getting to Know Your NBG-419N 21

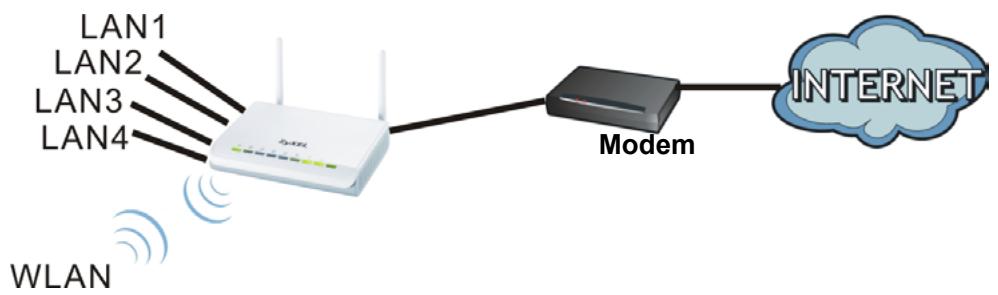

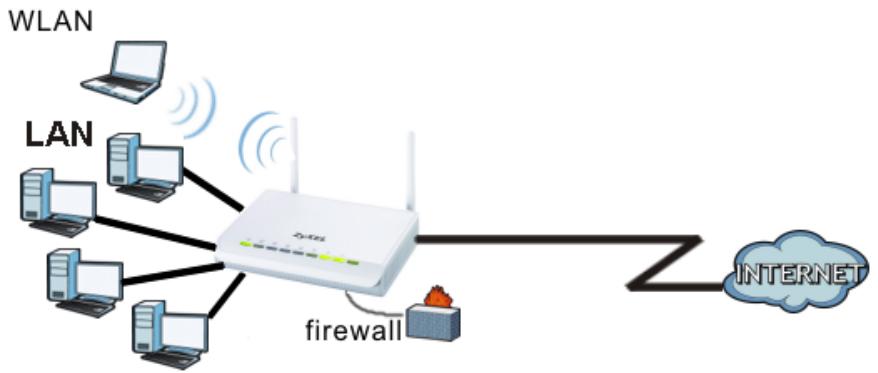

1.1 Overview 21

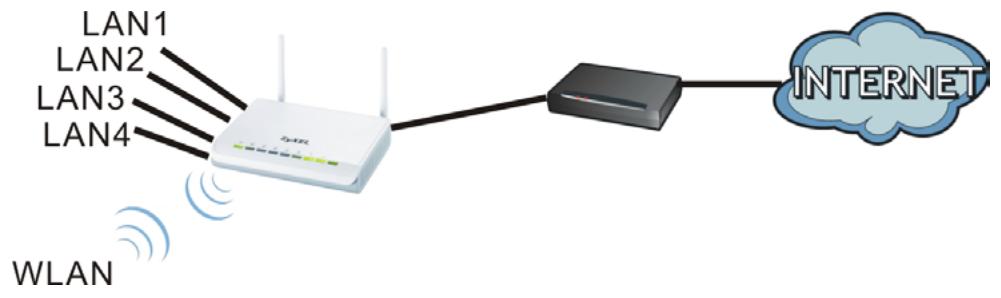

1.2 Applications 21
1.3 Ways to Manage the NBG-419N 22
1.4 Good Habits for Managing the NBG-419N 22

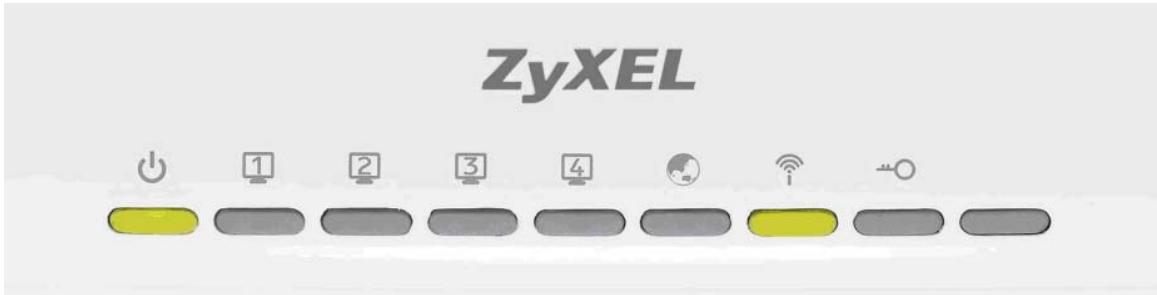

1.5 LEDs 22

Chapter 2

Connection Wizard 25

2.1 Overview 25

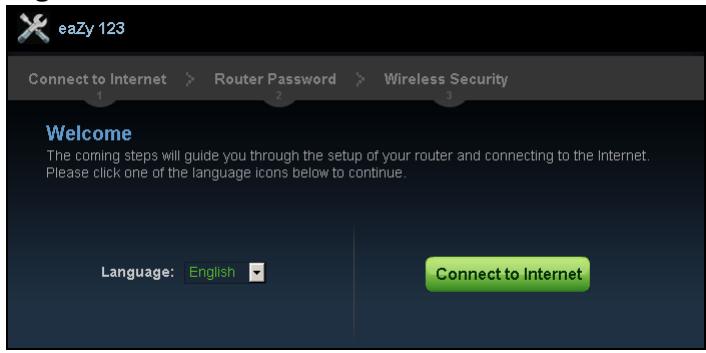

2.2 Accessing the Wizard 25

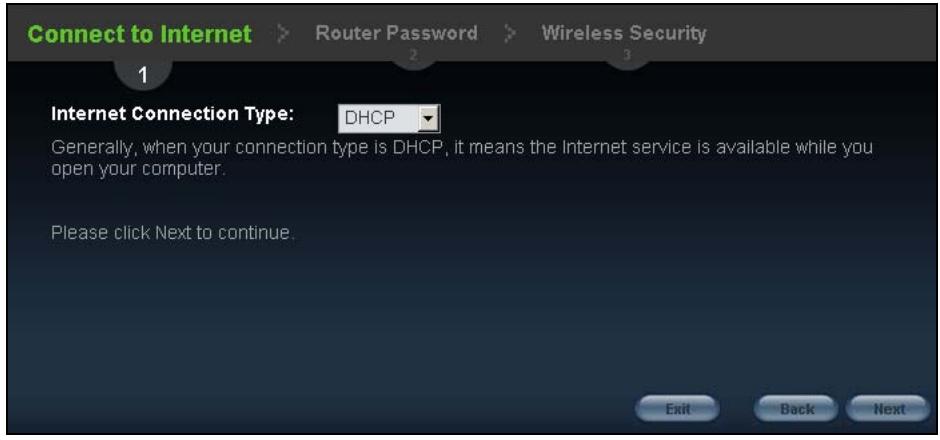

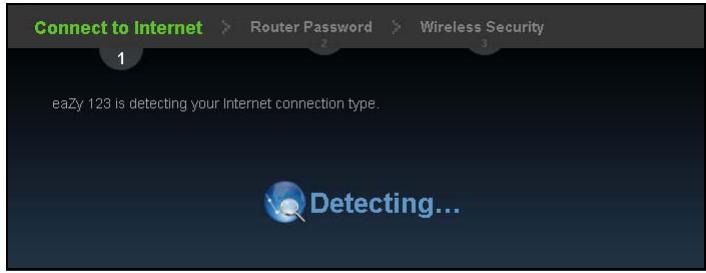

2.3 Connect to Internet 26

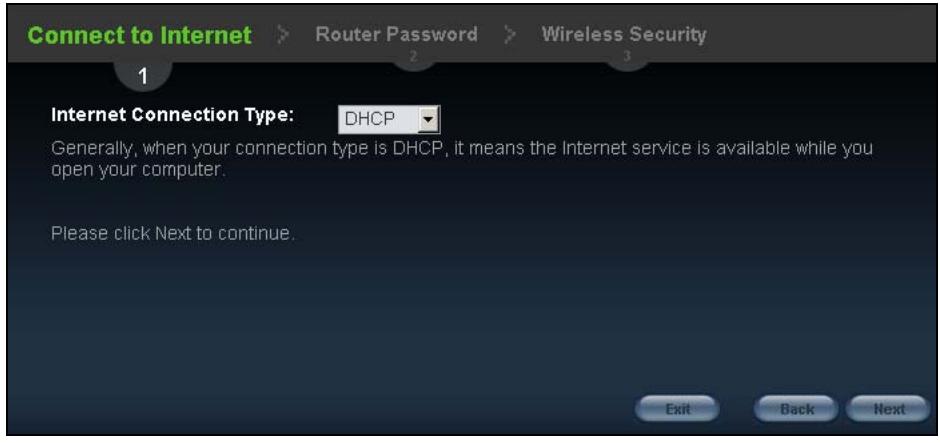

2.3.1 Connection Type: DHCP 27

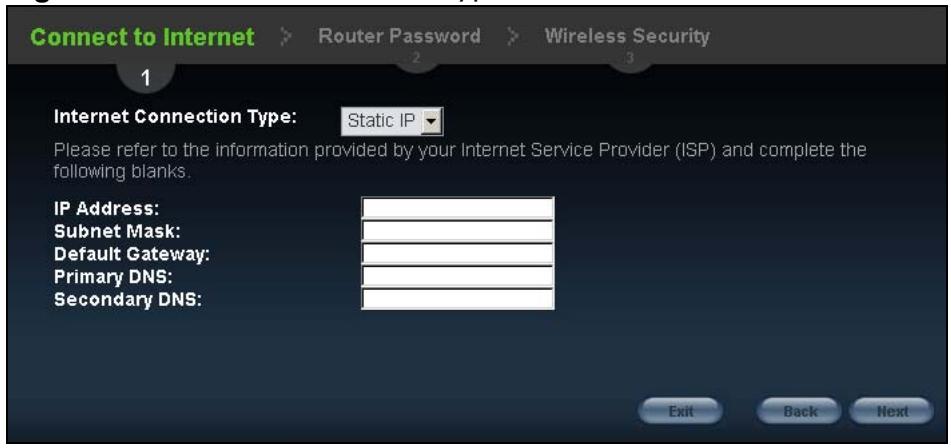

2.3.2 Connection Type: Static IP 28

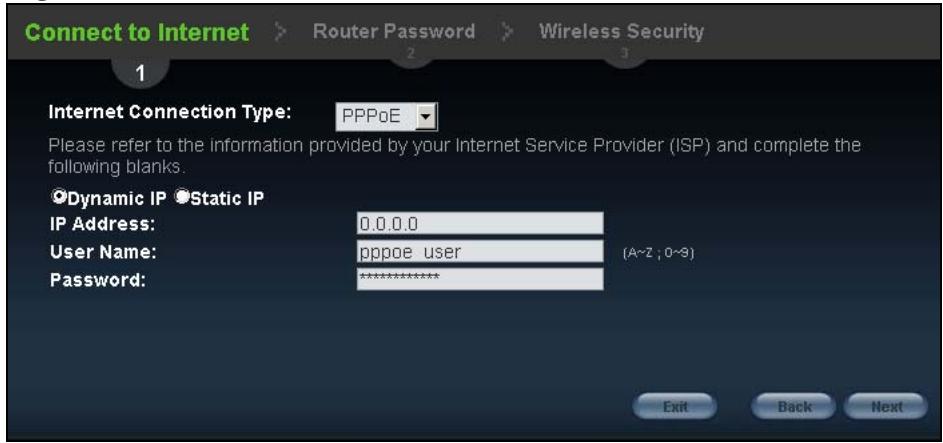

2.3.3 Connection Type: PPPoE 28

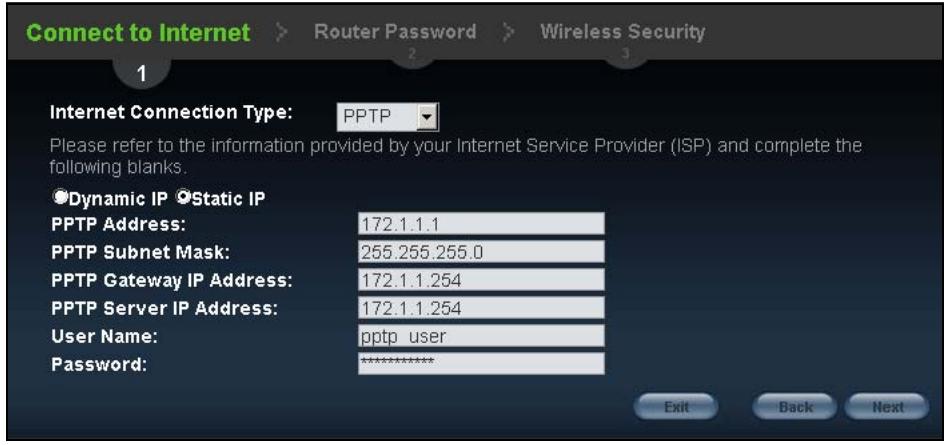

2.3.4 Connection Type: PPTP 30

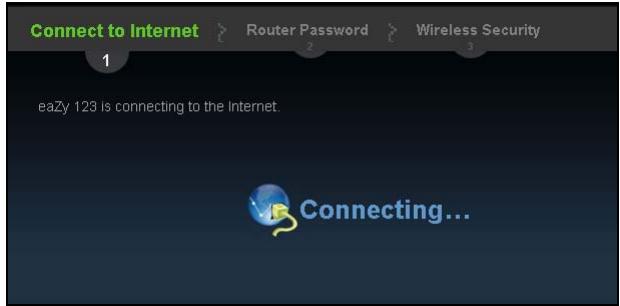

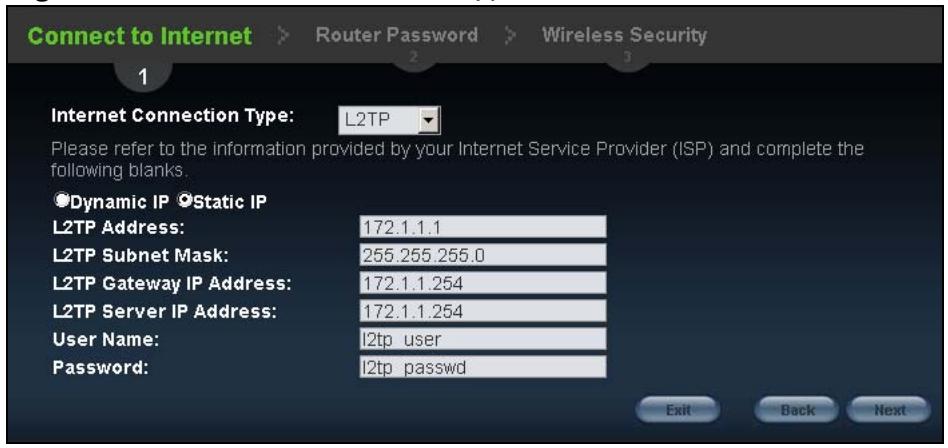

2.3.5 Connection Type: L2TP 31

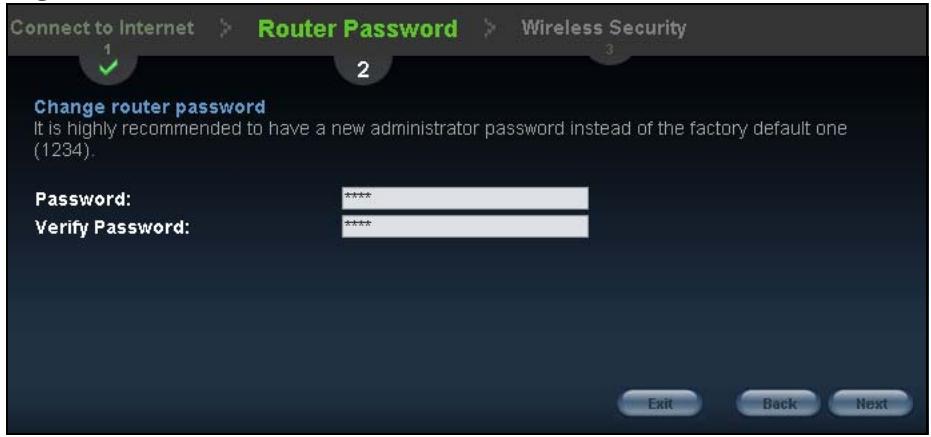

2.4 RouterPassword 33

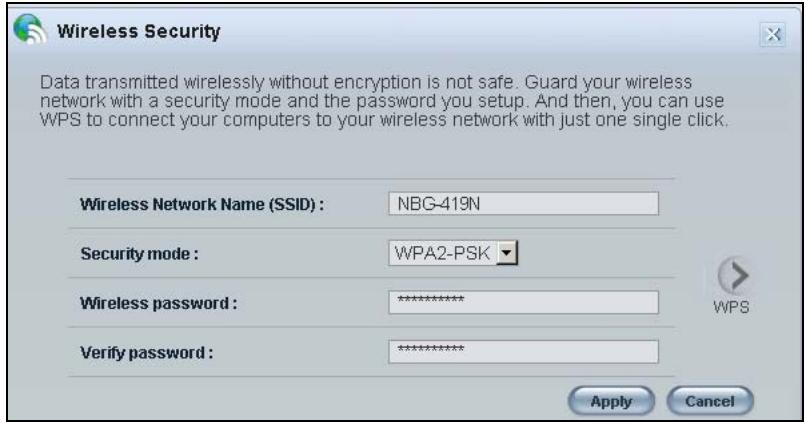

2.5 Wireless Security 33

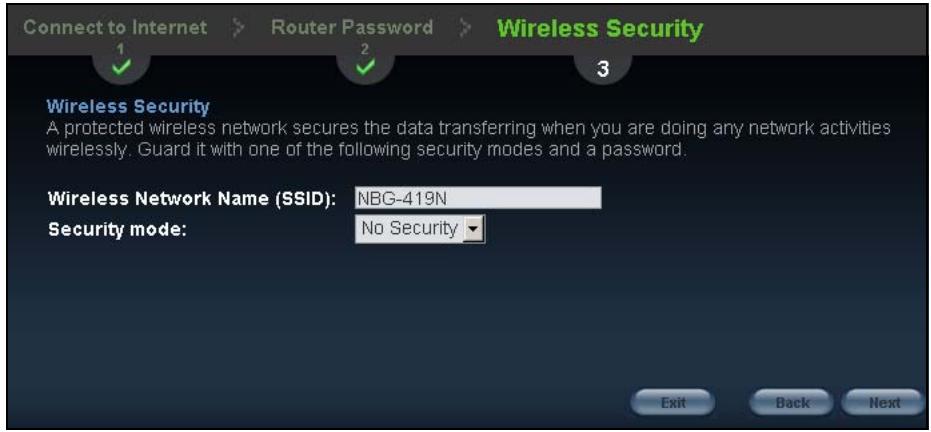

2.5.1 Wireless Security: No Security 33

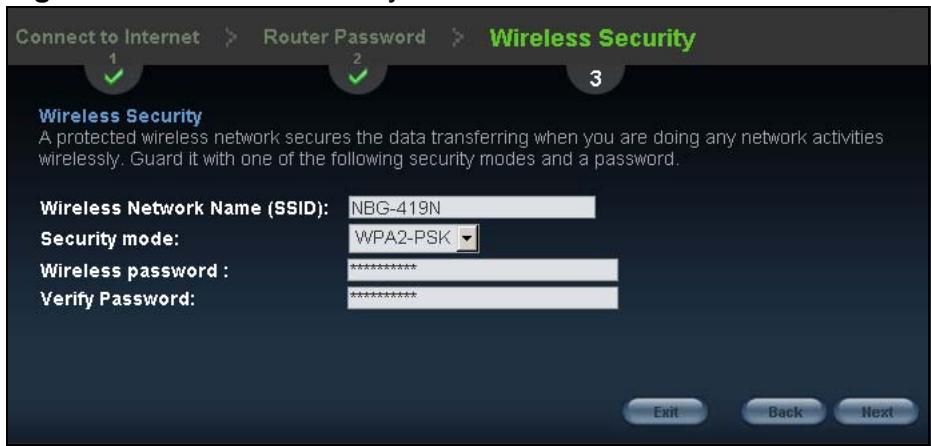

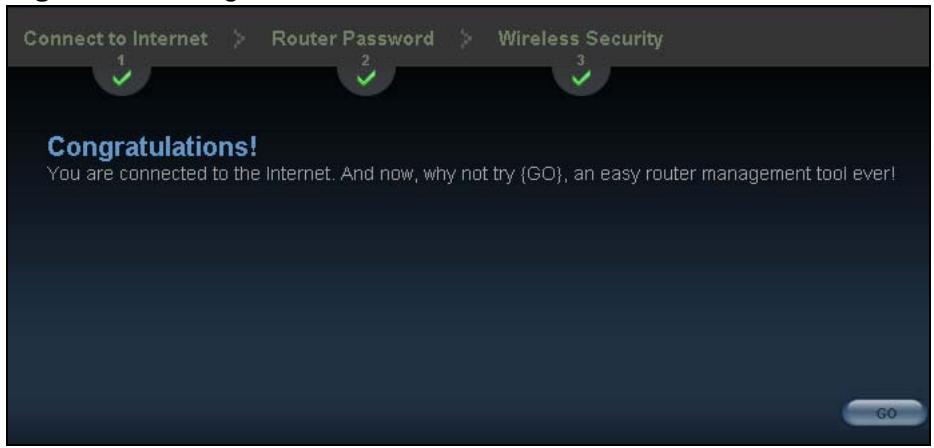

2.5.2 Wireless Security: WPA-PSK/WPA2-PSK 34

Chapter 3

Introducing the Web Configurator 37

3.1 Overview 37

3.2 Accessing the Web Configurator 37

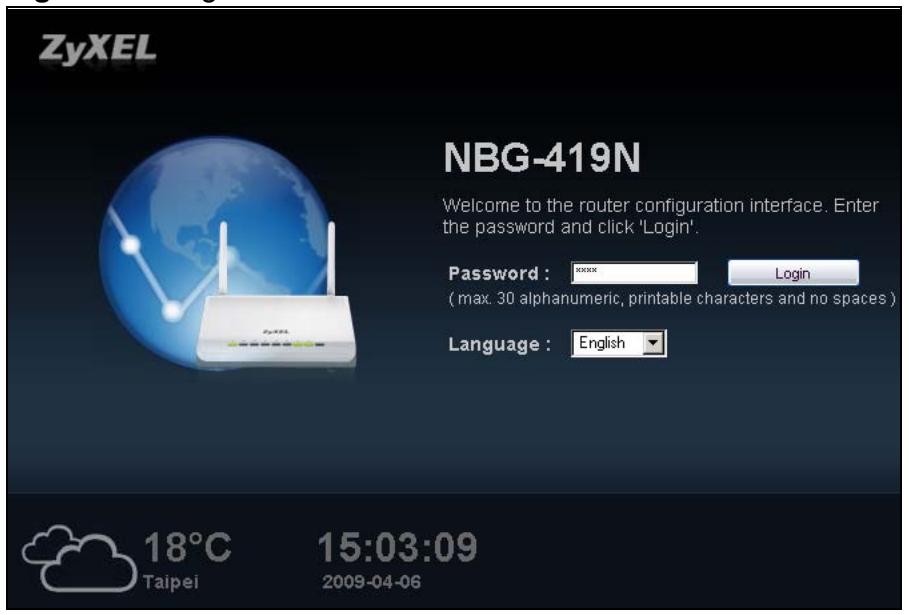

3.2.1 Login Screen 38

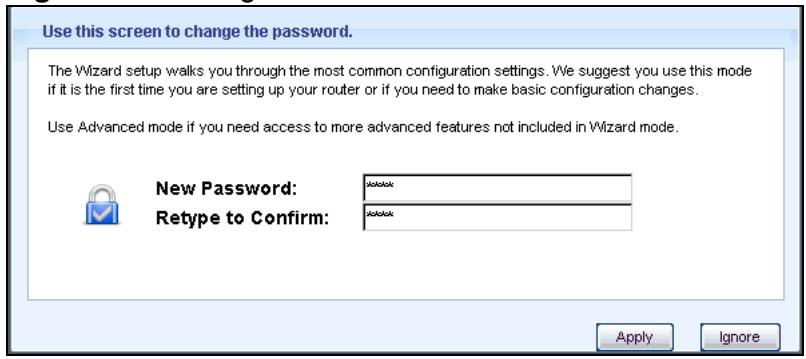

3.2.2 Password Screen 39

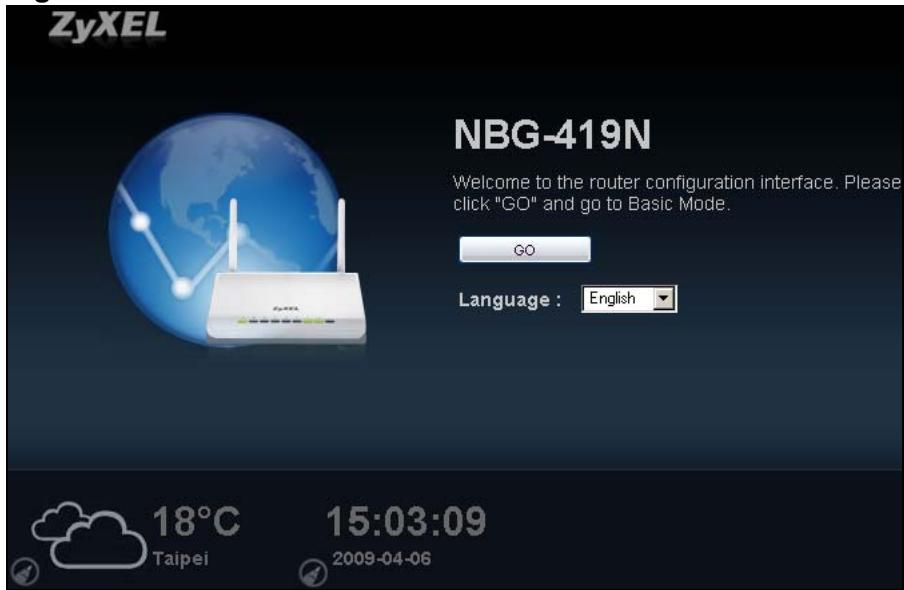

3.2.3 Home Screen 39

3.3 Resetting the NBG-419N 41

3.3.1 Procedure to Use the Reset Button 42

Chapter 4

Monitor 43

4.1 Overview 43
4.2 What You Can Do 43

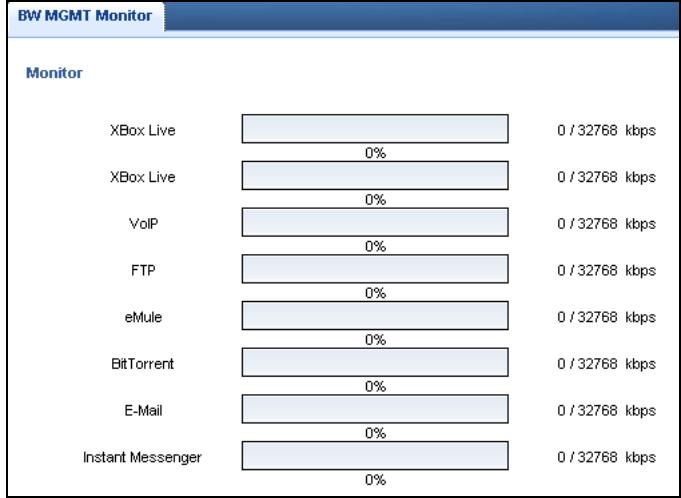

4.3 BW MGMT Monitor 43

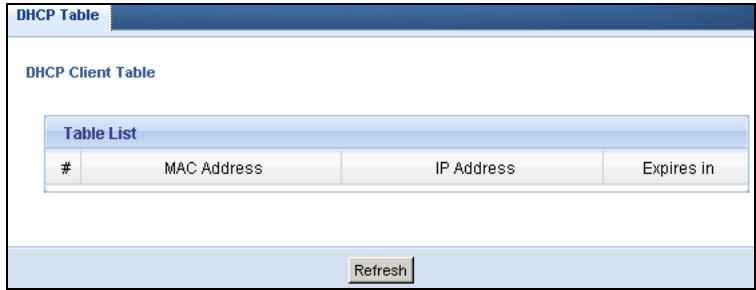

4.4 DHCP Table 44

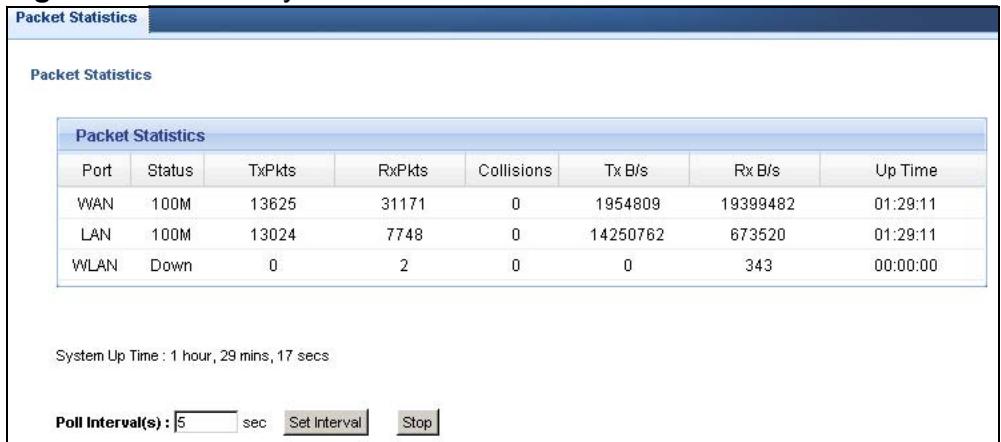

4.5 Packet Statistics 45

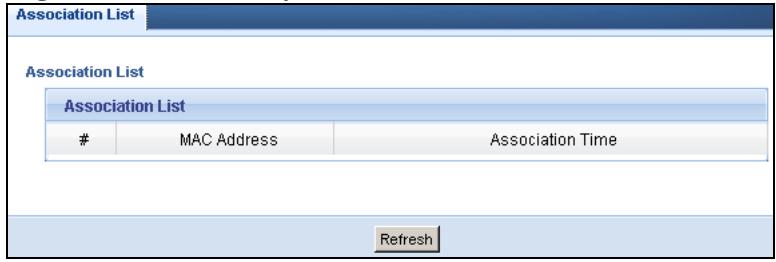

4.6 WLAN Station Status 46

Chapter 5

NBG-419N Modes 49

5.1 Overview 49

5.1.1 Web Configurator Modes 49

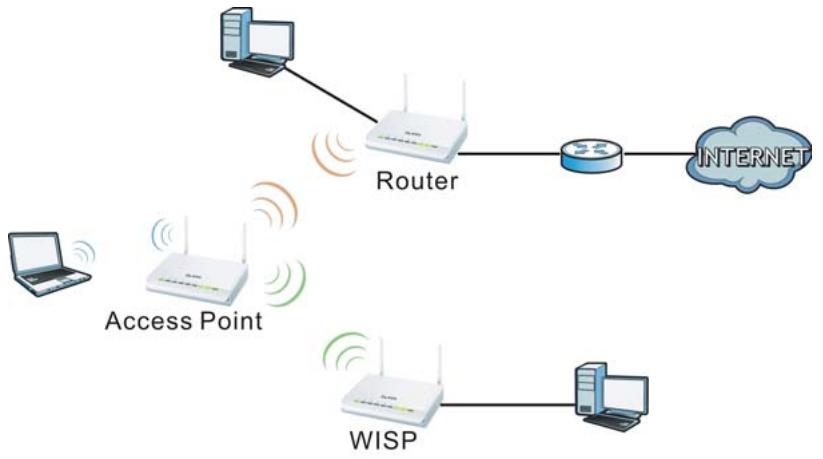

5.1.2 Device Modes 49

Chapter 6

Easy Mode 51

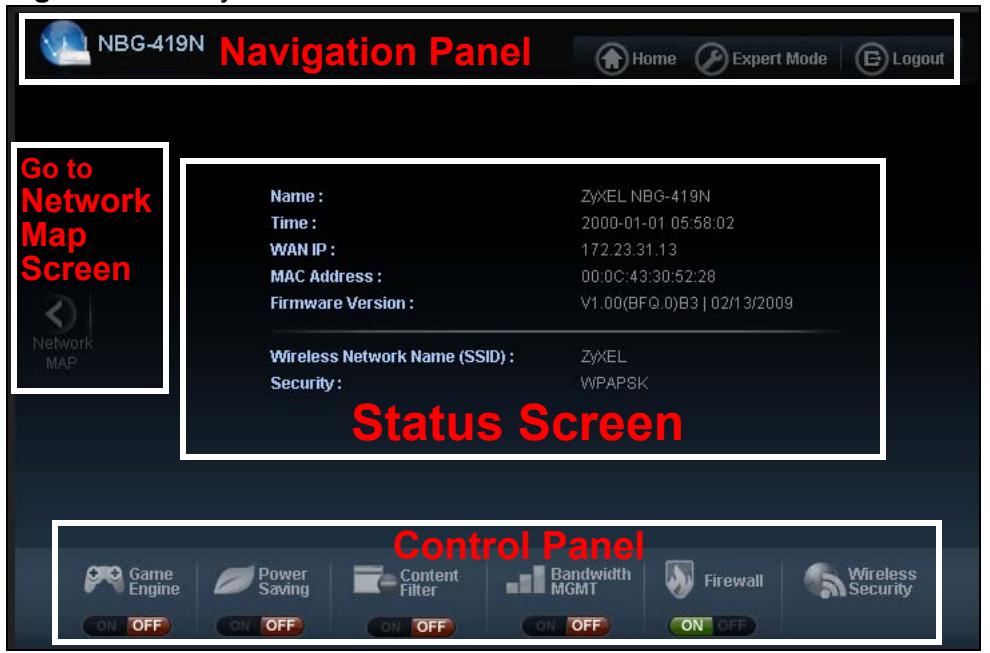

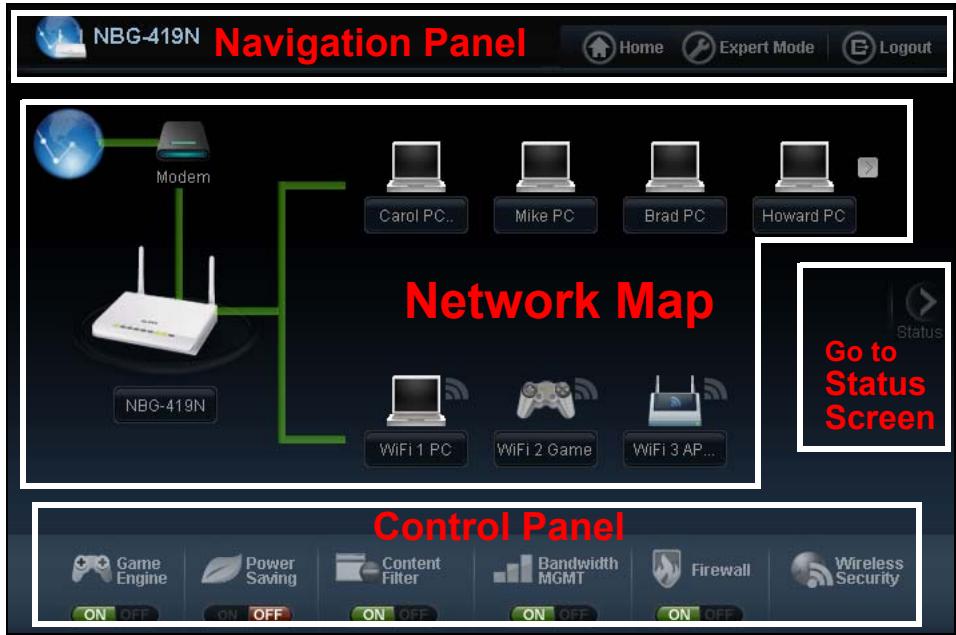

6.1 Overview 51
6.2 What You Can Do 52
6.3 What You Need to Know 52
6.4 Navigation Panel 53

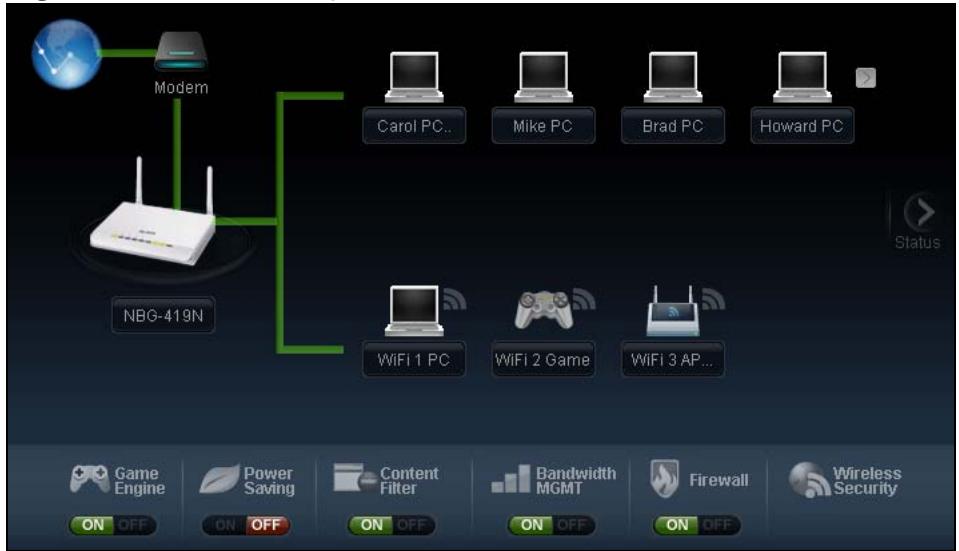

6.5 Network Map 53

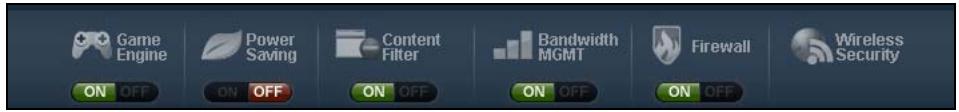

6.6 Control Panel 54

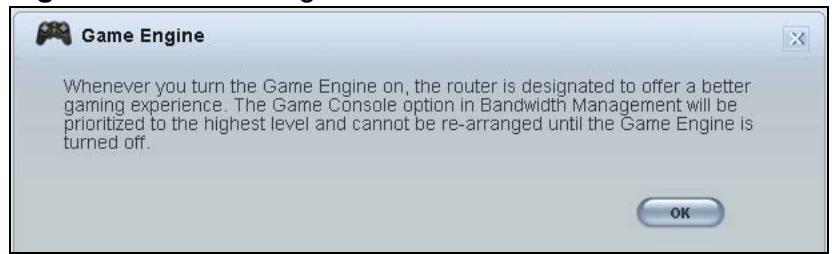

6.6.1 Game Engine 55

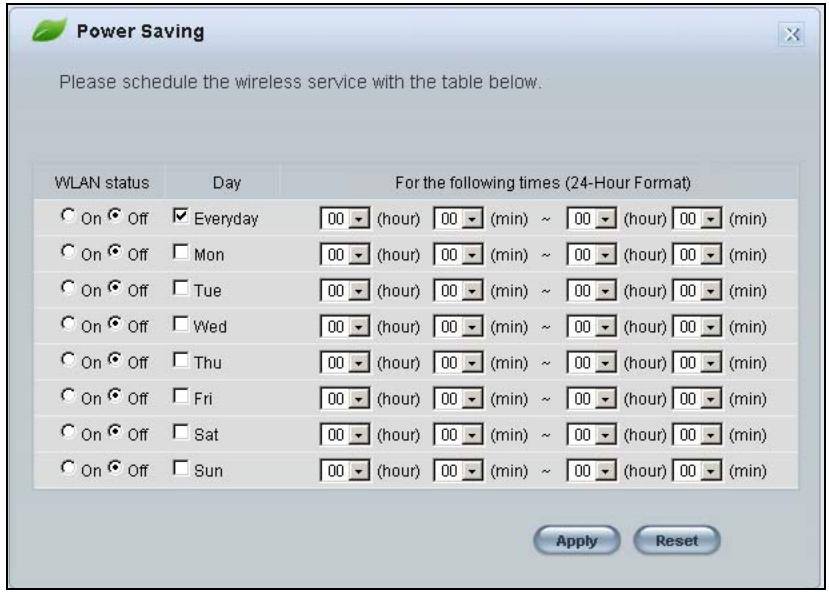

6.6.2 Power Saving 56
6.6.3 Content Filter 57

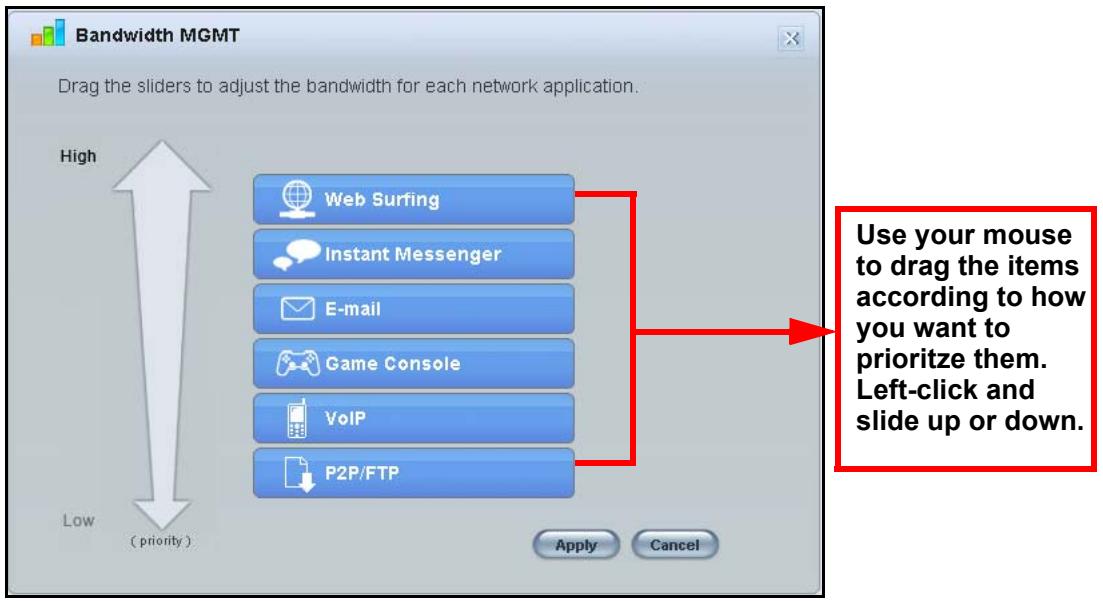

6.6.4 Bandwidth MGMT 58
6.6.5 Firewall 58
6.6.6 Wireless Security 59

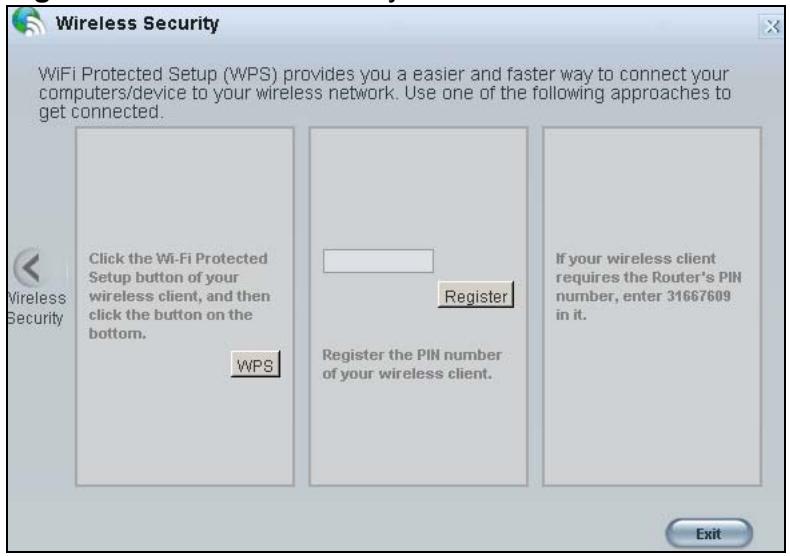

6.6.7 WPS 60

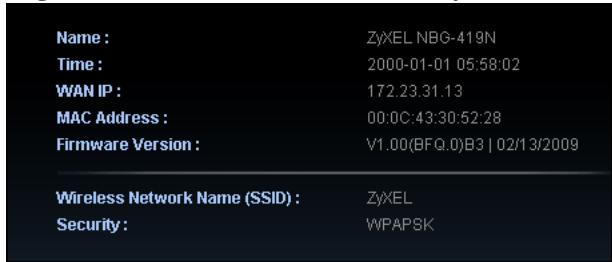

6.7 Status Screen in Easy Mode 61

Chapter 7

Router Mode 63

7.1 Overview 63
7.2 What You Can Do 63

7.3 Status Screen 64

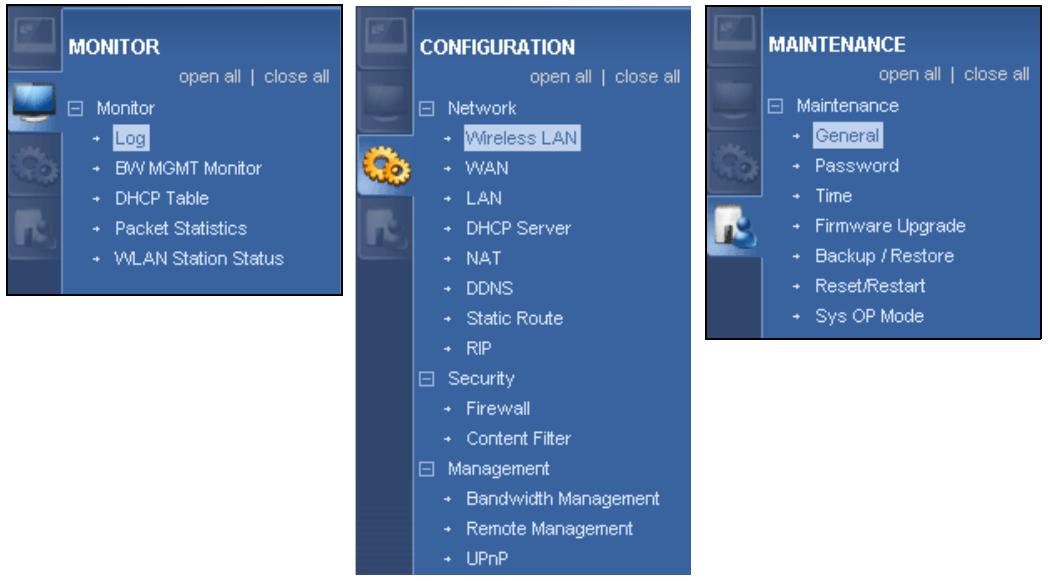

7.3.1 Navigation Panel 67

Chapter 8

Access Point Mode 71

8.1 Overview 71
8.2 What You Can Do 71

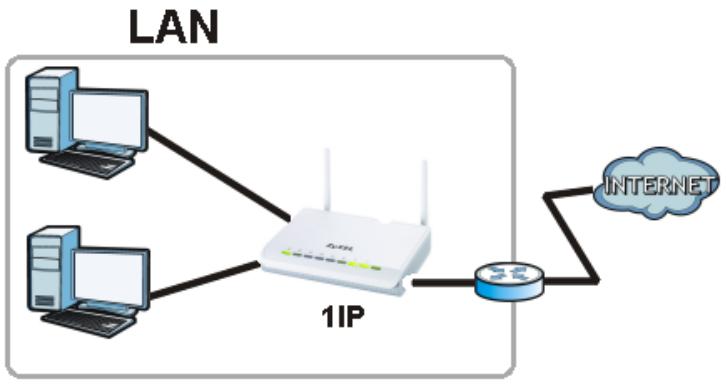

8.3 What You Need to Know 72

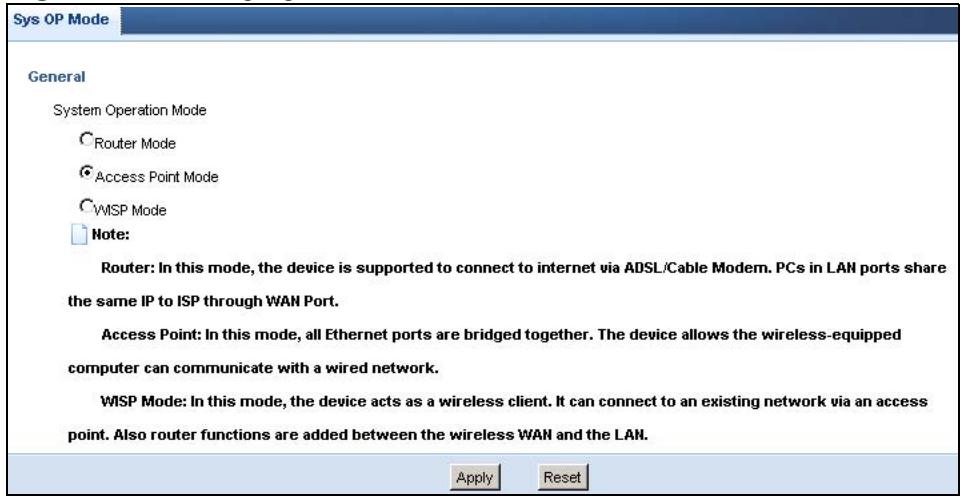

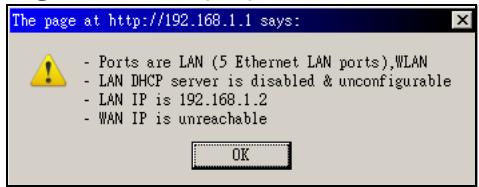

8.3.1 Setting your NBG-419N to AP Mode 72
8.3.2 Accessing the Web Configurator in Access Point Mode 73
8.3.3 Configuring your WLAN, Bandwidth Management and Maintenance Settings 73

8.4 AP Mode Status Screen 74
8.5 LAN Screen 76

Chapter 9

WISP Mode 79

9.1 Overview 79
9.2 What You Can Do 79
9.3 What You Need to Know 80

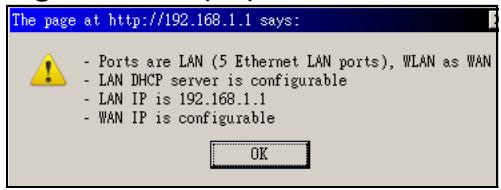

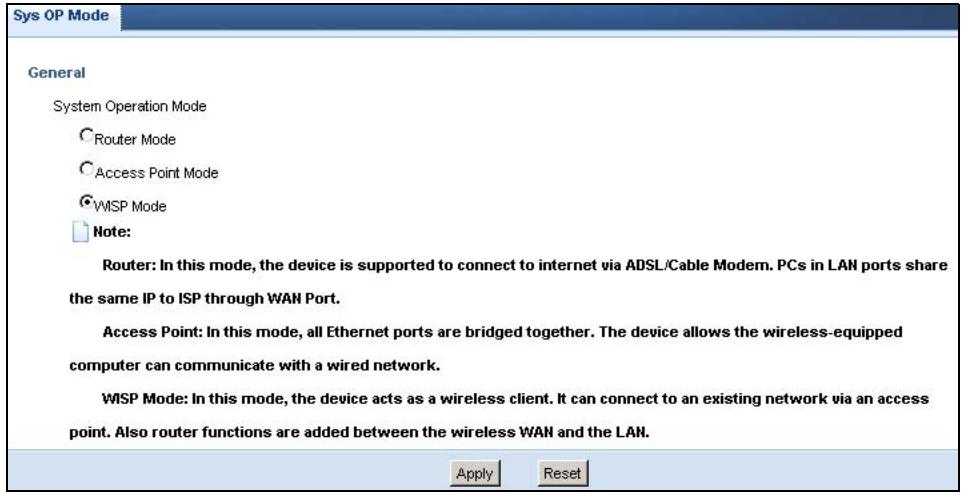

9.3.1 Setting your NBG-419N to WISP Mode 80
9.3.2 Accessing the Web Configurator in WISP Mode 80

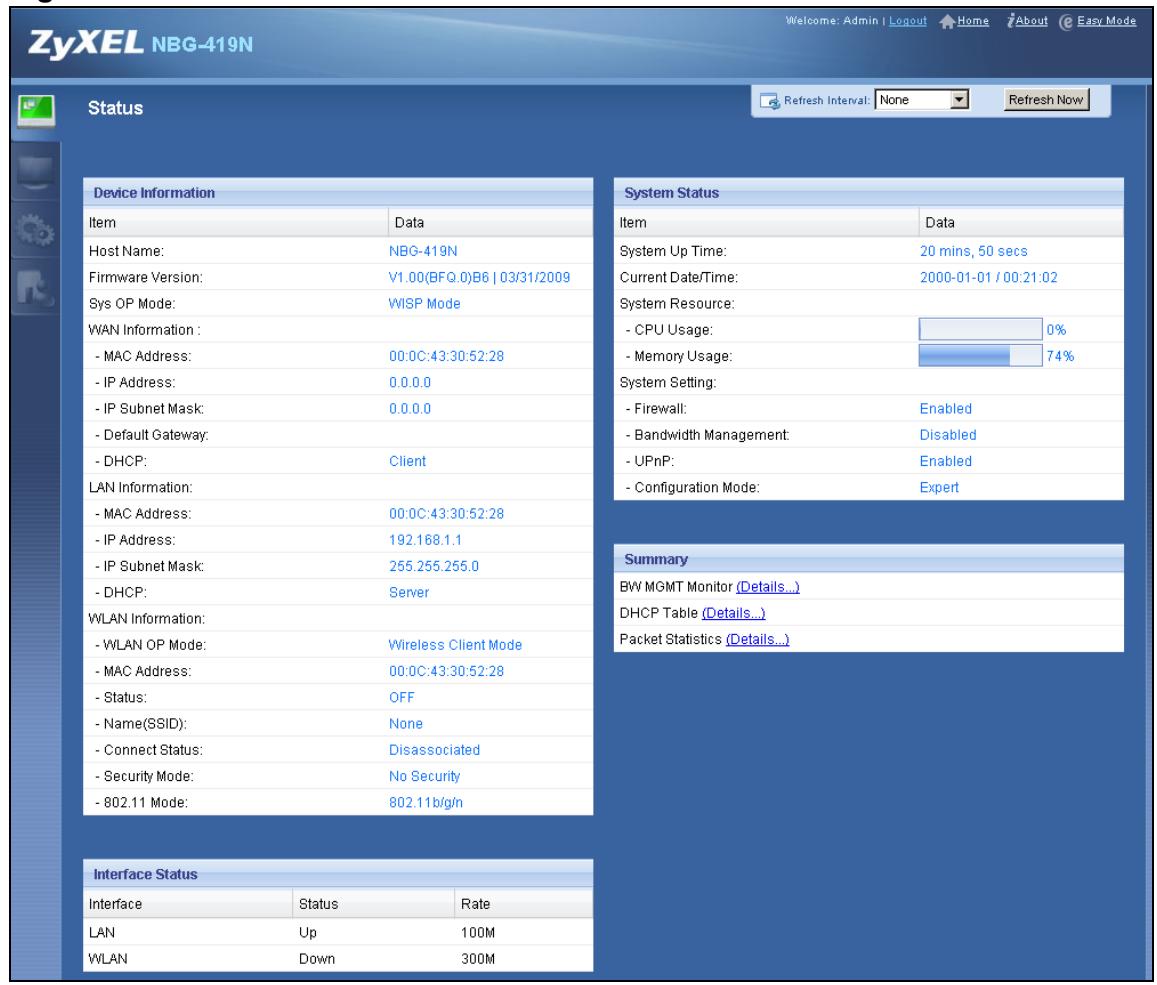

9.4 WISP Mode Status Screen 81

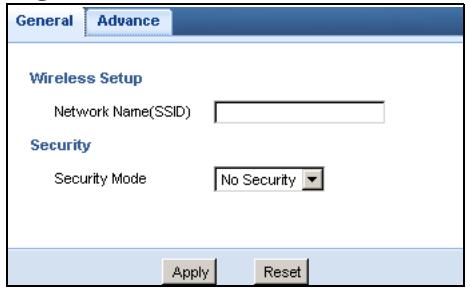

9.5 Wireless LAN General Screen 84

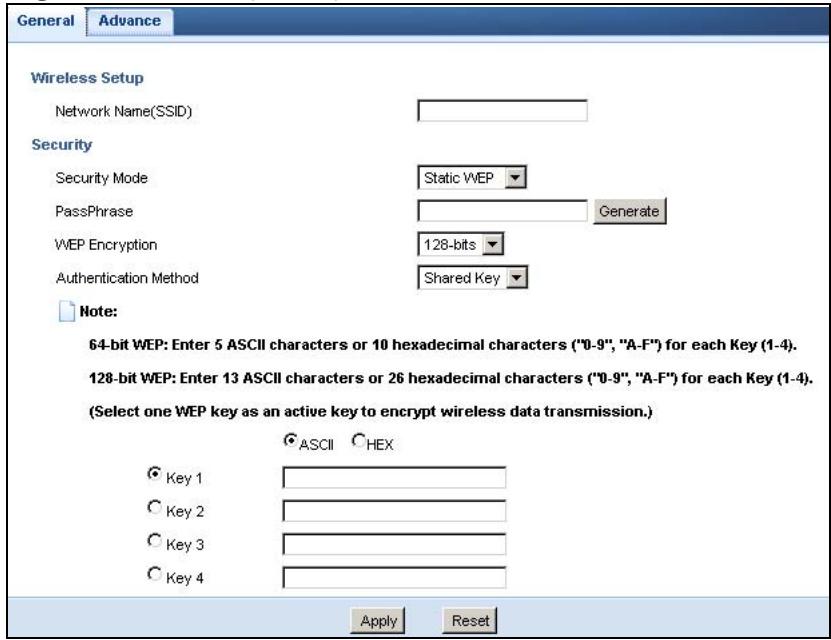

9.5.1 Static WEP 85

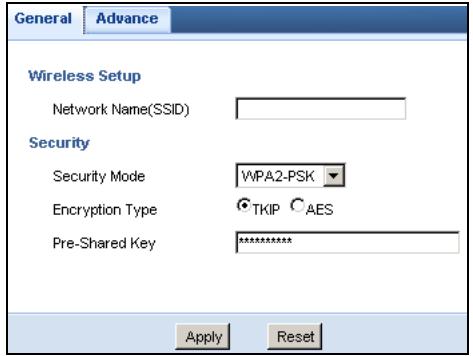

9.5.2 WPA(2)-PSK 87
9.5.3 Advance Screen 88

Chapter 10

Tutorials 89

10.1 Overview 89
10.2 Connecting to the Internet from an Access Point 89
10.3 Configuring Wireless Security Using WPS 89

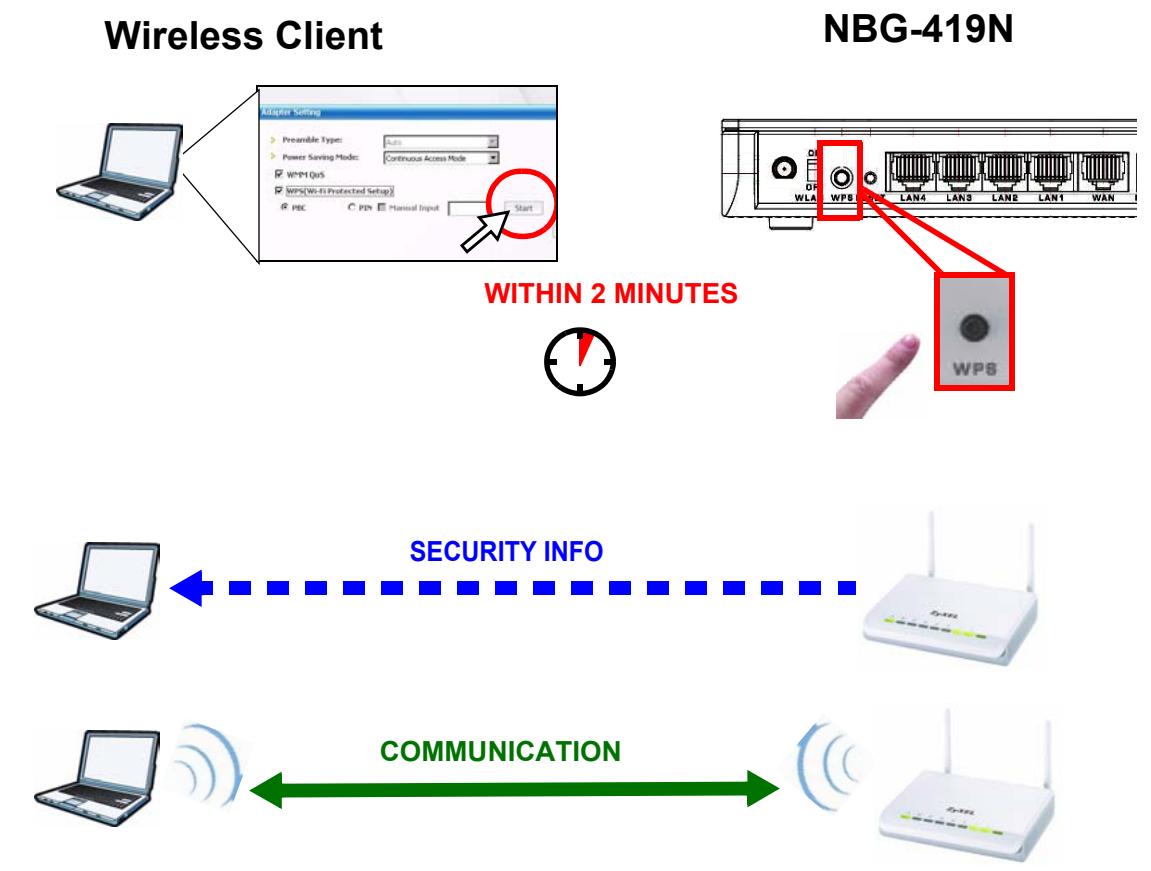

10.3.1 Push Button Configuration (PBC) 90

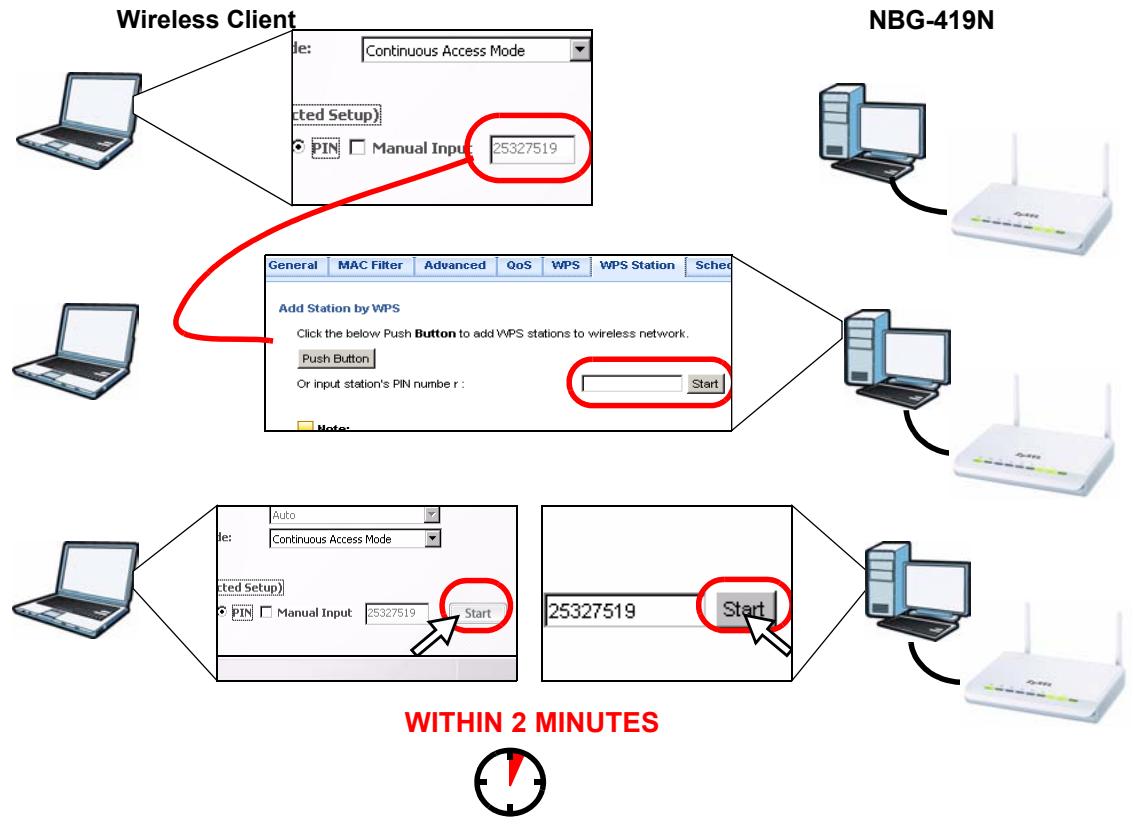

10.3.2 PIN Configuration 91

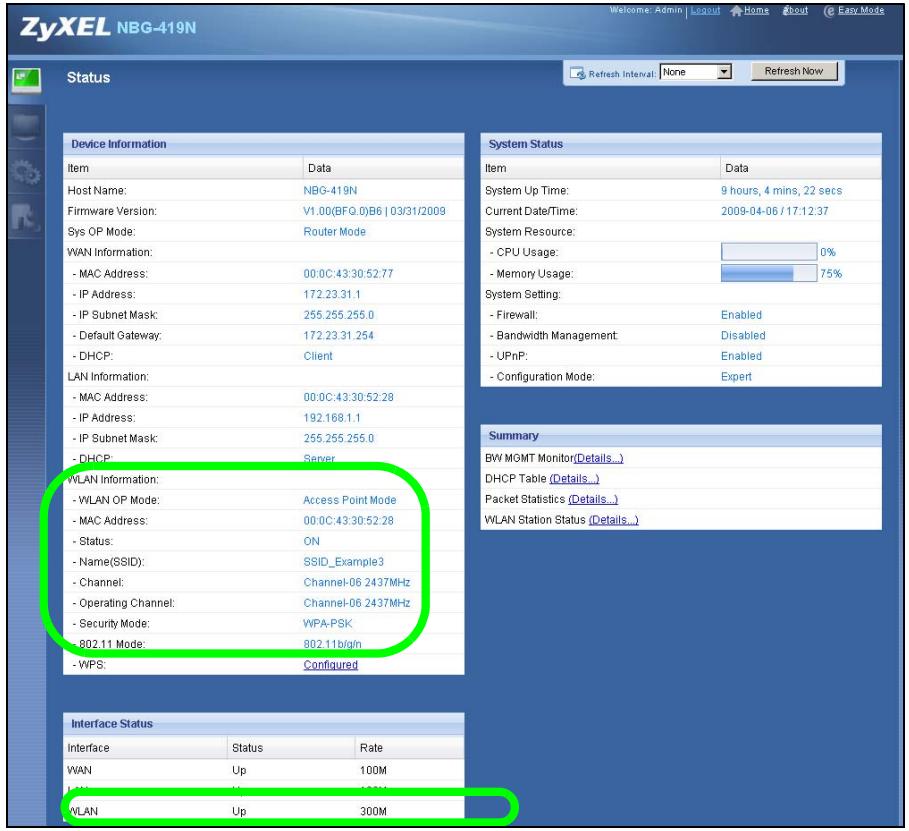

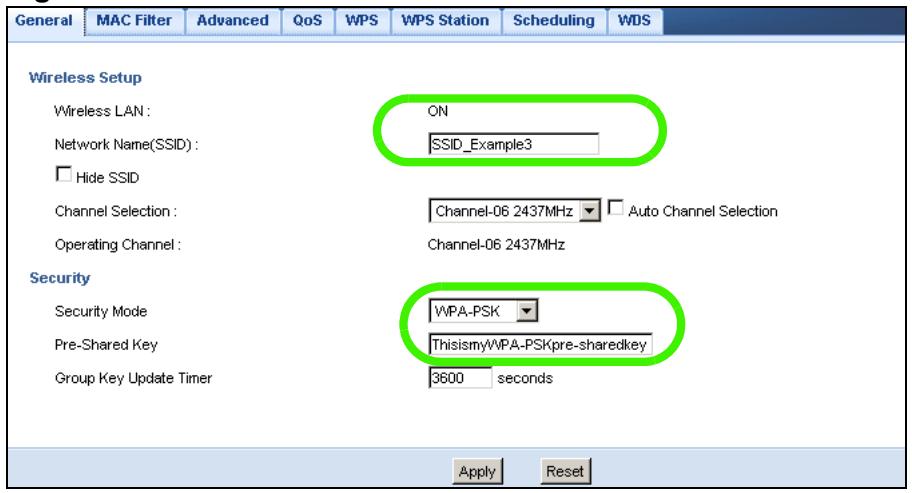

10.4 Enabling and Configuring Wireless Security (No WPS) 93

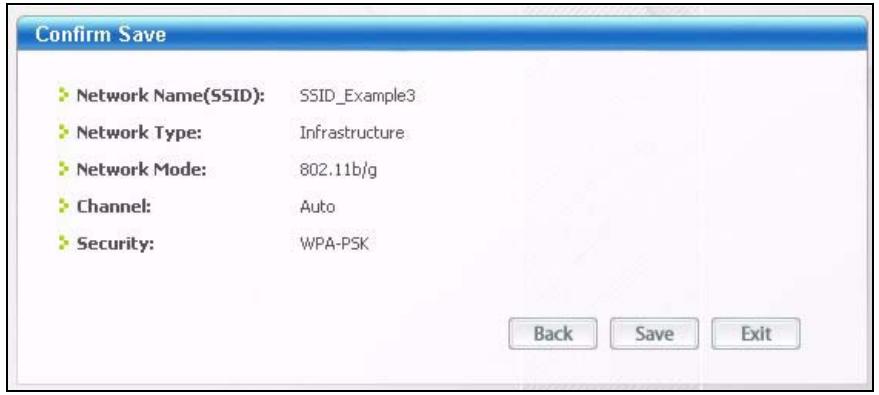

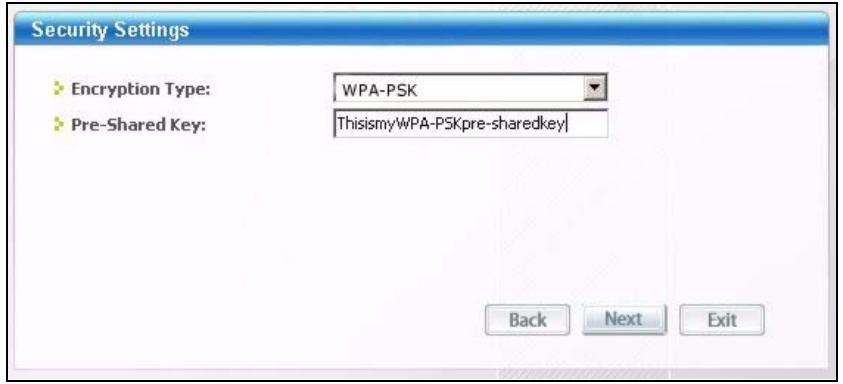

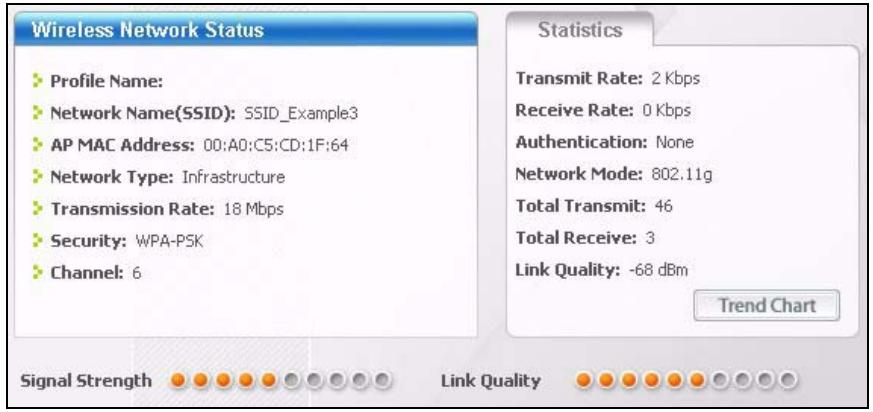

10.4.1 Configure Your Notebook 94

Part II: Network 97

Chapter 11

Wireless LAN 99

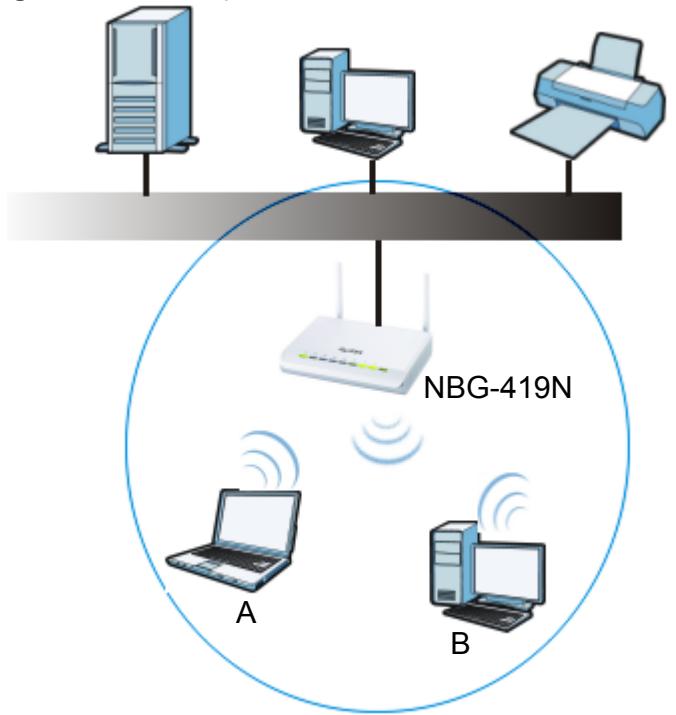

11.1 Overview 99
11.2 What You Can Do 100
11.3 What You Should Know 100

11.3.1 Wireless Security Overview 100

11.4 General Wireless LAN Screen 103

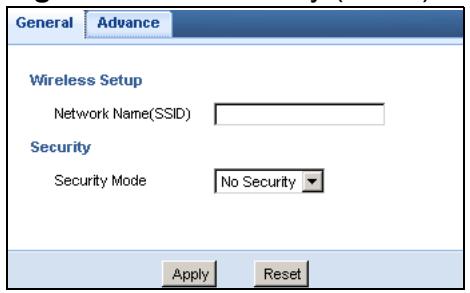

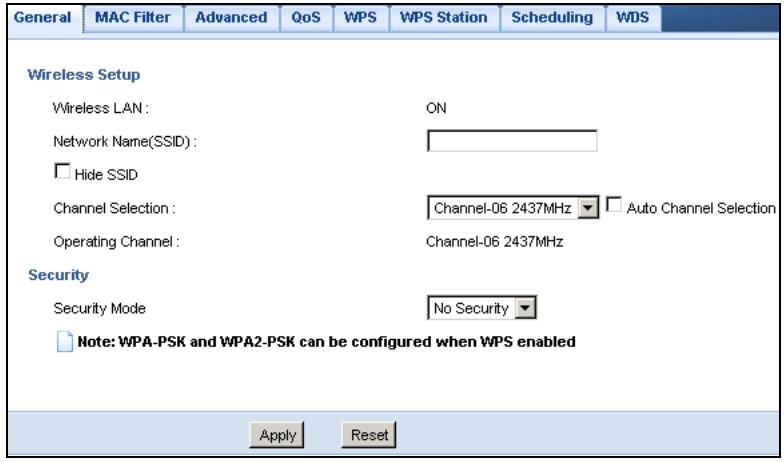

11.4.1 No Security 104

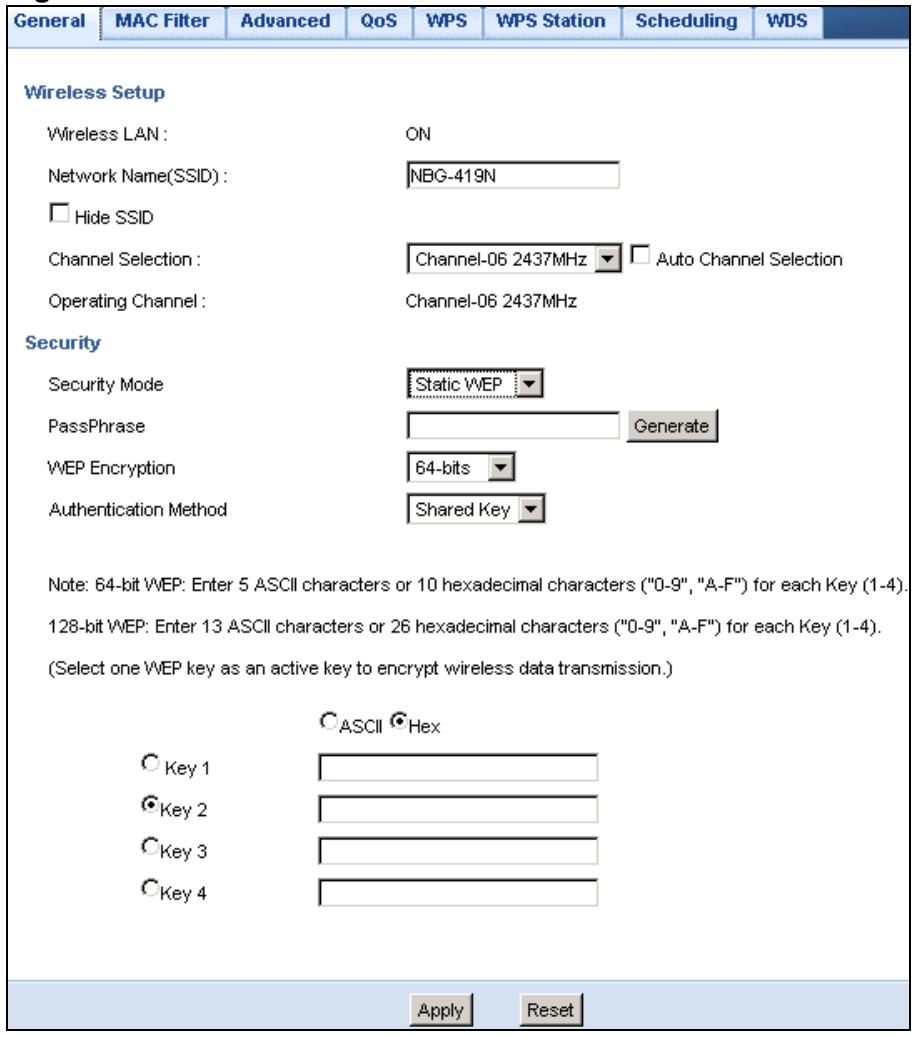

11.4.2 WEP Encryption 105

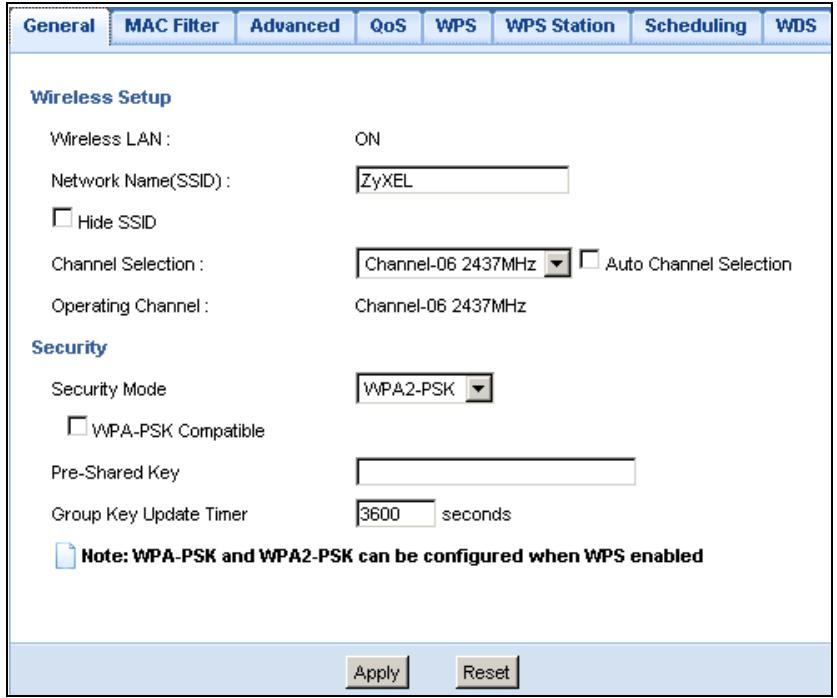

11.4.3 WPA-PSK/WPA2-PSK 108

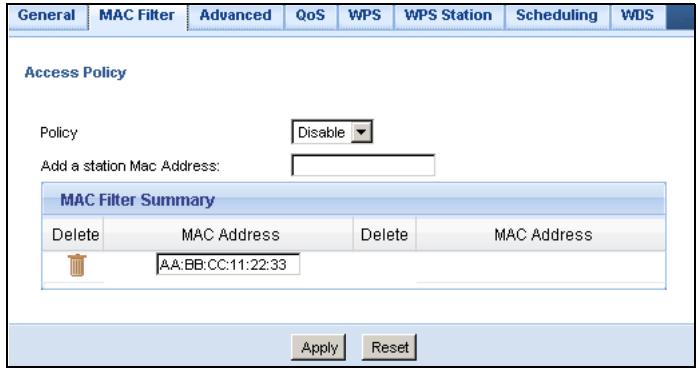

11.5 MAC Filter 109

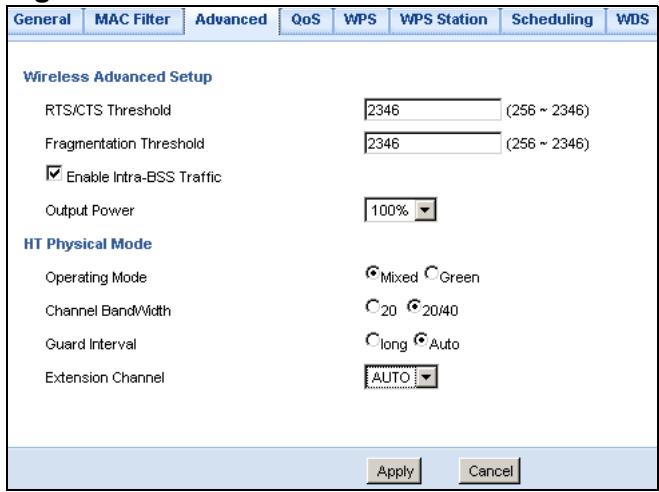

11.6 Wireless LAN Advanced Screen 110

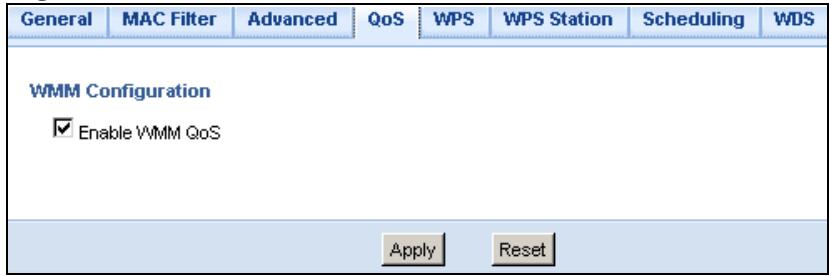

11.7 Quality of Service (QoS) Screen 111

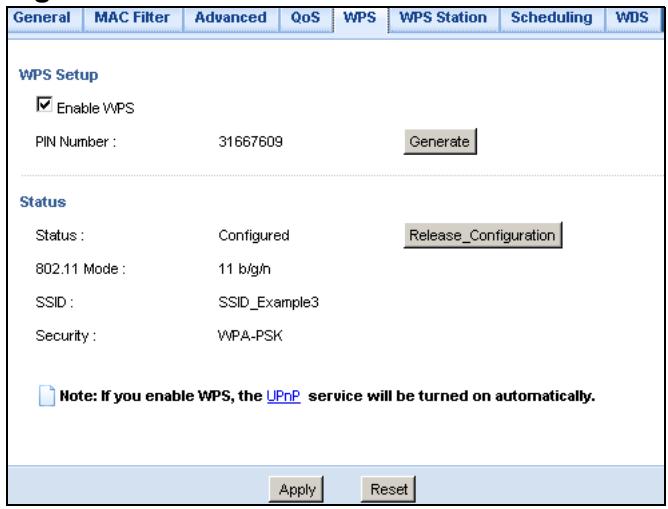

11.8 WPS Screen 112

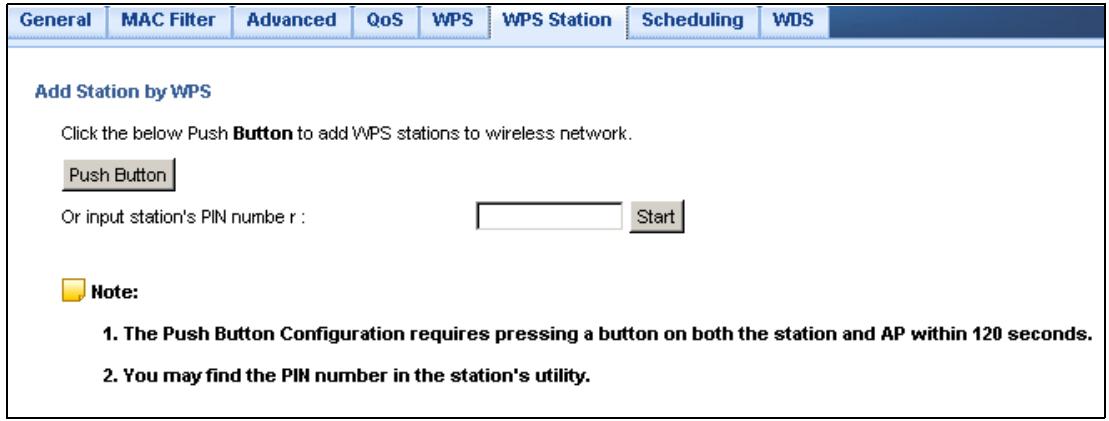

11.9 WPS Station Screen 113

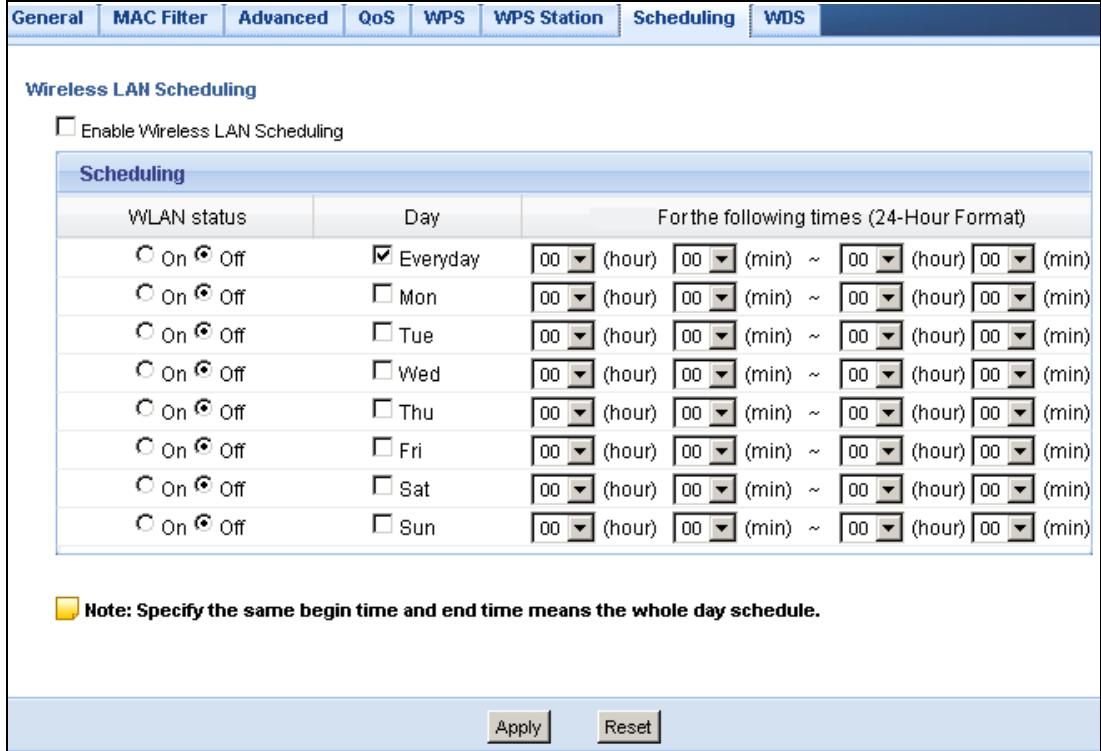

11.10 Scheduling Screen 114

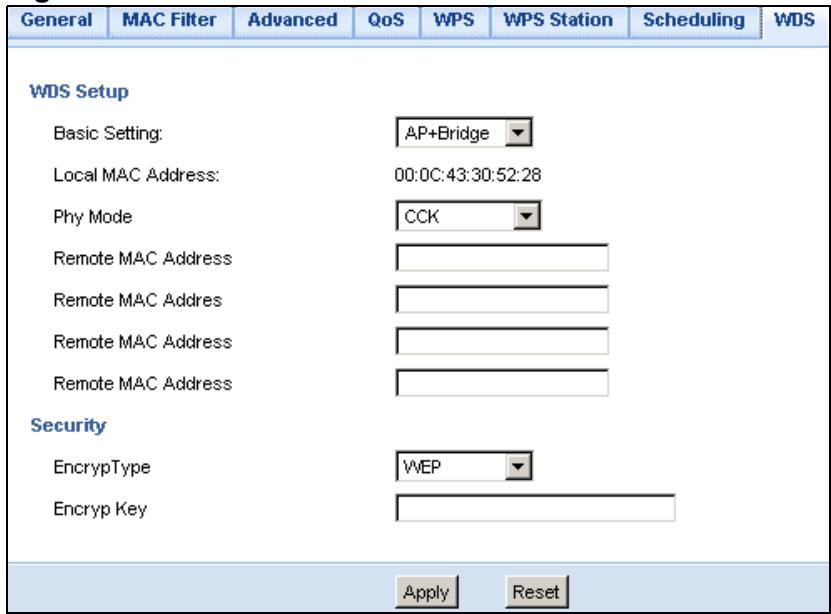

11.11 WDS Screen 115

Chapter 12

WAN 119

12.1 Overview 119
12.2 What You Can Do 119

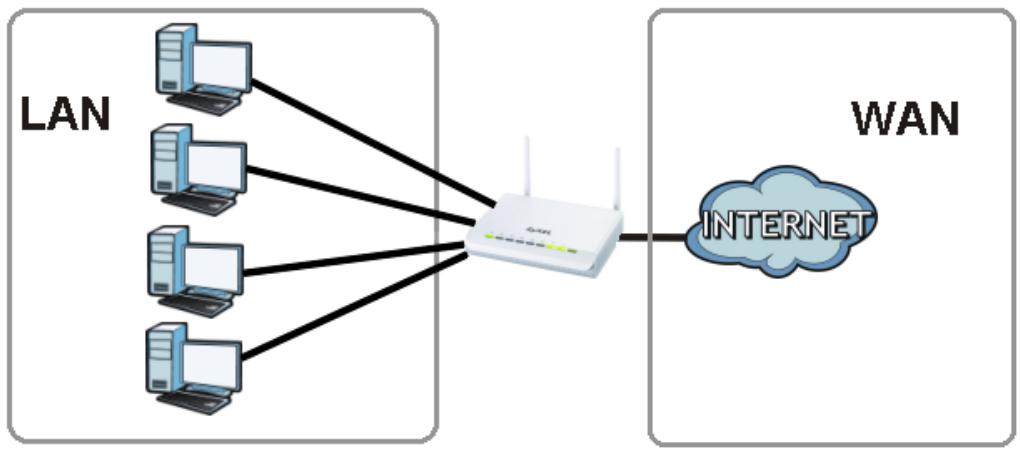

12.3 What You Need To Know 120

12.3.1 Configuring Your Internet Connection 120

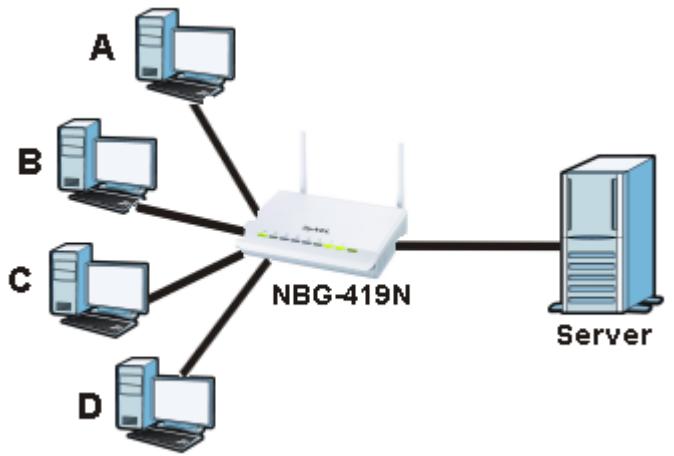

12.3.2 Multicast 121

12.4 Internet Connection 122

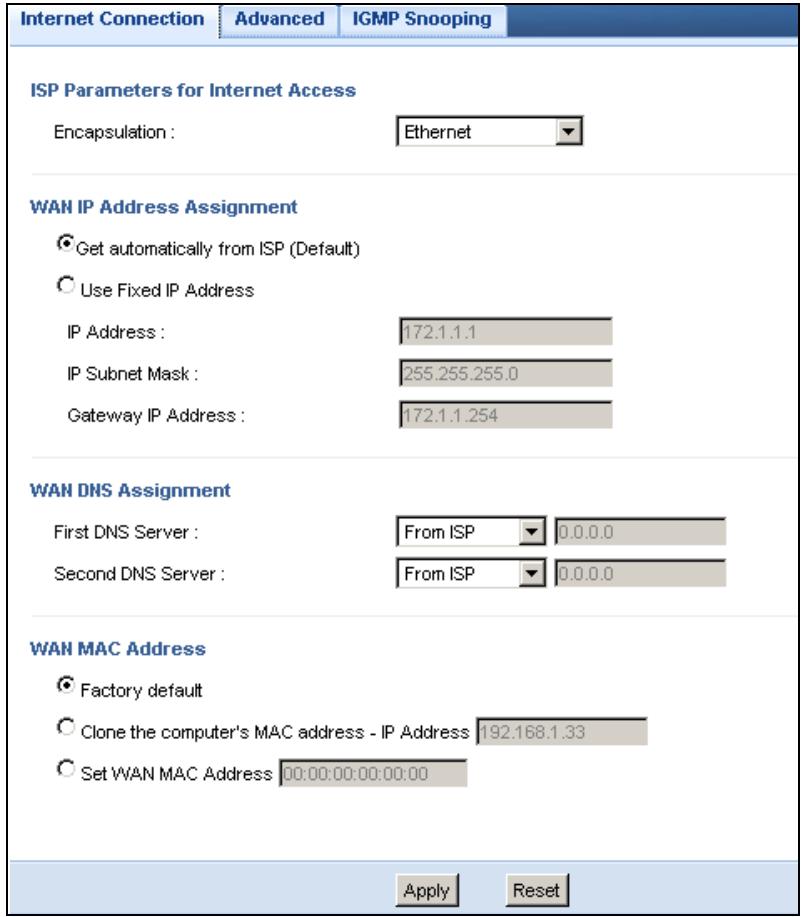

12.4.1 Ethernet Encapsulation 122

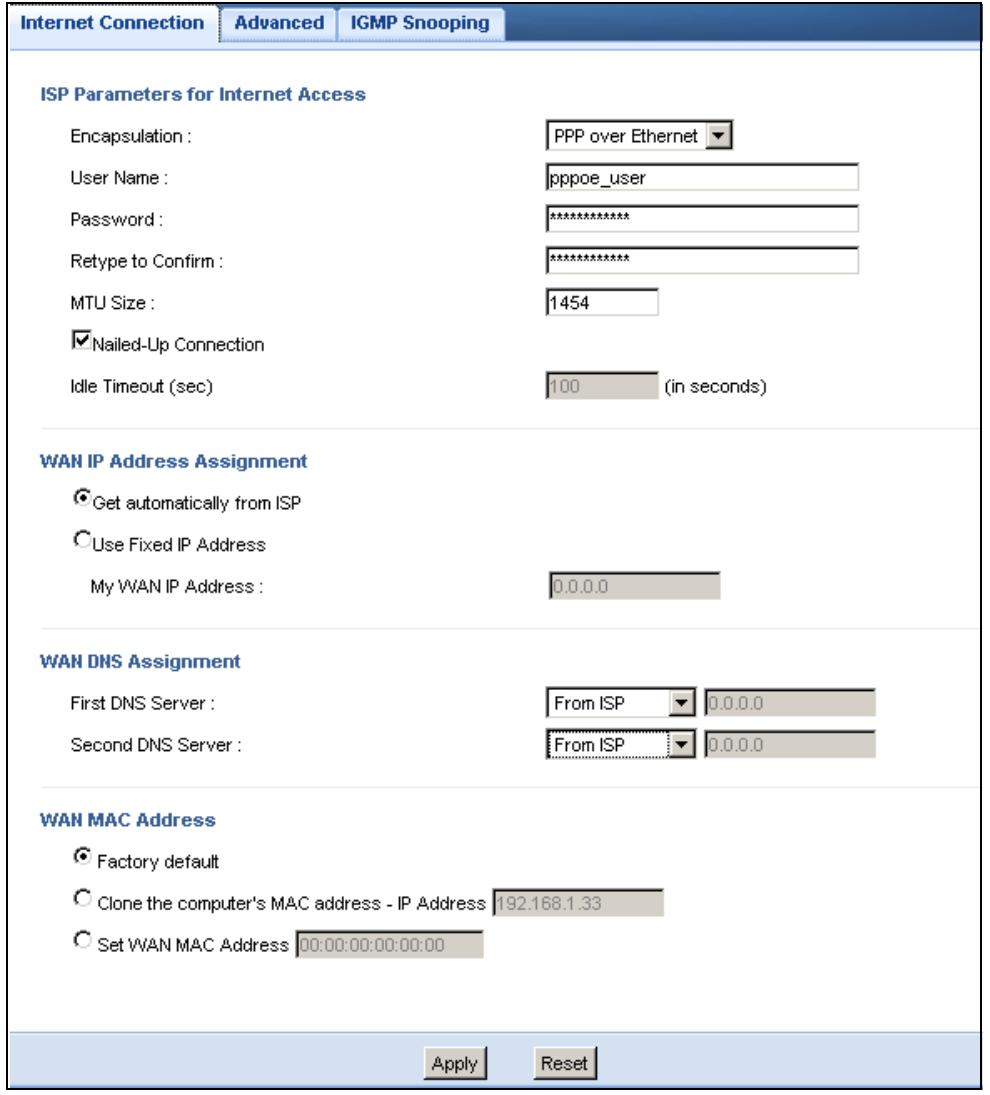

12.4.2 PPPoE Encapsulation 124

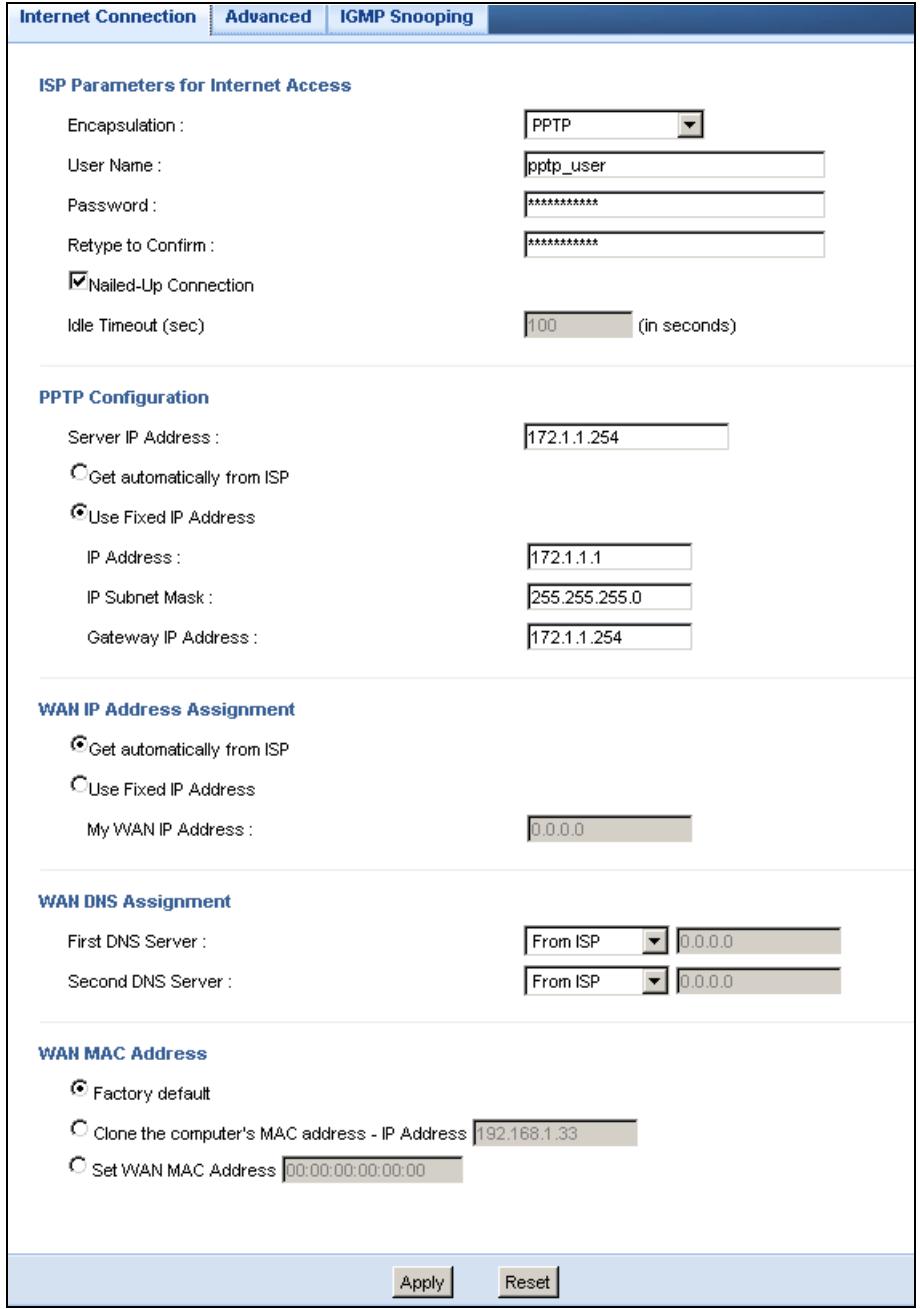

12.4.3 PPTP Encapsulation 126

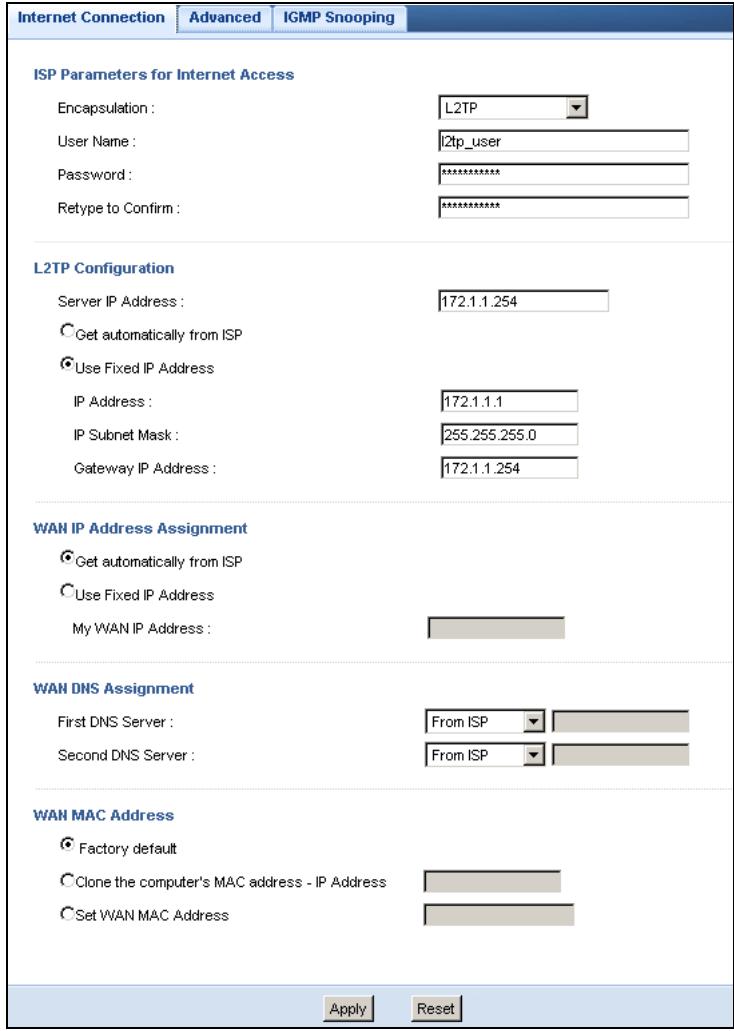

12.4.4 L2TP Encapsulation 129

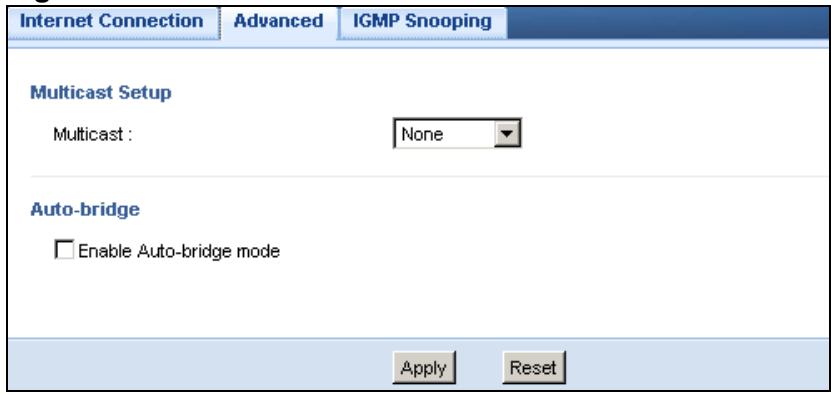

12.5 Advanced WAN Screen 132

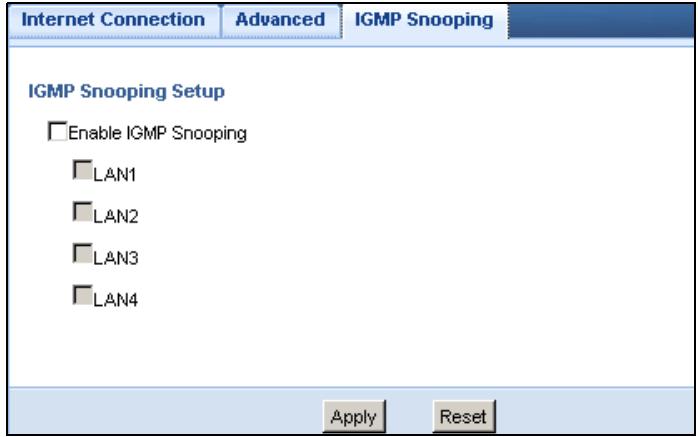

12.6 IGMP Snooping Screen 132

Chapter 13

LAN 135

13.1 Overview 135
13.2 What You Can Do 135
13.3 What You Need To Know 136

13.3.1 IP Pool Setup 136
13.3.2 LAN TCP/IP 136
13.3.3 IP Alias 137

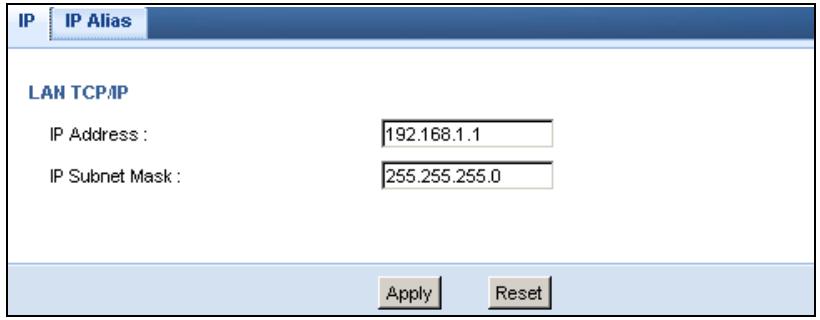

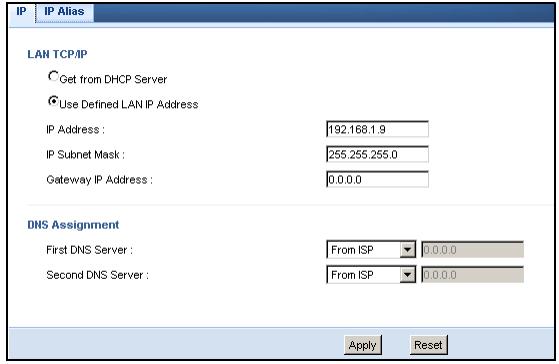

13.4 LAN IP Screen 137

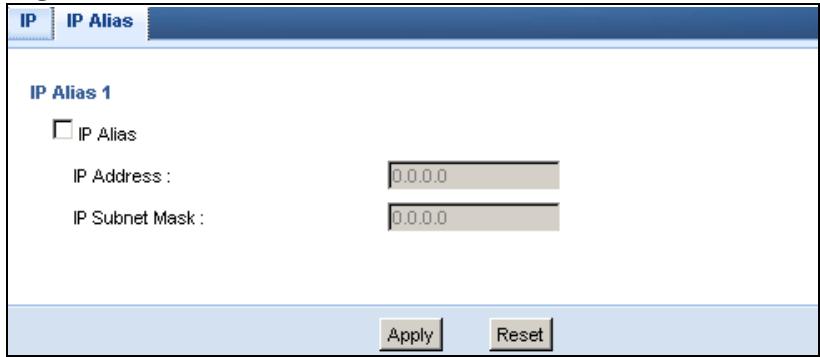

13.5 IP Alias Screen 138

Chapter 14

DHCP Server 139

14.1 Overview 139
14.2 What You Can Do 139

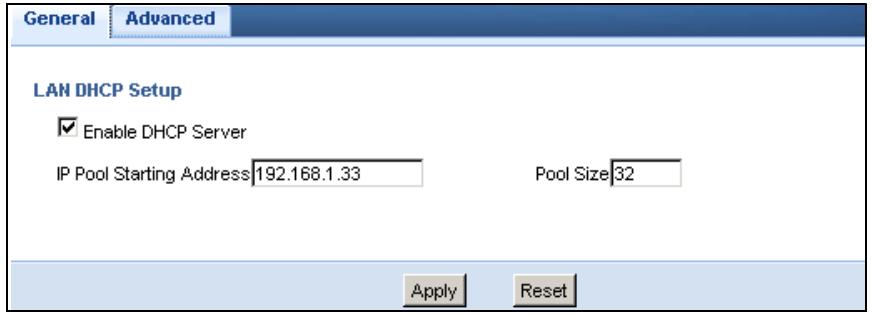

14.3 General Screen 139

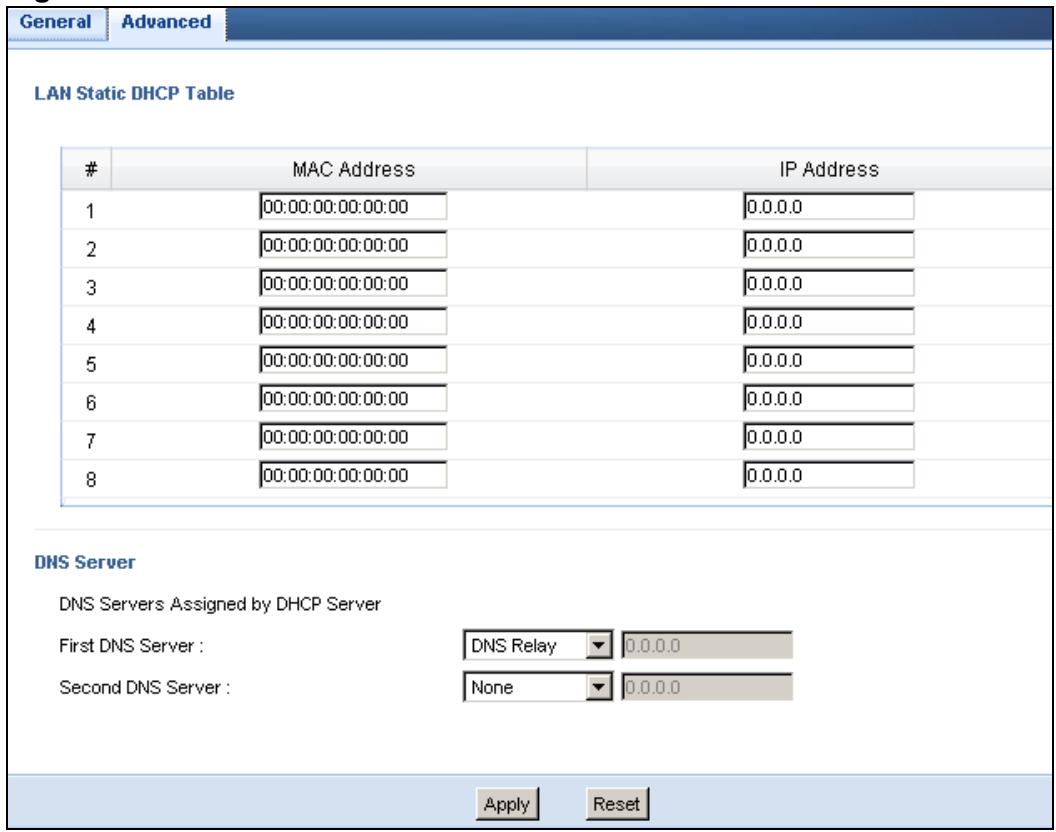

14.4 Advanced Screen 140

Chapter 15

Network Address Translation (NAT) 143

15.1 Overview 143
15.2 What You Can Do 144

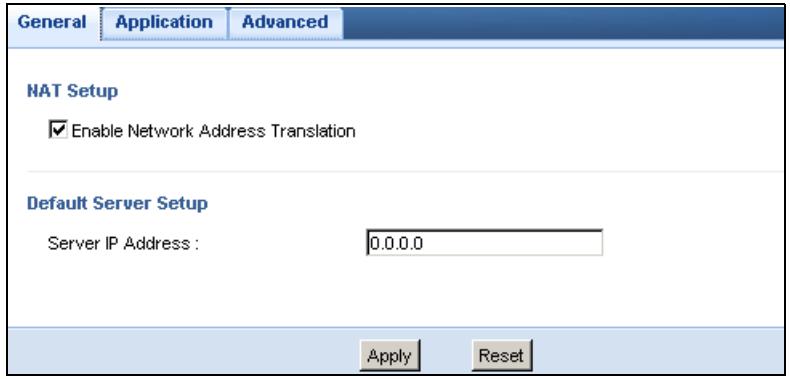

15.3 General NAT Screen 144

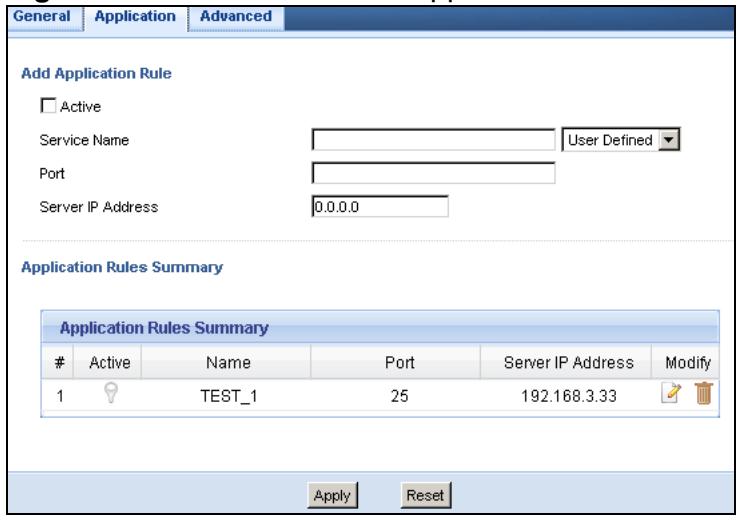

15.4 NAT Application Screen 145

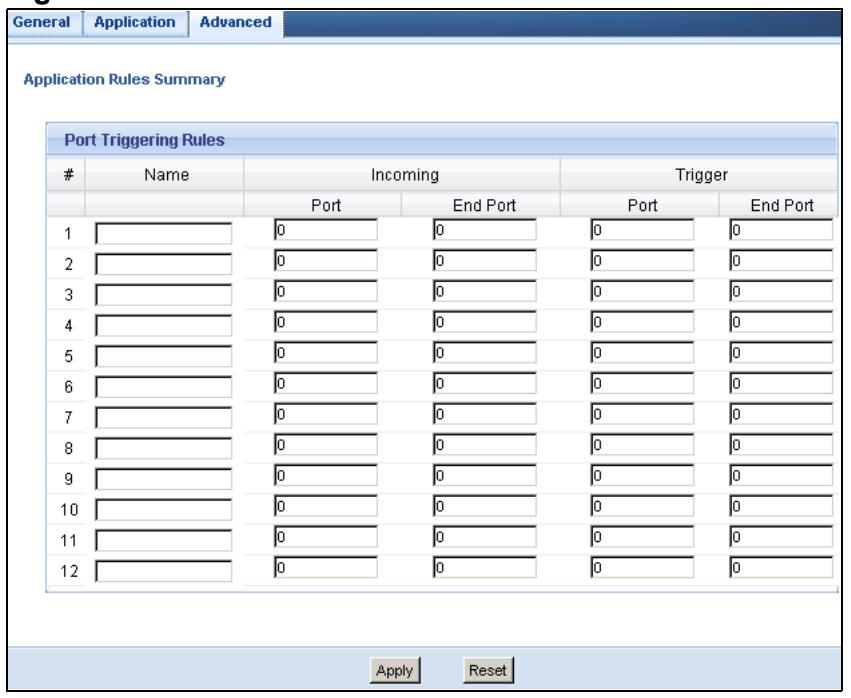

15.5 NAT Advanced Screen 147

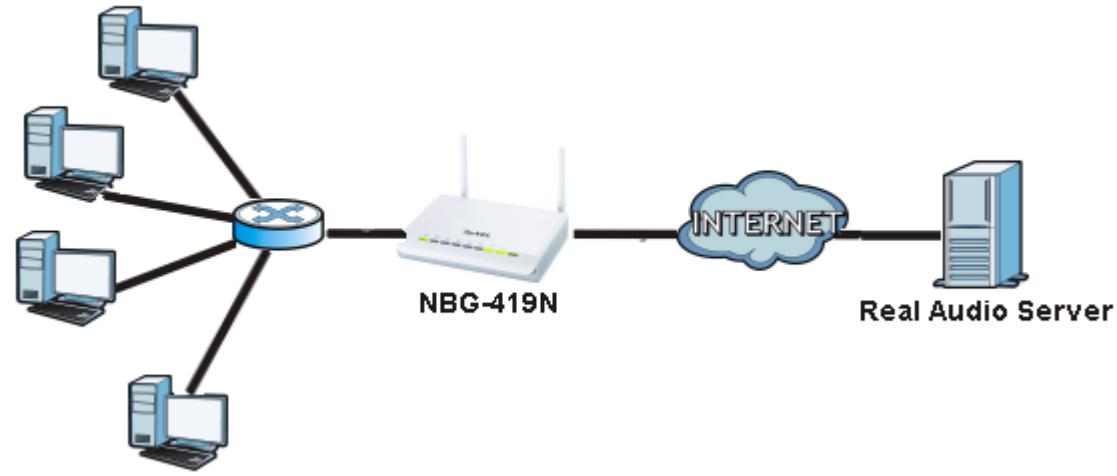

15.5.1 Trigger Port Forwarding Example 149
15.5.2 Two Points To Remember About Trigger Ports 149

Chapter 16

Dynamic DNS 151

16.1 Overview 151
16.2 What You Can Do 151
16.3 What You Need To Know 151

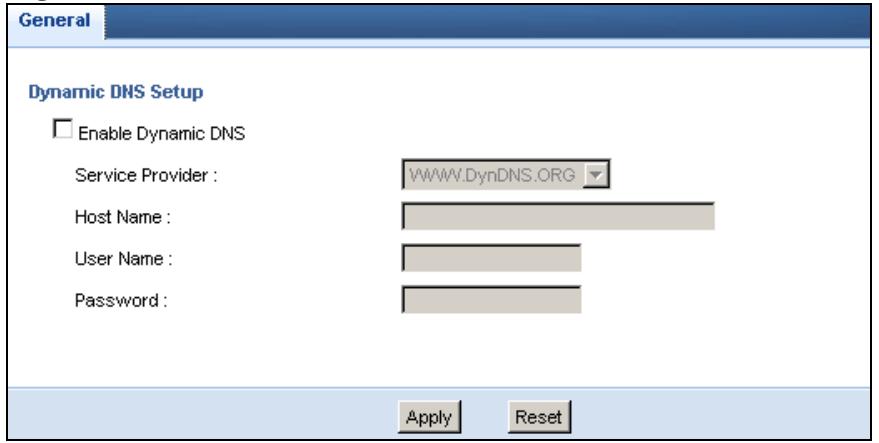

16.4 Dynamic DNS Screen 152

Chapter 17

Static Route 153

17.1 Overview 153
17.2 What You Can Do 153

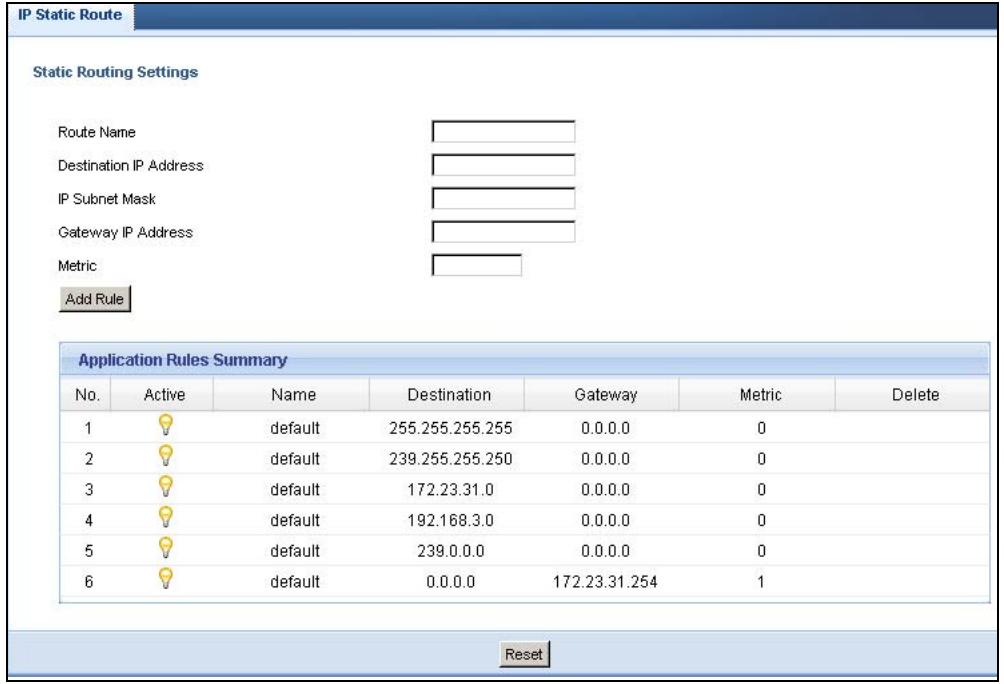

17.3 IP Static Route Screen 154

Chapter 18

RIP 157

18.1 Overview 157
18.2 What You Can Do 157

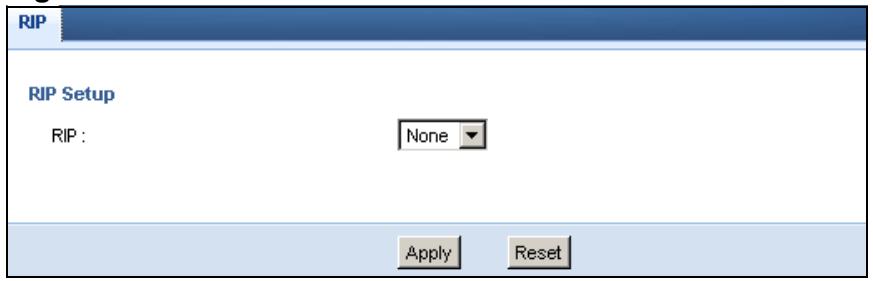

18.3 RIP Screen 157

Part III: Security 159

Chapter 19

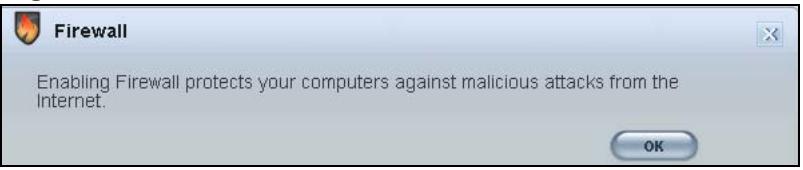

Firewall 161

19.1 Overview 161
19.2 What You Can Do 162
19.3 What You Need To Know 162

19.4 General Firewall Screen 163

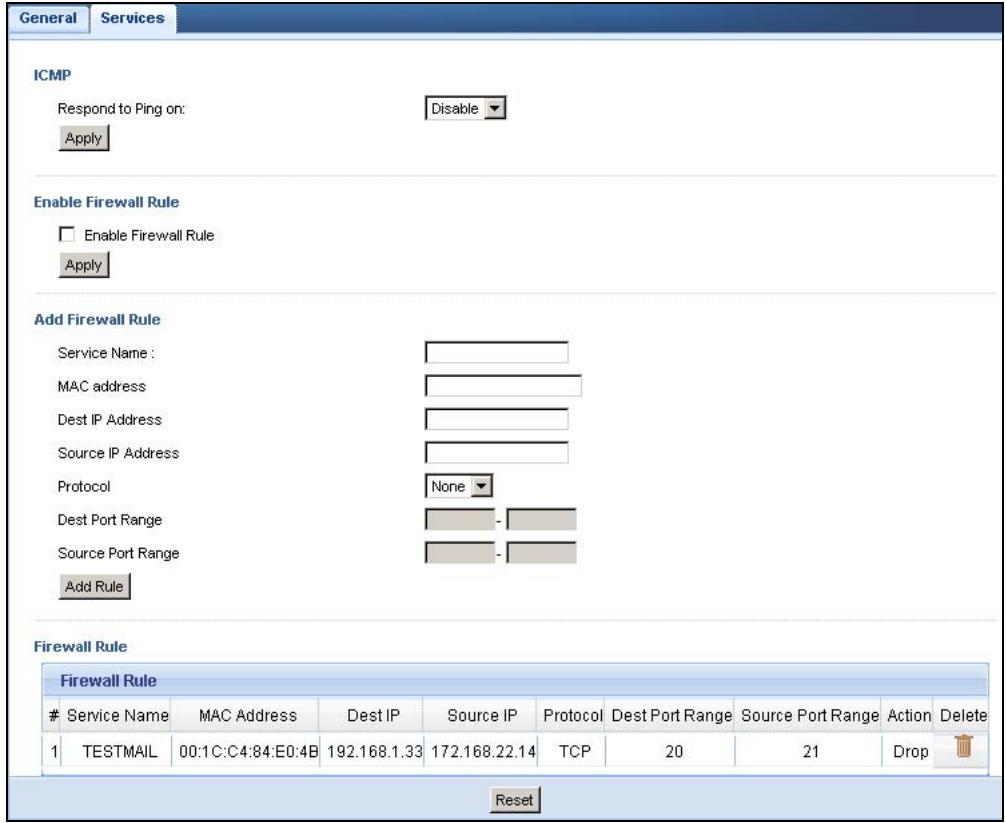

19.5 Services Screen 163

Chapter 20

Content Filter 167

20.1 Overview 167
20.2 What You Can Do 167
20.3 What You Need To Know 167

20.3.1 Content Filtering Profiles 167

20.4 Content Filter Screen 168

Part IV: Management 171

Chapter 21

Bandwidth Management 173

21.1 Overview 173
21.2 What You Can Do 173
21.3 What You Need To Know 174

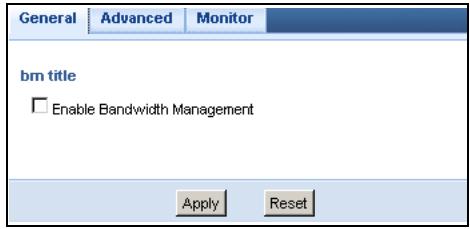

21.4 General Screen 174

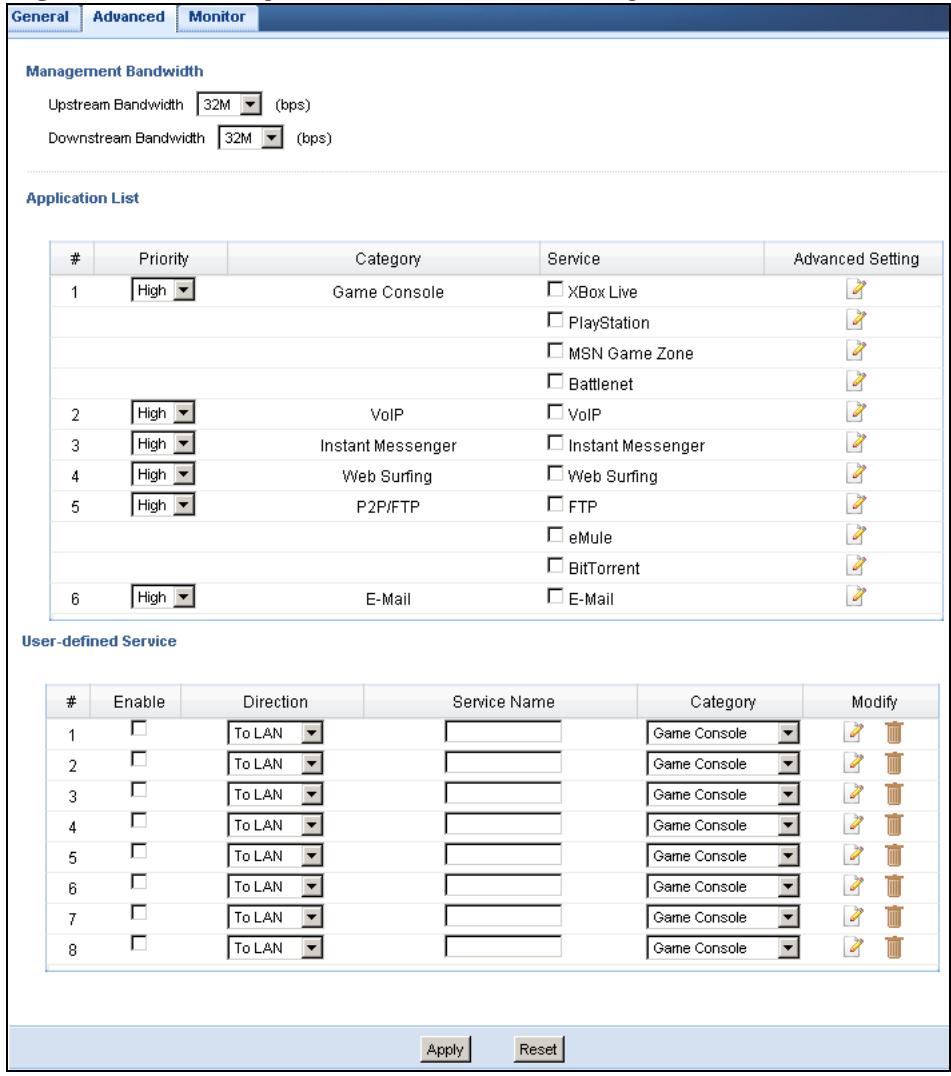

21.5 Advanced Screen 175

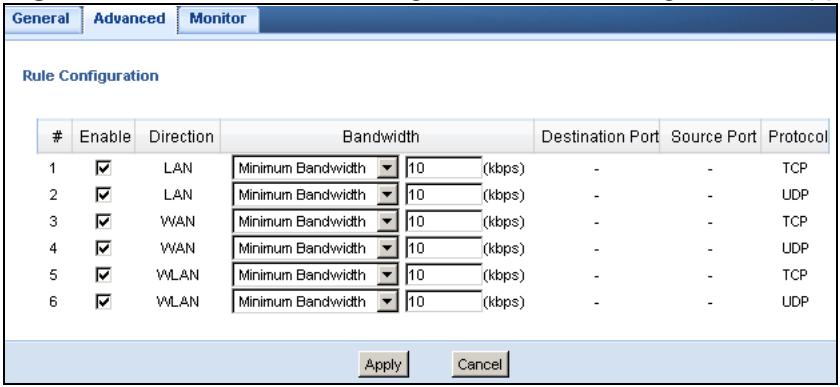

21.5.1 Rule Configuration: Application Rule Configuration 178

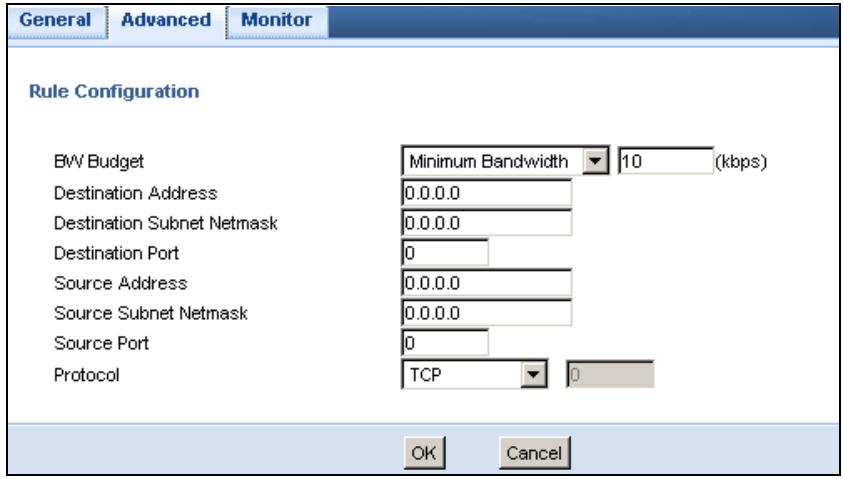

21.5.2 Rule Configuration: User Defined Service Rule Configuration 179

21.6 Monitor Screen 180

21.6.1 Predefined Bandwidth Management Services 181

Chapter 22

Remote Management 183

22.1 Overview 183
22.2 What You Can Do 183
22.3 What You Need to Know 183

22.3.1 Remote Management and NAT 184
22.3.2 System Timeout 184

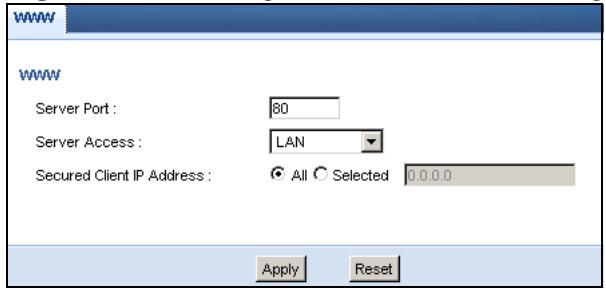

22.4 WWW Screen 184

Chapter 23

Universal Plug-and-Play (UPnP) 187

23.1 Overview 187
23.2 What You Can Do 187
23.3 What You Need to Know 187

23.3.1 NAT Traversal 187
23.3.2 Cautions with UPnP 188

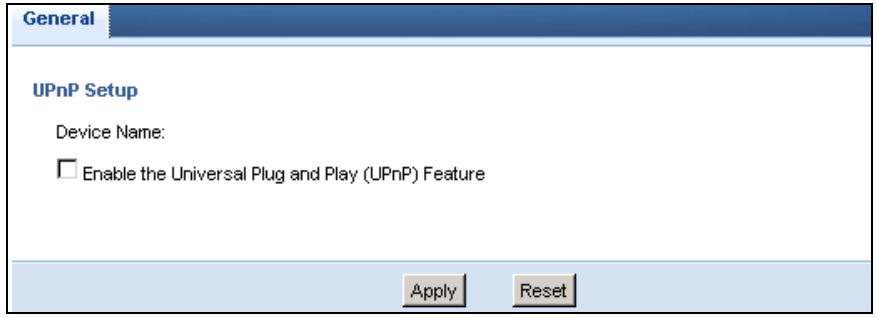

23.4 UPnP Screen 188
23.5 Technical Reference 189

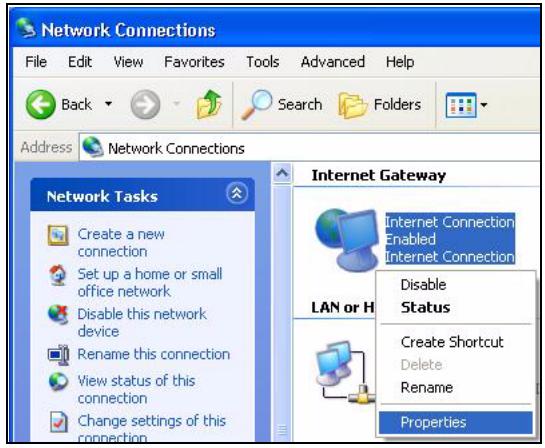

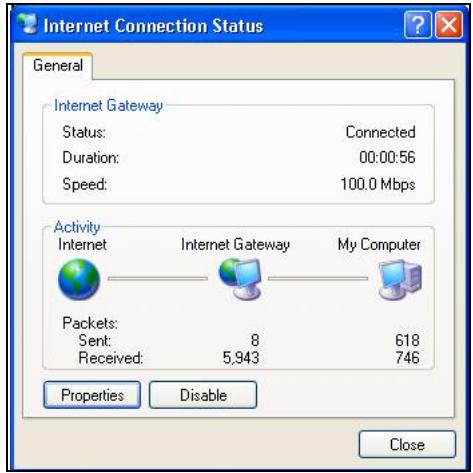

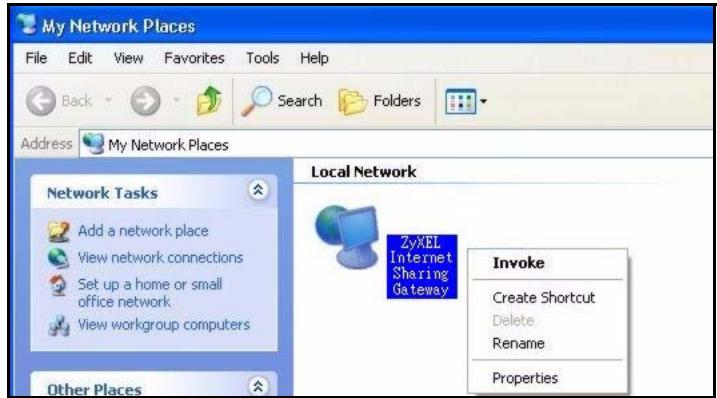

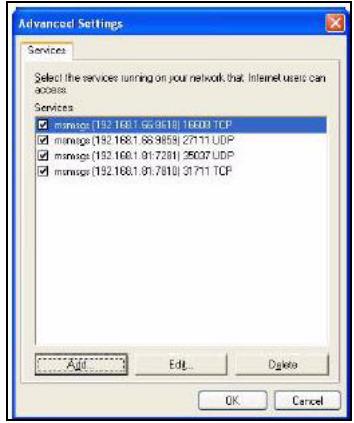

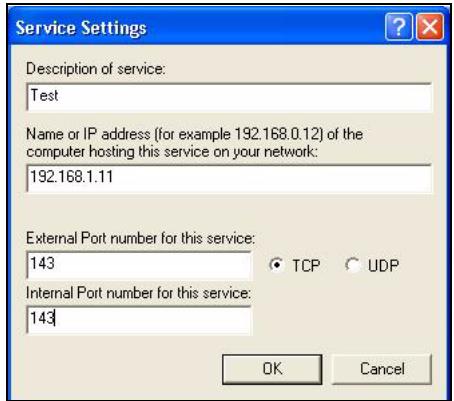

23.5.1 Using UPnP in Windows XP Example 189
23.5.2 Web Configurator Easy Access 191

Part V: Maintenance and Troubleshooting 195

Chapter 24

Maintenance 197

24.1 Overview 197
24.2 What You Can Do 197

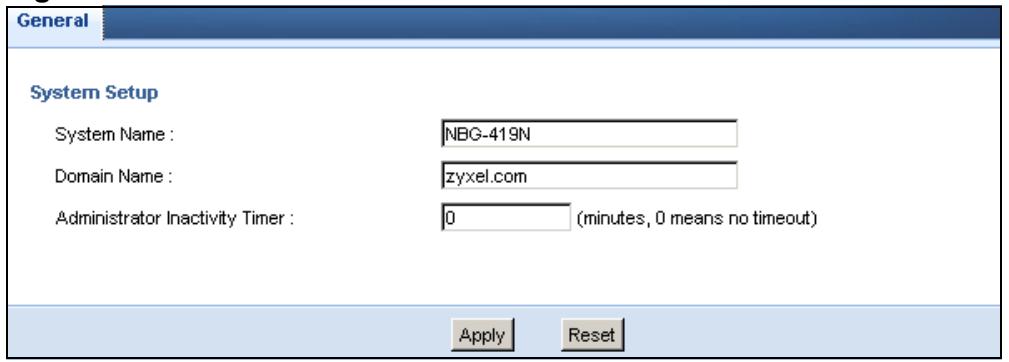

24.3 General Screen 197

Chapter 25

Password 199

25.1 Overview 199
25.2 What You Can Do 199
25.3 What You Need to Know 199

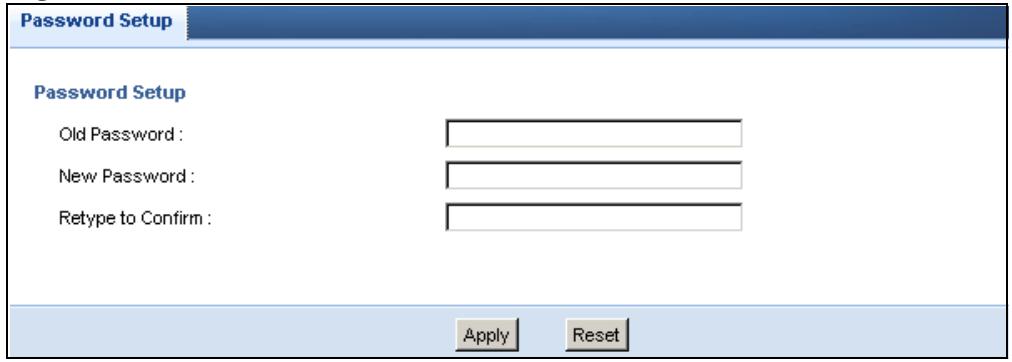

25.4 Password Screen 200

Chapter 26

Time 201

26.1 Overview 201
26.2 What You Can Do 201

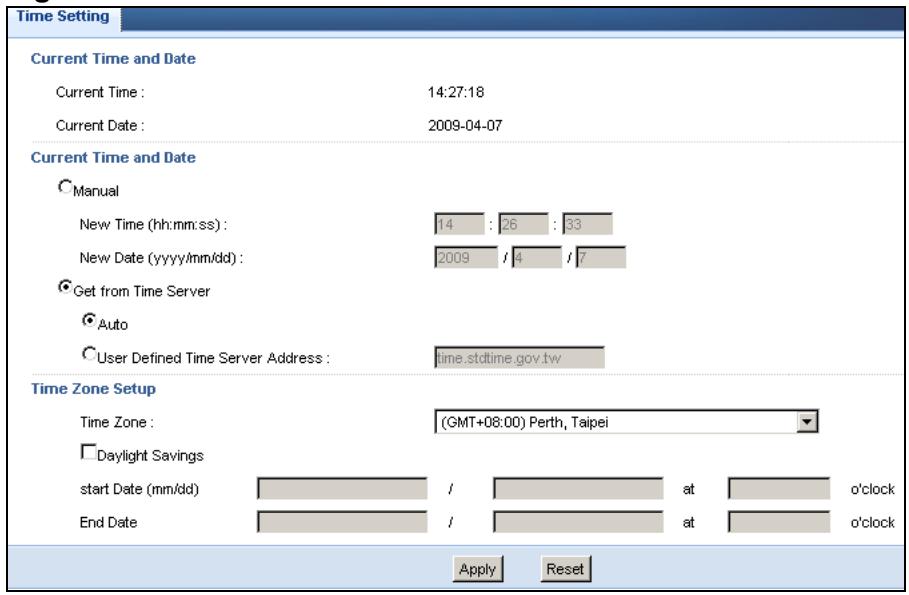

26.3 Time Setting Screen 201

Chapter 27

Firmware Upgrade 205

27.1 Overview 205
27.2 What You Can Do 205

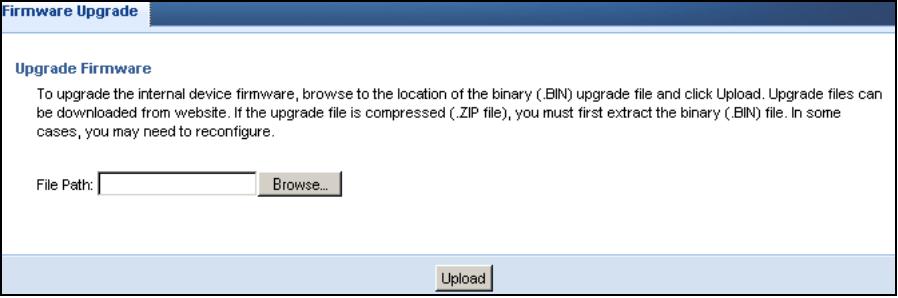

27.3 Firmware Upload Screen 205

Chapter 28

Backup/Restore 207

28.1 Overview 207
28.2 What You Can Do 207

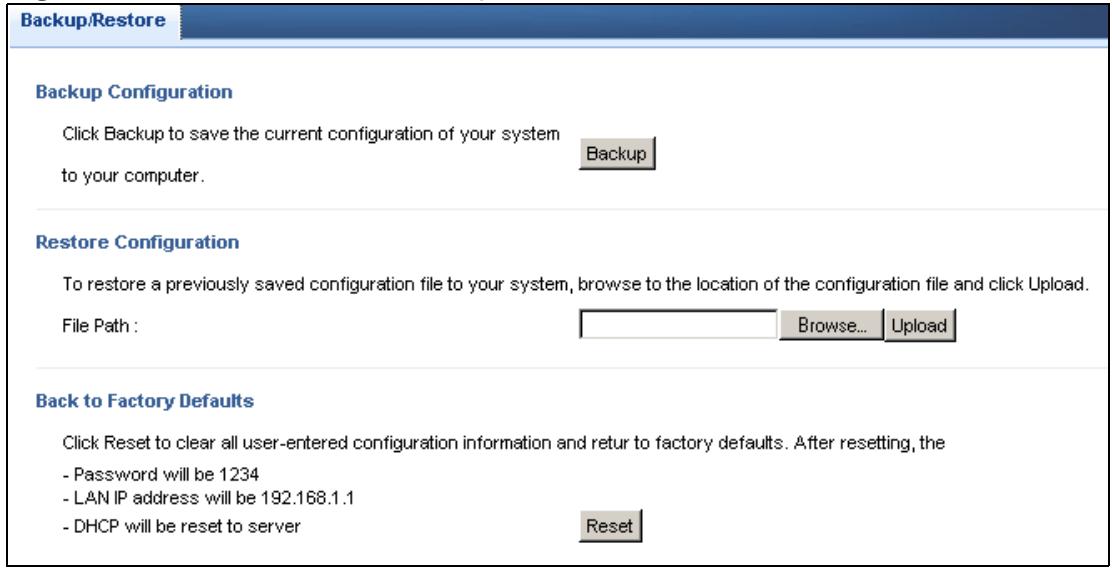

28.3 Configuration Screen 208

Chapter 29

Reset/Restart 211

29.1 Overview 211

29.2 What You Can Do 211

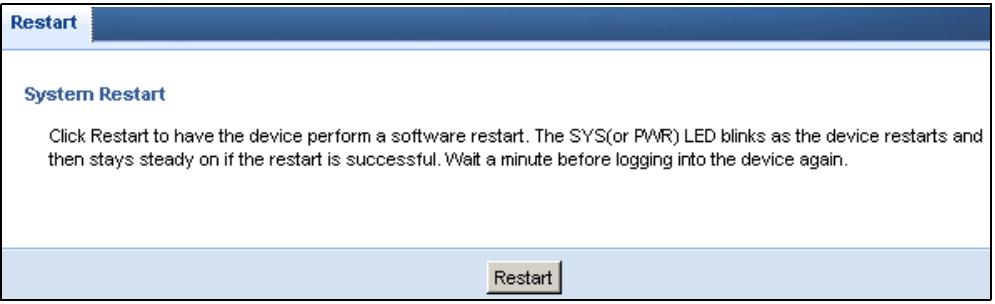

29.3 Reset/Restart Screen 211

Chapter 30

Sys OP Mode 213

30.1 Overview 213
30.2 What You Can Do 213
30.3 What You Need to Know 213

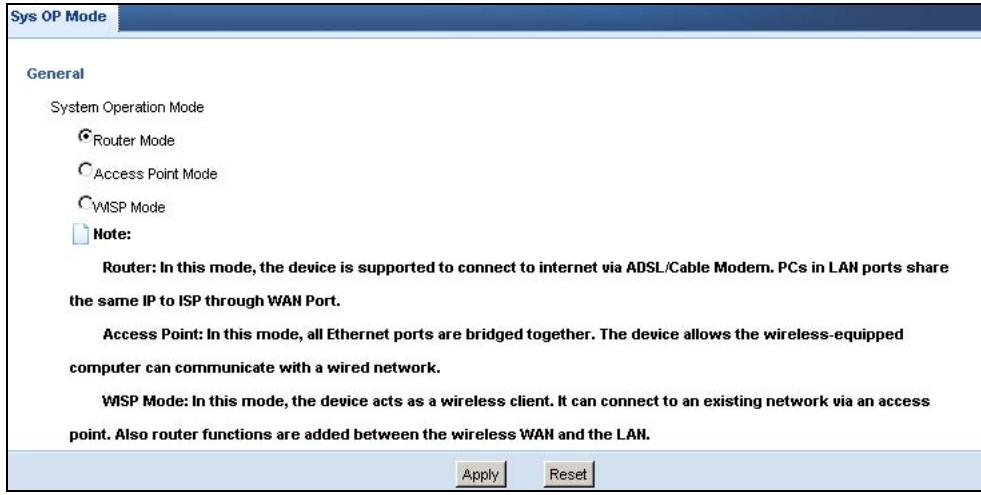

30.4 Sys Op Mode Screen 215

Chapter 31

Troubleshooting 217

31.1 Power, Hardware Connections, and LEDs 217
31.2 NBG-419N Access and Login 218
31.3 Internet Access 220
31.4 Resetting the NBG-419N to Its Factory Defaults 221
31.5 Wireless Router/AP Troubleshooting 222

Chapter 32

Chapter 32 Product Specifications 225
32.1 Wall-mounting Instructions 228

Part VI: Appendices and Index 231

Appendix A Pop-up Windows, JavaScripts and Java Permissions 233

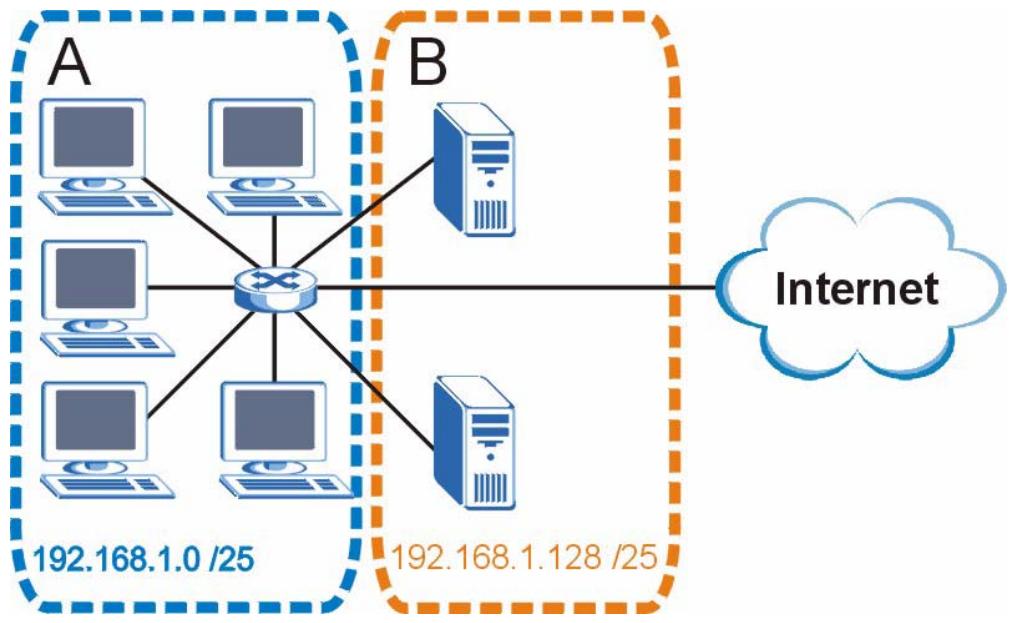

Appendix B IP Addresses and Subnetting 241

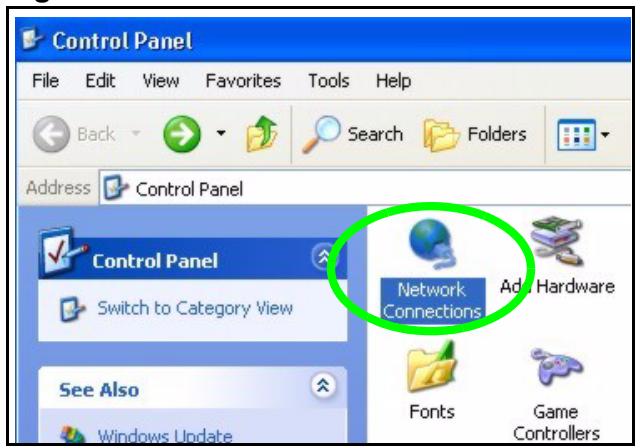

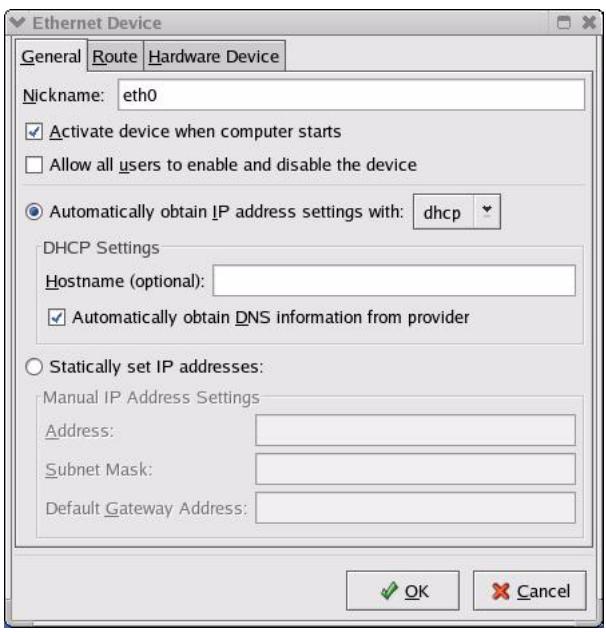

Appendix C Setting up Your Computer's IP Address 251

32.1.1 Verifying Settings 268

Appendix D Wireless LANs 269

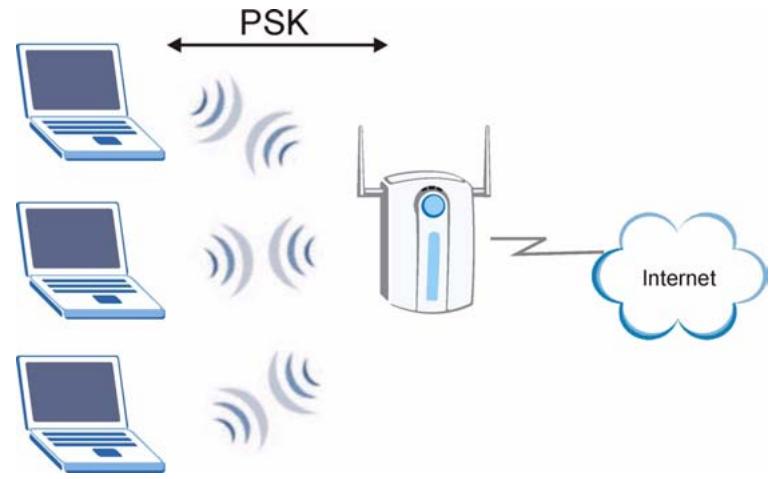

32.1.2 WPA(2)-PSK Application Example 279
32.1.3 WPA(2) with RADIUS Application Example 279

Appendix E Common Services 281
Appendix F Legal Information 285
Index 293

PART I

Introduction

Getting to Know Your NBG-419N (21)

Connection Wizard (25)

Introducing the Web Configurator (37)

NBG-419N Modes (49)

Monitor (43)

Tutorials (89)

Getting to Know Your NBG-419N

1.1 Overview

This chapter introduces the main features and applications of the NBG-419N.

The NBG-419N extends the range of your existing wired network without additional wiring, providing easy network access to mobile users. You can set up a wireless network with other IEEE 802.11b/g/n compatible devices.

A range of services such as a firewall and content filtering are also available for secure Internet computing. You can use media bandwidth management to efficiently manage traffic on your network. Bandwidth management features allow you to prioritize time-sensitive or highly important applications such as Voice over the Internet (VoIP).

1.2 Applications

Your can create the following networks using the NBG-419N:

• Wired. You can connect network devices via the Ethernet ports of the NBG-419N so that they can communicate with each other and access the Internet.
• Wireless. Wireless clients can connect to the NBG-419N to access network resources.
• WAN. Connect to a broadband modem/router for Internet access.

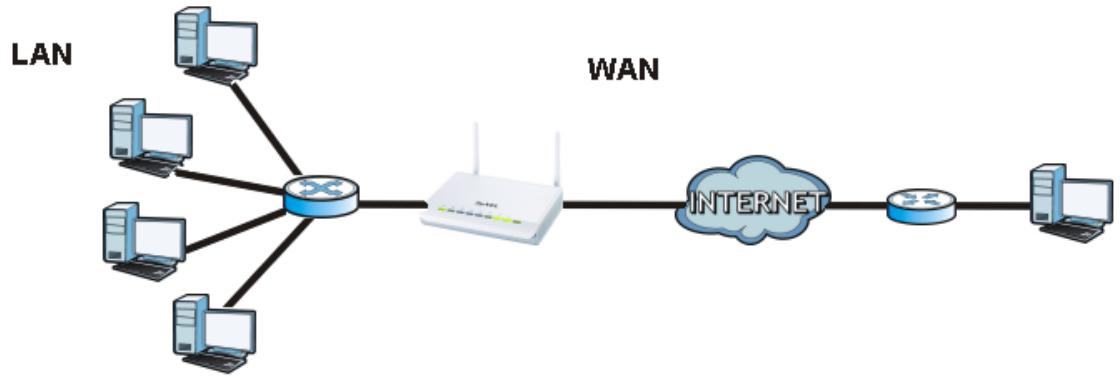

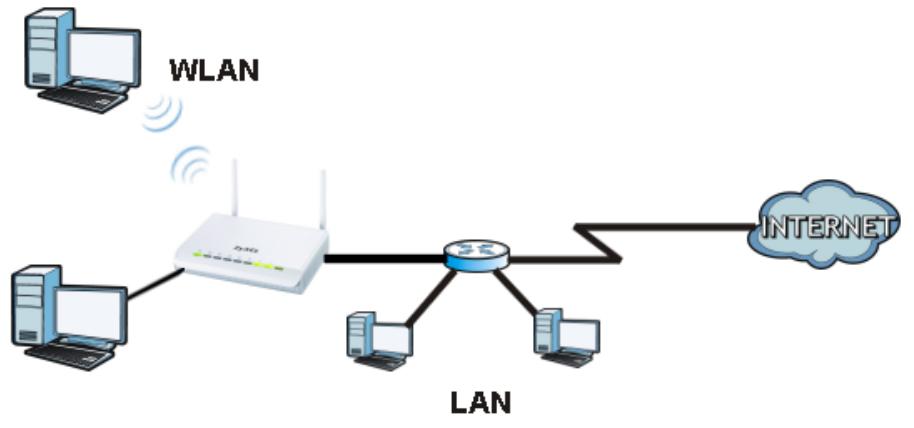

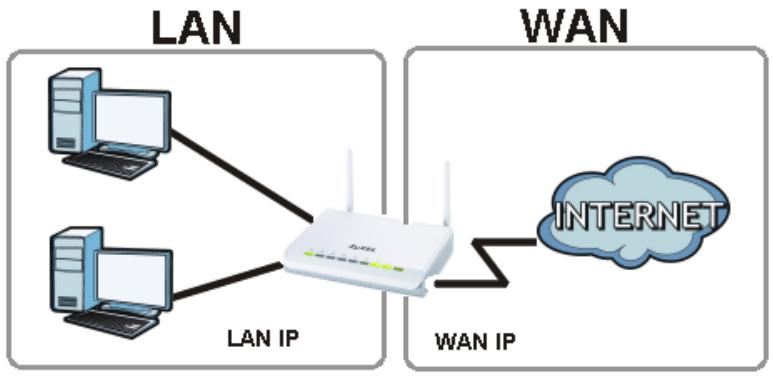

Figure 1 NBG-419N Network

1.3 Ways to Manage the NBG-419N

Use any of the following methods to manage the NBG-419N.

• Web Configurator. This is recommended for everyday management of the NBG-419N using a (supported) web browser.
• Wireless switch. You can use the built-in switch of the NBG-419N to turn the wireless function on and off without opening the Web Configurator.
• WPS (Wi-Fi Protected Setup) button. You can use the WPS button or the WPS section of the Web Configurator to set up a wireless network with your ZyXEL Device.

1.4 Good Habits for Managing the NBG-419N

Do the following things regularly to make the NBG-419N more secure and to manage the NBG-419N more effectively.

• Change the password. Use a password that's not easy to guess and that consists of different types of characters, such as numbers and letters.
• Write down the password and put it in a safe place.
• Back up the configuration (and make sure you know how to restore it). Restoring an earlier working configuration may be useful if the device becomes unstable or even crashes. If you forget your password, you will have to reset the NBG-419N to its factory default settings. If you backed up an earlier configuration file, you would not have to totally reconfigure the NBG-419N. You could simply restore your last configuration.

1.5 LEDs

Figure 2 Front Panel

The following table describes the LEDs and the WPS button.

Table 1 Front Panel LEDs and WPS Button

LED	COLOR	STATUS	DESCRIPTION
POWER	Green	On	The NBG-419N is receiving power and functioning properly.
		Off	The NBG-419N is not receiving power.
WLAN	Green	On	The NBG-419N is ready, but is not sending/receiving data through the wireless LAN.
		Blinking	The NBG-419N is sending/receiving data through the wireless LAN.
		Off	The wireless LAN is not ready or has failed.
WPS	Green	On	WPS is enabled.
		Blinking	The NBG-419N is negotiating a WPS connection with a wireless client.
		Off	The wireless LAN is not ready or has failed.
WAN	Green	On	The NBG-419N has a successful 10/100MB WAN connection.
		Blinking	The NBG-419N is sending/receiving data through the WAN.
		Off	The WAN connection is not ready, or has failed.
LAN 1-4	Green	On	The NBG-419N has a successful 10/100MB Ethernet connection.
		Blinking	The NBG-419N is sending/receiving data through the LAN.
		Off	The LAN is not connected.

Connection Wizard

2.1 Overview

This chapter provides information on the wizard setup screens in the Web Configurator.

The Web Configurator's wizard setup helps you configure your device to access the Internet. Refer to your ISP for your Internet account information. Leave a field blank if you don't have that information.

2.2 Accessing the Wizard

Launch your web browser and type "http://192.168.1.1" as the website address. Type "1234" (default) as the password and click Login.

Note: The Wizard appears when the NBG-419N is accessed for the first time or when you reset the NBG-419N to its default factory settings.

The Wizard screen opens. Choose your Language and click Connect to Internet.

Figure 3 Welcome

2.3 Connect to Internet

The NBG-419N offers five Internet connection types. They are Static IP, DHCP, PPPoE, PPTP or L2TP. The wizard attempts to detect which WAN connection type you are using.

Figure 4 Detecting your Internet Connection Type

If the wizard does not detect a connection type, you must select one from the drop-down list box. Check with your ISP to make sure you use the correct type.

Note: If you get an error message, check your hardware connections. Make sure your Internet connection is up and running.

The following screen depends on your Internet connection type. Enter the details provided by your Internet Service Provider (ISP) in the fields (if any).

Figure 5 Internet Connection Type

Your NBG-419N detects the following Internet Connection type.

Table 2 Internet Connection Type

CONNECTION TYPE	DESCRIPTION
Static IP	Select the Static IP if an administrator assigns the IP address of your computer.
DHCP	Select the DHCP (Dynamic Host Configuration Protocol) option when the WAN port is used as a regular Ethernet.

Table 2 Internet Connection Type

CONNECTION TYPE	DESCRIPTION
PPPoE	Select the PPPoE (Point-to-Point Protocol over Ethernet) option for a dial-up connection.
PPTP	Select the PPTP (Point-to-Point Tunneling Protocol) option for a dial-up connection, and your ISP gave you an IP address and/or subnet mask.
L2TP	Select the L2TP (Layer 2 Tunnel Protocol) if you are connecting to another device over another network (like the Internet or VPN).

2.3.1 Connection Type: DHCP

Choose DHCP as the Internet Connection Type when the WAN port is used as a regular Ethernet. Click Next.

Figure 6 Internet Connection Type: DHCP

Note: If you get an error screen after clicking Next, you might have selected the wrong Internet Connection type. Click Back, make sure your Internet connection is working and select the right Connection Type. Contact your ISP if you are not sure of your Internet Connection type.

2.3.2 Connection Type: Static IP

Choose Static IP as the Internet Connection Type if your ISP assigned an IP address for your Internet connection. Click Next.

Figure 7 Internet Connection Type: Static IP

The following table describes the labels in this screen.

Table 3 Internet Connection Type: Static IP

LABEL	DESCRIPTION
Internet Connection Type	Select the Static IP option.
IP Address	Enter the IP address provided by your ISP.
Subnet Mask	Enter the IP subnet mask in this field.
Default Gateway	Enter the gateway IP address in this field.
Primary DNS	DNS (Domain Name System) is for mapping a domain name to its corresponding IP address and vice versa. The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it. The NBG-419N uses a system DNS server (in the order you specify here) to resolve domain names for DDNS and the time server. Enter the primary DNS server's IP address in the fields provided.
Secondary DNS	Enter the secondary DNS server's IP address in the fields provided.
Exit	Click this to close the wizard screen without saving.
Back	Click this to return to the previous screen.
Next	Click this to continue.

2.3.3 Connection Type: PPPoE

Point-to-Point Protocol over Ethernet (PPPoE) functions as a dial-up connection. PPPoE is an IETF (Internet Engineering Task Force) standard specifying how a host

personal computer interacts with a broadband modem (for example DSL, cable, wireless, etc.) to achieve access to high-speed data networks.

For the service provider, PPPoE offers an access and authentication method that works with existing access control systems (for instance, RADIUS).

One of the benefits of PPPoE is the ability to let end users access one of multiple network services, a function known as dynamic service selection. This enables the service provider to easily create and offer new IP services for specific users.

Operationally, PPPoE saves significant effort for both the subscriber and the ISP/ carrier, as it requires no specific configuration of the broadband modem at the subscriber's site.

By implementing PPPoE directly on the NBG-419N (rather than individual computers), the computers on the LAN do not need PPPoE software installed, since the NBG-419N does that part of the task. Furthermore, with NAT, all of the LAN's computers will have Internet access.

Figure 8 Internet Connection Type: PPPoE

The following table describes the labels in this screen.

Table 4 Internet Connection Type: PPPoE

LABEL	DESCRIPTION
Internet Connection Type	Select the PPPoE option for a dial-up connection.
Dynamic IP	Select this radio button if your ISP did not assign you a fixed IP address.
Static IP	Select this radio button, provided by your ISP to give the NBG-419N a fixed, unique IP address.
IP Address	Type the name of your service provider.
User Name	Type the user name given to you by your ISP.
Password	Type the password associated with the user name above.
Exit	Click this to close the wizard screen without saving.

Table 4 Internet Connection Type: PPPoE

LABEL	DESCRIPTION
Back	Click this to return to the previous screen.
Next	Click this to continue.

2.3.4 Connection Type: PPTP

Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables transfers of data from a remote client to a private server, creating a Virtual Private Network (VPN) using TCP/IP-based networks.

PPTP supports on-demand, multi-protocol, and virtual private networking over public networks, such as the Internet.

Refer to the appendix for more information on PPTP.

The NBG-419N supports one PPTP server connection at any given time.

Figure 9 Internet Connection Type: PPTP

The following table describes the fields in this screen

Table 5 Internet Connection Type: PPTP

LABEL	DESCRIPTION
Internet Connection Type	Select PPTP from the drop-down list box. To configure a PPTP client, you must configure the User Name and Password fields for a PPP connection and the PPTP parameters for a PPTP connection.
Dynamic IP	Select this radio button if your ISP did not assign you a fixed IP address.
Static IP	Select this radio button, provided by your ISP to give the NBG-419N a fixed, unique IP address.
PPTP Address	Type the (static) IP address assigned to you by your ISP.
PPTP Subnet Mask	Type the subnet mask assigned to you by your ISP (if given).

Table 5 Internet Connection Type: PPTP

LABEL	DESCRIPTION
PPTP Gateway IP Address	Type the gateway IP address of the PPTP server.
PPTP Server IP Address	Type the server IP address of the PPTP server.
User Name	Type the user name given to you by your ISP.
Password	Type the password associated with the User Name above.
Exit	Click this to close the wizard screen without saving.
Back	Click this to return to the previous screen.
Next	Click this to continue.

2.3.5 Connection Type: L2TP

The Layer 2 Tunneling Protocol (L2TP) works at layer 2 (the data link layer) to tunnel network traffic between two peer devices over another network (like the Internet).

Figure 10 Internet Connection Type: L2TP

The following table describes the fields in this screen

Table 6 Internet Connection Type: L2TP

LABEL	DESCRIPTION
Internet Connection Type	Select L2TP from the drop-down list box.
Dynamic IP	Select this radio button if your ISP did not assign you a fixed IP address.
Static IP	Select this radio button, provided by your ISP to give the NBG-419N a fixed, unique IP address.
L2TP Address	Type the (static) IP address assigned to you by your ISP.
L2TP Subnet Mask	Type the subnet mask assigned to you by your ISP (if given).

Table 6 Internet Connection Type: L2TP

LABEL	DESCRIPTION
L2TP Gateway IP Address	Type the gateway IP address of the L2TP server.
L2TP Server IP Address	Type the server IP address of the L2TP server.
User Name	Type the user name given to you by your ISP.
Password	Type the password associated with the User Name above.
Exit	Click this to close the wizard screen without saving.
Back	Click this to return to the previous screen.
Next	Click this to continue.

The NBG-419N connects to the Internet.

Figure 11 Connecting to the Internet

Note: If the Wizard successfully connects to the Internet, it proceeds to the next step. If you get an error message, go back to the previous screen and make sure you have entered the correct information provided by your ISP.

2.4 Router Password

Change the login password in the following screen. Enter the new password and retype it to confirm. Click Next to proceed with the Wireless Security screen.

Figure 12 Router Password

2.5 Wireless Security

Configure Wireless Settings. Configure the wireless network settings on your NBG-419N in the following screen. The fields that show up depend on the kind of security you select.

2.5.1 Wireless Security: No Security

Choose No Security in the Wireless Security screen to let wireless devices within range access your wireless network.

Figure 13 Wireless Security: No Security

The following table describes the labels in this screen.

Table 7 Wireless Security: No Security

LABEL	DESCRIPTION
Wireless Network Name (SSID)	Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN. If you change this field on the NBG-419N, make sure all wireless stations use the sameSSID in order to access the network.
Security mode	Select a Security level from the drop-down list box. Choose None to have no wireless LAN security configured. If you do not enable any wireless security on your NBG-419N, your network is accessible to any wireless networking device that is within range.
Exit	Click this to close the wizard screen without saving.
Back	Click this to return to the previous screen.
Next	Click this to continue.

2.5.2 Wireless Security: WPA-PSK/WPA2-PSK

Choose WPA-PSK or WPA2-PSK security in the Wireless Security screen to set up a password for your wireless network.

Figure 14 Wireless Security: WPA-PSK/WPA2-PSK

The following table describes the labels in this screen.

Table 8 Wireless Security: WPA-PSK/WPA2-PSK

LABEL	DESCRIPTION
Wireless Network Name (SSID)	Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN. If you change this field on the NBG-419N, make sure all wireless stations use the sameSSID in order to access the network.
Security mode	Select a Security level from the drop-down list box. Choose WPA-PSK or WPA2-PSK security to configure a Pre-Shared Key. Choose this option only if your wireless clients support WPA-PSK or WPA2-PSK respectively.
Wireless password	Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure wireless connection by configuring WPA in the wireless LAN screens.
Verify Password	Retype the password to confirm.
Exit	Click this to close the wizard screen without saving.
Back	Click this to return to the previous screen.
Next	Click this to continue.

Congratulations! Open a web browser, such as Internet Explorer, to visit your favorite website.

Note: If you cannot access the Internet when your computer is connected to one of the NBG-419N's LAN ports, check your connections. Then turn the NBG-419N off, wait for a few seconds then turn it back on. If that does not work, log in to the web configurator again and check you have typed all information correctly. See the User's Guide for more suggestions.

Figure 15 Congratulations

You can also click ZyGO to open the Easy Mode Web Configurator of your NBG-419N.

You have successfully set up your NBG-419N to operate on your network and access the Internet. You are now ready to connect wirelessly to your NBG-419N and access the Internet.

Introducing the Web Configurator

3.1 Overview

This chapter describes how to access the NBG-419N Web Configurator and provides an overview of its screens.

The Web Configurator is an HTML-based management interface that allows easy setup and management of the NBG-419N via Internet browser. Use Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions or Safari 2.0 or later versions. The recommended screen resolution is 1024 by 768 pixels.

In order to use the Web Configurator you need to allow:

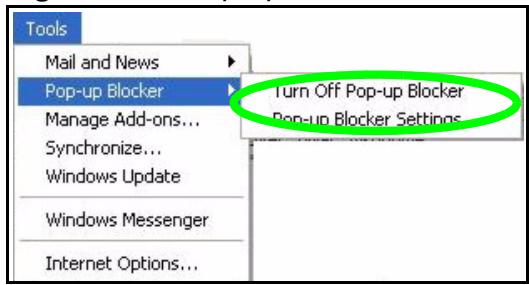

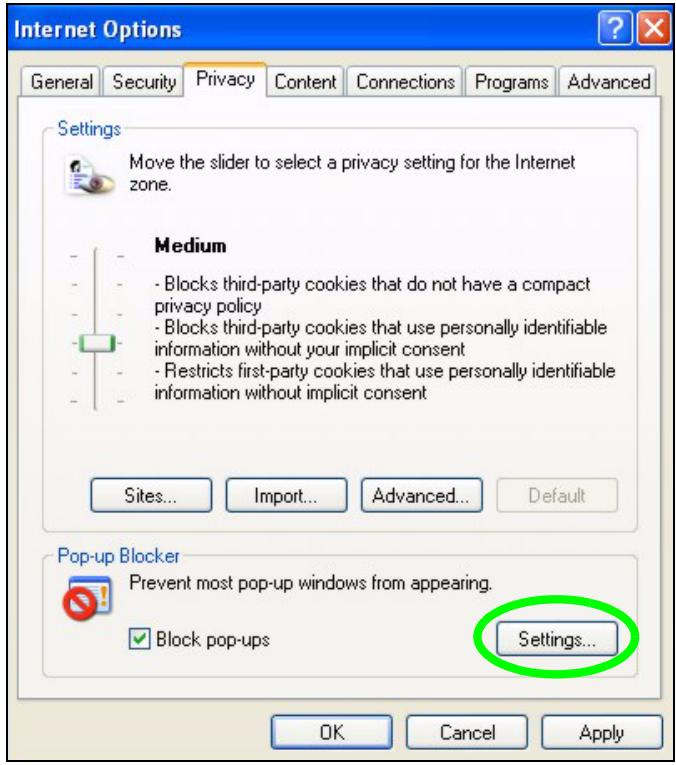

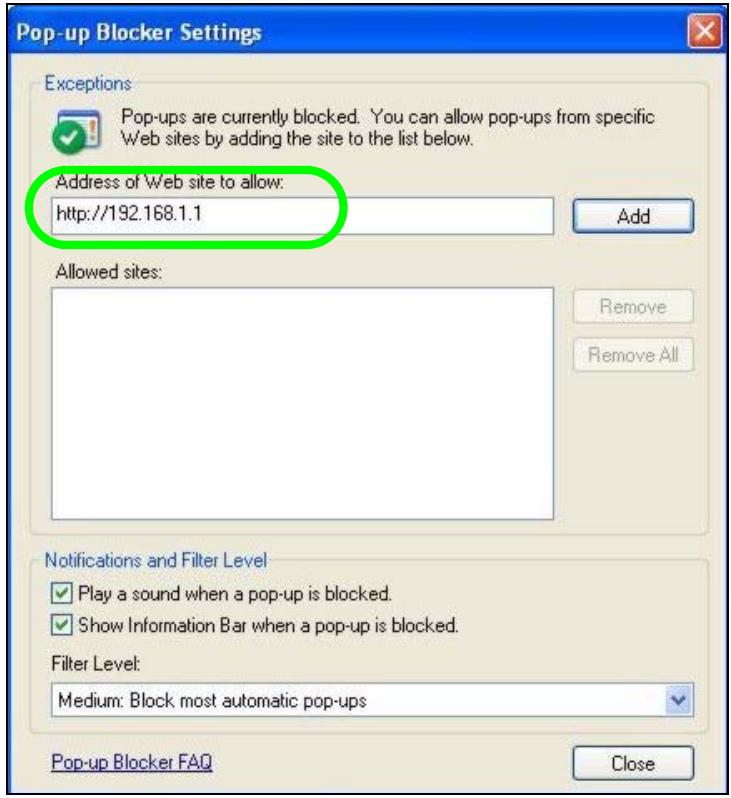

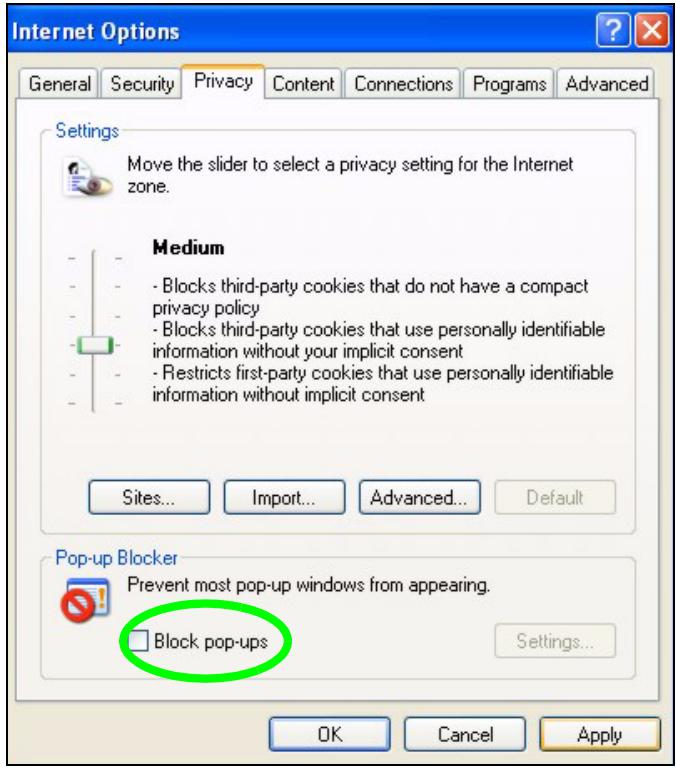

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in Windows XP SP (Service Pack) 2.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).

Refer to the Troubleshooting chapter (Chapter 31 on page 217) to see how to make sure these functions are allowed in Internet Explorer.

3.2 Accessing the Web Configurator

1 Make sure your NBG-419N hardware is properly connected and prepare your computer or computer network to connect to the NBG-419N (refer to the Quick Start Guide).
2 Launch your web browser.
3 Type "http://192.168.1.1" as the website address.

Your computer must be in the same subnet in order to access this website address.

3.2.1 Login Screen

Note: If this is the first time you are accessing the Web Configurator, you may be redirected to the Wizard. Refer to Chapter 2 on page 25 for the Connection Wizard screens.

The Web Configurator initially displays the following login screen.

Figure 16 Login screen

The following table describes the labels in this screen.

Table 9 Login screen

LABEL	DESCRIPTION
Password	Type "1234" (default) as the password.
Language	Select the language you want to use to configure the Web Configurator. Click Login.
18°C Taipei	This shows the current weather, either in celsius or fahrenheit, of the city you specify in Section 3.2.3.1 on page 40.
15:03:09 2009-04-06	This shows the time (hh:mm:ss) and date (yyyy:mm:dd) of thetimezone you select in Section 3.2.3.2 on page 41 or Section 26.3 on page 201. The time is in 24-hour format, for example 15:00 is 3:00 PM.

3.2.2 Password Screen

You should see a screen asking you to change your password (highly recommended) as shown next.

Figure 17 Change Password Screen

The following table describes the labels in this screen.

Table 10 Change Password Screen

LABEL	DESCRIPTION
New Password	Type a new password.
Retype to Confirm	Retype the password for confirmation.
Apply	Click Apply to save your changes back to the NBG-419N.
Ignore	Click Ignore if you do not want to change the password this time.

Note: The management session automatically times out when the time period set in the Administrator Inactivity Timer field expires (default five minutes; go to Chapter 24 on page 197 to change this). Simply log back into the NBG-419N if this happens.

3.2.3 Home Screen

If you have previously logged into the Web Configurator but did not click Logout, you may be redirected to the Home screen.

You can also open this screen by clicking Home (Home or Home) in the Easy Mode or Expert mode screens.

The Home screen displays as follows.

Figure 18 Home Screen

The following table describes the labels in this screen.

Table 11 Home Screen

LABEL	DESCRIPTION
Go	Click this to open the Easy mode Web Configurator.
Language	Select a language to go to the Easy mode Web Configurator in that language and click Login.
18°C Taipei	(This is just an example). This shows the current weather, either in celsius or fahrenheit, of the city you specify in Section 3.2.3.1 on page 40.
15:03:09 2009-04-06	(This is just an example). This shows the time (hh:mm:ss) and date (yyyy:mm:ss) of the timezone you select in Section 3.2.3.2 on page 41 or Section 26.3 on page 201.

3.2.3.1 Weather Edit

You can change the temperature unit and select the location for which you want to know the weather.

Click the icon to change the Weather display.

Figure 19 Change Weather

The following table describes the labels in this screen.

Table 12 Change Weather

LABEL	DESCRIPTION
°C or °F	Choose which temperature unit you want the NBG-419N to display.
Change Location	Select the location for which you want to know the weather. If the city you want is not listed, choose one that is closest to it.
Finish	Click this to apply the settings and refresh the date and time display.

3.2.3.2 Time/Date Edit

Onetimezone can cover more than one country. You can choose a particular country in which the NBG-419N is located and have the NBG-419N display and use the current time and date for its logs.

Click the icon to change the Weather display.

Figure 20 Change Password Screen

The following table describes the labels in this screen.

Table 13 Change Password Screen

LABEL	DESCRIPTION
Change time zone	Select the specific country whose current time and date you want the NBG-419N to display.
Finish	Click this to apply the settings and refresh the weather display.

Note: You can also edit thetimezone in Section 26.3 on page 201.

3.3 Resetting the NBG-419N

If you forget your password or IP address, or you cannot access the Web Configurator, you will need to use the RESET button at the back of the NBG-419N to reload the factory-default configuration file. This means that you will lose all configurations that you had previously saved, the password will be reset to "1234" and the IP address will be reset to "192.168.1.1".

3.3.1 Procedure to Use the Reset Button

1 Make sure the power LED is on.
2 Press the RESET button for longer than 1 second to restart/reboot the NBG-419N.
3 Press the RESET button for longer than five seconds to set the NBG-419N back to its factory-default configurations.

Monitor

4.1 Overview

This chapter discusses read-only information related to the device state of the NBG-419N.

Note: To access the Monitor screens, you can also click the links in the Summary table of the Status screen to view the bandwidth consumed, packets sent/ received as well as the status of clients connected to the NBG-419N.

4.2 What You Can Do

• Use the BW MGMT Monitor screen (Section 4.3 on page 43) to view the amount of network bandwidth that applications running in the network are using.
• Use the DHCP Table screen (Section 4.4 on page 44) to view information related to your DHCP status.
• use the Packet Statistics screen (Section 4.5 on page 45) to view port status, packet specific statistics, the "system up time" and so on.
• Use the WLAN Station Status screen (Section 4.6 on page 46) to view the wireless stations that are currently associated to the NBG-419N.

4.3 BW MGMT Monitor

The Bandwidth Management (BW MGMT) Monitor allows you to view the amount of network bandwidth that applications running in the network are using.

The bandwidth is measured in kilobits per second (kbps).

The monitor shows what kinds of applications are running in the network, the maximum kbps that each application can use, as well as the percentage of bandwidth it is using.

Figure 21 Summary: BW MGMT Monitor

4.4 DHCP Table

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the NBG-419N's LAN as a DHCP server or disable it. When configured as a server, the NBG-419N provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have another DHCP server on that network, or else the computer must be manually configured.

Click the DHCP Table (Details...) hyperlink in the Status screen. Read-only information here relates to your DHCP status. The DHCP table shows current DHCP client information (including IP Address, Host Name and MAC Address) of all network clients using the NBG-419N's DHCP server.

Figure 22 Summary: DHCP Table

The following table describes the labels in this screen.

Table 14 Summary: DHCP Table

LABEL	DESCRIPTION
#	This is the index number of the host computer.
MAC Address	This field shows the MAC address of the computer with the name in the Host Name field. Every Ethernet device has a unique MAC (Media Access Control) address which uniquely identifies a device. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02.
IP Address	This field displays the IP address relative to the # field listed above.
Expires in	This field displays the time when the IP address and MAC address association ends.
Refresh	Click Refresh to renew the screen.

4.5 Packet Statistics

Click the Packet Statistics (Details...) hyperlink in the Status screen. Read-only information here includes port status, packet specific statistics and the "system up time". The Poll Interval(s) field is configurable and is used for refreshing the screen.

Figure 23 Summary: Packet Statistics

The following table describes the labels in this screen.

Table 15 Summary: Packet Statistics

LABEL	DESCRIPTION
Port	This is the NBG-419N's port type.
Status	For the LAN ports, this displays the port speed and duplex setting or Down when the line is disconnected.For the WAN port, it displays the port speed and duplex setting if you're using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP encapsulation. This field displays Down when the line is disconnected.For the WLAN, it displays the maximum transmission rate when the WLAN is enabled and Down when the WLAN is disabled.
TxPkts	This is the number of transmitted packets on this port.
RxPkts	This is the number of received packets on this port.
Collisions	This is the number of collisions on this port.
Tx B/s	This displays the transmission speed in bytes per second on this port.
Rx B/s	This displays the reception speed in bytes per second on this port.
Up Time	This is the total time the NBG-419N has been for each session.
System Up Time	This is the total time the NBG-419N has been on.
Poll Interval(s)	Enter the time interval in seconds for refreshing statistics in this field.
Set Interval	Click this button to apply the new poll interval you entered in the Poll Interval(s) field.
Stop	Click Stop to stop refreshing statistics.

4.6 WLAN Station Status

Click the WLAN Station Status (Details...) hyperlink in the Status screen. View the wireless stations that are currently associated to the NBG-419N in the

Association List. Association means that a wireless client (for example, your network or computer with a wireless network card) has connected successfully to the AP (or wireless router) using the same SSID, channel and security settings.

Figure 24 Summary: Wireless Association List

The following table describes the labels in this screen.

Table 16 Summary: Wireless Association List

LABEL	DESCRIPTION
#	This is the index number of an associated wireless station.
MAC Address	This field displays the MAC address of an associated wireless station.
Association Time	This field displays the time a wireless station first associated with the NBG-419N's WLAN network.
Refresh	Click Refresh to reload the list.

NBG-419N Modes

5.1 Overview

This chapter introduces the different modes available on your NBG-419N. First, the term "mode" refers to two things in this User's Guide.

• Web Configurator mode. This refers to the Web Configurator interface you want to use for editing NBG-419N features.
• Device mode. This is the operating mode of your NBG-419N, or simply how the NBG-419N is being used in the network.

5.1.1 Web Configurator Modes

This refers to the configuration interface of the Web Configurator, which has two modes:

• Easy. The Web Configurator shows this mode by default. Refer to Chapter 6 on page 51 for more information on the screens in this mode. This interface may be sufficient for users who just want to use the device.
• Expert. Advanced users can change to this mode to customize all the functions of the NBG-419N. Click Expert Mode after logging into the Web Configurator. The User's Guide Chapter 3 on page 37 through Chapter 30 on page 213 discusses the screens in this mode.

5.1.2 Device Modes

This refers to the operating mode of the NBG-419N, which can act as a:

• Router. This is the default device mode of the NBG-419N. Use this mode to connect the local network to another network, like the Internet. Go to Section 7.3 on page 64 to view the Status screen in this mode.

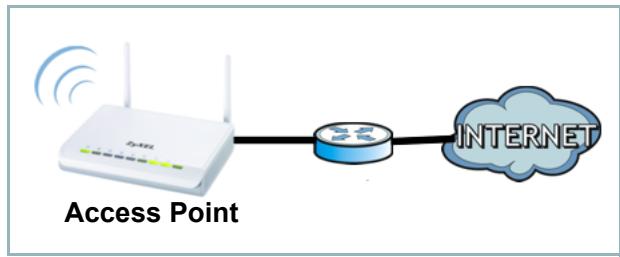

• Access Point. Use this mode if you want to extend your network by allowing network devices to connect to the NBG-419N wirelessly. Go to Section 8.4 on page 74 view the Status screen in this mode.

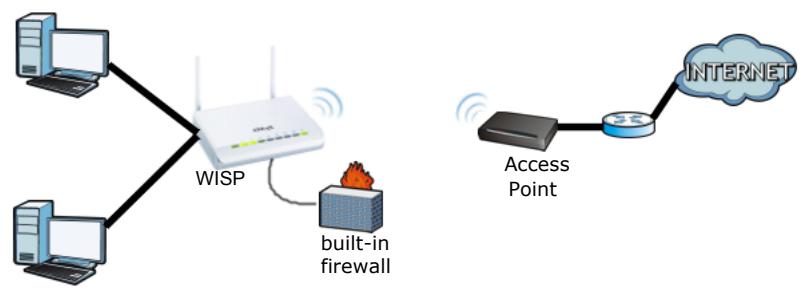

• WISP mode. Use this mode if there is an existing wireless router or access point in the network to which you want to connect your local network. Go to Section 9.4 on page 81 to view the Status screen in this mode.

The following figure is a simple illustration of the device configuration modes of the NBG-419N.

Figure 25 Device Mode Example

For more information on these modes and to change the mode of your NBG-419N, refer to Chapter 30 on page 213.

The menu for changing device modes is available in Expert mode only.

Note: Choose your Device Mode carefully to avoid having to change it later.

When changing to another mode, the IP address of the NBG-419N changes. The running applications and services of the network devices connected to the NBG-419N can be interrupted.

In WISP mode, you should know the SSID and wireless security details of the access point to which you want to connect.

Easy Mode

6.1 Overview

The Web Configurator is set to Easy Mode by default. You can configure several key features of the NBG-419N in this mode. This mode is useful to users who are not fully familiar with some features that are usually intended for network administrators.

When you log in to the Web Configurator, the following screen opens.

Figure 26 Easy Mode: Network Map

Click Status to open the following screen screen.

Figure 27 Easy Mode: Status Screen

6.2 What You Can Do

You can do the following in this mode:

• Use this Navigation Panel (Section 6.4 on page 53) to opt out of the Easy mode.
• Use the Network Map screen (Section 6.5 on page 53) to check if your NBG-419N can ping the gateway and whether it is connected to the Internet.
• Use the Control Panel (Section 6.6 on page 54) to configure and enable NBG-419N features, including wireless security, wireless scheduling and bandwidth management and so on.
• Use the Status Screen screen (Section 6.7 on page 61) to view read-only information about the NBG-419N, including the WAN IP, MAC Address of the NBG-419N and the firmware version.

6.3 What You Need to Know

Between the different device modes, the Control Panel (Section 6.6 on page 54) changes depending on which features are applicable to the mode:

• Router Mode: All Control Panel features are available.

• Access Point Mode: Only Power Saving and Wireless Security are available.

• WISP Mode: The available features for this mode are Game Console, Content Filter, Bandwidth MGMT, and Firewall.

6.4 Navigation Panel

Use this navigation panel to opt out of the Easy mode.

Figure 28 Control Panel

The following table describes the labels in this screen.

Table 17 Control Panel

ITEM	DESCRIPTION
Home	Click this to go to the Login page.
Expert Mode	Click this to change to Expert mode and customize features of the NBG-419N.
Logout	Click this to end the Web Configurator session.

6.5 Network Map

Note: The Network MAP is viewable by Windows XP (need to install patch), Windows Vista and Windows 7 users only. For Windows XP (Service Pack 2) users, you can see the network devices connected to the NBG-419N by downloading the LLLTD (Link Layer Topology Discovery) patch from the Microsoft Website.

Note: Don't worry if the Network Map does not display in your web browser. This feature may not be supported by your system. You can still configure the Control Panel (Section 6.6 on page 54) in the Easy Mode and the NBG-419N features that you want to use in the Expert Mode.

When you log into the Network Configurator, the Network Map is shown as follows.

Figure 29 Network Map

The line connecting the NBG-419N to the gateway becomes green when the NBG-419N is able to ping the gateway. It becomes red when the ping initiating from the NBG-419N does not get a response from the gateway. The same rule applies to the line connecting the gateway to the Internet.

You can also view the devices (represented by icons indicating the kind of network device) connected to the NBG-419N, including those connecting wirelessly. Right-click on the NBG-419N icon to refresh the network map and go to the Wizard. Right click on the other icons to view information about the device.

6.6 Control Panel

The features configurable in Easy Mode are shown in the Control Panel.

Figure 30 Control Panel

Switch ON to enable the feature. Otherwise, switch OFF. If the feature is turned on, the green light flashes. If it is turned off, the red light flashes.

Additionally, click the feature to open a screen where you can edit its settings.

The following table describes the labels in this screen.

Table 18 Control Panel

ITEM	DESCRIPTION
Game Engine	Switch ON to maximize bandwidth for gaming traffic in your network. Otherwise, switch OFF.Refer to Section 6.6.1 on page 55 to see this screen.
Power Saving	Click this to schedule the wireless feature of the NBG-419N.Disabling the wireless function helps lower the energy consumption of the NBG-419N.Switch ON to apply wireless scheduling. Otherwise, switch OFF.Refer to Section 6.6.2 on page 56 to see this screen.
Content Filter	Click this to restrict access to certain websites, based on keywords contained in URLs, to which you do not want users in your network to open.Switch ON to apply website filtering. Otherwise, switch OFF.Refer to Section 6.6.3 on page 57 to see this screen.
Bandwidth Mgmt	Click this to edit bandwidth management for predefined applications.Switch ON to have the NBG-419N management bandwidth for uplink and downlink traffic according to an application or service. Otherwise, switch OFF.Refer to Section 6.6.4 on page 58 to see this screen.

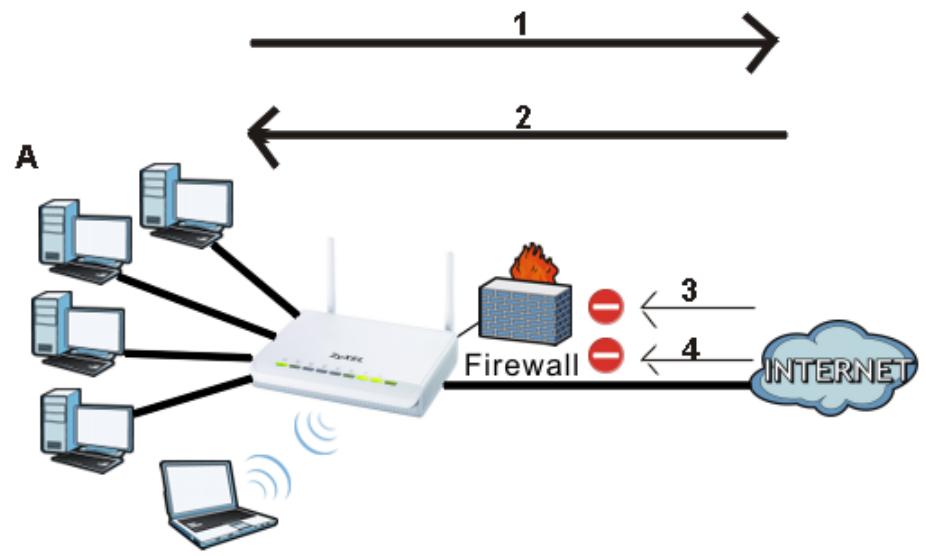

Firewall	Switch ON to ensure that your network is protected from Denial of Service (DoS) attacks. Otherwise, switch OFF.Refer to Section 6.6.5 on page 58 to see this screen.
Wireless Security	Click this to configure the wireless security, such as SSID, security mode and WPS key on your NBG-419N.Refer to Section 6.6.6 on page 59 to see this screen.

6.6.1 Game Engine

When this feature is enabled, the NBG-419N maximizes the bandwidth for gaming traffic that it forwards out through an interface.

Figure 31 Game Engine

Note: When this is switched on, the Game Console tab in the Bandwidth Mgmt screen is automatically positioned on top.

Turn this off if your network is not using gaming.

Click OK to close this screen.

6.6.2 Power Saving

Use this screen to set the day of the week and time of the day when your wireless LAN is turned on and off. Wireless LAN scheduling is disabled by default.

Disabling the wireless capability lowers the energy consumption of the of the NBG-419N.

Figure 32 Power Saving

The following table describes the labels in this screen.

Table 19 Power Saving

LABEL	DESCRIPTION
WLAN Status	Select On or Off to specify whether the Wireless LAN is turned on or off (depending on what you selected in the WLAN Status field). This field works in conjunction with the Day and Except for the following times fields.
Day	Select Everyday or the specific days to turn the Wireless LAN on or off. If you select Everyday you can not select any specific days. This field works in conjunction with the Except for the following times field.

Table 19 Power Saving

LABEL	DESCRIPTION
For the following times (24-Hour Format)	Select a begin time using the first set of hour and minute (min) drop down boxes and select an end time using the second set of hour and minute (min) drop down boxes. If you have chosen On earlier for the WLAN Status the Wireless LAN will turn on between the two times you enter in these fields. If you have chosen Off earlier for the WLAN Status the Wireless LAN will turn off between the two times you enter in these fields. In this time format, midnight is 00:00 and progresses up to 24:00. For example, 6:00 PM is 18:00.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

6.6.3 Content Filter

Use this screen to restrict access to certain websites, based on keywords contained in URLs, to which you do not want users in your network to open.

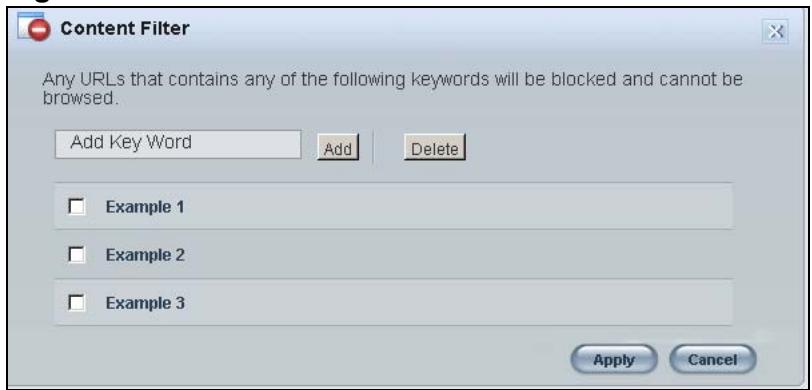

Figure 33 Content Filter

The following table describes the labels in this screen.

Table 20 Content Filter

LABEL	DESCRIPTION
Add	Click Add after you have typed a keyword.Repeat this procedure to add other keywords. Up to 64 keywords are allowed.Note: The NBG-419N does not recognize wildcard characters as keywords.When you try to access a web page containing a keyword, you will get a message telling you that the content filter is blocking this request.
Delete	Highlight a keyword in the text box and click Delete to remove it. The keyword disappears from the text box after you click Apply.

Table 20 Content Filter

LABEL	DESCRIPTION
Apply	Click Apply to save your changes.
Cancel	Click Cancel to close this screen without saving any changes.

6.6.4 Bandwidth MGMT

Use this screen to set bandwidth allocation to pre-defined services and applications for bandwidth allocation.

The NBG-419N uses bandwidth management for incoming and outgoing traffic. Rank the services and applications by dragging them accordingly from High to Low and click Apply. Click Cancel to close the screen.

Figure 34 Bandwidth MGNT

6.6.5 Firewall

Enable this feature to protect the network from Denial of Service (DoS) attacks. The NBG-419N blocks repetitive pings from the WAN that can otherwise cause systems to slow down or hang.

Figure 35 Firewall

Click OK to close this screen.

6.6.6 Wireless Security

Use this screen to configure security for your the Wireless LAN. You can enter the SSID and select the wireless security mode in the following screen.

Note: You can enable the Wireless function of your NBG-419N by first turning on the switch in the back panel.

Figure 36 Wireless Security

The following table describes the general wireless LAN labels in this screen.

Table 21 Wireless Security

LABEL	DESCRIPTION
Wireless Network Name (SSID)	(Service Set IDentity) TheSSID identifies the Service Set with which a wireless station is associated. Wireless stations associating to the access point (AP) must have the sameSSID. Enter a descriptive name (up to 32 keyboard characters) for the wireless LAN.The defaultSSID is NBG-419N.
Security mode	Select WPA-PSK or WPA2-PSK to add security on this wireless network. The wireless clients which want to associate to this network must have same wireless security settings as this device. After you select to use a security, additional options appear in this screen.Select No Security to allow any client to connect to this network without authentication.
Wireless password	This field appears when you choose wither WPA-PSK or WPA2-PSK as the security mode.Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
Verify password	Type the password again to confirm.
Apply	Click Apply to save your changes back to the NBG-419N.
Cancel	Click Cancel to close this screen.
WPS	Click this to configure the WPS screen.You can transfer the wireless settings configured here (Wireless Security screen) to another wireless device that supports WPS.

6.6.7 WPS

Use this screen to add a wireless station to the network using WPS. Click WPS in the Wireless Security to open the following screen.

Figure 37 Wireless Security: WPS

The following table describes the labels in this screen.

Table 22 Wireless Security: WPS

LABEL	DESCRIPTION
Wireless Security	Click this to go back to the Wireless Security screen.
WPS	Create a secure wireless network simply by pressing a button. The NBG-419N scans for a WPS-enabled device within the range and performs wireless security information synchronization. Note: After you click the WPS button on this screen, you have to press a similar button in the wireless station utility within 2 minutes. To add the second wireless station, you have to press these buttons on both device and the wireless station again after the first 2 minutes.
Register	Create a secure wireless network simply by entering a wireless client's PIN (Personal Identification Number) in the NBG-419N's interface and pushing this button. Type the same PIN number generated in the wireless station's utility. Then click Register to associate to each other and perform the wireless security information synchronization.
Exit	Click Exit to close this screen.

6.7 Status Screen in Easy Mode

In the Network Map screen, click Status to view read-only information about the NBG-419N.

Figure 38 Status Screen in Easy Mode

The following table describes the labels in this screen.

Table 23 Status Screen in Easy Mode

ITEM	DESCRIPTION
Name	This is the name of the NBG-419N in the network. You can change this in the Maintenance > General screen in Section 24.3 on page 197.
Time	This is the current system date and time.The date is in YYYY:MM:DD (Year-Month-Day) format. The time is in HH:MM:SS (Hour:Minutes:Seconds) format.
WAN IP	This is the IP address of the WAN port.
MAC Address	This is the MAC address of the NBG-419N.
Firmware Version	This shows the firmware version of the NBG-419N.The firmware version format shows the trunk version, model code and release number.
Wireless Network Name	This shows the SSID of the wireless network. You can configure this in the Wireless Security screen (Section 6.6.6 on page 59; Section 11.3.1.1 on page 101).
Security	This shows the wireless security used by the NBG-419N.

Router Mode

7.1 Overview

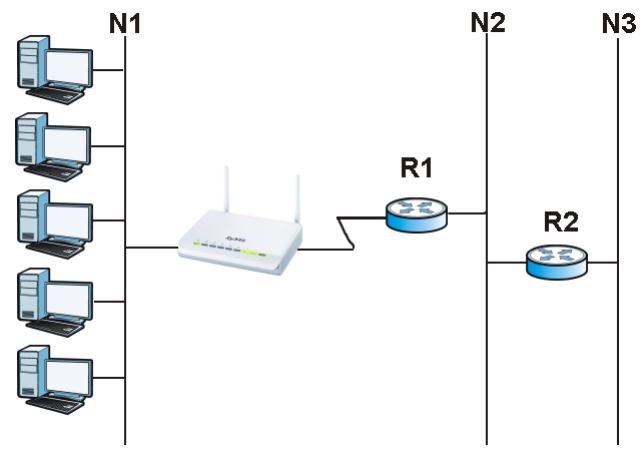

The NBG-419N is set to router mode by default. Routers are used to connect the local network to another network (for example, the Internet). In the figure below, the NBG-419N connects the local network (LAN1 ~ LAN4) to the Internet.

Figure 39 NBG-419N Network

Note: The Status screen is shown after changing to the Expert mode of the Web Configurator. It varies depending on the device mode of your NBG-419N.

7.2 What You Can Do

Use the Status screen (Section 7.3 on page 64) to view read-only information about your NBG-419N.

7.3 Status Screen

Click to open the status screen.

Figure 40 Status Screen: Router Mode

The following table describes the icons shown in the Status screen.

Table 24 Status Screen Icon Key: Router Mode

ICON	DESCRIPTION
About	Click this icon to view copyright and a link for related product information.
Easy Mode	Click this icon to go to Easy Mode. See Chapter 6 on page 51.
Home	Click this to go to the Home page. See Chapter 4 on page 43.
Refresh Interval: None	Select a number of seconds or None from the drop-down list box to refresh all screen statistics automatically at the end of every time interval or to not refresh the screen statistics.
Refresh Now	Click this button to refresh the status screen statistics.
	Click this icon to see the Status page. The information in this screen depends on the device mode you select.
	Click this icon to see the Monitor navigation menu.
	Click this icon to see the Configuration navigation menu.
	Click this icon to see the Maintenance navigation menu.

The following table describes the labels shown in the Status screen.

Table 25 Status Screen: Router Mode

LABEL	DESCRIPTION
Logout	Click this at any time to exit the Web Configurator.
Device Information
Host Name	This is the System Name you enter in the Maintenance > General screen. It is for identification purposes.
Firmware Version	This is the firmware version and the date created.
Sys OP Mode	This is the device mode (Section 5.1.2 on page 49) to which the NBG-419N is set - Router Mode.
WAN Information
- MAC Address	This shows the WAN Ethernet adapter MAC Address of your device.
- IP Address	This shows the WAN port's IP address.
- IP Subnet Mask	This shows the WAN port's subnet mask.
- Default Gateway	This shows the WAN port's gateway IP address.
- DHCP	This shows the LAN port's DHCP role - Client or Server.
LAN Information
- MAC Address	This shows the LAN Ethernet adapter MAC Address of your device.
- IP Address	This shows the LAN port's IP address.
- IP Subnet Mask	This shows the LAN port's subnet mask.
- DHCP	This shows the LAN port's DHCP role - Server or None.
WLAN Information
- WLAN OP Mode	This is the device mode (Section 5.1.2 on page 49) to which the NBG-419N's wireless LAN is set - Access Point Mode.
- MAC Address	This shows the wireless adapter MAC Address of your device.
- Status	This shows the current status of the Wireless LAN - ON or OFF.
- Name (SSID)	This shows a descriptive name used to identify the NBG-419N in the wireless LAN.
- Channel	This shows the channel number which you select manually.
- Operating Channel	This shows the channel number which the NBG-419N is currently using over the wireless LAN.
- Security Mode	This shows the level of wireless security the NBG-419N is using.

Table 25 Status Screen: Router Mode

LABEL	DESCRIPTION
- 802.11 Mode	This shows the wireless standard.
- WPS	This displays Configured when the WPS has been set up. This displays Unconfigured if the WPS has not been set up. Click the status to display Network > Wireless LAN > WPS screen.
System Status
Item	This column shows the type of data the NBG-419N is recording.
Data	This column shows the actual data recorded by the NBG-419N.
System Up Time	This is the total time the NBG-419N has been on.
Current Date/Time	This field displays your NBG-419N's present date and time.
System Resource
- CPU Usage	This displays what percentage of the NBG-419N's processing ability is currently used. When this percentage is close to 100%, the NBG-419N is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management.)
- Memory Usage	This shows what percentage of the heap memory the NBG-419N is using.
System Setting
- Firewall	This shows whether the firewall is enabled or not.
- Bandwidth Management	This shows whether thebandwidth management is enabled or not.
- UPnP	This shows whether UPnP is enabled or not.
- Configuration Mode	This shows the web configurator mode you are viewing - Expert.
Interface Status
Interface	This displays the NBG-419N port types. The port types are: WAN, LAN and WLAN.
Status	For the LAN and WAN ports, this field displays Down (line is down) or Up (line is up or connected). For the WLAN, it displays Up when the WLAN is enabled or Down when the WLAN is disabled.
Rate	For the LAN ports, this displays the port speed and duplex setting or N/A when the line is disconnected. For the WAN port, it displays the port speed and duplex setting if you're using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP encapsulation. This field displays N/A when the line is disconnected. For the WLAN, it displays the maximum transmission rate when the WLAN is enabled and N/A when the WLAN is disabled.
Summary
BW MGMT Monitor	Click Details... to go to the Monitor > BW MGMT Monitor screen (Section 4.3 on page 43). Use this screen to view the amount of network bandwidth that applications running in the network are using.

Table 25 Status Screen: Router Mode

LABEL	DESCRIPTION
DHCP Table	Click Details... to go to the Monitor > DHCP Table screen (Section 4.4 on page 44). Use this screen to view current DHCP client information.
Packet Statistics	Click Details... to go to the Monitor > Packet Statistics screen (Section 4.5 on page 45). Use this screen to view port status and packet specific statistics.
WLAN Station Status	Click Details... to go to the Monitor > WLAN Station Status screen (Section 4.6 on page 46). Use this screen to view the wireless stations that are currently associated to the NBG-419N.

7.3.1 Navigation Panel

Use the sub-menus on the navigation panel to configure NBG-419N features.

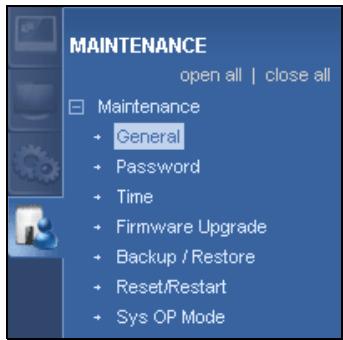

Figure 41 Navigation Panel: Router Mode

The following table describes the sub-menus.

Table 26 Navigation Panel: Router Mode

LINK	TAB	FUNCTION
Status		This screen shows the NBG-419N's general device, system and interface status information. Use this screen to access the wizard, and summary statistics tables.
MONITOR
Log		Use this screen to view the list of activities recorded by your NBG-419N.
BW MGMT		Use this screen to view the amount of network bandwidth that applications running in the network are using.
DHCP Table		Use this screen to view current DHCP client information.

Table 26 Navigation Panel: Router Mode

LINK	TAB	FUNCTION
Packet Statistics		Use this screen to view port status and packet specific statistics.
WLAN Station Status		Use this screen to view the wireless stations that are currently associated to the NBG-419N.
CONFIGURATION
Network
Wireless LAN	General	Use this screen to configure wireless LAN.
	MAC Filter	Use the MAC filter screen to configure the NBG-419N to block access to devices or block the devices from accessing the NBG-419N.
	Advanced	This screen allows you to configure advanced wireless settings.
	QoS	Use this screen to configure Wi-Fi Multimedia Quality of Service (WMM QoS). WMM QoS allows you to prioritize wireless traffic according to the delivery requirements of individual services.
	WPS	Use this screen to configure WPS.
	WPS Station	Use this screen to add a wireless station using WPS.
	Scheduling	Use this screen to schedule the times the Wireless LAN is enabled.
	WDS	Use this screen to set up Wireless Distribution System (WDS) on your NBG-419N.
WAN	Internet Connection	This screen allows you to configure ISP parameters, WAN IP address assignment, DNS servers and the WAN MAC address.
	Advanced	Use this screen to configure other advanced properties.
	IGMP Snooping	Use this screen to enable IGMP snooping if you have LAN users that subscribe to multicast services.
LAN	IP	Use this screen to configure LAN IP address and subnet mask.
	IP Alias	Use this screen to have the NBG-419N apply IP alias to create LAN subnets.
DHCP Server	General	Use this screen to enable the NBG-419N's DHCP server.
	Advanced	Use this screen to assign IP addresses to specific individual computers based on their MAC addresses and to have DNS servers assigned by the DHCP server.
NAT	General	Use this screen to enable NAT.
	Application	Use this screen to configure servers behind the NBG-419N.
	Advanced	Use this screen to change your NBG-419N's port triggering settings.
DDNS	General	Use this screen to set up dynamic DNS.
Static Route	IP Static Route	Use this screen to configure IP static routes.

Table 26 Navigation Panel: Router Mode

LINK	TAB	FUNCTION
RIP		Use this screen to enable RIPv1 or RIPv2, which are LAN broadcast protocols.
Security
Firewall	General	Use this screen to activate/deactivate the firewall.
	Services	This screen shows a summary of the firewall rules, and allows you to edit/add a firewall rule.
Content Filter		Use this screen to block certain web features and sites containing certain keywords in the URL.
Management
Bandwidth Manageme nt	General	Use this screen to enable bandwidth management.
	Advanced	Use this screen to set the upstream bandwidth and edit a bandwidth management rule.
	Monitor	Use this screen to view the amount of network bandwidth that applications running in the network are using.
Remote Manageme nt	WWW	Use this screen to be able to access the NBG-419N from the LAN, WAN or both.
UPnP	General	Use this screen to enable UPnP on the NBG-419N.
MAINTENANCE
General		Use this screen to view and change administrative settings such as system and domain names.
Password	Password Setup	Use this screen to change the password of your NBG-419N.
Time	Time Setting	Use this screen to change your NBG-419N's time and date.
Remote Manageme nt	WWW	Use this screen to configure through which interface(s) and from which IP address(es) users can use HTTP to manage the NBG-419N.
Firmware Upgrade		Use this screen to upload firmware to your NBG-419N.
Backup/Restore		Use this screen to backup and restore the configuration or reset the factory defaults to your NBG-419N.
Reset/ Restart	Restart	This screen allows you to reboot the NBG-419N without turning the power off.
Sys OP Mode		This screen allows you to select whether your device acts as a Router or a Access Point.

Access Point Mode

8.1 Overview

Use your NBG-419N as an access point (AP) if you already have a router or gateway on your network. In this mode your NBG-419N bridges a wired network (LAN) and wireless LAN (WLAN) in the same subnet. See the figure below for an example.

Figure 42 Wireless Internet Access in Access Point Mode

Many screens that are available in Router mode are not available in Access Point mode, such as bandwidth management and firewall.

Note: See Chapter 10 on page 89 for an example of setting up a wireless network in Access Point mode.

8.2 What You Can Do

• Use the Status screen (Section 8.4 on page 74) to view read-only information about your NBG-419N.
• Use the LAN screen (Section 8.5 on page 76) to set the IP address for your NBG-419N acting as an access point.

8.3 What You Need to Know

See Chapter 10 on page 89 for a tutorial on setting up a network with the NBG-419N as an access point.

8.3.1 Setting your NBG-419N to AP Mode

1 Log into the Web Configurator if you haven't already. See the Quick start Guide for instructions on how to do this.
2 To use your NBG-419N as an access point, go to Maintenance > Sys OP Mode > General and select Access Point mode.

Figure 43 Changing to Access Point mode

Note: You have to log in to the Web Configurator again when you change modes. As soon as you do, your NBG-419N is already in Access Point mode.

3 When you select Access Point Mode, the following pop-up message window appears.

Figure 44 Pop up for Access Point mode

Click OK. The Web Configurator refreshes once the change to Access Point mode is successful.

8.3.2 Accessing the Web Configurator in Access Point Mode

Log in to the Web Configurator in Access Point mode, do the following:

1 Connect your computer to the LAN port of the NBG-419N.
2 The default IP address of the NBG-419N is "192.168.1.2". In this case, your computer must have an IP address in the range between "192.168.1.3" and "192.168.1.254".
3 Click Start > Run on your computer in Windows. Type "cmd" in the dialog box. Enter "ipconfig" to show your computer's IP address. If your computer's IP address is not in the correct range then see Appendix C on page 251 for information on changing your computer's IP address.
4 After you've set your computer's IP address, open a web browser such as Internet Explorer and type "192.168.1.2" as the web address in your web browser.

Note: After clicking Login, the Easy mode appears. Refer to Section on page 51 for the Easy mode screens. Change to Expert mode to see the screens described in the sections following this.

8.3.3 Configuring your WLAN, Bandwidth Management and Maintenance Settings

The configuration of wireless, bandwidth management and maintenance settings in Access Point mode is the same as for Router Mode.

• See Chapter 11 on page 99 for information on the configuring your wireless network.
• See Chapter 21 on page 173 for information on configuring your Bandwidth Management screen.
• See Maintenance and Troubleshooting (195) for information on configuring your Maintenance settings.

8.4 AP Mode Status Screen

to open the Status screen.

Figure 45 Status Screen: Access Point Mode

The following table describes the labels shown in the Status screen.

Table 27 Status Screen: Access Point Mode

LABEL	DESCRIPTION
Logout	Click this at any time to exit the Web Configurator.
Device Information
Host Name	This is the System Name you enter in the Maintenance > General screen. It is for identification purposes.
Firmware Version	This is the firmware version and the date created.
Sys OP Mode	This is the device mode (Section 5.1.2 on page 49) to which the NBG-419N is set - Access Point Mode.
LAN Information
- MAC Address	This shows the LAN Ethernet adapter MAC Address of your device.
- IP Address	This shows the LAN port's IP address.
- IP Subnet Mask	This shows the LAN port's subnet mask.
- DHCP	This shows the LAN port's DHCP role - Server, Client or None.

Table 27 Status Screen: Access Point Mode

LABEL	DESCRIPTION
WLAN Information
- WLAN OP Mode	This is the device mode (Section 5.1.2 on page 49) to which the NBG-419N's wireless LAN is set - Access Point Mode.
- MAC Address	This shows the wireless adapter MAC Address of your device.
- Status	This shows the current status of the Wireless LAN - ON or OFF.
- Name (SSID)	This shows a descriptive name used to identify the NBG-419N in the wireless LAN.
- Channel	This shows the channel number which you select manually.
- Operating Channel	This shows the channel number which the NBG-419N is currently using over the wireless LAN.
- Security Mode	This shows the level of wireless security the NBG-419N is using.
- 802.11 Mode	This shows the wireless standard.
- WPS	This displays Configured when the WPS has been set up. This displays Unconfigured if the WPS has not been set up. Click the status to display Network > Wireless LAN > WPS screen.
System Status
Item	This column shows the type of data the NBG-419N is recording.
Data	This column shows the actual data recorded by the NBG-419N.
System Up Time	This is the total time the NBG-419N has been on.
Current Date/Time	This field displays your NBG-419N's present date and time.
System Resource
- CPU Usage	This displays what percentage of the NBG-419N's processing ability is currently used. When this percentage is close to 100%, the NBG-419N is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management.
- Memory Usage	This shows what percentage of the heap memory the NBG-419N is using.
System Setting
- Configuration Mode	This shows the web configurator mode you are viewing - Expert.
Interface Status
Interface	This displays the NBG-419N port types. The port types are: LAN and WLAN.
Status	For the LAN and WAN ports, this field displays Down (line is down) or Up (line is up or connected). For the WLAN, it displays Up when the WLAN is enabled or Down when the WLAN is disabled.

Table 27 Status Screen: Access Point Mode

LABEL	DESCRIPTION
Rate	For the LAN ports, this displays the port speed and duplex setting or N/A when the line is disconnected.For the WAN port, it displays the port speed and duplex setting if you're using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP encapsulation. This field displays N/A when the line is disconnected.For the WLAN, it displays the maximum transmission rate when the WLAN is enabled and N/A when the WLAN is disabled.
Summary
Packet Statistics	Click Details... to go to the Monitor > Packet Statistics screen (Section 4.5 on page 45). Use this screen to view port status and packet specific statistics.
WLAN Station Status	Click Details... to go to the Monitor > WLAN Station Status screen (Section 4.6 on page 46). Use this screen to view the wireless stations that are currently associated to the NBG-419N.

8.4.0.1 Navigation Panel

Use the menu in the navigation panel to configure NBG-419N features in Access Point mode.

The following screen and table show the features you can configure in Access Point mode.

Figure 46 Menu: Access Point Mode

Refer to Table 26 on page 67 for descriptions of the labels shown in the Navigation panel.

8.5 LAN Screen

Use this section to configure your LAN settings while in Access Point mode.

Click Network > LAN to see the screen below.

Note: If you change the IP address of the NBG-419N in the screen below, you will need to log into the NBG-419N again using the new IP address.

Figure 47 Network > LAN > IP

The table below describes the labels in the screen.

Table 28 Network > LAN > IP

LABEL	DESCRIPTION
Get from DHCP Server	Click this to deploy the NBG-419N as an access point in the network. When you enable this, the NBG-419N gets its IP address from the network's DHCP server (for example, your ISP). Users connected to the NBG-419N can now access the network (i.e., the Internet if the IP address is given by the ISP). The Web Configurator may no longer be accessible unless you know the IP address assigned by the DHCP server to the NBG-419N. You need to reset the NBG-419N to be able to access the Web Configurator again (see Section 28.3 on page 208 for details on how to reset the NBG-419N). Also when you select this, you cannot enter an IP address for your NBG-419N in the field below.
Use Defined LAN IP Address	Click this if you want to specify the IP address of your NBG-419N. Or if your ISP or network administrator gave you a static IP address to access the network or the Internet.
IP Address	Type the IP address in dotted decimal notation. The default setting is 192.168.1.2. If you change the IP address you will have to log in again with the new IP address.
IP Subnet Mask	The subnet mask specifies the network number portion of an IP address. Your NBG-419N will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the NBG-419N.
Gateway IP Address	Enter a Gateway IP Address (if your ISP or network administrator gave you one) in this field.
DNS Assignment
First DNS Server	Select From ISP if your ISP dynamically assigns DNS server information (and the NBG-419N's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns.
Second DNS Server	Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User-Defined changes to None after you click Apply.
	Select None if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
Apply	Click Apply to save your changes to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

WISP Mode

9.1 Overview

Your NBG-419N can act as a wireless client. In wireless client mode, it can connect to an existing network via an access point. Use this mode if you already have an access point or router in your network.

In the example below, one NBG-419N (A) is configured as a wireless client and another is used as an access point (B). The wireless client has two clients that need to connect to the Internet. The NBG-419N wirelessly connects to the available access point (B).

Figure 48 Wireless Client Mode

After the NBG-419N and the access point connect, the NBG-419N acquires its WAN IP address from the access point. The clients of the NBG-419N can now surf the Internet.

9.2 What You Can Do

• Use the Status screen (Section 8.4 on page 74) to view read-only information about your NBG-419N.
• Use the LAN screen (Section 8.5 on page 76) to set the IP address for your NBG-419N acting as an access point.
• Use the Wireless LAN screen () to associate your NBG-419N (acting as a wireless client) with an existing access point.

9.3 What You Need to Know

With the exception of the LAN screen, the Monitor, Configuration and Maintenance screens in WISP mode are similar to the ones in Router Mode. See Chapter 11 on page 99 through Chapter 30 on page 213 of this User's Guide.

9.3.1 Setting your NBG-419N to WISP Mode

1 Log into the Web Configurator if you haven't already. See the Quick start Guide for instructions on how to do this.
2 To set your NBG-419N to AP Mode, go to Maintenance > Sys OP Mode > General and select WISP Mode.

Figure 49 Changing to WISP mode

Note: You have to log in to the Web Configurator again when you change modes. As soon as you do, your NBG-419N is already in WISP mode.

3 When you select WISP Mode, the following pop-up message window appears.

Figure 50 Pop up window for WISP mode

Click OK. The Web Configurator refreshes once the change to WISP mode is successful.

9.3.2 Accessing the Web Configurator in WISP Mode

To login to Web Configurator in WISP mode, do the following:

1 Connect your computer to the LAN port of the NBG-419N.
2 The default IP address of the NBG-419N is "192.168.1.1". If you did not change this, you can use the same IP address in WISP mode. Open a web browser such as Internet Explorer and type "192.168.1.1" as the web address in your web browser.

If you changed the IP address of your NBG-419N while in Router Mode, use this IP address in WISP mode. The WISP mode IP address is always the same as the Router mode IP addess.

Note: After clicking Login, the Easy mode appears. Refer to Section on page 51 for the Easy mode screens. Click Expert mode to see the screens described in the sections following this.

9.4 WISP Mode Status Screen

to open the status screen.

Figure 51 Status: WISP Mode

The following table describes the labels shown in the Status screen.

Table 29 Status Screen: WISP Mode

LABEL	DESCRIPTION
Logout	Click this at any time to exit the Web Configurator.
Device Information
Host Name	This is the System Name you enter in the Maintenance > General screen. It is for identification purposes.
Firmware Version	This is the firmware version and the date created.
Sys OP Mode	This is the device mode (Section 5.1.2 on page 49) to which the NBG-419N is set - WISP Mode.
WAN Information
- MAC Address	This shows the WAN Ethernet adapter MAC Address of your device.
- IP Address	This shows the WAN port's IP address.
- IP Subnet Mask	This shows the WAN port's subnet mask.
- Default Gateway	This shows the WAN port's gateway IP address.
- DHCP	This shows the LAN port's DHCP role - Client or Server.
LAN Information
- MAC Address	This shows the LAN Ethernet adapter MAC Address of your device.
- IP Address	This shows the LAN port's IP address.
- IP Subnet Mask	This shows the LAN port's subnet mask.
- DHCP	This shows the LAN port's DHCP role - Server or None.
WLAN Information
- WLAN OP Mode	This is the device mode (Section 5.1.2 on page 49) to which the NBG-419N's wireless LAN is set - Access Point Mode.
- MAC Address	This shows the wireless adapter MAC Address of your device.
- Status	This shows the current status of the Wireless LAN - ON or OFF.
- Name (SSID)	This shows a descriptive name used to identify the NBG-419N in the wireless LAN.
- Connect Status	This shows whether or not the NBG-419N has successfully associated with an access point - Connected or Disassociated.
- Security Mode	This shows the level of wireless security the NBG-419N is using.
- 802.11 Mode	This shows the wireless standard.
System Status
Item	This column shows the type of data the NBG-419N is recording.
Data	This column shows the actual data recorded by the NBG-419N.
System Up Time	This is the total time the NBG-419N has been on.
Current Date/Time	This field displays your NBG-419N's present date and time.
System Resource

Table 29 Status Screen: WISP Mode

LABEL	DESCRIPTION
- CPU Usage	This displays what percentage of the NBG-419N's processing ability is currently used. When this percentage is close to 100%, the NBG-419N is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management.
- Memory Usage	This shows what percentage of the heap memory the NBG-419N is using.
System Setting
- Firewall	This shows whether the firewall is enabled or not.
- Bandwidth Management	This shows whether thebandwidth management is enabled or not.
- UPnP	This shows whether UPnP is enabled or not.
- Configuration Mode	This shows the web configurator mode you are viewing - Expert.
Interface Status
Interface	This displays the NBG-419N port types. The port types are: LAN and WLAN.
Status	For the LAN and WAN ports, this field displays Down (line is down) or Up (line is up or connected).For the WLAN, it displays Up when the WLAN is enabled or Down when the WLAN is disabled.
Rate	For the LAN ports, this displays the port speed and duplex setting or N/A when the line is disconnected.For the WAN port, it displays the port speed and duplex setting if you're using Ethernet encapsulation and Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop (dropping a call) if you're using PPPoE or PPTP encapsulation. This field displays N/A when the line is disconnected.For the WLAN, it displays the maximum transmission rate when the WLAN is enabled and N/A when the WLAN is disabled.
Summary
BW MGMT Monitor	Click Details... to go to the Monitor > BW MGMT Monitor screen (Section 4.3 on page 43). Use this screen to view the amount of network bandwidth that applications running in the network are using.
DHCP Table	Click Details... to go to the Monitor > DHCP Table screen (Section 4.4 on page 44). Use this screen to view current DHCP client information.
Packet Statistics	Click Details... to go to the Monitor > Packet Statistics screen (Section 4.5 on page 45). Use this screen to view port status and packet specific statistics.

9.5 Wireless LAN General Screen

Use this screen to configure the wireless LAN settings of your NBG-419N. Go to Configuration > Wireless LAN > General to open the following screen.

Figure 52 WISP Mode: LAN > General Screen

The following table describes the labels in this screen.

Table 30 WISP Mode: LAN > General Screen

LABEL	DESCRIPTION
Wireless Setup
Network Name(SSID)	Enter the name of the access point to which you are connecting.
Security
Security Mode	Select the security mode of the access point to which you want to connect.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

9.5.0.1 No Security

Use this screen if the access point to which you want to connect does not use encryption.

Figure 53 No Security (WISP)

The following table describes the labels in this screen.

Table 31 No Security (WISP)

LABEL	DESCRIPTION
Wireless Setup
Network Name(SSID)	Enter the name of the access point to which you are connecting.
Security
Security Mode	Select No Security in this field.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

9.5.1 Static WEP

Use this screen if the access point to which you want to connect to uses WEP security mode.

Figure 54 WEP (WISP)

The following table describes the labels in this screen..

Table 32 WEP (WISP)

LABEL	DESCRIPTION
Wireless Setup
Network Name (SSID)	Enter the name of the access point to which you are connecting.
Security

Table 32 WEP (WISP)

LABEL	DESCRIPTION
Security Mode	Select Static WEP to enable data encryption.
Passphrase	Enter a Passphrase (up to 26 printable characters) and click Generate.A passphrase functions like a password. In WEP security mode, it is further converted by the NBG-419N into a complicated string that is referred to as the "key". This key is requested from all devices wishing to connect to a wireless network.
WEP Encryption	Select 64-bit WEP or 128-bit WEP.This dictates the length of the security key that the network is going to use.
Authentication Method	Select Auto or Shared Key from the drop-down list box.This field specifies whether the wireless clients have to provide the WEP key to login to the wireless client. Keep this setting at Auto unless you want to force a key verification before communication between the wireless client and the ZyXEL Device occurs.Select Shared Key to force the clients to provide the WEP key prior to communication.
ASCII	Select this option in order to enter ASCII characters as WEP key.
Hex	Select this option in order to enter hexadecimal characters as a WEP key.The preceding "0x", that identifies a hexadecimal key, is entered automatically.
Key 1 to Key 4	The WEP keys are used to encrypt data. Both the NBG-419N and the wireless stations must use the same WEP key for data transmission.If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9","A-F").If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal characters ("0-9","A-F").You must configure at least one key, only one key can be activated at any one time. The default key is key 1.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

9.5.2 WPA(2)-PSK

Use this screen if the access point to which you want to connect uses WPA(2)-PSK security mode.

Figure 55 WPA-PSK/WPA2-PSK (WISP)

The following table describes the labels in this screen.

Table 33 WPA-PSK/WPA2-PSK (WISP)

LABEL	DESCRIPTION
Wireless Setup
Network Name(SSID)	Enter the name of the access point to which you are connecting.
Security
Encryption Type	Select the type of wireless encryption employed by the access point to which you want to connect.
Pre-Shared Key	WPA-PSK/WPA2-PSK uses a simple common password for authentication.Type the pre-shared key employed by the access point to which you want to connect.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

9.5.3 Advance Screen

Use this screen to enable the power saving mode of your NBG-419N. Go to Configuration > Wireless LAN to open the following screen.

Figure 56 Configuration > Wireless LAN > Advance Screen (WISP)

The following table describes the labels in this screen.

Table 34 Configuration > Wireless LAN > Advance Screen (WISP)

LABEL	DESCRIPTION
Power Saving Mode	Select CAM (Constantly Awake Mode) if you do not want your NBG-419N to go to "sleep" when no wireless activity is detected in the Wireless LAN. Select Power Saving Mode if you want the NBG-419N to go to sleep when no wireless connection is needed for a period of time. This means the NBG-419N consumes less electrical power.

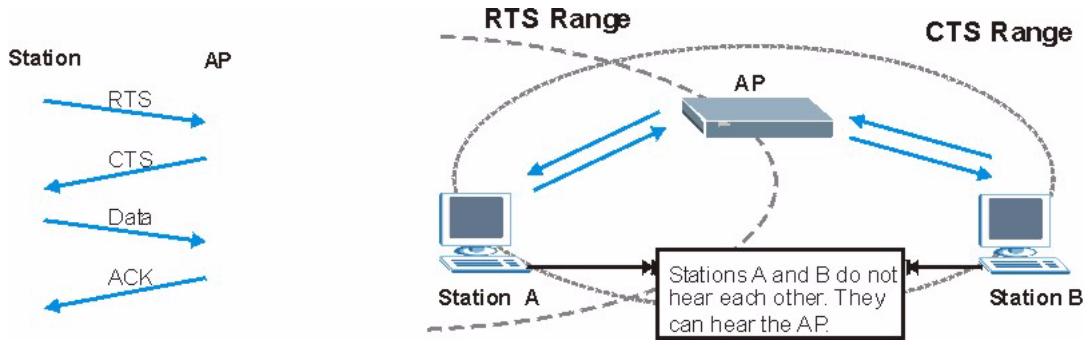

RTS Threshold	This is the maximum data fragment size that can be sent in a wireless network before the AP fragments the packet into smaller data frames.
Fragment Threshold	This value controls how often wireless clients must get permission to send information to the AP. The lower the value, the more often the wireless clients must get permission. If this value is greater than the fragmentation threshold value, then wireless clients never have to get permission to send information to the AP.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

10.1 Overview

This chapter provides tutorials for your NBG-419N as follows:

• Connecting to the Internet from an Access Point
• Configuring Wireless Security Using WPS
• Enabling and Configuring Wireless Security (No WPS)

10.2 Connecting to the Internet from an Access Point

This section gives you an example of how to set up an access point (AP) and wireless client (a notebook (B), in this example) for wireless communication. B can access the Internet through the access point wirelessly.

Figure 57 Wireless Access Point Connection to the Internet
B

A

10.3 Configuring Wireless Security Using WPS

This section gives you an example of how to set up wireless network using WPS. This example uses the NBG-419N as the AP and NWD210N as the wireless client which connects to a notebook.

Note: The wireless client must be a WPS-aware device (for example, a WPS USB adapter or PCI card).

There are two WPS methods for creating a secure connection. This tutorial shows you how to do both.

• Push Button Configuration (PBC) - create a secure wireless network simply by pressing a button. See Section 10.3.1 on page 90. This is the easier method.
• PIN Configuration - create a secure wireless network simply by entering a wireless client's PIN (Personal Identification Number) in the NBG-419N's interface. See Section 10.3.2 on page 91. This is the more secure method, since one device can authenticate the other.

10.3.1 Push Button Configuration (PBC)

1 Make sure that your NBG-419N is turned on and that it is within range of your computer.
2 Make sure that you have installed the wireless client (this example uses the NWD210N) driver and utility in your notebook.
3 In the wireless client utility, find the WPS settings. Enable WPS and press the WPS button (Start or WPS button)
4 Log into NBG-419N's Web Configurator and press the Push Button button in the Network > Wireless Client > WPS Station screen.

Note: Your NBG-419N has a WPS button located on its panel, as well as a WPS button in its configuration utility. Both buttons have exactly the same function; you can use one or the other.

Note: It doesn't matter which button is pressed first. You must press the second button within two minutes of pressing the first one.

The NBG-419N sends the proper configuration settings to the wireless client. This may take up to two minutes. Then the wireless client is able to communicate with the NBG-419N securely.

The following figure shows you an example to set up wireless network and security by pressing a button on both NBG-419N and wireless client (the NWD210N in this example).

Figure 58 Example WPS Process: PBC Method

10.3.2 PIN Configuration

When you use the PIN configuration method, you need to use both NBG-419N's configuration interface and the client's utilities.

1 Launch your wireless client's configuration utility. Go to the WPS settings and select the PIN method to get a PIN number.
2 Enter the PIN number to the PIN field in the Network > Wireless LAN > WPS Station screen on the NBG-419N.
3 Click Start buttons (or button next to the PIN field) on both the wireless client utility screen and the NBG-419N's WPS Station screen within two minutes.

The NBG-419N authenticates the wireless client and sends the proper configuration settings to the wireless client. This may take up to two minutes. Then the wireless client is able to communicate with the NBG-419N securely.

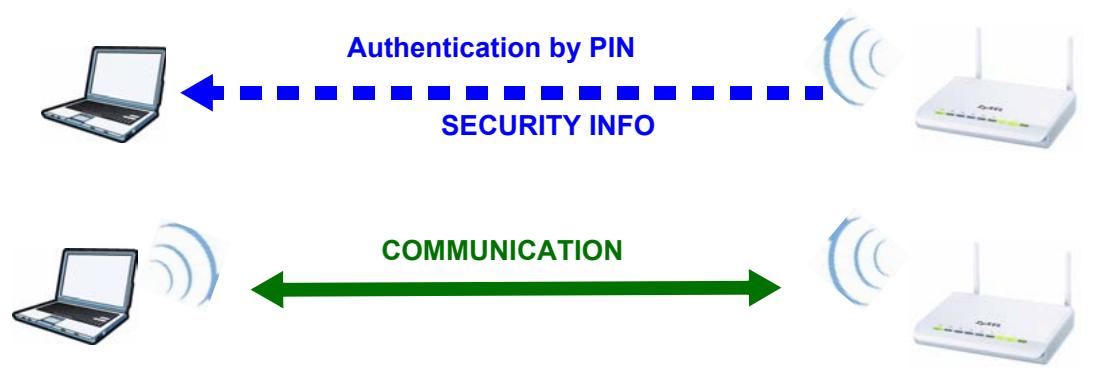

The following figure shows you the example to set up wireless network and security on NBG-419N and wireless client (ex. NWD210N in this example) by using PIN method.

Figure 59 Example WPS Process: PIN Method

10.4 Enabling and Configuring Wireless Security (No WPS)

This example shows you how to configure wireless security settings with the following parameters on your NBG-419N.

SSID	SSID_Example3
Channel	6
Security	WPA-PSK (Pre-Shared Key: ThisismyWPA-PSKpre-sharedkey)

Follow the steps below to configure the wireless settings on your NBG-419N.

The instructions require that your hardware is connected (see the Quick Start Guide) and you are logged into the Web Configurator through your LAN connection (see Section 3.2 on page 37).

1 Open the Wireless LAN > General screen in the AP's Web Configurator.
2 Make sure the Enable Wireless LAN check box is selected.
3 Enter SSID_Example3 as the SSID and select a channel.
4 Set security mode to WPA-PSK and enter ThisismyWPA-PSKpre-sharedkey in the Pre-Shared Key field. Click Apply.

Figure 60 Tutorial: Network > Wireless LAN > General

5 Open the Status screen. Verify your wireless and wireless security settings under Device Information and check if the WLAN connection is up under Interface Status.

Figure 61 Tutorial: Checking Wireless Settings

10.4.1 Configure Your Notebook

Note: We use the ZyXEL M-302 wireless adapter utility screens as an example for the wireless client. The screens may vary for different models.

1 The NBG-419N supports IEEE 802.11b, IEEE 802.11g and IEEE 802.11n wireless clients. Make sure that your notebook or computer's wireless adapter supports one of these standards.
2 Wireless adapters come with software sometimes called a "utility" that you install on your computer. See your wireless adapter's User's Guide for information on how to do that.
3 After you've installed the utility, open it. If you cannot see your utility's icon on your screen, go to Start > Programs and click on your utility in the list of programs that appears. The utility displays a list of APs within range, as shown in the example screen below.

4 Select SSID_Example3 and click Connect.

Figure 62 Connecting a Wireless Client to a Wireless Network t

5 Select WPA-PSK and type the security key in the following screen. Click Next.

Figure 63 Security Settings

6 The Confirm Save window appears. Check your settings and click Save to continue.

Figure 64 Confirm Save

7 Check the status of your wireless connection in the screen below. If your wireless connection is weak or you have no connection, see the Troubleshooting section of this User's Guide.

Figure 65 Link Status

If your connection is successful, open your Internet browser and enter http:// www.zyxel.com or the URL of any other web site in the address bar. If you are able to access the web site, your wireless connection is successfully configured.

PART II

Network

Wireless LAN (99)

WAN (119)

LAN (135)

DHCP Server (139)

Network Address Translation (NAT) (143)

Dynamic DNS (151)

Static Route (153)

RIP (157)

11.1 Overview

This chapter discusses how to configure the wireless network settings in your NBG-419N. See the appendices for more detailed information about wireless networks.

The following figure provides an example of a wireless network.

Figure 66 Example of a Wireless Network

The wireless network is the part in the blue circle. In this wireless network, devices A and B are called wireless clients. The wireless clients use the access point (AP) to interact with other devices (such as the printer) or with the Internet. Your NBG-419N is the AP.

11.2 What You Can Do

• Use the General screen (Section 11.4 on page 103) to enable the Wireless LAN, enter the SSID and select the wireless security mode.
• Use the MAC Filter screen (Section 11.5 on page 109) to allow or deny wireless stations based on their MAC addresses from connecting to the NBG-419N.
• Use the Advanced screen (Section 11.6 on page 110) to allow wireless advanced features, such as intra-BSS networking and set the RTS/CTS Threshold.
• Use the QoS screen (Section 11.7 on page 111) to set priority levels to services, such as e-mail, VoIP, chat, and so on.
• Use the WPS screen (Section 11.8 on page 112) to quickly set up a wireless network with strong security, without having to configure security settings manually.
• Use the WPS Station screen (Section 11.9 on page 113) to add a wireless station using WPS.
• Use the Scheduling screen (Section 11.10 on page 114) to set the times your wireless LAN is turned on and off.
• Use the WDS screen (Section 11.11 on page 115) to configure Wireless Distribution System on your NBG-419N.

11.3 What You Should Know

Every wireless network must follow these basic guidelines.

• Every wireless client in the same wireless network must use the same SSID. The SSID is the name of the wireless network. It stands for Service Set IDentity.
• If two wireless networks overlap, they should use different channels.

Like radio stations or television channels, each wireless network uses a specific channel, or frequency, to send and receive information.

• Every wireless client in the same wireless network must use security compatible with the AP.

Security stops unauthorized devices from using the wireless network. It can also protect the information that is sent in the wireless network.

11.3.1 Wireless Security Overview

The following sections introduce different types of wireless security you can set up in the wireless network.

11.3.1.1 SSD

Normally, the AP acts like a beacon and regularly broadcasts the SSID in the area. You can hide the SSID instead, in which case the AP does not broadcast the SSID. In addition, you should change the default SSID to something that is difficult to guess.

This type of security is fairly weak, however, because there are ways for unauthorized devices to get the SSID. In addition, unauthorized devices can still see the information that is sent in the wireless network.

11.3.1.2 MAC Address Filter

Every wireless client has a unique identification number, called a MAC address. A MAC address is usually written using twelve hexadecimal characters; for example, 00A0C5000002 or 00:A0:C5:00:00:02. To get the MAC address for each wireless client, see the appropriate User's Guide or other documentation.

You can use the MAC address filter to tell the AP which wireless clients are allowed or not allowed to use the wireless network. If a wireless client is allowed to use the wireless network, it still has to have the correct settings (SSID, channel, and security). If a wireless client is not allowed to use the wireless network, it does not matter if it has the correct settings.

This type of security does not protect the information that is sent in the wireless network. Furthermore, there are ways for unauthorized devices to get the MAC address of an authorized wireless client. Then, they can use that MAC address to use the wireless network.

11.3.1.3 Encryption

Wireless networks can use encryption to protect the information that is sent in the wireless network. Encryption is like a secret code. If you do not know the secret code, you cannot understand the message.

The types of encryption you can choose depend on the type of user authentication.

Table 35 Types of Encryption for Each Type of Authentication

No AUTHENTICATION

No Security

WEP

WPA-PSK

WPA2-PSK

Usually, you should set up the strongest encryption that every wireless client in the wireless network supports. Suppose the wireless network has two wireless clients. Device A only supports WEP, and device B supports WEP and WPA-PSK. Therefore, you should set up WEP in the wireless network.

Note: It is recommended that wireless networks use WPA-PSK or stronger encryption. IEEE 802.1x and WEP encryption are better than none at all, but it is still possible for unauthorized devices to figure out the original information pretty quickly.

When you select WPA2-PSK in your NBG-419N, you can also select an option (WPA Compatible) to support WPA as well. In this case, if some wireless clients support WPA and some support WPA2, you should set up WPA2-PSK (depending on the type of wireless network login) and select the WPA Compatible option in the NBG-419N.

Many types of encryption use a key to protect the information in the wireless network. The longer the key, the stronger the encryption. Every wireless client in the wireless network must have the same key.

11.3.1.4 WPS

WiFi Protected Setup (WPS) is an industry standard specification, defined by the WiFi Alliance. WPS allows you to quickly set up a wireless network with strong security, without having to configure security settings manually. Depending on the devices in your network, you can either press a button (on the device itself, or in its configuration utility) or enter a PIN (Personal Identification Number) in the devices. Then, they connect and set up a secure network by themselves. See how to set up a secure wireless network using WPS in the Section 10.3 on page 89.

11.3.1.5 WDS

Wireless Distribution System or WDS security is used between bridged APs. It is independent of the security between the wired networks and their respective APs. If you do not enable WDS security, traffic between APs is not encrypted. When WDS security is enabled, both APs must use the same pre-shared key.

11.4 General Wireless LAN Screen

Use this screen to enable the Wireless LAN, enter the SSID and select the wireless security mode.

Note: If you are configuring the NBG-419N from a computer connected to the wireless LAN and you change the NBG-419N's SSID, channel or security settings, you will lose your wireless connection when you press Apply to confirm. You must then change the wireless settings of your computer to match the NBG-419N's new settings.

Click Network > Wireless LAN to open the General screen.

Figure 67 Network > Wireless LAN > General

The following table describes the general wireless LAN labels in this screen.

Table 36 Network > Wireless LAN > General

LABEL	DESCRIPTION
Wireless Setup
Wireless LAN	This is turned on by default. You can turn the wireless LAN on or off using the switch at the rear panel of the NBG-419N. The current wireless state is reflected in this field.
Network Name(SSID)	(Service Set IDentity) The SSID identifies the Service Set with which a wireless station is associated. Wireless stations associating to the NBG-419N must have the same SSID. Enter a descriptive name (up to 32 keyboard characters) for the wireless LAN.
Hide SSID	Select this check box to hide the SSID in the outgoing beacon frame so a station cannot obtain the SSID through scanning using a site survey tool.
Channel Selection	Set the operating frequency/channel depending on your particular region. Select a channel from the drop-down list box. The options vary depending on the frequency band and the country you are in. Refer to the Connection Wizard chapter for more information on channels. This option is only available if Auto Channel Selection is disabled.

Table 36 Network > Wireless LAN > General

LABEL	DESCRIPTION
Operating Channel	This displays the channel the NBG-419N is currently using.
Security
Security Mode	Select WEP, WPA-PSK or WPA2-PSK to add security on this wireless network. The wireless clients which want to associate to this network must have same wireless security settings as the NBG-419N. After you select to use a security, additional options appear in this screen. See 11.4.2 and 11.4.3 sections. Or you can select No Security to allow any client to associate this network without authentication. Note: If you enable the WPS function, only No Security, WPA-PSK and WPA2-PSK are available in this field.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

See the rest of this chapter for information on the other labels in this screen.

11.4.1 No Security

Select No Security to allow wireless stations to communicate with the access points without any data encryption.

Note: If you do not enable any wireless security on your NBG-419N, your network is accessible to any wireless networking device that is within range.

Figure 68 Network > Wireless LAN > General: No Security

The following table describes the labels in this screen.

Table 37 Network > Wireless LAN > General: No Security

LABEL	DESCRIPTION
Security Mode	Choose No Security from the drop-down list box.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

Refer to Table 36 on page 103 for descriptions of the other labels in this screen.

11.4.2 WEP Encryption

WEP encryption scrambles the data transmitted between the wireless stations and the access points to keep network communications private. It encrypts unicast and multicast communications in a network. Both the wireless stations and the access points must use the same WEP key.

Your NBG-419N allows you to configure up to four 64-bit or 128-bit WEP keys but only one key can be enabled at any one time.

In order to configure and enable WEP encryption, click Network > Wireless LAN to display the General screen. Select Static WEP from the Security Mode list.

Figure 69 Network > Wireless LAN > General: Static WEP

The following table describes the wireless LAN security labels in this screen.

Table 38 Network > Wireless LAN > General: Static WEP

LABEL	DESCRIPTION
Security Mode	Select Static WEP to enable data encryption.
PassPhrase	Enter a Passphrase (up to 26 printable characters) and click Generate.A passphrase functions like a password. In WEP security mode, it is further converted by the NBG-419N into a complicated string that is referred to as the "key". This key is requested from all devices wishing to connect to a wireless network.
WEP Encryption	Select 64-bit WEP or 128-bit WEP.This dictates the length of the security key that the network is going to use.

Table 38 Network > Wireless LAN > General: Static WEP

LABEL	DESCRIPTION
Authentication Method	Select Auto or Shared Key from the drop-down list box. This field specifies whether the wireless clients have to provide the WEP key to login to the wireless client. Keep this setting at Auto unless you want to force a key verification before communication between the wireless client and the ZyXEL Device occurs. Select Shared Key to force the clients to provide the WEP key prior to communication.
ASCII	Select this option in order to enter ASCII characters as WEP key.
Hex	Select this option in order to enter hexadecimal characters as a WEP key. The preceding "0x", that identifies a hexadecimal key, is entered automatically.
Key 1 to Key 4	The WEP keys are used to encrypt data. Both the NBG-419N and the wireless stations must use the same WEP key for data transmission. If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9", "A-F"). If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal characters ("0-9", "A-F"). You must configure at least one key, only one key can be activated at any one time. The default key is key 1.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

Refer to Table 36 on page 103 for descriptions of the other labels in this screen.

11.4.3 WPA-PSK/WPA2-PSK

Click Network > Wireless LAN to display the General screen. Select WPA-PSK or WPA2-PSK from the Security Mode list.

Figure 70 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK

The following table describes the labels in this screen.

Table 39 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK

LABEL	DESCRIPTION
Security Mode	Select WPA-PSK or WPA2-PSK to enable data encryption.
WPA-PSK Compatible	This field appears when you choose WPA-PSK2 as the Security Mode. Check this field to allow wireless devices using WPA-PSK security mode to connect to your NBG-419N.
Pre-Shared Key	WPA-PSK/WPA2-PSK uses a simple common password for authentication. Type a pre-shared key from 8 to 63 case-sensitive keyboard characters.
Group Key Update Timer	The Group Key Update Timer is the rate at which the AP sends a new group key out to all clients. The default is 3600 seconds (60 minutes).
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

Refer to Table 36 on page 103 for descriptions of the other labels in this screen.

11.5 MAC Filter

The MAC filter screen allows you to configure the NBG-419N to give exclusive access to devices (Allow) or exclude devices from accessing the NBG-419N (Deny). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. You need to know the MAC address of the devices to configure this screen.

To change your NBG-419N's MAC filter settings, click Network > Wireless LAN > MAC Filter. The screen appears as shown.

Figure 71 Network > Wireless LAN > MAC Filter

The following table describes the labels in this menu.

Table 40 Network > Wireless LAN > MAC Filter

LABEL	DESCRIPTION
Access Policy
Policy	Define the filter action for the list of MAC addresses in the MAC Address table. Select Allow to permit access to the NBG-419N, MAC addresses not listed will be denied access to the NBG-419N. Select Reject to block access to the NBG-419N, MAC addresses not listed will be allowed to access the NBG-419N
Add a station Mac Address	Enter the MAC addresses of the wireless station that are allowed or denied access to the NBG-419N in these address fields. Enter the MAC addresses in a valid MAC address format, that is, six hexadecimal character pairs, for example, 12:34:56:78:9a:bc. Click Add.
MAC Filter Summary
Delete	Click the delete icon to remove the MAC address from the list.
MAC Address	This is the MAC address of the wireless station that are allowed or denied access to the NBG-419N.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

11.6 Wireless LAN Advanced Screen

Use this screen to allow wireless advanced features, such as intra-BSS networking and set the RTS/CTS Threshold

Click Network > Wireless LAN > Advanced. The screen appears as shown.

Figure 72 Network > Wireless LAN > Advanced

The following table describes the labels in this screen.

Table 41 Network > Wireless LAN > Advanced

LABEL	DESCRIPTION
RTS/CTS Threshold	Data with its frame size larger than this value will perform the RTS (Request To Send)/CTS (Clear To Send) handshake. Enter a value between 256 and 2432.
Fragmentation Threshold	The threshold (number of bytes) for the fragmentation boundary for directed messages. It is the maximum data fragment size that can be sent. Enter an even number between 256 and 2346.
Enable Intra-BSS Traffic	A Basic Service Set (BSS) exists when all communications between wireless clients or between a wireless client and a wired network client go through one access point (AP). Intra-BSS traffic is traffic between wireless clients in the BSS. When Intra-BSS is enabled, wireless client A and B can access the wired network and communicate with each other. When Intra-BSS is disabled, wireless client A and B can still access the wired network but cannot communicate with each other.
Output Power	Set the output power of the NBG-419N in this field. If there is a high density of APs in an area, decrease the output power of the NBG-419N to reduce interference with other APs. Select one of the following 100%, 90%, 75%, 50%, 25%, 10% or Minimum. See the product specifications for more information on your NBG-419N's output power.
HT (High Throughput) Physical Mode - Use the fields below to configure the 802.11 wireless environment of your NBG-419N.

Table 41 Network > Wireless LAN > Advanced

LABEL	DESCRIPTION
Operating Mode	Choose this according to the wireless mode(s) used in your network.Mixed Mode - Select this if the wireless clients in your network use different wireless modes (for example, IEEE 802.11b/g and IEEE 802.1n modes)Green Mode - Select this if the wireless clients in your network uses only one type of wireless mode (for example, IEEE 802.11 n only)
Channel Bandwidth	Select the channel bandwidth you want to use for your wireless network.It is recommended that you select 20/40 (20/40 MHz).Select 20 MHz if you want to lessen radio interference with other wireless devices in your neighborhood.
Guard Interval	Select Auto to increase data throughput. However, this may make data transfer more prone to errors.Select Long to prioritize data integrity. This may be because your wireless network is busy and congested or the NBG-419N is located in an environment prone to radio interference.
Extension Channel	This is set to Auto by default.If you select 20/40 as your Channel Bandwidth, the extension channel enables the NBG-419N to get higher data throughput. This also lowers radio interference and traffic.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

11.7 Quality of Service (QoS) Screen

The QoS screen allows you to automatically give a service (such as VoIP and video) a priority level.

Click Network > Wireless LAN > QoS. The following screen appears.

Figure 73 Network > Wireless LAN > QoS

The following table describes the labels in this screen.

Table 42 Network > Wireless LAN > QoS

LABEL	DESCRIPTION
Enable WMM QoS	Check this to have the NBG-419N automatically give a service a priority level according to the ToS value in the IP header of packets it sends. WMM QoS (Wifi MultiMedia Quality of Service) gives high priority to voice and video, which makes them run more smoothly.
Apply	Click Apply to save your changes to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

11.8 WPS Screen

Use this screen to enable/disable WPS, view or generate a new PIN number and check current WPS status. To open this screen, click Network > Wireless LAN > WPS tab.

Figure 74 Network > Wireless LAN > WPS

The following table describes the labels in this screen.

Table 43 Network > Wireless LAN > WPS

LABEL	DESCRIPTION
WPS Setup
Enable WPS	Select this to enable the WPS feature.
PIN Number	This displays a PIN number last time system generated. Click Generate to generate a new PIN number.
Status

Table 43 Network > Wireless LAN > WPS

LABEL	DESCRIPTION
Status	This displays Configured when the NBG-419N has connected to a wireless network using WPS or when Enable WPS is selected and wireless or wireless security settings have been changed. The current wireless and wireless security settings also appear in the screen. This displays Unconfigured if WPS is disabled and there are no wireless or wireless security changes on the NBG-419N or you click Release_Configuration to remove the configured wireless and wireless security settings.
Release Configuration	This button is only available when the WPS status displays Configured. Click this button to remove all configured wireless and wireless security settings for WPS connections on the NBG-419N.
802.11 Mode	This is the 802.11 mode used. Only compliant WLAN devices can associate with the NBG-419N.
SSID	This is the name of the wireless network.
Security	This is the type of wireless security employed by the network.
Apply	Click Apply to save your changes back to the NBG-419N.
Refresh	Click Refresh to get this screen information afresh.

11.9 WPS Station Screen

Use this screen when you want to add a wireless station using WPS. To open this screen, click Network > Wireless LAN > WPS Station tab.

Note: Note: After you click Push Button on this screen, you have to press a similar button in the wireless station utility within 2 minutes. To add the second wireless station, you have to press these buttons on both device and the wireless station again after the first 2 minutes.

Figure 75 Network > Wireless LAN > WPS Station

The following table describes the labels in this screen.

Table 44 Network > Wireless LAN > WPS Station

LABEL	DESCRIPTION
Push Button	Use this button when you use the PBC (Push Button Configuration) method to configure wireless stations's wireless settings. See Section 10.3.1 on page 90. Click this to start WPS-aware wireless station scanning and the wireless security information synchronization.
Or input station's PIN number	Use this button when you use the PIN Configuration method to configure wireless station's wireless settings. See Section 10.3.2 on page 91. Type the same PIN number generated in the wireless station's utility. Then click Start to associate to each other and perform the wireless security information synchronization.

11.10 Scheduling Screen

Use this screen to set the times your wireless LAN is turned on and off. Wireless LAN scheduling is disabled by default. The wireless LAN can be scheduled to turn on or off on certain days and at certain times. To open this screen, click Network > Wireless LAN > Scheduling tab.

Figure 76 Network > Wireless LAN > Scheduling

The following table describes the labels in this screen.

Table 45 Network > Wireless LAN > Scheduling

LABEL	DESCRIPTION
Wireless LAN Scheduling
Enable Wireless LAN Scheduling	Select this to enable Wireless LAN scheduling.
Scheduling
WLAN Status	Select On or Off to specify whether the Wireless LAN is turned on or off. This field works in conjunction with the Day and Except for the following times fields.
Day	Select Everyday or the specific days to turn the Wireless LAN on or off. If you select Everyday you can not select any specific days. This field works in conjunction with the Except for the following times field.
For the following times (24-Hour Format)	Select a begin time using the first set of hour and minute (min) drop down boxes and select an end time using the second set of hour and minute (min) drop down boxes. If you have chosen On earlier for the WLAN Status the Wireless LAN will turn on between the two times you enter in these fields. If you have chosen Off earlier for the WLAN Status the Wireless LAN will turn off between the two times you enter in these fields.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to reload the previous configuration for this screen.

11.11 WDS Screen

A Wireless Distribution System is a wireless connection between two or more APs. Use this screen to set the operating mode of your NBG-419N to AP + Bridge or Bridge Only and establish wireless links with other APs. You need to know the MAC address of the peer device, which also must be in bridge mode.

Note: You must enable the same wireless security settings on the NBG-419N and on all wireless clients that you want to associate with it.

Click Network > Wireless LAN > WDS tab. The following screen opens with the Basic Setting set to Disabled, and Security Mode set to No Security.

Figure 77 Network > Wireless LAN > WDS

The following table describes the labels in this screen.

Table 46 Network > Wireless LAN > WDS

LABEL	DESCRIPTION
WDS Setup
Basic Settings	Select the operating mode for your NBG-419N. • AP + Bridge - The NBG-419N functions as a bridge and access point simultaneously. • Bridge - The NBG-419N acts as a wireless network bridge and establishes wireless links with other APs. You need to know the MAC address of the peer device, which also must be in bridge mode. The NBG-419N can establish up to five wireless links with other APs.
Local MAC Address	This is the MAC address of your NBG-419N.
Phy Mode	Select the Phy mode you want the NBG-419N to use. This dictates the maximum size of packets during data transmission.
Remote MAC Address	This is the MAC address of the peer device that your NBG-419N wants to make a bridge connection with. You can connect to up to 4 peer devices.
Security
EncryptedType	Select whether to use WEP, TKIP or AES encryption for your WDS connection in this field. Otherwise, select No Security.
EncryptedKey	The Encrypted key is used to encrypt data. Peers must use the same key for data transmission.

Table 46 Network > Wireless LAN > WDS

LABEL	DESCRIPTION
Apply	Click Apply to save your changes to NBG-419N.
Refresh	Click Refresh to reload the previous configuration for this screen.

12.1 Overview

This chapter discusses the NBG-419N's WAN screens. Use these screens to configure your NBG-419N for Internet access.

A WAN (Wide Area Network) connection is an outside connection to another network or the Internet. It connects your private networks such as a LAN (Local Area Network) and other networks, so that a computer in one location can communicate with computers in other locations.

Figure 78 LAN and WAN

12.2 What You Can Do

• Use the Internet Connection screen (Section 12.4 on page 122) to enter your ISP information and set how the computer acquires its IP, DNS and WAN MAC addresses.
• Use the Advanced screen (Section 12.5 on page 132) to enable multicast, configure Windows networking and bridge.
• Use IGMP Snooping screen (Section 12.6 on page 132) to enable IGMP snooping in the LAN ports.

12.3 What You Need To Know

The information in this section can help you configure the screens for your WAN connection, as well as enable/disable some advanced features of your NBG-419N.

12.3.1 Configuring Your Internet Connection

Encapsulation Method

Encapsulation is used to include data from an upper layer protocol into a lower layer protocol. To set up a WAN connection to the Internet, you need to use the same encapsulation method used by your ISP (Internet Service Provider). If your ISP offers a dial-up Internet connection using PPPoE (PPP over Ethernet) or PPTP (Point-to-Point Tunneling Protocol), they should also provide a username and password (and service name) for user authentication.

WAN IP Address

The WAN IP address is an IP address for the NBG-419N, which makes it accessible from an outside network. It is used by the NBG-419N to communicate with other devices in other networks. It can be static (fixed) or dynamically assigned by the ISP each time the NBG-419N tries to access the Internet.

If your ISP assigns you a static WAN IP address, they should also assign you the subnet mask and DNS server IP address(es) (and a gateway IP address if you use the Ethernet or ENET ENCAP encapsulation method).

DNS Server Address Assignment

Use Domain Name System (DNS) to map a domain name to its corresponding IP address and vice versa, for instance, the IP address of www.zyxel.com is 204.217.0.2. The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it.

The NBG-419N can get the DNS server addresses in the following ways.

1 The ISP tells you the DNS server addresses, usually in the form of an information sheet, when you sign up. If your ISP gives you DNS server addresses, manually enter them in the DNS server fields.
2 If your ISP dynamically assigns the DNS server IP addresses (along with the NBG-419N's WAN IP address), set the DNS server fields to get the DNS server address from the ISP.

WAN MAC Address

The MAC address screen allows users to configure the WAN port's MAC address by either using the factory default or cloning the MAC address from a computer on your LAN. Choose Factory Default to select the factory assigned default MAC Address.

Otherwise, click Clone the computer's MAC address - IP Address and enter the IP address of the computer on the LAN whose MAC you are cloning. Once it is successfully configured, the address will be copied to configuration file. It is recommended that you clone the MAC address prior to hooking up the WAN Port.

12.3.2 Multicast

Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1 recipient) or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to a group of hosts on the network - not everybody and not just 1.

Figure 79 Multicast Example

In the multicast example above, systems A and D comprise one multicast group. In multicasting, the server only needs to send one data stream and this is delivered to systems A and D.

IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a multicast group - it is not used to carry user data. The NBG-419N supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-v2).

At start up, the NBG-419N queries all directly connected networks to gather group membership. After that, the NBG-419N periodically updates this information. IP multicasting can be enabled/disabled on the NBG-419N LAN and/or WAN

interfaces in the Web Configurator (LAN; WAN). Select None to disable IP multicasting on these interfaces.

12.4 Internet Connection

Use this screen to change your NBG-419N's Internet access settings. Click WAN from the Configuration menu. The screen differs according to the encapsulation you choose.

12.4.1 Ethernet Encapsulation

This screen displays when you select Ethernet encapsulation.

Figure 80 Network > WAN > Internet Connection: Ethernet Encapsulation

The following table describes the labels in this screen.

Table 47 Network > WAN > Internet Connection: Ethernet Encapsulation

LABEL	DESCRIPTION
ISP Parameters for Internet Access
Encapsulation	You must choose the Ethernet option when the WAN port is used as a regular Ethernet.
WAN IP Address Assignment
Get automatically from ISP(Default)	Select this option If your ISP did not assign you a fixed IP address. This is the default selection.
Use Fixed IP Address	Select this option If the ISP assigned a fixed IP address.
IP Address	Enter your WAN IP address in this field if you selected Use Fixed IP Address.
IP Subnet Mask	Enter the IP Subnet Mask in this field.
Gateway IP Address	Enter a Gateway IP Address (if your ISP gave you one) in this field.
WAN DNS Assignment
First DNS ServerSecond DNS Server	Select From ISP if your ISP dynamically assigns DNS server information (and the NBG-419N's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns.Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0,User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User-Defined changes to None after you click Apply.Select None if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
WAN MAC Address	The MAC address section allows users to configure the WAN port's MAC address by either using the NBG-419N's MAC address, copying the MAC address from a computer on your LAN or manually entering a MAC address.
Factory default	Select Factory default to use the factory assigned default MAC Address.
Clone the computer's MAC address - IP Address	Select Clone the computer's MAC address - IP Address and enter the IP address of the computer on the LAN whose MAC you are cloning.
Set WAN MAC Address	Select this option and enter the MAC address you want to use.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

12.4.2 PPPoE Encapsulation

The NBG-419N supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is an IETF standard (RFC 2516) specifying how a personal computer (PC) interacts with a broadband modem (DSL, cable, wireless, etc.) connection. The PPP over Ethernet option is for a dial-up connection using PPPoE.

For the service provider, PPPoE offers an access and authentication method that works with existing access control systems (for example Radius).

One of the benefits of PPPoE is the ability to let you access one of multiple network services, a function known as dynamic service selection. This enables the service provider to easily create and offer new IP services for individuals.

Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as it requires no specific configuration of the broadband modem at the customer site.

By implementing PPPoE directly on the NBG-419N (rather than individual computers), the computers on the LAN do not need PPPoE software installed, since the NBG-419N does that part of the task. Furthermore, with NAT, all of the LANs' computers will have access.

This screen displays when you select PPPoE encapsulation.

Figure 81 Network > WAN > Internet Connection: PPPoE Encapsulation

The following table describes the labels in this screen.

Table 48 Network > WAN > Internet Connection: PPPoE Encapsulation

LABEL	DESCRIPTION
ISP Parameters for Internet Access
Encapsulation	Select PPP over Ethernet if you connect to your Internet via dial-up.
User Name	Type the user name given to you by your ISP.
Password	Type the password associated with the user name above.
Retype to Confirm	Type your password again to make sure that you have entered is correctly.
MTU Size	Enter the Maximum Transmission Unit (MTU) or the largest packet size per frame that your NBG-419N can receive and process.
Nailed-Up Connection	Select Nailed-Up Connection if you do not want the connection to time out.

Table 48 Network > WAN > Internet Connection: PPPoE Encapsulation

LABEL	DESCRIPTION
Idle Timeout (sec)	This value specifies the time in minutes that elapses before the router automatically disconnects from the PPPoE server.
WAN IP Address Assignment
Get automatically from ISP	Select this option If your ISP did not assign you a fixed IP address. This is the default selection.
Use Fixed IP Address	Select this option If the ISP assigned a fixed IP address.
My WAN IP Address	Enter your WAN IP address in this field if you selected Use Fixed IP Address.
WAN DNS Assignment
First DNS Server Second DNS Server	Select From ISP if your ISP dynamically assigns DNS server information (and the NBG-419N's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns. Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User-Defined changes to None after you click Apply. Select None if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
WAN MAC Address	The MAC address section allows users to configure the WAN port's MAC address by using the NBG-419N's MAC address, copying the MAC address from a computer on your LAN or manually entering a MAC address.
Factory default	Select Factory default to use the factory assigned default MAC Address.
Clone the computer's MAC address - IP Address	Select Clone the computer's MAC address - IP Address and enter the IP address of the computer on the LAN whose MAC you are cloning.
Set WAN MAC Address	Select this option and enter the MAC address you want to use.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

12.4.3 PPTP Encapsulation

Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables secure transfer of data from a remote client to a private server, creating a Virtual Private Network (VPN) using TCP/IP-based networks.

PPTP supports on-demand, multi-protocol and virtual private networking over public networks, such as the Internet.

This screen displays when you select PPTP encapsulation.

Figure 82 Network > WAN > Internet Connection: PPTP Encapsulation

The following table describes the labels in this screen.

Table 49 Network > WAN > Internet Connection: PPTP Encapsulation

LABEL	DESCRIPTION
ISP Parameters for Internet Access
Connection Type	To configure a PPTP client, you must configure the User Name and Password fields for a PPP connection and the PPTP parameters for a PPTP connection.
User Name	Type the user name given to you by your ISP.
Password	Type the password associated with the User Name above.
Retype to Confirm	Type your password again to make sure that you have entered is correctly.
Nailed-up Connection	Select Nailed-Up Connection if you do not want the connection to time out.
Idle Timeout	This value specifies the time in minutes that elapses before the NBG-419N automatically disconnects from the PPTP server.
PPTP Configuration
Server IP Address	Type the IP address of the PPTP server.
Get automatically from ISP	Select this option If your ISP did not assign you a fixed IP address. This is the default selection.
Use Fixed IP Address	Select this option If the ISP assigned a fixed IP address.
IP Address	Enter your WAN IP address in this field if you selected Use Fixed IP Address.
IP Subnet Mask	Your NBG-419N will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the NBG-419N.
Gateway IP Address	Enter a Gateway IP Address (if your ISP gave you one) in this field.
WAN IP Address Assignment
Get automatically from ISP	Select this to get your WAN IP address from your ISP.
Use Fixed IP Address	Select this option If the ISP assigned a fixed IP address.
My WAN IP Address	Enter your WAN IP address in this field if you selected Use Fixed IP Address.
WAN DNS Assignment

Table 49 Network > WAN > Internet Connection: PPTP Encapsulation

LABEL	DESCRIPTION
First DNS Server	Select From ISP if your ISP dynamically assigns DNS server information (and the NBG-419N's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns.
Second DNS Server	Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User-Defined changes to None after you click Apply.
	Select None if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
WAN MAC Address	The MAC address section allows users to configure the WAN port's MAC address by either using the NBG-419N's MAC address, copying the MAC address from a computer on your LAN or manually entering a MAC address.
Factory default	Select Factory default to use the factory assigned default MAC Address.
Clone the computer's MAC address - IP Address	Select Clone the computer's MAC address - IP Address and enter the IP address of the computer on the LAN whose MAC you are cloning.
Set WAN MAC Address	Select this option and enter the MAC address you want to use.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

12.4.4 L2TP Encapsulation

The Layer 2 Tunneling Protocol (L2TP) works at layer 2 (the data link layer) to tunnel network traffic between two peer devices over another network (like the Internet).

This screen displays when you select L2TP encapsulation.

Figure 83 Network > WAN > Internet Connection: L2TP Encapsulation

The following table describes the labels in this screen.

Table 50 Network > WAN > Internet Connection: L2TP Encapsulation

LABEL	DESCRIPTION
ISP Parameters for Internet Access
Connection Type	To configure a L2TP client, you must configure the User Name and Password fields for a layer-2 connection and the L2TP parameters for an L2TP connection.
User Name	Type the user name given to you by your ISP.
Password	Type the password associated with the User Name above.
Retype to Confirm	Type your password again to make sure that you have entered is correctly.
L2TP Configuration
Server IP Address	Type the IP address of the L2TP server.
Get automatically from ISP	Select this option If your ISP did not assign you a fixed IP address. This is the default selection.

Table 50 Network > WAN > Internet Connection: L2TP Encapsulation

LABEL	DESCRIPTION
Use Fixed IP Address	Select this option If the ISP assigned a fixed IP address.
IP Address	Enter your WAN IP address in this field if you selected Use Fixed IP Address.
IP Subnet Mask	Your NBG-419N will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the NBG-419N.
Gateway IP Address	Enter a Gateway IP Address (if your ISP gave you one) in this field.
WAN IP Address Assignment
Get automatically from ISP	Select this to get your WAN IP address from your ISP.
Use Fixed IP Address	Select this option If the ISP assigned a fixed IP address.
My WAN IP Address	Enter your WAN IP address in this field if you selected Use Fixed IP Address.
WAN DNS Assignment
First DNS Server Second DNS Server	Select From ISP if your ISP dynamically assigns DNS server information (and the NBG-419N's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns. Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User-Defined changes to None after you click Apply. Select None if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
WAN MAC Address	The MAC address section allows users to configure the WAN port's MAC address by either using the NBG-419N's MAC address, copying the MAC address from a computer on your LAN or manually entering a MAC address.
Factory default	Select Factory default to use the factory assigned default MAC Address.
Clone the computer's MAC address - IP Address	Select Clone the computer's MAC address - IP Address and enter the IP address of the computer on the LAN whose MAC you are cloning.
Set WAN MAC Address	Select this option and enter the MAC address you want to use.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

12.5 Advanced WAN Screen

Use this screen to enable Multicast and enable Auto-bridge.

Note: The categories shown in this screen are independent of each other.

To change your NBG-419N's advanced WAN settings, click Network > WAN > Advanced. The screen appears as shown.

Figure 84 Network > WAN > Advanced

The following table describes the labels in this screen.

Table 51 Network > WAN > Advanced

LABEL	DESCRIPTION
Multicast Setup
Multicast	Select IGMPv1/v2 to enable multicasting. This applies to traffic routed from the WAN to the LAN. Select None to disable this feature. This may cause incoming traffic to be dropped or sent to all connected network devices.
Auto-bridge
Enable Auto-bridge mode	Select this option to have the NBG-419N switch to bridge mode automatically when the NBG-419N gets a WAN IP address in the range of 192.168.x.y (where x and y are from zero to nine) no matter what the LAN IP address is.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

12.6 IGMP Snooping Screen

Use this screen to enable IGMP snooping if you have LAN users that subscribe to multicast services.

IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a multicast group - it is not used to carry user data.

Click Network > WAN > IGMP Snooping. The screen appears as shown.

Figure 85 Network > WAN > IGMP Snooping

The following table describes the labels in this screen.

Table 52 Network > WAN > IGMP Snooping

LABEL	DESCRIPTION
Auto-bridge
Enable IGMP Snooping	Select this option to have the NBG-419N use IGMP snooping. Check the LAN port/s to which IGMP snooping applies.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

13.1 Overview

This chapter describes how to configure LAN settings.

A Local Area Network (LAN) is a shared communication system to which many computers are attached. A LAN is a computer network limited to the immediate area, usually the same building or floor of a building. The LAN screens can help you configure a LAN DHCP server, manage IP addresses, and partition your physical network into logical networks.

Figure 86 LAN Example

The LAN screens can help you manage IP addresses.

13.2 What You Can Do

• Use the IP screen (Section 13.4 on page 137) to change the IP address for your NBG-419N.
• Use the IP Alias screen (Section 13.5 on page 138) to have the NBG-419N apply IP alias to create LAN subnets.

13.3 What You Need To Know

The actual physical connection determines whether the NBG-419N ports are LAN or WAN ports. There are two separate IP networks, one inside the LAN network and the other outside the WAN network as shown next.

Figure 87 LAN and WAN IP Addresses

The LAN parameters of the NBG-419N are preset in the factory with the following values:

• IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)
• DHCP server enabled with 32 client IP addresses starting from 192.168.1.33.

These parameters should work for the majority of installations. If your ISP gives you explicit DNS server address(es), read the embedded Web Configurator help regarding what fields need to be configured.

13.3.1 IP Pool Setup

The NBG-419N is pre-configured with a pool of 32 IP addresses starting from 192.168.1.33 to 192.168.1.64. This configuration leaves 31 IP addresses (excluding the NBG-419N itself) in the lower range (192.168.1.2 to 192.168.1.32) for other server computers, for instance, servers for mail, FTP, TFTP, web, etc., that you may have.

13.3.2 LAN TCP/IP

The NBG-419N has built-in DHCP server capability that assigns IP addresses and DNS servers to systems that support DHCP client capability.

13.3.3 IP Alias

IP alias allows you to partition a physical network into different logical networks over the same Ethernet interface. The NBG-419N supports three logical LAN interfaces via its single physical Ethernet interface with the NBG-419N itself as the gateway for each LAN network.

13.4 LAN IP Screen

Use this screen to change the IP address for your NBG-419N. Click Network > LAN > IP.

Figure 88 Network > LAN > IP

The following table describes the labels in this screen.

Table 53 Network > LAN > IP

LABEL	DESCRIPTION
IP Address	Type the IP address of your NBG-419N in dotted decimal notation.
IP Subnet Mask	The subnet mask specifies the network number portion of an IP address. Your NBG-419N will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the NBG-419N.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

13.5 IP Alias Screen

Use this screen to have the NBG-419N apply IP alias to create LAN subnets. Click LAN > IP Alias.

Figure 89 Network > LAN > IP Alias

The following table describes the labels in this screen.

Table 54 Network > LAN > IP Alias

LABEL	DESCRIPTION
IP Alias	Check this to enable IP alias.
IP Address	Type the IP alias address of your NBG-419N in dotted decimal notation.
IP Subnet Mask	The subnet mask specifies the network number portion of an IP address. Your NBG-419N will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the NBG-419N.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

14.1 Overview

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the NBG-419N's LAN as a DHCP server or disable it. When configured as a server, the NBG-419N provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have another DHCP server on your LAN, or else the computer must be manually configured.

14.2 What You Can Do

• Use the General (Section 14.3 on page 139) screen to enable the DHCP server.
• Use the Advanced (Section 14.4 on page 140) screen to assign IP addresses on the LAN to specific individual computers based on their MAC Addresses.

14.3 General Screen

Use this screen to enable the DHCP server. Click Network > DHCP Server. The following screen displays.

Figure 90 Network > DHCP Server > General

The following table describes the labels in this screen.

Table 55 Network > DHCP Server > General

LABEL	DESCRIPTION
Enable DHCP Server	Enable or Disable DHCP for LAN.
IP Pool Starting Address	This field specifies the first of the contiguous addresses in the IP address pool for LAN.
Pool Size	This field specifies the size, or count of the IP address pool for LAN.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

14.4 Advanced Screen

This screen allows you to assign IP addresses on the LAN to specific individual computers based on their MAC addresses. You can also use this screen to configure the DNS server information that the NBG-419N sends to the DHCP clients.

To change your NBG-419N's static DHCP settings, click Network > DHCP Server > Advanced. The following screen displays.

Figure 91 Network > DHCP Server > Advanced

The following table describes the labels in this screen.

Table 56 Network > DHCP Server > Advanced

LABEL	DESCRIPTION
LAN Static DHCP Table
#	This is the index number of the static IP table entry (row).
MAC Address	Type the MAC address (with colons) of a computer on your LAN.
IP Address	Type the LAN IP address of a computer on your LAN.
DNS Server
DNS Servers Assigned by DHCP Server	The NBG-419N passes a DNS (Domain Name System) server IP address (in the order you specify here) to the DHCP clients. The NBG-419N only passes this information to the LAN DHCP clients when you select the Enable DHCP Server check box. When you clear the Enable DHCP Server check box, DHCP service is disabled and you must have another DHCP sever on your LAN, or else the computers must have their DNS server addresses manually configured.
First DNS Server Second DNS Server	Select From ISP if your ISP dynamically assigns DNS server information (and the NBG-419N's WAN IP address). The field to the right displays the (read-only) DNS server IP address that the ISP assigns. Select User-Defined if you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you chose User-Defined, but leave the IP address set to 0.0.0.0, User-Defined changes to None after you click Apply. If you set a second choice to User-Defined, and enter the same IP address, the second User-Defined changes to None after you click Apply. Select DNS Relay to have the NBG-419N act as a DNS proxy. The NBG-419N's LAN IP address displays in the field to the right (read-only). The NBG-419N tells the DHCP clients on the LAN that the NBG-419N itself is the DNS server. When a computer on the LAN sends a DNS query to the NBG-419N, the NBG-419N forwards the query to the NBG-419N's system DNS server (configured in the WAN > Internet Connection screen) and relays the response back to the computer. You can only select DNS Relay for one of the three servers; if you select DNS Relay for a second or third DNS server, that choice changes to None after you click Apply. Select None if you do not want to configure DNS servers. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

Network Address Translation (NAT)

15.1 Overview

NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. For example, the source address of an outgoing packet, used within one network is changed to a different IP address known within another network.

Each packet has two addresses - a source address and a destination address. For outgoing packets, NAT maps private (local) IP addresses to globally unique ones required for communication with hosts on other networks. It replaces the original IP source address in each packet and then forwards it to the Internet. The NBG-419N keeps track of the original addresses and port numbers so incoming reply packets can have their original values restored. The following figure illustrates this.

Figure 92 NAT Example

For more information on IP address translation, refer to RFC 1631, The IP Network Address Translator (NAT).

15.2 What You Can Do

• Use the General screen (Section 15.3 on page 144) to enable NAT and set a default server.
• Use the Application screen (Section 15.4 on page 145) o forward incoming service requests to the server(s) on your local network.
• Use the Advanced screen (Section 15.5 on page 147) to change your NBG-419N's trigger port settings.

15.3 General NAT Screen

Use this screen to enable NAT and set a default server. Click Network > NAT > General to open the following screen.

Figure 93 Network > NAT > General

The following table describes the labels in this screen.

Table 57 Network > NAT > General

LABEL	DESCRIPTION
NAT Setup
Enable Network Address Translation	Network Address Translation (NAT) allows the translation of an Internet protocol address used within one network (for example a private IP address used in a local network) to a different IP address known within another network (for example a public IP address used on the Internet).Select the check box to enable NAT.
Default Server Setup
Server IP Address	In addition to the servers for specified services, NAT supports a default server. A default server receives packets from ports that are not specified in the Application screen.If you do not assign a Default Server IP address, the NBG-419N discards all packets received for ports that are not specified in the Application screen or remote management.

Table 57 Network > NAT > General

LABEL	DESCRIPTION
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

15.4 NAT Application Screen

Use the Application screen to forward incoming service requests to the server(s) on your local network. You may enter a single port number or a range of port numbers to be forwarded, and the local IP address of the desired server. The port number identifies a service; for example, web service is on port 80 and FTP on port 21. In some cases, such as for unknown services or where one server can support more than one service (for example both FTP and web service), it might be better to specify a range of port numbers.

In addition to the servers for specified services, NAT supports a default server. A service request that does not have a server explicitly designated for it is forwarded to the default server. If the default is not defined, the service request is simply discarded.

Note: Many residential broadband ISP accounts do not allow you to run any server processes (such as a Web or FTP server) from your location. Your ISP may periodically check for servers and may suspend your account if it discovers any active services at your location. If you are unsure, refer to your ISP.

Port forwarding allows you to define the local servers to which the incoming services will be forwarded. To change your NBG-419N's port forwarding settings, click Network > NAT > Application. The screen appears as shown.

Note: If you do not assign a Default Server IP address in the NAT > General screen, the NBG-419N discards all packets received for ports that are not specified in this screen or remote management.

Refer to Appendix E on page 281 for port numbers commonly used for particular services.

Figure 94 Network > NAT > Application

The following table describes the labels in this screen.

Table 58 Network > NAT > Application

LABEL	DESCRIPTION
Add Application Rule
Active	Select the check box to enable this rule and the requested service can be forwarded to the host with a specified internal IP address.Clear the checkbox to disallow forwarding of these ports to an inside server without having to delete the entry.
Service Name	Type a name (of up to 31 printable characters) to identify this rule in the first field next to Service Name. Otherwise, select a predefined service in the second field next to Service Name. The predefined service name and port number(s) will display in the Service Name and Port fields.
Port	Type a port number(s) to define the service to be forwarded to the specified server.To specify a range of ports, enter a hyphen (-) between the first port and the last port, such as 10-20.To specify two or more non-consecutive port numbers, separate them by a comma without spaces, such as 123,567.
Server IP Address	Type the IP address of the server on your LAN that receives packets from the port(s) specified in the Port field.
Application Rules Summary
#	This is the number of an individual port forwarding server entry.
Active	This icon is turned on when the rule is enabled.
Name	This field displays a name to identify this rule.
Port	This field displays the port number(s).
Server IP Address	This field displays the inside IP address of the server.
Modify	Click the Edit icon to display and modify an existing rule setting in the fields under Add Application Rule. Click the Remove icon to delete a rule.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

15.5 NAT Advanced Screen

Some services use a dedicated range of ports on the client side and a dedicated range of ports on the server side. With regular port forwarding you set a forwarding port in NAT to forward a service (coming in from the server on the WAN) to the IP address of a computer on the client side (LAN). The problem is that port forwarding only forwards a service to a single LAN IP address. In order to use the same service on a different LAN computer, you have to manually replace the LAN computer's IP address in the forwarding port with another LAN computer's IP address.

Trigger port forwarding solves this problem by allowing computers on the LAN to dynamically take turns using the service. The NBG-419N records the IP address of a LAN computer that sends traffic to the WAN to request a service with a specific port number and protocol (a "trigger" port). When the NBG-419N's WAN port receives a response with a specific port number and protocol ("incoming" port), the NBG-419N forwards the traffic to the LAN IP address of the computer that sent the request. After that computer's connection for that service closes, another computer on the LAN can use the service in the same manner. This way you do not need to configure a new IP address each time you want a different LAN computer to use the application.

To change your NBG-419N's trigger port settings, click Network > NAT > Advanced. The screen appears as shown.

Note: Only one LAN computer can use a trigger port (range) at a time.

Figure 95 Network > NAT > Advanced

The following table describes the labels in this screen.

Table 59 Network > NAT > Advanced

LABEL	DESCRIPTION
#	This is the rule index number (read-only).
Name	Type a unique name (up to 15 characters) for identification purposes. All characters are permitted - including spaces.
Incoming	Incoming is a port (or a range of ports) that a server on the WAN uses when it sends out a particular service. The NBG-419N forwards the traffic with this port (or range of ports) to the client computer on the LAN that requested the service.
Start Port	Type a port number or the starting port number in a range of port numbers.
End Port	Type a port number or the ending port number in a range of port numbers.
Trigger	The trigger port is a port (or a range of ports) that causes (or triggers) the NBG-419N to record the IP address of the LAN computer that sent the traffic to a server on the WAN.
Start Port	Type a port number or the starting port number in a range of port numbers.
End Port	Type a port number or the ending port number in a range of port numbers.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

15.5.1 Trigger Port Forwarding Example

The following is an example of trigger port forwarding.

Figure 96 Trigger Port Forwarding Process: Example Jane's computer

1 Jane requests a file from the Real Audio server (port 7070).
2 Port 7070 is a "trigger" port and causes the NBG-419N to record Jane's computer IP address. The NBG-419N associates Jane's computer IP address with the "incoming" port range of 6970-7170.
3 The Real Audio server responds using a port number ranging between 6970-7170.
4 The NBG-419N forwards the traffic to Jane's computer IP address.
5 Only Jane can connect to the Real Audio server until the connection is closed or times out. The NBG-419N times out in three minutes with UDP (User Datagram Protocol), or two hours with TCP/IP (Transfer Control Protocol/Internet Protocol).

15.5.2 Two Points To Remember About Trigger Ports

1 Trigger events only happen on data that is going coming from inside the NBG-419N and going to the outside.

If an application needs a continuous data stream, that port (range) will be tied up so that another computer on the LAN can't trigger it.

16.1 Overview

Dynamic DNS (DDNS) services let you use a domain name with a dynamic IP address.

16.2 What You Can Do

Use the Dynamic DNS screen (Section 16.4 on page 152) to enable DDNS and configure the DDNS settings on the NBG-419N.

16.3 What You Need To Know

Dynamic DNS allows you to update your current dynamic IP address with one or many dynamic DNS services so that anyone can contact you (in NetMeeting, CU-SeeMe, etc.). You can also access your FTP server or Web site on your own computer using a domain name (for instance myhost.dhs.org, where myhost is a name of your choice) that will never change instead of using an IP address that changes each time you reconnect. Your friends or relatives will always be able to call you even if they don't know your IP address.

16.4 Dynamic DNS Screen

To change your NBG-419N's DDNS, click Network > DDNS. The screen appears as shown.

Figure 97 Network > DDNS

The following table describes the labels in this screen.

Table 60 Network > DDNS

LABEL	DESCRIPTION
Enable Dynamic DNS	Select this check box to use dynamic DNS.
Service Provider	Select the name of your Dynamic DNS service provider.
Host Name	Enter a host names in the field provided. You can specify up to two host names in the field separated by a comma ("",").
User Name	Enter your user name.
Password	Enter the password assigned to you.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

Static Route

17.1 Overview

This chapter shows you how to configure static routes for your NBG-419N.

Each remote node specifies only the network to which the gateway is directly connected, and the NBG-419N has no knowledge of the networks beyond. For instance, the NBG-419N knows about network N2 in the following figure through remote node Router 1. However, the NBG-419N is unable to route a packet to network N3 because it doesn't know that there is a route through the same remote node Router 1 (via gateway Router 2). The static routes are for you to tell the NBG-419N about the networks beyond the remote nodes.

Figure 98 Example of Static Routing Topology

17.2 What You Can Do

Use the IP Static Route screen (Section 17.3 on page 154) to view, add and delete routes.

17.3 IP Static Route Screen

Click Network > Static Route to open the IP Static Route screen.

Figure 99 Network > Static Route

The following table describes the labels in this screen.

Table 61 Network > Static Route

LABEL	DESCRIPTION
Static Routing Settings
Route Name	Enter a the name that describes or identifies this route.
Destination IP Address	Enter the IP network address of the final destination.
IP Subnet Netmask	This is the subnet to which the route's final destination belongs.
Gateway IP Address	Enter the the IP address of the gateway.
Metric	Assign a number to identify the route.
Add Rule	Click this to add the IP static route.
Application Rules Summary
No.	This is the number of an individual static route.
Active	The rules are always on and this is indicated by the icon.
Name	This is the name that describes or identifies this route.
Destination	This parameter specifies the IP network address of the final destination. Routing is always based on network number.

Table 61 Network > Static Route

LABEL	DESCRIPTION
Gateway	This is the IP address of the gateway. The gateway is a router or switch on the same network segment as the device's LAN or WAN port. The gateway helps forward packets to their destinations.
Metric	This is the number assigned to the route.
Delete	Click the Delete icon to remove a static route from the NBG-419N. A window displays asking you to confirm that you want to delete the route.

18.1 Overview

Routing Information Protocol (RIP) is an interior or intra-domain routing protocol that uses distance-vector routing algorithms. RIP is used on the Internet and is common in the NetWare environment as a method for exchanging routing information between routers.

18.2 What You Can Do

Use the RIP screen (Section 18.3 on page 157) to enable RIPv1 or RIPv2, which are LAN broadcast protocols.

18.3 RIP Screen

Use this screen to enable RIPv1 or RIPv2, which are LAN broadcast protocols. Click Network > RIP. The screen appears as shown.

Figure 100 Network > RIP

The following table describes the labels in this screen.

Table 62 Network > RIP

LABEL	DESCRIPTION
RIP	Select the RIPv1 or RIPv2 you want the NBG-419N to use. Otherwise select None.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

PART III

Security

Firewall (161)

Content Filter (167)

19.1 Overview

This chapter shows you how to enable and configure the firewall that protects your NBG-419N and your LAN from unwanted or malicious traffic.

Enable the firewall to protect your LAN computers from attacks by hackers on the Internet and control access between the LAN and WAN. By default the firewall:

• allows traffic that originates from your LAN computers to go to all of the networks.
• blocks traffic that originates on the other networks from going to the LAN.

The following figure illustrates the default firewall action. User A can initiate an IM (Instant Messaging) session from the LAN to the WAN (1). Return traffic for this session is also allowed (2). However other traffic initiated from the WAN is blocked (3 and 4).

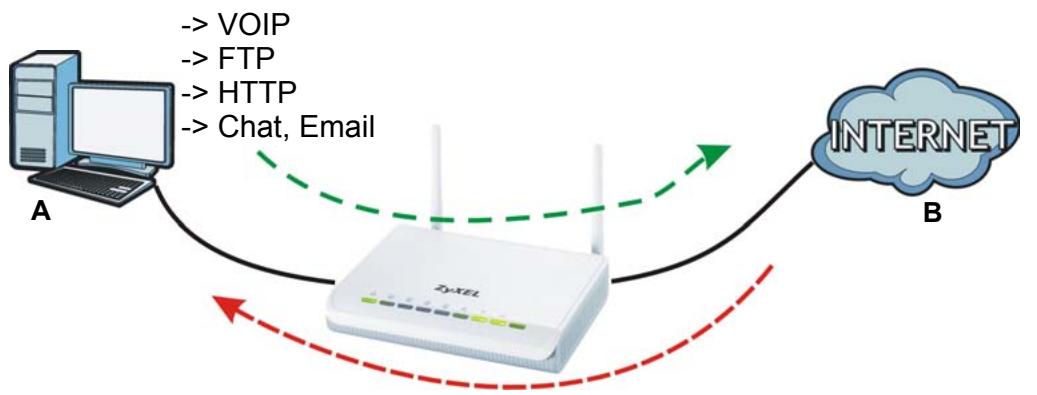

Figure 101 Default Firewall Action

19.2 What You Can Do

• Use the General (Section 19.4 on page 163) screen to enable or disable the NBG-419N's firewall.
• Use the Services screen (Section 19.5 on page 163) screen enable service blocking, enter/delete/modify the services you want to block and the date/time you want to block them.

19.3 What You Need To Know

The NBG-419N's firewall feature physically separates the LAN and the WAN and acts as a secure gateway for all data passing between the networks.

It is designed to protect against Denial of Service (DoS) attacks when activated (click the General tab under Firewall and then click the Enable Firewall check box). The NBG-419N's purpose is to allow a private Local Area Network (LAN) to be securely connected to the Internet. The NBG-419N can be used to prevent theft, destruction and modification of data, as well as log events, which may be important to the security of your network.

The NBG-419N is installed between the LAN and a broadband modem connecting to the Internet. This allows it to act as a secure gateway for all data passing between the Internet and the LAN.

The NBG-419N has one Ethernet WAN port and four Ethernet LAN ports, which are used to physically separate the network into two areas. The WAN (Wide Area Network) port attaches to the broadband (cable or DSL) modem to the Internet.

The LAN (Local Area Network) port attaches to a network of computers, which needs security from the outside world. These computers will have access to Internet services such as e-mail, FTP and the World Wide Web. However, "inbound access" is not allowed (by default) unless the remote host is authorized to use a specific service.

19.4 General Firewall Screen

Use this screen to enable or disable the NBG-419N's firewall, and set up firewall logs. Click Security > Firewall to open the General screen.

Figure 102 Security > Firewall > General

The following table describes the labels in this screen.

Table 63 Security > Firewall > General

LABEL	DESCRIPTION
Enable Firewall	Select this check box to activate the firewall. The NBG-419N performs access control and protects against Denial of Service (DoS) attacks when the firewall is activated.
Apply	Click Apply to save the settings.
Reset	Click Reset to start configuring this screen again.

19.5 Services Screen

If an outside user attempts to probe an unsupported port on your NBG-419N, an ICMP response packet is automatically returned. This allows the outside user to know the NBG-419N exists. Use this screen to prevent the ICMP response packet from being sent. This keeps outsiders from discovering your NBG-419N when unsupported ports are probed.

You can also use this screen to enable service blocking, enter/delete/modify the services you want to block and the date/time you want to block them.

Click Security > Firewall > Services. The screen appears as shown next.

Figure 103 Security > Firewall > Services

The following table describes the labels in this screen.

Table 64 Security > Firewall > Services

LABEL	DESCRIPTION
ICMP	Internet Control Message Protocol is a message control and error-reporting protocol between a host server and a gateway to the Internet. ICMP uses Internet Protocol (IP) datagrams, but the messages are processed by the TCP/IP software and directly apparent to the application user.
Respond to Ping on	The NBG-419N will not respond to any incoming Ping requests when Disable is selected. Select LAN to reply to incoming LAN Ping requests. Select WAN to reply to incoming WAN Ping requests. Otherwise select LAN & WAN to reply to all incoming LAN and WAN Ping requests.
Apply	Click Apply to save the settings.
Enable Firewall Rule
Enable Firewall Rule	Select this check box to activate the firewall rules that you define (see Add Firewall Rule below)
Apply	Click Apply to save the settings.
Add Firewall Rule
Service Name	Enter a name that identifies or describes the firewall rule.
MAC Address	Enter the MAC address of the computer for which the firewall rule applies.

Table 64 Security > Firewall > Services

LABEL	DESCRIPTION
Dest IP Address	Enter the IP address of the computer to which traffic for the application or service is entering.The NBG-419N applies the firewall rule to traffic initiating from this computer.
Source IP Address	Enter the IP address of the computer that initializes traffic for the application or service.The NBG-419N applies the firewall rule to traffic initiating from this computer.
Protocol	Select the protocol (TCP, UDP, ICMP or None) used to transport the packets for which you want to apply the firewall rule.
Dest Port Range	Enter the port number/range of the destination that define the traffic type, for example TCP port 80 defines web traffic.
Source Port Range	Enter the port number/range of the source that define the traffic type, for example TCP port 80 defines web traffic.
Add Rule	Click Add to save the firewall rule.
Firewall Rule
#	This is your firewall rule number. The ordering of your rules is important as rules are applied in turn.
Service Name	This is a name that identifies or describes the firewall rule.
MAC Address	This is the MAC address of the computer for which the firewall rule applies.
Dest IP Address	This is the IP address of the computer to which traffic for the application or service is entering.
Source IP Address	This is the IP address of the computer from which traffic for the application or service is initialized.
Protocol	This is the protocol (TCP, UDP, ICMP or None) used to transport the packets for which you want to apply the firewall rule.
Dest Port Range	This is the port number/range of the destination that define the traffic type, for example TCP port 80 defines web traffic.
Source Port Range	This is the port number/range of the source that define the traffic type, for example TCP port 80 defines web traffic.
Action	Drop - Traffic matching the conditions of the firewall rule are stopped.
Delete	Click this to remove the firewall rule.
Reset	Click Reset to start configuring this screen again.

See Appendix E on page 281 for commonly used services and port numbers.

Content Filter

20.1 Overview

This chapter provides a brief overview of content filtering using the embedded web GUI.

Internet content filtering allows you to create and enforce Internet access policies tailored to your needs. Content filtering is the ability to block certain web features or specific URL keywords.

20.2 What You Can Do

Use the Content Filter (Section 20.4 on page 168) screen to restrict web features, add keywords for blocking and designate a trusted computer.

20.3 What You Need To Know

Content filtering allows you to block certain web features, such as cookies, and/or block access to specific web sites. For example, you can configure one policy that blocks John Doe's access to arts and entertainment web pages.

20.3.1 Content Filtering Profiles

A content filtering profile conveniently stores your custom settings for the following features.

Restrict Web Features

The NBG-419N can disable web proxies and block web features such as ActiveX controls, Java applets and cookies.

Keyword Blocking URL Checking

The NBG-419N checks the URL's domain name (or IP address) and file path separately when performing keyword blocking.

The URL's domain name or IP address is the characters that come before the first slash in the URL. For example, with the URL www.zyxel.com.tw/news/pressroom.php, the domain name is www.zyxel.com.tw.

The file path is the characters that come after the first slash in the URL. For example, with the URL www.zyxel.com.tw/news/pressroom.php, the file path is news/pressroom.php.

Since the NBG-419N checks the URL's domain name (or IP address) and file path separately, it will not find items that go across the two. For example, with the URL www.zyxel.com.tw/news/pressroom.php, the NBG-419N would find "tw" in the domain name (www.zyxel.com.tw). It would also find "news" in the file path (news/pressroom.php) but it would not find "tw/news".

20.4 Content Filter Screen

Use this screen to restrict web features, add keywords for blocking and designate a trusted computer.

Click Security > Content Filter to open the Content Filter screen.

Figure 104 Security > Content Filter > Content Filter

The following table describes the labels in this screen.

Table 65 Security > Content Filter > Content Filter

LABEL	DESCRIPTION
Trusted IP Setup	To enable this feature, type an IP address of any one of the computers in your network that you want to have as a trusted computer. This allows the trusted computer to have full access to all features that are configured to be blocked by content filtering.Leave this field blank to have no trusted computers.
Restrict Web Features	Select the box(es) to restrict a feature. When you download a page containing a restricted feature, that part of the web page will appear blank or grayed out.
ActiveX	A tool for building dynamic and active Web pages and distributed object applications. When you visit an ActiveX Web site, ActiveX controls are downloaded to your browser, where they remain in case you visit the site again.
Java	A programming language and development environment for building downloadable Web components or Internet and intranet business applications of all kinds.
Cookies	Used by Web servers to track usage and provide service based on ID.
Web Proxy	A server that acts as an intermediary between a user and the Internet to provide security, administrative control, and caching service. When a proxy server is located on the WAN it is possible for LAN users to circumvent content filtering by pointing to this proxy server.
Enable URL Keyword Blocking	The NBG-419N can block Web sites with URLs that contain certain keywords in the domain name or IP address. For example, if the keyword "bad" was enabled, all sites containing this keyword in the domain name or IP address will be blocked, e.g., URL http://www.website.com/bad.html would be blocked. Select this check box to enable this feature.
Keyword	Type a keyword in this field. You may use any character (up to 64 characters). Wildcards are not allowed. You can also enter a numerical IP address.
Keyword List	This list displays the keywords already added.
Add	Click Add after you have typed a keyword.Repeat this procedure to add other keywords. Up to 64 keywords are allowed.When you try to access a web page containing a keyword, you will get a message telling you that the content filter is blocking this request.
Delete	Highlight a keyword in the lower box and click Delete to remove it. The keyword disappears from the text box after you click Apply.
Clear All	Click this button to remove all of the listed keywords.
Apply	Click Apply to save your changes.
Reset	Click Reset to begin configuring this screen afresh

PART IV

Management

Bandwidth Management (173)

Remote Management (183)

Universal Plug-and-Play (UPnP) (187)

Bandwidth Management

21.1 Overview

This chapter contains information about configuring bandwidth management and editing rules.

ZyXEL's Bandwidth Management allows you to specify bandwidth management rules based on an application.

In the figure below, uplink traffic goes from the LAN device (A) to the WAN device (B). Bandwidth management is applied before sending the packets out to the WAN. Downlink traffic comes back from the WAN device (B) to the LAN device (A). Bandwidth management is applied before sending the traffic out to LAN.

Figure 105 Bandwidth Management Example

You can allocate specific amounts of bandwidth capacity (bandwidth budgets) to individual applications (like VoIP, Web, FTP, and E-mail for example).

21.2 What You Can Do

• Use the General screen (Section 21.4 on page 174) to enable bandwidth management and assign bandwidth values.

• Use the Advanced screen (Section 21.5 on page 175) to configure bandwidth managements rule for the pre-defined services and applications.

• Use the Monitor screen (Section 21.6 on page 180) to view the amount of network bandwidth that applications running in the network are using.

21.3 What You Need To Know

The sum of the bandwidth allotments that apply to the WAN interface (LAN to WAN, WLAN to WAN) must be less than or equal to the Upstream Bandwidth that you configure in the Bandwidth Management Advanced screen (Section 21.5 on page 175).

The sum of the bandwidth allotments that apply to the LAN interface (WAN to LAN, WAN to WLAN) must be less than or equal to the Downstream Bandwidth that you configure in the Bandwidth Management Advanced screen Section 21.5 on page 175.

21.4 General Screen

Use this screen to have the NBG-419N apply bandwidth management.

Click Management > Bandwidth MGMT to open the bandwidth management General screen.

Figure 106 Management > Bandwidth Management > General

The following table describes the labels in this screen.

Table 66 Management > Bandwidth Management > General

LABEL	DESCRIPTION
Enable Bandwidth Management	This field allows you to have NBG-419N apply bandwidth management. Enable bandwidth management to give traffic that matches a bandwidth rule priority over traffic that does not match a bandwidth rule. Enabling bandwidth management also allows you to control the maximum or minimum amounts of bandwidth that can be used by traffic that matches a bandwidth rule.
Apply	Click Apply to save your customized settings.
Reset	Click Reset to begin configuring this screen afresh.

21.5 Advanced Screen

Use this screen to configure bandwidth management rules for the pre-defined services or applications.

You can also use this screen to configure bandwidth management rule for other services or applications that are not on the pre-defined list of NBG-419N.

Additionally, you can define the source and destination IP addresses and port for a service or application.

Note: The two tables shown in this screen can be configured and applied at the same time.

Click Management > Bandwidth Management > Advanced to open the bandwidth management Advanced screen.

Figure 107 Management > Bandwidth Management > Advanced

The following table describes the labels in this screen.

Table 67 Management > Bandwidth Management > Advanced

LABEL	DESCRIPTION
Management Bandwidth
Upstream Bandwidth	Select the total amount of bandwidth (from 64 Kilobits to 32 Megabits) that you want to dedicate to uplink traffic. This is traffic from LAN/WLAN to WAN.
Downstream Bandwidth	Select the total amount of bandwidth (from 64 Kilobits to 32 Megabits) that you want to dedicate to uplink traffic. This is traffic from WAN to LAN/WLAN.
Application List	Use this table to allocate specific amounts of bandwidth based on a predefined service.
#	This is the number of an individual bandwidth management rule.
Priority	Select a priority from the drop down list box. Choose High, Mid or Low. • High - Select this for voice traffic or video that is especially sensitive to jitter (jitter is the variations in delay). • Mid - Select this for "excellent effort" or better than best effort and would include important business traffic that can tolerate some delay. • Low - Select this for non-critical "background" traffic such as bulk transfers that are allowed but that should not affect other applications and users.
Category	This is the category where a service belongs.
Service	This is the name of the service. Select the check box to have the NBG-419N apply this bandwidth management rule.
Advanced Setting	Click the Edit icon to open the Rule Configuration screen where you can modify the rule.
User-defined Service	Use this table to allocate specific amounts of bandwidth to specific applications or services you specify.
#	This is the number of an individual bandwidth management rule.
Enable	Select this check box to have the NBG-419N apply this bandwidth management rule.
Direction	Select LAN to apply bandwidth management to traffic from WAN to LAN. Select WAN to apply bandwidth management to traffic from LAN/WLAN to WAN. Select WLAN to apply bandwidth management to traffic from WAN to WLAN.
Service Name	Enter a descriptive name for the bandwidth management rule.
Category	This is the category where a service belongs.
Modify	Click the Edit icon to open the Rule Configuration screen. Modify an existing rule or create a new rule in the Rule Configuration screen. See Section 21.5.2 on page 179 for more information. Click the Remove icon to delete a rule.
Apply	Click Apply to save your customized settings.
Reset	Click Reset to begin configuring this screen afresh.

21.5.1 Rule Configuration: Application Rule Configuration

If you want to edit a bandwidth management rule for a pre-defined service or application, click the Edit icon in the Application List table of the Advanced screen. The following screen displays.

Figure 108 Bandwidth Management Rule Configuration: Application List

The following table describes the labels in this screen.

Table 68 Bandwidth Management Rule Configuration: Application List

LABEL	DESCRIPTION
#	This is the number of an individual bandwidth management rule.
Enable	Select an interface's check box to enable bandwidth management on that interface.
Direction	These read-only labels represent the physical interfaces. Bandwidth management applies to all traffic flowing out of the router through the interface, regardless of the traffic's source.Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the NBG-419N and be managed by bandwidth management.
Bandwidth	Select Maximum Bandwidth or Minimum Bandwidth and specify the maximum or minimum bandwidth allowed for the rule in kilobits per second.
Destination Port	This is the port number of the destination that define the traffic type, for example TCP port 80 defines web traffic.See Appendix E on page 281 for some common services and port numbers.
Source Port	This is the port number of the source that define the traffic type, for example TCP port 80 defines web traffic.See Appendix E on page 281 for some common services and port numbers.
Protocol	This is the protocol (TCP, UDP or user-defined) used for the service.
Apply	Click Apply to save your customized settings.
Cancel	Click Cancel to exit this screen without saving.

21.5.2 Rule Configuration: User Defined Service Rule Configuration

If you want to edit a bandwidth management rule for other applications or services, click the Edit icon in the User-defined Service table of the Advanced screen. The following screen displays.

Figure 109 Bandwidth Management Rule Configuration: User-defined Service

The following table describes the labels in this screen

Table 69 Bandwidth Management Rule Configuration: User-defined Service

LABEL	DESCRIPTION
BW Budget	Select Maximum Bandwidth or Minimum Bandwidth and specify the maximum or minimum bandwidth allowed for the rule in kilobits per second.
Destination Address	Enter the IP address of the destination computer.The NBG-419N applies bandwidth management to the service or application that is entering this computer.
Destination Subnet Netmask	Enter the subnet netmask of the destination of the traffic for which the bandwidth management rule applies.
Destination Port	This is the port number of the destination that define the traffic type, for example TCP port 80 defines web traffic.
Source Address	Enter the IP address of the computer that initializes traffic for the application or service.The NBG-419N applies bandwidth management to traffic initiating from this computer.
Source Subnet Netmask	Enter the subnet netmask of the computer initiating the traffic for which the bandwidth management rule applies.
Source Port	This is the port number of the source that define the traffic type, for example TCP port 80 defines web traffic.
Protocol	Select the protocol (TCP, UDP, User defined) for which the bandwidth management rule applies.If you select User-defined, enter the protocol for which the bandwidth management rule applies. For example, ICMP for ping traffic.
Apply	Click Apply to save your customized settings.
Cancel	Click Cancel to exit this screen without saving.

See Appendix E on page 281 for commonly used services and port numbers.

21.6 Monitor Screen

Use this screen to view the amount of network bandwidth that applications running in the network are using.

The bandwidth is measured in kilobits per second (kbps).

The monitor shows what kinds of applications are running in the network, the maximum kbps that each application can use, as well as the percentage of bandwidth it is using.

Figure 110 Management > Bandwidth Management > Monitor

21.6.1 Predefined Bandwidth Management Services

The following is a description of some services that you can select and to which you can apply media bandwidth management in the Management > Bandwidth Management > Advanced screen.

Table 70 Media Bandwidth Management Setup: Services

SERVICE	DESCRIPTION
FTP	File Transfer Program enables fast transfer of files, including large files that may not be possible by e-mail.
WWW	The World Wide Web (WWW) is an Internet system to distribute graphical, hyper-linked information, based on Hyper Text Transfer Protocol (HTTP) - a client/server protocol for the World Wide Web. The Web is not synonymous with the Internet; rather, it is just one service on the Internet. Other services on the Internet include Internet Relay Chat and Newsgroups. The Web is accessed through use of a browser.
E-Mail	Electronic mail consists of messages sent through a computer network to specific groups or individuals. Here are some default ports for e-mail:
VoIP (SIP)	Sending voice signals over the Internet is called Voice over IP or VoIP. Session Initiated Protocol (SIP) is an internationally recognized standard for implementing VoIP. SIP is an application-layer control (signaling) protocol that handles the setting up, altering and tearing down of voice and multimedia sessions over the Internet.SIP is transported primarily over UDP but can also be transported over TCP.
BitTorrent	BitTorrent is a free P2P (peer-to-peer) sharing tool allowing you to distribute large software and media files. BitTorrent requires you to search for a file with a searching engine yourself. It distributes files by corporation and trading, that is, the client downloads the file in small pieces and share the pieces with other peers to get other half of the file.
Gaming	Online gaming services lets you play multiplayer games on the Internet via broadband technology. As of this writing, your NBG-419N supports Xbox,Playstation,Battlenet and MSN Game Zone.

Remote Management

22.1 Overview

This chapter provides information on the Remote Management screens.

Remote Management allows you to manage your NBG-419N from a remote location through the following interfaces:

• LAN and WAN
• LAN only
• WAN only

Note: The NBG-419N is managed using the Web Configurator.

22.2 What You Can Do

Use the WWW screen (Section 22.4 on page 184) to define the interface/s from which the NBG-419N can be managed remotely and specify a secure client that can manage the NBG-419N.

22.3 What You Need to Know

Remote management over LAN or WAN will not work when:

1 The IP address in the Secured Client IP Address field (Section 22.4 on page 184) does not match the client IP address. If it does not match, the NBG-419N will disconnect the session immediately.
2 There is already another remote management session. You may only have one remote management session running at one time.
3 There is a firewall rule that blocks it.

22.3.1 Remote Management and NAT

When NAT is enabled:

• Use the NBG-419N's WAN IP address when configuring from the WAN.
• Use the NBG-419N's LAN IP address when configuring from the LAN.

22.3.2 System Timeout

There is a default system management idle timeout of five minutes (three hundred seconds). The NBG-419N automatically logs you out if the management session remains idle for longer than this timeout period. The management session does not time out when a statistics screen is polling. You can change the timeout period in the System screen

22.4 WWW Screen

To change your NBG-419N's remote management settings, click Management > Remote Management > WWW.

Figure 111 Management > Remote Management > WWW

The following table describes the labels in this screen

Table 71 Management > Remote Management > WWW

LABEL	DESCRIPTION
Server Port	You may change the server port number for a service if needed, however you must use the same port number in order to use that service for remote management.
Server Access	Select the interface(s) through which a computer may access the NBG-419N using this service.
Secured Client IP Address	Select All to allow all computes to access the NBG-419N. Otherwise, check Selected and specify the IP address of the computer that can access the NBG-419N.
Apply	Click Apply to save your customized settings and exit this screen.
Reset	Click Reset to begin configuring this screen afresh.

Universal Plug-and-Play (UPnP)

23.1 Overview

This chapter introduces the UPnP feature in the web configurator.

Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices. A UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a device can leave a network smoothly and automatically when it is no longer in use.

23.2 What You Can Do

Use the UPnP screen (Section 23.4 on page 188) to enable UPnP on your NBG-419N.

23.3 What You Need to Know

UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP compatible device installed on your network will appear as a separate icon. Selecting the icon of a UPnP device will allow you to access the information and properties of that device.

23.3.1 NAT Traversal

UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions. NAT traversal allows the following:

• Dynamic port mapping

• Learning public IP addresses

• Assigning lease times to mappings

Windows Messenger is an example of an application that supports NAT traversal and UPnP.

See the NAT chapter for more information on NAT.

23.3.2 Cautions with UPnP

The automated nature of NAT traversal applications in establishing their own services and opening firewall ports may present network security issues. Network information and configuration may also be obtained and modified by users in some network environments.

When a UPnP device joins a network, it announces its presence with a multicast message. For security reasons, the NBG-419N allows multicast messages on the LAN only.

All UPnP-enabled devices may communicate freely with each other without additional configuration. Disable UPnP if this is not your intention.

23.4 UPnP Screen

Use this screen to enable UPnP on your NBG-419N.

Click Management > UPnP to display the screen shown next.

Figure 112 Management > UPnP

The following table describes the fields in this screen.

Table 72 Management > UPnP

LABEL	DESCRIPTION
Enable the Universal Plug and Play (UPnP) Feature	Select this check box to activate UPnP. Be aware that anyone could use a UPnP application to open the web configurator's login screen without entering the NBG-419N's IP address (although you must still enter the password to access the web configurator).
Apply	Click Apply to save the setting to the NBG-419N.
Cancel	Click Cancel to return to the previously saved settings.

23.5 Technical Reference

The sections show examples of using UPnP.

23.5.1 Using UPnP in Windows XP Example

This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the NBG-419N.

Make sure the computer is connected to a LAN port of the NBG-419N. Turn on your computer and the NBG-419N.

23.5.1.1 Auto-discover Your UPnP-enabled Network Device

1 Click start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway.
2 Right-click the icon and select Properties.

Figure 113 Network Connections

3 In the Internet Connection Properties window, click Settings to see the port mappings there were automatically created.

Figure 114 Internet Connection Properties

4 You may edit or delete the port mappings or click Add to manually add port mappings.

Figure 115 Internet Connection Properties: Advanced Settings

Figure 116 Internet Connection Properties: Advanced Settings: Add

Note: When the UPnP-enabled device is disconnected from your computer, all port mappings will be deleted automatically.

5 Select Show icon in notification area when connected option and click OK. An icon displays in the system tray.

Figure 117 System Tray Icon

6 Double-click on the icon to display your current Internet connection status.

Figure 118 Internet Connection Status

23.5.2 Web Configurator Easy Access

With UPnP, you can access the web-based configurator on the NBG-419N without finding out the IP address of the NBG-419N first. This comes helpful if you do not know the IP address of the NBG-419N.

Follow the steps below to access the web configurator.

1 Click Start and then Control Panel.
2 Double-click Network Connections.

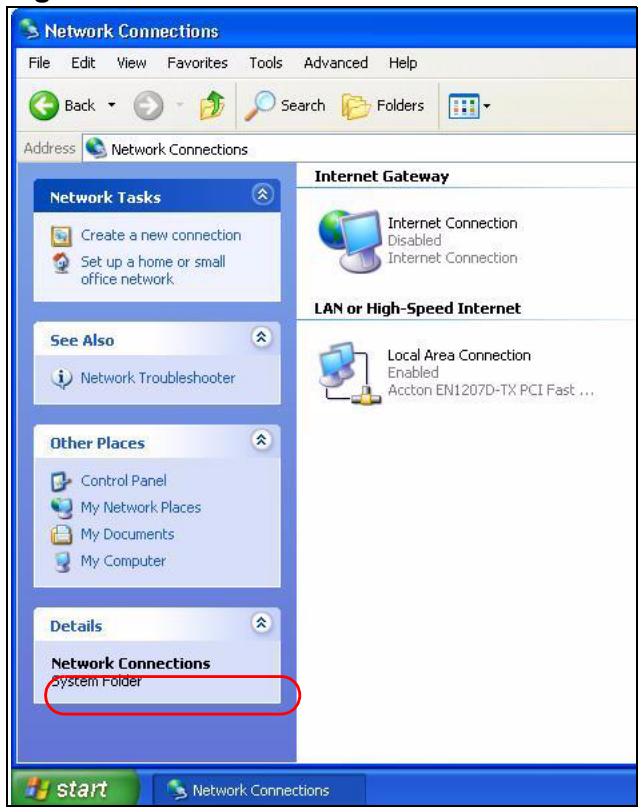

3 Select My Network Places under Other Places.

Figure 119 Network Connections

4 An icon with the description for each UPnP-enabled device displays under Local Network.
5 Right-click on the icon for your NBG-419N and select Invoke. The web configurator login screen displays.

Figure 120 Network Connections: My Network Places

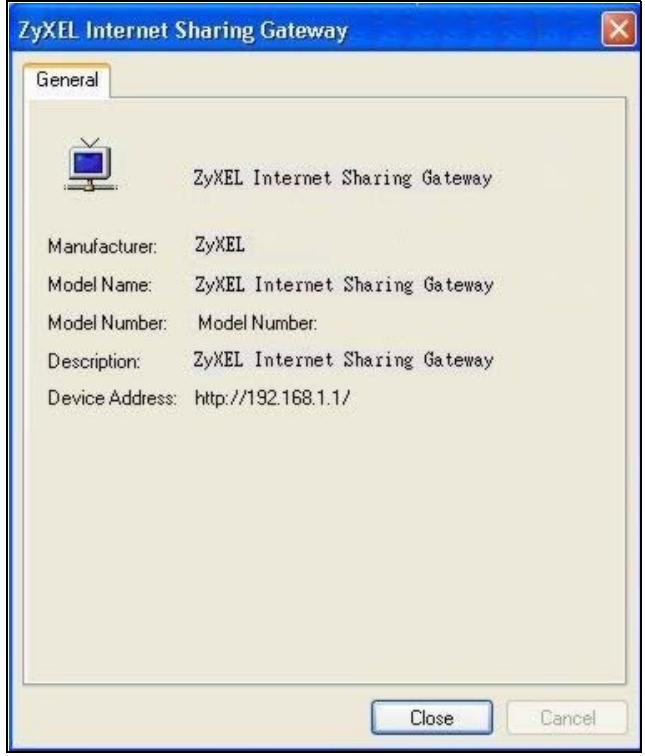

6 Right-click on the icon for your NBG-419N and select Properties. A properties window displays with basic information about the NBG-419N.

Figure 121 Network Connections: My Network Places: Properties: Example

PART V

Maintenance and

Troubleshooting

Maintenance (197)

Password (199)

Time (201)

Firmware Upgrade (205)

This chapter provides information on the Maintenance > General screen.

24.2 What You Can Do

• Use the General screen (Section 24.3 on page 197) to enter a name to identify the NBG-419N in the network and set the password.
• Use the Time Setting screen (Section 26.3 on page 201) to change your NBG-419N's time and date.

24.3 General Screen

Use this screen to enter a name to identify the NBG-419N in the network and set the password. Click Maintenance > General. The following screen displays.

Figure 122 Maintenance > General

The following table describes the labels in this screen.

Table 73 Maintenance > General

LABEL	DESCRIPTION
System Setup
System Name	System Name is a unique name to identify the NBG-419N in an Ethernet network.
Domain Name	Enter the domain name you want to give to the NBG-419N.
Administrator Inactivity Timer	Type how many minutes a management session can be left idle before the session times out. The default is 5 minutes. After it times out you have to log in with your password again. Very long idle timeouts may have security risks. A value of "0" means a management session never times out, no matter how long it has been left idle (not recommended).
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

Password

25.1 Overview

This chapter contains information about configuring general log settings and viewing the NBG-419N's logs. Refer to the appendices for example log message explanations.

The Web Configurator allows you to look at all of the NBG-419N's logs in one location.

25.2 What You Can Do

Use the View Log screen (Section 25.4 on page 200) to see the logs for the categories such as system maintenance, system errors, access control, allowed or blocked web sites, blocked web features, and so on.

25.3 What You Need to Know

An alert is a type of log that warrants more serious attention. They include system errors, attacks (access control) and attempted access to blocked web sites or web sites with restricted web features such as cookies, active X and so on. Some categories such as System Errors consist of both logs and alerts. You may differentiate them by their color in the View Log screen. Alerts display in red and logs display in black.

Alerts are e-mailed as soon as they happen. Logs may be e-mailed as soon as the log is full (see Log Schedule). Selecting many alert and/or log categories (especially Access Control) may result in many e-mails being sent.

25.4 Password Screen

Use the View Log screen to see the logged messages for the NBG-419N. Options include logs about system maintenance, system errors, access control, allowed or blocked web sites, blocked web features (such as ActiveX controls, Java and cookies), attacks (such as DoS) and IPSec.

Log entries in red indicate system error logs. The log wraps around and deletes the old entries after it fills. Click a column heading to sort the entries. A triangle indicates ascending or descending sort order.

Click Maintenance > Password.

Figure 123 Maintenance > Password

The following table describes the labels in this screen.

Table 74 Maintenance > Password

LABEL	DESCRIPTION
Password Setup	Change your NBG-419N's password (recommended) using the fields as shown.
Old Password	Type the default password or the existing password you use to access the system in this field.
New Password	Type your new system password (up to 30 characters). Note that as you type a password, the screen displays an asterisk (*) for each character you type.
Retype to Confirm	Type the new password again in this field.
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

26.1 Overview

This chapter provides information on the Time Setting screens. See Section 3.2.3 on page 39 for more information on how to set up the NBG-419N's date and time.

26.2 What You Can Do

Use the Time Setting screen (Section 26.3 on page 201) to change your NBG-419N's time and date.

26.3 Time Setting Screen

Use this screen to configure the NBG-419N's time based on your local time zone. To change your NBG-419N's time and date, click Maintenance > System > Time Setting. The screen appears as shown.

Figure 124 Maintenance > Time

he following table describes the labels in this screen.

Table 75 Maintenance > Time

LABEL	DESCRIPTION
Current Time and Date
Current Time	This field displays the time of your NBG-419N. Each time you reload this page, the NBG-419N synchronizes the time with the time server.
Current Date	This field displays the date of your NBG-419N. Each time you reload this page, the NBG-419N synchronizes the date with the time server.
Current Time and Date
Manual	Select this radio button to enter the time and date manually. If you configure a new time and date, Time Zone and Daylight Saving at the same time, the new time and date you entered has priority and the Time Zone and Daylight Saving settings do not affect it.
New Time (hh:mm:ss)	This field displays the last updated time from the time server or the last time configured manually. When you set Time and Date Setup to Manual, enter the new time in this field and then click Apply.
New Date (yyyy/mm/dd)	This field displays the last updated date from the time server or the last date configured manually. When you set Time and Date Setup to Manual, enter the new date in this field and then click Apply.
Get from Time Server	Select this radio button to have the NBG-419N get the time and date from the time server you specified below.
Auto	Select Auto to have the NBG-419N automatically search for an available time server and synchronize the date and time with the time server after you click Apply.
User Defined Time Server Address	Select User Defined Time Server Address and enter the IP address or URL (up to 20 extended ASCII characters in length) of your time server. Check with your ISP/network administrator if you are unsure of this information.
Time Zone Setup
Time Zone	Choose the time zone of your location. This will set the time difference between your time zone and Greenwich Mean Time (GMT).
Daylight Savings	Daylight saving is a period from late spring to early fall when many countries set their clocks ahead of normal local time by one hour to give more daytime light in the evening. Select this option if you use Daylight Saving Time.

Table 75 Maintenance > Time

LABEL	DESCRIPTION
Start Date	Configure the day and time when Daylight Saving Time starts if you selected Daylight Savings. The o'clock field uses the 24 hour format. Here are a couple of examples:Daylight Saving Time starts in most parts of the United States on the first Sunday of April. Each time zone in the United States starts using Daylight Saving Time at 2 A.M. local time. So in the United States you would select First, Sunday, April and type 2 in the o'clock field.Daylight Saving Time starts in the European Union on the last Sunday of March. All of the time zones in the European Union start using Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So in the European Union you would select Last, Sunday, March. The time you type in the o'clock field depends on your time zone. In Germany for instance, you would type 2 because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
End Date	Configure the day and time when Daylight Saving Time ends if you selected Daylight Savings. The o'clock field uses the 24 hour format. Here are a couple of examples:Daylight Saving Time ends in the United States on the last Sunday of October. Each time zone in the United States stops using Daylight Saving Time at 2 A.M. local time. So in the United States you would select Last, Sunday, October and type 2 in the o'clock field.Daylight Saving Time ends in the European Union on the last Sunday of October. All of the time zones in the European Union stop using Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So in the European Union you would select Last, Sunday, October. The time you type in the o'clock field depends on your time zone. In Germany for instance, you would type 2 because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
Apply	Click Apply to save your changes back to the NBG-419N.
Reset	Click Reset to begin configuring this screen afresh.

Firmware Upgrade

27.1 Overview

This chapter shows you how to upload a new firmware, upload or save backup configuration files and restart the NBG-419N.

27.2 What You Can Do

Use the Firmware screen (Section 27.3 on page 205) to upload firmware to your NBG-419N.

27.3 Firmware Upload Screen

Find firmware at www.zyxel.com in a file that (usually) uses the system model name with a“.*.bin” extension, e.g., “NBG-419N.bin”. The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot.

Click Maintenance > Firmware Upgrade. Follow the instructions in this screen to upload firmware to your NBG-419N.

Figure 125 Maintenance > Firmware Upgrade

The following table describes the labels in this screen.

Table 76 Maintenance > Firmware Upgrade

LABEL	DESCRIPTION
File Path	Type in the location of the file you want to upload in this field or click Browse... to find it.
Browse...	Click Browse... to find the .bin file you want to upload. Remember that you must decompress compressed (.zip) files before you can upload them.
Upload	Click Upload to begin the upload process. This process may take up to two minutes.

Note: Do not turn off the NBG-419N while firmware upload is in progress!

After you see the Firmware Upload In Process screen, wait two minutes before logging into the NBG-419N again.

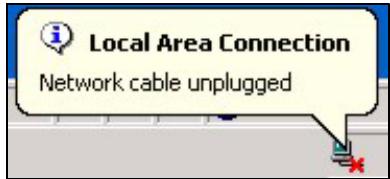

The NBG-419N automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop.

Figure 126 Network Temporarily Disconnected

After two minutes, log in again and check your new firmware version in the Status screen.

If the upload was not successful, an error message appears. Click Return to go back to the Firmware screen.

Backup/Restore

28.1 Overview

This chapter shows you how to backup, restore and reset your NBG-419N.

Backup configuration allows you to back up (save) the NBG-419N's current configuration to a file on your computer. Once your NBG-419N is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings.

Restore configuration allows you to upload a new or previously saved configuration file from your computer to your NBG-419N.

28.2 What You Can Do

Use the Backup/Restore screen (Section 28.3 on page 208) to view information related to factory defaults, backup configuration, and restoring configuration.

28.3 Configuration Screen

Click Maintenance > Backup/Restore. Information related to factory defaults, backup configuration, and restoring configuration appears as shown next.

Figure 127 Maintenance > Backup/Restore

The following table describes the labels in this screen.

Table 77 Maintenance > Backup/Restore

LABEL	DESCRIPTION
Backup	Click Backup to save the NBG-419N's current configuration to your computer.
File Path	Type in the location of the file you want to upload in this field or click Browse... to find it.
Browse...	Click Browse... to find the file you want to upload. Remember that you must decompress compressed (.ZIP) files before you can upload them.

Table 77 Maintenance > Backup/Restore

LABEL	DESCRIPTION
Upload	Click Upload to begin the upload process.Note: Do not turn off the NBG-419N while configuration file upload is in progress.After you see a "configuration upload successful" screen, you must then wait one minute before logging into the NBG-419N again. The NBG-419N automatically restarts in this time causing a temporary network disconnect.If you see an error screen, click Back to return to the Backup/Restore screen.
Reset	Pressing the Reset button in this section clears all user-entered configuration information and returns the NBG-419N to its factory defaults.You can also press the RESET button on the rear panel to reset the factory defaults of your NBG-419N. Refer to the chapter about introducing the Web Configurator for more information on the RESET button.

Note: If you uploaded the default configuration file you may need to change the IP address of your computer to be in the same subnet as that of the default NBG-419N IP address (192.168.1.1). See Appendix C on page 251 for details on how to set up your computer's IP address.

29.1 Overview

This chapter shows you how to restart your NBG-419N.

29.2 What You Can Do

Use the Reset/Restart screen (Section 29.3 on page 211) to reboot the NBG-419N without turning the power off.

29.3 Reset/Restart Screen

System restart allows you to reboot the NBG-419N without turning the power off.

Click Maintenance > Reset/Restart to open the following screen.

Figure 128 Maintenance > Reset/Restart

Click Restart to have the NBG-419N reboot. This does not affect the NBG-419N's configuration.

Sys OP Mode

30.1 Overview

The Sys OP Mode (System Operation Mode) function lets you configure your NBG-419N as a router, access point or Wireless ISP (WISP) client. You can choose between Router Mode, Access Point Mode and WISP Mode depending on your network topology and the features you require from your device.

See Section 5.1.2 on page 49 for more information on which mode to choose.

30.2 What You Can Do

Use the Sys OP Mode screen (Section 30.4 on page 215) to select how you want to use your NBG-419N.
