T.sonic'" 520 User's Manual

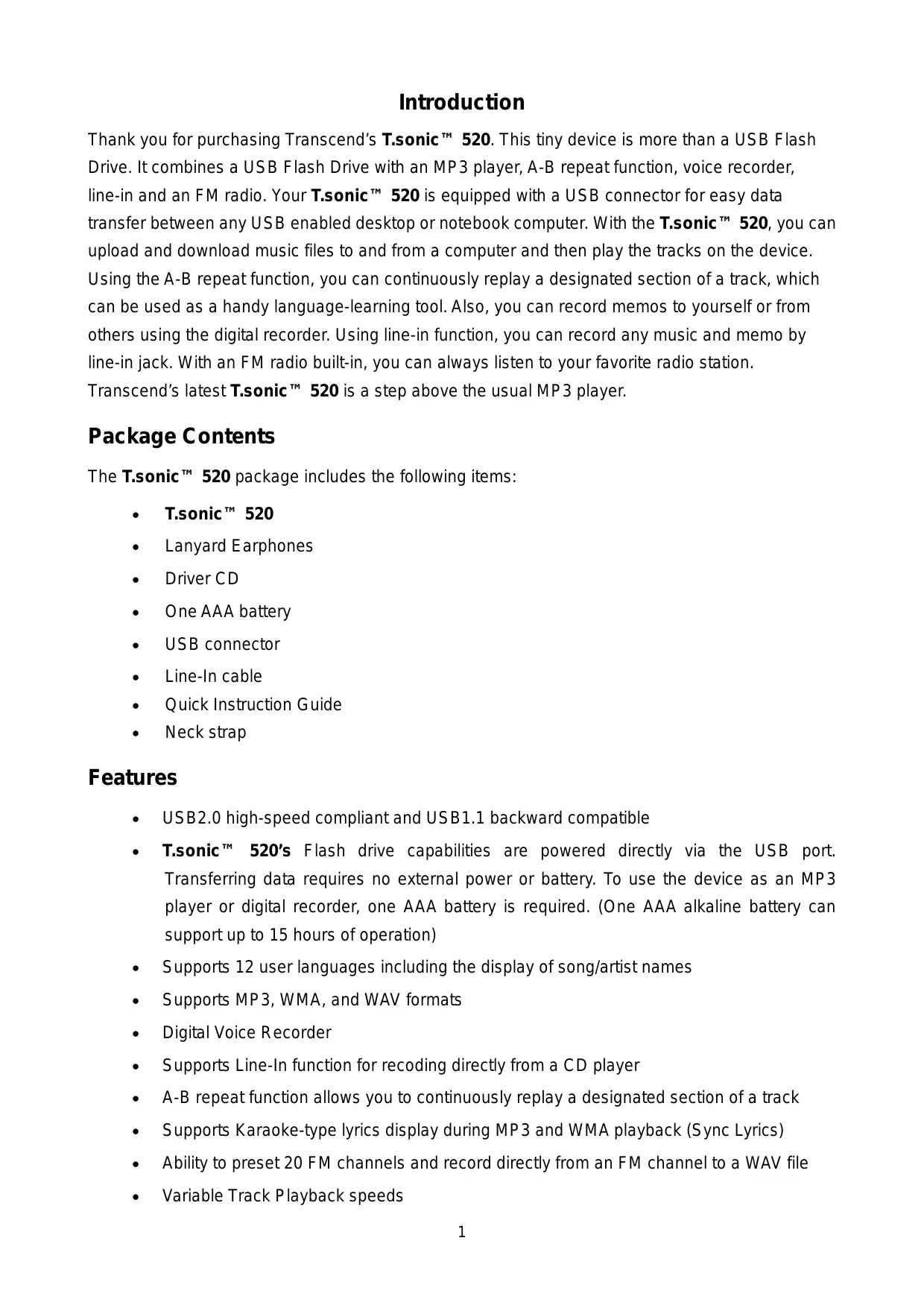

Introduction Thank you for purchasing Transcend's T.sonic" 520. This tiny device is more than a USB Flash Drive. It combines a USB Flash Drive with an MP3 player, A-B repeat function, voice recorder, line-in and an FM radio. Your T.sonic" 520 is equipped with a USB connector for easy data transfer between any USB enabled desktop or notebook computer. With the T.sonic"" 520, you can upload and download music files to and from a computer and then play the tracks on the device. Using the A-B repeat function, you can continuously replay a designated section of a track, which can be used as à handy language-learning tool. Also, you can record memos to yourself or from others using the digital recorder. Using line-in function, you can record any music and memo by line-in jack. With an FM radio built-in, you can always listen to your favorite radio station. Transcend's latest T.sonic" 520 is a step above the usual MP3 player. Package Contents The T.sonic"" 520 package includes the following items: + T.sonic” 520 + Lanyard Earphones + Driver CD + One AAA battery + USB connector + Line-In cable + Quick Instruction Guide + Neckstrap Features + USB2.0 high-speed compliant and USB1.1 backward compatible + T.sonic" 520's Flash drive capabilities are powered directly via the USB port. Transferring data requires no external power or battery. To use the device as an MP3 player or digital recorder, one AAA battery is required. (One AAA alkaline battery can support up to 15 hours of operation) + Supports 12 user languages including the display of song/artist names + __ Supports MP3, WMA, and WAV formats

• Digital Voice Recorder + __ Supports Line-In function for recoding directly from a CD player *__A-B repeat function allows you to continuously replay a designated section of a track + Supports Karaoke-type lyrics display during MP3 and WMA playback (Sync Lyrics)

• _ Ability to preset 20 FM channels and record directly from an FM channel to a WAV file + Variable Track Playback speeds

+ 7 Equalizer effects, including a customizable USER EQ setting

• Auto-powers off after 2, 10, or 30 minutes of no usage + __Self-luminous blue-colored OLED Display provides users with a vibrant clear display and vivid colors, that can easily be viewed at any angle + Automatic screen saver function runs if the unit is idle for a few seconds this acts as a power saving measure System Requirements Desktop or notebook computer with a working USB port One of following operating systems: Windows 98/98SE Windows® Me Windows® 2000 Windows® XP Mac" OS 10.0 or later Linux" Kernel 2.4 or later Reminders

Keep your T.sonic" 520 away from heat, direct sunlight, and moisture. Do not bend, flex, or drop your T.sonic"”" 520. Make sure the LOCK switch is set to “OFF” before trying to Power-On the unit. Always plug or unplug your T.sonicrM 520 by grasping the units sides. Follow the procedures in the “Safely Remove Your T.sonicrM 520” section to remove your T.sonicTM 520 from the system. Caution: Risk of Deafness

Repeated or regular use of headphones or earphones at volume levels above 80 decibels can give a false impression that the audio level is not high enough. End users may try to progressively increase the volume control therefore risking a dangerous noise level for their ears. To protect your health and your hearing, keep the volume for your MP3 player below 80 decibels and do not use for an extended period of time. Stop use if symptoms like headaches, nausea, or hearing disorders occur. Your MP3 player is limited to a volume level of 100 decibels. Both the MP3 player and the earphones are compliant with the French regulation concerning musical Walkmans (24 | uly 1998 Order). Before using other headphones, confirm that their technical specifications are

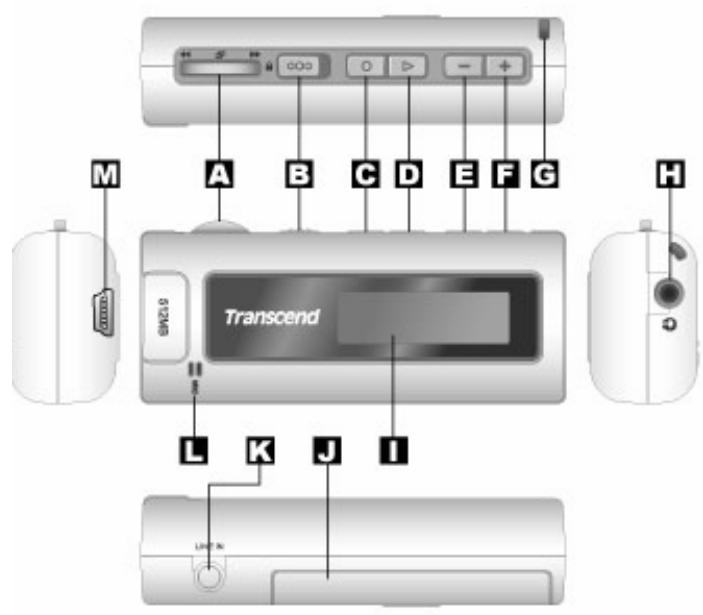

compatible with the original set. nas Product Overview EX Menu Switch æ#æ Menu (In) ») Next / Fast-forward (Right) =L+} æ Previous / Rewind (Left) | EH LOCK Switch E) G D BG CG AB Repeat / REC Button C2 PLAY-PAUSE / PWR ON Button EH = Volume Down (Down) °. KH# Volume Up (Up) [Œ Neck Strap Hole [1] Earphone Jack [I OLED Display Æ] Battery Cover EX Line-In Jack LS Microphone [2 Mini USB Connector @ Play Mode Indicates the play mode, which includes MP3, FM and REC. ® Volume Displays the volume level. ® A-B Repeat/ |ndicates A-B repeat function is enabled. //Indicates the repeat mode Repeat Mode which includes Normal, Repeat One, RepeatAll, Random, Normal in a Folder, Repeat One in a Folder, and Random in a Folder. ® EQ Mode /VAD Indicates the EQ mode which includes Normal, POP, Rock, Classical, J azz, Bass and User EQ./’Indicates VAD (Voice Activation Detection) function is enabled or not when recording. @ Operating Mode Displays the operational status which includes Play, Pause, Fast Forward, and FastRewind. ® Play Speed / Recording Rate Indicates the Playback Speed for playing the MP 3/WMA/WAV files. Indicates the Recording Rate that includes 8000Hz, 16000Hz and 32000Hz. © introduction Mode Recording Device Indicates if the song introduction function (1 to 10 seconds) is enabled.//Indicate if the Line-In, or built-in Microphone is being used. ® Battery Status Indicates the Battery Status. @ Lock Indicates when the Lock switch is enabled.

Basic Operation Power ON Press and hold the PLAY-PAUSE/PWR ON Bi button to turn the power on. An animated logo will appear on the OLED Display, and then you can start to use the T.sonicTM 520. T.sonie Famil , nn nsc Transcend T'ANScENT DanscuHt T.sonic 520

+ The waiting time for Power On is about 3 seconds. + _Ifa “LOCK” message appears on the OLED Display when you attempt to Power-ON the unit; this means thatthe T.sonic"”" 520's LOCK switch is activated. You must deactivate the LOCK switch before you can Power-ON the T.sonic" 520. Power OFF % Press and hold the PLAY-PAUSE/PWR ON Bi button to turn the power off. % The waiting time for Power OFF is about 3 seconds. + The OLED Display will show the Power OFF status. EbCC Essvins Data] ECC Esavina Data] ECC Esavina Data Play a Track Press the PLAY-PAUSE/PWR ON Bi button to play an MP 3/WMA or WAV track. Pause a Track Press the PLAY-PAUSE/PWR ON Bi button to pause the track during playback. Advance to the Next Track Push the Menu Switch to the right (Next) Bi to skip to the nexttrack. Return to Previous Track Push the Menu Switch to the left (Previous) ÆÙ to go back to the previous track. Fast Forward Push and hold the Menu Switch to the right (Fast-forward) M to fast-forward the track. Rewind Push and hold the Menu Switch to the left (Rewind) Æÿ to rewind the track.

Increase Volume Press once or press and hold the upwards (Volume Up) ski until you have reached the desired volume level. Decrease Volume Press once or press and hold the downwards (Volume Down) = until you have reached the desired volume level. Repeat a Track Please see the “Repeat Mode” in the “Settings” section for detailed instructions. Repeat All Tracks Please see the “Repeat Mode” in the “Settings” section for detailed instructions. Play Random Tracks Please see the “Repeat Mode” in the “Settings” section for detailed instructions. Repeat All Tracks in a Folder Please see the “Repeat Mode” in the “Settings” section for detailed instructions. Play Random Tracks in a Folder Please see the “Repeat Mode” in the “Settings” section for detailed instructions. Repeat a section of a Track (A-B Repeat) Press the A-B/REC @J button to mark the beginning of the track's portion you wish to repeat and then press the button again to mark the end ofthe portion you wish to repeat. The marked portion is played as a continuous loop when playing an MP3, WMA, or WAV track. Lock When the LOCK switch is setto the “ @” position, all of the Player's buttons are disabled.

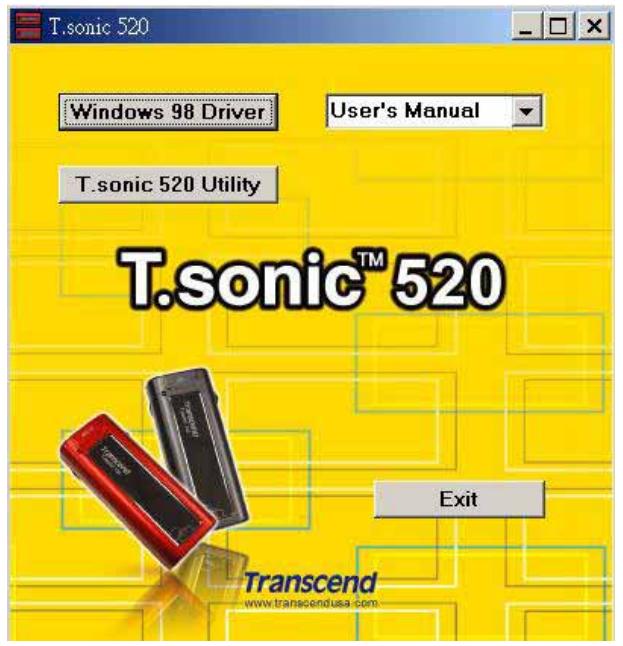

Driver Installation Driver Installation for Windows® 98SE

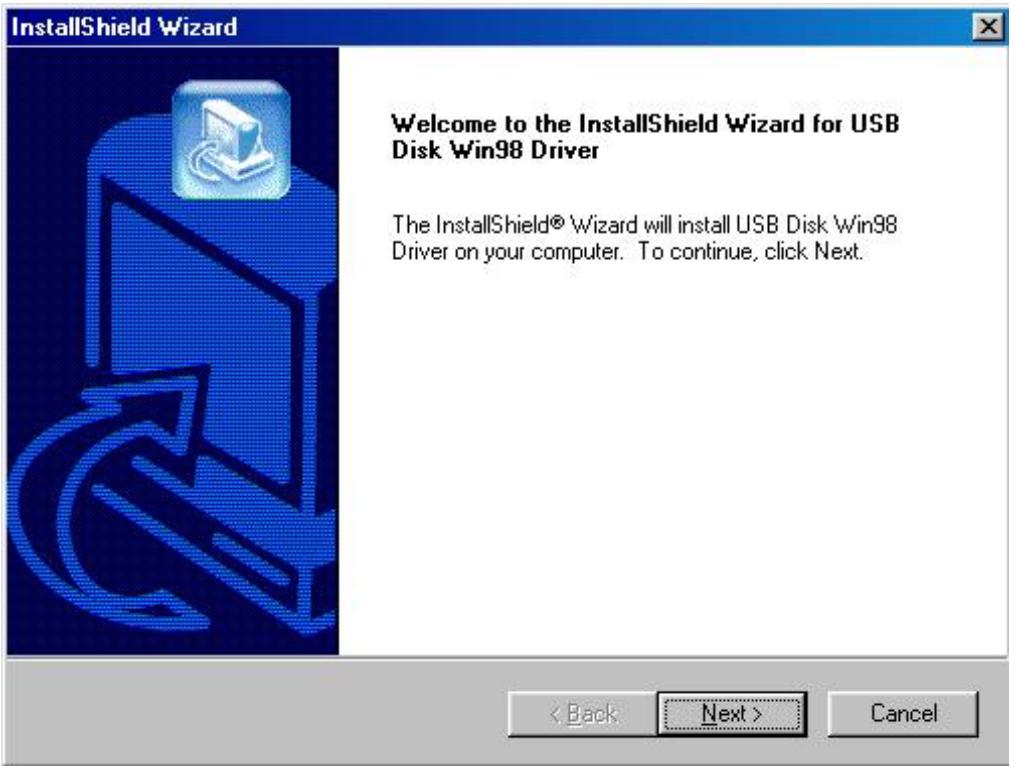

3. The InstallShield Wizard will guide you through the installation process.

4. After the drivers have been installed, plug your T.sonicrM 520 into an available USB port. The

New Hardware Found dialogue boxes will appear.

5. Your computer will automatically detect this new device. À new Removable Disk drive with a

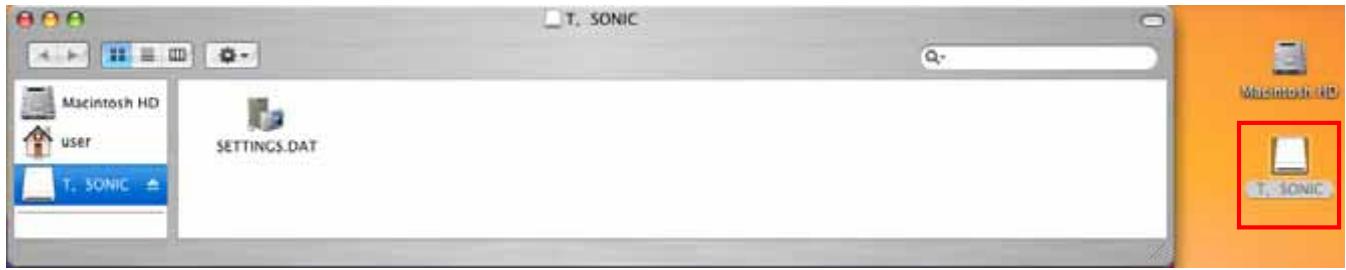

newly assigned drive letter will appear in the My Computer window. Driver Installation for Windows® Me, 2000 and XP No drivers are required. These Windows operating systems have built-in drivers to support the T.sonicTM 520. Simply plug your T.sonicTM 520 into an available USB port and Windows will install the files needed. À new Removable Disk drive with a newly assigned drive letter will appear in the My Computer window. Driver Installation for Mac" OS 10.0 or Later No drivers are required. J ust plug your T.sonicM 520 into an available USB port and your computer will automatically detect it. _T. soie tn) Driver Installation for Linux'" Kernel 2.4 or Later No drivers are required. J ust plug your T.sonicTM 520 into the USB port and mount it. Example: 1. Create directory for /mnt/T.sonic first: mkdir /mnt/T.sonic

mount -a -t msdos /dev/sdal /mnt/T.sonic Warning

1. When connected to a computer, the T.sonicTM 520 is locked into

transferring files only. It will not be able to play or record any files at this à time. Please disconnect your T.sonicT" 520 from the computer when you want to play or record files.

2. Audio files (MP3/WMA/WAV) must be organized on the T.sonic” 520, so

that they are no more than 4 levels from the root directory.

3. During normal Playback, the T.sonic" 520's song list will play according to

the order in which the tracks were loaded onto the device.

4. T.sonic" 520 is limited to 255 characters for a file name.

Insert the small end of the USB cable into the T.sonic"M 520's USB port, and plug the other end of the cable into a computer's USB port. A new Removable Disk drive with a newly assigned drive letter will appear in the My Computer window. The OLED Display will show the READY message below to indicate the ready status. ÉD] READY

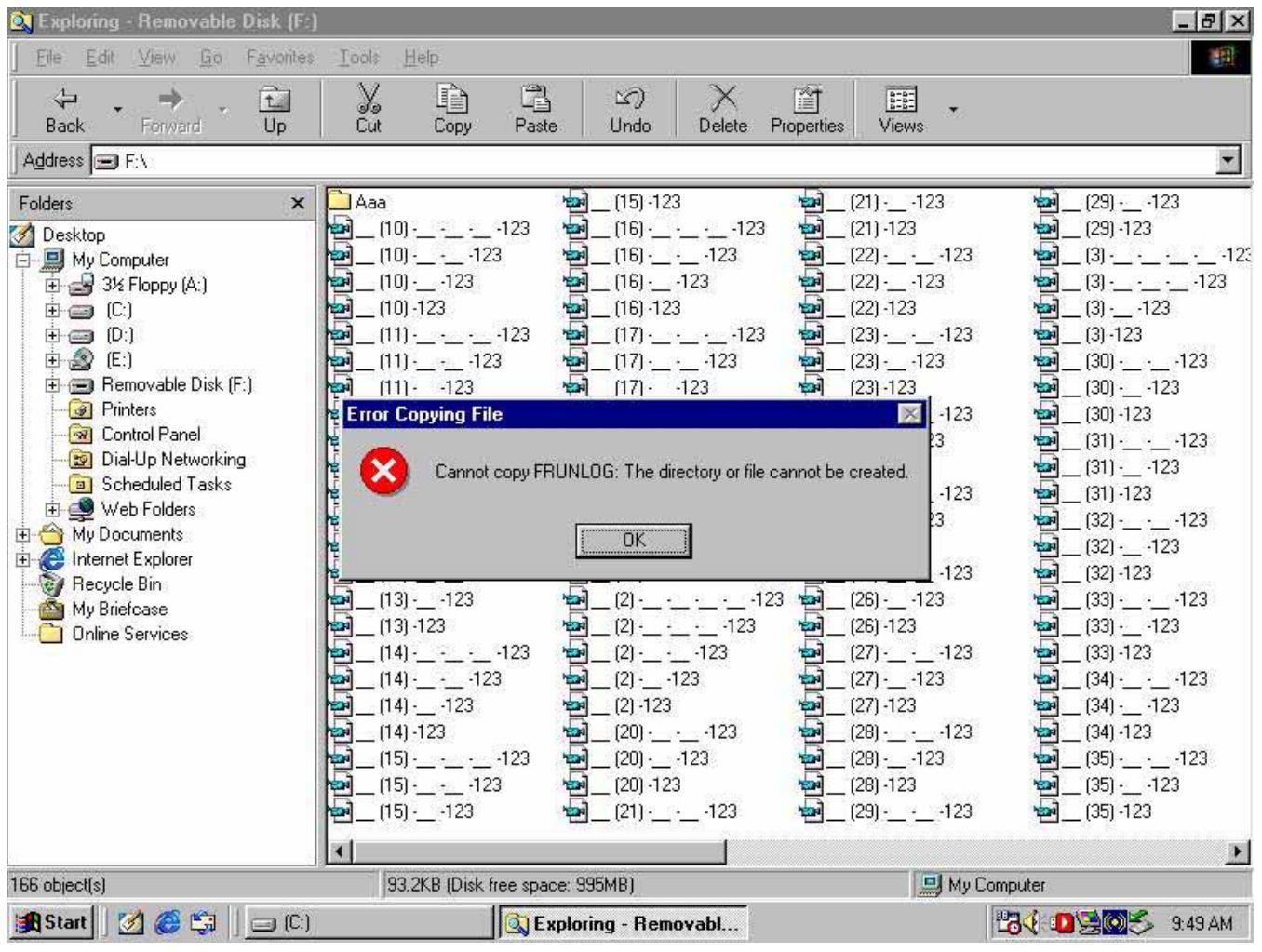

If you download files from the computer, the OLED Display will show the WRITE message as below. CIWRITE, Ên USE If you upload files to the computer, the OLED Display will show the READ message as below. D | .READ ba LEE When finishing downloading or uploading, the OLED Display will return to the READY status. As a result of a Microsoft Windows OS limitation, if you try to transfer too many files to the T.sonic 520 when it is formatted using the FAT16 file system, Windows will display an "Error Copying File" message even though you may have enough memory capacity. If this error message appears you should remove the files that you just copied, create a new folder in the root directory and transfer the files into this folder.

1. When first time press and hold the PLAY-PAUSE/PWR ON BJ button to turn the power on, the

3. Push the Menu Switch to the right (Next) Bi or to the left (Previous) Æ, to select a desired

4. Press the PLAY-PAUSE/PWR ON Ba button to play the MP3/WMA music file.

% T.sonicrM 520 only supports Mpeg | Layer 3 and WMA files compressed at a rate of 32Kbps - 320Kbps. Navigation Function The Navigation function allows you to easily move between tracks, files and folders. + _In MUSIC mode. Press and hold the Menu Switch inwards (Menu) Æ to enter the Navigation Function. NI TRANSCEND *< Push the Menu Switch to the right (Next) BB or to the left (Previous) ÆÙ to select a desired MP3/WMA file, or folder. + _ Press the PLAY-PAUSE/PWR ON Bi button to enter the selected folder or to play a selected MP3/WMA music file. Or press the Menu Switch inwards (Menu) Æ to move up one folder level. + __ Press the Menu Switch inwards (Menu) Æ to move up one folder level repeatedly to reach the root directory (top level folder). -__Ifyou are atthe root directory (top level folder), you can press the Menu Switch inwards (Menu) Æ to quit the navigation function. A-B Repeat Function Follow the procedures below, to repeat a portion of a track.

1. While Playing an MP3/WMA, or WAV track.

+ Press the A-B/REC [@J button to tag the beginning of the track's portion you wish to repeat. The ‘A symbol will be displayed on the OLED Display. BS00D-Her + Press the A-B/REC @®J button again to tag the end of the track's portion you wish to repeat. The ‘A-B’ symbol will be displayed on the OLED Display, and the tagged portion will play as a continuous loop. BS00D-Her

• To resume normal playback, press the A-B/REC ®®J button again.

FM Functions (Radio) Enter FM Mode

2. The FM radio frequency will be shown on the OLED Display.

+ Onthe first time of usage and for your convenience all the FM channels will be automatically scanned once and the first 20 channels with a strong signal will be preset. + Forthe best possible reception in the FM mode, please ensure that the earphones are correctly plugged into the T.sonicTM 520. If there is no earphone in the Earphone J ack, the OLED Display will show the following message to ask for plugging the earphones. Please plug inthe earphone to listen to FM Scan for a Channel Push the Menu Switch to the right (Next) 2 or to the left (Previous) # once to adjust the FM frequency by 0.1MHz steps to select your favorite channel. Or push and hold the Menu Switch to the right (Next) 2 or to the left (Previous) #8 to quickly auto-scan for the next channel. Save a Channel You can save your 20 favorite radio channels from CH 01 to CH 20 to in the T.sonic" 520's memory.

1. Select a desired channel (frequency) first.

2. Press the A-B/REC l@J button, and the screen will display the 20 channel numbers.

Select Preset? 96.3 mhz vi02403040s

3. Push the Menu Switch to the right (Next) Bi or to the left (Previous) Æ# to select the channel

number you want to save.

Press the A-B/REC l@J button, and the screen will display the 20 channel numbers. Select Preset? 96.3 mhz vi02403040s Push the Menu Switch to the right (Next) Bi or to the left (Previous) ÆÙ to selectthe channel number you want to use. Press the PLAY-PAUSE/PWR ON Bi button to selectthe preset channel. Éetting Preset. 96.3 nur vi02 4030405 The desired stored favorite channel will appear on the OLED display. Record an FM Channel

Select a desired channel. Press and hold the A-B/REC I button for more than 2 seconds, and then the selected channel will start being recorded. On the display, a recording FM file is generated and placed in the folder name of [/FMIN.DIR/]. The recording file name sequence starts at [FMO00001.WAV], then [FM000002.WAV], and so forth. Press the PLAY-PAUSE/PWR ON BJ button to pause the recording, and press the PLAY-PAUSE/PWR ON Bi button again to continue. Press the A-B/REC @J button again to stop the recording and the display will return to the previous FM status screen. Sample rate Channels 512MB 1GB 8 KHz 2 (stereo) 16 hrs 32 hrs FM Record 16 KHz 2 (stereo) 8hrs 16 hrs 32 KHz 2 (stereo) 4hrs 8hrs + The T.sonic" 520 will not be able to support the maximum recording capacity described in the above table if the memory space and/or the battery power level are smaller than shown on the table.

Recording Functions Select Voice Source for Recording There are 3 kinds of the voice source for recording: FM, Line-In, and the built-in Microphone. About the FM recording, the previous section has already mentioned. As for how to select the voice source (Line-In or the built-in Microphone) for recording, please see the sub-section “Select Recording Device Mode” of the section “Settings” for details. Record a Voice

Once you have pre-selected the recording device, you can begin voice recording. Notice that you should not play any files before recording. Press the A-B/REC I button, and then the voice from the selected device will start recording. If you select the Line-In to be the recording device. On the display, a recording Line-In file is generated and placed in the folder name of [/LINEIN.DIR/]. The recording file name sequence starts at [LINEO001.WAV], then [LINEO002.WAV] and so forth. If you select the built-in Microphone Microphone file is generated and placed in the folder n uevE à EQUNEZ]

D4:01:048 LINEOOO! VAT to be the recording device. On the display, a recording ame of [/MICIN.DIR/]. The recording file name sequence starts at [MICO0001.WAV], then [MICO0002.WAV], and so forth.

RUE ie] K DR er Press the PLAY-PAUSE/PWR ON BJ button to pause the recording, and press the PLAY-PAUSE/PWR ON Bi button again to continue. Press the A-B/REC @J button again to stop the recording and the display will return to the VOICE mode screen. Sample rate Channels 512MB 1GB 8 KHz 2 (stereo) 16 hrs 32 hrs Line-In Record 16 KHz 2 (stereo) 8 hrs 16 hrs 32 KHz 2 (stereo) 4hrs 8hrs Microphone Sample rate Channels 512MB 1GB Record 8KHz 1 (Mono) 32hrs 64 hrs

16 KHz 1 (Mono) 16 hrs 32 hrs 32 KHz 1 (Mono) 8hrs 16 hrs The T.sonic" 520 will not be able to support the maximum recording capacity described in the above table if the memory space and/or the battery power level are smaller than shown on the table. Besides, for a better recording quality, move the microphone of your T.sonicTM 520 closer to the source of the voice. Voice Functions Play the Recorded Files To play the files recorded from the FM, Line-In, built-in Microphone.

MICOOOO MAT Push the Menu Switch to the right (Next) Bi or to the left (Previous) Æ# to select a desired file. Press the PLAY-PAUSE/PWR ON Bi button to play the selected voice file. Delete Functions Delete MP3/WMA/WAV Files To delete the MP3/WMA/WAV files:

Press the Menu Switch inwards Æ to enter the main menu. Select the Delete icon, and then press the Menu Switch inwards A again to enter the Delete function. On the OLED Display, first you can see the root directory (top level folder) and all directories. Push the Menu Switch to the right (Next) 2 or to the left (Previous) ÆÙ to select the folder you want to enter or the file you want to delete. Press the PLAY-PAUSE/PWR ON Bi button again to enter the selected folder or the delete dialog screen. Or press the Menu Switch inwards (Menu) Æ to move up one folder level.

5. If you are atthe delete dialog screen, you will be asked for choosing the “Yes” or “No”item.

6. Push the Menu Switch to the right (Next) Bi or to the left (Previous) Æ# to select the Yes”

item and press the PLAY-PAUSE/PWR ON Bi] button again to delete the file.

7. Push the Menu Switch to the right (Next) DB or to the left (Previous) Æ to select the “No”

item and press the PLAY-PAUSE/PWR ON BJ button again to exit the delete dialog screen. Ki Qves Ki ® Yes l S No l © No

8. Press the Menu Switch inwards (Menu) Æ to move up one folder level repeatedly to reach the

root directory (top level folder).

Repeat Mode Select a desired playback repeat mode to suit your personal taste: Normal, Repeat One, Repeat All, Random, Normal within Folder, Repeat All within Folder and Random within Folder.

1. Push the Menu Switch to the right (Next) Bi or to the left (Previous) M to select the Repeat

icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Push the Menu Switch to the right (Next) Bi or to the left (Previous) ÆfÙ to change the repeat

mode. Press the Menu Switch inwards Æ again to complete the Repeat setting.

Hormal in Folder Repeat in Folder Equalizer (EQ) Mode Select a desired EQ mode to suit your personal taste: Normal, Pop, Rock, Classical, J azz, BASS or User EQ.

1. Push the Menu Switch to the right (Next) D or to the left (Previous) Æ to select the

Equalizer icon in the Settings, and then press the Menu Switch inwards Æ to enter. ul EE Ke? Equalizer

2. Push the Menu Switch to the right (Next) Bi or to the left (Previous) ÆÙ to change the EQ

mode. Press the Menu Switch inwards Æ again to selectthe EQ setting. You will immediately be able to hear the change through your earphones. Set User EQ Adjust the customizable 5 Band Equalizer settings to your personal preferences.

1. Inthe Equalizer Settings push the Menu Switch to the right (Next) Bi or to the left (Previous)

# to select the Set User EQ icon, and then press the Menu Switch inwards (Menu) # to enter.

2. Push the Menu Switch to the right (Next) Bi or to the left (Previous) #8 to switch between

the Equalizer frequency bands, press the (Volume Up) #k) or (Volume Down) Æ« buttons to adjust the EQ levels from -8dB to +7dB in 1.0dB steps. ile

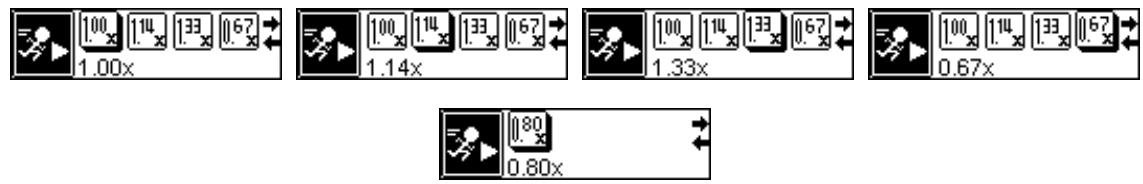

Play Speed Mode Select a desired speed mode to suit your personal taste: 1x, 1.14x,1.33x, 0.67x and 0.8x.

1. Push the Menu Switch to the right (Next) B or to the left (Previous) #ÿ to select the

Speed icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Push the Menu Switch to the right (Next) 2 or to the left (Previous) Æ#û to change the

speed mode. Press the Menu Switch inwards Æ again to complete the Speed setting. Introduction Mode Select a desired introduction mode to suit your personal taste: 0 to 10 seconds. LME Introduction

1. Push the Menu Switch to the right (Next) 2 or to the left (Previous) Æ# to selectthe

Introduction icon in the Settings, and then press the Menu Switch inwards & to enter.

2. Push the Menu Switch to the right (Next) Bi or to the left (Previous) # to set the

time interval for Introduction when playing MP3/WMA/WAV files. Press the Menu Switch inwards #1 again to complete the Introduction setting. Select Recording Device Mode Select the voice source ( Line-In or the built-in Microphone) for recording.

1. Push the Menu Switch to the right (Next) Bi or to the left (Previous) # to select the

Select Recording Device icon in the Settings, and then press the Menu Switch inwards # to enter. Microphone

2. Push the Menu Switch to the right (Next) Bi or to the left (Previous) # to select the

recording device: LINE item (stands for Line-In) or MIC item (stands for the built-in Microphone). Press the Menu Switch inwards #1 again to complete the Recording

3. If you selectthe LINE item (Line-In) without plugging in the Line-In cable, the device

will display the message, "Please plug in the Line-In cable" on the OLED screen. [in] Flease plug in the Line-In cable. Power Saving Mode Sets a power saving timer to turn off your T.sonicT"M 520 automatically.

1. Push the Menu Switch to the right (Next) 8 or to the left (Previous) Æ#U to select the Power

Saving icon in the Settings, and then press the Menu Switch inwards (Menu) Æ to enter.

2. Pushthe Menu Switch to the right (Next) Bi or to the left (Previous) #ÿ to change the Power

Saving settings. Press the Menu Switch inwards (Menu) Æ again to complete the Power Saving changes. E 2 Min. Disable 2 Min. 10 Win. 30 Min Û 30 Min Disakle 10 Win. 30 Min Disable _2 Win. 10 Min. SM

3. If you select 2MIN, 10MIN or 30MIN, the T.sonicr" 520 will turn the power off automatically

after 2, 10 or 30 minutes, if the Player encounters idle time (not playing music or listening to the FM radio). If you select DISABLE, the T.sonicrM 520 will always remain on provided there is ample battery power. Language Mode Sets the language option to support the filename or ID3 (ID3 provides textual information aboutthe music file, such as title, artist etc.) tag display of the MP3/WMA files. If there is an 1D3 tag for the MP 3/WMA file, it will be displayed first, otherwise the display will just show the filename.

1. Push the Menu Switch to the right (Next) 2 or to the left (Previous) ÆÙ to select the

Language icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Push the Menu Switch to the right (Next) Bi or to the left (Previous) #Ù to change the

Language settings. Press the Menu Switch inwards Æ again to complete the Language setting.

SEE Français Sitaiano GARE English Deutsch Español QE SPortugués STürkçe PycckHit “nu VAD ( Voice Activation Detection ) Mode The VAD “Voice Activation Detection” function means the T.sonic” 520 will only begin recording when it detects someone is speaking.

1. Push the Menu Switch to the right (Next) Bi or to the left (Previous) #8 to select the VAD

icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Push the Menu Switch to the right (Next) 2 or to the left (Previous) Æ to change the VAD

settings (“Enable” item or “Disable” item). Press the Menu Switch inwards Æ again to complete the VAD setting. © Enable & Disable & Enable © Disable REC Quality Mode Sets the Record Rate to 8000Hz, 16000Hz or 32000Hz. The higher the recording rate the greater the amount of memory is required.

1. Push the Menu Switch to the right (Next) BB or to the left (Previous) Æ to select the REC

Quality icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Push the Menu Switch to the right (Next) Bi or to the left (Previous) #8 to change the REC

Quality settings (“8000Hz" item, “16000Hz” item or “32000Hz” item). Press the Menu Switch inwards Æ again to complete the REC Quality setting. & 8000 Hz © 16000 Hz & 32000 Hz Default Setting Mode Reset the system settings of the device to the factory default values.

1. Push the Menu Switch to the right (Next) Bi or to the left (Previous) Æ# to select the

2. Push the Menu Switch to the right (Next) 2 or to the left (Previous) Æ# to change

the Reset settings (“Yes” item, or “No” item). Press the Menu Switch inwards #1 again to complete the Reset setting.

3. If you select the “No” item, the system settings will not be changed.

Qves S No & ves © No

4. 1f you select the “Yes” item, the system settings will be changed to the factory default

values. Contrast Mode Sets the contrast of the OLED display.

1. Push the Menu Switch to the right (Next) DB or to the left (Previous) Æ to select the

Contrast icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Push the Menu Switch to the right (Next) 2 or to the left (Previous) &#ÿ to change the

Contrast setting. Press the Menu Switch inwards Æ again to complete the Contrast setting. Screen Saving Mode Set a time to darken then OLED display automatically.

1. Push the Menu Switch to the right (Next) DB or to the left (Previous) Æ to select the

Backlight icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Push the Menu Switch to the right (Next) 2 or to the left (Previous) &#ÿ to change the

Backlight settings. Press the Menu Switch inwards Æ again to complete the Backlight seting.

3. If you select 5 Sec, the screen saver will have a delay of 5 seconds before activating. If you

select Always off the screen saver will not be activated and the OLED display will remain illuminated. CSS Ales Of HET) Sec 10Sec 3û$ec

About Mode Push the Menu Switch to the right (Next) 2 or to the left (Previous) # to select the About icon, and then press the Menu Switch inwards #& to enter. The firmware version and available memory of your T.sonicT" 520 will be displayed on the OLED screen. Press the Menu Switch inwards (Menu) & again to get back to the settings menu. SE | T.sonic 520

Sync Lyrics Mode Displays the lyrics of the song being played on the OLED screen.

1. Push the Menu Switch to the right (Next) Bi or to the left (Previous) # to select the Sync

Lyrics icon in the Settings, and then press the Menu Switch inwards Æ to enter.

2. Pushthe Menu Switch to the right (Next) BB or to the left (Previous) &#8 to change the Sync

Safely Remove Your T.sonic"" 520 IN Before removing your T.sonicT" 520, please make sure the OLED Display is not in the READ/MRITE status or unpredictable damage to the files or your T.sonicT" 520 may occur. Removing the T.sonic"” 520 in Windows® 98SE Unplug your T.sonicTM 520 from your system directly when data is not transferring. Removing the T.sonic"” 520 in Windows® Me, 2000, and XP

1. Selectthe icon on the system tray.

2. The Safely Remove Hardware pop-up menu will appear. Select it to continue.

Safely Remove Hardware ere Remove tordre 12:04 PM

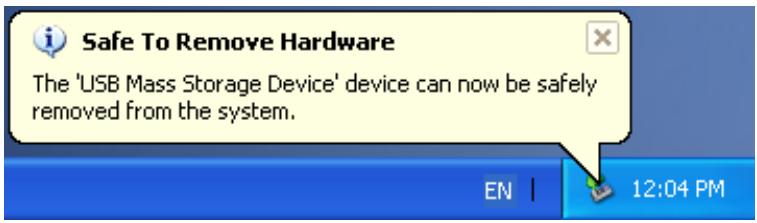

3. A message box will appear: The ‘USB Mass Storage Device’ device can now be safely

removed from the system. À) Safe To Remove Hardware x The ‘USB Mass Storage Device’ device can now be safely removed from the system. Removing the T.sonic"”" 520 in Mac" OS 10.0 or Later Drag and drop the Disk icon corresponding to your T.sonicrM 520 into the trashcan. Then unplug your T.sonicr" 520 from the USB port. Remove the T.sonic"" 520 in Linux'" Kernel 2.4 or Later Execute umount /mnt/ T.sonic to un-mount the device.

Utility Installation

2. Follow the on-screen instructions to complete the utility installation.

Execute the utility program in Start -> Programs ->T.sonic Utility ->T.sonic Utility. PC-Lock Function Once the PC-Lock function is enabled, you can use your T.sonic®" 520 as a key to lock your computer, protecting it from being used by other users. The PC-Lock function is not supported in Mac or Linux Operating Systems. To use the PC-Lock function, you must log in to the Windows OS with Administrator rights. PC-Lock Function for Windows® 98SE, Me, 2000, and XP

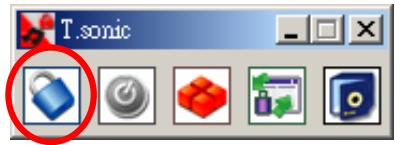

1. Selectthe PC-Lock button in the T.sonic'" 520 Utility window.

2. The following window will appear.

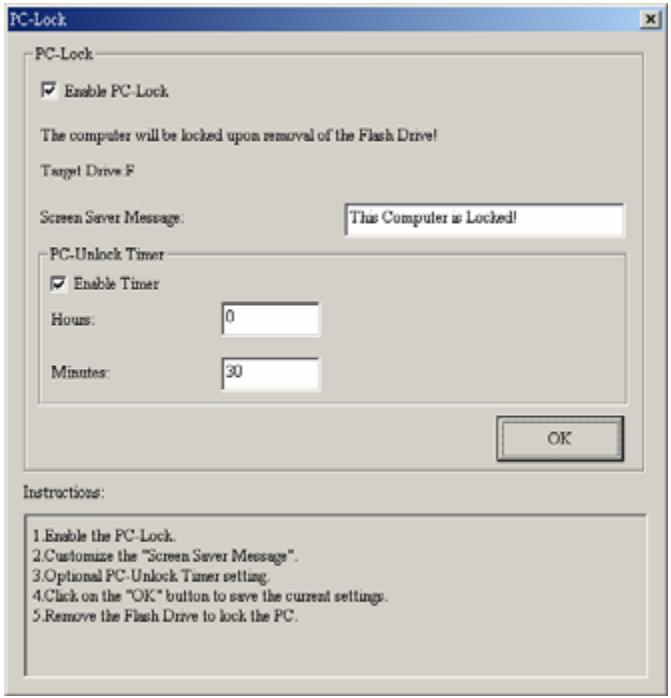

3. In this window you can Enable the PC-Lock function, change the Screen Saver

Message and the PC-Unlock Timer. Lock Your Computer After the PC-Lock function is enabled, your computer will be locked whenever you remove your T.sonict" 520. If your computer is locked, the screen will display the locked status as shown below. [sonic x Transcend Exceoding Your Expectations Unlock Your Computer To unlock your computer, you must re-insert your T.sonic®" 520. The locked status on the screen will disappear and you are now free to use your computer. The computer's locked status will also be relinquished automatically after the lock time has expired. Boot-Up Function T.sonic" 520 can be configured to serve as an MS-DOS Boot Disk. Upon completion of this procedure, the T.sonic®" 520 can be used to boot-up your computer, allowing you to run MS-DOS programs. This does not make the T.sonic®" 520 a Rescue Disk for Windows, nor does it put Windows Startup files onto your T.sonic®" 520. After booting with T.sonic®" 520, if you wish to enter Windows, you must start Windows from your hard drive, or a previously created Rescue Disk. + To use the Boot-Up function, you must log in to the Windows OS with Administrator rights.

System Requirements for the Boot-Up Function -<__A desktop or notebook computer that supports USB-ZIP, or USB-HDD as the First Boot Device in BIOS Enabling the Boot-Up Function

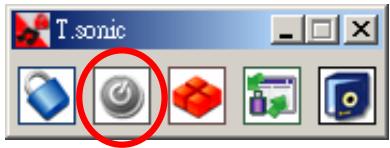

2. The following window will appear, choose the boot-up type you need (USB HDD or USB

ZIP, whichever has been set as the First Boot Device in BIOS) and select Create Boot Disk. Instructions: 1 Click on the "OK" button to make the Flash Drive a Bootable device.

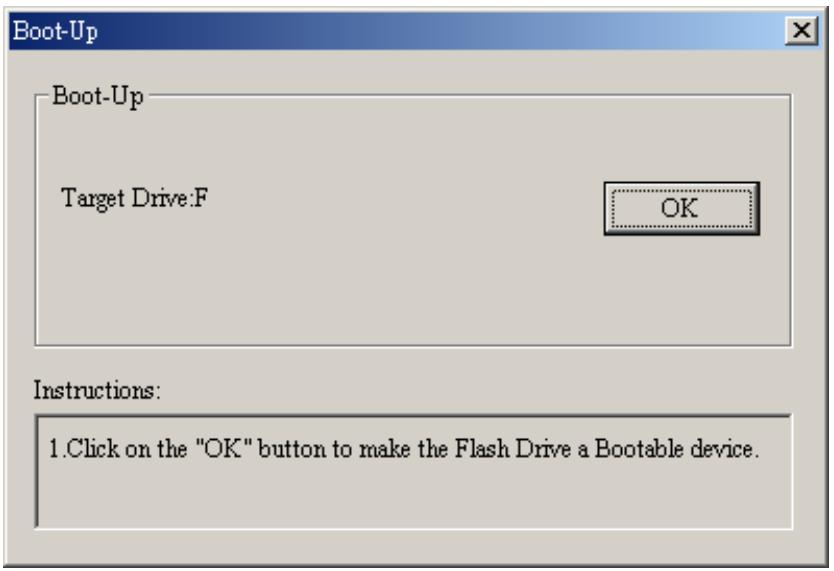

3. Click on the “OK” button to make the Flash Drive a Bootable device.

Partition & Security Function Partition Types You can partition the T.sonic" 520 into two partition types. The two types are: Type 1: “Public Area Only” This is the default partition type for the T.sonic7" 520. It allows the entire volume of the T.sonict" 520's memory to be accessed by anyone. No secure data area is established. Public Area

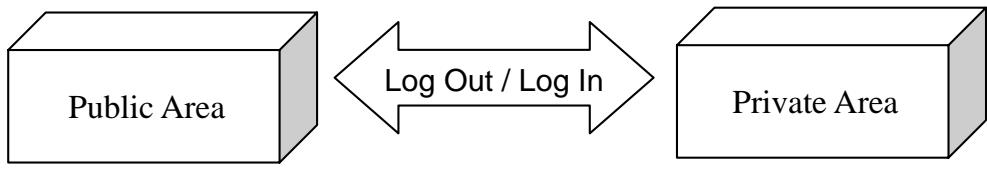

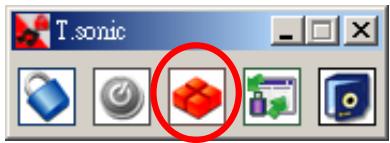

Type 2: “Public and Private Area” T.sonic" 520 is partitioned into a single Logical Unit Number (LUN) identified device, which contains a Public Area and a Private Area. Secure data can be established in the Security Area, which is protected by a password. Access to data in the Public Area is unrestricted. Public Area LogOut/Logn Private Area

1. Selectthe Partition button in the T.sonic'" 520 Utility window.

2. The following window will appear.

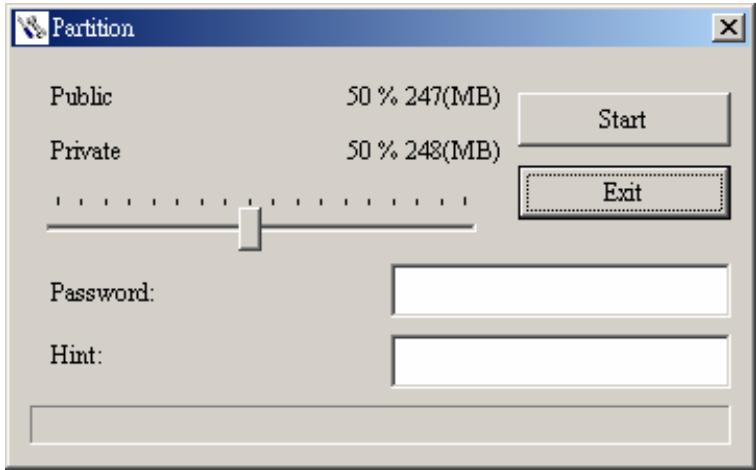

3. Adjustthe partition percentages to your liking using the partition bar. Key in a Password

to login to the Private Area and a Hint as a reminder, just in case you forget your password.

4. Click on the “Start” button to complete the partition setup.

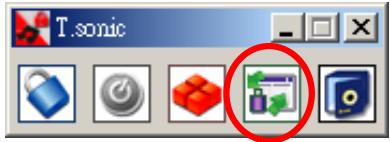

Access Data in the Private Area

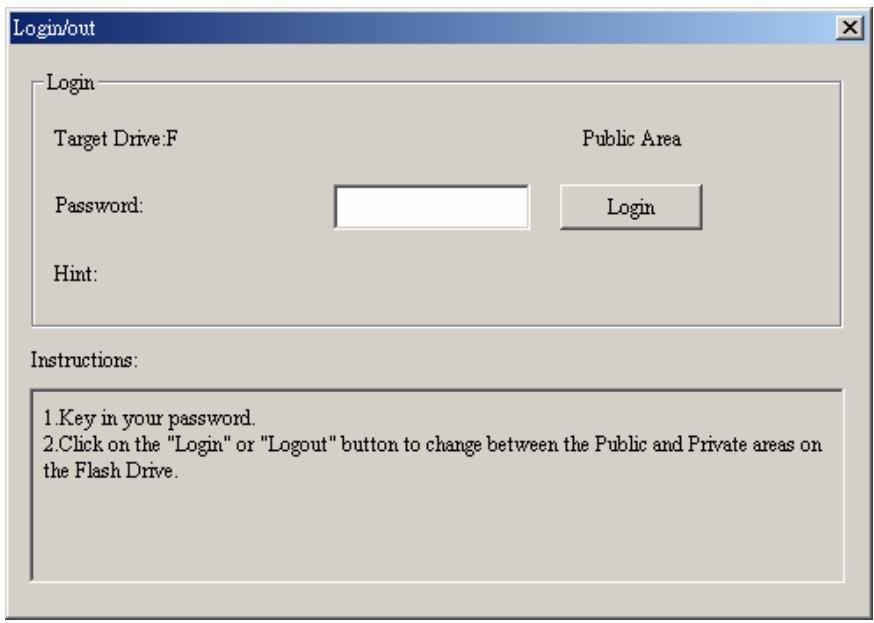

2. The following window will appear.

Target Drive: F Public Area Password: Login Hint: Instructions: 1 Key in your password. 2.Click on the “Login” ox "Logout" button to change between the Public and Private areas on the Flash Drive

3. Enter the correct password and select Login.

4. The Private Area will now appear and is ready for use.

Log Out of the Private Area

1. Make sure that all files are closed and that no data is being transferred to, or from your

2. Click the Logout button in the T.sonic'" 520 Utility window. Once you have

successfully completed the Log Out procedure for the Private Area of your T.sonic" 520, only data in the Public Area will be accessible. Change Password

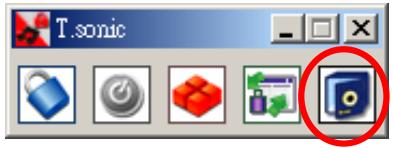

1. Selectthe Password button in the T.sonicr" 520 Utility window.

2. The following window will appear.

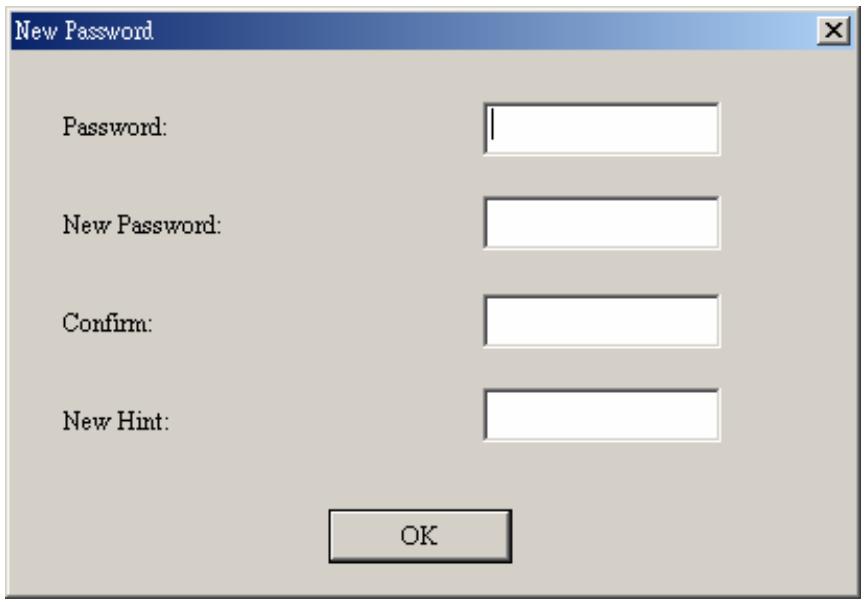

Password: New Password: Conf: New Hint:

3. Inputthe Old Password, and New Password and the Confirm New Password in each

field (Maximum size for a password is 8 characters). You can also input a Password Hint to set up a reminder for your new password. Select “OK.” If You Forget the Password If you forget your password, you can use the password hint to remember it. If you cannot recall the password using the password hint, then all you can do is run the Partition function again to repartition your T.sonic®" 520. Unfortunately, all your “Private area” data will be lost during this procedure. You will have the chance to make a backup copy of your data in the “Public area” but all data in the “Private area” is permanently lost. Recovery Function If your T.sonic®" 520 is ever damaged, you can use the Recovery program to restore the units default settings. Before using the Recovery function, please read the following sections carefully. + The Recovery function is not supported in the Mac or Linux Operating Systems. + To use the Recovery function, you must log in to the Windows OS with Administrator rights. % Running the Recovery program will erase all of the data on your T.sonicr" 520. % Ifthere are bad blocks in the flash memory chip of the T.sonic®" 520, the memory size of the T.sonic" 520 after running the Recovery program will be smaller than the original memory size.

1. Execute the recovery utility in Start -> Programs ->T.sonic Utility -> Recovery

2. The following window will appear.

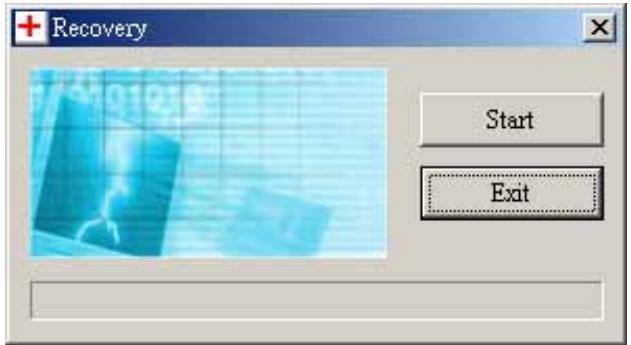

3. Select “Start” to recover your T.sonic'" 520 to its factory defaults.

Troubleshooting If an error occurs, with your T.sonic"”" 520, please first check the information listed below before taking your T.sonic" 520 for repair. If you are unable to remedy a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have a FAQ and Support on our websites. Driver CD cannot auto-run in Windows Enter Device Manager in the Control Panel and enable the Auto-Insert function of the CD-ROM drive. Alternatively, you can manually execute the T.sonic.EXE from the driver CD. Operating system cannot detect the T.sonicTM 520 Check the following:

1. Is your T.sonicr" 520 properly connected to the USB port? If not, unplug it and plug it in again.

2. Is your T.sonicrM 520 connected to the Mac keyboard? If yes, unplug it and plug it into an

available USB port on your Mac Desktop instead.

3. Is the USB port enabled? If not, refer to the user's manual of your computer (or motherboard) to

4. Is the necessary driver installed? 1f your computer is using Windows® 98SE, you must insert the

Driver CD into the CD-ROM and refer to the “Driver Installation for Windows” 98SE” section to complete the driver installation before using your T.sonicrM 520. A driver is not required for Win® ME/2000/XP, Mac" OS 10.0 or later, or Linux" Kernel 2.4 or later Cannot power on Check the following:

1. Isthe T.sonicT" 520 connected to your computer? If yes, unplug it.

2. Is the LOCK switch set to LOCK”? If yes, setit to the “OFF” position.

3. Is the battery inserted correctly? If not, reverse the battery.

4. Is the battery out of power? If yes, please replace it with a new battery.

Cannot download MP3 or WMA files to the T.sonic"" 520 As required, uninstall the driver and re-install it. If this doesn't work, see the Recover Your T.sonic TM 520 Chapter to recover your T.sonicTM 520. Buttons don’t work

Check to see ifthe LOCK switch is set to “LOCK ”. If yes, set it to the “OFF” position. Cannot hear track playback Check the following:

1. Are there any MP3 or WMA files in the root directory of your T.sonicTM 520? If not, you must

download music files from your computer or the Internet first. (Only Mpeg I Layer 3 and WMA files compressed at a rate of 32Kbps-320Kbps are supported).

2. Are the earphones properly connected to the earphone jack? If not, connect them again

3. Is the volume loud enough? If not, adjust the volume up until the music playback can be heard.

Cannot display the track name correctily on the screen

1. The default language of the T.sonicrM 520 is English. Please set the language option first.

2. 1D3 tag information has the first display priority on the screen of the T.sonicrM 520. You could

modify the 1D3 tag by using Windows Media Player, Winamp, or other software.

3. Ifthe ID3 tag is empty, just the file name will be shown on the screen.

Track playback sounds intermittent Plug the earphones into the earphones jack again to make sure they are properly connected. T.sonic" 520 turns off automatically T.sonicrM 520 features a power saving function. If your T.sonicr" 520 is idle (not playing music or radio) for 2, 10, or 30 minutes, the power saving timer is triggered and your T.sonicM 520 will turn off automatically. Please refer to the “Power Saving” section to change the power saving settings. T.sonic" 520 is NOT functioning correctly If your T.sonictM 520 ever stops responding or locks up, Please refer to the “Recover your T.sonicr" 520” and use the Recovery program to restore it to its default settings. Cannot find the file that was just copied to the T.sonicT" 520 Re-copy the file and refer to the “Safely Remove Your T.sonicTM 520” section to remove the T.sonicTM 520 after the copy process is completed.

A File that was just deleted still appears Re-delete the file and refer to the “Safely Remove Your T.sonicTM 520” section to remove the T.sonicTM 520 after the delete process is completed. T.sonic" 520 cannot operate after it was formatted in Windows Formatting T.sonicM 520 using the “Quick Format” or “Full Format” option in Windows destroys the default format of the T.sonictM 520. To retrieve the default format, you must link to http://www.transcendusa.com/ and download the firmware updates for the T.sonicTM 520. The T.sonic" 520 Utility cannot be executed BE ci x d| (9) 6 5) [8] You must log in to the Windows OS with Administrator rights to execute the Utility.

T.sonicTM 520 Limited Warranty “Above and beyond”is the set standard for customer service at Transcend. We consistently position ourselves to be significantly above the industry norm, which is all part of our commitment to Customer Satisfaction. AI Transcend Information, Inc. (Transcend) products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. During the warranty period, should your Transcend T.sonicT" 520 fail under normal use in the recommended environment due to improper workmanship or materials, Transcend will repair or replace your product with a comparable product. This warranty is subject to the conditions and limitations set forth herein. Duration of Warranty: The Transcend product warranty is valid for a specific period, which begins on the date of purchase. Proof of purchase including the date of purchase, is required to collect on the warranty. Transcend will inspect the product and decide whether to repair or replace it. Transcend reserves the right to provide a functional equivalent product or a refurbished replacement product. Limitations: This warranty does not apply to product failure caused by accidents, abuse, mishandling, improper installation, alteration, acts of nature, improper usage, or problems with electrical power. In addition, opening or tampering with the product casing, or any physical damage, abuse or alteration to the products surface, including all warranty or quality stickers, product serial or electronic numbers will also void the product warranty. Transcend is not responsible for recovering any data lost due to the failure of a hard drive or flash memory device. Transcend's T.sonicT" 520 must be used with devices that conform to the recommended industry standards. Transcend will not be liable for damages resulting from a third party device that causes the Transcend product to fail. Transcend shall in no event be liable for any consequential, indirect, or incidental damages, lost profits, lost business investments, lost goodwill, or interference with business relationships as a result of lost data. Transcend is also not responsible for damage or failure of any third party equipment, even if Transcend has been advised of the possibility. This limitation does not apply to the extent that it is illegal or unenforceable under applicable law. Disclaimer: The foregoing limited warranty is exclusive. There are no other warranties, including any implied warranty of merchantability or fitness for a particular purpose. This warranty is not affected in any part by Transcend providing technical support or advice. Online Registration: To expedite the warranty service, please register your Transcend Product within 30 days of purchase. Register online at http://www.transcendusa.com/registration Transcend ""<""""" Exceeding Your Expectations www.transcendusa.com *The Transcend logo is a registered trademark of Transcend Information, Inc. *AIl logos and marks are trademarks of their respective companies.
