USER MANUAL TS256MJF-WL TRANSCEND

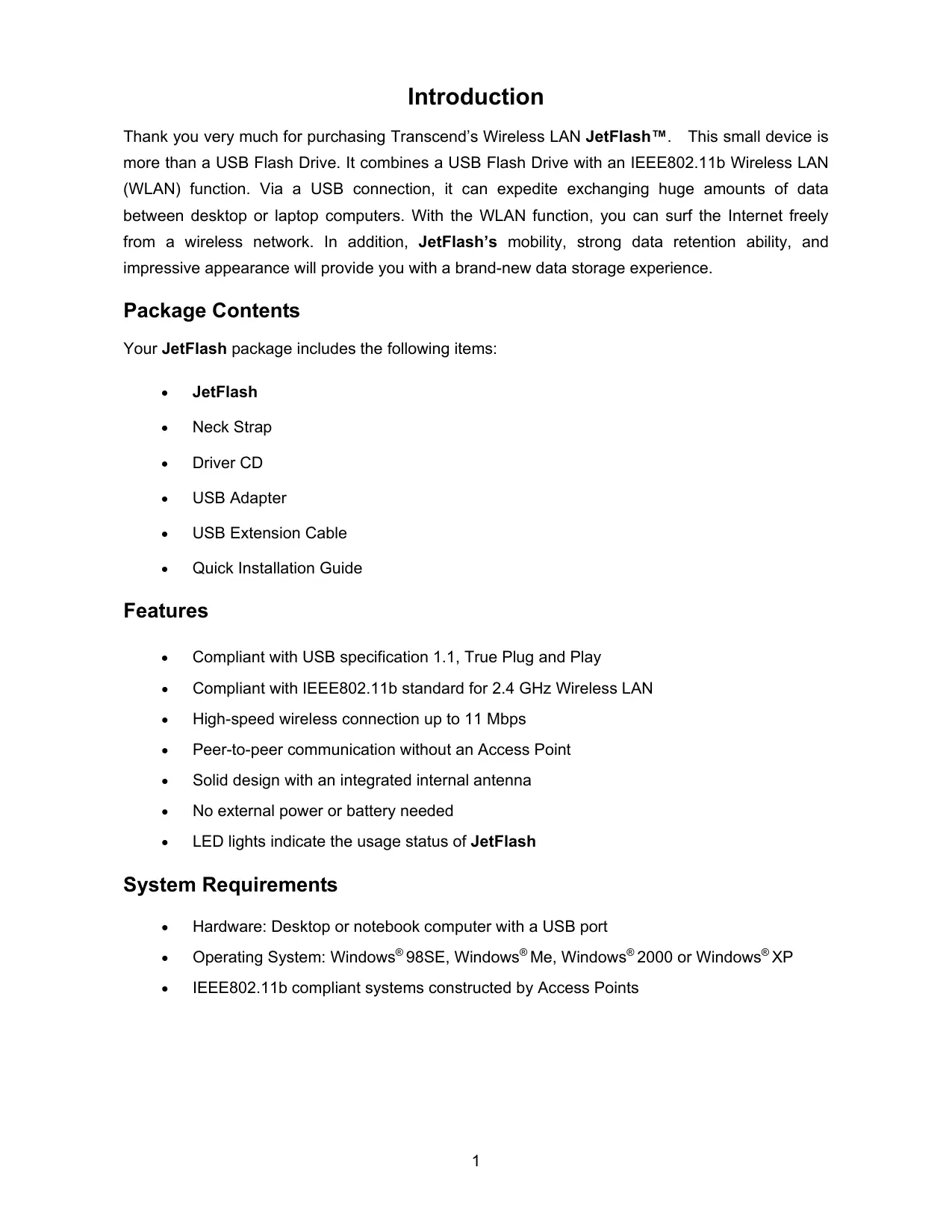

Introduction Thank you very much for purchasing Transcend's Wireless LAN JetFlashT". This small device is more than a USB Flash Drive. It combines a USB Flash Drive with an IEEE802.11b Wireless LAN (WLAN) function. Via a USB connection, it can expedite exchanging huge amounts of data between desktop or laptop computers. With the WLAN function, you can surf the Internet freely from a wireless network. In addition, JetFlash’s mobility, strong data retention ability, and impressive appearance will provide you with a brand-new data storage experience. Package Contents Your JetFlash package includes the following items: + __JetFlash *< Neck Strap + Driver CD ° USB Adapter + __ USB Extension Cable + Quick Installation Guide Features + Compliant with USB specification 1.1, True Plug and Play °__ Compliant with IEEE802.11b standard for 2.4 GHz Wireless LAN + High-speed wireless connection up to 11 Mbps + Peer-to-peer communication without an Access Point + Solid design with an integrated internal antenna + No external power or battery needed ° LED lights indicate the usage status of JetFlash System Requirements + __ Hardware: Desktop or notebook computer with a USB port + Operating System: Windows® 98SE, Windows® Me, Windows® 2000 or Windows® XP + IEEE802.11b compliant systems constructed by Access Points

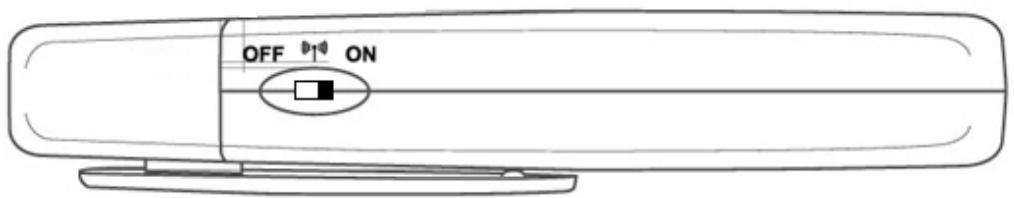

Product Overview Switch When the switch is set to the “ON” position, you can write/read data to/from your JetFlash and simultaneously use it for wireless applications. When the switch is set to the “OFF” position, you can write/read data to/from your JetFlash, but the wireless function is disabled. Please set the switch to the “ON” position before using the Wireless LAN function of your JetFlash. LED Lights Off Off Standby Off Blinking Data transfer JetFlash is searching for an Access Point to Blinking Off connect to a wireless network JetFlash is searching for an Access Point to Blinking Blinking connect to a wireless network and there is data transferring to and from the JetFlash Solid Off Wireless connection is established : Wireless connection is established and there is Solid Blinking data transferring to and from the JetFlash

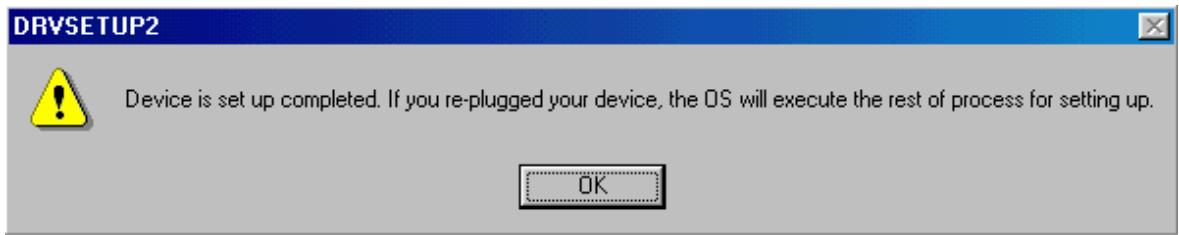

1. Drivers are required for Windows 98SE. Drivers will also be required for the WLAN function.

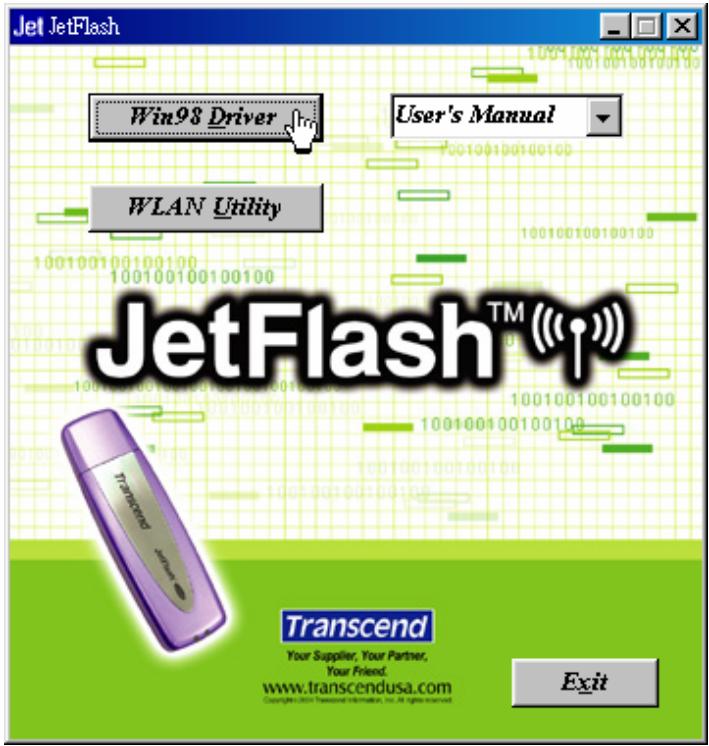

(see Wireless LAN Function section). Insert the Driver CD into the CD-ROM (Auto-Run supported). Select the Win98 Driver button. MB EX | es : 2 OO MENT fEsers Manuot ©] De pooropr dt = WEAN Utility aus

1467007 Bor 0100 = reronrogror an — 100100100100 [Transcena| Select 98 Driver Install to continue. £l Driver Install After the drivers are installed, the “DRVSETUP2” dialogue window will appear. Select OK to continue. DRYSETUP2 A Device is set up completed. |f vou re-plugged your device, the OS will execute the rest of process for setting up. Plug your JetFlash into an available USB port. Your computer will automatically detect the new device. Two new Removable Disk drives with newly assigned drive letters will appear in the My Computer window.

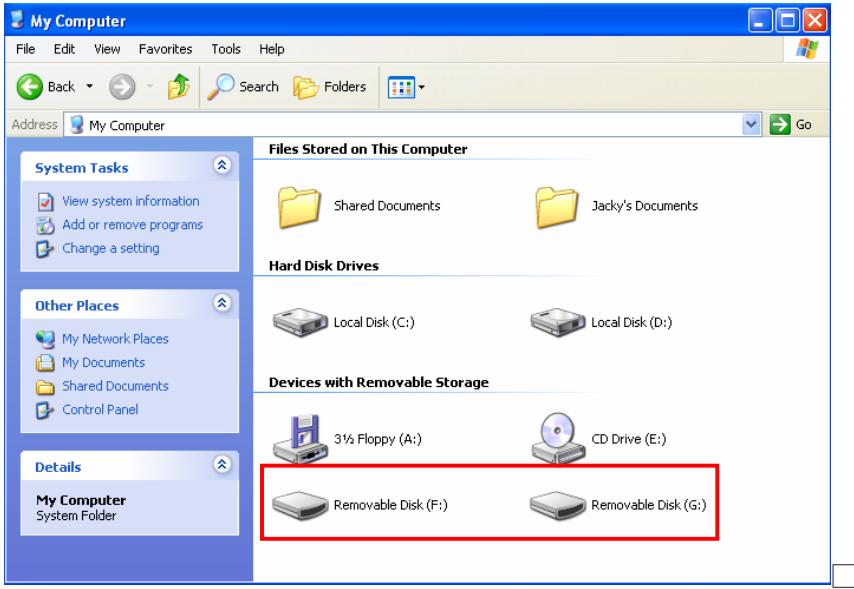

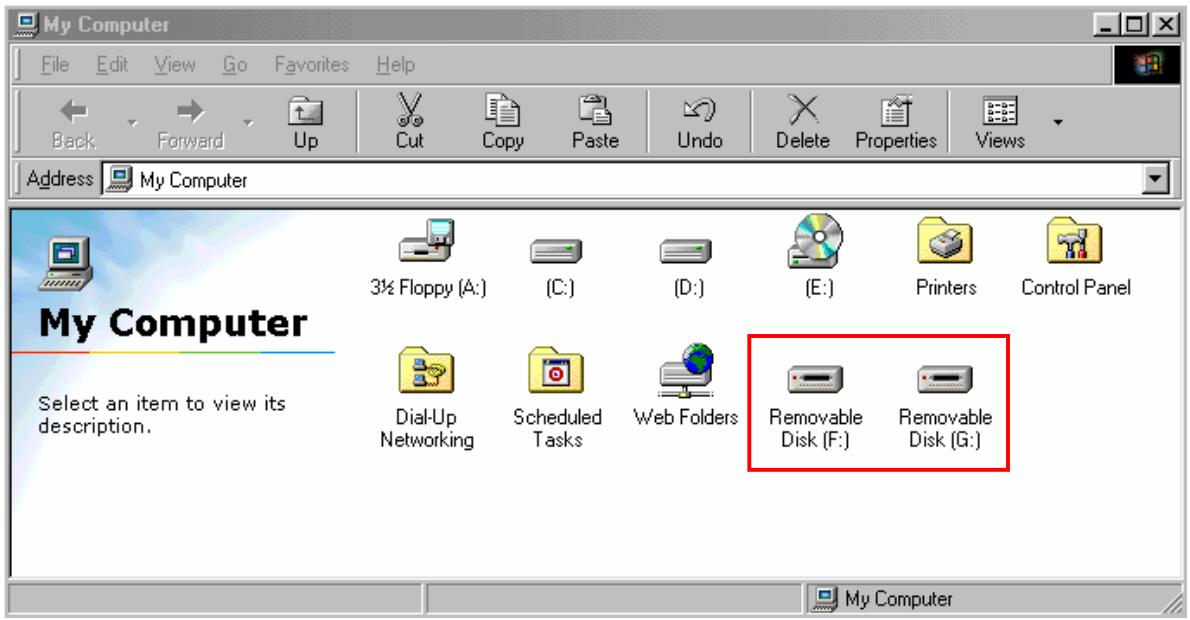

E My Computer | Eie Edit View Go Favorites Help | +. MX Balx ANEN : Paste Undo Properties | Views BEN ROT Up Ci Copy Delete [lAddréss [7 My Computer Le 3kFloppy(&) (C) ©) E) Pinters Control Panel y Computer Sel tern to vi it: _ —- ane 0 View is DiatUp Scheduled WebFolders | Removable Removable ‘ Netnotking Tasks Disk(F) Disk(G) [ [ [IEJ My Computer 7 Driver Installation for Windows Me, 2000, and XP No drivers are required. These Windows operating systems have built-in drivers to support the data portion of your JetFlash. Drivers will be required for the WLAN function (see Wireless LAN Function section). Simply plug your JetFlash into an available USB port, and Windows will install the files needed to use it as an external hard drive. Two new Removable Disk drives with newly assigned drive letters will appear in the My Computer window. y Computer Fle Für Vu Faoibss eos Han æ Oux- Q © Ps Bres F3 3 ny onu Files Stored on This Computer System Tasks name M PT somimmns P2 vivo Brera Ge Change assting Hard Disk Drives other Places _ _ Car RD vocao ED vivo) enr Faces 6 my vccunents & shared Documents Devices sith Removable Storage D cenirl Para 38 pp (2) & Doi Details y Computer SD rmaroe SD rene) Sstem For Warning à To prevent loss of data and/or damage to your JetFlash, NEVER remove JetFlash from a device while the DATA LED is blinking.

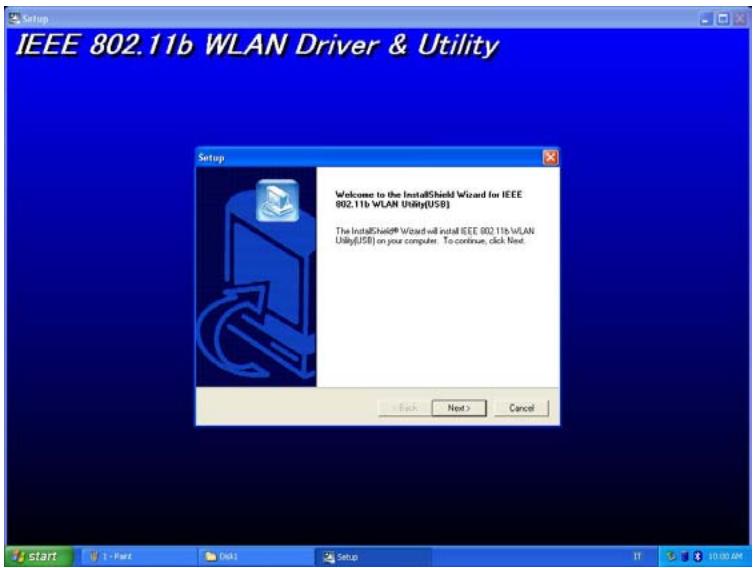

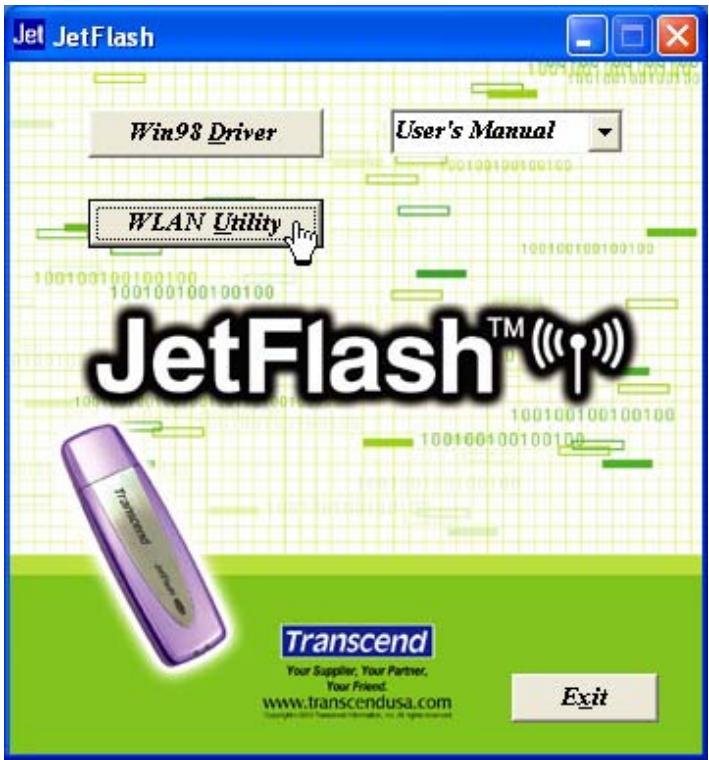

Wireless LAN Function The WLAN Utility is JetFlash’s management software. You must install the WLAN Utility found on the Driver CD to enable the WLAN Function. Before installing the WLAN Utility, verify that the switch is set to the “ON” position and carefully read the following steps. Install the WLAN Utility

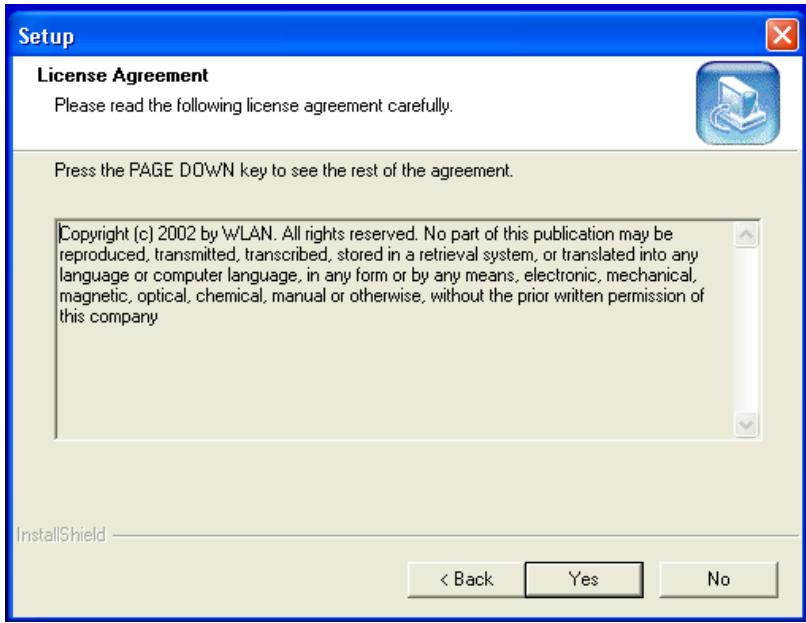

ense Agreement Please read the following icense agreement careful.

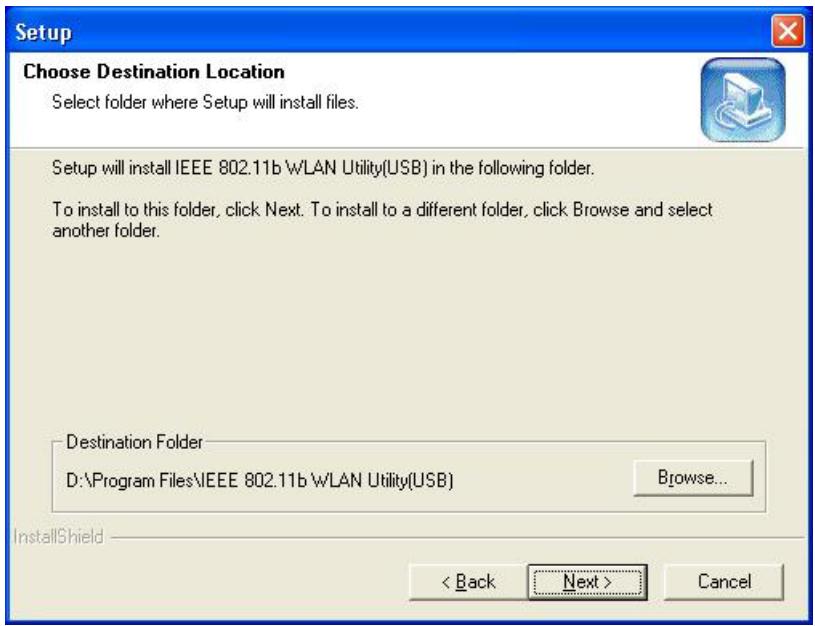

Setup Choose Destination Location Select folder where Setup will install files. You can select Browse to choose the folder destination.

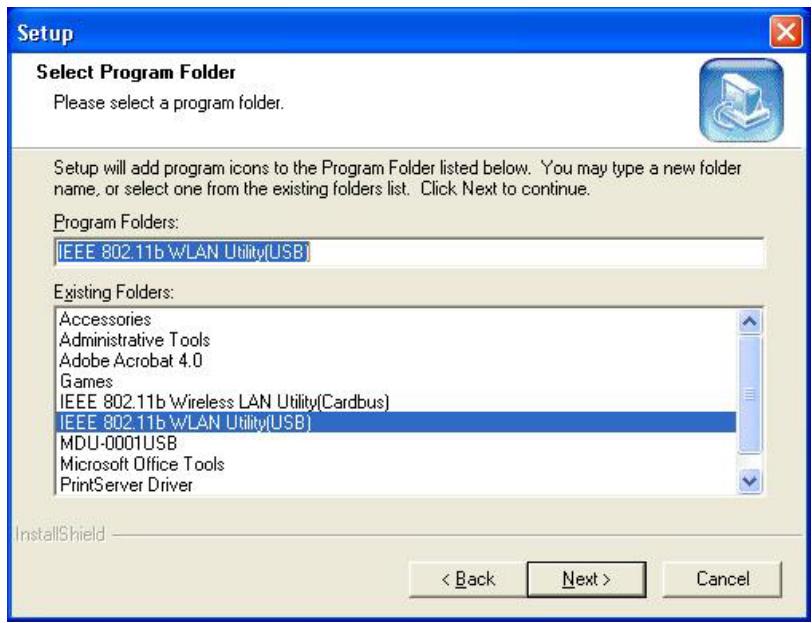

Select Program Folder Please select a program folder. Setup will add program icons ta the Program Folder listed below. You may type a new folder name, or select ane from the existing folders list. Click Next to continue. Program Falders:

Microsoft Office Tools PrintServer Driver InstalShield — <Back Cancel You can rename the program folder name.

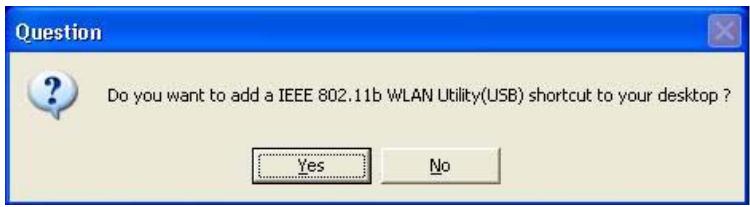

6. The Question window will appear. Select Yes to add a program shortcut on your desktop

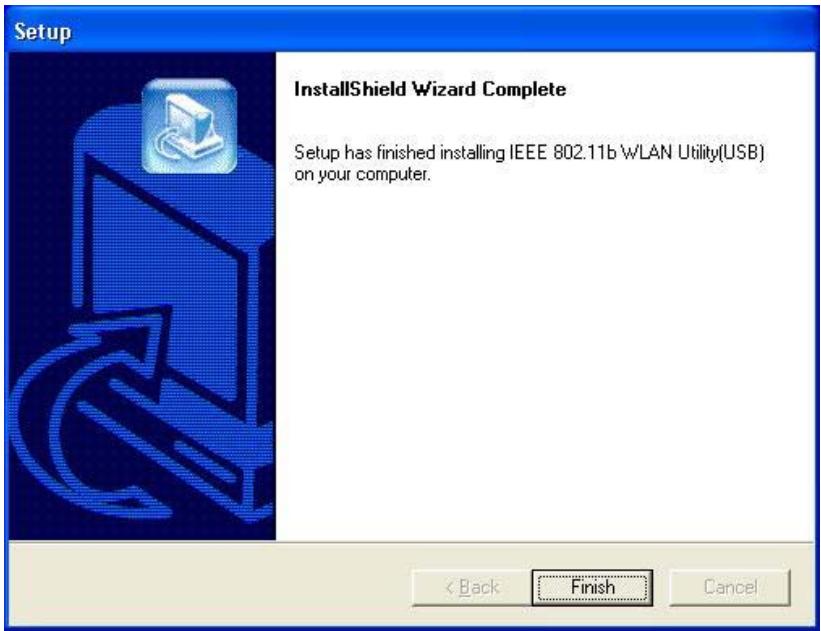

7. Select Finish to complete the installation. (In Windows XP, you must complete steps

8-10 and disable the Windows XP Zero-Configuration.) InstallShield Wizard Complete Setup has finished instaling IEEE 602.115 WLAN Utity{USB) on our compuier. + The Operating system may request you to insert the original Windows CD, add necessary protocols, or edit networking settings. Follow the on-screen instructions or ask your IT

personnel to assist you to complete the installation.

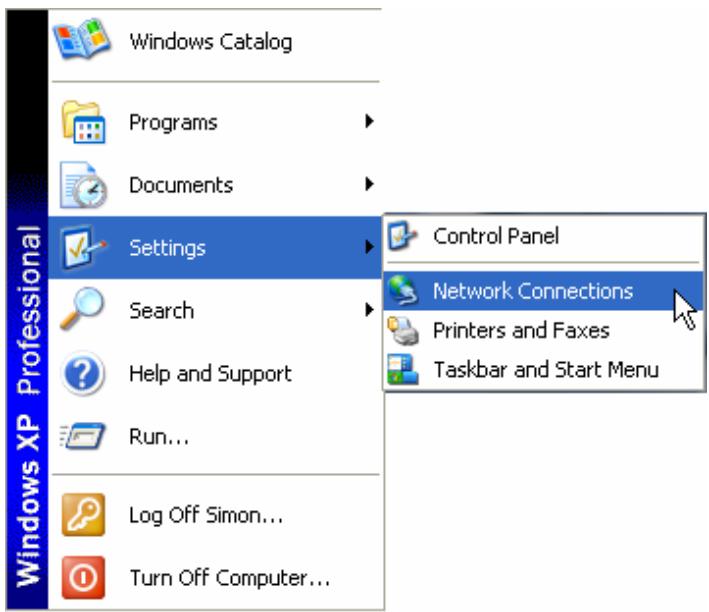

8. From the Start Menu, go to Settings and select Network Connections.

ES Windows Catalog Programs » Documents L Search , & Printers and Faxes © Help and Support A Taskbar and Start Menu ET] Run. Log Off Simon... Q Tu Off Computer. Windows XP Professional

9. Right-click Wireless Network Connection (this will be your JetFlash), and select Properties.

LAN or jh-Speed Internet ra Local Area Connection RL niche Disable View Available Wireless Networks Bridge Connections Create Shorteut Rename

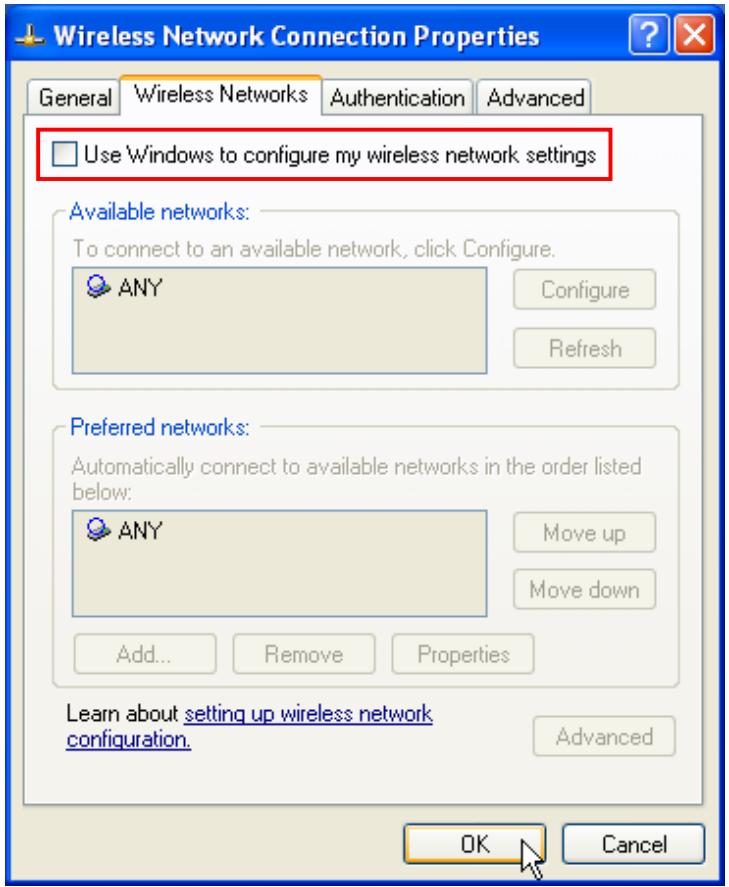

wireless network settings” is clear, and then Select OK.

Wireless Network Connection Properties General! Wireless Networks | Authentication | Advanced ET Use Windows to configure my wireless network settings Available networks To connect to an available network, click Configure. S ANY Configure_ | Refresh | Preferred networks: matically connect to available networks in the order listed S any Moveup | Move doun | Add Remove Properties Leam about setting up wireless network a gonfiquration, Advanced % You can also use the KU8-M zip file in the second partition of your JetFlash. This zip file is the compressed files of the WLAN Utility. After uncompressing it, run the Setup.exe file inside and follow the above-mentioned steps to complete the installation. Execute the WLAN Utility

1. Verify that you have installed the WLAN Utility application and the switch is set to the “ON”

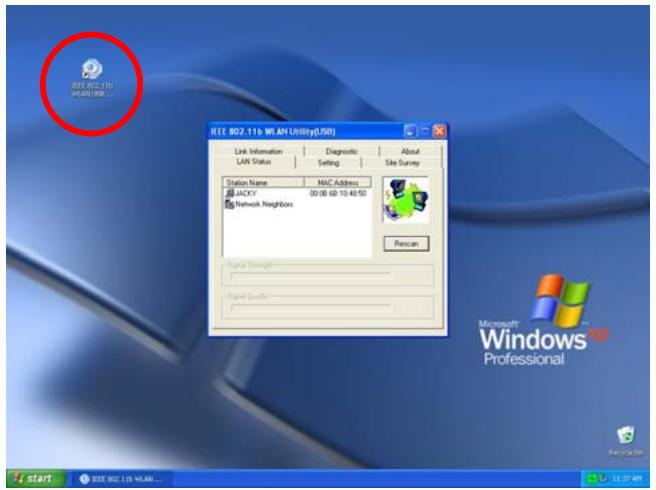

2. Plug your JetFlash into an available USB port on your computer and double-click the IEEE

3. The IEEE 802.11b WLAN Utility (USB) window will appear.

One of following signal icons will appear in the system tray (bottom right corner) after the WLAN Utility has executed. . (Green): Connected + 7 (Yellow): Low Quality .E (Red): Disconnected % You can right-click the signal icon, and select Exit to close the IEEE 802.11b WLAN Utility (USB) window, or select radio off to disable the Wireless LAN function. IEEE 802.11b Utility Exit radio off Connect to an Access Point (Infrastructure Mode) Follow the procedures below to connect with an Access Point:

1. Execute the WLAN Utility.

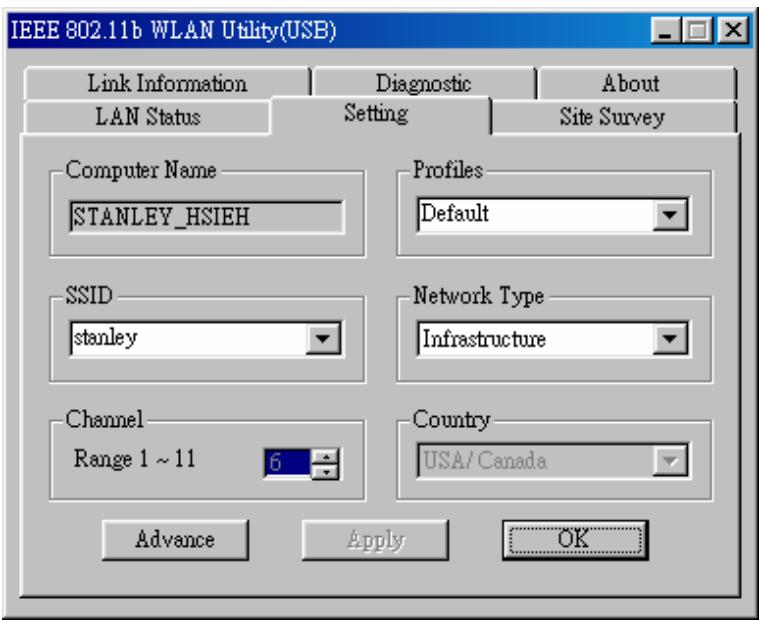

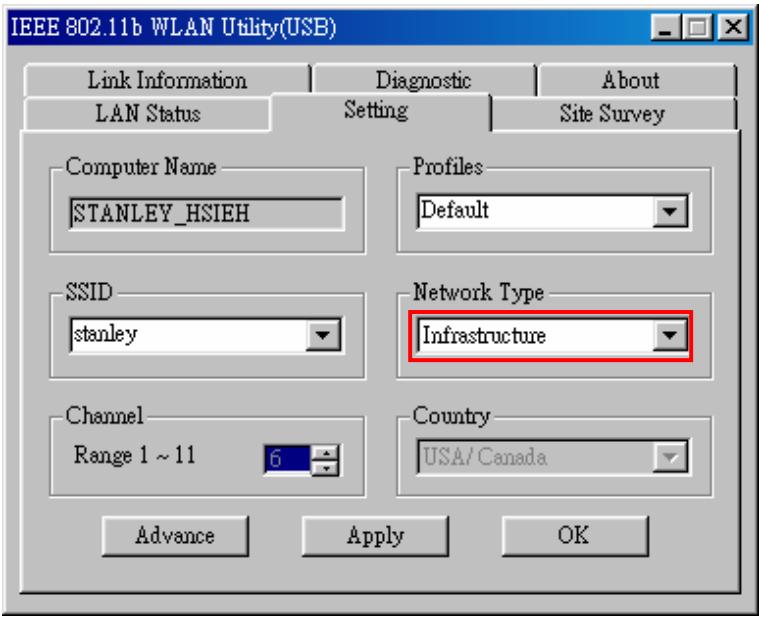

3. Select Infrastructure as the Network Type.

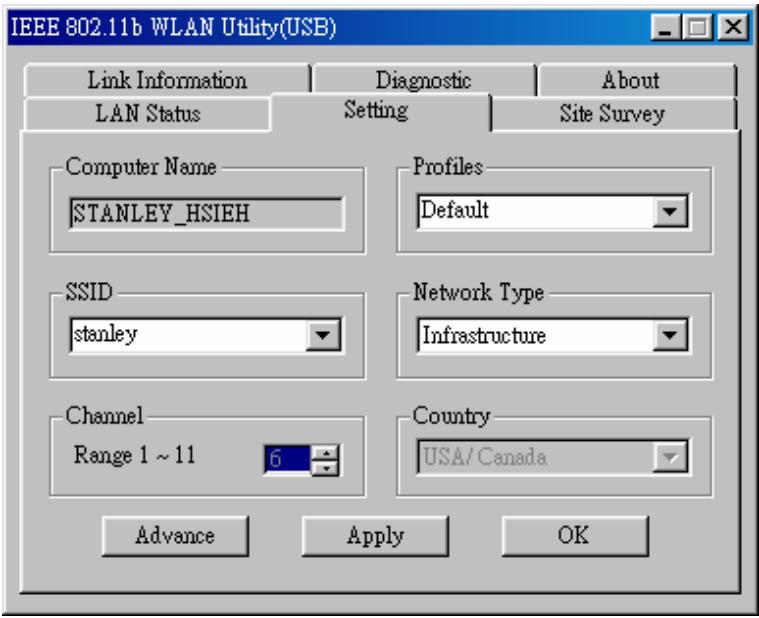

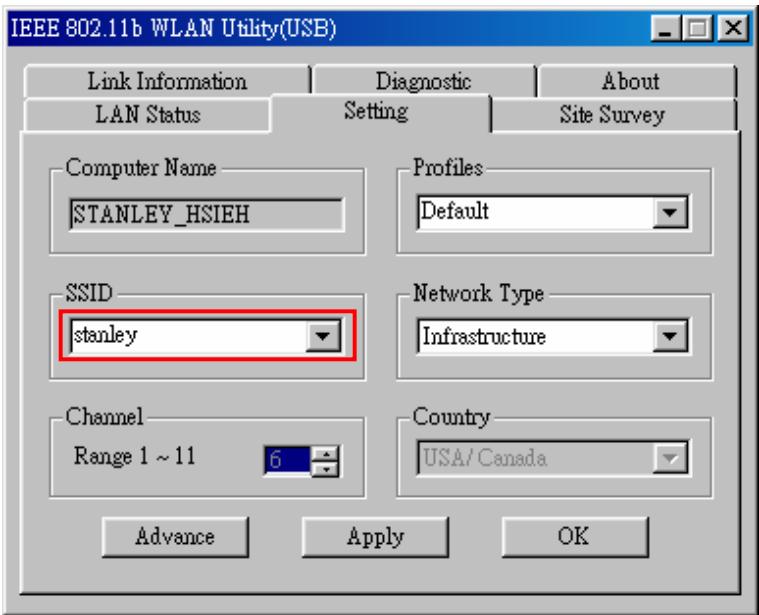

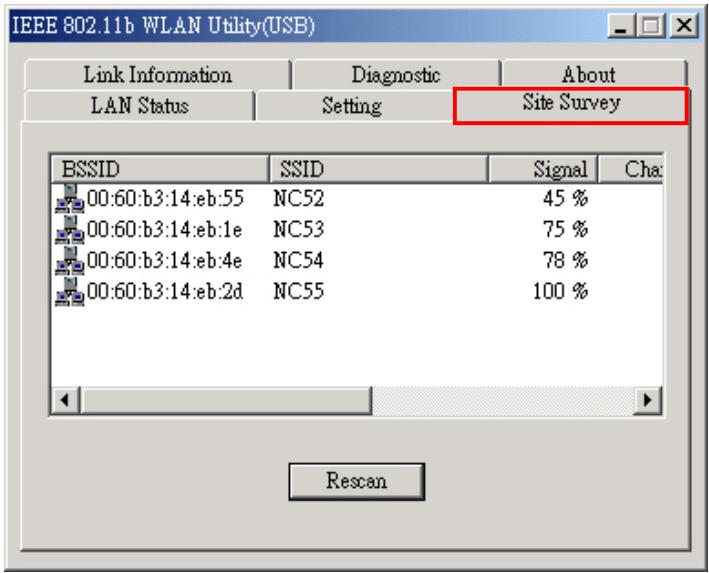

Select or type in the SSID you want to use (see picture below for an example). The SSID must match the one used by the Access Point. + SSID (Service Set Identifier) is the group name that will be shared by all the members of the wireless network. You can only connect to an Access Point (AP) that uses the same SSID. Select Apply and then OK to finish.

Channel is not active in Infrastructure Mode. After the values of Computer Name, SSID, Network Type, Channel and Country are set, you can type in a name in the Profiles column and select Apply to save the settings. Profiles will allow you to store a maximum of five sets. You can select the Site Survey tab in the IEEE 802.11b WLAN Utility (USB) window to display all of the Access Points within communication range and double-click on one of them to connect.

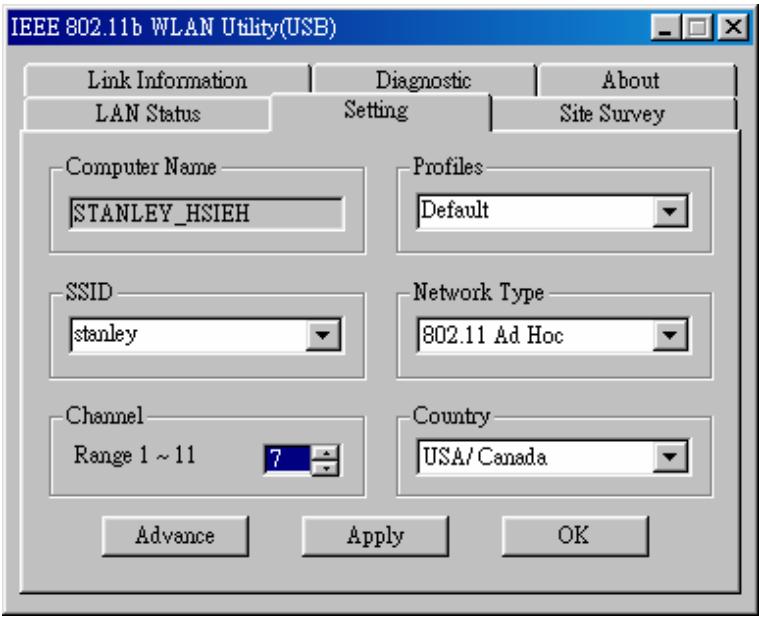

Connect without an Access Point (Ad Hoc Mode) If you want to communicate with the other wireless devices directly (peer to peer) without using an Access Point, you must select Ad Hoc mode. Follow the procedures below to activate Ad Hoc Mode:

1. Execute the WLAN Utility.

2. Select the Setting tab in the IEEE 802.11b WLAN Utility (USB) window.

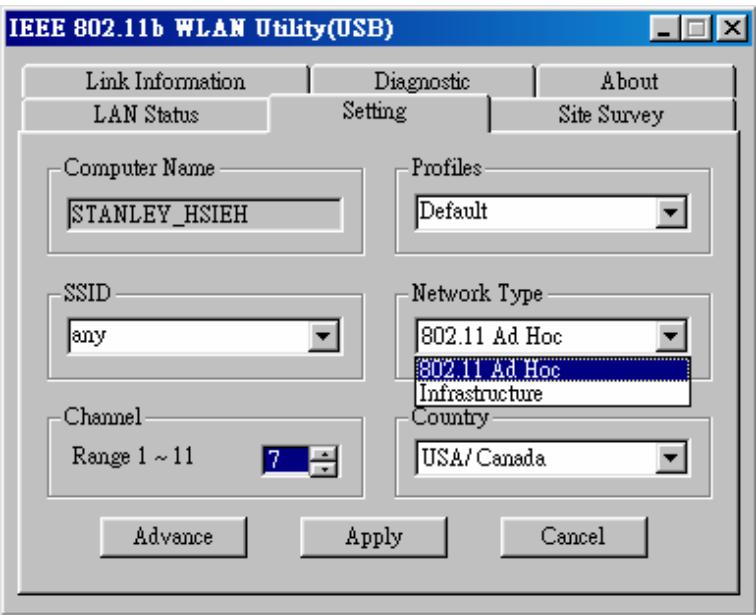

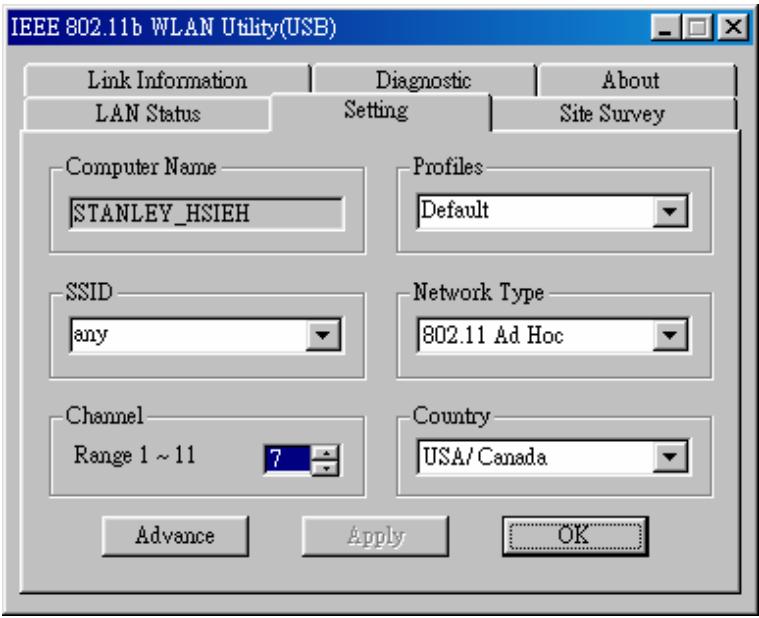

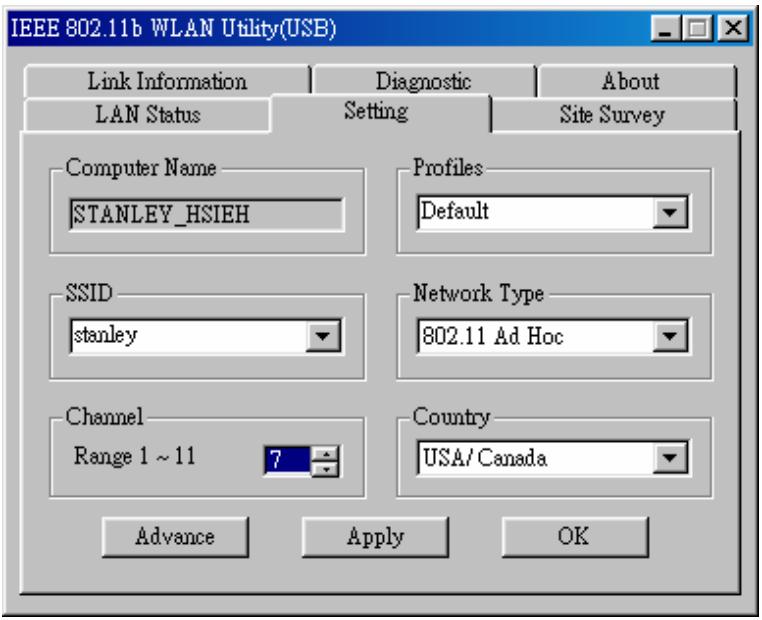

3. Select 802.11 Ad Hoc as the Network Type.

4. Select or type in the SSID, Country, and Channel.

Every member of the peer-to-peer network must select the same SSID and channel.

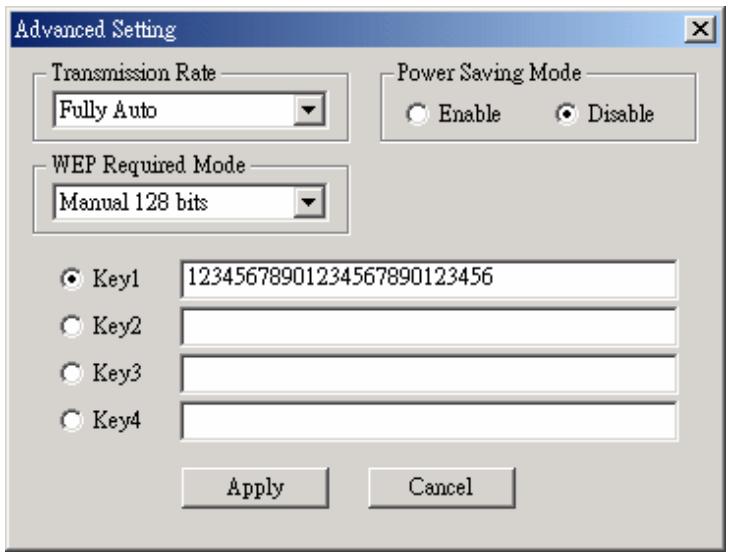

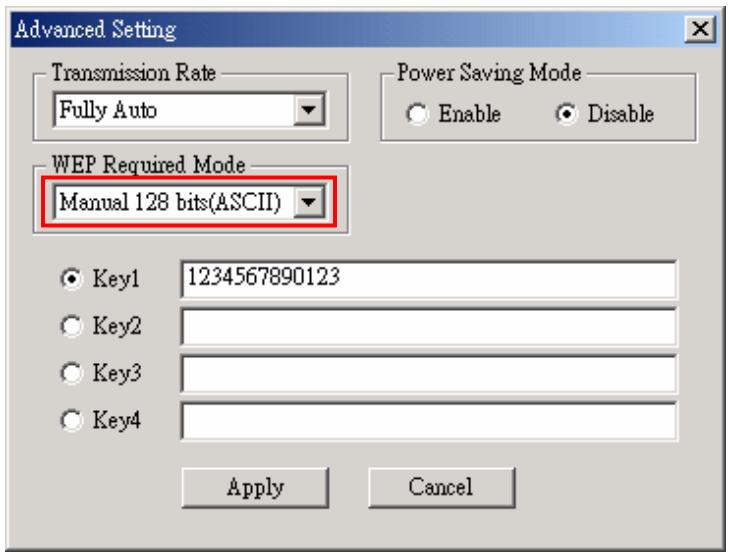

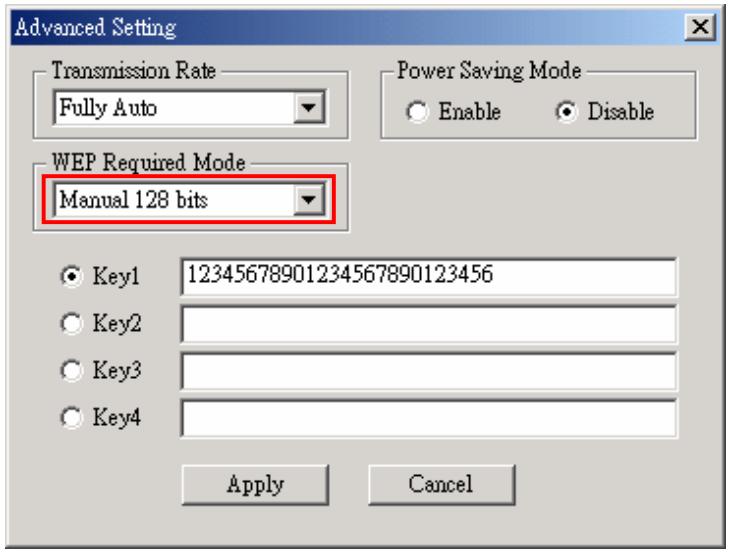

Enable Encryption You can enhance the security of network by enabling the encryption. Follow the procedures below to activate encryption.

1. Execute the WLAN Utility.

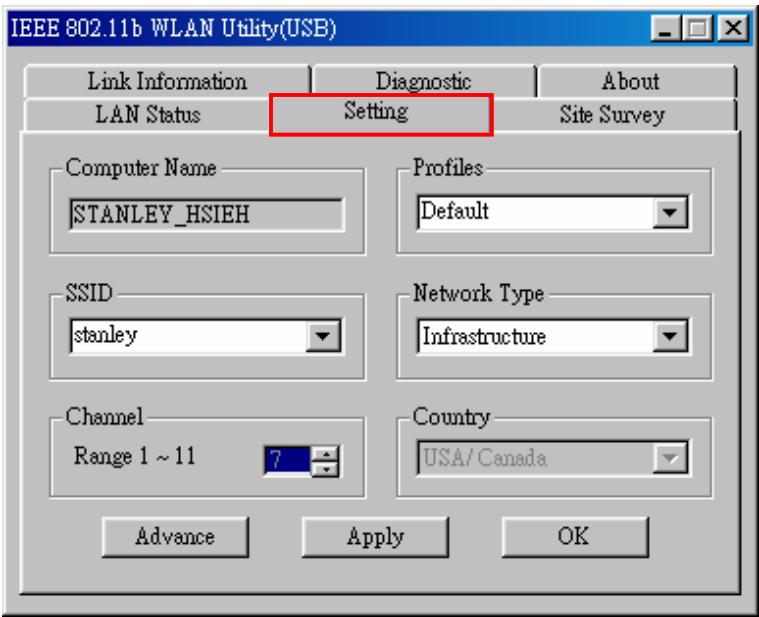

2. Select the Setting tab and then select Advance.

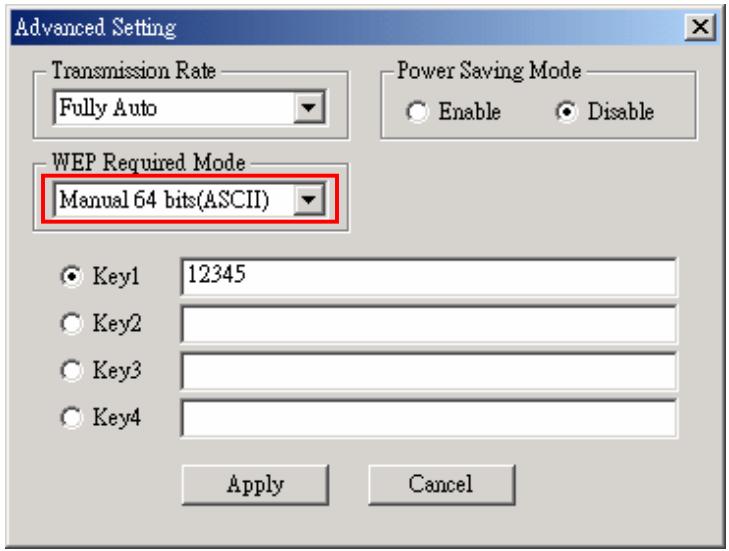

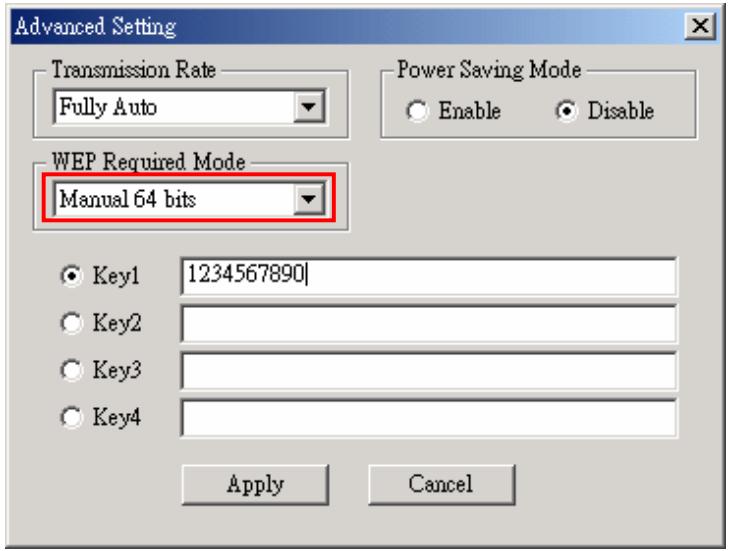

3. From the WEP Required Mode drop-down menu box, choose either 64 bits (ASCII), 128 bits

(ASCII), 64 bits, or 128 bits, then type in the WEP keys.

+ You must type in the exact same WEP Key(s) that the network or access point uses. a. lf Manual 64 bits (ASCII) is selected, enter the 5-digit WEP Key(s).

4. Select Apply to finish.

- Transmission Rate Power Saving Mode Fully Auto Ra l © Enable € Disable r WEP Required Mode —— Manual 128 bits * Keyl [1234567890123456 7890123456 CKe2 | [keys | [key | äpply Cancel Setting the Transmission Rate JetFlash supports four kinds of transmission rates. You can follow the procedures below to set the transmission rate.

1. Execute the WLAN Utility.

2. Select the Setting tab and then select Advance.

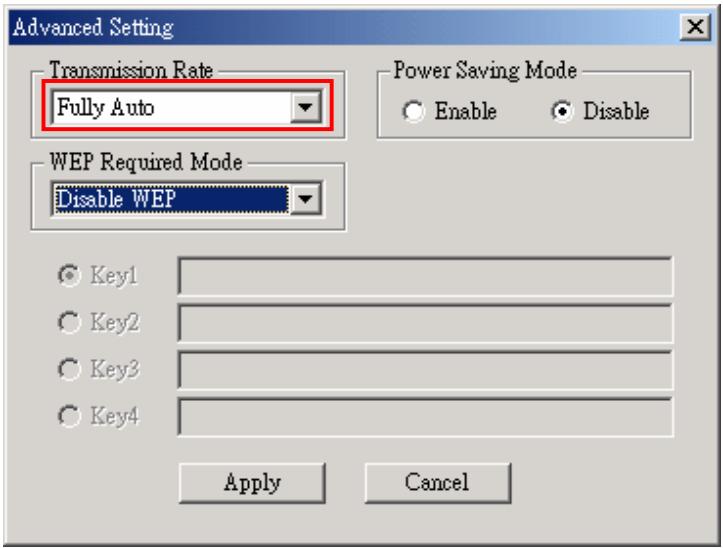

3. Select one of following transmission rates and then select Apply to set the transmission rate.

——— Power Saving Mode | Fully Auto w [ ( Ensble @° Dissble WEP Required Mode

Power Saving Mode JetFlash supports Power Saving Mode. You can follow the procedures below to enable the Power Saving Mode.

1. Execute the WLAN Utility.

2. Select the Setting tab and then select Advance.

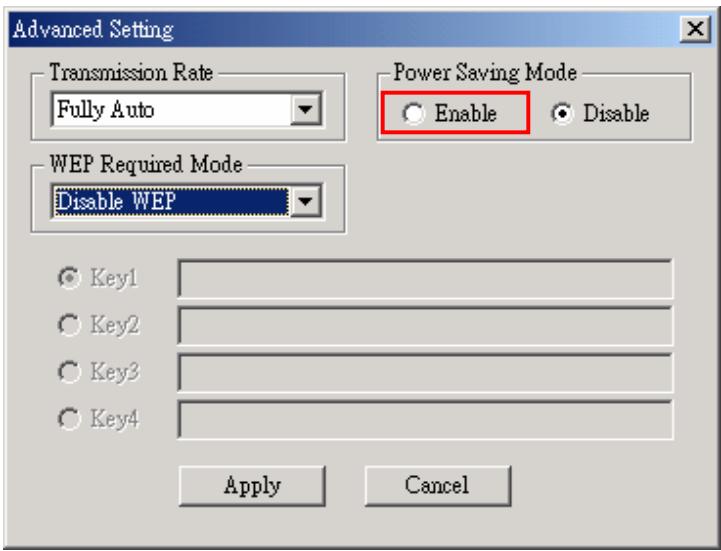

3. Select the Enable option in the Power Saving Mode column.

Transmission Rate —— Power Saving Mode Ex F2] [ Enable | © Disble WEP Required Mode IDisal EP Apply Cancel % When the Power Saving Mode is enabled, JetFlash can work with low power consumption but the throughput may slow down. + Power Saving Mode is useless in Ad Hoc Mode. LAN Status Select the LAN Status tab in the IEEE802.11b WLAN Utility (USB) window to see information

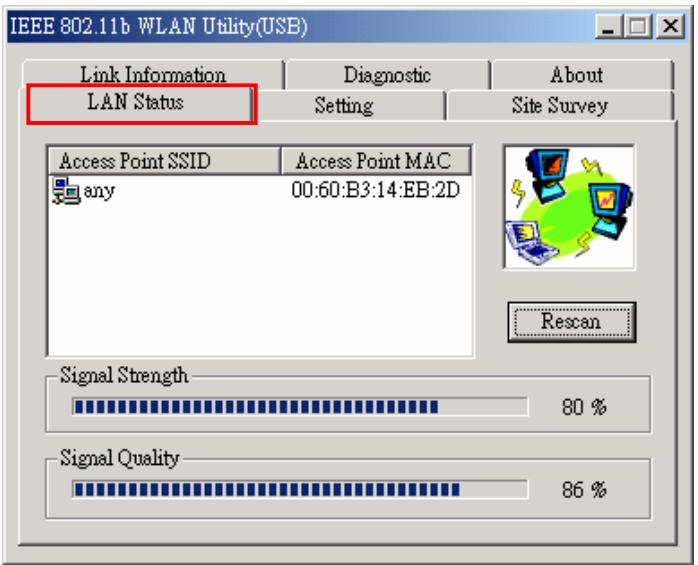

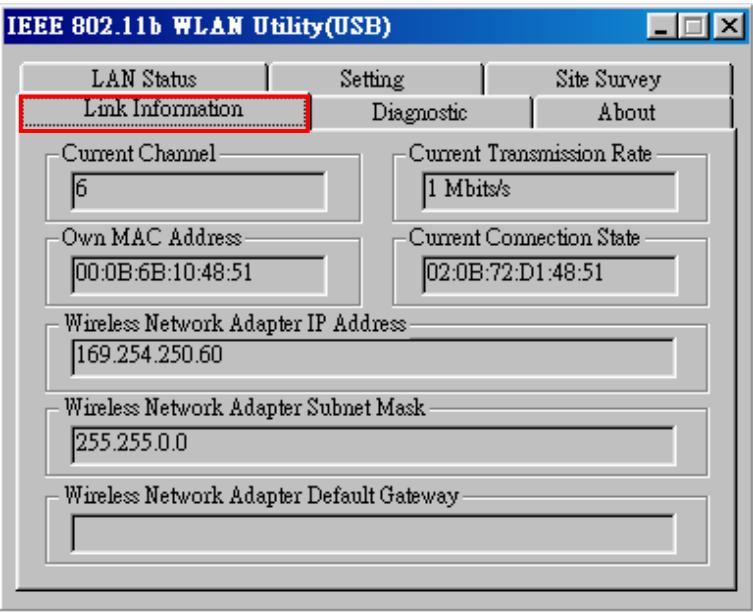

about your wireless connection. ink Infonnation | Diagmosie | About | Setine | SeSmey | Access Point SSID Access Point MAC any 00-60:B3:14:EB:2D & The SSID and MAC information of the network or access point to which your computer is connected will appear on the screen. Also, the Signal Quality and Signal Strength will be displayed. Select Rescan to refresh the display and to detect if there are other available networks. You may be able to connect to any of the other available networks displayed. Encryption may prevent you from connecting to one of the other networks. Link Information Select the Link Information tab in the IEEE 802.11b WLAN Utility (USB) window to display the Current Channel, Current Transmission Rate, Own MAC Address, Current Connection State, Wireless Network Adapter IP Address, Wireless Network Adapter Subnet Mask, and Wireless Network Adapter Default Gateway. IEEE 802.11b WLAN Utility(USB) LAN Status I Setting | Site Survey - Disgnostie | About r Current Channel r Current T: dssion Rate F JE Mbits r Own MAC Address | CurentConnectionStste [00:0B:6B:10:48:51 f20872D1:48:51 r Wireless Network Adapter IP Address [169.254.250.60 r Wireless Network Adapter Subnet Mask f552550.0 r Wireless Network Adapter Default Gateway

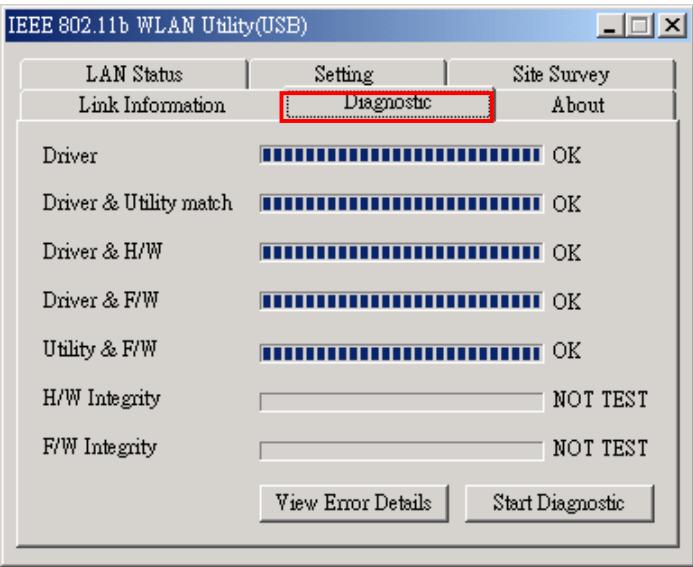

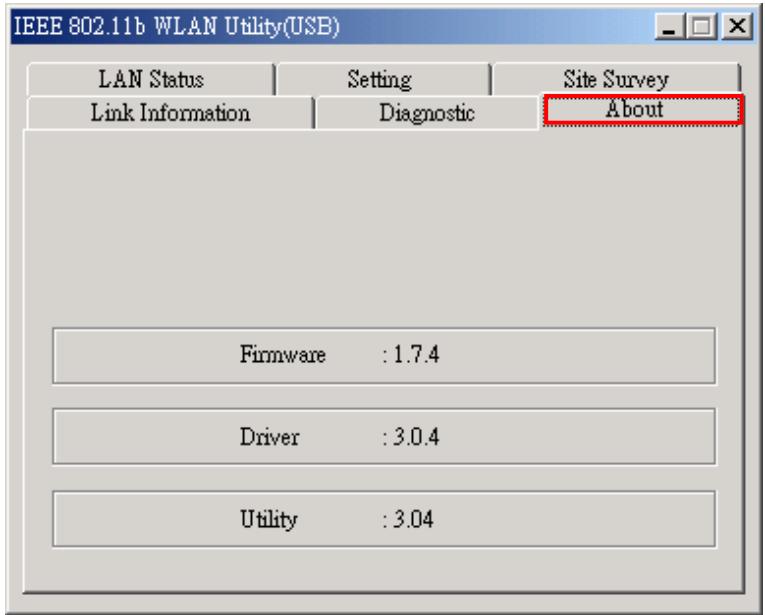

Diagnostic To view any errors in the hardware, firmware, or software of your JetFlash, select the Diagnostic tab in the IEEE 802.11b WLAN Utility (USB) window and select Start Diagnostic. lf any error occurs, you can select View Error Details to view the detailed information. LAN Status | Link Information Driver Driver & Utility match Driver & HW Driver & F'W Utility & F/W HIW Integrity FW Integoity View Error Details | Start Disgnostic About Version You can select the About tab in the IEEE 802.11b WLAN Utility(USB) window to see the version of the Firmware, Driver and Utility. Firmware :174 Driver :304 Utility :3.04

Safely Remove JetFlash Remove JetFlash in Windows 98SE Unplug JetFlash from your system directly when data is not transferring. Remove JetFlash in Windows Me

1. Selectthe æ icon in the system tray.

2. The Unplug or Eject Hardware pop-up menu will appear. Select to continue.

Unplug or eject hardware À

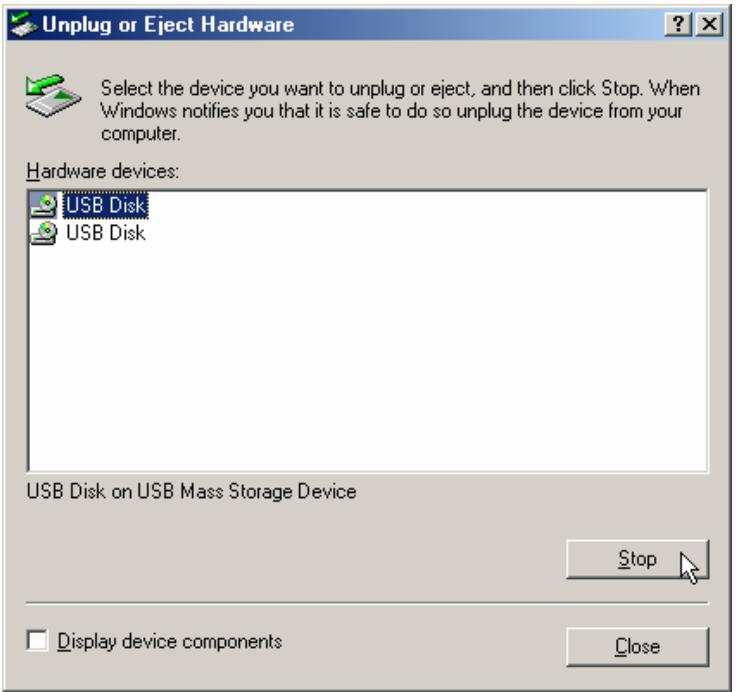

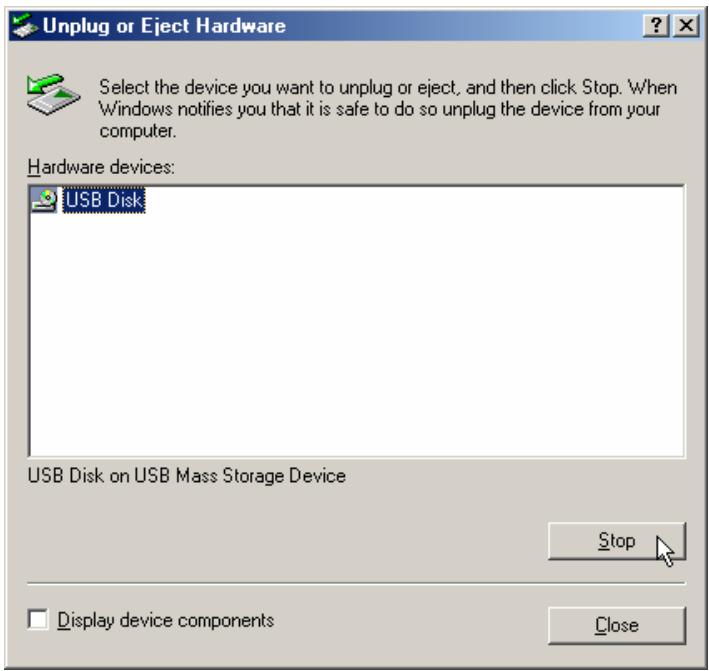

3. The Unplug or Eject Hardware window will appear. Select USB Disk and then select Stop

to continue. *# Unplug or Eject Hardware 21 xl LP, Select the device you want to unplug or eject, and then click Stop. When SZ Windows notes you that is sale 1 do s0 urplug the device from your computer. Hardware devices: USB Disk USB Disk on USB Mass Storage Device Stop T° Display device components Clse

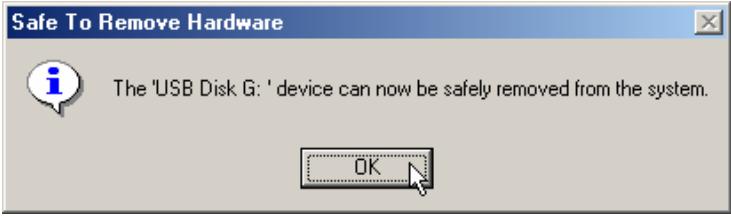

4. The Safe To Remove Hardware window will appear. Select OK to continue.

Safe To Remove Hardware! xi ) The'USB Disk G: ‘ device can now be safely removed from the system.

5. Select USB Disk and then select Stop to continue.

“#: Unplug or Eject Hardware: ex] Select the device you want to unplug or jet, and then click Stop. When Windaws notes you that K is safe ta da so unplug the device fiom your computer. Hardhare devices: USB Disk on USB Mass Storage Device Stop T° Display device components Close

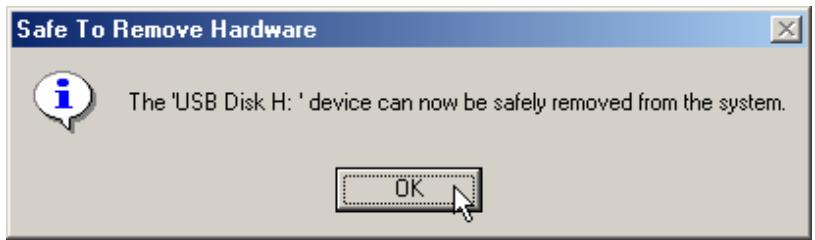

6. The Safe To Remove Hardware window will appear again. Select OK to complete. You

may now safely unplug your JetFlash from your computer. Safe To Remove Hardware XI (Gi) The'USE Disk H: ‘ device can now be safely removed from the system. Remove JetFlash in Windows 2000

1. Selectthe Æ iconinthe system tray.

2. The Unplug or eject hardware pop-up menu will appear. Select to continue.

Unplug or eject hardware

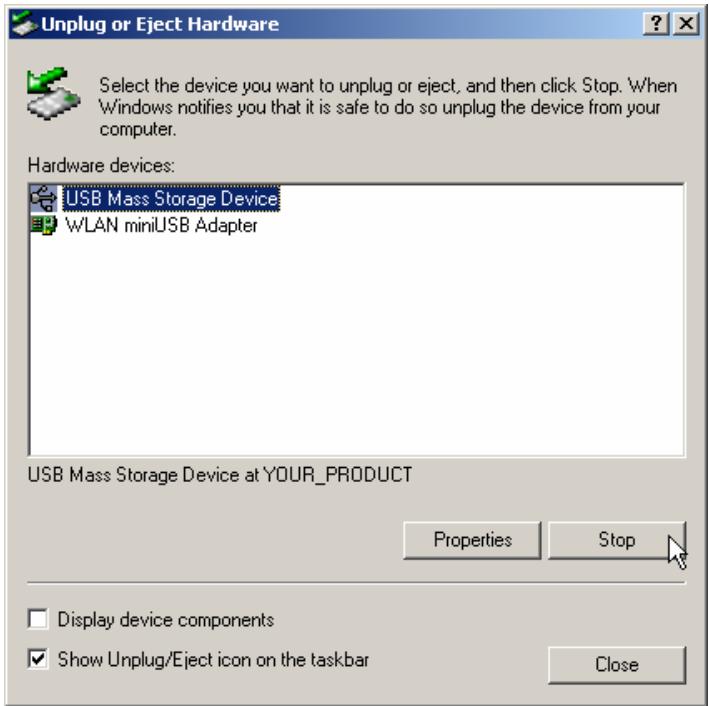

3. The Unplug or eject hardware window will appear. Select USB Mass Storage Device and

then select Stop to continue.

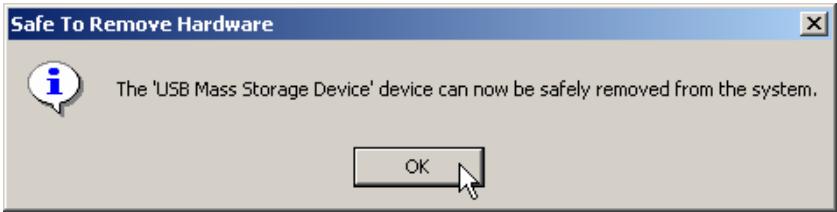

4. The Safe To Remove Hardware window will appear. Select OK to continue.

Safe To Remove Hardware (Gi)

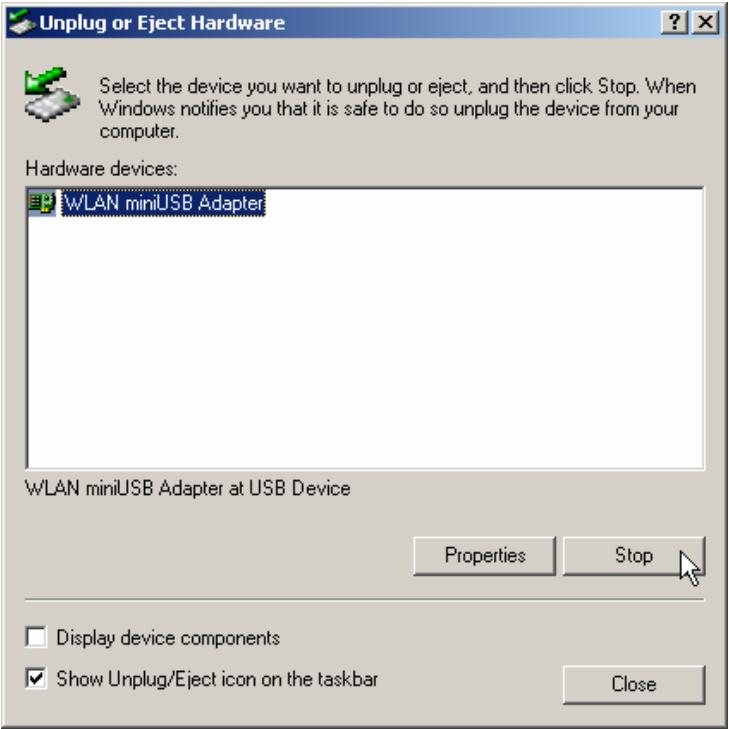

5. Select WLAN miniUSB Adapter and select Stop to continue.

#- Unplug or Eject Hardware LAN mini

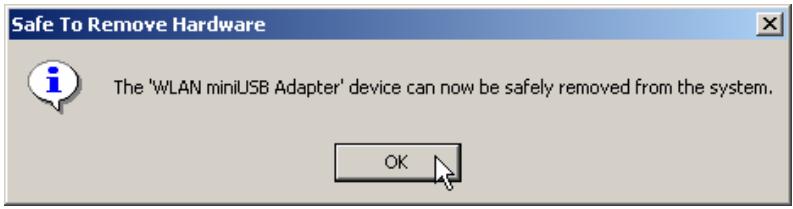

6. The Safe To Remove Hardware window will appear. Select OK to complete. You may now

safely unplug your JetFlash from your computer.

Safe To Remove Hardware! xl G) The WLAN miniUB Adapter device can now be safely removed from the system. Remove JetFlash in Windows XP

1. Selectthe 2 icon in the system tray.

2. The Safely Remove Hardware pop-up menu will appear. Select to continue.

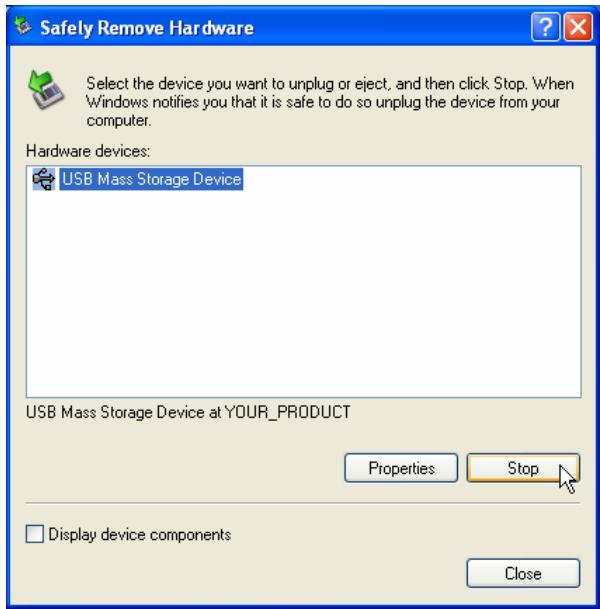

3. The Safely Remove Hardware window will appear. Select USB Mass Storage Device and

then select Stop to continue. Safely Remove Hardware Select the device you want to unplug or eject, andthen click Stop When ‘Windows notes vou that Ris safe to do sa unplug the device from your computer Hardhere devices: USB Mass Storage Device at YOUR_PRODUCT [Display device components

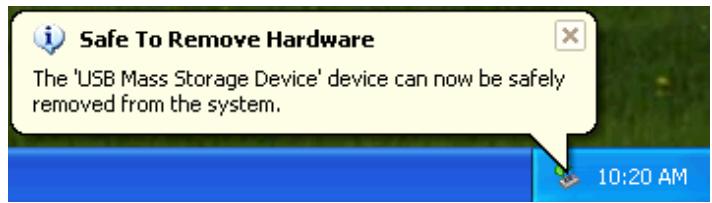

4. The Safe To Remove Hardware message balloon will appear. You may now safely unplug

your JetFlash from your computer. À) Safe To Remove Hardware x The ‘USB Mass Storage Device’ device can now be safely removed from the system.

1. Safely remove your JetFlash (see previous section).

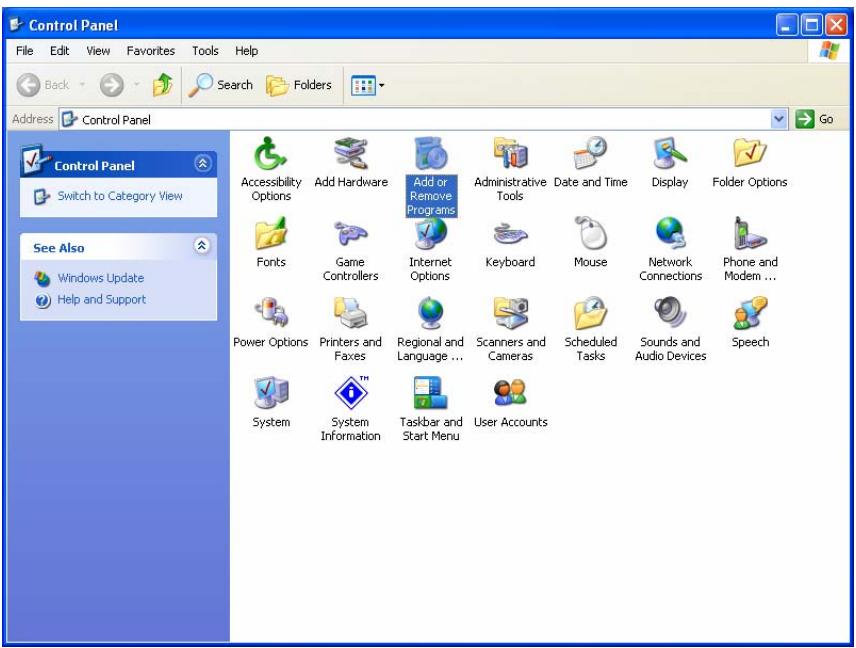

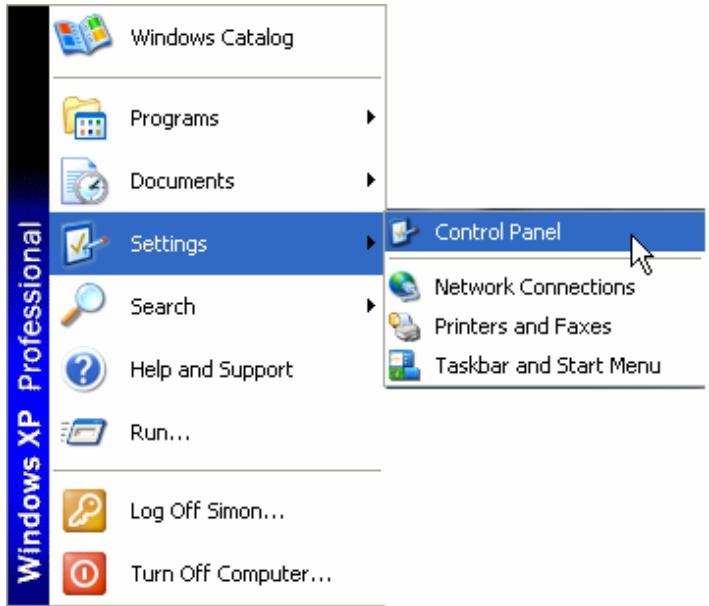

2. Select the button on the Task Bar, go to Settings and then select Control

Panel. Windows Catalog Programs » Documents # Control Panel = Settings ê & Network Connections A Search , © &3 Printers and Faxes 4 Help and Support LR Taskbar and Start Menu & Run...

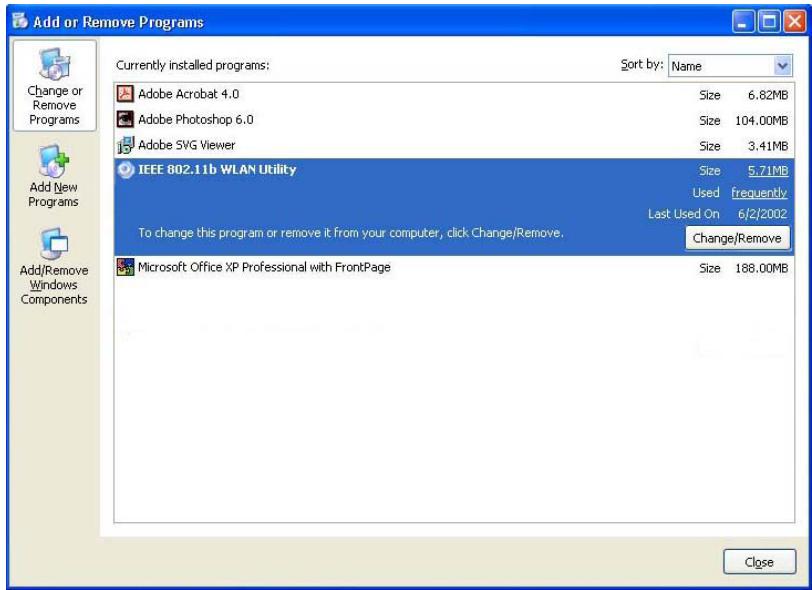

4. Select the IEEE802.11b WLAN Utility and select Change or Remove Programs to continue.

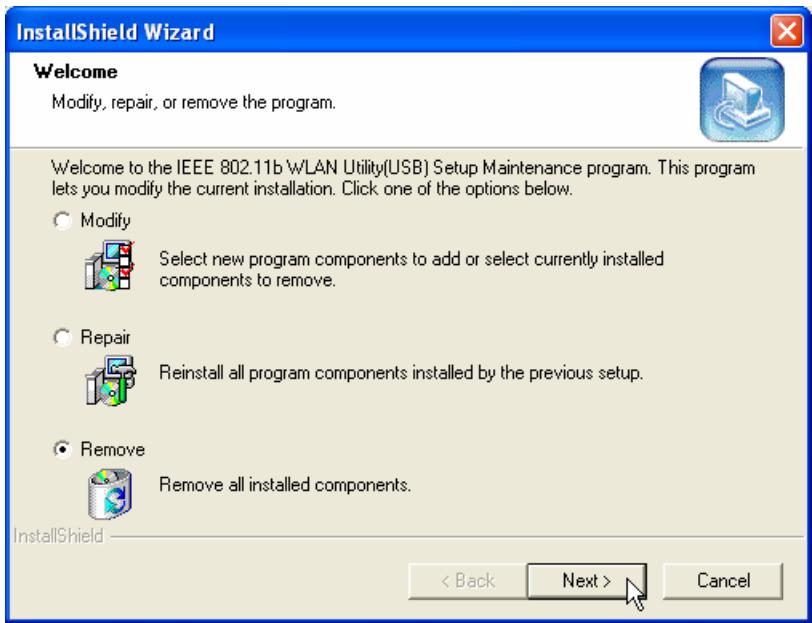

5. Follow the InstallShield Wizard and select Remove to complete the un-installation.

InstallShield Wizard [E2 Welcome Ge Modif repair, or remove the program. à ‘Welcome ta the IEEE 802.11b WLAN Utit{USE] Setup Maintenance progiem. This program lets you modif the current instalation. Click one of the options below. C Modiy Select new program components to add or select currently installed components to remove. € Repair id Fieinstall al program components installed by the previous setup. ( Remove Remove al installed components. Instelishiela Cancel

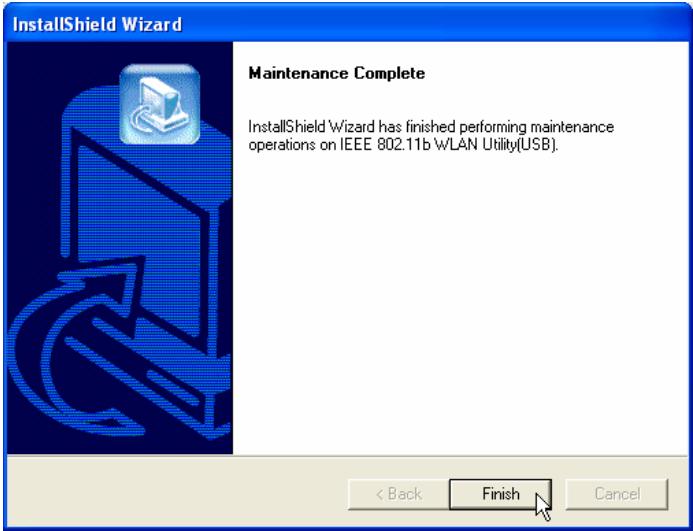

6. Select Finish when the un-installation has completed.

Qi: Aî: Q2: Troubleshooting Why doesn't the driver CD Auto-Run after it is inserted into the CD-ROM drive in Windows? This problem usually occurs because the Auto-Insert function of the CD-ROM drive is disabled. Please enter the Device Manager in Control Panel and enable the Auto-Insert function of the CD-ROM drive. Alternatively, you can execute the JetFlash.EXE in the driver CD manually. Why isn't my operating system detecting JetFlash after l've plugged it into the USB port of my computer? Please check following:

1. Is JetFlash properly connected to the USB port? If not, unplug it and plug it in again.

2. Is the USB port enabled? |f not, refer the user's manual of your computer (or

motherboard) to enable it.

3. Follow the procedures below to verify if the Driver is installed properly.

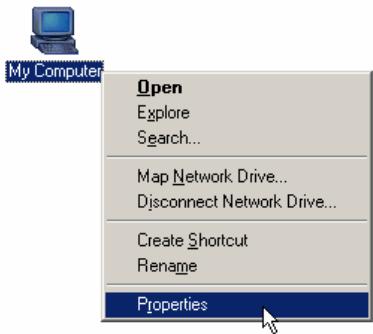

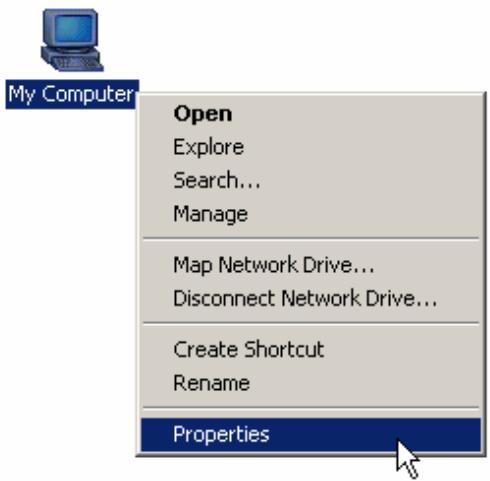

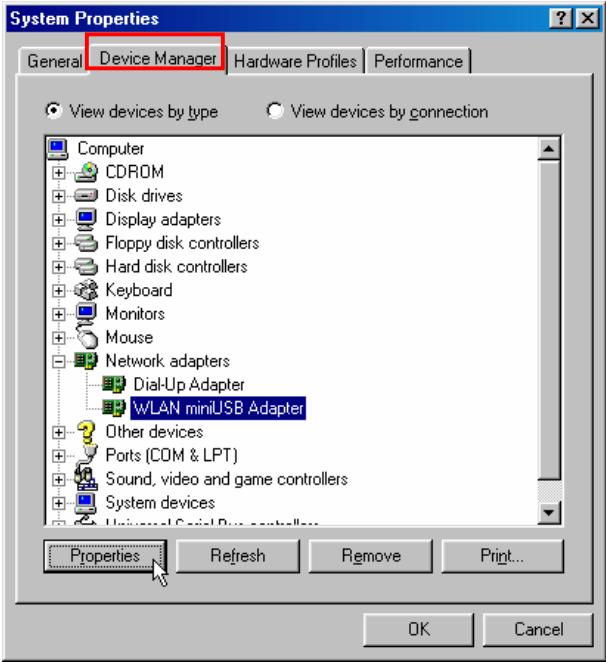

In Windows 98SE: a. Right-click the My Computer icon on the desktop and the select Properties. Open Explore Eind... Create Shortout Rename b. Select Device Manager tab and double-click Network adapters. Select the WLAN miniUSB Adapter and then select Properties.

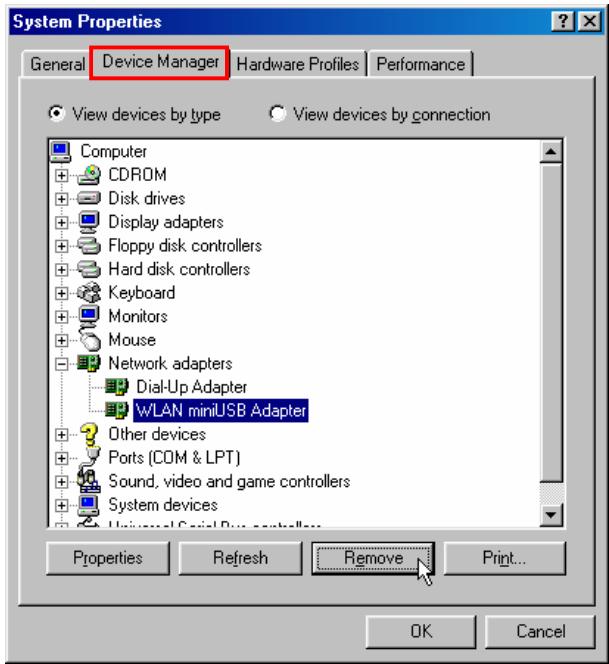

Gens Device anaoe| Hardware Profiles | Performance | (F View devices by pe © View devices by connection Computer a # ® Display adapters E3. € Floppy disk controllers £3 Hard disk controllers &B Keyboard Monitors 73 Mouse 5-89 Network adapters 9 Dia-Up Adapter EE Ur aN m8 Adapter Other devices ÿ Poits (COM & LPT] Sound, video and game cantrolers

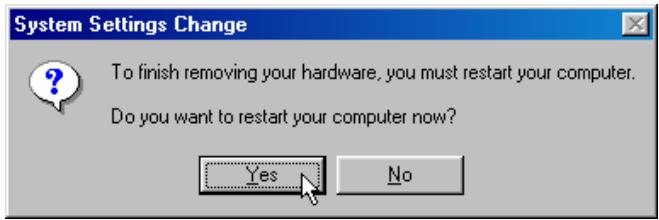

Æ Other devices £8- 9 Ports (COM & LPT) #8 Sound, video and game controlers E8-fM System de d. Select OK to confirm the device removal. Confirm Device Removal e. Select Yes to restart your computer and refer to the “Driver Installation for Windows 98SE” section to re-install the Win98 Driver. In Windows Me: a. Right-click the My Computer icon on the desktop and select Properties.

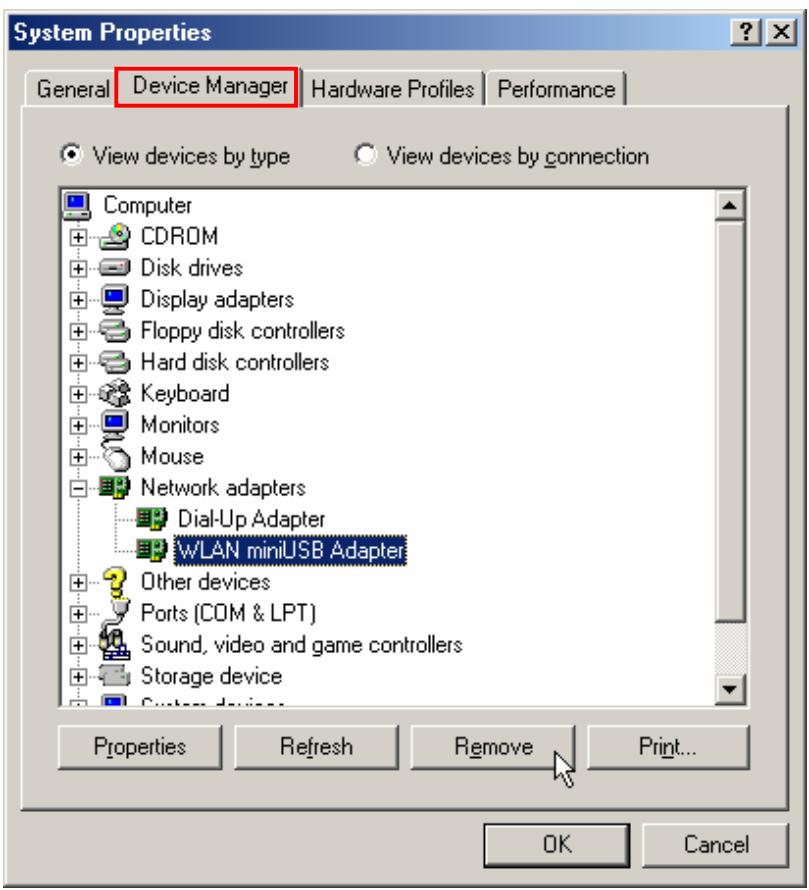

Open Explore Search. Map Network Drive... Disconnect Network Drive... Cieate Shorteut Rename b. Select the Device Manager tab and double-click Network adapters. Select the WLAN miniUSB Adapter and right-click Properties.

Eten Pope General Hardware Profiles | Performance | ° View devices by type T° View devices by connection [Bi Computer «<$ COROM ©) Disk dives ® Display adapters 8 Keyboard Monitors 73 Mouse E-#9 Network adapters & DialUp Adapter

Other devices Ports (COM & LPT] 4, Storage device D MR _Cocbnm doe Properties [| Fefeh [| Femove | Pin. | < Floppy disk cantrallers 3 Hard disk controllers Sound, video and game con Print

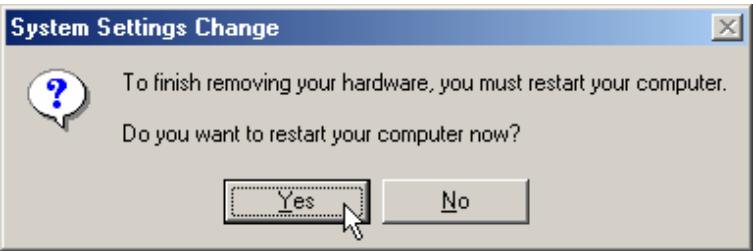

System Properties Co] Display adapters <% Floppy disk controllers 5 Hard disk controllers N rinilJ er devices Ports (COM & LPT] Sound, video and game controllers Storage device d. Select OK to confirm the device removal. Confirm Device Removal e. Select Yes to restart your computer and re-insert your JetFlash. System Settings Change

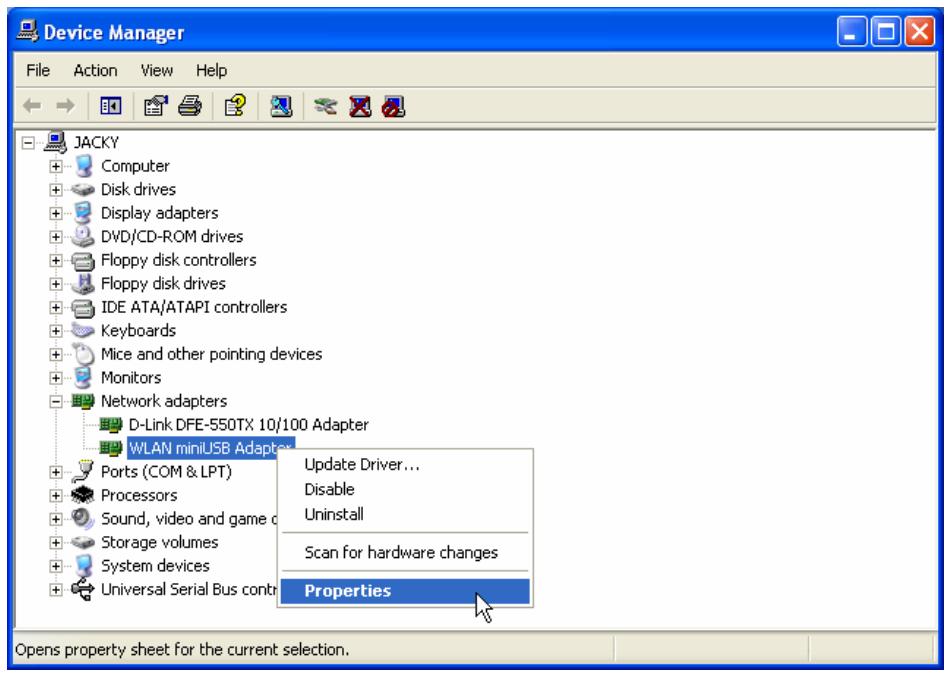

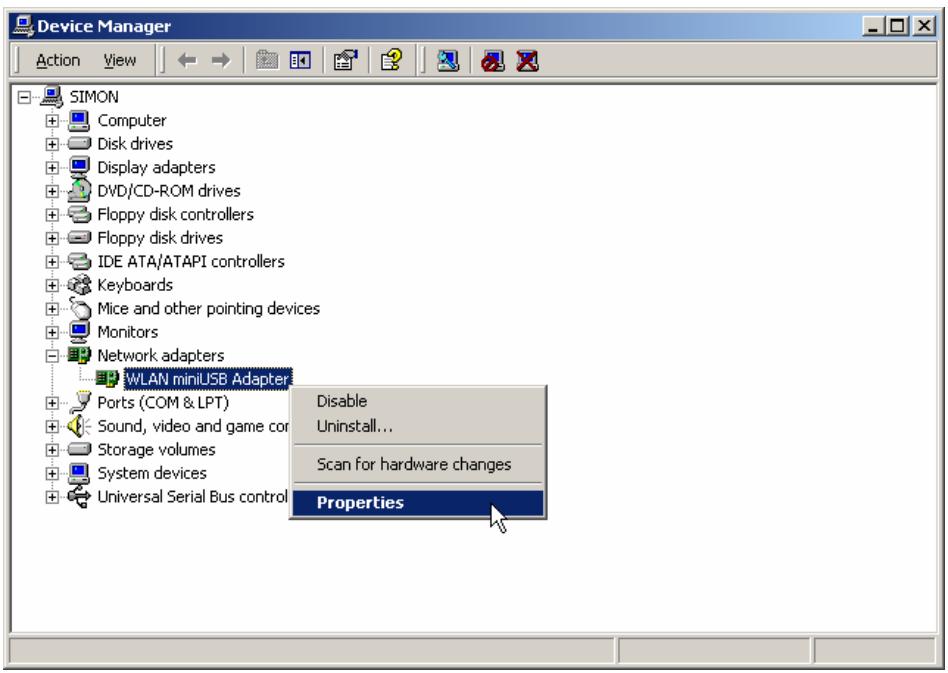

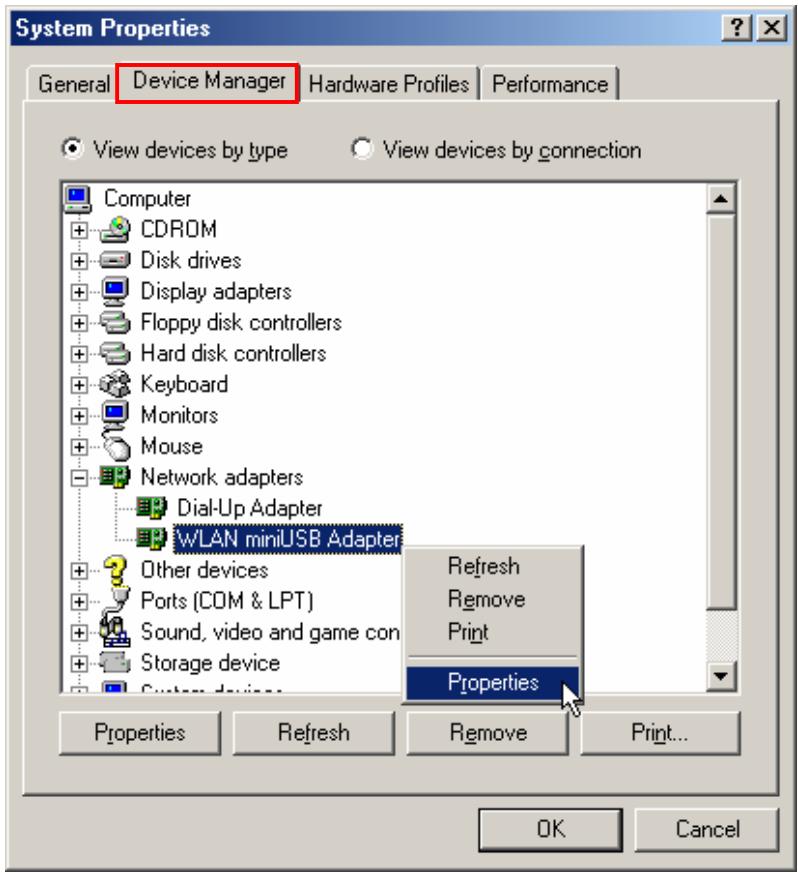

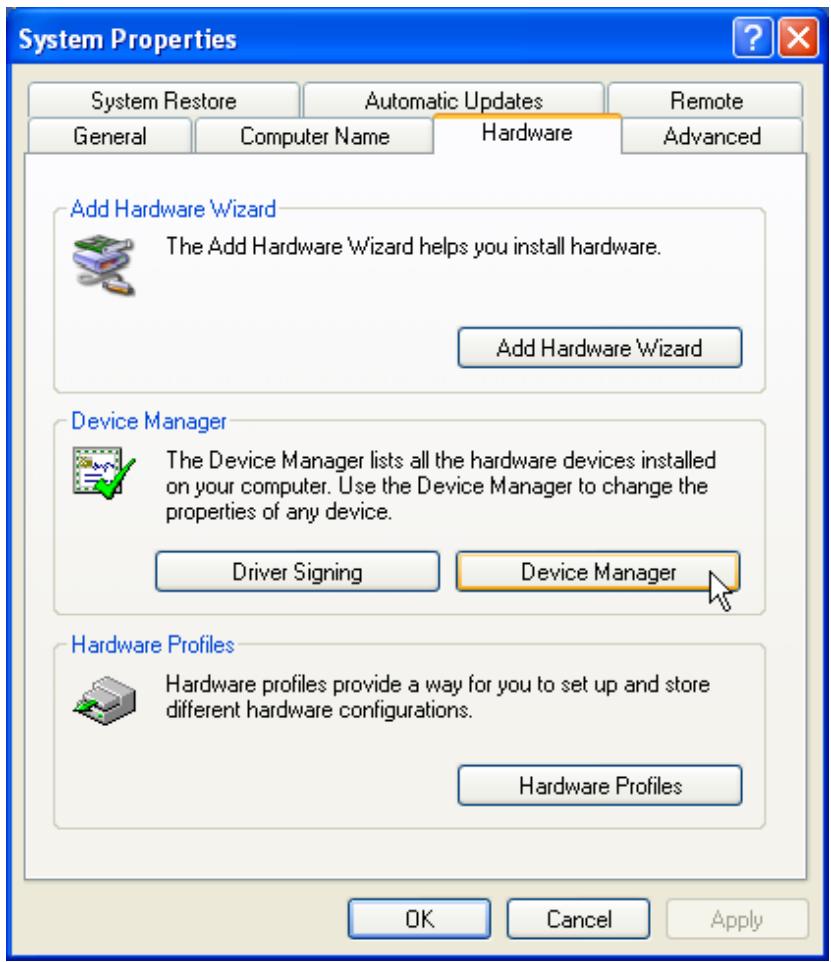

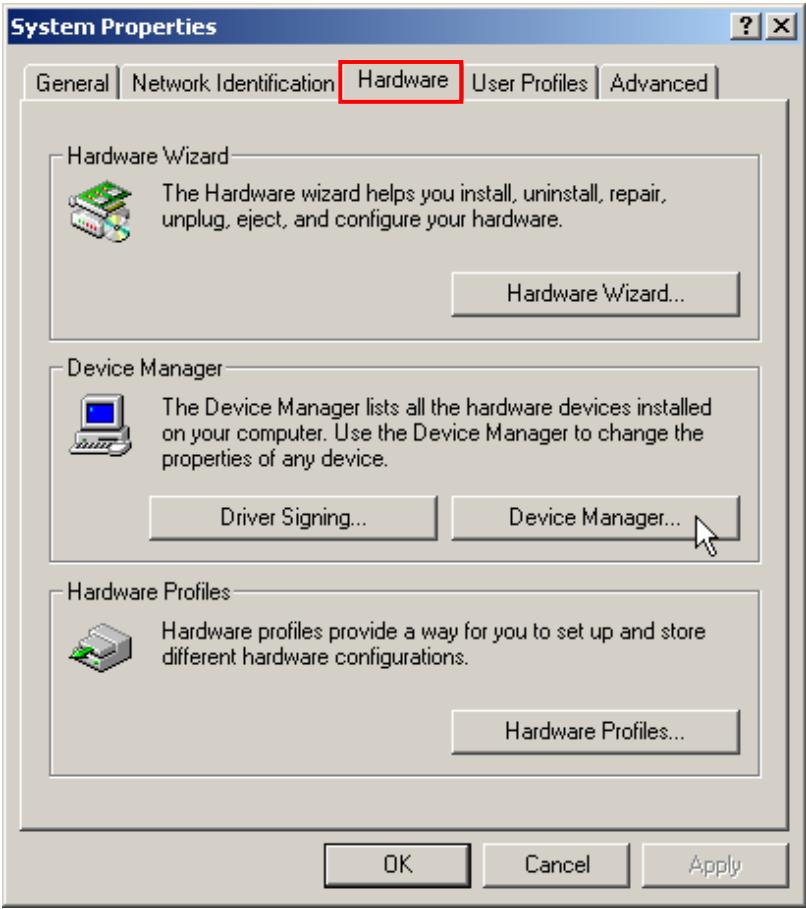

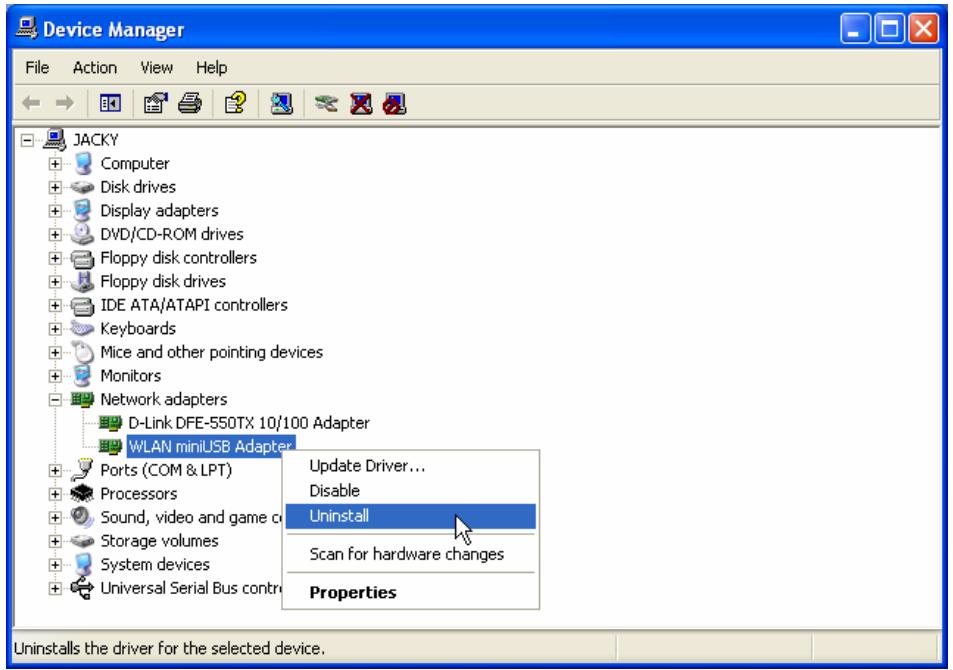

b. Select Hardware tab and then select Device Manager. System Properties c. Double-click the Network adapters. Right-click the WLAN miniUSB Adapter and then select Properties.

2) lice and other pointing devices

#1 ® Monitors M} Network adapters Adapter E3.,Ÿ Ports (COM &LPT) Disable 18: Sound, video and game cor Uninstal.. Scan For hardware changes © Storage volumes System devices 5€ Universal Serial Bus control | [I | d. If an error message appears in the Device Status window, right-clictk WLAN miniUSB Adapter and then select Uninstall. evice Manager loi x| Jason vw | + mé) || EF EU 1] Computer 2 vëk drives &@) Display adapters F1 2) DVD/CD-ROM drives 3 Floppy disk controllers EEE Floppy disk dives F9 IDE ATA/ATAPI controlers 3 keyboards

2) lice and other pointing devices

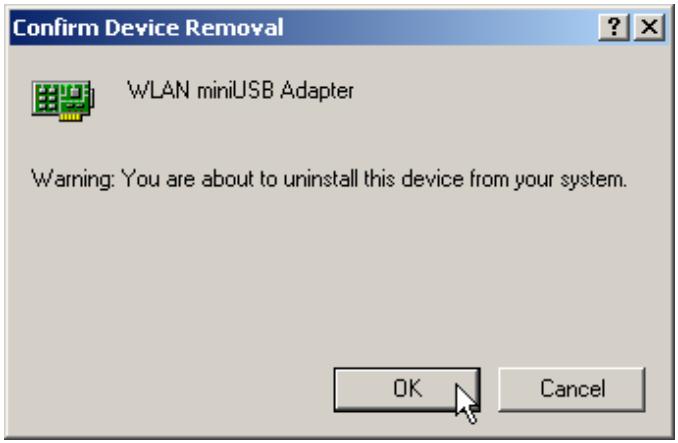

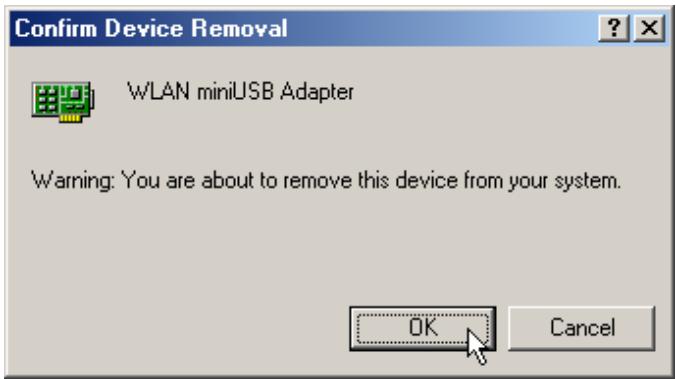

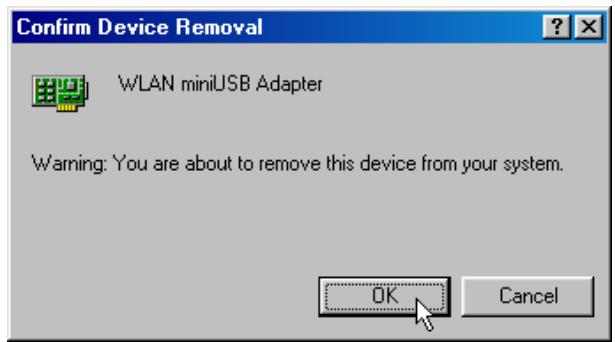

e. Select OK to confirm the device removal.

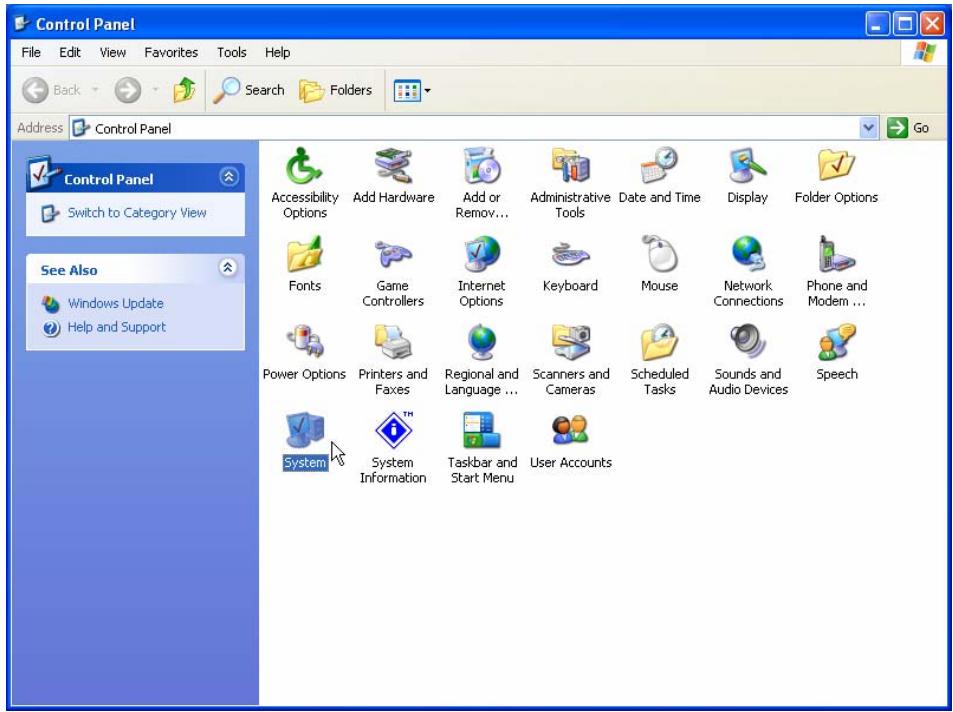

Confirm Device Remoyal _21x| WLAN miniUSB Adapter ‘Waming: You are about to uninstall this device from your system. Cancel f.. Restart your computer and re-insert your JetFlash. In Windows XP: a. Select the button on the Task Bar, go to Settings and then select Control Panel. Windows Catalog Programs Documents

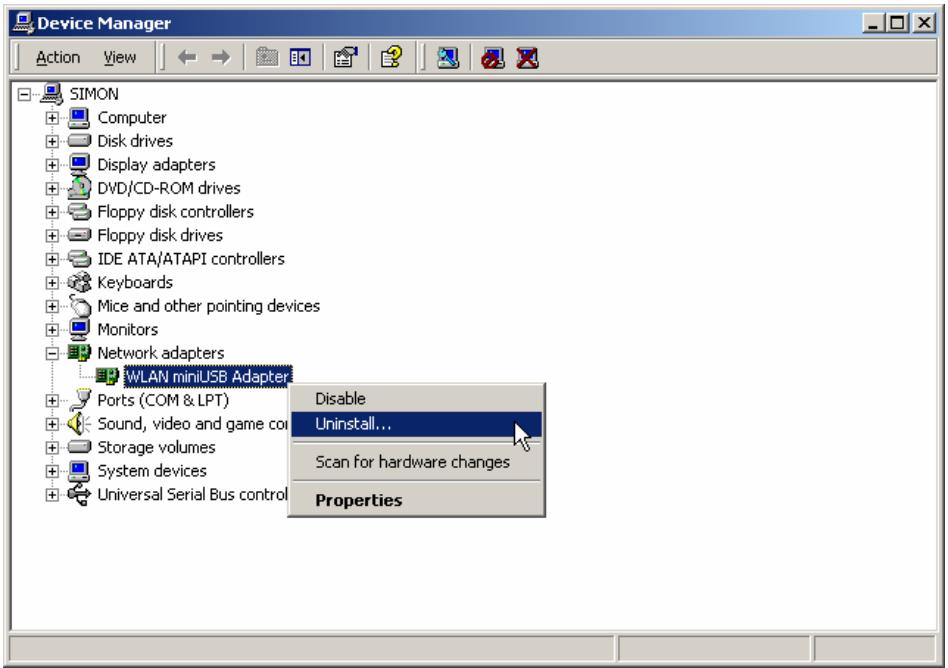

1 ,ÿ Ports (COM & LPT) Update Driver. FE 8 Processors Disable 1 @) Sound, video and game € Uninstall LE <e Storage volumes G à System devices 1: S$ Universal Seal Bus Mr | opens property sheet far the current selection. Scan for hardware changes e. lf an error message appears in the Device Status window, right-clictk WLAN miniUSB Adapter and select Uninstall. £ Device Manager, Fle Action View Help CRETE RETT) |

M Computer 1 <s Disk drives F#: @ Display adapters 1 02 ovo/CD-ROM drives F8 @ Floppy disk controllers EE JB Floppy disk drives Le © IDE ATAJATAPI controllers Æ @ Keyboards 14: ©) Mce and other painting devices & D Monitors 88 Network adapters ik DFE-S50TX 10/100 Adapter Update Driver.

3,9 Ports (COM &LPT) Disable F8 Processors F @, Sound, video and game c! #) <s Storage volumes F1 M System devices 1: @ Universal Serial Bus contr Scan for hardware changes Properties [Uninstais the driver for the selected device. f.. Restart your computer and re-insert your JetFlash.

Host Interface: Standard: Dimension: Weight: WLAN Frequency Range: WLAN Operation Range: WLAN Channels Support: Specifications USB 1.1 IEEE802.11b 26 (W) x 86 (L) x 14 (H) mm 27g 2.4-2.4835 GHz 2.497GHz (14 Channel) Indoor: 35-100m @ 11Mbps Outdoor: 300m @ 11Mbps US/Canada: 11 (1-11) Europe: 13 (1-13) France: 4 (10-13) Japan: 14 (1-14) WLAN Transmission Rate: 11Mbps, 5.5Mbps, 2Mbps, 1Mbps, Auto-Rate DSSS (Direct Sequence Spread Spectrum) with BPSK (1Mbps), QPSK (2Mbps), and CCK (5.5Mbps and 11Mbps) Embedded PIFA antenna 64-bit, 128-bit WEP encryption @PER < 0.08 11Mbps < -82dBm 5.5Mbps < -86dBm 2Mbps < -88dBm 1Mbps < -90dBm Modulation Technique: Antenna: Wireless Security: RF Receiver Sensitivity: Power Consumption: Transmission mode: 205mA (Typical) Receives mode: 190mA (Typical) Idle mode: 173mA (Typical) Power Saving Idle mode: 30mA (Typical) Certificates: CE, FCC, Wi-Fi, TELEC Ordering Information Memory Size Transcend P/N

JetFlash Limited Warranty “Above and beyond” is the standard we set ourselves for customer service at Transcend. We consistently position ourselves to be significantly above the industry norm. It's all part of our commitment to Customer Satisfaction. All Transcend Information, Inc. (Transcend) products are warranted and tested to be free from defects in material and workmanship and to conform to the published specifications. Should your Transcend JetFlash malfunction during normal use in its recommended environment due to improper workmanship or materials within the warranty period, Transcend will repair or replace your product with a comparable product. This warranty is subject to the conditions and limitations set forth herein. Duration of Warranty: Transcend JetFlash are covered by this warranty for a period of two (2) years from the date of purchase. Transcend will inspect the product and make the determination as to whether the product is eligible for repair or replacement. The decision by Transcend regarding eligibility of the product for repair or replacement will be final and binding. Transcend reserves the right to provide a functionally equivalent refurbished replacement product. Limitations: This warranty does not apply to products that fail due to accident, abuse, mishandling, improper installation, alteration, and acts of nature, improper usage, or problems with electrical power. Transcend JetFlash must be used with devices that conform to the recommended industry standards. Transcend will not be liable for damages resulting from a third party device that causes the Transcend product to fail. Transcend shall in no event be liable for any consequential, indirect, or incidental damages, lost profits, lost business investments, lost goodwill, or interference with business relationships as a result of lost data. Transcend is also not responsible for damage or failure of any third party equipment, even if Transcend has been advised of the possibility. This limitation does not apply to the extent that it is illegal or unenforceable under applicable law. Disclaimer: The foregoing limited warranty is exclusive, with no other warranties, implied or statutory, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. This warranty is not affected in any part by Transcend providing technical support or advice. Online Registration: To expedite warranty service, please register your Transcend Product within 30 days of purchase. Register online at http://www.transcendusa.com/registration Transcend Transcend Information, Inc. Your Supplier, Your Partner, Your Friend. www.transcendusa.com The Transcend logo is a registered trademark of Transcend Information, Inc. “All logos and marks are trademarks of their respective companies.
