Product Type	Chafing Dish / Food Warmer
Brand	Royal Catering
Model	RCCD-RT10_9L
Capacity	Approx. 9 liters
Dimensions	Approx. 60 x 40 x 30 cm (W x D x H)
Weight	Approx. 7 kg
Intended Use	Heating and keeping food at serving temperature; not suitable for defrosting or cooking
Power Supply	Fuel paste (not included); flame adjustable via lid
Heating System	Water container heated by fuel paste to warm food evenly
Material	Food-safe stainless steel construction for contact with food
GN Container Compatibility	Works with standard GN containers
Lid	Complete with handle for easy access and heat retention
Carry Handle	Facilitates safe transport
Air Ventilation	Air vents for proper airflow and combustion
Support Legs	Stable base on firm, fireproof surfaces
Safety Features	Hot surface warning; never operate without water; keep away from flammable materials
Cleaning	Use mild, non-abrasive cleaners suitable for food-contact surfaces; dry thoroughly after cleaning
Maintenance	Regular cleaning and inspection; no user-serviceable parts
Repairs	Only manufacturer's technical service may repair the product
Manufacturer	expondo Polska sp. z o.o. sp. k.
Manufacturer Address	ul. Nowy Kisielin - Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
Manual Languages	English, German, French, Spanish, Polish, Czech, Hungarian, Danish, Italian, etc.

Frequently Asked Questions - RCCD-RT10_9L Royal Catering

What is the Royal Catering RCCD-RT10_9L Chafing Dish used for?

The Royal Catering RCCD-RT10_9L is a chafing dish designed to heat food and keep it at serving temperature. It is ideal for buffets, catering events, and restaurants. It is not suitable for defrosting or cooking raw food.

How do I operate the chafing dish?

First, place the water container on the frame and fill it with warm water. Then place the GN container with food into the water container and close the lid. For fuel models like the RCCD-RT10_9L, put fuel paste in the included fuel containers, light it, and place them on the shelf under the water container. Adjust the flame height with the lid. Always monitor the water level.

What type of fuel should I use?

Use fuel paste (often sold as chafing fuel). The fuel paste is not included with the product. Place it in the provided fuel paste containers and light it. Never use any other liquid fuel.

Can I cook food in the chafing dish?

No, the chafing dish is intended only for heating pre-cooked food and keeping it warm. It is not designed for defrosting, boiling, or cooking raw ingredients. The water bath method ensures gentle heat.

How do I clean and maintain the chafing dish?

Before cleaning, allow the unit to cool completely. Use a soft cloth and a mild, non-abrasive cleaning agent suitable for food-contact surfaces. Avoid sharp or metal implements. After cleaning, dry all parts thoroughly. Store in a cool, dry place.

What safety precautions should I follow?

Always operate on a level, fireproof surface away from flammable materials. Never place a heat source under an empty container. Do not touch hot surfaces - use protective gloves. Keep a clearance of at least 10 cm around the appliance and ensure good ventilation. Children should be supervised.

Why is the water container important?

The water container holds hot water that transfers heat to the food container, ensuring even heating and preventing food from burning. Regularly check the water level and top up with hot water to maintain temperature.

Can I repair the chafing dish myself?

No, do not attempt to repair the product yourself. Contact the manufacturer's technical service for any defects or damage. The manual states that only authorized technicians may perform repairs to ensure safety and reliability.

What is the capacity of this chafing dish?

The RCCD-RT10_9L model has a capacity of approximately 9 liters, compatible with standard GN containers. This makes it suitable for serving large quantities at events.

How should I store the chafing dish when not in use?

After each use, remove the water, clean and dry all components. Store the chafing dish in a dry, cool place, away from moisture and direct sunlight. Keep the manual with the product for future reference.

USER MANUAL RCCD-RT10_9L Royal Catering

DE	Produktname:	Chafing Dish Speisenwärmer
EN	Product name:	Chafing Dish
PL	Nazwa produktu:	Podgrzewacz do potraw
CZ	Název výrobku	Chafing Dish
FR	Nom du produit:	Chafing Dish
IT	Nome del prodotto:	Chafing dish
ES	Nombre del producto:	Chafing Dish
HU	Termék neve	Étel melegentartó
DA	Produktnavn	Madvarmer
DE	Modell:	RCCD-RT1_9L
EN	Product model:	RCCD-RT2_9L
PL	Model produktu:	RCCD-RT3_9L
CZ	Model výrobku	RCCD-RT1_6L
FR	Modèle:	RCCD-RT2_6L
IT	Modello:	RCCD-RT4_9L
ES	Modelo:	RCCD-RT5_9L
HU	Modell	RCCD-RT6_9L
DA	Model	RCCD-RT3_6L
		RCCD-RT7_6L
		RCCD-RT8_9L
		RCCD-RT4_6L
		RCCD-RT9_6L
		RCCD-RT10_9L
		RCCD-RT11_6L
		RCCD-RT12_6L
		RCCD-RT13_9L
		RCCD-RT14_6L
		RCCD-RT15_6L
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Technische Daten

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L

This manual is intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components, and maintaining the highest quality standards.

READ THE MANUAL CAREFULLY AND UNDERSTAND IT BEFORE USE.

To ensure long and reliable operation of the product, operate and maintain it correctly and strictly in compliance with this manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to modifications for the purpose of quality improvement.

	The product meets the requirements of relevant safety standards.
	Read the manual before use.
	CAUTION! or WARNING! or REMEMBER! indicates a specific instruction (general warning sign).
	Caution! Hot surface – risk of burns!
	Intended for contact with food

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

The original version of the manual is in German language. Other language versions are translations from German.

2. Operating safety

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term “appliance” or “product” in the warnings and instructions refers to the .

2.1. SAFETY

a) Keep the workplace tidy and well lit. Disorder or poor lighting can lead to accidents. Be careful, watch what you are doing and use common sense when working with the appliance.
b) If in doubt as to whether the product is working properly or found to be damaged, contact the manufacturer's technical service.
c) Only the manufacturer's technical service may repair the product. Do not attempt to repair the product on your own!
d) Use the appliance in a well-ventilated room.
e) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
f) Keep packaging components and small installation parts out of the reach of children.
g) The appliance is not a toy. Children must be supervised to ensure that they do not play with it.
h) Clean the appliance regularly to prevent permanent deposits of dirt.
i) The appliance is not a toy. Cleaning and maintenance shall not be performed by children without adult supervision.
j) Place the appliance on a work top at least the size of the appliance footprint and away from all flammable materials.
k) Never place a heat source under an empty container!
I) Do not move the heater while it is in operation.
m) The fuel canister and its lid can become very hot. Always wear protective gloves to prevent burns. (For models: RCCD-RT1_9L, RCCD-RT2_9L, RCCD-RT3_9L, RCCD-RT1_6L, RCCD-RT2_6L, RCCD-RT4_9L, RCCD-RT5_9L, RCCD-RT8_9L, RCCD-RT4_6L, RCCD-RT9_6L, RCCD-RT10_9L, RCCD-RT11_6L, RCCD-RT12_6L, RCCD-RT13_9L, RCCD-RT14_6L, RCCD-RT15_6L)
n) Do not extinguish the flame by blowing air at it. To extinguish the flame, isolate the supply of ambient air by putting the lid on. (For models: RCCD-RT1_9L, RCCD-RT2_9L, RCCD-RT3_9L, RCCD-RT1_6L, RCCD-RT2_6L, RCCD-RT4_9L, RCCD-RT5_9L, RCCD-RT8_9L, RCCD-RT4_6L, RCCD-RT9_6L, RCCD-RT10_9L, RCCD-RT11_6L, RCCD-RT12_6L, RCCD-RT13_9L, RCCD-RT14_6L, RCCD-RT15_6L)
o) Do not submerge the frame in water.

residual risk of accident or injury during its operation. Caution and common sense are advised when using the product.

3. Rules of use

This product is intended for heating the food placed in it and holding the food at heat. It is not suitable for defrosting or cooking food.

The user is responsible for any damage caused by non-intended use.

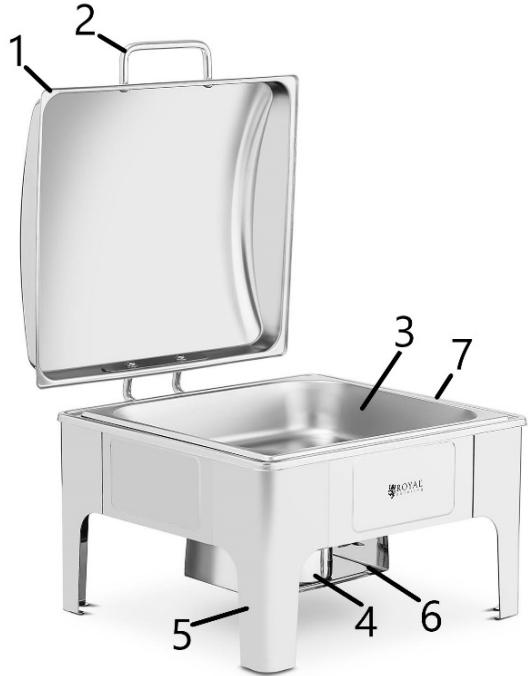

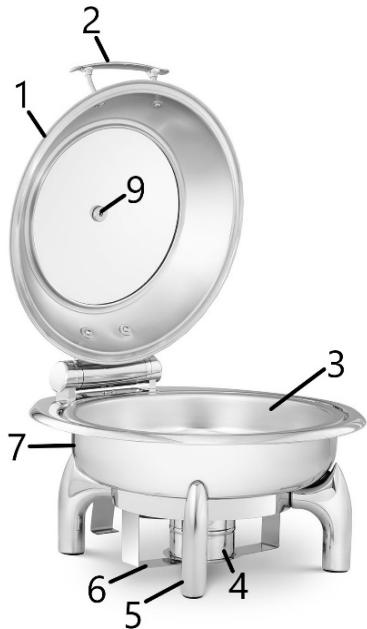

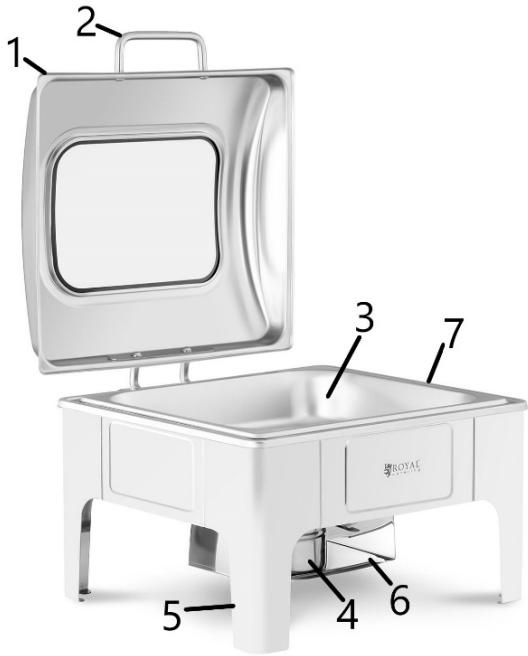

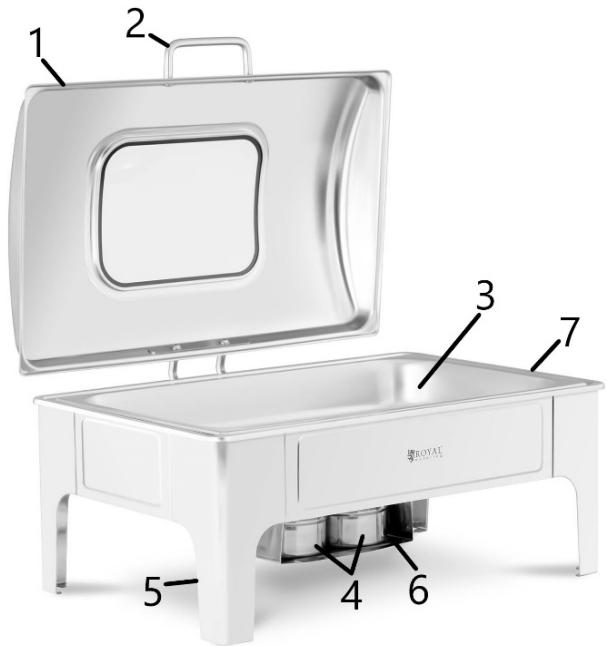

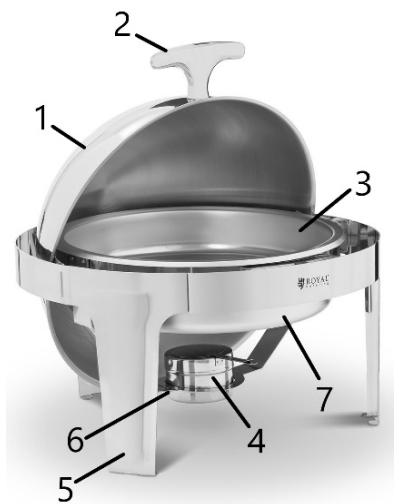

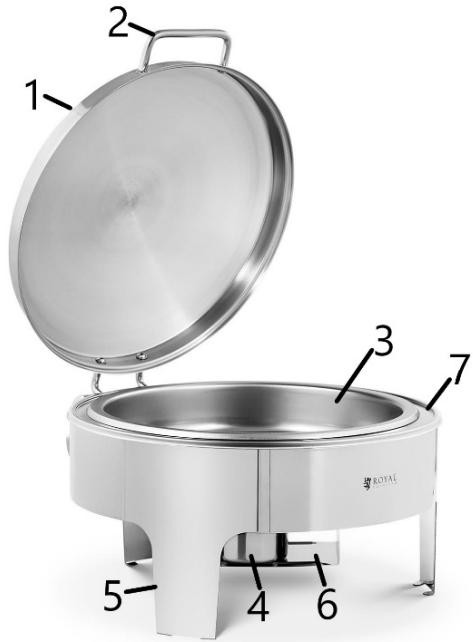

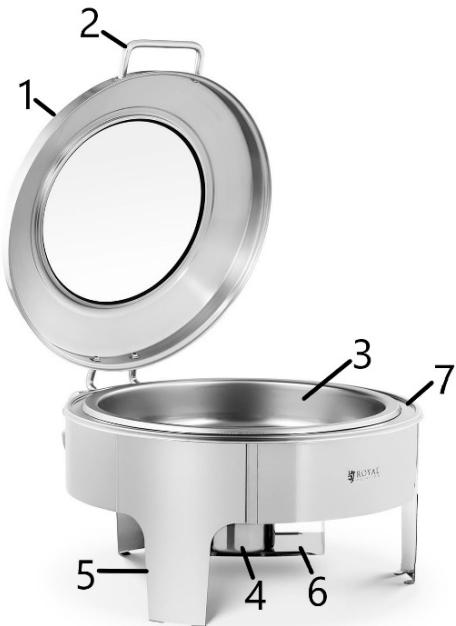

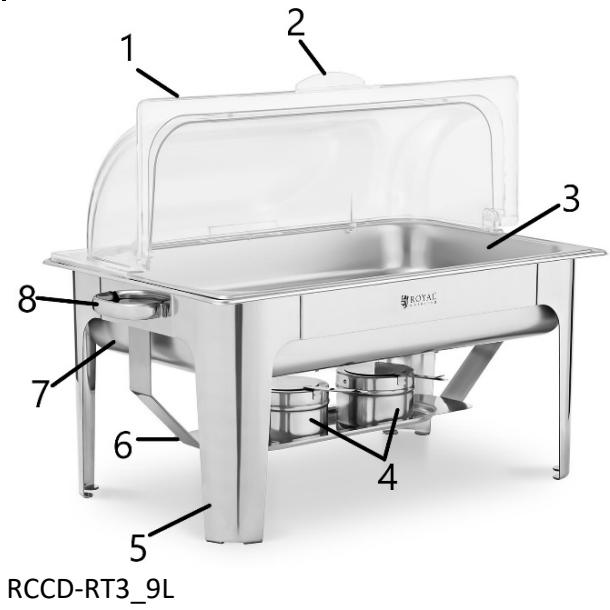

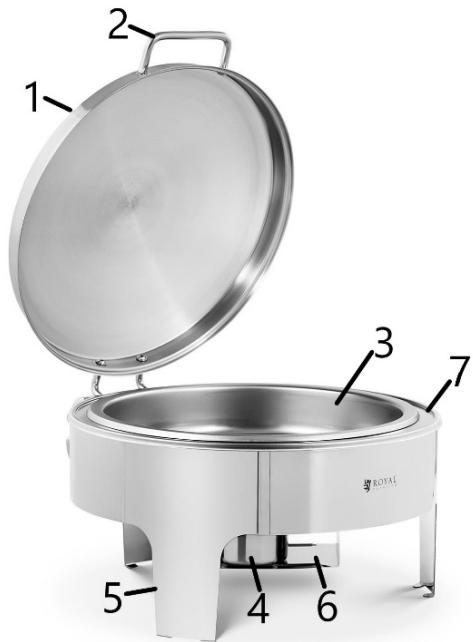

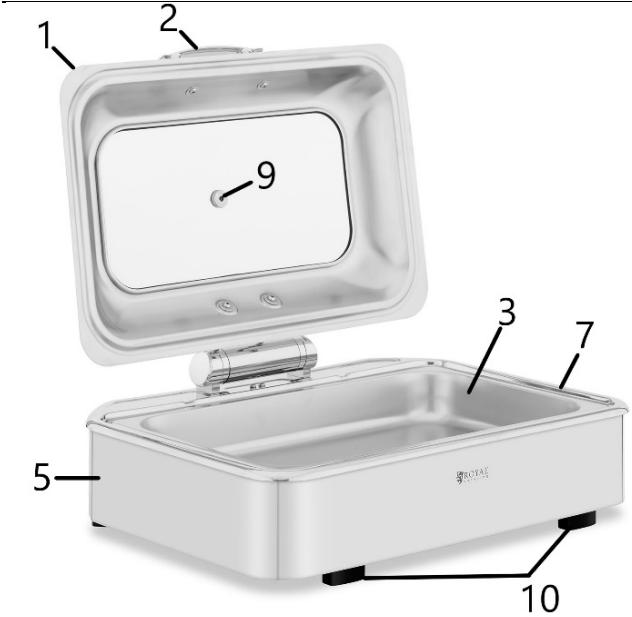

3.1. Appliance overview

RCCD-RT1_9L

RCCD-RT15_9L

RCCD-RT2_6L

RCCD-RT4_9L

RCCD-RT5_9L

RCCD-RT6_9L

RCCD-RT3_6L

RCCD-RT7_9L

RCCD-RT8_9L

RCCD-RT4_6L

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L

1. Lid

2. Handle

3. GN container for food

4. Fuel paste container
5. Frame
6. Fuel paste container shelf
7. Water container
8. Carrying handle
9. Air vent
10. Support legs

3.2. Preparations for operation

POSITIONING THE APPLIANCE

The maximum ambient temperature and relative humidity limits not to be exceeded are +40°C and 85% RH, respectively. Position the appliance where good air circulation is ensured. Maintain a minimum clearance of 10 cm from all sides of the appliance. Keep the appliance away from any hot surfaces. Always operate the appliance on a level, firm, clean, fireproof, and dry surface and out of the reach of children and individuals with reduced mental, sensory and intellectual capacities.

Before the first use, remove all accessories and wash them clean along with the entire appliance.

3.3. Operating the appliance

1. Put the water container on the frame. Fill the container with warm water (use enough water so that it will not spill over when the GN container is placed in the water container). For RCCD-RT6_9L, RCCD-RT3_6L, and RCCD-RT7_6L, use hot water the steam and temperature of which are the source of heat to stop the food temperature from dropping. As the temperature of the water in the container drops, so does the temperature of the food, so it is important to control both the water level in the container and its temperature, and top up hot water when needed.
2. Place the GN container with the food in it in the water container. Close the lid.
3. Models: RCCD-RT1_9L, RCCD-RT2_9L, RCCD-RT3_9L, RCCD-RT1_6L, RCCD-RT2_6L, RCCD-RT4_9L, RCCD-RT5_9L, RCCD-RT8_9L, RCCD-RT4_6L, RCCD-RT9_6L, RCCD-RT10_9L, RCCD-RT11_6L, RCCD-RT12_6L, RCCD-RT13_9L, RCCD-RT14_6L, RCCD-RT15_6L: Place the fuel paste from a can (not included) in the included fuel paste containers. Light the fuel paste and place the fuel

paste containers on the shelf under the water container. Adjust the flame height with the lid of the fuel paste container.

1. CAUTION! Regularly check the water level in the food heater – never allow the water to evaporate fully, or the food can be burned.
2. When done using the product, proceed as applicable to your model: kill the flame by closing the fuel paste container with its lid or unplug the electric heater from the mains.
3. Always remove water and leave the water container to dry after use.

CAUTION! The product components reach a high temperature; hot steam can be released when the lid is opened. Extreme caution is required when operating this product.

3.4. Cleaning and maintenance

a) Before cleaning, adjustment or replacement of accessories, and when the appliance is not in use, leave it to cool down completely.
b) Use non-corrosive agents only for cleaning the surfaces.
c) Only mild cleaning agents intended for surfaces in contact with food shall be used to clean the appliance.
d) After each cleaning, dry all components well before the appliance is used again.
e) Store the appliance in a dry and cool place, protected from moisture and direct sunlight.
f) Regularly inspect the appliance for technical defects and damage.
g) Use a soft cloth for cleaning.
h) Do not clean with any sharp and/or metal implements (e.g. a wire brush or a metal scraper) as these may damage the surface of the appliance.
i) Do not clean the appliance with acidic substances, medical products, thinners, fuel, oil or other chemicals as they may damage it.

Dane techniczne

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L

RCCD-RT15_9L

RCCD-RT2_6L

RCCD-RT4_9L

RCCD-RT5_9L

RCCD-RT6_9L

RCCD-RT3_6L

RCCD-RT7_9L

RCCD-RT8_9L

RCCD-RT4_6L

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_9L

RCCD-RT2_6L

RCCD-RT4_9L

RCCD-RT5_9L

RCCD-RT6_9L

RCCD-RT3_6L

RCCD-RT7_9L

RCCD-RT8_9L

RCCD-RT4_6L

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L

RCCD-RT15_9L

RCCD-RT2_6L

RCCD-RT4_9L

RCCD-RT5_9L

RCCD-RT6_9L

RCCD-RT3_6L

RCCD-RT7_9L

RCCD-RT8_9L

RCCD-RT4_6L

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L

1. Tapadera

2. Asa

3. Recipiente GN para alimentos

4. Recipiente para combustible
5. Bastidor
6. Estante para recipiente con combustible
7. Recipiente para agua
8. Asa de transporte
9. Respiradero
10. Patas

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L

RCCD-RT9_6L

RCCD-RT10_9L

RCCD-RT11_6L

RCCD-RT12_6L

RCCD-RT13_9L

RCCD-RT14_6L

RCCD-RT15_6L
