Product type	Decorative wall-mounted range hood for kitchen
Brand and model	Klarstein Balzac
Item numbers	10035466, 10035467
Installation type	External exhaust or recirculation with optional activated carbon filter
Safety distance above the cooktop	65 to 75 cm
Exhaust duct diameter	Minimum 150 mm
Power supply	220-240 V ~ 50/60 Hz
Lighting	2 × LED 1.5 W, DC 12 V, Ø 68 mm, code DSR-1.5-S-68
Total lighting power	3 W
Controls	Electronic keys with digital speed display (1, 2, 3, b)
Speeds	3 speeds + Boost mode
Additional functions	Boost mode and 5-minute quick timer
Airflow in normal operation	284.6 to 484.1 m³/h
Maximum airflow (Boost mode)	604.6 m³/h
Noise level	47 to 60 dB(A) depending on speed
Energy efficiency class	A
Annual energy consumption	44.4 kWh/year
Grease filter	Metal filter, clean monthly with water and dish soap, air-dry
Activated carbon filter	Optional, item number 10030727
Main material	Brushed stainless steel
Care and cleaning	Do not use abrasive products, wipe in the direction of the stainless steel grain
Electrical installation and safety	Installation by a qualified electrician, never use with a room air-dependent fireplace without ventilation, maximum depressurization of 4 Pa
Dimensions (approx.)	60 × 50 × 40 cm (W × D × H)
Weight (approx.)	12 kg
Spare parts and repairability	Replaceable LED lights, motor and capacitor replaceable by a professional

Frequently Asked Questions - Balzac Klarstein

What is the minimum distance between the range hood and the cooktop?

The hood should be installed at a distance of 65 to 75 cm above the cooking surface. This height ensures efficient extraction while complying with safety instructions.

How do I install the activated carbon filter?

To install the activated carbon filter, first remove the grease filter by pressing its catch. Then place the activated carbon filter over the fan and turn it clockwise. Repeat on the other side and make sure the filter is securely tightened. The suction power may decrease slightly.

How do I use Boost mode?

Press the + button to activate Boost mode. The buzzer sounds, the indicator lights up, and the display shows b. If no other speed is selected within 5 minutes, the hood automatically returns to high speed.

How do I set the automatic shut-off timer?

Hold down the + and - buttons simultaneously. The display blinks and a 5-minute countdown starts. After 5 minutes, the light and motor turn off automatically and a humming sound is heard.

How do I clean the grease filters?

First unplug the hood. Clean the grease filters monthly with water and a little dish soap, then let them air-dry. Regular cleaning prevents fire hazards and maintains suction efficiency.

How do I replace the LED bulbs?

Remove the grease filter, disconnect the lighting cables behind the filter, then take out the sockets using a screwdriver. Replace the bulb with an identical LED: 1.5 W, DC 12 V, Ø 68 mm. For any intervention, contact a professional if necessary.

What should I do if the motor does not start but the lighting works?

First check that the air vent is not blocked. If the problem persists, the capacitor or motor may be defective. Contact a professional to have the capacitor or motor replaced.

Why does the hood vibrate?

Vibrations can be caused by a damaged rotor blade, a poorly secured motor, or a loose housing. Inspect these parts and tighten the fasteners or replace the blade if necessary.

What is the maximum airflow and noise level of the hood?

The maximum airflow in Boost mode is 604.6 m³/h. In normal operation, it ranges from 284.6 to 484.1 m³/h. The noise level is between 47 and 60 dB(A) depending on the selected speed.

What safety precautions should be taken for extraction when a fireplace or boiler is present?

Never use the hood simultaneously with a room air-dependent fireplace without sufficient fresh air supply. The room depressurization must not exceed 4 Pa. Have the installation checked by a chimney sweep or specialist.

USER MANUAL Balzac Klarstein

INHALTSVERZEICHNIS

Vorbereitung

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 20

Installation 22

Installing a Carbon Filter (optional) 26

Operation 27

Lamp Replacement 27

Cleaning and Maintenance 28

Troubleshooting 29

Product Data Sheet 30

Notes on Environmental Protection 32

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Item number	10035466, 10035467
Power supply	220-240 V ~ 50/60 Hz
LED lamp	2 x 1.5 W
Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10030727. Please visit our website: www.klarstein.co.uk

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

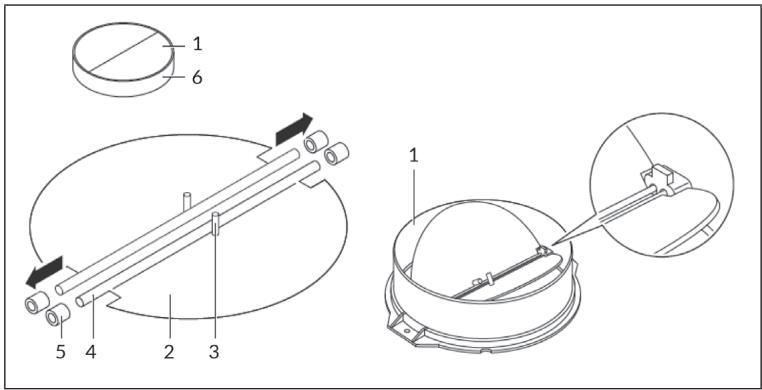

Assembly of the V-flap

If the cooker hood does not have a pre-assembled V-flap, install the parts as follows:

1 Install the first half (2) in the housing (6).
2 The pin (3) should be facing upwards.
3 Insert the axle (4) into the holes (5) on the housing.
4 Repeat all steps for the second half of the flap.

Preparation

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150 mm).

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65\~75 cm above the cooking plane for best effect.

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Important Information for the Installation of Exhaust Air Ducts

The following rules must be strictly observed to ensure optimum air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.
• Do not use a smaller exhaust duct and do not confine it.
• If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
• All installation work may only be carried out by a qualified electrician or a qualified person.
• Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
• The angle of the exhaust pipe bend should not be less than 120° . Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
• After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.
• Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.

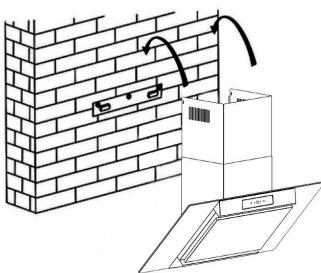

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).

1	2
Drill 3 x 8 mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws & screw plugs provided.	Offer up the cooker hood and hang onto the wall bracket hook.
3	4
Put the upper chimney into lower chimney. Then pulling out the upper chimney upwards. Adjust to reach the height required.	Screw and tighten the upper and lower brackets onto the wall with the screws & screw plugs provided.
5	6
Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in picture.	Adjust the upper chimney to the suitable height, and fix with two 4x8 mm screws
7
Remove all blue protective film on chimney and cooker hood, the installation is now finished.

INSTALLING A CARBON FILTER (OPTIONAL)

Note: You can also purchase an activated carbon filter for this cooker hood under item number 10030727. Please visit our website: www.hifi-tower.co.uk

1	2
Activated carbon filter can be used to trap odours.	In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.
3
	Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

OPERATION

[XD07] [00HZ]
[CTZ]	Depress this button to turn on/off the motor.
[4WX8]	Press this button for increasing the speed of the fan.
	Press this button for decreasing the speed of the fan.
[8HH8]	Turn on/off light.
[5BWZ]	Fan speed display:1 = low speed2 = medium speed3 = high speed
Boost function: Press +. The buzzer sounds, the indicator light lights up and the boost function starts, the display shows „b”. If no other speed is selected within 5 minutes or the range hood is switched off, the appliance automatically runs at high fan speed.
Quick timer: Press + and - hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic & Buzzer sound for 1 second.

LAMP REPLACEMENT

Disconnect the light wiring located inside the hood (behind the grease filter). Then use a screwdriver to remove the lamp sockets and wiring. Replace the lamps with the same type.

Max. power	Voltage	∅ 68 mm	ILCOS D code
1.5 W	DC 12V	—	DSR-1.5-S-68

CLEANING AND MAINTENANCE

Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.

Stainless Steel Surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.

Control Panel

The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work.	The leaf blocked.	Get rid of the blocking.
	The capacitor damaged.	Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged.	Replace lights.
	Power cord looses.	Connect the wires as per the electric diagram.
Shake of the body.	The leaf damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction.	The distance between the body and the gas top too long.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place and resemble the machine.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10035466, 10035467
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	44,4	kWh/Year
Energy Efficiency class		A
Fluid Dynamic Efficiency	FDEhood	29,4
Fluid Dynamic Efficiency class		A
Lighting Efficiency	LEhood	34	Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFEhood	74,1	%
Grease Filtering Efficiency class		D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		284,6 /484.1	m3/h
air flow at intensive or boost setting		604,6	m3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		47/60	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	-	W
power consumption in standby mode	Ps	0,48	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10035466, 10035467
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	44,4	kWh/Year
Time increase factor	f	0,9
Fluid Dynamic Efficiency	FDEhood	29,4
Energy Efficiency Index	EEIhood	50,6
Measured air flow rate at best efficiency point	QBEP	348,1	m3/h
Measured air pressure at best efficiency point	PBEP	391	Pa
Maximum air flow	Qmax	484,1	m3/h
Measured electric power input at best efficiency point	WBEP	128,6	W
Nominal power of the lighting system	WL	3	W
Average illumination of the lighting system on the cooking surface	Emiddle	101	Lux
Measured power consumption in standby mode	Po	0,48	W
Measured power consumption off mode	Ps	-	W
Sound power level	LWA	60	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Estimado cliente,

ÍNDICE DE CONTENIDOS

Preparación

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Chère cliente, cher client,

SOMMAIRE

Installation en recirculation d'air

REPLACEMENT DES LAMPES

FICHE DE DONNÉES PRODUIT

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Gentile cliente,

INDICE

Preparazione

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Geachte klant,

INHOUDSOPGAVE

INSTRUCTIES VOOR AFVOER

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

KLARSTEIN
