USER MANUAL Kronleuchter Klarstein

INHALTSVERZEICHNIS

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 20

Installation 22

Button Functions 24

Cleaning and Care 24

Troubleshooting 26

Notes on Environmental Protection 27

Product Data Sheet 28

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Item number	10033106, 10033107, 10047646, 10047648, 10033108, 10034523, 10047647, 10047649
Power supply	220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

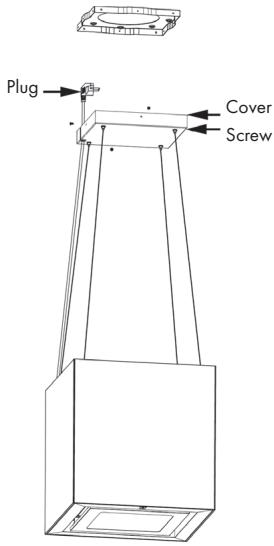

1	Put the hanging scaffold at the position you want to install, and draw the holes. After drilling holes, put the 8pcs of wall-plug (Ø 10 mm) into the wall and fix it.	Hole: Ø 8-10 mmDepth: 65 mm
2	and screws to fit the hanging scaffold on the ceiling
3	In the middle of hanging scaffold, socket space is reserved.	Reservation place for power
4	Take the cooker hood and put the power cord plug connecting the socket. And then, cover the hanging scaffold with the cover of hanging scaffold. Fix it with 4pcs M4*10 screws.
5	After hanging the cooker hoods, it may need balance adjustment. First, lift up the cooker hood slightly, and another person press the adjustable buckle of wire rope down and pull out the rope and make sure all the four ropes balanced.

BUTTON FUNCTIONS

	Power on/off
[1000Y]	Low speed
[584X]	Mid speed
[987X]	High speed
[460Y]	Light on/off
[218Y]	Timer

Note: To achieve the best possible extraction result, leave the extractor hood running for 15 minutes after cooking.

CLEANING AND CARE

• To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every two months.
• Please do not use abrasive detergent for it will damage the body.
• Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
  • Before cleaning the appliance please remember to cut Off power
• The carbon filter shouldn't be exposed to heat.
• Please don't tear open the fixed bar around the carbon Filter.
  • If the plug or cord is damaged, please replace it with Special soft cord.

1. Please remove the interior of your cooker hood by removing the grease filters. These are located at the bottom of the hood (see illustration above).
2. Inside the hood you will see the motor. This one has an air intake on the left and right side.
3. Now place the activated carbon filters on the air inlets one after another and lock them with a clockwise rotation. The filter will snap in and out audibly.
4. Close the interior of the cooker hood by reinserting the grease filters.

The extractor hood is now converted to recirculation mode. There is no special mode or switch that needs to be activated.

How often should I change the filters?

Changing the filters depends on the frequency of use of the hood. As a general guideline, they should be changed every 3 months if used regularly.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work.	The leaf blocked.	Get rid of the blocking.
	The capacitor damaged.	Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged.	Replace lights.
	Power cord looses.	Connect the wires as per the electric diagram.
Shake of the body.	The leaf damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction.	The distance between the body and the gas top too long.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place and resemble the machine.

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10033106, 10033107, 10047646, 10047648
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	36,2	kWh/Year
Energy Efficiency class		A
Fluid Dynamic Efficiency	FDEhood	29,7
Fluid Dynamic Efficiency class		A
Lighting Efficiency	LEhood	45	Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFEhood	87,8	%
Grease Filtering Efficiency class		B
air flow at minimum and maximum speed in normal use, intensive or boost excluded		401,8 / 577,2	m3/h
air flow at intensive or boost setting		-	m3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		51 / 58	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0,42	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10033106, 10033107, 10047646, 10047648
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	36,2	kWh/Year
Time increase factor	f	0,9
Fluid Dynamic Efficiency	FDEhood	29,7
Energy Efficiency Index	EEIhood	49,1
Measured air flow rate at best efficiency point	QBEP	282,2	m3/h
Measured air pressure at best efficiency point	PBEP	389	Pa
Maximum air flow	Qmax	596,6	m3/h
Measured electric power input at best efficiency point	WBEP	102,7	W
Nominal power of the lighting system	WL	1,5 x 2	W
Average illumination of the lighting system on the cooking surface	Emiddle	135	Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0,42	W
Sound power level	LWA	51/58	dB
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10033108, 10034523, 10047647, 10047649
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	36.2	kWh/Year
Energy Efficiency class		A
Fluid Dynamic Efficiency	FDEhood	29.7
Fluid Dynamic Efficiency class		A
Lighting Efficiency	LEhood	26	Lux/W
Lighting Efficiency class		B
Grease Filtering Efficiency	GFEhood	76.7	%
Grease Filtering Efficiency class		C
air flow at minimum and maximum speed in normal use, intensive or boost excluded		401.8/577.2	m3/h
air flow at intensive or boost setting		-	m3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		51/58	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0.42	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10033108, 10034523, 10047647, 10047649
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	36.2	kWh/Year
Time increase factor	f	0.9
Fluid Dynamic Efficiency	FDEhood	29.7
Energy Efficiency Index	EEIhood	49.1
Measured air flow rate at best efficiency point	QBEP	282.2	m3/h
Measured air pressure at best efficiency point	PBEP	389	Pa
Maximum air flow	Qmax	596.6	m3/h
Measured electric power input at best efficiency point	WBEP	102.7	W
Nominal power of the lighting system	WL	1.5X2	W
Average illumination of the lighting system on the cooking surface	Emiddle	105	Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0.42	W
Sound power level	LWA	51/58	dB
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Chal-Tec GmbH, Mühlenstrasse 25, 10243 Berlin, Germany.

Contact: [e-mail]
