USER MANUAL Lumio Neo Klarstein

INHALTSVERZEICHNIS

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 22

Installation 25

Control Panel 27

Cleaning and Maintenance 27

Troubleshooting 29

Product Data Sheet 30

Product Data Sheet 32

Product Data Sheet 34

Notes on Environmental Protection 36

Disposal Considerations 36

Manufacturer & Importer (UK) 362

TECHNICAL DATA

Item number	10022115, 10022116, 10028132, 10028133, 10047705, 10047702, 10047703, 10030274, 10030275, 10047704, 10047701, 10041131
Power supply	220-240 V ~ 50/60 Hz
Note: For cooker hoods with the article numbers 10022115, 10022116, 10028133, 10028132 and 10041131, you can also purchase an activated charcoal filter under the article number 10027451. For cooker hoods with the article numbers 10030274, 10030275, 10047704, 10047701 and 10041131 you can also purchase an activated charcoal filter under the article number 10027530. Please visit our website: www.klarstein.co.uk

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
- An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
• Take a second person to help you during disassembly to avoid injuries.

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Important Information for the Installation of Exhaust Air Ducts

The following rules must be strictly observed to ensure optimum air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.
• Do not use a smaller exhaust duct and do not confine it.
• If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
• All installation work may only be carried out by a qualified electrician or a qualified person.
• Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
• The angle of the exhaust pipe bend should not be less than 120° . Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
• After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.
• Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.

INSTALLATION

1. The cooker hood should be placed at a distance of 65-75 cm above the cooking surface for best effect.
2. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney.

1. Install the expansion pipe and fixed by cable tie. Then put the cooker hood on the hook.

1. Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely. Afterwards, install the chimney on the cooker hood and lift up expansion pipe till it out of the wall through the hole on the wall.

Outside chimney

Inside chimney

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, meanwhile, fix the outside chimney on the cooker hood body by screws. See Pic 5. After adjusting the position, fix the body with safety screw.

Note: The two safety vents are positioned on the back housing, with diameter of 6 mm.

CONTROL PANEL

(1)
(2)
(3)
(4)
(5)

1	OFF	Turn off the ventilation with this button.
2	Fan low level	Use the low level to ventilate the kitchen. It is suitable for simmering and cooking without much steam. Press again to turn off the fan.
3	Fan medium speed	The medium level is ideal for normal cooking. Press again to turn off the blower.
4	Fan high level	Select the high level when heavy smoke or steam is produced to achieve the highest exhaust efficiency. Press again to turn the blower off.
5	Light	Switching the lamp on and off.

CLEANING AND MAINTENANCE

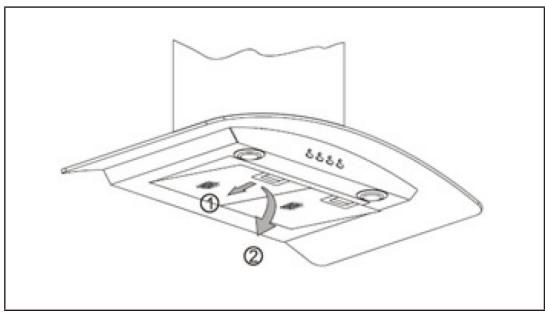

The cleaning of the carbon grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below.

Method 1:

Put the mesh into 40-50 °C clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy.

Method 2:

If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.

Cleaning the cooker hood

• To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every two months.
• Please do not use abrasive detergent for it will damage the body.
• Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
  • Before cleaning the appliance please remember to cut off power
• The carbon filter shouldn't be exposed to heat.
• Please don't tear open the fixed bar around the carbon filter.
  • If the plug or cord is damaged, please replace it with special soft cord.

Installation of the carbon filter

(The activated charcoal filter is not included in the scope of delivery and is available separately.)

Remove the grease filters. The charcoal filters are located at both end of the motor. Turn the charcoal filters until they are unscrewed. The carbon filters should be replaced every 3-6 months or if they show signs of damage.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work.	The leaf blocked.	Get rid of the blocking.
	The capacitor damaged.	Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged.	Replace lights.
	Power cord looses.	Connect the wires as per the electric diagram.
Shake of the body.	The leaf damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction.	The distance between the body and the gas top too long.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place and resemble the machine.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2

011+A11:2014+A12:2015

Item number	10022115, 10022116, 10028132, 10028133, 10047705, 10047702, 10047703
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	29.7	kWh/Year
Energy Efficiency class		B
Fluid Dynamic Efficiency	FDEhood	13.1
Fluid Dynamic Efficiency class		D
Lighting Efficiency	LEhood	72.7	Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFEhood	84.0	%
Grease Filtering Efficiency class		C
Air flow at minimum and maximum speed in normal use, intensive or boost excluded		228 / 352	m3/h
Air flow at intensive or boost setting		-	m3/h
Airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		56 / 63	dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
Power consumption in off mode	PO	-	W
Power consumption in standby mode	PS	0.48	W
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2

011+A11:2014+A12:2015

Item number	10022115, 10022116, 10028132, 10028133, 10047705, 10047702, 10047703
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	29.7	kWh/Year
Time increase factor	f	1.5
Fluid Dynamic Efficiency	FDEhood	13.1
Energy Efficiency Index	EEIhood	66.9
Measured air flow rate at best efficiency point	QBEP	169.7	m3/h
Measured air pressure at best efficiency point	PBEP	136	Pa
Maximum air flow	Qmax	352	m3/h
Measured electric power input at best efficiency point	WBEP	49.1	W
Nominal power of the lighting system	WL	3.9	W
Average illumination of the lighting system on the cooking surface	Emiddle	283.5	Lux
Measured power consumption off mode	Po	-	W
Measured power consumption in standby mode	Ps	0.48	W
Sound power level	LWA	Min.: 56Max.: 63	dB
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2

011+A11:2014+A12:2015

Item number	10030274, 10030275, 10047704, 10047701
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	59.6	kWh/Year
Energy Efficiency class		B
Fluid Dynamic Efficiency	FDEhood	20.9
Fluid Dynamic Efficiency class		C
Lighting Efficiency	LEhood	66.0	Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFEhood	84.9	%
Grease Filtering Efficiency class		C
Air flow at minimum and maximum speed in normal use, intensive or boost excluded		364 / 614	m3/h
Air flow at intensive or boost setting		-	m3/h
Airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		61 / 71	dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
Power consumption in off mode	Po	-	W
Power consumption in standby mode	Ps	0.48	W
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2

011+A11:2014+A12:2015

Item number	10030274, 10030275, 10047704, 10047701
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	59.6	kWh/Year
Time increase factor	f	1.2
Fluid Dynamic Efficiency	FDEhood	20.9
Energy Efficiency Index	EEIhood	67.1
Measured air flow rate at best efficiency point	QBEP	283.8	m3/h
Measured air pressure at best efficiency point	PBEP	343	Pa
Maximum air flow	Qmax	614	m3/h
Measured electric power input at best efficiency point	WBEP	129.7	W
Nominal power of the lighting system	WL	3.9	W
Average illumination of the lighting system on the cooking surface	Emiddle	258	Lux
Measured power consumption off mode	Po	-	W
Measured power consumption in standby mode	Ps	0.48	W
Sound power level	LWA	Min.: 61Max.: 71	dB
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2

011+A11:2014+A12:2015

Item number	10041131
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	60.3	kWh/Year
Energy Efficiency class		C
Fluid Dynamic Efficiency	FDEhood	15.4
Fluid Dynamic Efficiency class		D
Lighting Efficiency	LEhood	44	Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFEhood	76.3	%
Grease Filtering Efficiency class		C
Air flow at minimum and maximum speed in normal use, intensive or boost excluded		282.8 / 492.6	m3/h
Air flow at intensive or boost setting		-	m3/h
Airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		56 / 65	dB
Airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
Power consumption in off mode	Po	0	W
Power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2

011+A11:2014+A12:2015

Item number	10041131
Description	Symbol	Value	Unit
Annual Energy Consumption	AEChood	60.3	kWh/Year
Time increase factor	f	1.4
Fluid Dynamic Efficiency	FDEhood	15.4
Energy Efficiency Index	EEIhood	76
Measured air flow rate at best efficiency point	QBEP	259.6	m3/h
Measured air pressure at best efficiency point	PBEP	240	Pa
Maximum air flow	Qmax	492.6	m3/h
Measured electric power input at best efficiency point	WBEP	112.3	W
Nominal power of the lighting system	WL	4.0	W
Average illumination of the lighting system on the cooking surface	Emiddle	176	Lux
Measured power consumption off mode	Po	0	W
Measured power consumption in standby mode	Ps	-	W
Sound power level	LWA	65	dB
Contact details	Chal-Tec GmbH, Mühlenstraße 25, 10243, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Chal-Tec GmbH, Mühlenstrasse 25, 10243 Berlin, Germany.

Contact: [e-mail]

Estimado cliente,

ÍNDICE DE CONTENIDOS

SOMMAIRE

Nettoyage de la hotte aspirante

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

INDICE

Pulizia della cappa
