C610CDN - Color laser printer OKI - Free user manual and instructions

Product type	Color laser printer
Printing technology	LED (similar to laser)
Maximum resolution	1200 x 1200 dpi
Print speed (color and mono)	26 pages per minute (ppm) on A4
Supported paper sizes	A4, A5, B5, A6, Letter, Legal, Executive
Standard input tray capacity	250 sheets (80 g/m²)
Multifunction tray (MF) capacity	100 sheets (80 g/m²)
Automatic duplex printing	No (optional with duplex module)
Connectivity	USB 2.0, Ethernet 10/100/1000, optional Wi-Fi
Memory	256 MB (expandable to 1024 MB)
Display	2-line LCD
Power consumption (printing)	Approximately 500 W
Power consumption (standby)	Approximately 20 W
Power supply voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	420 x 400 x 400 mm
Weight	24 kg
Toner cartridges	Cyan, Magenta, Yellow, Black (separate)
Cartridge yield (pages)	Approximately 2000 pages per color (depending on coverage)
Recommended monthly duty cycle	Up to 50,000 pages
SD card option	SD card slot (storage for fonts, macros, etc.)

Frequently Asked Questions - C610CDN OKI

How to install the optional SD card on the C610CDN printer?

Before any manipulation, turn off the printer and unplug the power cord. Open the top cover and front cover. Remove the outer access cover, then unscrew the locking screw of the inner access cover. Insert the SD card (beveled corner down) into the designated slot. Replace the covers and screw back. Reconnect the printer and turn it on. To verify installation, print the Configuration page from the Print Info menu.

How to print the configuration menu list?

From the home screen, press the Enter button. Use the Down menu key to select Print Info then press Enter. Choose Configuration and confirm with Enter. The printer prints a summary page. To exit, press On Line.

What to do if the fuser unit is hot after recent use?

The fuser unit can reach high temperatures. Do not touch this area, indicated by a warning label. Wait for it to cool down before working inside the printer.

How to open the front cover of the printer?

To open the front cover, pull the MF tray down using the recessed areas. Lift the front cover latch and lower it completely. This allows access to the toner cartridges and drum.

What types of paper are recommended for printing?

The printer accepts standard paper from 60 to 120 g/m² in A4, A5, Letter, etc. Use paper suitable for laser printers. Avoid very thick or glossy paper, which may cause jams.

How to replace a toner cartridge on the C610CDN?

Open the front cover. Pull the used cartridge to remove it. Take the new cartridge out of its packaging, shake it gently to distribute toner. Insert it into the corresponding slot (Cyan, Magenta, Yellow, or Black). Close the front cover. The printer automatically recognizes the new cartridge.

How to resolve a paper jam?

Open the top cover and front cover. Gently remove the jammed paper by pulling in the direction of the paper path. Check the feed rollers. Close the covers. If the jam persists, consult the manual for exact locations. Always use uncreased paper.

How to connect the printer to an Ethernet network?

Connect an RJ45 cable between the printer's Ethernet port and your switch/router. The IP address can be assigned automatically via DHCP. For manual configuration, access the Network menu from the printer's display. Install the driver on your computer in network mode.

How to perform duplex (two-sided) printing?

The standard model does not have built-in automatic duplex. To print on both sides, you must install the duplex module option (sold separately). Once installed, select duplex printing in the printer driver settings.

How to clean the inside of the printer?

Unplug the printer and wait for it to cool down. Open the covers. Use a soft lint-free cloth to wipe off toner dust inside. Do not touch the drums. You can use a gentle vacuum. Close the covers and reconnect.

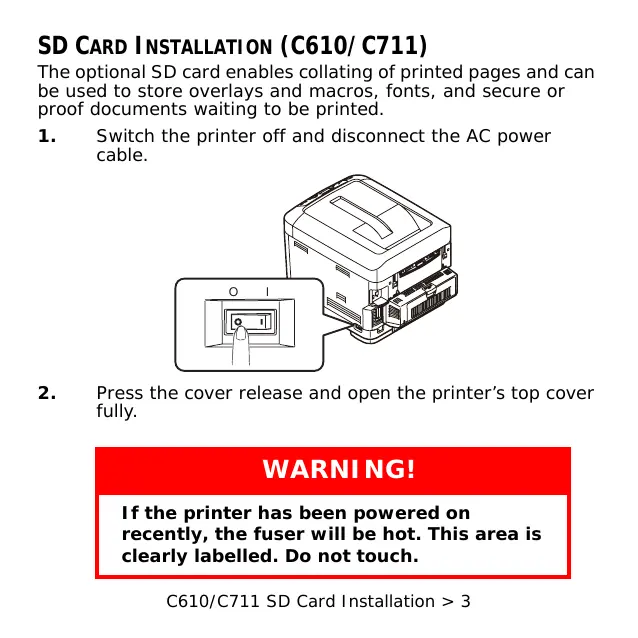

USER MANUAL C610CDN OKI

The optional SD card enables collating of printed pages and can be used to store overlays and macros, fonts, and secure or proof documents waiting to be printed.

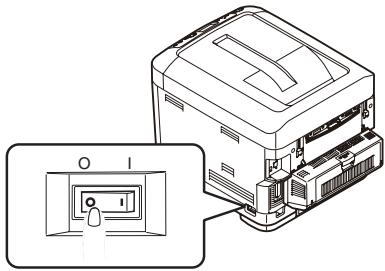

1. Switch the printer off and disconnect the AC power cable.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

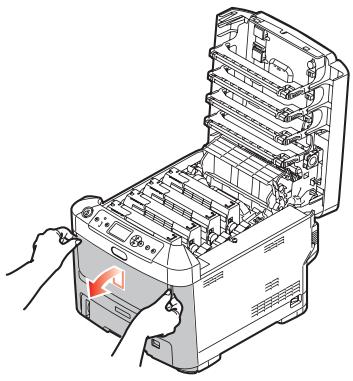

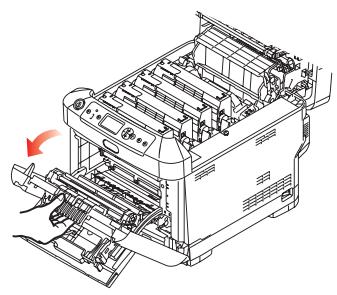

3. Pull down the MP Tray using the depressions. Lift the front cover release lever and lower the front cover.

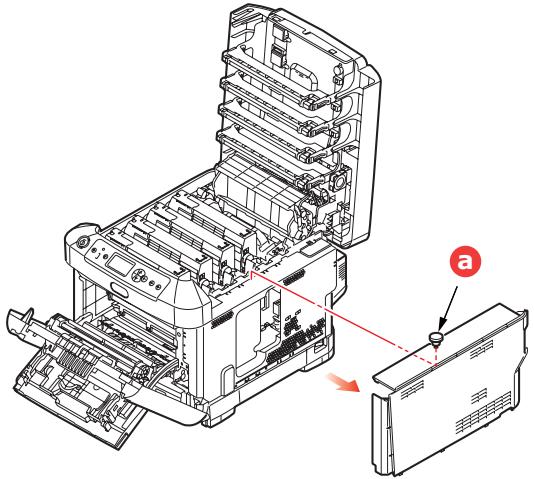

1. Loosen the screw (a) securing the right-hand side cover. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

1. Notice that the SD card has one champered corner.

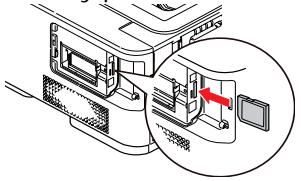

1. Gently push the SD card into the slot as shown.

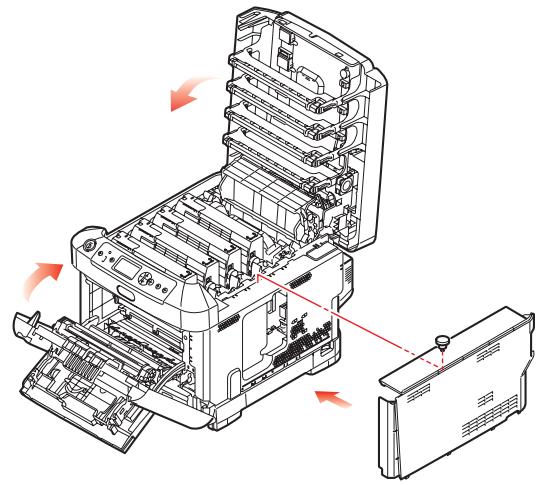

1. Locate the retaining clips at the bottom of the side cover into their rectangular holes near the bottom of the printer.

2. Close the top of the side cover up to the printer and refit the securing screw loosened in step 4.

1. Close the front cover and the top cover, pressing down firmly at each side to latch it closed.

2. Reconnect the AC power cable and switch the printer on.

3. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu down button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system. Examine the first page of the menu map. This should now indicate that the SD card is installed.

CARTE SD (C610/C711)

The optional SD card enables collating of printed pages and can be used to store overlays and macros, fonts, and secure or proof documents waiting to be printed.

1. Switch the printer off and disconnect the AC power cable.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

3. Pull down the MP Tray using the depressions. Lift the front cover release lever and lower the front cover.

1. Loosen the screw (a) securing the right-hand side cover. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

1. Notice that the SD card has one champered corner.

1. Gently push the SD card into the slot as shown.

1. Locate the retaining clips at the bottom of the side cover into their rectangular holes near the bottom of the printer.

2. Close the top of the side cover up to the printer and refit the securing screw loosened in step 4.

1. Close the front cover and the top cover, pressing down firmly at each side to latch it closed.

2. Reconnect the AC power cable and switch the printer on.

3. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu down button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system. Examine the first page of the menu map. This should now indicate that the SD card is installed.
