Product type	Steam cleaner
Brand	Cecotec
Model	Hydrosteam 1000 Blaze
Power supply	Mains (220-240 V, 50/60 Hz)
Power	1200 W
Tank capacity	300 ml
Heating time	25 seconds
Steam autonomy	15 minutes
Cable length	5 m
Weight	1.4 kg
Dimensions	28 x 18 x 115 cm (approx.)
Usage	Household use only
Heating system	Fast water heater with heating element
Included accessories	Washing head, microfiber cloth, brushes
Safety	Safety valve, steam lock, overheating protection
Maintenance	Disconnect before cleaning, clean the tank and remove limescale
Repairability	Spare parts available via the official Cecotec technical service
Package contents	Steam cleaner, accessories, instruction manual
Warranty	2 years
Standards	CE compliant

Frequently Asked Questions - Hydrosteam 1000 Blaze CECOTEC

How to use the Hydrosteam 1000 Blaze steam cleaner?

Fill the tank with clean water, plug in the appliance and wait for the heating time (about 25 seconds). Then, direct the steam onto the surface to be cleaned by pressing the trigger. Never direct steam towards electrical components or people.

What type of water should I use?

It is recommended to use demineralised water to prevent limescale build-up. Tap water can be used but regular descaling is necessary.

Can I use cleaning products with this appliance?

No, use only water. Adding chemicals may damage the appliance and produce dangerous vapours.

How do I fill the water tank?

Unplug the appliance and let it cool down. Open the filling opening, pour in water without exceeding the maximum level then close it. Never open it during use.

What to do if the power cord is damaged?

Do not use the appliance. Contact the official Cecotec technical service to have the cord replaced by qualified personnel. Never pull on the cord to unplug.

Can this appliance be used by children?

Children must not use this appliance. It should be kept out of reach when plugged in or cooling down. Strict supervision is necessary if children are nearby.

How to clean and maintain the appliance?

Unplug and let cool. Clean the outside with a damp cloth. Clean the tank with water and a little vinegar to remove limescale. Never immerse the appliance in water.

What surfaces can I clean with steam?

The appliance is suitable for hard floors, tiles, grout, glass surfaces and certain fabrics. Avoid heat-sensitive or unsealed surfaces. Do not direct steam into the interior of ovens or electrical appliances.

Does the appliance have a safety valve?

Yes, the appliance has a safety valve which must never be opened during operation. It releases pressure in the event of overheating.

What to do if the appliance does not produce steam?

Check that the tank is full, that the appliance is properly plugged in and that the heating time has elapsed. If the problem persists, descale the appliance and check the nozzle. Contact technical service if necessary.

USER MANUAL Hydrosteam 1000 Blaze CECOTEC

EU01_122317 - Hydrosteam 1000 Blaze

EU01_122318 - Hydrosteam 2000 Blaze

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage stated on the product's rating label and that the socket is properly earthed.
• Steam must not be directed towards equipment containing electrical components, such as the inside of ovens.
• The filling opening must not be opened during use.
• The appliance must be unplugged after use and before any user maintenance is carried out.
• This appliance can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.
• Children should not use the product. Supervise children to ensure they do not play with the appliance. Close supervision is necessary if the appliance is used near children.
• The appliance should not be left unattended while plugged to a power supply.
• The appliance should not be used if it has fallen, shows any visible sign of damage, or if it leaks.
• Keep the device out of reach of children when it is under tension or cooling down.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Check the power cord regularly for visible damage. If

the cable is damaged, it must be replaced by the official Technical Support Service of Cecotec or qualified personnel in order to avoid any type of danger.

• Unplug the appliance when it is not in use and when cleaning and maintenance of the appliance is to be carried out. To do it, pull from the plug, not the cord.
• Keep the packaging materials out of the reach of children, as they may be dangerous.
• The safety valve must not be opened during operation. Follow the instructions for its opening and filling.
• This symbol indicates steam. Do not direct steam to another person, animal, plant, electrical appliance or electrical outlets.
• Do not immerse or splash the appliance with water or any other liquid. Do not expose the appliance to rain.
• Never leave the appliance unattended while it is in operation or connected to a power outlet.
• Do not carry or pull the appliance from the power cable. Do not use the cord as a handle. Do not push the cable against corners or sharp edges. Keep the cable away from heat sources.
• If you cannot avoid using the appliance in a wet place, use a circuit breaker. Using a circuit breaker reduces the risk of electric shock.
• Use protective gear. Always use protective goggles. The protective gear, like dust masks, non-slip safety shoes, protective headgear or hearing protection will reduce the injuries.

• Use the appliance and its accessories following these instructions, taking into account the work to be performed. Using the appliance for any purpose other than the main purpose may result in a hazardous situation.

• Do not touch nor use the device with wet hands.

• Do not use the appliance in enclosed spaces where there are flammable, explosive or toxic vapours, such as thinner or oil paint.
• Do not use the appliance on leather, furniture, waxed floors, parquet, synthetic fabrics, velvet, silk or any other material that is not resistant to steam.
• Do not fill the appliance with hot water or aromatic liquids, alcohol or detergents. This could damage the tool.
• Do not use the appliance if you are experiencing a short circuit.
• The appliance uses hot water to clean surfaces, which means that the safety valve, nozzles and ironing brush cloth will become hot during use.

INSTRUCTIONS DE SÉCURITÉ

- ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∅ ∵

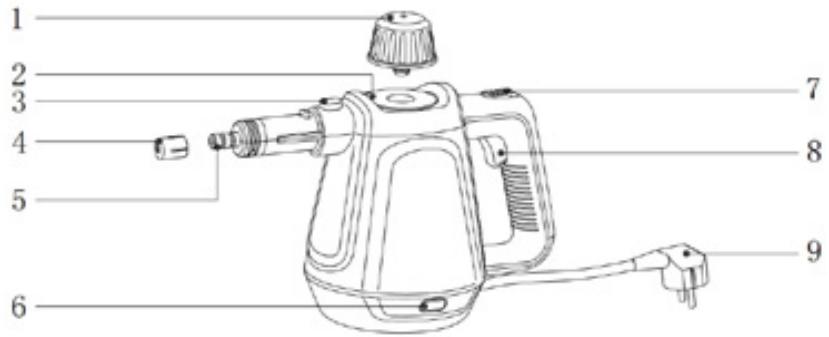

1. Safety cap: Maintains pressure balance, blocks vapor inside and prevents leakage.
2. Filling opening: Point where water is introduced into the tank.
3. Accessory lock: Fixing system for the different accessories. Press it to release and remove the accessories.
4. Protective cover: Protects the o-rings of the outlet port. It must be removed before attaching accessories.
5. Steam outlet: Vapor emission point to the accessories.
6. Status indicator light

- Red: in heating and pressure increase.

- Green: working pressure reached; ready for use.

1. Child lock: Enables the activation of the steam trigger. Without activating it, the trigger cannot be pulled.
2. Steam trigger: Controls the steam output as long as it is held down during operation.
3. Power plug: Connect the device to the mains for operation.

Figure 2:

1. Funnel × 1
2. Measuring cup ×1
3. Cloth set ×1
4. Window cleaning accessory ×1
5. Narrow nozzle ×1
6. Flexible hose ×1
7. Nylon round brush ×1
8. Brass round brush ×1
9. Floor brush ×1
10. Connector nozzle ×1
11. Extension tube ×3
12. Floor/window cloth ×1
13. Carpet slider ×1

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box contents for reference EU01_122317 - Hydrosteam 1000 Blaze:

• Hand steam cleaner
• Measuring cup
• Narrow nozzle
• Instruction manual

Box contents for reference EU01_122318 - Hydrosteam 2000 Blaze:

• Hand steam cleaner
• Brass round brush
• Nylon round brush
• Measuring cup
• Window cleaning accessory
• Narrow nozzle
• Connector nozzle
• Flexible hose
• Extension tube
• Floor brush
• Floor/window cloth
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

1. Filling the tank: place the steam cleaner on a level surface. Open the safety cap by turning it counterclockwise. Using the funnel and measuring cup, fill with water and reinstall and tighten the safety cap. Fig. 3

Filling instructions

• Maximum tank capacity: 400 ml. To obtain drier vapor, it is recommended to load 300–350 ml. If more than 350 ml is added, water may escape with the steam during the first 2 minutes.
• Do not add less than 150 ml of water.
• Use clean water; solid particles can obstruct the ducts.
• Do not add alcohol or chemical/cleaning agents. Solvents can cause serious failures and even safety hazards.

• If tap water is very hard, mix with distilled water to avoid premature calcification and nozzle clogging.

• Connect the power plug. The indicator light illuminates red (heating and pressure increase). Wait approx. 3 minutes until it turns green: the device is ready.

Caution:

• Use the device only when the indicator light is green.

• During initial use, water droplets may be expelled; avoid cleaning carpets, curtains, or other absorbent materials until the steam stabilises.

• After heating, select the required accessory and install it in the steam outlet.

• Turn the child safety lock to the ON position (backwards) and then press the steam trigger. Steam is released as long as the steam trigger is held down. When the steam trigger is released, the child lock automatically returns to OFF and the appliance stops. Note: Without activating the child safety lock, it is not possible to press the steam trigger.
• When finished, turn off, release residual steam, allow to cool and clean if necessary.

When the water runs out and steam stops coming out when the steam trigger is activated, proceed to refill by following these steps:

1. Disconnect the appliance from the power supply.
2. Press the steam trigger until the steam output stops.
3. Wait at least 12-18 minutes to cool.
4. Slowly unscrew the safety cap and wait a few seconds.
5. Fill water slowly through the filler hole.
6. Close the safety cap.

Overheating protection: the unit switches off automatically if it overheats (e.g. empty tank).

Accessories instructions

Before installing any accessories, remove the protective cap from the steam outlet port. Fig. 4

Flexible tube

- To reach hard-to-reach areas, connect the end of the flexible hose to the steam outlet until you hear a click. Fig. 5.

Narrow nozzle

- To clean corners, connect it to the steam outlet in the same way as the flexible hose. Fig. 6.

Window cleaning accessory

• Insert the narrow nozzle into the slot of the window cleaning attachment and turn it clockwise until it clicks, as shown in figure 7.
• To remove, turn anticlockwise. For cleaning tables, chairs, shelves or ironing clothes, you can place a white cloth in the glass cleaner accessory.

Nylon round brush and brass round brush

- Insert the narrow nozzle into the groove of the round brush and turn clockwise until it clicks, as shown in figure 8. To remove, turn anticlockwise.

Extension tube

- For elevated floors or areas, connect the extension tube to the steam outlet until the lock is fully engaged in the tube hole and a click is heard. Fig. 9

Floor brush and carpet slider

• The floor brush is ideal for washable walls and floors. It is recommended to sweep or vacuum beforehand. First attach the floor brush and the connector nozzle. Fig. 10
• Connect the floor brush nozzle to the end of the extension tube and secure the socket. The floor brush features Velcro strips; attach the floor/window cloth by securing the white side to the Velcro to clean walls, floors, tiles, etc. To clean carpets, install and secure the carpet slider. Fig. 11
• To remove the cloth, first remove the carpet slider and then remove the floor/window cloth by hand (you can also step on the side cloth patch to facilitate removal).

Steam temperature

- As shown in the diagram in Figure 12, the steam temperature decreases as the distance from the steam outlet increases. These data are indicative and may vary slightly in actual use (laboratory measurements). Adjust the working technique to optimize the cleaning performance.

4. CLEANING AND MAINTENANCE

Ensure the appliance is switched off, disconnected from the mains and cool before cleaning and storing the appliance.

Cleaning

1. Unplug before cleaning.
2. Allow the product to cool completely.
3. Clean the unit and accessories with a damp cloth and allow to dry completely.

Storage

Before storing, make sure all parts are completely dry.

• Store the product in a dry, clean and dust-free place.

• Keep out of the reach of children.

• TROUBLESHOOTING

Situation	Cause/Analysis	Solution
No steam is released.	Incorrectly inserted plug.	Re-insert or change the plug.
	No water in the water tank.	Add water.
	The steam trigger cannot be pressed.	Activate the child lock.
	Other problem.	Contact Cecotec's Official Technical Support Service.
The green light is on and the red light is always off.	Faulty indicator light or short circuit in the wiring.	Contact Cecotec's Official Technical Support Service.
The red light stays on and the green light stays off.	Internal wiring failure or faulty thermostat.	Contact Cecotec's Official Technical Support Service.
The red light flashes.	Lack of water or poor contact/poor connection.	Fill up the tank. If the problem persists, contact the official Cecotec Technical Support Service.
Water comes out of the nozzle.	First use after switching on or after a long period of non-use; steam may cause dripping.	It is a normal phenomenon and disappears quickly.
	Affects normal use (abnormal water flow).	Contact Cecotec's Official Technical Support Service.
Other situations.	Steam comes out of places other than the nozzle.	Contact Cecotec's Official Technical Support Service.
	Deformation or softening of the plastic.
	Other electrical equipment in the house stops working.
	Steam comes out through the safety valve.
	After releasing steam, the pressure relief valve cannot be opened.

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and

electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

7. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC

INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in

part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

8. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/

information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1:

Website zu finden: https://storececotec.de/de/information/declaration-of-conformity

1. PARTI E COMPONENTI

Figura 1:

it/information/declaration-of-conformity

1. PEÇAS E COMPONENTES

Figura 1:

information/declaration-of-conformity

1. ONDERDELEN EN COMPONENTEN

Fig. 1

https://cecotec.es/es/information/declaration-of-conformity

1. CZĘŚCI I KOMPONENTY

Rysunek 1:

information/declaration-of-conformity

declaration-of-conformity

Fig./Img./Abb./Afb./Rys. 1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

①

②

③

Fig./Img./Abb./Afb./Rys. 11
