USER MANUAL FRAICH PRO LAGRANGE

MILK-SAKE POMME-CASSIS

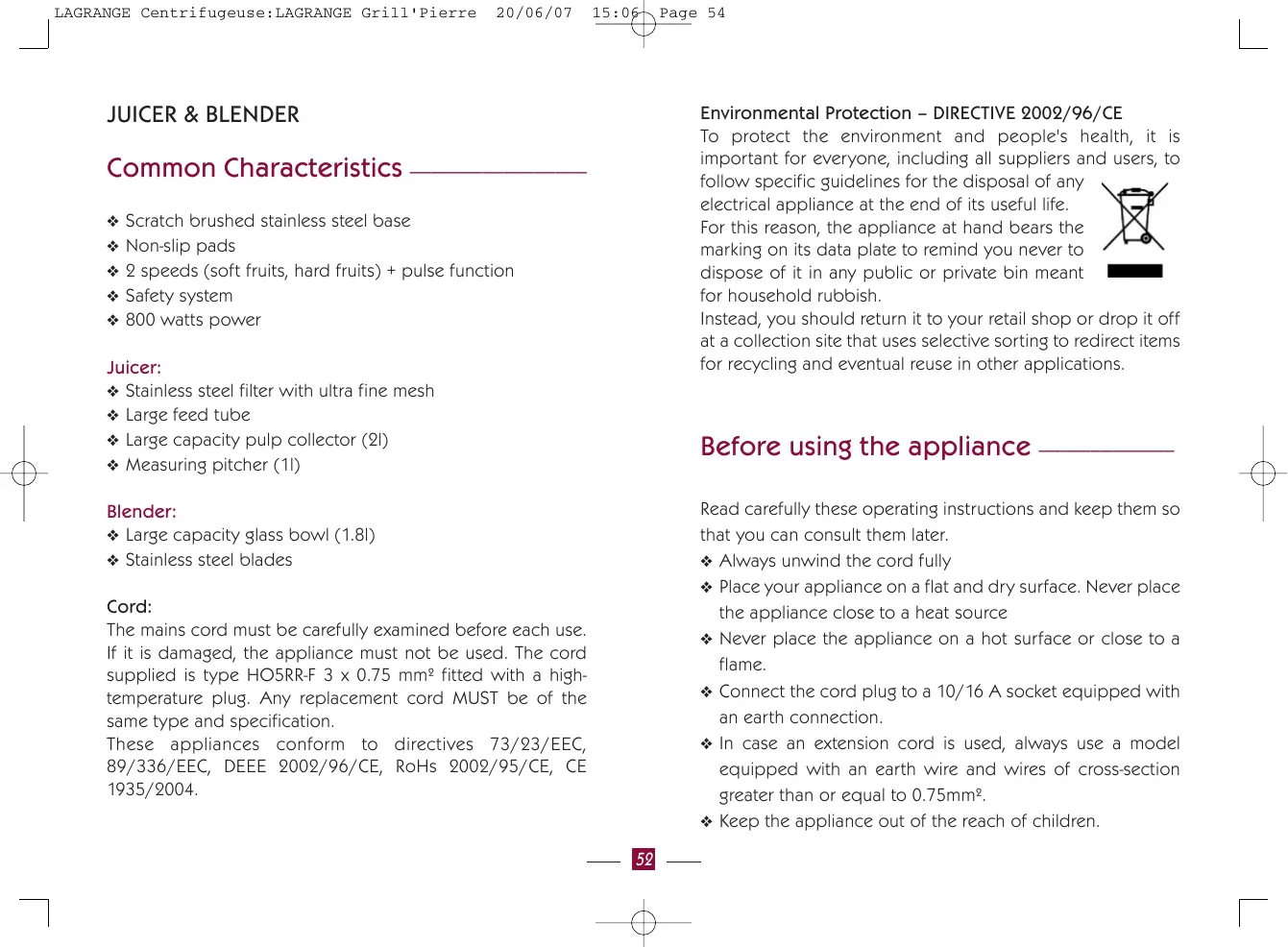

Common Characteristics

Scratch brushed stainless steel base
Non-slip pads
2 speeds (soft fruits, hard fruits) + pulse function
Safety system
800 watts power

Juicer:

Stainless steel filter with ultra fine mesh
Large feed tube
Large capacity pulp collector (2l)
Measuring pitcher (11)

Blender:

Large capacity glass bowl (1.8l)
Stainless steel blades

Cord:

The mains cord must be carefully examined before each use. If it is damaged, the appliance must not be used. The cord supplied is type HO5RR-F 3 × 0.75 ~mm^2 fitted with a high-temperature plug. Any replacement cord MUST be of the same type and specification.

These appliances conform to directives 73/23/EEC, 89/336/EEC, DEEE 2002/96/CE, RoHs 2002/95/CE, CE 1935/2004.

Environmental Protection - DIRECTIVE 2002/96/CE

To protect the environment and people's health, it is important for everyone, including all suppliers and users, to

follow specific guidelines for the disposal of any electrical appliance at the end of its useful life.

For this reason, the appliance at hand bears the marking on its data plate to remind you never to dispose of it in any public or private bin meant for household rubbish.

Instead, you should return it to your retail shop or drop it off at a collection site that uses selective sorting to redirect items for recycling and eventual reuse in other applications.

Before using the appliance

Read carefully these operating instructions and keep them so that you can consult them later.

Always unwind the cord fully
Place your appliance on a flat and dry surface. Never place the appliance close to a heat source
Never place the appliance on a hot surface or close to a flame.
Connect the cord plug to a 10/16 A socket equipped with an earth connection.
In case an extension cord is used, always use a model equipped with an earth wire and wires of cross-section greater than or equal to 0.75 ~mm^8 .
Keep the appliance out of the reach of children.

Persons (including children) who are not capable of using the appliance safely, either because of their physical, sensory or mental abilities, or because of their lack of experience or knowledge, may under no circumstances use the appliance without supervision or instructions from a responsible person
It is recommended that the appliance be connected to an installation with a differential residual current system having a breaking current of not more than 30mA .
Never immerse the appliance with its cord in water.
For your safety, it is recommended that the appliance must never be left in an area exposed to bad weather and humidity.
Disconnect the appliance from the power supply when it is not used or left unsupervised and before installing, dismantling or cleaning.
Do not use any accessory not supplied with your appliance when operating it
These appliances are not designed to be activated using an external timer or a separate remote control system.
Never use food that is off size or packaged.
After using the appliance in the juicer function, always wait for the motor to stop completely before folding the safety bar.
Make sure to check the condition of the rotary filter before each use, do not use the appliance if it is damaged

Make sure that you do not force the locking mechanism. The appliance could then get damaged and cause injuries.
The mixing bowl must be used only on the motor unit provided with the appliance.

CAUTION: Keep the hands and all utensils outside the juicer and blender when they are in place on the motor-unit. Never touch the cutting blades.

1/ Juicer

COMMISSIONING

A - Assembly:

Place the motor unit on a flat surface..

1

3

Place the plastic coverso that it covers the bowl

2

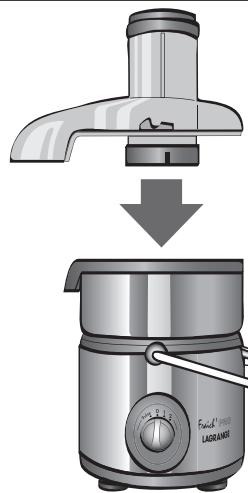

Position the trough with pouring spout on the motor unit. Put the filter by pressing lightly so that it is properly hooked.

4

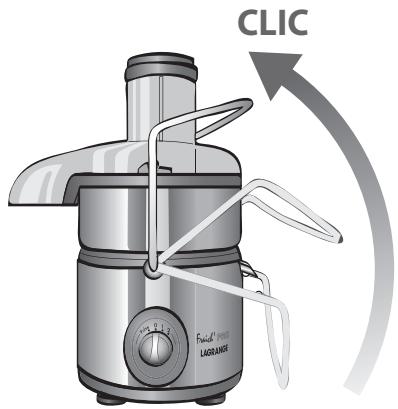

SAFETY SYSTEM : the safety system must be closed by raising the bar fully so that the appliance can operate.

5

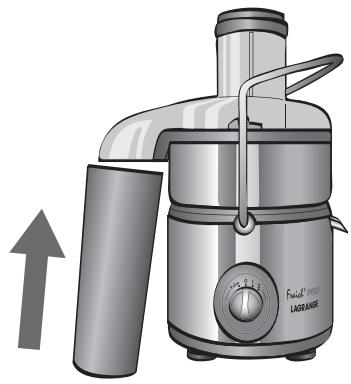

Place the pulp collector pan under the plastic cover so that the assembly is stable. For easier cleaning, you can place a small plastic bag (e.g.: freezer bag) on the pulp pan.

6

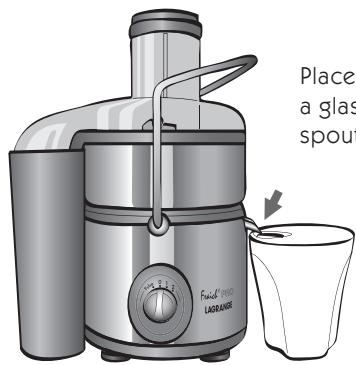

Place the juice collector or a glass under the pouring spout.

7

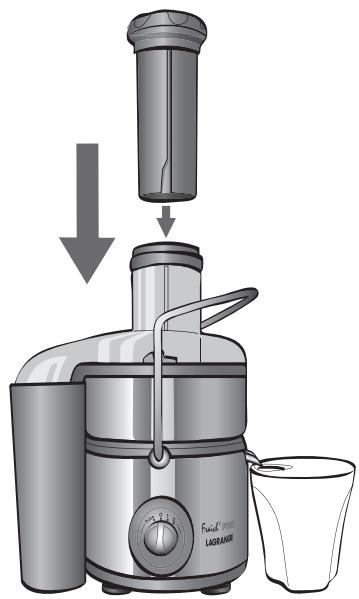

Slide the pusher inside the feed tube by placing the grooves properly in the notches provided for the purpose.

B - Commissioning

The appliance must be unplugged from the mains
- Once the appliance is assembled, it may be connected to the mains.
Place the fruits (see "preparation advice") in the opening of the plastic cover and set a speed (1 for soft fruits or 2 for hard fruits, see chart on page 56).
Press lightly and uniformly with the pusher. It is recommended that you push slowly to extract maximum juice.
Put the appliance back in position "0" as soon as the juice is over.
It is recommended to empty the pulp collector pan regularly. To do this, place the appliance in position "0" and remove the pan carefully.
IMPORTANT: do not let the pulp collector pan overflow as this may damage your appliance.

CAUTION, when the appliance is operating:

• Never open the plastic cover
• Never put your hand or any accessory other than the pusher in the feed tube.
• Never operate the juicer for more than 60 seconds continuously when using speed 2 and when the pressure on the pusher is too large.

C - Maintenance:

Before cleaning your appliance, check that it is properly unplugged.
Before folding the safety bar, remove the pulp collector pan by tilting it slightly.

Removable parts:

Once your appliance has been dismantled, immediately rinse all removable parts in order to prevent pulp from drying up.
Use only hot soapy water. Never use abrasive products.
Clean the filter with a brush for dishes. Make sure that all micro-perforations are properly unblocked as this could otherwise reduce the efficiency of your appliance. If, however, you find it difficult to unblock all the microperforations, let the filter soak for 10 minutes in hot soapy water. Examine the rotary filter, if it is damaged, do not use the appliance any more.
Food can lightly stain the plastic cover of your appliance. To remove this staining, you can dip the cover in hot water mixed with a little lemon juice.
Dry all parts properly after cleaning.
IMPORTANT: never put the filter or the pusher in the dishwasher.

Motor unit:

Clean the motor unit using a damp cloth.
IMPORTANT: never dip the motor unit in water

ADVICE FOR FRUIT PREPARATION:

You can put whole fruits into your juicer. If, however, certain fruits do not enter the feed tube, cut them up into large pieces.
If you are using fruits with hard or inedible skin (citrus fruits, mangoes, melon, pineapple, etc.), always peel them before putting them in the juicer.
Wash the fruits before putting them in the juicer.
Make sure that the stones are removed from fruits so that your appliance does not get damaged.
To minimise browning of apple juice, you could add a bit of lemon juice.
When making a preparation requiring several fruits and vegetables of different consistency, it is recommended that you start with food with soft texture (slow speed).
The quantity of juice obtained depends on each fruit and vegetable. To obtain a sufficient quantity of juice, it is therefore recommended to vary the fruits and vegetables (for example, add juice of apples, which give a lot of juice with juice of strawberries, which do not give much juice)

Speed selection

Use speed 1 for soft fruits and speed 2 for hard fruits.
The chart below will enable you to select the required speed (This list is not exhaustive).

Apricots
Broccoli 1
Cherries 1
Cauliflower 1
Cucumber
Strawberries 1
Raspberries 1
Kiwis 1
Mangoes 1
Melon 1
Nectarine 1
Peach 1
Watermelon
Plums 1
Grapes 1
Tomatoes 1
Grapes 1
Pineapple 2
Beetroot 2
Carrot 2
Fennel 2
Apples 2
Citrus fruits 1 or 2
Pears 1 or 2

2/ Blender

A - Assembly

1

Place the motor unit on a flat and dry surface

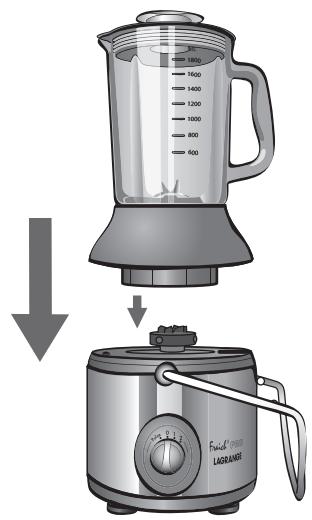

Place the glass bowl directly on the motor unit by placing it properly in the notches provided for the purpose.

2

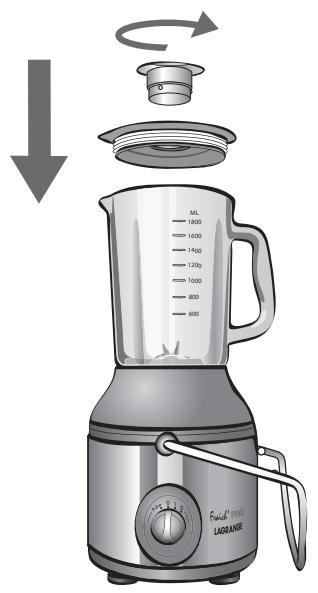

Put the plastic cover and the "cap" in place by rotating it until it is locked.

B - Commissioning:

Precautions before use:

Make sure that the appliance is unplugged from the mains and is in the "0" position
Keep your hands and any utensils outside the blender when it is placed on the motor unit.
Let hot liquids cool before mixing them: there is a risk of spattering if the cover is not fixed properly and dislodges. MIXING OF VERY HOT LIQUIDS CAN CAUSE SUDDEN OVERFLOW OF THE HOT LIQUID OR HOT STEAM FROM THE COVER.
When removing the blender from the motor unit: CAUTION wait till the blades have stopped completely and unplug the appliance from the mains, do not accidentally unscrew the pitcher or the jar from the blade-holder unit
In order not to damage your appliance, do not let it operate continuously for more than 60 seconds. Do not let it operate empty.

Starting:

Remove the filler cap and put the ingredients in the bowl.
IMPORTANT: never operate the blender when empty

Advice: if you are making fruit based preparations with yoghurt or milk, put the fruits first.

If you are using frozen ingredients, never put them in the blender without having first broken the ice blocks formed by freezing.

Put back the cap by rotating it until it is locked

IMPORTANT: never operate the blender without the cover to prevent the risk of spattering.

Start by operating the blender in pulse mode using the "pulse" button
When the mixing has begun, set the maximum speed and let it operate for a few moments.
If the mixture is not sufficiently smooth, repeat the operation.
In case of difficulty in mixing (particularly for thick mixtures) add a little liquid.
As soon as the mixture is ready, unplug the appliance and wait till the blades stop completely.

Crushed ice:

Put the ice cubes in the blender bowl.
IMPORTANT: Make sure that the cover and the cap are put back properly (see assembly) in order to avoid spatters.
Operate the pulse function until all ice cubes are reduced to small pieces.
Unplug the device from the mains and pour out the crushed ice into a salad bowl

Maintenance

Caution: make sure that the appliance has been properly unplugged and that the blades have stopped completely

Remove the blender bowl from the motor unit. Fill the glass bowl with hot water and dishwashing product and let it soak for about 15 minutes.
Recommendation for good cleaning: fill half the bowl with hot soapy water. Put it back in place, reconnect the appliance, and operate the appliance (speed 1) for a few seconds.
Wait till the blades stop completely and unplug the appliance before removing the bowl once again.
Scrub the bowl and the blades only with a brush for dishes.

CAUTION: Never put your hands in the bowl and do not touch the cutting blades.

The removable elements (cover and filler cap) can be put in the dishwasher at the low temperature ≤ 40^ programme without drying.
Clean the motor unit using a damp cloth.
IMPORTANT: never dip the motor unit in water.

Speed selection:

Use speed 1 for light mixtures such as milk-shakes, milk mousse, light paste, etc.
Use speed 2 for thicker mixtures (thick pastes, sauce, mayonnaise, yoghurt drinks, fresh fruits, etc.)
Use the pulse function to control the texture of the preparation (the motor rotates as long as you press the button then stops as soon as you release it).

General warranty conditions

Your appliance is subject to a 2-year warranty.

In order to benefit from an additional year of warranty coverage free of charge, register on the LAGRANGE Web site (www.lagrange.fr)

The warranty covers parts and labour and also covers manufacturing defects.

The warranty excludes deterioration due to misuse or failure to follow the user instructions, or due to dropping the product and breaking the enamel.

THIS WARRANTY APPLIES TO DOMESTIC USE; UNDER NO CIRCUMSTANCES DOES IT COVER PROFESSIONAL USE

The vendor's legal warranty obligations in no way exclude the Manufacturer's legal warranty obligations relating to faults or manufacturing defects in accordance with Article 1641 and subsequent articles of the French Civil Code.

In the event of a breakdown or malfunction, contact your retailer.

In the event of a technical fault occurring within 8 days of purchase, the appliance may be exchanged. After this period, it is repaired by LAGRANGE's after-sales service

Recipe Ideas

MORNING STIMULANT BEVERAGE

4 carrots - 3 apples cut into four pieces - 1 peeled and seeded lemon - 1 peeled and seeded orange Put the fruits in the juicer. Mix and serve with ice cubes.

HEALTH DRINK

4 carrots - a little lemon and a few mint leaves
Put the carrots in the juicer with 2 mint leaves. Add a little lemon and serve fresh.

ENERGY DRINK

1 orange, 1 lemon and 200g of carrots
Put the carrots in the juicer. Then, put the lemon and the orange in the juicer. Mix and serve.

REPLELENISHING DRINK

1 orange, 1/4 pineapple, and 2 carrots.
Peel the pineapple, then cut it into pieces. Put it in the juicer with the carrots. Then put the orange in the juicer. Pour out the juice into a glass.
Prepare a little crushed ice in your blender Add the juice and mix. Serve.

FRUIT COCKTAIL

3 tomatoes - 1 celery stick - 2 carrots - 2 lemons - 1 nutmeg tip200 g of raspberries - 200 g of strawberries - 150 g ofredcurrants - 2 oranges

Put all the vegetables in the juicer. Peel the lemon and the oranges then put them in the juicer. Add nutmeg then put all the fruits in the juicer.

Mix well and serve fresh

HARLEQUIN

1/4 red pepper - 2 tomatoes - 10cl water - 3 coriander leaves - 1 celery leaf

In the juicer, put 1/4 red pepper, 2 tomatoes.

Pour out the juice collected in the blender. Add 10cl water, 3 coriander leaves and 1 celery leaf. Mix everything and serve fresh.

ZA les Plattes

Chemin de la Plaine

69390 VOURLES

France

www.lagrange.fr

LAGRANGE
