Product Type	Dual-band Wireless Router
Brand	Linksys
Model	WRT610N
Dimensions (W x D x H)	20.5 x 19 x 5.2 cm
Weight	0.45 kg
Power Supply	Power adapter 12 V DC, 1 A
Power Consumption	12 W maximum
Wi-Fi Standards	802.11a/b/g/n (2.4 GHz and 5 GHz)
Maximum Wireless Speed	Up to 300 Mbps per band
Number of Ethernet Ports	4 Gigabit LAN ports, 1 Gigabit WAN port
USB Port	1 USB 2.0 port (storage/printer sharing)
Wireless Security	WEP, WPA, WPA2 (PSK/Enterprise)
Firewall	SPI (Stateful Packet Inspection), NAT
VPN	PPTP/L2TP/IPSec Pass-through
Advanced Features	Quality of Service (QoS), parental controls, DMZ
Antennas	3 internal antennas (MIMO)
Installation	EasyLink Advisor Setup Wizard (CD-ROM included)
Maintenance and Cleaning	Unplug the device before cleaning. Use a soft, dry cloth. Do not use solvents.
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 85% (non-condensing)

Frequently Asked Questions - WRT610N LINKSYS

How to install my Linksys WRT610N router?

To install your router, insert the included CD-ROM into your computer and follow the instructions of the EasyLink Advisor wizard. Connect the Ethernet cable from the modem to the yellow (Internet) port on the router, then a blue cable from the blue (LAN) port to your computer. Plug in the power and complete the setup.

What are the recommended security settings for Wi-Fi?

We recommend using WPA2 encryption with a strong password (at least 12 characters, mix of letters, numbers, and symbols). You can configure these settings via the router's web interface at 192.168.1.1.

How to reset my router to factory settings?

To reset the router, press and hold the Reset button on the back of the device for about 10 seconds, then release. The lights will flash and the router will restart with default settings (IP address: 192.168.1.1, username: admin, password: admin).

Can I connect a USB printer to the router?

Yes, the USB port on the WRT610N allows sharing a printer or hard drive on the network. Use the setup wizard or the Linksys EasyLink Advisor software to enable sharing.

How to change the administration interface password?

Log in to the router's web interface (address: 192.168.1.1, username: admin). Go to the Administration > Management tab, then enter a new password in the appropriate fields. Click Save Settings.

What to do if I cannot access the Internet after installation?

First, make sure the Ethernet cable between the modem and the router is connected to the Internet (yellow) port. Also check that your ISP does not require specific settings (PPPoE, static IP, etc.). Restart the modem and router.

How to update the router's firmware?

Download the latest firmware version from Linksys.com (.bin file). Log in to the web interface, go to Administration > Firmware Upgrade, select the file and click Upgrade. Do not turn off the power during the update.

Can I use the router as an access point or repeater?

Yes, the WRT610N can be configured as an Access Point via the web interface (Setup > Basic Setup > Internet Connection Type = Disabled and uncheck 'Connect to Internet'). For repeater mode, alternative firmware like DD-WRT may be required.

How to improve Wi-Fi signal range?

Place the router in a high location, away from metal obstacles and electronic devices. Avoid interference from microwaves and cordless phones. You can also change the Wi-Fi channel (Wireless > Basic Wireless Settings) or add a repeater.

The router gets very hot, is this normal?

It is normal for the router to become warm to the touch during heavy use. Make sure it is placed in a well-ventilated area away from heat sources. If the temperature becomes excessive or the router restarts, check the vents and turn it off for a few minutes.

USER MANUAL WRT610N LINKSYS

Website addresses in this document are listed without http://in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http://in front of the web address.

Resource	Website
Linksys Europe	www.linksys.eu
Linksys International	www.linksys.com/international
Linksys	www.linksys.com
Glossary	www.linksys.com/glossary
Network Security	www.linksys.com/security

Copyright and Trademarks

Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2008 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

English

Installation

A. Insert the Setup CD-ROM into your CD-ROM drive.

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

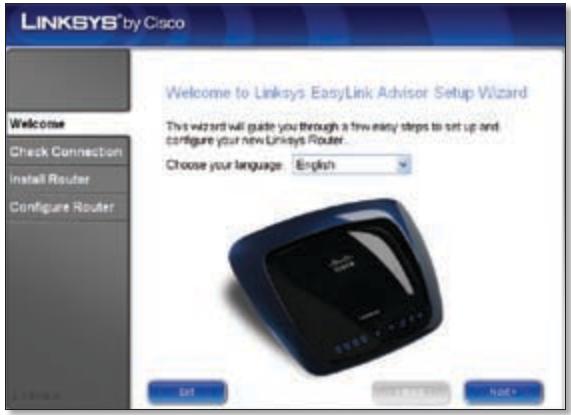

B. To begin installation, on the Welcome screen, select your language from the drop down menu. Click Next.

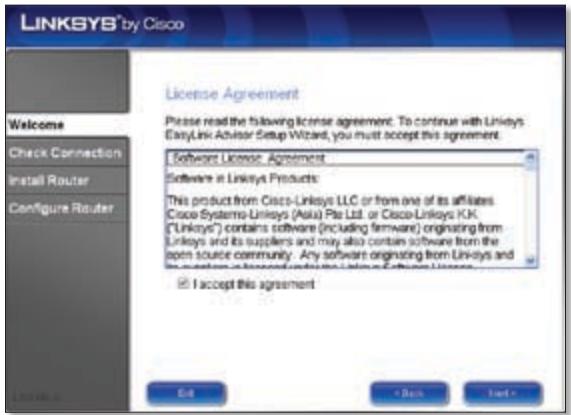

C. Select I accept this agreement. Click Next.

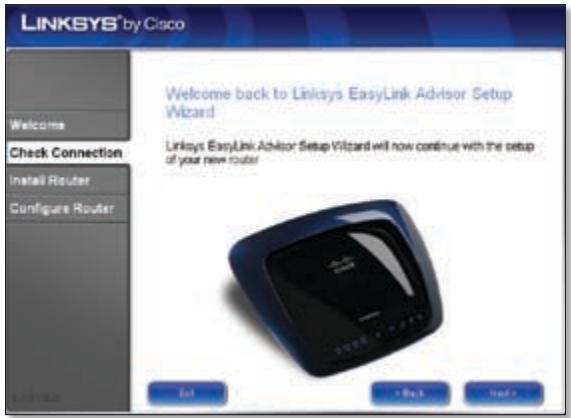

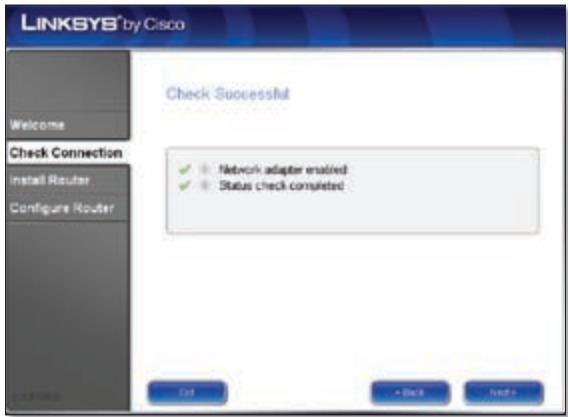

D. The Linksys Easy Link Adviser (LELA) Setup Wizard checks your connections. Click Next.

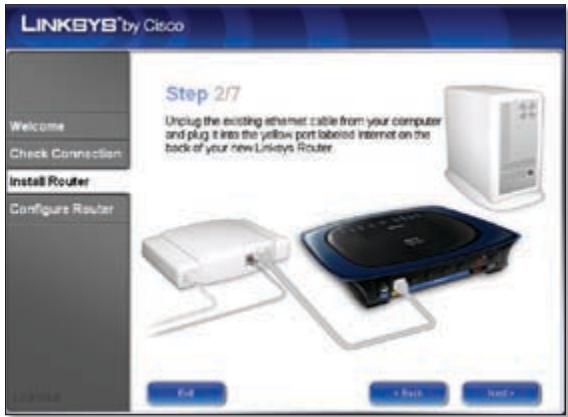

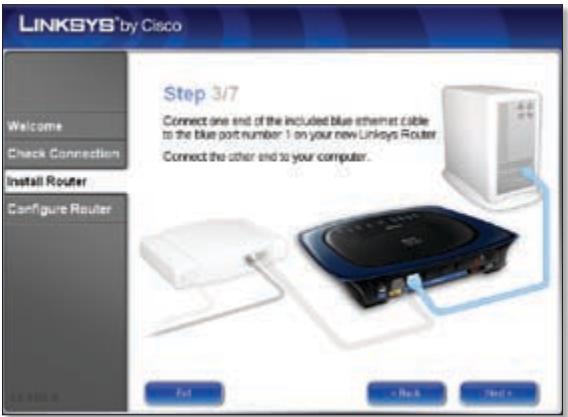

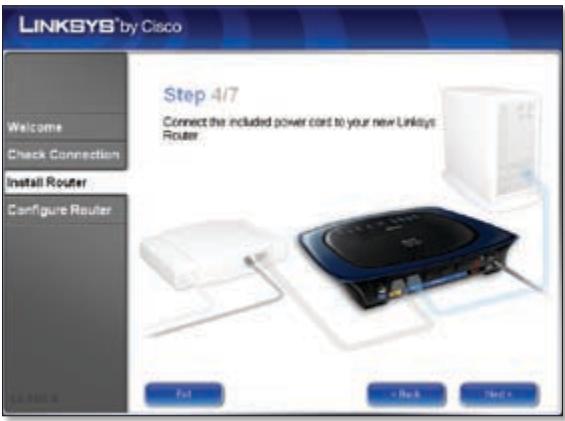

E. The LELA Setup Wizard displays a series of screens that will guide you through the Router's physical installation and setup process. Click Next and follow the instructions in these screens.

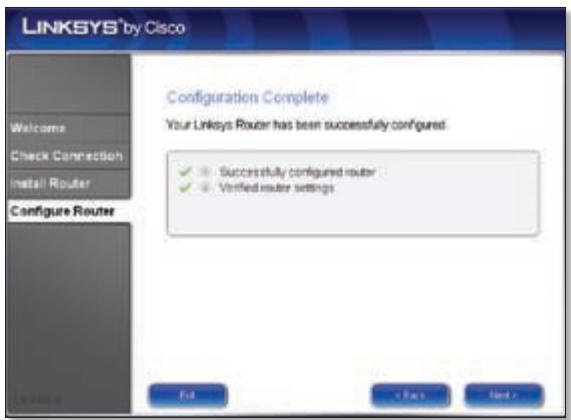

F. Follow the instructions until you see the Configuration Complete screen, click Next.

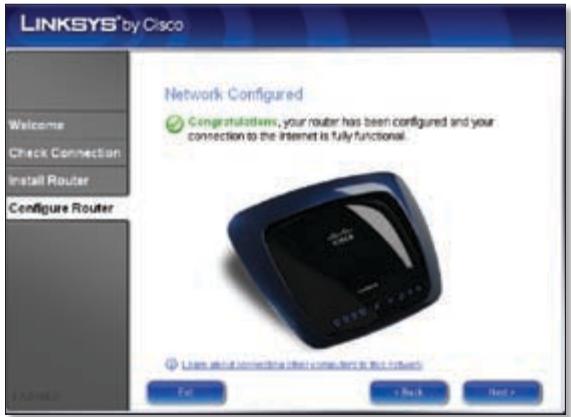

G. When you see the Network Configured screen, click Next to close the LELA Setup Wizard.

Congratulations! Setup is complete.

NOTE: For more advanced settings and security options, refer to the User Guide on the CD-ROM.

Dansk

Installation

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols)

Illustration of a hand holding a CD to transfer a circular component into a tray (no text or symbols visible)

NOTE: For some countries, support may be available only in English.
