USER MANUAL URC 3740 ONE FOR ALL

MIS : Audio / Miscellaneous Audio 177

AMP : Audio / Amplifier / Active Speaker System 177

TUNER: Audio / Audio Receiver/Tuner/Amplifier / (DVD) Home Cinema 178

LDP : Laser Disc Player / Video CD 179

DVD : DVD Player / DVD-R / DVD Home Cinema / DVD Combi / DVD/HDD 179

CODE BLINK OUT

(to find out which code is currently programmed) 10

THE LEARNING FEATURE

(How to copy functions from your original working remote onto the ONE FOR ALL 4) 11

OPERATIONAL RESET 12

EXTRA FEATURES

Mode reassignment (Changing a device mode) 13
Volume Lock 14
- Macros (sequence of commands) 15
- Key Magic® (how to program missing functions from your original lost or broken remote) 17

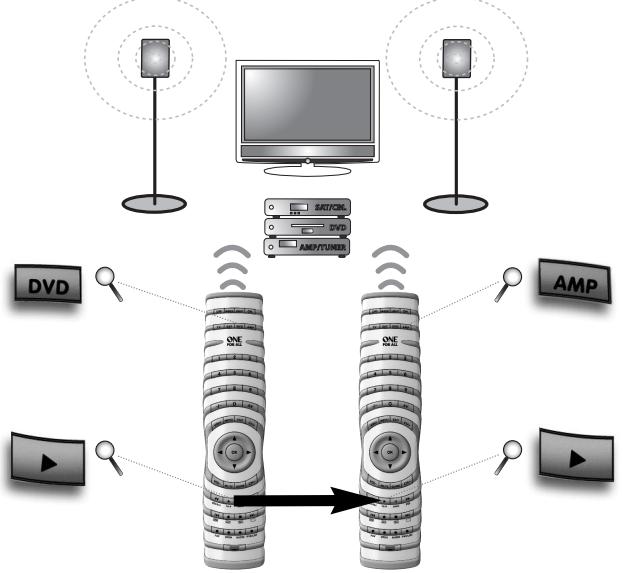

- Key Move (How to move a function to another key 'within a device mode' or towards 'another device mode') 18

PROBLEM & SOLUTION 19

CUSTOMER SERVICE 19

Installing the batteries

Your ONE FOR ALL 4 needs 4 new "AAA/LR6" alkaline batteries.

Press "Battery Unlock" to unlock the battery cover from the back of your ONE FOR ALL 4.
2 Match the batteries to the + and - marks inside the battery case, then insert the batteries.
3 Place the battery cover back into place.

The Keypad

1 OFF To switch off your equipment
2 MAGIC To set up your ONE FOR ALL 4. Additionally the MAGIC key may be used as SHIFT key.
3 Light Back-light On/Off
4 ON To switch on your equipment

5 Device keys with mode indication

During operation of the ONE FOR ALL the red LED (Light Emitting Diode) underneath a device key will light up every time a key is pressed to indicate the device mode you are using.

TV Television / LCD / Plasma / Projector / Rear Projector
DVD Player / DVD-R / DVD Home Cinema / DVD Combi / DVD/HDD, Video Cassette Recorder / TV/VCR Combi / DVD/VCR Combi
SAT Satellite Receiver, DVB-T, Cable Converter, DSS / Video Accessory (e.g. Media Centres), Personal Video Recorder, Hard Disc Recorder
Audio / Audio Receiver/Tuner/Amplifier / (DVD) Home Cinema

6 Number Keys

If your original remote has an 20 key, this function can be found under the AV key.

If your original remote has an 10 or --- key, this function can be found under the --- key.

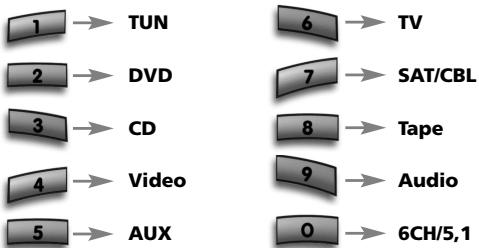

In AMP mode : Input Select keys

In TV mode: AV/Input or 20 or C/P

In SAT mode : TV/SAT" or TV/DTV

In DVD mode: TV/DVD or 20

In AMP mode : Function Select or Input Source

Volume +/- and Mute Keys

If the device you programmed does not have volume functionality, you will obtain the VOL +/- and Mute functionality from your Television.

In TV mode : ★★★★☆ = Colour +/-

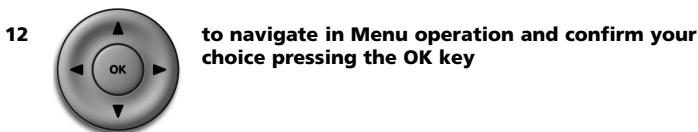

Menu

Exit the Menu

In TV, SAT and/or DVD mode: Guide In AMP mode: DSP

In TV and/or SAT mode: Recall In DVD and/or AMP mode: Rewind

In SAT mode: MAGIC = Rewind

RECALL

In TV mode: = 16:9 In SAT mode: = Options In DVD and/or AMP mode: = Play

In SAT mode: MAGIO =Play

15 In TV mode: = 16:9 In SAT mode: = 0 Options 16:9 In DVD and/ or AMP mode : = Play

18

In TV and/or SAT mode : Text On In DVD and/or AMP mode : Skip Reverse

In TV mode :

$$ = D T V $$

In SAT mode :

$$ = \text {S k i p R e v e r s e} $$

In DVD mode :

$$ = \begin{array}{c} \text {D V D / H D D ,} \ \text {D V D / V C R o r} \ \text {T V / D V D} \end{array} $$

19

三

In TV and SAT mode : Hold/Stop In DVD and/or AMP mode : Reco

In SAT mode :

$$ = \text {R e c o r d} $$

20

三

In TV and/or SAT mode: Text Expand In DVD and AMP mode: Stop

In SAT mode :

$$ = \text {S t o p} $$

21

In TV and/or SAT mode : Text off In DVD and AMP mode : Skip Forward

In SAT mode :

$$ = \text {S k i p F o r w a r d} $$

22

FAV

In TV and SAT mode: Red (fastext)
In DVD mode: Zoom or SP/LP

In SAT and

AMP mode :

$$ = \text {F a v o u r i t e} $$

23

OPEN

In TV and SAT mode:Green (fastext) In DVD mode: Open/Close or Guide

In SAT mode :

$$ = \begin{array}{l} \text {T V / R a d i o} \ \text {O p e n / C l o s e} \end{array} $$

24

AUDIO

In TV and SAT mode : Yellow (fastext) In DVD mode : Audio or Timer

In SAT and

AMP mode :

$$ = \text {A u d i o} $$

25

PVR/LIST

In TV and SAT mode : Blue (fastext) In DVD mode : PVR, List or Subtitle

In SAT mode :

$$ = \text {P V R}, \text {L i s t} \text {o r} \text {S u b t i t l e} $$

• Some functions can be reached simply pressing and releasing the MAGIC key before pressing the corresponding function (the MAGIC key will remain shifted for 10 seconds).

Direct code set up

Example: To set up the ONE FOR ALL 4 for your television:

1

Find the code for your device (e.g. Bennett

Television) in the Code list (page 164 - 182 in the manual). Codes are listed by device type and brand name. The most popular code is listed first.

Make sure your device is switched on (not on standby).

2

Press the TV key on the ONE FOR ALL 4 to select the device you wish to Set-Up.

3

Press and hold down the MAGIC key

(for approximately 3 seconds) until the red LED (underneath the TV key in this example) blinks twice.

The red LED will blink once, then twice.

x2

4

Enter your four-digit device code using the number keys (e.g. Bennett code 0556). The red LED will blink twice to confirm that the code is stored.

5

Now, aim the ONE FOR ALL 4 at your device and press OFF. If your device switches off, the ONE FOR ALL 4 is ready to operate your device.

6.

Next, switch your device back on (pressing ON, a number key or CH+ ) and try all the remote's functions to ensure they are working properly. If the functions do not work properly, repeat steps 1-5 using another code listed under your brand.

If your device does not respond, follow steps 1 to 5 with each code listed for your brand. If none of the codes listed for your brand operate your device OR if you your brand is not listed at all, try the search method described on page 9.
Some codes are quite similar. If your device does not respond or is not functioning properly with one of the codes, try another code listed under your brand.
- Remember to press the correct device key before operating your device. Only one device can be assigned to a device mode. If your original remote operates more than one device, you need to set up each device separately.
- If you find that some functions are missing you can either "learn" them from your original remote or use "Key Magic®" if your original remote is broken.

Search Method

If your device does not respond to the ONE FOR ALL 4 after you have tried all the codes listed for your brand.
The Search Method may also work if your brand is not listed at all.

The Search Method allows you to find the code for your device by scanning through all the codes contained in the memory of the ONE FOR ALL 4.

Example: To search for your TV code:

1 Switch on your television (not on standby) and aim your ONE FOR ALL at your TV.
2 Press the TV key on your ONE FOR ALL 4.
3 MAGIC Press and hold down the MAGIC key (for approximately 3 seconds) until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.

4 9 9 1 Press 9 9 1. The red LED will blink twice.
5 Next, press OFF.

• If you wish you may also search for your code using another function than "OFF". Simply choose between 0, 1, 2, 3, VOL+, PLAY, STOP or MUTE instead.

6 Aim the ONE FOR ALL 4 at your Device. Now press CH+ over and over, until your e.g. Television switches off.

• Everytime you press the CH + key the ONE FOR ALL 4 will send out a POWER signal (the function you chose at step 5) from the next code contained in the memory.
• You may have to press this key many times (up to 150 times) so please be patient.
• If you skip past a code, you can go to the previous code(s) by pressing the CH- key.
• Remember to keep pointing the ONE FOR ALL 4 at your Device while pressing this key.

7 MAGIC As soon as your Device switches off, press the MAGIC key to store the code.

If your Device does not switch on pressing the ON key, simply press the OFF key, a number key or CH+ to switch your e.g. Television back on.
- To search for the code for another device follow the instructions above only press the appropriate device key instead of TV during step 2.
- If your Video's original remote control does not have a POWER key, press PLAY instead of OFF during step 5.

Code Blink out

(To find out which code is currently programmed)

Once you have Set-Up your ONE FOR ALL 4, you can blink back your SET-UP CODE for future reference.

Example: To blink out your Television code:

1 TV Press TV once.

2 MAGIC Press and hold down the MAGIC key (for approximately 3 seconds) until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.

Press 9 9 0. The red LED underneath the TV key will blink twice.

4 For the first digit of your four-digit code, press 1 and count all the red blinks.
5 2 For the second digit, press 2 and count all the red blinks.
6 3 For the third digit, press 3 and count all the red blinks.
7 4 For the fourth digit, press 4 and count all the red blinks.

Now you have your four-digit code.

• If there are no blinks, the digit is "0".
  If you are not sure how many times it blinked, simply press the corresponding digit again to repeat the blink-back.

Quick Code Reference

Device Type

3. 4.

Code

The Learning Feature

(How to copy functions from your original working remote

onto the ONE FOR ALL 4)

Before you start:

• Make sure your original remote control is working correctly.
• Make sure neither your ONE FOR ALL, nor your original remote control is pointing at your device.

Example: To copy the "mono/stereo" function from your original TV remote onto the "Red" key of your ONE FOR ALL 4.

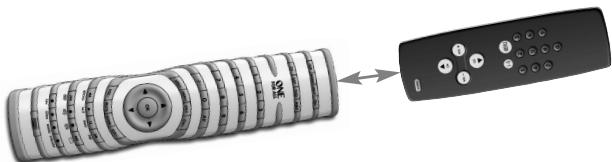

1 Place both remote controls (the ONE FOR ALL 4 and your original) on a flat surface. Make sure the ends which you normally point at your device are facing each other. Keep the remotes at a distance of 2 to 5cm .

2 MAGIC Press and hold down the MAGIC key (for approximately 3 seconds) until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.

3 9 7 5 Press 9 7 5 (the red LED will blink twice).

4 Press the device key (on the ONE FOR ALL remote) to select the mode to which you want to copy the learned function (Example: TV key).

5 Press the key (on the ONE FOR ALL remote) where you want to place the learned function (Example: "Red" key). The red LED (underneath the TV key in this example) will flash rapidly.

6 Press and hold the key (on your original remote) that you want to copy until the red LED blinks twice (Example: "mono/stereo" key).

If you want to copy other functions within the same mode, simply repeat steps 5 and 6 pressing the next key you want to copy by learning.

7 MAGIC To exit the learning mode, press and hold down the MAGIC key until the red LED blinks twice.

• Learning is mode specific. To access your learned function, press the appropriate device key first.
  The ONE FOR ALL 4 can learn approximately 100 functions.
• You can replace a learned function by placing another learned function on top.
  Upon changing the batteries, your learned functions will be retained.

Shifted Learning (magic = Shift key)

You can also learn a function on a key of the ONE FOR ALL without sacrificing the original ONE FOR ALL function.

To install a Shifted Learning function:

simply follow steps 1 - 7 on the previous page.
...only, at step 5 first...

Press and release the MAGIC (= SHIFT) key then....

5 Press the (e.g.) Red key. The red...

To access the shifted function:

press MAGIC (= Shift key) and then the key you have learned on (e.g. Red key in our example on the previous page).

To delete a learned function:

1 Press and hold down the MAGIC key until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.
2 Press 976 (the red LED key will blink twice).
3 Press the device key in which the function will be deleted.
4 Press twice on the learned key which will be deleted (underneath the TV key in this example) and the original functions of the ONE FOR ALL 4 will now be present.

• If there is another key which you wish to delete, repeat steps 1-4.
• To delete a Shifted Learned feature, press MAGIC before you press "the learned key to be deleted" (during step 4).

To delete all learned functions within a specific mode:

1 Press and hold down the MAGIC key until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.
2 Press 976 (the red LED will blink twice).
3 Press the appropriate device key twice.

Operational Reset

The Operational Reset will erase:

• all learned functions
• all Key Magic functions
• all Macros

1 Press and hold down the MAGIC key until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.
2 Press 980 (the red LED will blink four times).

Extra Features

Mode re-assignment

(Changing a device mode)

It is possible to change the mode of any device key. This is useful if you want to set up two of the same devices on the ONE FOR ALL 4. The code can be set up using "Direct code set up" (pag. 5) or "Search method" (pag. 6). To change a device key, see the three examples below.

Example 1) if you want to program a second TV on the AMP key.

Example 2) if you want to program a second TV on the DVD key.

Example 1:

To program a second Television on the AMP key (for example), you need to change the AMP key into a TV key, so press:

The AMP key has now become a second TV key.

Now enter the Set-Up code for your second TV by pressing:

Example 2:

To program a second Television on the DVD key (for example), you need to change the DVD key into a TV key, so press:

The DVD key has now become a second TV key.

Now enter the Set-Up code for your second TV by pressing:

Resetting a Device key

Example: To reset the AMP key to its original mode, press:

Example: To reset the DVD key to its original mode, press:

() Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice.
(^*) The red LED underneath the last selected device key will blink twice.

Extra Features

Volume Lock

This feature allows you to control the volume from a certain device, without having to change to that device mode (e.g. controlling the volume of your amplifier from any mode).

To punch through to AMP volume while in the TV, DVD or SAT mode:

1.

Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice. The red LED will blink once, then twice.

Press 9 93.

3.

Then press the AMP key and the red light will blink twice.

Result: within every mode, whenever you press the VOL+/- or MUTE keys, this will be send out from AMP mode.

To cancel the "Volume Lock" per mode:

Example: to cancel the "Volume Lock" for the DVD mode.

1.

Press DVD once.

2

Press and hold down the MAGIC key until the red LED underneath the DVD key will blink twice. The red LED will blink once, then twice.

Press 9 93.

Then press the Volume (-) key and the red LED will blink four times.

Result: being in DVD mode, you will be able to control VOL+/- or MUTE functions of your DVD (provided it has volume control).

To cancel the „Volume Lock" for all modes:

1

Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice. The red LED will blink once, then twice.

Press 9 93.

3.

Press the Volume (+) key and the red LED will blink four times.

Result: Each device mode will control its own VOL+/- and MUTE again.

Macros (Sequence of commands)

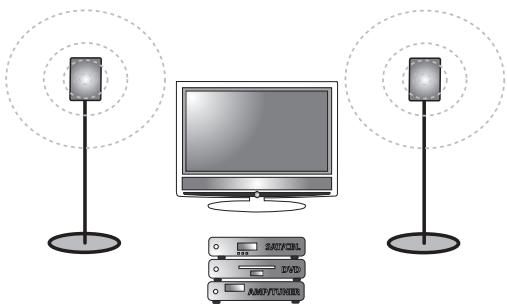

Macros (Direct)

You can program your ONE FOR ALL 4 to issue a sequence of commands at the press of one button. Any sequence of commands you regularly use can be reduced to one key stroke for your convenience.

Example: To switch off your Television, Satellite Receiver and DVD player with one keypress (e.g. red key):

1 Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice. The red LED will blink once, then twice.
2 Press 9 95.
3 Then press the Red key to which the Macro will be assigned.
4 Next press TV, OFF, SAT, OFF, DVD, OFF.
5 To store the Macro, press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice. The red LED will blink once, then twice.
6 Whenever you press the "Red" key, the ONE FOR ALL 4 will switch off your Television, Satellite Receiver and DVD player.

• Make sure that you program a Macro on a spare key that you don't use in any mode.
• Once you program a Macro on a specific key, the sequence will work regardless of the mode (TV, SAT, DVD and AMP) you are using.
  Each MACRO can consist of a maximum of 35 key strokes.
• If you had to hold down a key for a few seconds on the original remote control to get a function, this function may not work in a macro on your ONE FOR ALL remote.
• To avoid accidental recordings with the ONE FOR ALL 4, you must press the Record key twice to begin recording. Because of this, we recommend you not to assign a Macro or Shifted Macro to the Record key.
  If you program a Macro on a key, the original function will become shifted (excluding REW, PLAY, PAUZE, FF, SKIP Forward, SKIP Back, STOP, REC, Red, Green, Yellow and Blue). Press the MAGIC then the key to access it.

Extra Features

To erase the Macro from the Red key, press:

1 Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice. The red LED will blink once, then twice.
2 Press 9 95.
3 Then press the Red key.
4 Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice. The red LED will blink once, then twice.

Shifted Macros

If you do not want to sacrifice any key it is also possible to install a "Shifted Macro".

If for example, you want to program a shifted Macro on the OFF key, simply press MAGIC once then the OFF key during step 3.

Example: To switch off your Television, Satellite Receiver and DVD player with one keypress (e.g. pressing MAGIC then OFF):

1 Press and hold down the MAGIC key until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.
2 Press 9 9 5.
3 Then press the OFF key to which the Macro will be assigned.
4 Next press TV, OFF, SAT, OFF, DVD, OFF.
5 To store the Macro, Press and hold down the MAGIC key until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.

Result: Now every time you press MAGIC, then the OFF key, the ONE FOR ALL will switch off your Television, Satellite Receiver and DVD Player.

To erase the Shifted Macro from the OFF key press:

To erase all Macro and Shifted Macro:

MAGIC* 9 95 MAGIC*

• Here you must press and hold down the MAGIC key until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.

• You can install a Shifted Macro on any key, except for the device keys (TV, DVD, SAT and AMP), the MAGIC key and the LIGHT key.

• If you place a Macro shifted on a digit key, access the original function by pressing the MAGIC key twice and then the digit key.

Key Magic

how to program missing functions

Key Magic® is an exclusive ONE FOR ALL feature that ensures that many functions of your original remote control can be operated - even those that do not have their own key on the ONE FOR ALL keypad. Frequently used functions can be assigned to a key of your choice using the Key Magic feature of your ONE FOR ALL.

In order to program a certain function with Key Magic you need to know the corresponding function code. As these function codes vary with different types of devices, they cannot be found in the manual. You can request your function codes calling our consumer service or by sending us a fax or e-mail.

Please mention:

• The 4-digit set-up code your device is working with.
• How the function was labelled on your original remote control.

Once you obtain(ed) your function code(s) from customer service, programming the code is easy:

1 Press the device key (TV, SAT, DVD or AMP).
2 Press and hold down the MAGIC key until the red LED (underneath the TV key in this example) blinks twice. The red LED will blink once, then twice.
3 Press 9 9 4. The red LED will blink twice.
4 Press the MAGIC key once.
5 Enter the 5-digit function code (provided by customer service).
6 Press the key to which the function will be assigned. The red LED underneath the last selected device key will blink twice.

EXTENDED FUNCTION REFERENCE (first entry is an example):

DEVICE: TV	SET-UP CODE: 0556	FUNCTION: 16/9 format	FUNCTION CODE: 00234

• To access the function you have programmed, press the corresponding device key first.
  Key Magic can be assigned to any key EXCEPT the Device keys, LIGHT and the MAGIC key.
• Please note all the extended function codes you obtain from customer service for easy future reference.

Key Move How to copy a function to another key 'within a device mode' or towards 'another device mode'

Key Move allows you to configure the keypad as you wish.

Example: how to Key Move the "Play" function from DVD mode towards AMP mode.

1 Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice. The red LED will blink once, then twice.
Press 9 94. The red LED underneath the last selected device-mode-key will blink twice.
3 Press the source device mode (e.g. DVD key).
4 Press the key you wish to move (e.g. PLAY key).
5 Select the device mode to which the fuction will be assigned (e.g. AMP key).
6 Press the key to which the function will be assigned (e.g. PLAY key). The red LED underneath the last selected device key will blink twice.

Result: now also being in AMP mode you will be able to play your DVD.

To restore the play key in the AMP mode to it's original function press:

AMP MAGIC** 994 PLAY PLAY (^**)

(**) Press and hold down the MAGIC key until the red LED underneath the last selected device key will blink twice.

• You can Key Move to any key EXCEPT the Device keys, LIGHT and the MAGIC key.
  Not valid for learned functions or fuctions obtained through Key Magic.

Problem & Solution

Solution:

Problem:

Your brand is not listed in the code section?	Try the search method on page 9.
The ONE FOR ALL does not operate your device(s)?	A) Try all the codes listed for your brand. B) Try the search method on page 9.
The ONE FOR ALL is not performing commands properly?	You may be using the wrong code. Try repeating the Direct Set-Up using another code listed under your brand or start the search method over again to locate the proper code.
Problems changing channels?	Enter the programme number exactly as you would on your original remote.
Video not recording?	As a safety feature on your ONE FOR ALL, you must press the Record key twice.
The ONE FOR ALL does not respond after pressing a key?	Make sure you are using new batteries and are aiming the ONE FOR ALL at your device.
The red LED does not blink when you press a key?	Replace batteries with 4 fresh, new “AAA” alkaline batteries.

Customer Service

In the UK

E-mail: [e-mail] (*5)

Fax :[phone]

Tel. :[phone] (£0,50 per minute)

In Australia

E-mail: [e-mail] (*5)

Fax :[phone]

Tel. : [phone]

In New Zealand

E-mail: [e-mail] (*5)

Fax : [phone]

Tel. :0508 ONE 4 ALL (663 4 255)

Slovakia

E-mail: [e-mail]

Fax :[phone]

Tel. : [phone]

Web. : www.dsi.sk

In Ireland

E-mail : [e-mail] (*5)

Fax :[phone]

Tel. :[phone]

In South Africa

E-mail : [e-mail]

Fax :[phone]

Fax :[phone]

Tel. :[phone]

Tel. :[phone]

CS. :0860 100551

Ukraine

(^*5) Just send a blank message, you'll get auto-reply.

EINLEGENDER BATTERIEN 21

DAS TASTENFELD 21

EINSTELLUNGEN

$$ = \text {S k i p} $$

Im DVD-Modus:

$$ = \begin{array}{c} \text {D V D / H D D ,} \ \text {D V D / V C R o d e r} \ \text {T V / D V D} \end{array} $$

19

三
