USER MANUAL Conga Carpetspot Clean Infinity CECOTEC

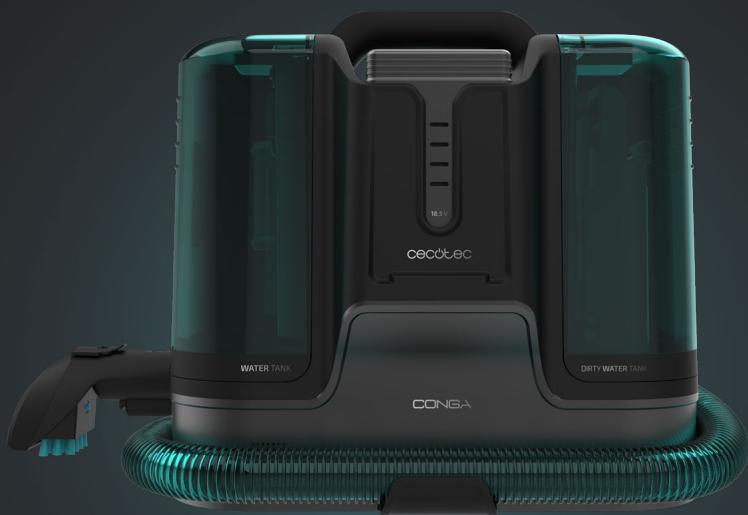

CONGA CARPET&SPOT CLEAN INFINITY

Limpiatapicerías/Upholstery cleaner

Safety instructions 9

1. Parts and components 61

2. Before use 61

3. Assembly 62

4. Operation 62

5. Cleaning and maintenance 63

6. Troubleshooting 64

7. Technical specifications 65

8. Disposal of old electrical and

electronic appliances 65

1. Technical support and warranty 66

2. Copyright 66

SOMMAIRE

Please, keep this instruction manual in a safe place for future reference or new users.

• Read these instructions carefully before assembling or using your carpet cleaner. These instructions contain important information that will help you get the best out of your equipment. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: check that the upholstery cleaner and package are not damaged. Never use the device if it is damaged. Should it be the case, immediately contact Cecotec's Technical Support Service.
• Packaging material may be dangerous to children. Remove it and place it out of their reach.

• The upholstery cleaner plug must be connected to a grounded socket. If you do not have an earthed socket, an earthed installation must be carried out by a licensed electrician. In case of ungrounded use, Cecotec shall not be liable for any malfunction or damage that this may cause.

• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.

• Always use the plug provided with the appliance. Do not modify the plug provided with the appliance if it does not match the power socket.
• Check the power cord regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service in order to avoid any type of danger.
• Do not operate the appliance if its cord, plug, or structure show visible damage, do not operate properly, or produce unusual sounds or odours.
• In case of malfunctioning, repairs must be carried out by the official Cecotec Technical Support Service; otherwise, the warranty will be void.
• To unplug the device, pull from the socket, never from the cord.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Disconnect the appliance from the electric circuit when it is not used.
• Disconnect the device from the power socket before carrying out any maintenance, cleaning, or transport.
• Do not use the device with pesticides, dyes, lubricants, or other liquids.
• Do not use the appliance to vacuum lit matches, cigarette ends, petrol gas, sources of heat, or hot ash.

• Do not use the device without installing the waste-water tank.

• The device is designed to clean carpets and upholstery, do not use it for any other purpose.

• This device is designed for personal use only and is not suitable for commercial use.
• Do not place the device near sources of heat, flammable substances, etc.
• If any strange object blocks any of the parts or you vacuum any strange object, stop using the device, empty it, and clean it to be able to use it again.
• This product is used to remove dirt through rinsing. Use tap water or alkaline ionised water at a temperature below 40 °C.
• This product cannot be used to clean arts and crafts, non-waterproof fibres (nets, acetic acid, rayon, etc.), non-waterproof products (furs, leather products, white wooden furniture, tea sets, etc.) and vulnerable surfaces (floors, tables).
• When the waste-water tank exceeds the maximum water level, stop operating the device immediately and empty the waste-water tank before using the product again.
• When using detergent, dilute a low-foaming detergent with water and spray it over the object to be cleaned.
• When using detergent, make sure it will not leave any stains before using it.
• If you use the device over a shag carpet, this will block the water outlet and the machine may stop working.
• If there is too much foam or wastewater in the lower part of the machine during operation, stop using it immediately and clean the tank before using it again.
• Do not use a detergent that foams.

Battery instructions

• WARNING: to recharge the battery, only use the power supply unit provided with the appliance, with reference CZH013220050EUWH.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or break secondary batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit the battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject batteries to mechanical shock.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Do not use any charger other than the one supplied specifically for this appliance.
• Do not use any battery that is not designed for this appliance.
• Do not use the appliance if powered with batteries that differ in capacity, size, or type.
• Children must be supervised if they handle the battery.

• In case of battery ingestion, please seek medical attention immediately.

• Always use the battery recommended for this appliance.

• Keep batteries and cells clean and dry.
• Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Secondary batteries must be charged before use. Always use the specified charger and refer to these instructions.
• Do not leave the battery on prolonged charge when not in use.
• After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
• Keep this instruction manual for future reference.
• Use the battery only for its intended purpose, i.e., for use with this appliance.
• Remove the battery from the appliance when not in use whenever possible.
• Dispose of the battery properly.
• Non-rechargeable batteries must not be recharged.

INSTRUCTIONS DE SÉCURITÉ

1. Main body
2. Battery
3. Hose hook
4. Accessory for tool storage
5. Hose
6. Upholstery cleaning accessory
7. Self-cleaning accessory
8. Window cleaning accessory
9. Plastic head
10. Brush head

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance includes a safety package to protect it during transport. Unpack the appliance and keep the original packaging and materials in a safe place. It will help prevent any damage if the appliance needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If any sign of visible damage is observed, immediately contact Cecotec's official Technical Support Service.

Box content

• Upholstery vacuum cleaner
• Upholstery cleaning accessory
• Self-cleaning accessory
• Window cleaning accessory
• Brush head
• Plastic head
• Two batteries
• Instruction manual

3. ASSEMBLY

1. Insert the hook as shown in figure 2.

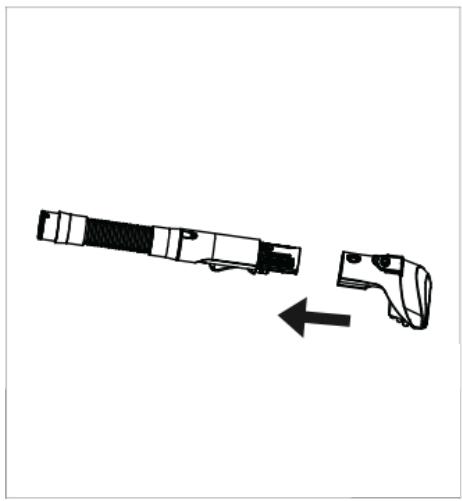

2. Insert the cleaning accessory you wish to use into the hose as shown in figure 3.
3. Insert the hose hook as shown in figure 4.

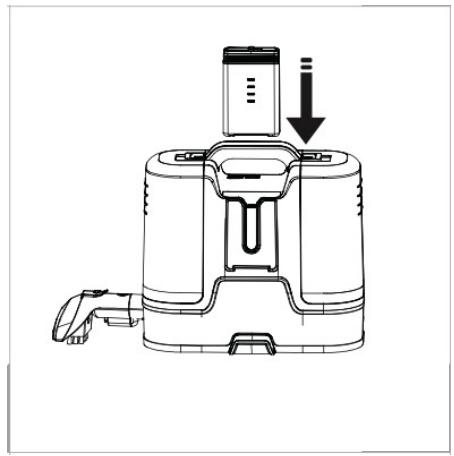

4. Insert the battery as shown in figure 5.

Filling up the water tank

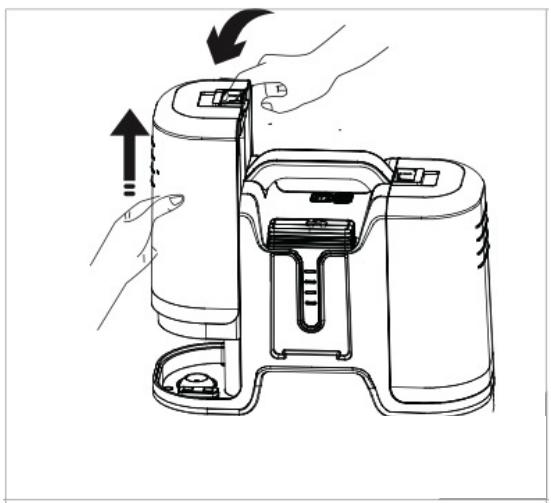

1. Remove the clean water tank from the main body of the device, to do so slide the clean water release tab and remove the tank in the direction of the arrows shown in figure 6.

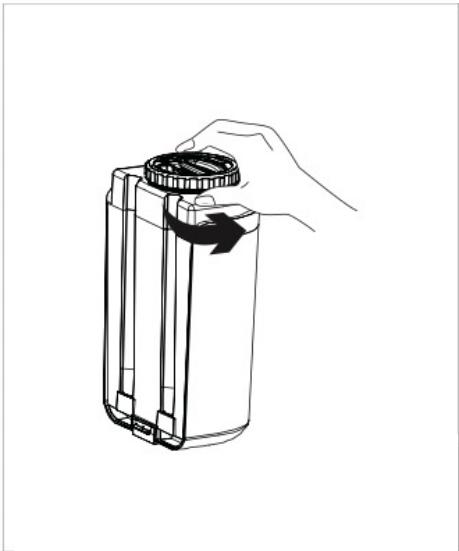

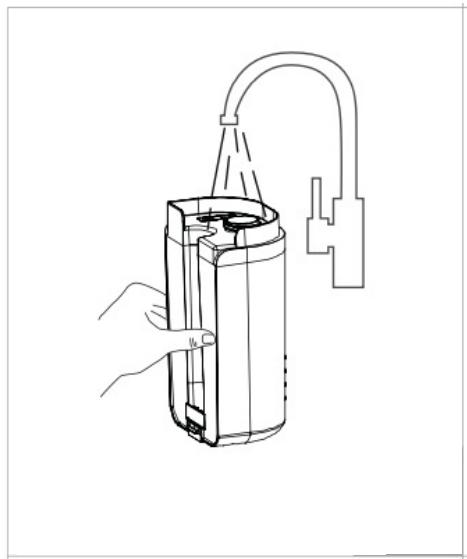

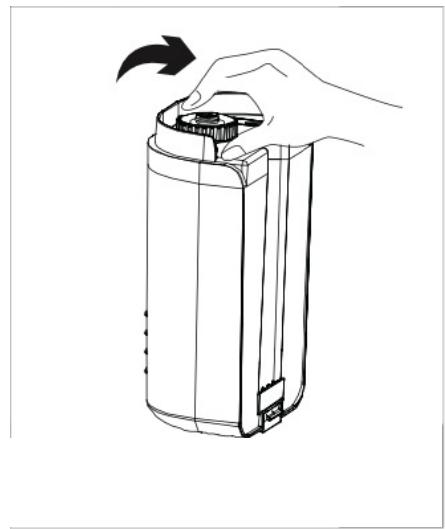

2. Turn the clean-water tank, loosen the cap, and fill the tank with clean water. The maximum water capacity is marked on the tank as "MAX", do not exceed it under any circumstances. Fig. 7-8
3. Screw the cap and install the clean-water tank back into the main body. Fig. 9-10

Note

• After filling the tank with water, you must tighten the cap correctly to avoid leakage.
• You can add low-foam detergent to the clean-water tank.
• After using your device, you must empty the remaining water in the clean-water tank to avoid leakage and mould formation.
• Do not shake the clean-water tank during installation, as it could cause water leakage.

Upholstery cleaning accessory

Press the button under the head to switch between the brush head and the plastic head.

4. OPERATION

1. Read the label of the fabric you wish to clean to check that it is suitable for this cleaning process.
2. Press the power button to turn the device on. Fig. 11

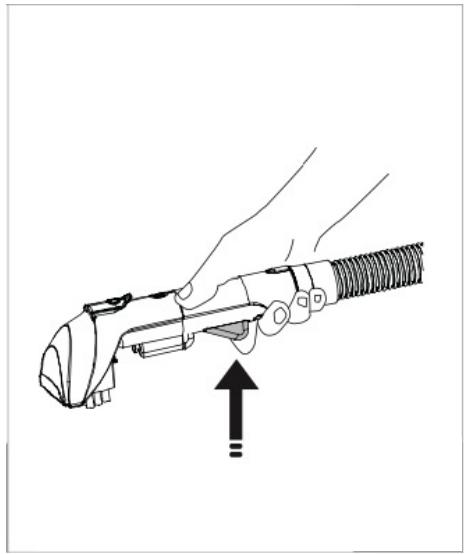

3. Press and hold the water release button to spray clean water. Spray clean water on the dirt to bring it to the surface. Fig. 12
4. Press the suction inlet on the dirt to bring water and dirt to the surface and vacuum them. Fig. 13
5. Stop spraying clean water and vacuum the waste water. After using the appliance, allow the surface to dry before using it again.
6. Switch off the device by pressing the power button.
7. Empty the clean and wastewater from the tanks and clean the waste-water tank.
8. Connect the self-cleaning head and activate it for 30 seconds. Fig. 15

Note

• Do not spray water continuously over the same spot.
• Switch off the appliance before unplugging it.
• After using the device, hang and wind the power cord in the power cord hook.
• To know the detergent quantity and use, carefully read the manufacturer instructions.
• Stop using the device when the water or foam in the waste-water tank reaches the maximum water level and clean the waste-water tank. Otherwise, water may enter the machine.

5. CLEANING AND MAINTENANCE

Note

• Switch off the appliance before cleaning it.
• Do not wet the device to avoid the risk of electric shock.
• Do not use detergents, thinners, benzene, or other chemical agents to clean the device.
• After every use, you must remove and clean the waste-water tank, the clean-water tank, and the suction nozzle (A/B) to prevent humidity and dirt remains from emitting bad odours.

Cleaning the main body

• The most common dirt can be cleaned with a slightly damp cloth.
• The most stubborn dirt can be cleaned with a cloth slightly soaked in detergent and then a cloth slightly soaked in water.

Cleaning the waste-water tank

1. When the wastewater reaches the maximum level, stop using the appliance and remove the waste-water tank.

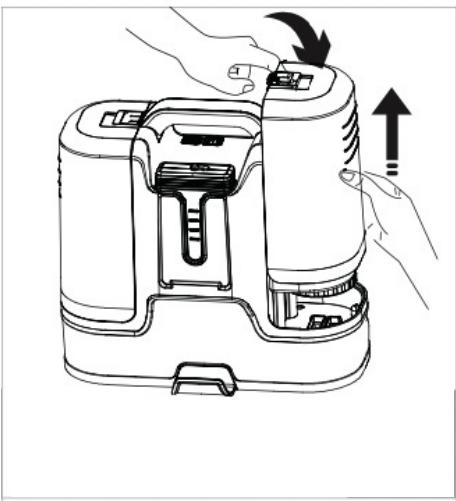

2. To do so, slide the waste-water tank release tab and remove it in the direction of the arrow shown in Figure 16.

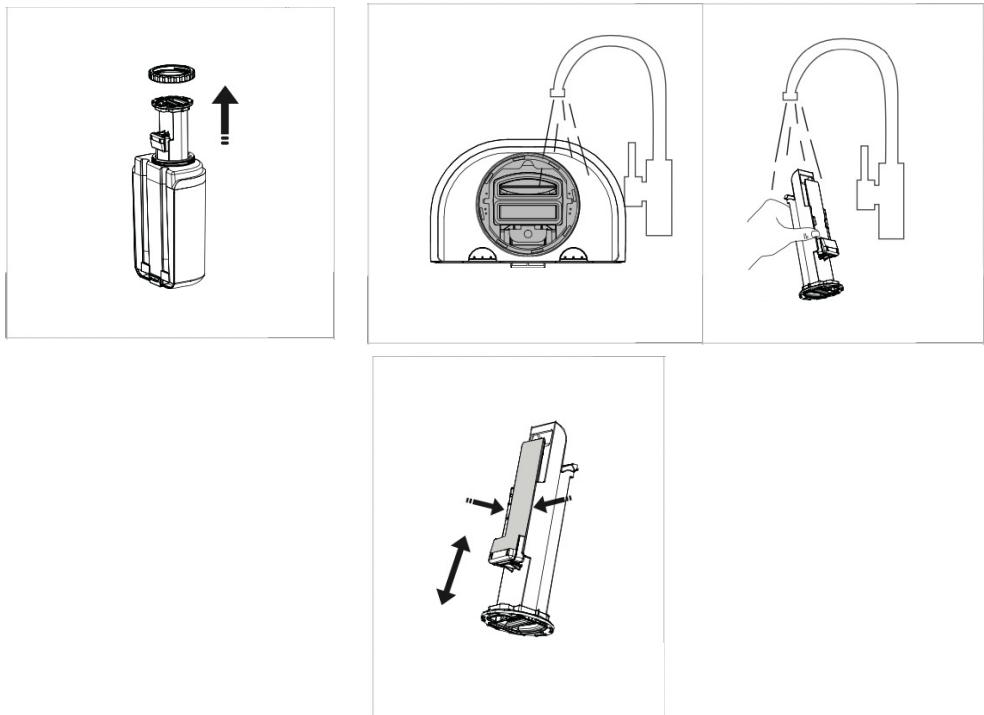

3. Remove the upper cover of the waste-water tank. Fig. 17
4. Remove the buoy as shown in figure 18, drain the water and clean the buoy and the inside of the tank by hand.
5. Make sure all parts and components are dry before reinstalling and replace the cover. Fig. 19
6. Place the waste-water tank in the main body of the device.

Note

• Do not lean or shake the waste-water tank when transporting or assembling it; otherwise, wastewater will easily leak.
• We recommend you empty the wastewater before it exceeds the maximum level on the

tank; if you continue using the tank after the wastewater has exceeded the maximum water level, the float valve will automatically stop the machine vacuuming water.

Cleaning the clean-water tank

1. Remove the clean-water tank in the arrow direction, as shown in the assembly section.
2. Loosen the cap and empty the remaining water.

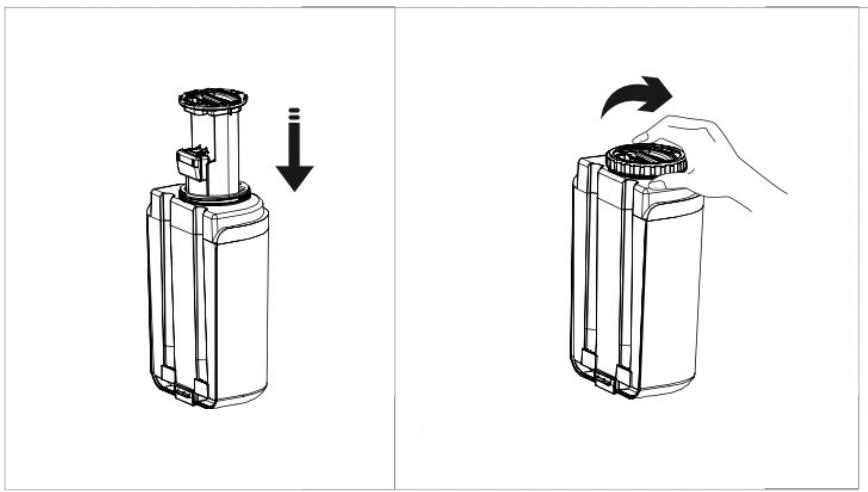

3. Tighten the cap of the clean water tank again and install the empty tank.
4. Press the power button to turn on the device.
5. Press the water release button to empty the remaining water in the device.

Cleaning the suction nozzle

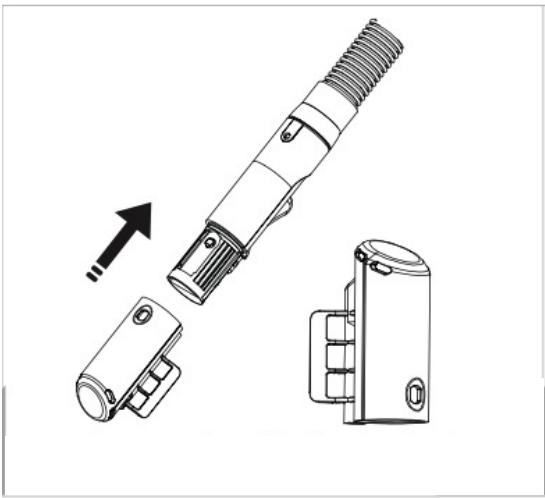

1. Press the suction nozzle release button and separate it from the hose bracket. Fig. 20
2. Remove the front cover by lifting it with your finger. Fig. 21

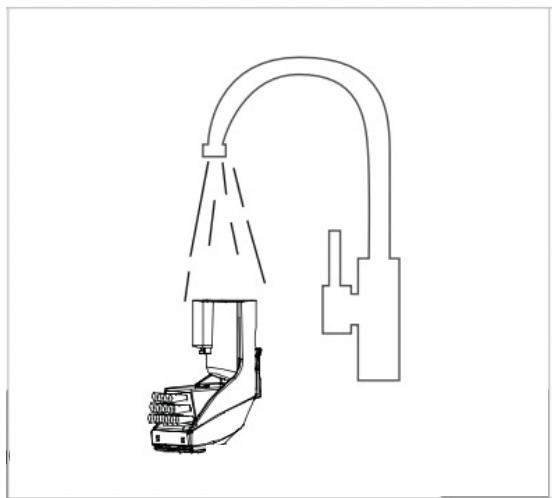

3. Rinse the suction nozzle and the cover. Fig. 22
4. Install the suction nozzle cover again. Make sure the pins are correctly placed in the holes and press these parts until they click. Fig. 23

Charge the appliance

Connect the charger to the device as shown in figure 24.

6. TROUBLESHOOTING

If you observe any problem, carefully read this manual and try any possible solutions before contacting Cecotec Technical Support Service.

Problem	Possible causes	Possible solutions
The appliance does not work, and the switch is on	Battery is discharged.	Reconnect to the power supply
	The internal line or power cord are broken.	Contact the official Cecotec Technical Support Service.
When pressing the water release button, there is no water or little water released	The nozzle is clogged.	Remove the suction nozzle and clean it with clean water.
	The bracket or pump are damaged.	Contact the official Cecotec Technical Support Service.

It does not vacuum, or it is too weak	The power button is in the Off position.	Turn on the power button.
	The waste-water tank is full, which activates the buoy.	Empty the waste-water tank and use it again.
	The hose does not work properly.	Check the hose is not cracked, broken, or clogged.
	The waste-water tank is not correctly installed.	Install the waste-water tank correctly.

If after these tasks the problem still occurs, contact the provider or the official Cecotec Technical Support Service.

Warning

Do not try to disassemble, repair, or modify the device by yourself.

7. TECHNICAL SPECIFICATIONS

Product: Conga Carpet&Spot Clean Infinity

Product reference: 08666

Voltage: 100-240 V \~, 50/60Hz, 0.4 A

Power: 150 W

Battery:

18.5 V =, 2200 mAh, 40.7 Wh

Type: 5INR19/66

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of

old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

6. PROBLEEMOPLOSSING

Product: Conga Carpet&Spot Clean Infinity

Referentie: 08666

Spanning: 100-240 V, 50/60Hz, 0,4 A

Vermogen: 150 W

Accu:

18,5 V =, 2200 mAh, 40,7 Wh

Type: 5INR19/66

Ürün: Conga Carpet&Spot Clean Infinity

Referans: 08666

Gerilim: 100-240 V, 50/60Hz, 0,4 A

Güç: 150 W

Batarya:

18,5 V =, 2200 mAh, 40,7 Wh

Tip. 5INR19/66

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./ Rys. 4

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./ Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./ Rys. 13

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./ Rys. 15

Fig./Img./Abb./Afb./ Rys. 17

Fig./Img./Abb./Afb./Rys.16

Fig./Img./Abb./Afb./ Rys. 18

Fig./Img./Abb./Afb./ Rys. 19

Fig./Img./Abb./Afb./ Rys. 21

Fig./Img./Abb./Afb./Rys. 20

Fig./Img./Abb./Afb./ Rys. 22

Fig./Img./Abb./Afb./ Rys. 23

Fig./Img./Abb./Afb./ Rys. 24
