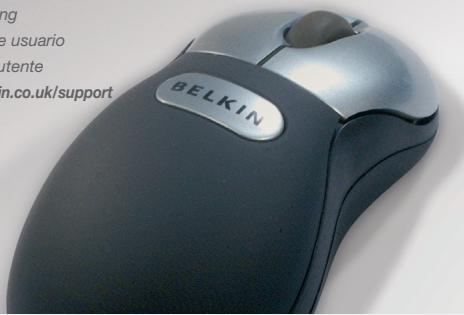

MiniWireless Optical Mouse

Navigate your notebook with optical precision and wireless freedom

User Manual

www.belkin.co.uk/support

F8E825veaUSB

Table of Contents

English

Battery Installation 4

Hardware Installation 5

Driver Installation 6

ID Setup 7

Button Function Setup. 8

Troubleshooting 9

Français

Installation des piles 10

Hardwareinstallation. 17

Treiberinstallation 18

Battery Installation

1. Press the button to open the top cap. (fig. 1) (fig. 1-1)

1. Insert 2 AAA batteries. (fig. 1-2)

1. Replace the top cap and close it.

CAUTION!

• Be sure to check polarity (+ or - sign) and insert battery properly.
• Make sure battery type is AAA alkaline (1.5V).
• Remove the batteries if mouse will not be in use for a long time.
  Each time you replace the batteries, repeat the mouse setup by following the "setup for linkage" (fig. 5).

Hardware Installation

1. Shut down the computer.
2. Connect the receiver either directly or with the USB extension cable to the USB port on the PC. (fig. 2)

1. Place the receiver beside the notebook or desktop PC. (fig. 3)

1. Turn on the PC.
2. Switch on the power of the wireless mouse located on the backside of the mouse. (fig. 4)

CAUTION!

While traveling, please switch off the unit to save battery power. (fig. 4)

5

Driver Installation

1. Insert the installation CD into your CD-ROM drive.
2. The CD should automatically load the installation. If it does not load, click "Start" then "Run", then type "X:\setup" (replace "X" with the correct drive letter for your CD-ROM drive, usually D). Then follow through the on-screen instructions to complete the installation.
3. When the setup is complete, the system will restart automatically. It will show a mouse icon in the bottom right-hand corner of the screen.

CAUTION:

Some computers running Windows® 98 will require insertion of the Windows 98 CD to finish the installation of the driver.

ID Setup

1. Aim the front point of the mouse at the receiver.
2. IMPORTANT: FIRST, PRESS THE CONNECT BUTTON OF THE MOUSE; THEN PRESS THE CONNECT BUTTON OF THE RECEIVER {fig. 5}. NEVER REVERSE THIS PROCEDURE.

1. When the connect button of the receiver is pressed, the LED inside the receiver will light. As soon as the linkage is completed, the LED will go off.
2. The setup must be completed within one minute. If setup time exceeds one minute, repeat procedure.

Button Function Setup

1. Start the setup from the Control Panel or directly click on the mouse icon at the bottom right corner of the screen. It shows the following functions:
   -Button: set up for either right or left hand, and adjust the speed
   -Wheel: set up the functions for hot keys and zooming
   -Motion: set up the speed of the mouse pointer
2. After the function is set up, press "Yes" to store the new setup.

SETUP FOR MULTI-USERS

When using more than one MiniWireless Optical Mouse in the same location, set up one mouse at a time. You must complete the setup for each mouse before beginning the next.

ENVIRONMENT

To avoid environmental interference, which will shorten the effective operation distance, please note the following:

1. Do not put the mouse and receiver on a metal cabinet or desk. Metal creates RF interference, which may impair the RF communication and shorten the communication distance.
2. Keep a distance of more than 1.5m between your mouse and another operational RF device to avoid interference.
3. The optical sensor of the mouse will not work correctly if placed on amirror, glass, or on any reflecting or half-tone painted surface.

Troubleshooting

The cursor doesn't react when I move the mouse.

1. This is probably because the distance between the receiver and mouse exceeds the working range. Simply adjust so that the mouse is closer to the receiver.
2. Make sure that the mouse is not placed on a reflective surface such as a mirror, glass, half-tone painted surface, or on a 3D mouse pad. When using this wireless device on a metal table or near metal furniture, use a non-reflective, thick mouse pad to reduce the potential for interference.
3. Your ID setup may not have worked properly. Please repeat the ID setup process.

TECHNICAL SPECIFICATIONS

Works with Windows 98, 2000, Me, or XP.

When using Windows 98 and setting up the mouse using a USB port, you may need your Windows 98 installation CD.

UNINSTALL INSTRUCTIONS

1. Go to "Start" then "Programs" and select "Belkin F8E825veaUSB mini wireless optical mouse".
2. You should then see the "uninstall" option. Left-click on it.
3. Choose your desired language and click "OK".
4. Then follow the on screen instructions to complete the uninstall.

Note: You may encounter some "Locked File Detected" screens during the uninstall. If so left-click on the "Reboot" option for them. It will then remove those locked files during the next reboot of your system.

Installation des piles

Hardwareinstallation

We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product, F8E825-USB, to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Exposure to Radio Frequency Radiation.

The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such manner that the potential for human contact normal operation is minimized.

When connecting an external antenna to the device, the antenna shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio

Information

frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Belkin Components may void the user's authority to operate the equipment.

Canada-Industry Canada (IC)

The wireless radio of this device complies with RSS 139 & RSS 210 Industry Canada.

This Class B digital complies with Canadian ICES-003.

Radio products with the CE alert marking comply with the R&TTE Directive (1995/5/EC) issued by the Commission of the European Community.

Compliance with this directive implies conformity to the

Information

following European Norms (in brackets are the equivalent international standards).

EN 60950 (IEC60950) - Product Safety
- EN 300 328 Technical requirement for radio equipment.
- ETS 300 826 General EMC requirements for radio equipment.

To determine the type of transmitter, check the identification label on your Belkin product.

Products with the CE marking comply with the EMC Directive (89/336/EEC) and the Low Voltage Directive (72/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in brackets are the equivalent international standards).

EN 55022 (CISPR 22) - Electromagnetic Interference
EN 55024 (IEC61000-4-2,3,4,5,6,8,11) - Electromagnetic Immunity
EN 61000-3-2 (IEC61000-3-2) - Power Line Harmonics
EN 61000-3-3 (IEC610000) - Power Line Flicker
- EN 60950 (IEC60950) - Product SafetyProducts that contain the radio transmitter are labeled with CE 0682 or CE alert marking and may also carry the CE logo.

Belkin Corporation Limited Lifetime Product Warranty

Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the

Information

product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXpressed OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTYES, INCLUDING, WITHOUT LIMITATION, WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions of implied warranties, so the above limitations of exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
