BELKIN

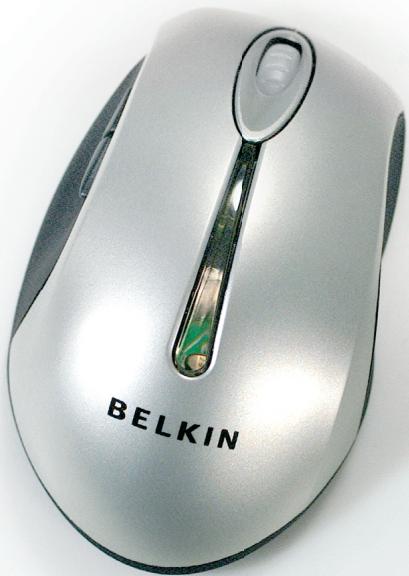

Optical Ergo Mouse

Navigate and input data, with comfort and control

EN
FR
DE
NL
ES
IT

User Manual

F8E857ea

EN 1

FR 15

DE 29

NL 43

ES 57

IT 71

F8E857ea

BELKIN

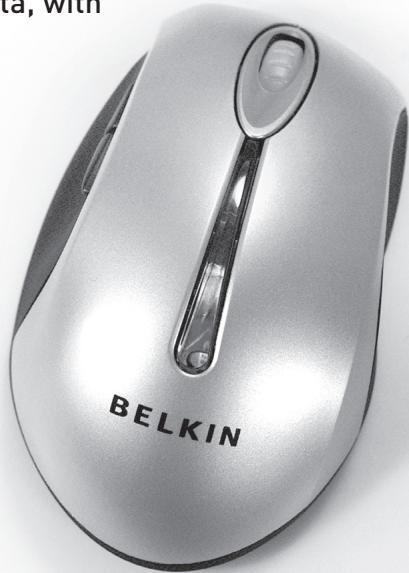

Optical Ergo Mouse

Navigate and input data, with comfort and control

EN

FR

DE

NL

ES

IT

User Manual

F8E857ea

Table of Contents

1 Introduction 3
System Requirements 4
Packaging Includes 4
Overview. 4

2 Hardware Installation 5

Connecting the USB Mouse 6
Connecting the PS/2 Mouse. 7

3 Software Installation 8
Software Features 9
Button Functions 9
4 Troubleshooting 10
5 Information. 12

Introduction

Congratulations and thank you for purchasing the Optical Ergo Mouse from Belkin. You are about to experience a whole new world of computing convenience with superior input features and navigating accuracy. The Mouse provides five customizable buttons, including the convenient scroll wheel, to make repetitive tasks simpler than ever.

Please review this User Manual thoroughly to ensure your safe, long-term use of the Mouse, and for help in getting the most from its advanced features.

1
2
3
4
5

1

2
3
4
5

System Requirements

• Windows® 98 SE, Me, 2000, or XP Mac OS 10.x and higher
• CD-ROM drive
  5MB of available disk space
  USB or PS/2 port

Packaging Includes

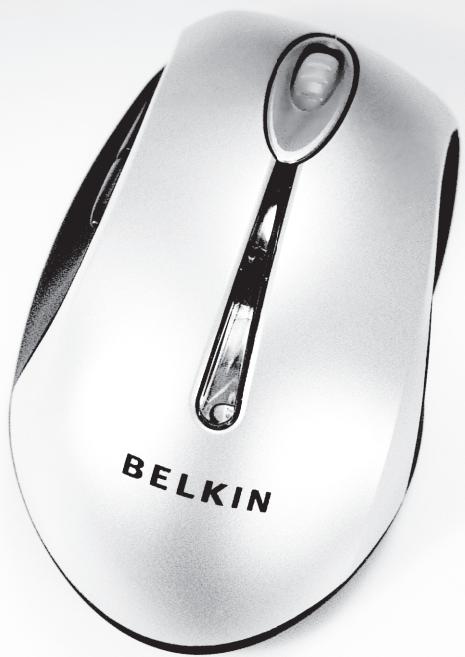

Optical Ergo Mouse
- Software CD
- User Manual
PS/2 Adapter

Overview

Before starting the installation of the hardware and software for the Mouse, please remove any drivers or software from any mice that were previously installed on your computer. This is to avoid any conflicts they may create, which could result in an improper installation of your Mouse. Please consult the documents that came with your previous mouse for proper instructions on how to uninstall the software and drivers.

Hardware Installation

Important: Before connecting your Mouse or installing software, be sure to identify the type of mouse port you are using (USB or PS/2). Refer to the diagrams below if you have difficulty determining which kind of port your Mouse uses.

USB Port

PS/2 Port

Important: Do not install the software until the Mouse is connected to your computer. If you have not yet connected the Mouse, please follow the Hardware Installation instructions.

Note: Your Mouse is functional without installing the software provided. However, we recommend software installation because the software allows you to program the Mouse buttons for various functions, adding personalized efficiency and enjoyment to your computing experience.

1
2
3
4
5

Hardware Installation

1
2
3
4
5

Connecting the USB Mouse

USB in Windows 98 SE, Me, 2000, and XP

1. Make sure your computer is turned on before installing the Mouse.
2. Connect the mouse to an available USB port on your computer.
3. A New Hardware Wizard will start automatically. Note: Windows 98 SE may require you to insert your Windows 98 SE Installation CD into your computer's CD-ROM drive to complete the install.
4. When your Mouse is properly connected and functioning as a standard mouse, you can start the software installation for the extra button features.

Hardware Installation

Connecting the PS/2 Mouse

PS/2 in Windows 98 SE, Me, 2000, and XP

1. Turn off your computer.
2. Insert the cable with the connector to the PS/2 (6-pin) mouse port on your computer.
3. Turn the computer on.
4. When the computer finishes starting up, it will automatically detect the Mouse and make it function.
5. When your Mouse is properly connected, you can start the software installation.

1
2
3
4
5

Software Installation

Important: Do not install the software until the Mouse is connected and properly functioning to your computer. If you have not yet connected the Mouse, please follow the Hardware Installation instructions.

1. Insert the included installation CD into your CD-ROM drive. After a few moments, the main menu will start automatically.
2. Select "Install Driver" and the computer will begin installation.
3. Follow the on-screen instructions to complete the installation.

Note: If the computer does not automatically detect the CD, do the following:

1. Click the "Start" button and select "Run".
2. From the run dialog box, enter ":\Setup" and click "OK". ("" being the letter of the drive that identifies your CD-ROM driver under "My Computer". For example, if the CD is in driver D, enter "D:\Setup".)
3. Follow the on-screen installation instructions.

Software Installation

Software Features

Your Mouse's software enables a variety of exciting features and functions that will help you to increase your productivity with your new Mouse.

In order to control the Mouse's high-end features, you will need to access your Mouse's Properties dialog box, either through the Control Panel or through your Mouse's software.

Through your Mouse's Properties dialog box, you will find and control the following features:

Please note that only the scroll wheel, fourth, and fifth buttons are programmable through the software.

Button Functions

Left Button

Primary Mouse Button

(standard click-and-drag action)

Middle or Wheel Button

Quick/Auto Scroll

Right Button

Context Menu

Fourth Button

IE Back (if available)

Fifth Button

IE Forward (if available)

1

2

3

4

5

Troubleshooting

If you are having any problems with the installation or operation of your Mouse, please review the following section. If the problem is not referred to below, or the suggested solutions do not solve the problem, please contact our technical support staff at 00 800 223 55 460.

Why isn't my pointer moving smoothly?

The Mouse works well on a wide variety of surfaces, especially those with textured and/or patterned features. Problems will arise, however, if you attempt to use the Mouse on mirrors, glass, or on some half-tone-printed surfaces.

Why don't the scroll functions work with my notebook?

Check to be sure that you have disabled your notebook's trackball, touch pad, or J-key in the BIOS; then, enable the external port so that all your Mouse's functions will be available.

Troubleshooting

My USB Mouse was not detected by the system and won't work. Why?

Please do the following:

1. Make sure your USB Mouse is completely plugged into the USB port.
2. Check the functioning of your system's USB port in the Device Manager page of System Properties. If there is a circled exclamation point through the USB port's icon, the USB controller has some problem. Please try to uninstall and then reinstall the USB driver, or contact your PC manufacturer's technical support department.
3. Check the version of your operating system. If you are not running Windows 98 SE, Me, 2000, or XP, please update your operating system to one of these, so that the USB device can be enabled.
4. Make sure that the USB port is enabled in the BIOS setup.

Information

Belkin Corporation Limited Lifetime Product Warranty*

Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMplied. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTYES, INCLUDING, WITHOUT LIMITATION, WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOSS PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN, OR USED WITH, BELKIN PRODUCTS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions of implied warranties, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

*Batteries not included under warranty.
