Product type	Ice cream maker
Brand	TRISTAR
Model	YM-2603
Power supply	220-240 V ~ 50 Hz
Intended use	Household use only
Bowl capacity	Not specified (removable cooling bowl)
Bowl material	Double wall with cooling liquid
Included accessories	Cooling bowl, stirrer, transparent lid, locking clips
Power	Not specified
Weight	Not specified
Dimensions	Not specified
Required freezing temperature	-18 °C minimum
Bowl freezing time	At least 8 hours
Maximum operating time	1 hour
Preparation	Ice creams, sorbets, ice creams
Consistency obtained	Smooth and creamy (less firm than industrial ice creams)
Cleaning of bowl, lid and stirrer	Warm soapy water - Do not put in dishwasher
Cleaning of the motor unit	Damp cloth - Do not immerse
Safety	Do not use if dropped, damaged, or leaking; unplug before maintenance; keep away from children
Warranty	24 months from date of purchase
Repairs	To be carried out by an approved service center
Compliance	EU directives (low voltage, EMC, food contact)
Recycling	Do not dispose of with household waste; take to WEEE recycling center

Frequently Asked Questions - YM-2603 TRISTAR

How to freeze the cooling bowl before using the ice cream maker?

Place the cooling bowl in the coldest part of your freezer (usually at the bottom) at a temperature of at least -18 °C. Make sure it is upright. The bowl must remain in the freezer for at least 8 hours so that the cooling liquid is completely frozen.

How to check if the bowl is sufficiently frozen?

Gently shake the cooling bowl. If the cooling liquid inside the double wall makes no sound, it is sufficiently frozen. If it makes a sound, extend the freezing time.

What is the maximum operating time of the appliance?

The recommended operating time is 20 to 40 minutes, but never exceed 1 hour of continuous use.

Why does my ice cream maker make an abnormal noise?

The motor is equipped with a reducer, which makes the appliance turn slowly and can produce a louder noise than expected. This is normal and does not indicate a defect.

How to get a firmer ice cream with this ice cream maker?

Transfer the ice cream from the cooling bowl to an airtight container using a rubber spatula or wooden spoon. Place this container in the freezer for several hours until the ice cream hardens.

Can I put the parts of the ice cream maker in the dishwasher?

No. The cooling bowl, stirrer, and lid must be washed by hand with warm soapy water. The motor unit should only be cleaned with a damp cloth. Never immerse the motor unit and do not put any parts in the dishwasher.

What to do if the appliance falls into water?

Do not grab it with your hands! First unplug from the electrical outlet before removing the appliance. Then, have it checked by a professional before reusing it.

What is the warranty of the TRISTAR YM-2603 ice cream maker?

The appliance is covered by a warranty of 24 months from the date of purchase (upon presentation of the receipt). Manufacturing defects are covered. Damages caused by misuse or normal wear are not covered.

Can I use the ice cream maker without having frozen the bowl beforehand?

No, it's impossible. The cooling bowl must be necessarily frozen for at least 8 hours before each use, because it provides the cooling necessary for the ice cream to set.

How to clean the motor unit without damaging it?

Use a damp cloth (not wet) to wipe the motor unit. Never immerse it in water and do not use abrasive products. Make sure it is completely dry before storing or reusing it.

USER MANUAL YM-2603 TRISTAR

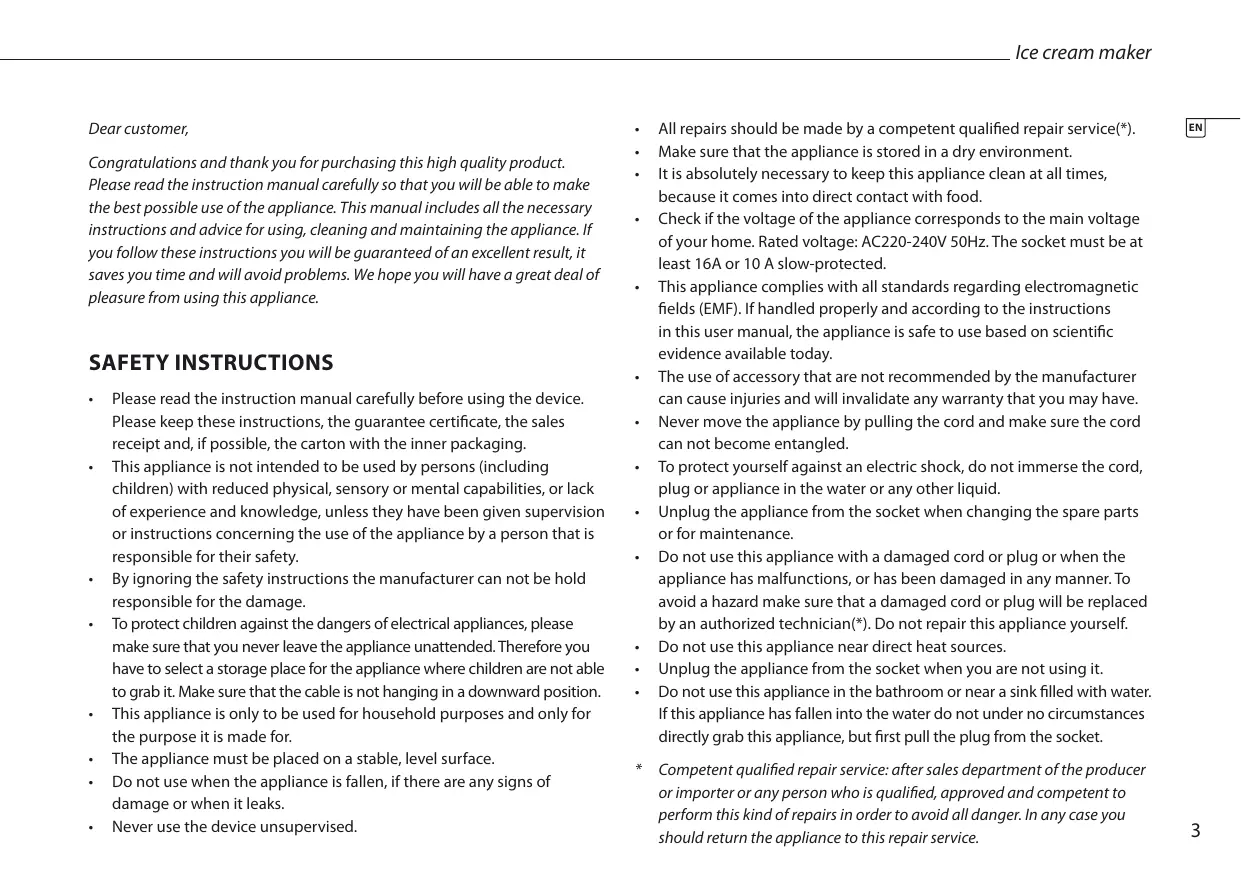

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SAFETY INSTRUCTIONS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of electrical appliances, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface.
• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.

• Never use the device unsupervised.

• All repairs should be made by a competent qualified repair service(*)
  Make sure that the appliance is stored in a dry environment.
  It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.

• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Unplug the appliance from the socket when changing the spare parts or for maintenance.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician(*) . Do not repair this appliance yourself.
• Do not use this appliance near direct heat sources.
• Unplug the appliance from the socket when you are not using it.
• Do not use this appliance in the bathroom or near a sink filled with water. If this appliance has fallen into the water do not under no circumstances directly grab this appliance, but first pull the plug from the socket.
• Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

PARTS DESCRIPTION

1. Freezer bowl
2. On/off switch
3. Main unit
4. Paddle shaft
5. Paddle
6. Lock clip
7. Transparent lid

BEFORE FIRST USE

• Wash the freezer bowl, lid and mixing paddle in warm soapy water. Be sure to rinse and dry all parts thoroughly.
• Wipe the motor unit with a moist cloth.
• Do not immerse the motor unit in water or any other liquid.
• Do not put the motor unit neither one of the parts in the dishwasher.

Freezing the cooling containers (Pic.02)

The most important step in making ice-cream is to make sure that the cooling containers are properly frozen.

• Place the freezer bowl in the freezer and make sure the temperature of the freezer is at least -18^ .
• For best results, the cooling container should be placed upright in the back of your freezer, where the temperature is coldest.
• The length of time necessary to freeze the bowl (at least 8 hours), will depend upon the temperature of the freezer.
• To check the ideal freezing condition we advice to shake the freezer bowl, you should not hear any liquid moving between the walls of the freezer bowl.

Hint: Keep the cooling container in the freezer, this allows you to make your favourite ice-cream whenever you want.

Assembling the appliance (Pic.03)

• Hold the motor unit upside down and insert the paddle shaft into the hole.
• Push the transparent lid into the leg of motor unit.
• Push the mixing paddle on the paddle shaft and turn back.
• Take the freezer bowl out of the freezer, make sure it is completely frozen. Place the already mounted lid with motor unit and paddle on the freezer bowl.
• Slide the lock clips and make sure it is securely locked.
• Turn on the device by using the ON/OFF switch.
• Pour the ingredients through the feeder hole into the freezer bowl.
• Leave the machine ON for approximately 20-40 minutes. Maximum operation time is 1 hour.

NOTE: THE ENGINE OPERATES SLOW AND RATTLING THIS IS BECAUSE A RETARDER ON THE ENGINE.

Note: home-made ice-cream will not have the same consistency as hard, store-bought ice-cream. The consistency will be more soft and creamy. To make the ice-cream harder, use a rubber spatula or wooden spoon and remove the ice cream from the cooling container into a sealed container. Place this container back into the freezer for several hours, or until ice-cream becomes hard.

HOW TO CLEAN

• The freezer bowl, paddle and lid can be cleaned with warm water and mild detergent. The motor drive can be cleaned by using a damp cloth.
• Do not put any parts in the dishwasher. Never immerse the motor unit in water.
  Make sure all parts are dried thoroughly.
• Never place the freezer bowl in freezer when it is still wet.
• Never store the mixing paddle and/or drive shaft in the freezer.

3.

6.

RECIPES

Custard based vanilla ice cream

Ingredients

3 egg yolks
- 50 à 60 gram caster sugar
200 ml semi skimmed milk
100 ml double cream
- few drops vanilla essence

Place the egg yolks and sugar in a glass bowl and mix it together. Use a sauce pan to slowly bring the milk to the boiling point, then pour the egg onto the mixture. Place the mixture into the pan and stir constantly until the mixture thickens and forms a film over the back of the spoon. Make sure it will not boil! Stir in the cream and vanilla essence. Pour the mixture into the freezer bowl with the paddle running. Allow to freeze until the desired consistency is achieved.

Raspberry yoghurt ice

Ingredients

200 gram fresh raspberries
60 gram caster sugar
250 ml natural yoghurt

Mash the raspberries. For a smooth result remove the seeds by sieving. Add sugar and natural yoghurt and mix together. Pour the mixture into the freezer bowl with the paddle running. Allow to freeze until the desired consistency is achieved.

Lemon sorbet

Ingredients

150 ml lemon juice
- juice of 12 orange
210 gram granulated sugar
210 ml water
1 egg white

Heat the juices, water and sugar in a pan. Stir up well until boiling and let it stay this way for 2-3 minutes. Let it cool down. Add the egg in the pan and mix. Pour the mixture in the cooled bowl (while making the blade turn).

GUARANTEE

• Tristar is not liable for damages occurred through:
  o In case the appliance has fallen.
  o In case the appliance has been technically changed by the owner or another third party.
  o In case of improper use of the appliance.
  o In case of normal wear of the appliance.
• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.
• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.
• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.

• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.

• When the appliance should be repaired, make sure that this will be performed by an authorized company.
  This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
  The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage

at the end of its durability, but must be offered at a central

point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This appliance is designed to come into contact with food and is designed in accordance with EC Directive89/109/EEC. This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
