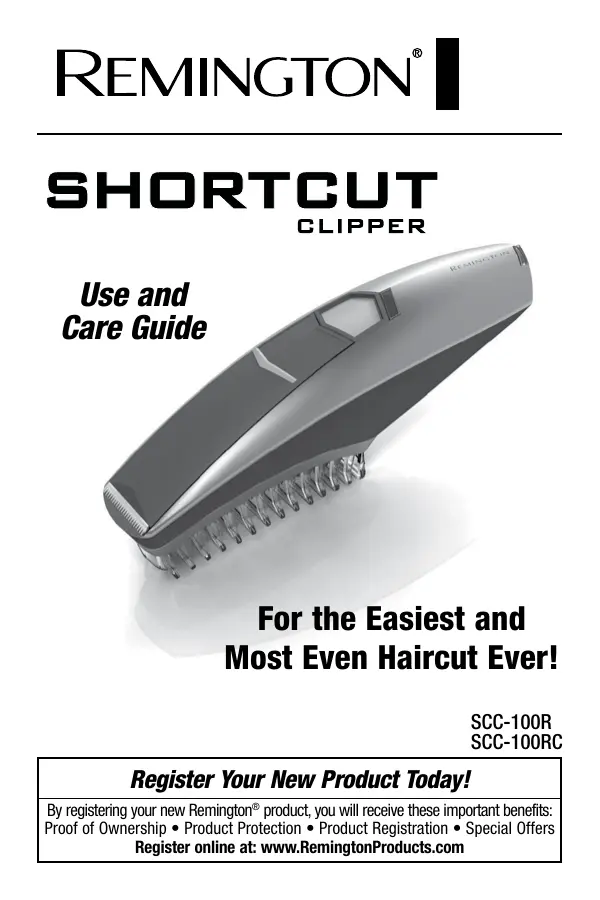

USER MANUAL SCC-100 REMINGTON

For the Easiest and Most Even Haircut Ever!

SCC-100R

SCC-100RC

Register Your New Product Today!

By registering your new Remington® product, you will receive these important benefits:

Proof of Ownership Product Protection Product Registration Special Offers

Register online at: www.RemingtonProducts.com

IMPORTANT SAFETY

INSTRUCTIONS

When using an electrical appliance, basic precautions should always be observed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

DANGER

To reduce the risk of electric shock:

• Do not reach for an appliance that has fallen into water. Unplug it immediately.
  Use only when the appliance is in dry condition.
• Detach the appliance from the power supply cord before cleaning.
• Do not submerge this appliance in water.
• Do not place or drop into water or other liquid.
• Do not place or store this appliance where it can fall or be pulled into a tub or sink.
  Except when charging, always unplug this appliance from the electrical outlet immediately after using.
  Unplug this appliance before cleaning it.

WARNING

To reduce the risk of burns, fire, electric shock or injury to persons:

This appliance is for household use only.
An appliance should never be left unattended when it's plugged in, except when charging a rechargeable appliance.
- Close supervision is necessary when this appliance is used by, on, or near children or persons with disabilities.
Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by Spectrum Brands, Inc.
- Keep the cord away from heated surfaces.
Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water. If the appliance is within the warranty period, return the appliance to Spectrum Brands, Inc., 601 Rayovac Drive, Madison, WI 53711.
- Never drop or insert any object into any of the appliance's openings.

• Do not use outdoors or operate where aerosol (spray) products are being used, or where oxygen is being administered.
  Always store this appliance and cord in a moisture-free area. Make sure the cord is disconnected from the clipper.
• Do not use this appliance with a damaged or broken cutter unit, as injury may occur. Always make sure blades are aligned properly.
  Always attach plug to appliance, then adapter to outlet. To disconnect, turn all controls to OFF, then remove adapter from outlet, then detach power cord from the clipper for storage.

Dispose of used batteries properly. Do not incinerate. Batteries may explode if overheated. Do not wrap in metal or aluminum foil. Wrap in newspaper before discarding. It is suggested that you contact local battery redemption site(s) in your area.
The power unit is intended to be correctly oriented in a vertical or floor mount position.

SAVE THESE INSTRUCTIONS

Contents

English 1

Spanish 13

French 25

Product Features

Congratulations on your purchase of one of the finest hair clippers available today. Your Remington® Shortcut Clipper is designed to perform dependably and efficiently for years, helping you maintain a short hair cut.

Clipper Parts

(A) Adjustable Guide Comb
(B) Charging LED
(C) Low Battery LED
(D) On/Off Button
(E) Pop-Out Trimmer Release Button
(F) Pop-Out Trimmer
(G) 5-Position Zoom Wheel
(H) Blade Oil
(I) Cleaning Brush
(J) Balding Comb
(K) Charging Adapter

(J)

(1)

5-position zoom wheel

Your Shortcut Clipper comes with a balding comb attached for ultra-close haircuts. For longer lengths, use the adjustable guide comb and the zoom wheel.

The 5-position zoom wheel provides a choice of cutting lengths for a consistent trim every time. Adjust the trimming length by rotating the zoom wheel to the desired position number. Refer to the chart below for the position number of your desired hair length.

SETTING	1	1½	2	3	4
LENGTH	1/8"	3/16"	1/4"	3/8"	1/2"

How to Use

Be sure to read all safety instructions and warnings at the front of this manual before using this product.

Charging/Recharging

To recharge, use only the charging adapter provided.

Turn the clipper off. Insert the adapter plug into the bottom of the clipper, then plug the adapter into an electric outlet. The charging indicator will glow blue, indicating the unit is charging. A full charge will take approx. 14-16 hours. The low-battery indicator will glow red when the clipper needs to be recharged.
■ Your clipper cannot be overcharged. You may leave it plugged in between uses. However, if the clipper is not going to be used for an extended period (2 weeks), unplug the unit and recharge when resuming use.
Charge the clipper at temperatures between 40 - 90^ to avoid adversely affecting battery life.

Before Cutting Hair

1. Make sure the hair clipper is running smoothly and is charged.

2. Ensure the hair is dry. Hair clippers perform best with dry hair, making it easier to see how much hair is being cut.

3. Hold the hair clipper in the palm of your hand similar to how you would hold a hairbrush.

Ultra Short Hair Length

The Shortcut Clipper comes with a balding comb attached. An adjustable guide comb for longer hair lengths is included. To use the balding comb, simply begin trimming your hair with a fully-charged clipper.

Balding Comb

Selecting Hair Length Setting

The Shortcut Clipper has an adjustable guide comb that lets you change trim lengths simply by rolling the clipper's zoom wheel.

Replace the balding comb attachment with the adjustable guide comb.
Roll the zoom wheel toward the top of the clipper to adjust for longer length, and toward the bottom of

the clipper for shorter length. The wheel will click into one of five positions.

Begin trimming at one of the longest

settings (#3 or #4) to avoid accidentally trimming hair too

short. As you become familiar with the settings, you can then select your desired length setting.

NOTE: The adjustable guide comb must be attached to the clipper in order to use the hair length selector.

Adjustable Guide Comb

To remove a comb:

• Be sure the clipper is in the OFF position.
  While holding clipper in one hand and holding the zoom wheel to prevent it from turning, gently pull the comb away from the clipper. The combs can be removed and replaced on any setting.

To replace a comb:

■ Be certain clipper is in OFF position.
While holding the clipper in one hand, and holding the zoom wheel to prevent it from turning, slide the comb over the top of the clipper until it clicks into position.

NOTE: The combs can only be placed on the clipper one way; if the comb does not fit properly, remove and reverse it.

Usage Tips

Giving a Comfortable, Even Cut

Allow the clipper to cut through the hair without moving it too quickly. Moving the clipper too quickly may create a pulling sensation. Use short strokes when cutting, and initially use the longest setting. You can always use a closer setting later if you want a closer cut.

How to Give a Haircut

1. Start at the back of the head. Holding the clipper as shown, lightly stroke upward making sure you are taking off the desired amount of hair. Work your way up to the crown of the head. When completed, move clipper over and cut down the head to the nape of the neck. The SCC-100R is a bidirectional hair cutter so you can cut in either direction.
2. Repeat the same procedure across the back of the head. Make sure the length of the hair is trimmed to the same length on both sides of the head.
3. To cut the hair at the top of the

head, cut from the front to the back in both directions until the hair is cut to the desired length.

1. To trim around the ears and short

hairs at the nape of the neck simply press the release button and slide the pop-up detail trimmer outward. Be careful not to touch the ears

1. Make sure to check over the entire head for any uneven areas.

Cleaning and Maintenance

Cleaning Before You Begin

1. The hair clipper shall be detached from the power supply cord before cleaning.
2. The hair clipper shall not be used until it has dried.

This appliance is a washable product, the hand-held part of which may be cleaned under water.

How To Clean

1. First remove the attached comb from the clipper by pulling it firmly away from the blades.
2. For best results, you can remove the inside blade guard to expose the blades.
3. Then use the brush provided to sweep away hair clippings from the product.
4. This device can also be rinsed under the faucet to remove any remaining debris.

5. After cleaning is complete, reassemble the blade guard to the product by snapping it into its original position.

6. Reattach the comb to the product.

Note: After rinsing, the blades should be oiled for optimum performance and product life.

Blade Care

The life of your clippers will depend on frequency of use, care, and hair type and condition. The Shortcut Clipper blades are lubed for life for your convenience. However, if you rinse the product under running water, an oil bottle has been provided to re-oil the blades.

Maintenance

Maintenance

This appliance has no user serviceable parts.

Storage

Always store this appliance and cord-adapter in a moisture-free area. Do not store it in temperatures exceeding 140^ (60^)
- Do not wrap the cord around the appliance.

Battery Removal

The following procedure should be followed for battery removal prior to disposing of the product:

1. Make sure the clipper is unplugged from any outlets so you don't risk an electrical shock.
2. With a flat head screwdriver, gently pry the top cover from the unit. This will expose the internal circuitry compartment.

3. With a Phillips head screwdriver, remove the four screws on the circuitry compartment top cover.

4. Locate 6 latches around the perimeter of the circuitry compartment and pry each to loosen top cover.

5. Remove cover to expose the batteries and circuitry.
6. Clip the wires connecting the batteries to the circuit board and remove the batteries.

Performance Guarantee

Performance Guarantee Spectrum Brands, Inc. Money-Back Offer

If within 30 days after you have purchased your Remington® product, you are not satisfied with it and would like a refund, just return it, together with the sales receipt, to the retailer from whom it was purchased. Spectrum Brands, Inc. will reimburse all retailers who accept such appliances within 30 days from date of purchase. If you have any questions regarding this money-back guarantee, please call 800-736-4648 in the U.S. or 800-268-0425 in Canada.

Limited Two-Year Warranty

Spectrum Brands, Inc. warrants this product against any defects that are due to faulty material or workmanship for a two-year period from the original date of consumer purchase.

If the product should become defective within the warranty period, we will replace it free of charge. Return your product and sales receipt with your name, address and day time phone number to: Remington Returns Center, 507 Stokely Dr., P.O. Box 1, Deforest, WI 53532. For more information call 800-736-4648 in the U.S. or 800-268-0425 in Canada.

KEEP ORIGINAL SALES RECEIPT AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.

This warranty does not cover products damaged by the following:

Accident, misuse, abuse or alteration of the product
Servicing by unauthorized persons
Use with unauthorized accessories
- Connecting it to incorrect current and voltage
Wrapping cord around appliance causing premature wear & breakage
Any other conditions beyond our control

No responsibility, obligations, or liability is assumed for the installation or maintenance of this product.

SPECTRUM BRANDS, INC.
SHALL NOT BE RESPONSIBLE
FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. ALL IMPLIED WARRANTYES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTYES OF FITNESS AND MERCHANTABILITY, ARE LIMITED IN DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE.

Warranty

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations and exclusions may not apply to you.

U.S. residents: To order accessories, contact us at 800-392-6544, visit us at www.RemingtonProducts.com, or visit your local retailer.

Canadian residents: To order accessories, please call 800-268-0425 or visit us at www.RemingtonProducts.com

KEEP ORIGINAL SALES RECEIPT AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.

Questions or comments:

Call 800-736-4648 in the U.S. or 800-268-0425 in Canada or visit www.RemingtonProducts.com

120VAC 60Hz

Registered trademark of ROVCAL, Inc.

© 2010 ROVCAL, Inc.
03/10 Job # CS35505

Dist. by: Spectrum Brands, Inc., Madison, WI 53711

Dist. by: Spectrum Brands Canada, Inc., Mississauga, ON L5L 0A1

Manufactured to Remington's specifications in the PRC.

T22-25803

SHORTCUT

CLIPPER

Dist. par: Spectrum Brands, Inc.,

Madison, WI 53711

Dist. par: Spectrum Brands Canada,

Inc., Mississauga, ON L5L 0A1
