BKT-1000 - Electric mower REMINGTON - Free user manual and instructions

USER MANUAL BKT-1000 REMINGTON

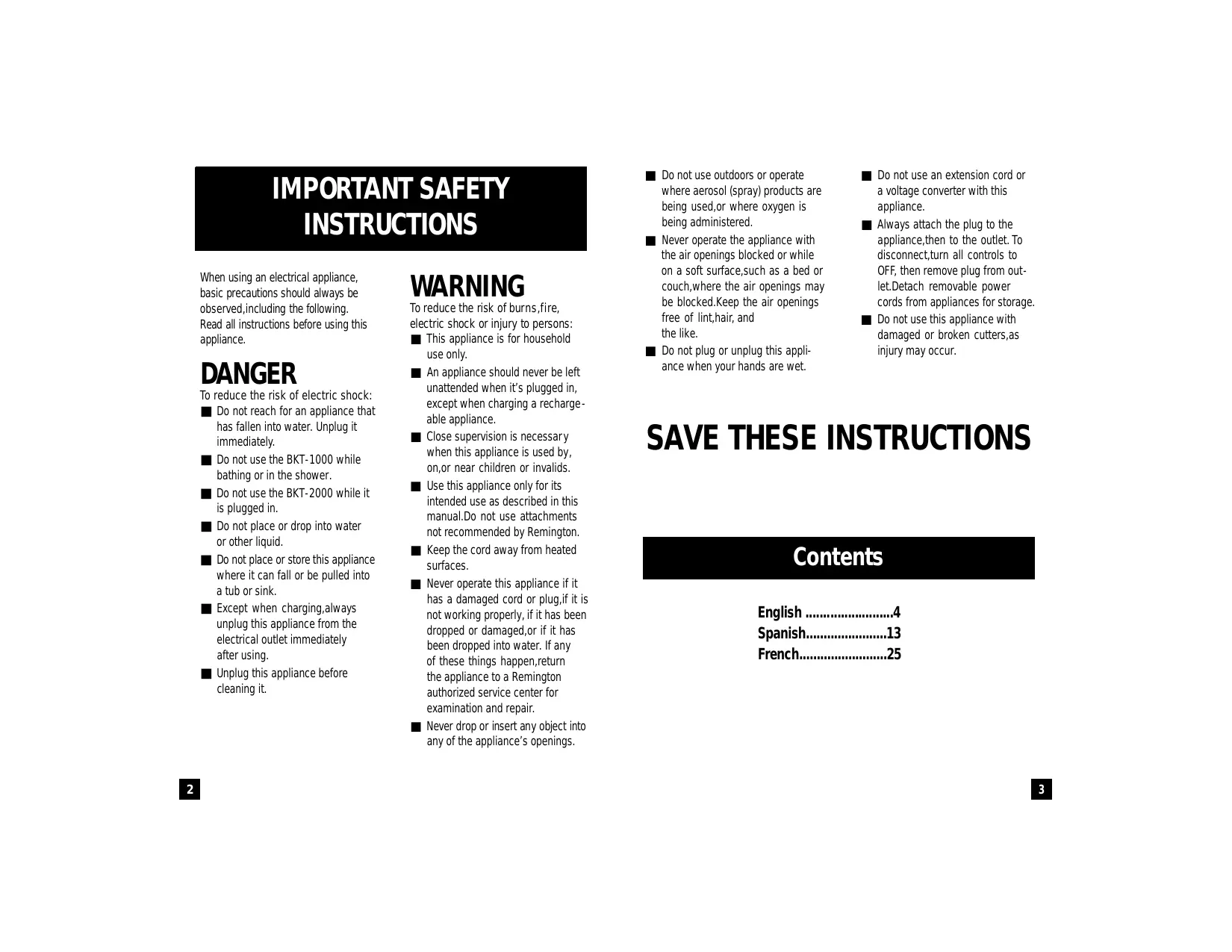

Use and Care Guide BKT-1000 BKT-2000 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be observed,including the following. Read all instructions before using this appliance. DANGER To reduce the risk of electric shock: ■ Do not reach for an appliance that has fallen into water. Unplug it immediately. ■ Do not use the BKT-1000 while bathing or in the shower. ■ Do not use the BKT-2000 while it is plugged in. ■ Do not place or drop into water or other liquid. ■ Do not place or store this appliance where it can fall or be pulled into a tub or sink. ■ Except when charging,always unplug this appliance from the electrical outlet immediately after using. ■ Unplug this appliance before cleaning it.

WARNING To reduce the risk of burn s ,f i re, electric shock or injury to persons: ■ This appliance is for household use only. ■ An appliance should never be left unattended when it’s plugged in, except when charging a rechargeable appliance. ■ Close supervision is necessar y when this appliance is used by, on,or near children or invalids. ■ Use this appliance only for its intended use as described in this manual.Do not use attachments not recommended by Remington. ■ Keep the cord away from heated surfaces. ■ Never operate this appliance if it has a damaged cord or plug,if it is not working properly, if it has been dropped or damaged,or if it has been dropped into water. If any of these things happen,return the appliance to a Remington authorized service center for examination and repair. ■ Never drop or insert any object into any of the appliance’s openings. ■ Do not use outdoors or operate where aerosol (spray) products are being used,or where oxygen is being administered. ■ Never operate the appliance with the air openings blocked or while on a soft surface,such as a bed or couch,where the air openings may be blocked.Keep the air openings free of lint,hair, and the like. ■ Do not plug or unplug this appliance when your hands are wet. ■ Do not use an extension cord or a voltage converter with this appliance. ■ Always attach the plug to the appliance,then to the outlet. To disconnect,turn all controls to OFF, then remove plug from outlet.Detach removable power cords from appliances for storage. ■ Do not use this appliance with damaged or broken cutters,as injury may occur.

SAVE THESE INSTRUCTIONS

• Contents English p. 4
• Spanish p. 13
• French p. 25

Product Features Trim & Shape Bikini Trimmer

Congratulations on your purchase of a premium Reminton® bikini trimmer—your solution for easy, irritation-free personal grooming. Which Model Is Yours? Power system Washable Wet/Dry BKT-2000 Rechargeable

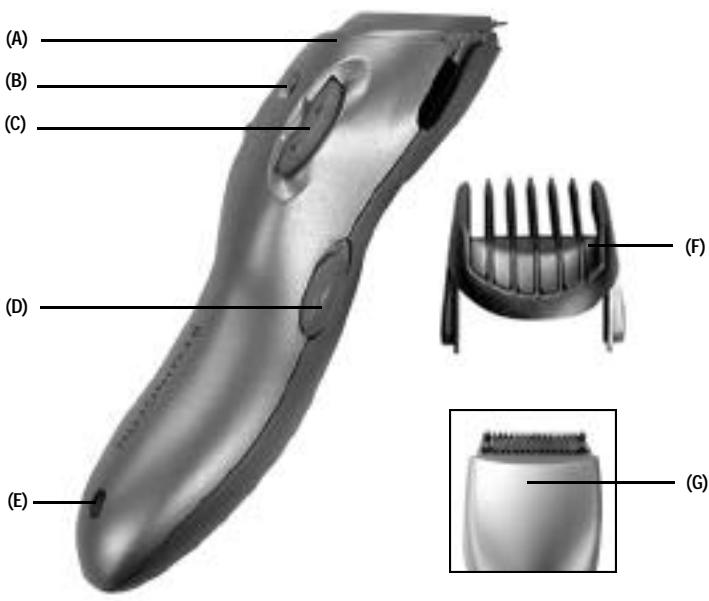

BKT-1000 Battery (A) Bikini trimmer (B) Length position indicator (C) 5-position Thumb Wheel (D) ON/OFF switch (E) Charging indicator (BKT-2000 only) (F) Trimmer comb attachment (G) Cutter assembly (H) Battery compartment (BKT-1000 only) (I) Charging adapter (BKT-2000 only) (J) Cleaning brush (K) Mesh pouch with zipper (H) (A) (B) (C) (I) (F) (D) (J) (G) (E) (K)

How to Use Charging (BKT-2000 only) Before using the BKT-2000 for the first time,put it on charge for 14-16 hours. ■ Use only the charging adapter supplied with the unit. ■ Charging should be done at temperatures between 40° and 95°F, or it could decrease the battery’s life. ■ Make sure the unit is turned off. ■ Connect the cord to the unit,then plug the charging adapter into the electrical outlet.A charging indicator will light up. ■ Your unit cannot be overcharged,so you can leave it plugged in and charging between uses.But if the unit is not going to be used for an extended period of time (2-3 months) unplug it and fully recharge when you want to use it again. ■ To preserve the life of the batteries,let them run out every 6 months,then recharge them for 24 hours. ■ The BKT-2000 cannot be turned on while it is charging.Do not attempt to operate trimmer when it is plugged into the charging adapter. ? If the BKT-2000 doesn’t turn on: It may simply need charging.The trimmer needs to be charged for 14-16 hours before first use.If charging doesn’t solve the problem,contact an authorized Remington Service Center about batter y replacement. ? If the BKT-2000 does not hold a charge: Fully discharge the trimmer by running it until it stops.Then follow the recharging instructions above.If the time between recharging cycles does not increase, the battery may need replacing.Contact an authorized Remington Service Center.

Batteries (BKT-1000 only) Your BKT-1000 runs on 2 AAA ALKALINE batteries. Inserting the batteries ■ Be sure the trimmer is off. ■ You can find the battery compartment on the opposite side of the trimmer from the Thumb Wheel. ■ Open the battery compartment by pressing its tab in toward the door and lifting the door up. ■ Insert the batteries so that the (+) and (-) marks on the batteries face the same marks inside the battery compartment. Trimmer will not operate if batteries are inserted incorrectly. ■ Replace the battery cover by inserting the end opposite the tab and then pressing the tab until it clicks into place. The battery cover only fits one way. If it does not go on correctly, turn it around. Battery cautions ■ Use of non-alkaline batteries will hurt the unit’s operating performance. ■ Batteries should not be left in the unit if the unit is not in use for long periods. ■ To prevent battery corrosion,the unit should be kept in a dry environment. ■ Dead batteries should be removed immediately and disposed of properly. ■ Do not use recharged batteries with this appliance.The lower voltage in recharged batteries impairs the performance of the cutting unit. Adjusting the Trim Length Edging and shaping The trimmer comb can be adjusted to give you 5 different trim lengths,simply by turning the Thumb Wheel to the desired setting. Turn the Thumb Wheel clockwise for shorter length,counter-clockwise for longer length. The wheel will click into place as it reaches each setting,and the setting number will appear on the Length Position Indicator. Here’s what the length settings mean: Remove the adjustable trimmer comb attachment if you are defining hairline edges for shaping. Setting

Hair Length 1/8" 3/16" 1/4" 5/16" 1/2 " ! Trimmer comb must be attached to the trimmer in order to use the hair length selector. Removing the trimmer comb ■ Be sure trimmer is off.The trimmer comb may be on any setting. ■ Hold the trimmer in one hand with your thumb firmly on the Thumb Wheel to keep it from turning. ■ With your other hand,gently pull the trimmer comb attachment off the trimmer. Replacing the trimmer comb ■ Be sure trimmer is off.The trimmer comb may be on any setting. ■ Hold the trimmer in one hand with your thumb firmly on the Thumb Wheel to keep it from turning. ■ With your other hand,slide the comb over the top of the trimmer until it clicks into place. ! The trimmer comb attachment only fits one way. If it does not go on correctly, turn it around and try again. ? If the BKT-1000 doesn’t turn on: ■ The batteries may be improperly installed. The trimmer will not operate unless the batteries are positioned correctly. ■ The batteries may be depleted.Replace them with 2 new AAA alkaline batteries.

Usage Tips Before Using Your Trimmer BKT-2000 ■ Charge the unit for 14 hours before first use. ■ Unplug the charging adapter from the trimmer before using. ■ The BKT-2000 is a wet/dry trimmer, so feel free to use it in the shower. BKT-1000 ■ Install 2 AAA alkaline batteries (See "Inserting the batteries" above.) ■ The BKT-1000 is for dry use only. Avoid using lotions before trimming. Trimming ■ Use the Thumb Wheel to set the trimmer comb to the desired length setting.It’s a good idea to begin trimming at one of the longest settings (4 or 5) to avoid accidentally trimming hair too short.As you become familiar with the settings, you can then select your desired length setting. ■ Turn the unit on. ■ Place the flat top of the trimmer comb against the skin. ■ Slowly slide the trimmer through hair. Repeat from different directions as necessary. ■ If hair builds up in the trimmer comb during the trimming process,shut the unit off,pull off the adjustable trimmer comb and brush it off. ■ For an even closer look and precise shaping,remove the adjustable trimmer comb and trim the hairs along the outer edge. ■ When you are finished,turn the trimmer off, clean it,and return it to its storage pouch. ! Never use trimmer with damaged or broken cutter units. ? If the cutters do not move: The cutting unit may be dirty and clogged.Clean and lubricate the unit as described on the next page.

Cleaning and Maintenance Clean Your Groomer Regularly Clean your trimmer regularly to ensure that the unit’s operating life is not prematurely shortened. Weekly ■ Turn trimmer off. ■ Remove the adjustable trimmer comb attachment.(See "Removing the trimmer comb" in the "How to Use" section above.) ■ Push upward on the cutter teeth to pop off the cutter assembly. ■ Shake or blow out any accumulated hairs. ■ If you have the BKT-2000,you may also rinse it under running water. Cleaning cautions: ■ Do not use water on any part of the BKT-1000.It is not water-tight. ■ Only the adjustable trimmer comb and cutter assembly may be removed from the trimmers for cleaning. ■ Cleaning should only be done with a soft brush,such as the brush supplied with the units. ■ Do not use harsh or corrosive cleaners on the units or their cutters. ■ Do not apply pressure or hard objects to cutters. ■ Do not disassemble cutter set. Oiling the Blades Your trimmer is fitted with high-quality stainless steel cutting blades,which will remain permanently lubricated in a dry environment. Your BKT-1000 will never need oiling. If you use your BKT-2000 in the sho wer or rinse it under running water, you will periodically need to add a drop of oil to the cutting blades to keep them operating at peak performance.Simply remove the adjustable trimmer comb and place a drop of oil on the teeth of the cutter assembly. Oil cautions ■ Use only the light-grade oil supplied or a suitable alternative like sewing machine oil—these oils will not evaporate and will not slow down the blades. ■ Do not use hair oil,grease,or any oil mixed with kerosene or solvent, as the solvent will evaporate and leave the thick oil,slowing the blades. Storage ■ Always store this appliance and cord in a moisture-free area. Do not store it in temperatures exceeding 140°F (60°C). ■ Do not wrap the cord around the appliance. ■ This appliance has no user serviceable parts. For any other servicing contact an authorized Remington Service Center.

Disposal Battery Removal (BKT-2000 only) When your trimmer reaches the end of its useful life,the batteries must be removed and recycled or disposed of properly in accordance with your state and local requirements. How to Remove Battery:

1. To avoid a possible electric shock,

unplug cord from electrical outlet and trimmer.

2. Remove the trimmer comb attachment

as described in the “How to Use” section.

3. Use a small Phillips head screwdriver to

remove the screws from the trimmer’s back cover.

4. Pull or gently pry the

trimmer halves apart, exposing the battery compartment.

5. Separate the battery

compartment from the motor housing.

6. Lift or pry the batteries out.

7. Cut the wires on both ends of each

battery and remove them. CAUTION:DO NOT PUT IN FIRE OR MUTILATE YOUR BATTERIES WHEN DISPOSING AS THEY MAY BURST OR RELEASE TOXIC MATERIALS.DO NOT SHORT CIRCUIT AS IT

MAY CAUSE BURNS.DISPOSE PROPERLY IN

ACCORDANCE WITH YOUR LOCAL AND

The EPA certified RBRC® Battery Recycling Seal on the nickel-cadmium (Ni-Cd) battery indicates Remington Products Company, L.L.C.is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life,when taken out of service in the United States or Canada. The RBRC® program provides a convenient alternative to placing used Ni-Cd batteries into the trash or the municipal waste stream,which may be illegal in your area. Please call 1-800-8-BATTERYSM for information on Ni-Cd battery recycling and disposal bans/restriction in your area. Remington Products Company, L.L.C.’s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources. Warranty Warranty Service In the U.S. and Canada, service is provided by our Company-owned Service Centers and more than 300 Authorized Service Dealers. For the address of your nearest authorized Service Dealer, contact us at 800-736-4648 (in U.S.), 888-277-6333 (in Canada), visit our website at www.remington-products.com or consult your local Yellow Pages under "Shaver-Electric-Repair." U.S. customers may mail the product, postpaid, with a copy of the sales receipt and a letter explaining the problem, to this address: Remington Products Company, L.L.C. 60 Main St. Bridgeport, CT 06604 Attention:Service Department

KEEP ORIGINAL SALES RECEIPT AS PROOF

OF PURCHASE FOR WARRANTY PURPOSES. Remington and Trim & Shape are trademarks of Remington Products Company, L.L.C. © 2003 R.P.C,L.L.C. Job #WS03-026 11/03 Part No. 14838 U . S .p atents pending. Canadian patents pending. Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604

MADE IN CHINA

Remington Products (Canada) Inc. 61 Amber Street Markham, Ontario L3R 3J7 For questions or comments,contact us: Remington Products Company, L.L.C. 20 Constitution Boulevard South P.O. Box 884 Shelton, CT 06484-0884 Attn: Consumer Affairs 800-736-4648 www.remington-products.com Remington Products (Canada) Inc. 61 Amber Street Markham, Ontario L3R 3J7 Attn: Customer Service 888-277-6333 www.remington-products.com

Performance Guarantee Performance Guarantee Remington® Money-Back Offer If within 30 days after you have purchased your Remington® product,you are not satisfied with it and would like a refund,just return it,together with the sales receipt,to the retailer from whom it was purchased. Remington will reimburse all retailers who accept such appliances within 30 days from date of purchase.If you have any questions regarding this money-back guarantee, please call 800-736-4648 in the U.S.or 888-277-6333 in Canada. Full Two-Year Warranty Remington warrants that this product is free from defect in material and workmanship for two years after its original purchase date—except for damage as specified below. If the product should become defective within the warranty period,Remington will repair it or elect to replace it free of charge. We will return your product,shipping charges prepaid,if you do the following within two years of the purchase date: 1.Return the complete product in person or by mail,postage paid,to a Remington Company-owned Service Center or Authorized Service Dealer. 2.Include the original purchase receipt with the product. 3.Include a description of the problem or defect. 4.Do not return the product to the store that sold it to you.

This warranty does not cover products damaged by the following: ■ Accident,misuse, abuse or alteration of it ■ Servicing by unauthorized persons ■ Use with unauthorized accessories ■ Connecting it to incorrect current and voltage ■ Any other conditions beyond our control No responsibility, obligations,or liability is assumed for the installation or maintenance of this product.

REMINGTON SHALL NOT BE RESPONSIBLE

FOR ANY INCIDENTAL,SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. ALL IMPLIED

WARRANTIES INCLUDING BUT NOT LIMITED

TO IMPLIED WARRANTIES OF FITNESS AND

MERCHANTABILITY, ARE LIMITED IN

DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE. This warranty gives you specific legal rights,and you may also have other rights that vary from state to state.Some states do not allow the exclusion or limitation of incidental or consequential damages,or limitations on how long an implied warranty lasts,so the above limitations and exclusions may not apply to you. U.S.residents: To order, contact us at 800-736-4648,visit us at www.remington-products.com,or visit your local retailer. Canadian residents: For any shaver accessory requirements, please call 800-268-6531 or write: Remington Products (Canada) Inc., P.O. Box 601, Postal Station "T," Dept. A-100, 3019 Dufferin St., Toronto,Ontario,Canada M6B3T7. BKT-1000 BKT-2000

(I) (F) (D) (J) (G) (E) (K)

Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604 Remington Products (Canada) Inc. 61 Amber Street Markham, Ontario L3R 3J7

HECHO EN CHINA

Remington Products Company L.L.C. 20 Constitution Boulevard South P.O. Box 884 Shelton, CT 06484-0884 Attn: Consumer Affairs 800-736-4648

Remington Products Company, L.L.C. 60 Main Street Bridgeport, CT 06604 Remington Products (Canada) Inc. 61, rue Amber Markham (Ontario) L3R 3J7

FABRIQUÉ EN CHINE

Remington Products Company, L.L.C., 60 Main Street, Bridgeport, CT 06604 Remington Products (Canada) Inc., 61 Amber Street, Markham (Ontario) L3R 3J7
