USER MANUAL EY-3DGS-1U MITSUBISHI

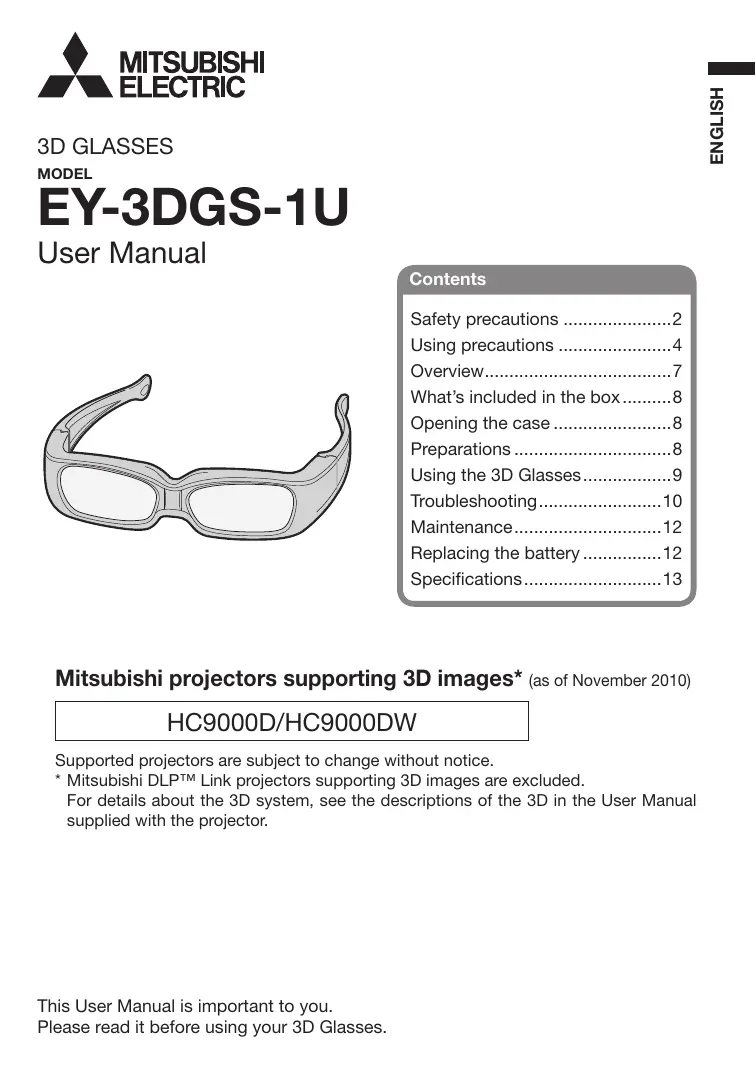

EY-3DGS-1U User Manual Contents Safety precautions 2 Using precautions 4 Overview7 What’s included in the box 8 Opening the case 8 Preparations 8 Using the 3D Glasses 9 Troubleshooting 10 Maintenance 12 Replacing the battery 12 Specifications 13
Mitsubishi projectors supporting 3D images* (as of November 2010)
HC9000D/HC9000DW Supported projectors are subject to change without notice.
* Mitsubishi DLP™ Link projectors supporting 3D images are excluded. For details about the 3D system, see the descriptions of the 3D in the User Manual supplied with the projector.
This User Manual is important to you.
Please read it before using your 3D Glasses.
Warning: Do not store battery or nose pad in places where small children can reach. There is a danger small children could swallow such parts by mistake. If a child accidentally swallows such parts, seek immediate medical attention.
Do not disassemble or modify the 3D Glasses. Doing so may result in fire, or in a malfunction that may cause the user to feel unwell. Batteries must not be exposed to excessive heat such as sunshine, fire or the like. Danger of explosion occurs if battery is incorrectly replaced. Replace only with the same or equivalent type. Dispose of used batteries according to your local regulations. Dispose of the used battery with cellophane tape wrapping both ends of it. Do not use the 3D Glasses if you have a history of over-sensitivity to light, heart problems, or have any other existing medical condition. Using the 3D Glasses may cause the symptoms to worsen. As a guide, 3D Glasses should not be used by children younger than 5 - 6 years old. As it is difficult to judge younger children’s reactions to fatigue or discomfort, their physical condition may deteriorate suddenly. When this product is being used by a child, the parent or guardian should check to ensure that the child’s eyes are not becoming tired. Stop using the 3D Glasses immediately if you feel tired, discomfort, or any other abnormality. Continuing to use the 3D Glasses in such cases may cause you to feel unwell. Please take the necessary rest before continuing use. Stop using the 3D Glasses if you can clearly see double images when viewing 3D content. Prolonged use may cause eyesight fatigue. When watching 3D movies, take an appropriate break after watching a movie. When watching 3D content on interactive devices such as 3D games or computers, take an appropriate break every 30 - 60 minutes. Prolonged use may cause eyesight fatigue. When using the 3D Glasses, be careful not to strike the screen or other people by mistake. As the images are in 3D, you may mistake the distance from the screen, causing to strike the screen which may result in injury.
Do not use if the 3D Glasses are cracked or broken.
Doing so may result in injury or eyesight fatigue. If a malfunction or fault occurs in the 3D Glasses, stop use immediately. Continuing to use the 3D Glasses may result in injury, eyesight fatigue, or may cause you to feel unwell. Do not move around while wearing the 3D Glasses. The surrounding area appears dark, which may result in falling or other accidents that may cause injury. Use the 3D Glasses when viewing the 3D images. Use the 3D Glasses only for the specified purpose. Do not drop, apply force on, or step on the 3D Glasses. Doing so may damage the glass section, which may result in injury. Always store the 3D Glasses in the supplied case when not in use. When using the 3D Glasses, make sure your eyes are on an approximate horizontal level. If you suffer from myopia (short sightedness), hyperopia (far-sightedness), astigmatism, or have eyesight differences between the left and right eyes, please use corrective glasses or other such methods to correct your eyesight before putting on the 3D Glasses. When you view the 3D images, keep a distance from the screen of about three times the effective height of the screen. Stop using the 3D Glasses immediately if your skin feels unusual. In rare cases, the paint or materials used in the 3D Glasses may cause an allergic reaction. Stop using the 3D Glasses immediately if you experience any redness, pain, or itching on the nose or temples. Prolonged use may cause such symptoms due to excess pressure, which may result in the user feeling unwell. Be careful not to trap a finger in the hinge section of the 3D Glasses. Doing so may result in injury. Pay special attention when children are using this product.
ENGLISH When using the 3D Glasses, do not place breakable objects near the glasses.
You may move by mistaking the 3D objects you are viewing as the real objects, causing damages to surrounding objects that may lead to injury.
Safety precautions (continued)
Be careful of the tips of the frame when putting on the 3D Glasses. Accidentally inserting the tip of the frame into the eye may cause injury. Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
Lens (liquid-crystal shutter) • Do not apply force on a lens. Also, do not drop or bend the product. • Do not make a scratch on the surface of the lens with a sharp instrument. The lens may be broken and it may lead to degrade the 3D image quality. Infra-red reception section • Do not contaminate or apply a sticker or other such item on the infra-red reception section on the 3D Glasses. The 3D Glasses could not receive the signal from the 3D Emitter and may not operate correctly. • Other infra-red communication equipment may affect the 3D images. • Operation of a remote control may cause a misoperation of the 3D Glasses. It is not a malfunction. When you stop operating the remote control, the 3D Glasses work properly. • A remote control may operate improperly while you watch the 3D images, however, it is not a malfunction. When using the 3D Glasses • Do not use a device that emits strong electromagnetic wave such as mobile telephone near the 3D Glasses. It may cause misoperation of the 3D Glasses. • Use the 3D Glasses under the condition beteween 0°C to 40°C. • While watching the 3D images in a room with fluorescent lights, you may feel the whole lights in the room are flickering. In this case, place the 3D Glasses and 3D Emitter as far from the fluorescent lights as possible or turn off the fluorescent lights. • Wear the 3D Glasses appropriately. When you wear it upside down or back to front, you can not get the correct 3D images. • Using the 3D Glasses, it may be hard to see other displays such as that of a personal computer, digital clock and calculator. Remove the glasses when you watch images other than 3D images. • The 3D Glasses can not be used as sunglasses. • This 3D Glasses can not be used with incompatible products. • This 3D Glasses can not be used for movies in the movie theater. • You can not get 3D images when you lie down, even when wearing the 3D Glasses. • Do not pull the temple of the glasses. It may cause break.
The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small-scale enterprises, inside as well as outside of the buildings.
COMPLIANCE NOTICE OF FCC This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced Radio/TV technician for help. Changes or modifications not expressly approved by Mitsubishi could void the user’s authority to operate this equipment.
COMPLIANCE NOTICE OF INDUSTRY CANADA This Class B digital apparatus complies with Canadian ICES-003.
Declaration of Conformity
Model number: EY-3DGS-1U Trade name: MITSUBISHI ELECTRIC Responsible party: Mitsubishi Digital Electronics America, Inc. 9351 Jeronimo Road, Irvine, CA 92618 U.S.A Telephone number: +1-(949) 465-6000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
ENGLISH When using the device in Europe:
COMPLIANCE NOTICE This device complies with the requirements of the EC Directive 2004/108/EC “EMC Directive” and 2006/95/EC “Low Voltage Directive”.
Using precautions (continued)
Note: This symbol mark is for EU countries only. This symbol mark is according to the directive 2002/96/EC Article 10 Information for users and Annex IV, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste. If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows: Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%) In the European Union there are separate collection systems for used electrical and electronic products, batteries and accumulators. Please, dispose of this equipment, batteries and accumulators correctly at your local community waste collection/recycling centre. Please, help us to conserve the environment we live in!
Information on Disposal in other Countries outside the European Union
This symbol mark is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
Environment care information for users in China
This symbol mark is only valid in China.
With the 3D Glasses and 3D Emitter, you can enjoy 3D images when you watch the 3D supporting programs on the projectors supporting 3D images.
You can wear the 3D Glasses over vision corrective glasses. Make sure to read the “Safety precautions” on pages 2 to 4 before using the 3D Glasses.
A coin shaped lithium battery (CR2032) is preinstalled. When using for the first time, remove the insulating sheet.
Receives infra-red signals from the 3D Emitter. The liquid crystal shutter open/close timing is controlled by receiving infra-red signals from the 3D Emitter, which provide the 3D expression of the images.
(liquid crystal shutter) If necessary, attach the nose pad. (inside the 3D Glasses)
Power button (ON/STANDBY)* and indicator
Indicator * The status is changed between ON and STANDBY. When turning on the power: Press the power button for about 1 second. Power The indicator lights for about 2 seconds, then it button (ON/STANDBY) turns off. When turning off the power: When you press the power button for about 1 second, the indicator will blink 3 times and the power turns off. * When the infra-red signal from the 3D Emitter is interrupted, the power turns off automatically after about 5 minutes. * If the battery is running low, the indicator blinks 5 times when you turn on the power.
What’s included in the box
• The 3D Glasses and nose pads (2 types) are contained in the case.
Push the part indicated by the arrow to open the case.
Remove the insulating sheet.
Pull the sheet slowly to the direction of the arrow in the below figure.
Remove the protective sheets.
Remove the protective sheets on the infra-red reception area and lens (4 parts) by pulling up each tab as shown below.
If necessary, attach the supplied nose pad.
When you wear the 3D Glasses over vision corrective glasses, removing the nose pad is recommended.
A supported projector and 3D Emitter are required to watch the 3D images with the 3D Glasses.
See the User Manual of the projector for the detailed operations. 1. Project a 3D image on the screen. 2. Press the power button on the 3D Glasses for about 1 second to turn the power on. • The indicator on the 3D Glasses lights up for about 2 seconds. After that, the indicator goes out even while the power is turned on.
3. Wear the 3D Glasses.
Visual distance of the 3D images • When you view the 3D images, it is recommended to keep a distance from the screen about three times of the effective height of the screen. • Viewing images from closer distance than the recommended distance may lead to deconditioning or eyestrain. • The 3D Glasses may not work properly when it is used too far from the screen. • Do not place any block in the communication area between the 3D Emitter and the 3D Glasses.
When finishing watching
• Turn off the power of the 3D Glasses. • Put the 3D Glasses in the supplied case and keep in a place where children can’t get it. Be careful of the damage or accident. • Avoid keeping this 3D Glasses in a place of high temperature or high humidity. Important: • It may need to switch the 3D mode (such as 3D setting system) on the recorder/ player when projecting 3D images with the 3D image supporting recorder/player. (For detail, see the User Manual of the recorder/player.) • There is a difference in vision for each person. If you suffer from myopia (short sightedness), hyperopia (far-sightedness), astigmatism, or have eyesight differences between the left and right eyes, please use corrective glasses or other such methods to correct your eyesight before putting on the 3D Glasses. • At the start of watching 3D images, the image may be seen out of synchronization. However, it is not a malfunction. • The 3D Glasses stop working temporarily when the 3D Glasses can not receive the infra-red signal from the 3D Emitter by the reason such as turning your head away while watching 3D images. In this case, even when you turn around, you may see double images until 3D images restart, however it is not a malfunction. • 3D Glasses automatically turn off 5 minutes after the infra-red signal from the 3D Emitter is interrupted.
ENGLISH Using the 3D Glasses
Before asking for repair of the 3D Glasses, check the following. Problem
• Are the image settings switched to 3D mode?
For the 3D mode, see the User Manual of the projector. • Is there any block in the communication area between the 3D Emitter and the 3D Glasses? Or, is there a sticker or other such item on the infra-red reception section on the 3D Glasses? The 3D Glasses operate by receiving signals from the 3D Emitter. Check that there is not any block in the communication area between the 3D Emitter and the 3D Glasses. • Is the distance between the 3D Emitter and 3D Glasses too far, or too close? Adjust the location of the 3D Emitter. For detail, see the User Manual of the 3D Emitter. • Are the direction of the 3D Emitter and that of the infra-red reception section on the 3D Glasses misaligned? Adjust the direction and location of the 3D Emitter. For detail, see the User Manual of the 3D Emitter. • Is the 3D Glasses turned off? Press the power button of the 3D Glasses to turn it on. • It may need to switch the 3D mode (such as 3D setting system) of the recorder/player when projecting 3D images with the 3D image supporting recorder/player. (For detail, see the User Manual of the recorder/player.) • Is the 3D mode of the projector set properly for the image? Set the 3D mode of the projector (frame packing, side-byside, top and bottom) properly for the image. • Is the 3D Emitter connected to the projector? • The 3D Glasses may become out of sync due to fluorescent light. Turn off the fluorescent light. • Is there any other 3D Emitter or 3D image supporting television close to the 3D Glasses? The 3D Glasses work by receiving signals from the 3D Emitter. Check that there is no interference of the signals from other infra-red emission section. • The 3D Glasses stop working temporarily when the 3D Glasses can not receive the infra-red signal from the 3D Emitter by the reason such as turning your head away while watching 3D images. In this case, even when you turn around, you may see double images until 3D images restart, however it is not a malfunction.
3D Glasses turns off automatically.
• Is there any block in the communication area between the
3D Emitter and the 3D Glasses? Or, is there a sticker or other such item on the infra-red reception section on the 3D Glasses? When the signal from the 3D Emitter is interrupted, the power of the 3D Glasses automatically turns off 5 minutes after the interruption. Check that there is not any block in the communication area between the 3D Emitter and the 3D Glasses.
There is something wrong with the 3D images.
• Depending on the 3D image status, you may feel something wrong with the 3D images.
Switch the “3D Sync” setting of the projector to check whether or not the uncomfortable feeling is disappeared. When the signal from the 3D Emitter is interrupted, the power of the 3D Glasses automatically turns off 5 minutes after the interruption. Check that there is not any block in the communication area between the 3D Emitter and the 3D Glasses. • The 3D Glasses may become out of sync due to fluorescent light. Turn off the fluorescent light. • Is there any other 3D Emitter or 3D image supporting television close to the 3D Glasses? The 3D Glasses work by receiving signals from the 3D Emitter. Check that there is no interference of the signals from other infra-red emission section.
The indicator blinks • The battery of the 3D Glasses dies.
five times when the Replace the battery with a new one. power of the 3D Glasses is turned on. The indicator does • Does the battery of the 3D Glasses die? not light up even if Replace the battery with a new one if the indicator does not the power button is light up even when you press the power button. pressed.
• When the 3D Glasses become dirty, wipe them with a soft and dry cloth. If you wipe them with a dirt cloth, the lens (liquid crystal shutter) or the infrared reception section may be damaged. • Do not use benzine or thinner to clean the 3D Glasses. It may cause deformation of the surface. • Do not soak the 3D Glasses in water. • Avoid keeping the 3D Glasses in a place of high temperature or high humidity.
Replacing the battery
When the indicator blinks 5 times at turning on the 3D Glasses, replace the battery with a new one. Use one coin type lithium battery (CR2032) and a precision screwdriver (No. 0).
Loosen the screw as illustrated and remove the cover.
Remove the old battery and install a new one.
Attach the cover and secure it with the screw.
Install the battery with the + side upward.
Take care not to get injured with the screwdriver.
Important: Install the battery correctly. The duration of the battery is about 75 hours in continuous use. (The duration varies depending on the use.)
