USER MANUAL KA 2740 - OTHER MANUAL CLATRONIC

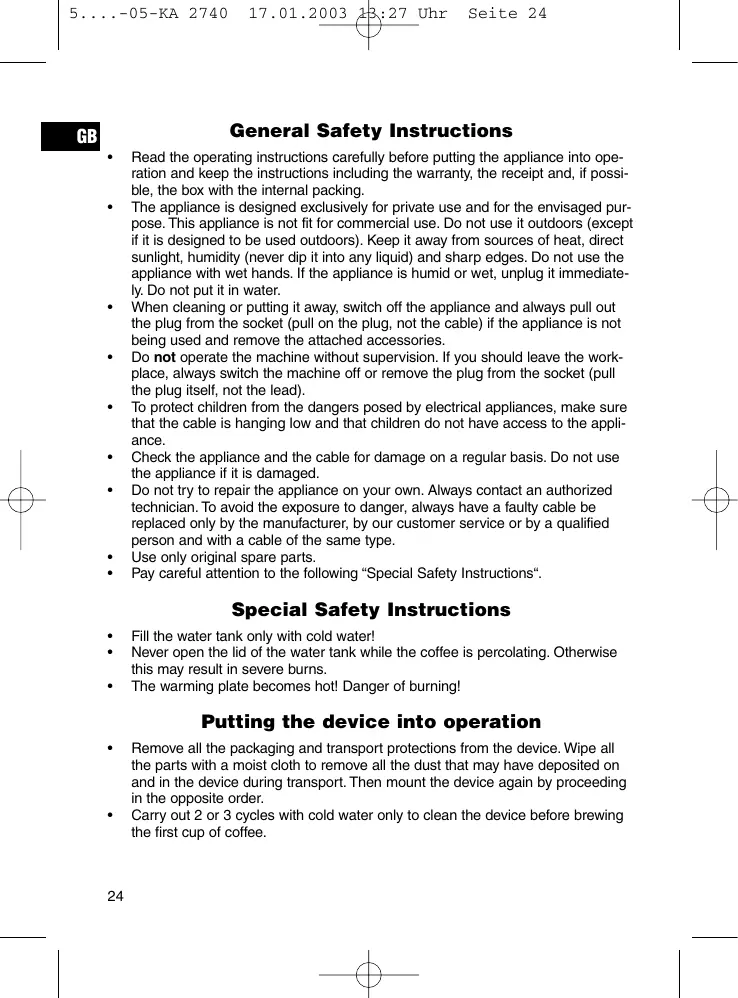

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water. When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories. Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead). To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance. Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged. Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type. Use only original spare parts. Pay careful attention to the following “Special Safety Instructions“.

Special Safety Instructions

Fill the water tank only with cold water!

Never open the lid of the water tank while the coffee is percolating. Otherwise this may result in severe burns. The warming plate becomes hot! Danger of burning!

Putting the device into operation

Remove all the packaging and transport protections from the device. Wipe all the parts with a moist cloth to remove all the dust that may have deposited on and in the device during transport. Then mount the device again by proceeding in the opposite order.

Carry out 2 or 3 cycles with cold water only to clean the device before brewing the first cup of coffee.

17.01.2003 13:27 Uhr

Electrical connection

GB Insert the plug in a duly installed 230V/50Hz protective contact socket. The details can be found on the appliance’s nameplate.

Make sure that the appliance is switched off. (The light in the on/off switch is off).

1. Pull the lid of the water tank forwards. Fill the machine to the level corresponding to the number of cups required with cold water. 2. Bend the lower fold of the paper filter (size 1x4), place it into the filter funnel and fill it with coffee powder (approx. 1 teaspoon for 2 cups). 3. Close the water tank lid. 4. Place the pot evenly on the base. Please ensure that the lid is on the pot. 5. Switch on the appliance (the LED in the switch lights up). 6. The brewing lasts about 10 to 15 minutes. 7. Your appliance is provided with a drip stop. By removing the pot, before the water runs through the filter completely, it avoids that the coffee drips on the base. If there is still water in the tank or filter, make sure that the pot is placed back under the filter to avoid overflowing. 8. When the coffee stops flowing into the filter, you can remove the pot. 9. Switch off the appliance (the LED in the switch is off). 10. To pour the coffee out of the pot, press the button on the lid.

Aroma selection switch

To select the aroma, change the setting between "strong coffee" ( coffee" ( ) according to taste.

De-scaling is necessary when the brewing time increases substantially. Use only commercially available citrus acid-based de-scaler. Follow the recommended instructions for use.

1. Always pull he plug before cleaning and wait for the appliance to cool down. 2. Clean the outside of the appliance, if necessary, with a slightly moist cloth without any detergent. 3. The filter holder can be washed as usual in warm washing up water. 4. Do not immerse the pot in water. Wipe the outside with a moist cloth. You can clean the inside with warm water. If necessary, use a soft brush.

17.01.2003 13:27 Uhr

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
