USER MANUAL KA 2565 - OTHER MANUAL CLATRONIC

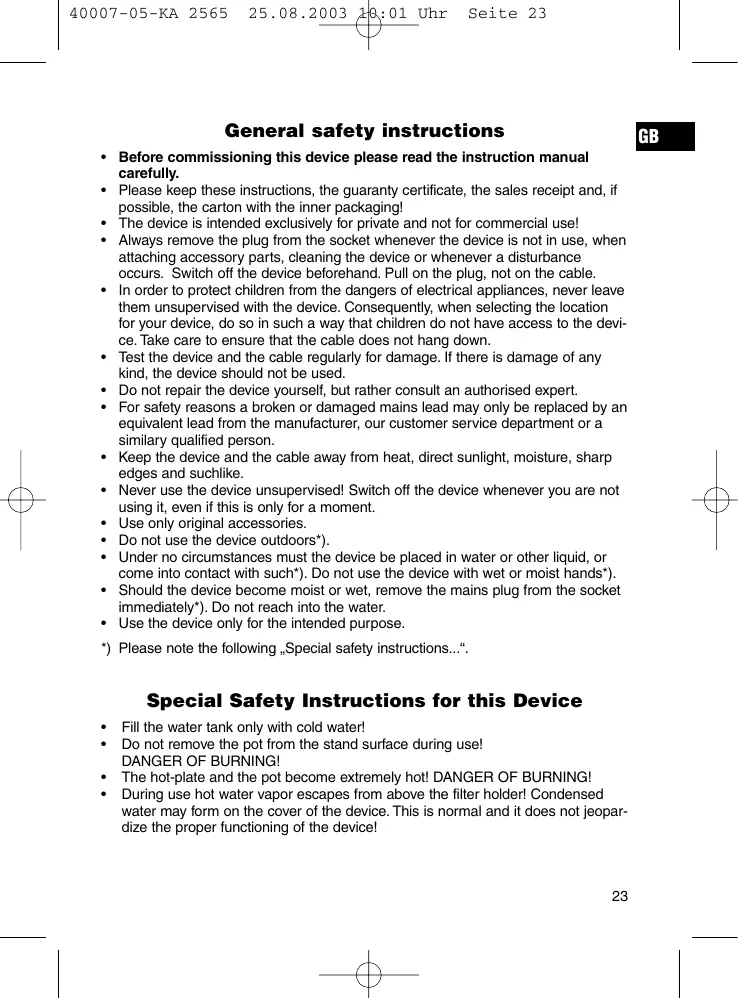

General safety instructions

• Before commissioning this device please read the instruction manual carefully.

• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging! • The device is intended exclusively for private and not for commercial use! • Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable. • In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down. • Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used. • Do not repair the device yourself, but rather consult an authorised expert. • For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similary qualified person. • Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike. • Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment. • Use only original accessories. • Do not use the device outdoors*). • Under no circumstances must the device be placed in water or other liquid, or come into contact with such*). Do not use the device with wet or moist hands*). • Should the device become moist or wet, remove the mains plug from the socket immediately*). Do not reach into the water. • Use the device only for the intended purpose. *) Please note the following „Special safety instructions...“.

Special Safety Instructions for this Device

Fill the water tank only with cold water!

Do not remove the pot from the stand surface during use! DANGER OF BURNING! The hot-plate and the pot become extremely hot! DANGER OF BURNING! During use hot water vapor escapes from above the filter holder! Condensed water may form on the cover of the device. This is normal and it does not jeopardize the proper functioning of the device!

25.08.2003 10:01 Uhr

Putting into Service of the Device

Connect the device to a duly installed 230V/50Hz socket with earthing protection.

Before brewing with coffee powder for the first time, let the device go through 23 complete cycles only with cold water (without the coffee powder and the filter) to clean it. Wash the filter insert and the thermo pot carefully in the sink.

1. Remove the thermo pot from the stand surface and fill it with cold water.

2. Raise the water tank lid. Fill the water tank with water until the water tank display shows the desired number of cups. 3. Remove the filter holder cover and insert a paper filter (size 1 x 2) in the filter holder. Fill the desired amount of coffee powder (about 1 teaspoon for 2 cups) into the filter. 4. Place the cover back onto the filter holder. 5. Place the pot back onto the stand surface and close the water tank lid. 6. Shift the switch to the „ON/1“ position. The brewing now starts. 7. Once the brewing is completed, shift the switch to the „OFF/0“ position. Remove the pot from the stand surface and empty the filter holder. 8. Close the thermo pot with the lid. The coffee will remain hot for a few hours.

Decalcification is necessary when the brewing time increases substantially.

Use only a standard decalcifier made with a citric acid base.

Before cleaning remove the plug from the socket and leave the device to cool for about 1 hour!

Clean the device only with a slightly moist cloth. Do not use aggressive detergents and solvents. The thermo pot and the filter holder can be washed normally in a sink.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Subject to technical changes without prior notice!

25.08.2003 10:01 Uhr

GB We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge. Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase. Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer. You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this case only the faulty accessory needs to be ordered without sending back the whole appliance! The cleaning, servicing and replacement of wear parts are not covered by this warranty and hence are to be paid for. The warranty is terminated in case of handling on the part of Third parties.

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.
