HTD 2613 - Hair dryer CLATRONIC - Free user manual and instructions

Product type	Hair dryer
Brand	CLATRONIC
Model	HTD 2613
Power supply	230 V ~ 50 Hz
Number of speeds	2
Number of heat settings	2 + Cool Shot function
Cool Shot function	Yes, cold air button
Included accessories	Concentrator nozzle, diffuser
Anti-dust filter	Yes, removable and washable
Power cord length	Approximately 1.8 m
Safety	Overheat protection
Maintenance	Clean filter with clean water, housing with soft cloth
Warranty	24 months
Spare parts available	Filter, concentrator and diffuser nozzles
Repairability	Repair by authorized after-sales service
Intended use	Domestic, hair drying and styling
Certifications	EU directives (EMC and safety)

Frequently Asked Questions - HTD 2613 CLATRONIC

How to start using the HTD 2613 hair dryer?

Unroll the power cord completely. Attach the desired nozzle (concentrator or diffuser) to the device. Plug the plug into a 230V, 50Hz socket. Use the button on the handle to choose between positions 0 (off), 1 (medium air/medium temperature) or 2 (high air/high temperature).

How to use the Cool Shot function?

The Cool Shot function is activated by pressing the dedicated button. It stops the heat supply while maintaining the airflow, allowing you to set your hairstyle or create a mix of cold and hot air.

What are the important safety instructions?

Never immerse the device in water or any other liquid. Do not use near a bathtub, shower or swimming pool. Always unplug the device after use. Do not obstruct the air inlets. The nozzles get hot, caution against burns. Supervision is required when children are present.

How to clean the anti-dust filter?

The anti-dust filter is removed by turning it counterclockwise. Clean it with clean water, dry it thoroughly, then put it back. Also clean the air intake opening with a fine brush.

What accessories are provided with the HTD 2613?

The hair dryer is supplied with a concentrator nozzle for targeted drying and a diffuser for curly or wavy hair.

What to do in case of breakdown or defect?

Do not repair the device yourself. Contact an authorized after-sales service. During the warranty period (24 months), return the complete device in its original packaging with the receipt to your dealer.

How to benefit from the warranty?

The warranty is valid for 24 months from the date of purchase. It covers manufacturing or material defects. Keep your receipt. Damage caused by improper use or wear parts are not covered.

Can the hair dryer be used in the bathroom?

Yes, but with caution. Do not use it near a bathtub, shower or basin filled with water. Unplug it immediately if it falls into water. Keep it out of reach of children.

What is the power of the device?

The power is not specified in the manual, but for a hair dryer in this range, it is typically between 1800 and 2000 watts.

How to store the hair dryer after use?

Set the button to position 0 (off), unplug the power cord. Let the device cool down completely before storing. Store it in a dry place, away from dust.

USER MANUAL HTD 2613 CLATRONIC

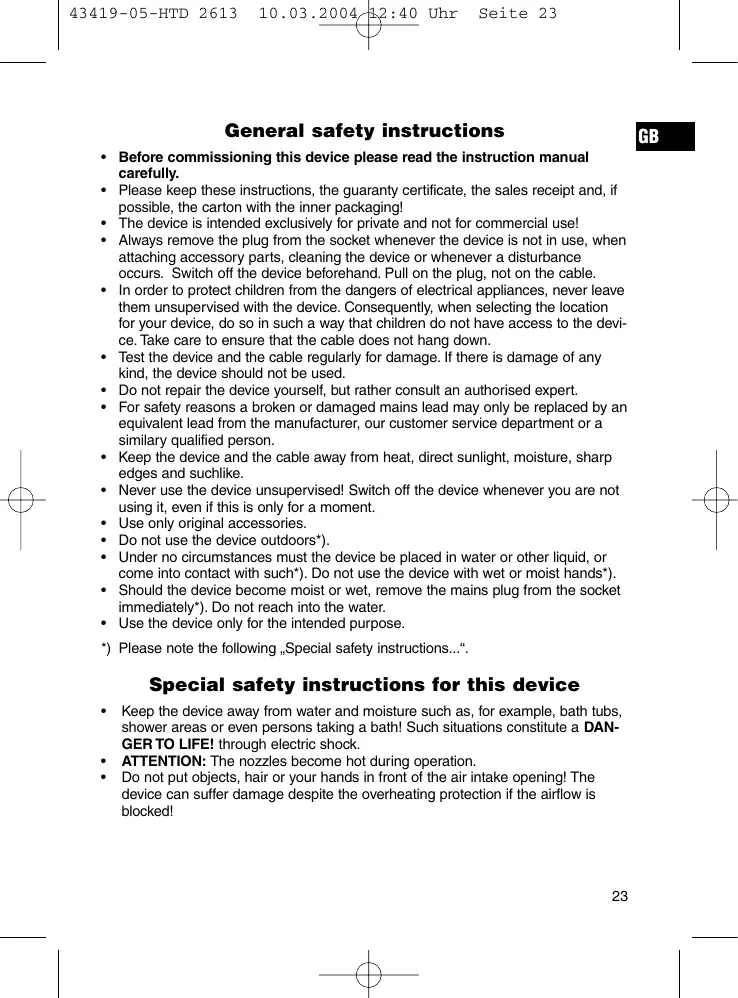

General safety instructions

GB

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors*.
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such). Do not use the device with wet or moist hands.
• Should the device become moist or wet, remove the mains plug from the socket immediately*). Do not reach into the water.
• Use the device only for the intended purpose.

*) Please note the following „Special safety instructions...".

Special safety instructions for this device

• Keep the device away from water and moisture such as, for example, bath tubs, shower areas or even persons taking a bath! Such situations constitute a DANGER TO LIFE! through electric shock.
• ATTENTION: The nozzles become hot during operation.
• Do not put objects, hair or your hands in front of the air intake opening! The device can suffer damage despite the overheating protection if the airflow is blocked!

GB

Commissioning

1. Fully unwind the mains cable.
2. Fit on a nozzle. You can dry single hair locks by concentrating the flow of hot air with the hairdressing nozzle. The diffuser is the ideal solution to dry curly hair without losing volume.
3. Insert the plug into a duly installed 230V / 50Hz protective contact socket.
4. Shift the switch on the handle to one of the desired heat/blowing levels:

Level 0: off

Level 1: medium airflow and medium temperature

Level 2: strong airflow and high temperature

COOL-Shot

With this switch it is possible to interrupt the heating process so that the air can be mixed according to individual requirements.

1. After use shift the switch to position 0 and pull out the plug. Leave the device to cool before putting it away!

Cleaning and care

Clean the air suction opening from time to time with a fine brush. Clean the housing with a soft, dry cloth without additives.

Removing the air suction cover

Remove the cover after turning the cap through approximately 30 degrees against a clockwise direction. Remove the intake filter and clean under running water. Dry the filter well before mounting again!

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Subject to technical changes without prior notice!

Warranty

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

Within the guarantee period we rectify faults to the machine free of charge which result from material or manufacturing faults, either by repairing the machine or, or our discretion, by replacement. Any such repair or replacement associated with the guarantee shall not cause the guarantee period to be extended, nor be deemed to be the start of a new guarantee period!

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

GB

Defects to the accessories do not entitle to the change of the appliance. These will be replaced free of charge. In this case do not send back the appliance. Just order the faulty accessory! Broken glass parts are replaced at the expense of the owner!

Neither defects to consumables and wearing parts (e.g. motor pistons, kneading hooks, drive belts, spare remote controls, spare toothbrushes, saw blades, etc.) nor the cleaning, maintenance or change of wearing parts fall under this warranty and hence are subject to payment of costs!

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.
