HMS 2477 - Food Processor CLATRONIC - Free user manual and instructions

Product type	Food processor
Brand	CLATRONIC
Model	HMS 2477
Power supply	230 V ~ 50 Hz
Speeds	4 speeds + Turbo function (Pulse)
Main functions	Mixing, kneading, whisking, blending arm, blender support with rotating bowl
Included accessories	Mixer, mixing bowl, dough hook, whisk, blending arm
Bowl material	Plastic (estimated)
Approximate dimensions	30 x 20 x 40 cm
Approximate weight	2.5 kg
Safety	Unplug before cleaning or changing accessories; do not immerse
Care and cleaning	Clean the appliance with a dry cloth; accessories washable in soapy water
Control type	Rotary speed selector
Warranty	12 months

Frequently Asked Questions - HMS 2477 CLATRONIC

How to use the Turbo function?

The Turbo function allows short use at very high speed. Press the Turbo button (3b) intermittently for Pulse operation. Caution: do not use for more than one minute.

How to clean the CLATRONIC HMS 2477 food processor?

Unplug the appliance before any cleaning. Clean the body with a dry cloth. The accessories (bowl, dough hook, whisk, blending arm) can be washed in soapy water as usual. Never immerse the appliance in water.

Can I blend hot ingredients?

The manual does not recommend blending hot liquids. For safety reasons, it is better to let food cool before blending. The bowl is plastic and may not withstand heat.

How to detach the dough hook or whisk?

First set the speed selector to 0 and unplug the appliance. Push the orange button (2) to release the accessory, then pull gently to remove it from its opening.

What is the required power supply voltage?

The appliance operates on a mains socket of 230 V ~ 50 Hz. Make sure your installation voltage matches.

How to install the blender support?

Push the mounting hole cover upward, place the blender (1) on the upper part of the support (4) and pull back until it clicks. Attach the mixing bowl by pressing the release button (6) and lower the blender down.

What to do if the appliance does not turn on?

First check that the appliance is properly plugged in and the speed selector is not set to 0. If the problem persists, unplug the appliance and contact an authorized service center. Do not attempt to repair it yourself.

Can I use the appliance unattended?

No, never leave the appliance running unattended, especially in the presence of children. Unplug it as soon as you are not using it, even momentarily.

How to store the power cord?

The manual does not specify a particular storage method. It is advisable not to leave the cord dangling or tangled. Avoid excessive bending and store it away from heat and sharp edges.

Is the warranty international?

The 12-month warranty is valid from the date of purchase, but it is generally limited to the country of purchase. In case of a problem, contact your retailer with the complete appliance and the receipt.

USER MANUAL HMS 2477 CLATRONIC

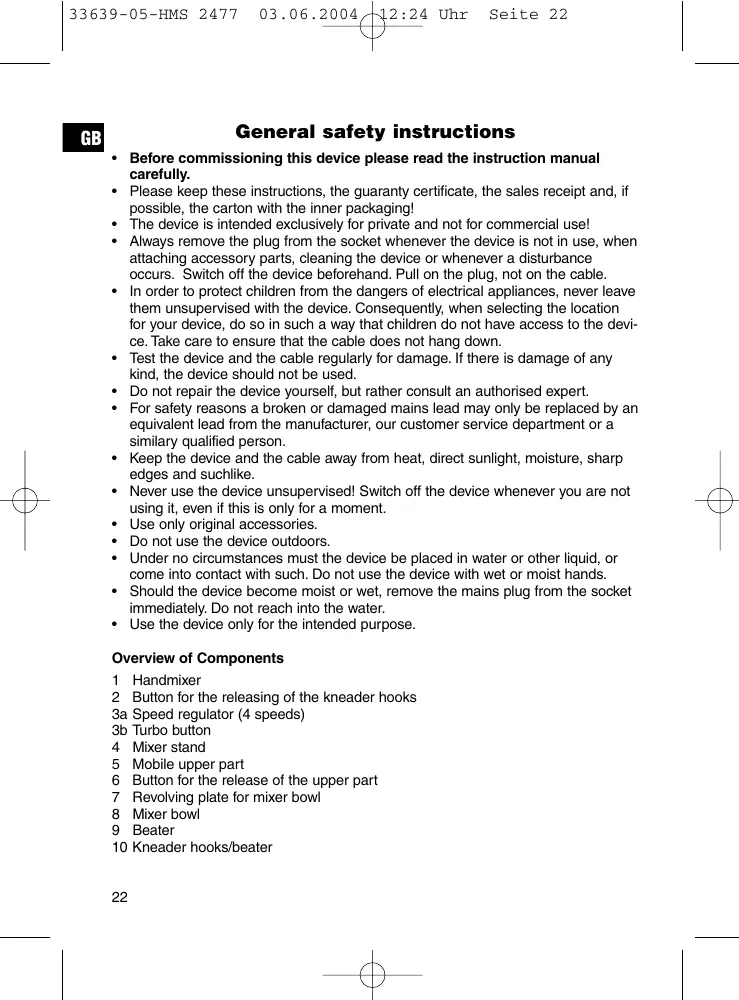

General safety instructions

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors.
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such. Do not use the device with wet or moist hands.
• Should the device become moist or wet, remove the mains plug from the socket immediately. Do not reach into the water.
• Use the device only for the intended purpose.

Overview of Components

1 Handmixer
2 Button for the releasing of the kneader hooks
3a Speed regulator (4 speeds)
3b Turbo button
4 Mixer stand
5 Mobile upper part
6 Button for the release of the upper part
7 Revolving plate for mixer bowl
8 Mixer bowl
9 Beater
10 Kneader hooks/beater

Turbo operation

GB

This is for switching to maximum speed for a short time. Press at short intervals for pulsed mode operation.

WARNING! Do not use this function for more than one minute!

How to use the Beater

1. Position the speed regulator on 0/AUS (3) and make sure that the mixer (1) is not connected to the mains.
2. Remove the mounting slot cover by pulling it upwards.
3. Mount the beater (9).
4. Insert the plug into a 230V/50Hz socket.
5. Insert the beater into a high and partly filled bowl.
6. Activate Turbo-speed by pushing forward the speed regulator (3). Move the beater around gently.

How to use the Kneader hooks/beater

1. Position the speed regulator on 0/AUS (3) and make sure that the mixer (1) is not connected to the mains.
2. Press the end of the kneader hooks/beater (10) into the corresponding mixer openings until the hooks click into place. While pressing, turn slightly in order to facilitate the whole operation.
3. Insert the plug into a 230V/50Hz socket.
4. The handmixer (1) can be used at various speeds set with the speed regulator (3).
5. When removing the kneader hooks/beater (10), position the speed regulator on 0/AUS and make sure that the mixer is not connected to the mains.
6. Press the orange button (2) to release the kneader hooks/beater. Remove the device by turning it slightly.

How to use the Mixer stand

1. Remove the mounting slot cover by pulling it upwards.
2. Then place the handmixer on the upper part (5) of the mixer stand (4) and push it back until the slot on the lower part of the mixer is locked onto the pin of the upper part (5) of the mixer stand.
3. Mount the hooks as described above in the section "How to use the Kneader hooks/beater".
4. In order to place the mixer bowl (8) below the mixer, press the button for the release of the upper part of the mixer stand (5) and lift the mixer.
5. Place the mixer bowl filled with the desired ingredients onto the revolving plate (7). Press the button for the release of the upper part of the mixer stand (5) and lower the mixer.
6. Insert the plug into a 230V/50Hz socket.

GB

1. The handmixer (1) can be used at various speeds set with the speed regulator (3).
2. Once you have finished, press once again the button for the release of the upper part of the mixer stand (5) and lift the mixer.
3. Now the mixer bowl can be removed. Remove the hooks as described above in the section "How to use the Kneader hooks/beater".
4. In order to remove the mixer from the upper part of the mixer stand, pull the mixer upwards and then to the front.

Cleaning

• Disconnect the machine from the mains.
  Clean the machine after use with a dry cloth.
  Clean the equipment in the usual way in soapy water.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Subject to technical changes without prior notice!

Guarantee

Our appliances are guaranteed for a period of 12 months from the date of purchase (receipt).

Faulty appliances will be repaired or replaced free of charge if these are attributed to faulty material or manufacture.

The guarantee will be invalidated if the appliances are tampered with.

For repairs within the guarantee period, please take the complete appliance with the receipt to the place where it was purchased.
