USER MANUAL HMS 2476 CLATRONIC

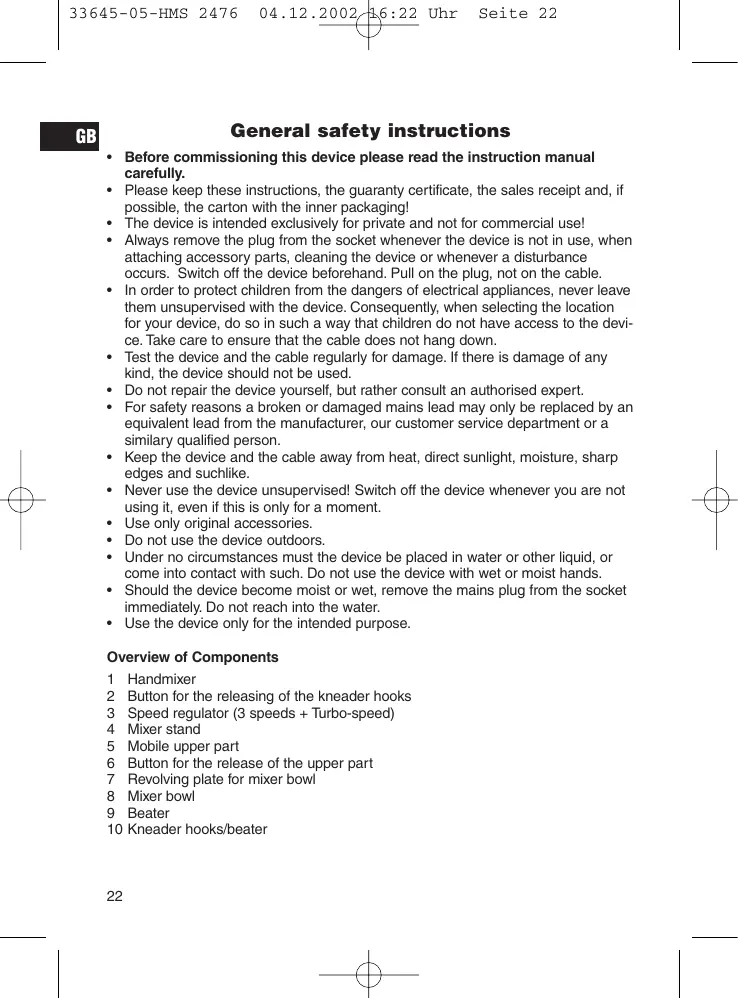

General safety instructions

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similary qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors.
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such. Do not use the device with wet or moist hands.
• Should the device become moist or wet, remove the mains plug from the socket immediately. Do not reach into the water.
• Use the device only for the intended purpose. Overview of Components

Handmixer Button for the releasing of the kneader hooks Speed regulator (3 speeds + Turbo-speed) Mixer stand Mobile upper part Button for the release of the upper part Revolving plate for mixer bowl Mixer bowl Beater Kneader hooks/beater 33645-05-HMS 2476

04.12.2002 16:22 Uhr

Seite 23 Turbo operation

This is for switching to maximum speed for a short time. Press at short intervals for pulsed mode operation. WARNING! Do not use this function for more than one minute! How to use the Beater

1. Position the speed regulator on 0/AUS (3) and make sure that the mixer (1) is

not connected to the mains.

2. Remove the mounting slot cover by pulling it upwards.

3. Mount the beater (9).

4. Insert the plug into a 230V/50Hz socket.

5. Insert the beater into a high and partly filled bowl.

6. Activate Turbo-speed by pushing forward the speed regulator (3). Move the beater around gently.

7. Deactivate Turbo-speed mode by releasing the regulator (3).

How to use the Kneader hooks/beater

1. Position the speed regulator on 0/AUS (3) and make sure that the mixer (1) is

not connected to the mains.

2. Press the end of the kneader hooks/beater (10) into the corresponding mixer

openings until the hooks click into place. While pressing, turn slightly in order to facilitate the whole operation.

3. Insert the plug into a 230V/50Hz socket.

4. The handmixer (1) can be used at various speeds set with the speed regulator

5. When removing the kneader hooks/beater (10), position the speed regulator on

0/AUS and make sure that the mixer is not connected to the mains.

6. Press the orange button (2) to release the kneader hooks/beater. Remove the

device by turning it slightly. How to use the Mixer stand

1. Remove the mounting slot cover by pulling it upwards.

2. Then place the handmixer on the upper part (5) of the mixer stand (4) and push

it back until the slot on the lower part of the mixer is locked onto the pin of the upper part (5) of the mixer stand.

3. Mount the hooks as described above in the section “How to use the Kneader

4. In order to place the mixer bowl (8) below the mixer, press the button for the

release of the upper part of the mixer stand (5) and lift the mixer.

5. Place the mixer bowl filled with the desired ingredients onto the revolving plate

(7). Press the button for the release of the upper part of the mixer stand (5) and lower the mixer.

04.12.2002 16:22 Uhr

6. Insert the plug into a 230V/50Hz socket.

7. The handmixer (1) can be used at various speeds set with the speed regulator

8. The revolving plate turns automatically!

9. Once you have finished, press once again the button for the release of the

upper part of the mixer stand (5) and lift the mixer. 10.Now the mixer bowl can be removed. Remove the hooks as described above in the section “How to use the Kneader hooks/beater”. 11.In order to remove the mixer from the upper part of the mixer stand, pull the mixer upwards and then to the front. Cleaning

Disconnect the machine from the mains. Clean the machine after use with a dry cloth. Clean the equipment in the usual way in soapy water. This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice! Guarantee Our appliances are guaranteed for a period of 12 months from the date of purchase (receipt). Faulty appliances will be repaired or replaced free of charge if these are attributed to faulty material or manufacture. The guarantee will be invalidated if the appliances are tampered with. For repairs within the guarantee period, please take the complete appliance with the receipt to the place where it was purchased.
