USER MANUAL HL 2266 CLATRONIC

$$ \sim = \text {W a r m e L u f t (1 0 0 0 W)} $$

$$ = \text {K u h l e L u f t} $$

$$ \approx = \text {W a r m e L u f t} (2 0 0 0 \mathrm {W}) $$

Thermostat (Bild 5)

1 Niedrigste Stufe

2 Hochste Stufe

≈ = Air chaud (1000 W)

≈ = Air chaud (2000 W)

Thermostat (schéma 5)

$$ \clubsuit = \text {A r i a f r e d d a} $$

$$ \sim = \text {A r i a c a l d a (1 0 0 0 W)} $$

$$ \approx = \text {A r i a c a l d a} (2 0 0 0 \mathrm {W}) $$

Termostato (fig. 5)

1 Livello minimo

2 Livello massimo

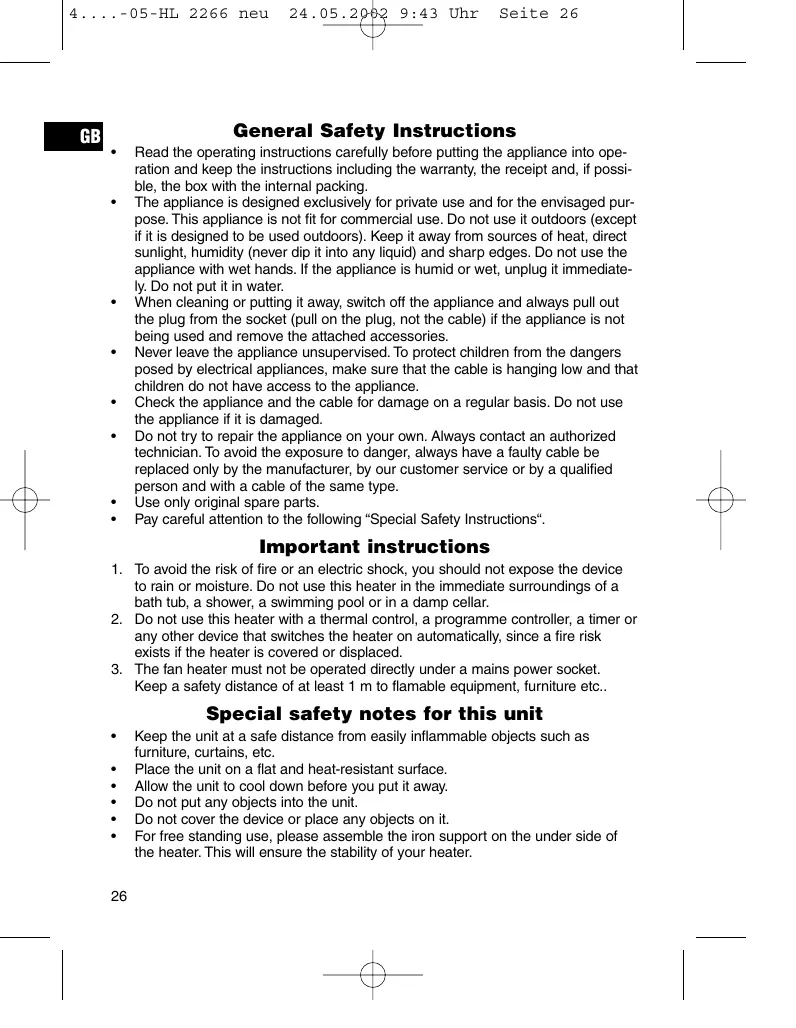

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
  Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Important instructions

1. To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Do not use this heater in the immediate surroundings of a bath tub, a shower, a swimming pool or in a damp cellar.
2. Do not use this heater with a thermal control, a programme controller, a timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or displaced.
3. The fan heater must not be operated directly under a mains power socket. Keep a safety distance of at least 1m to flammable equipment, furniture etc..

Special safety notes for this unit

• Keep the unit at a safe distance from easily inflammable objects such as furniture, curtains, etc.
• Place the unit on a flat and heat-resistant surface.
• Allow the unit to cool down before you put it away.
• Do not put any objects into the unit.
• Do not cover the device or place any objects on it.
• For free standing use, please assemble the iron support on the under side of the heater. This will ensure the stability of your heater.

Operation

GB

1. If you would like to operate the fan heater in an upright position, please place it on the second additional foot supplied.
2. After assembling the iron support fix the screws into the equipment. Please make sure that the iron bars are placed between the stand (foot) and the thread.
3. After assembling connect the device to a duly installed 230V/50Hz socket with earthing protection!
4. Make sure that the degree of protection of the socket to which the device is connected is of at least 10 ampere!
5. The device can either be placed on a suitable flat surface or mounted on the wall with the wall hook (see drawing). In case of wall mounting make sure that the air can freely enter and exit from the device.
6. In order to use the device as a standing unit, mount the base as illustrated in fig. 1.
7. If the base is attached to the wall with the enclosed screws, then it can be used as a wall clamp (see fig. 2 and 3).

Function Switch (Fig. 4)

Turn the thermostat control knob to the highest level. The LED will light up. Once the desired room temperature is reached, turn the thermostat control knob slowly back until the device shuts off.

The thermostat maintains the set room temperature by switching the device on and off.

Overheating Protection

The device is equipped with an overheating protection that switches the device automatically off in case of overheating. Shift the function switch to "0" position and pull out plug out of the socket. Let the device cool down for about 10 minutes before using it again.

Should the overheating protection shut the device off again shortly after, there is probably a defect. Switch off the device again and pull out the plug. Let the device be checked by an authorized dealer or by our customer service (or contact your dealer).

GB

Cleaning and Maintenance

1. Before cleaning the machine you should always remove the mains lead and wait until the machine has cooled down. The machine should only be cleaned with a slightly damp cloth.
2. Do not use any strong detergents or solvents for cleaning.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

$$ \bigcirc = O P R I T $$

$$ \clubsuit = \text {A e r} $$

$$ \sim = \text {A e r c a l d} (1 0 0 0 \mathrm {W}) $$

$$ \approx = \text {A e r c a l d} (2 0 0 0 \mathrm {W}) $$

Termostat (Fig. 5)
