Product type	Vacuum cleaner
Brand	CLATRONIC
Model	BS 1215
Dimensions (approx.)	30 x 25 x 40 cm
Weight (approx.)	5 kg
Power supply	230 V ~ 50 Hz
Power (approx.)	800 - 1200 W
Cable length	With cord rewinder, max length indicated by marker
Dust collection type	Disposable dust bag
Bag capacity (approx.)	2 to 3 liters
Bag full indicator	Yes, red indicator when bag is full
Motor filter	Washable motor protection filter
Air outlet filter	Replaceable filter, change after 10 bag changes
Included accessories	Telescopic tube, crevice nozzle, brush, floor brush (2 positions)
Power adjustment	Power adjuster (low, medium, high)
Main functions	Vacuuming floors, carpets, curtains, upholstery
Care and cleaning	Clean exterior with a dry cloth; wash motor filter every 5 bags
Safety	Disconnect before servicing; do not vacuum water; private use only
Spare parts and repairability	Dust bags and filters available; repair by authorized professional
Warranty	12 months from date of purchase
General information	Compliant with CE anti-interference and low voltage directives

Frequently Asked Questions - BS 1215 CLATRONIC

How to change the dust bag of the CLATRONIC BS 1215 vacuum cleaner?

Unplug the appliance. Pull the cover above the handle to open the tank. Remove the full bag by pulling firmly. Insert a new bag inside and close the cover until it clicks.

How often should the motor protection filter be cleaned?

Wash the motor protection filter with warm water (no detergent) after changing the dust bag 5 times. Make sure it is completely dry before reinstalling.

How to use the brush for carpets and smooth floors?

For carpets, press with your foot on the lever with the rough surface symbol. For smooth floors, press the other lever to lower it. The levers switch depending on the surface type.

What does the red indicator on the vacuum cleaner mean?

The bag full indicator turns red when the dust bag is full. Hold the flexible hose in the air and check: if red, change the bag immediately.

How to adjust the suction power?

Use the power adjuster on the appliance. Low setting for curtains and delicate fabrics, medium for long-pile velvet carpets, high for resistant carpets and rugs.

How to adjust the telescopic tube?

Press the button on the tube, then unlock or lock the two tubes into each other to adjust the desired length.

Which accessories are supplied with the BS 1215 vacuum cleaner?

The vacuum cleaner comes with a flexible hose, a telescopic tube, a crevice nozzle, a brush (for cushions, seats, curtains) and a floor brush with two positions (carpet/smooth floor).

How to rewind the power cord?

Hold the cord in your hands to prevent it from hitting. Press the rewinder button while guiding the cord. Do not pull beyond the maximum length mark.

What to do if the vacuum cleaner does not work?

First check that the appliance is properly plugged in and the outlet works. Make sure the bag is not full and the filters are not clogged. If the problem persists, contact an authorized after-sales service.

Can I use the vacuum cleaner to vacuum water?

No, the CLATRONIC BS 1215 vacuum cleaner is designed only for vacuuming dry surfaces. Never use it on wet or damp surfaces, and do not expose it to liquids.

USER MANUAL BS 1215 CLATRONIC

Floor-type vacuum cleaner

Odkurzacz

Vysavač kobercú

Пьлесoc

Compartment à accessoires:

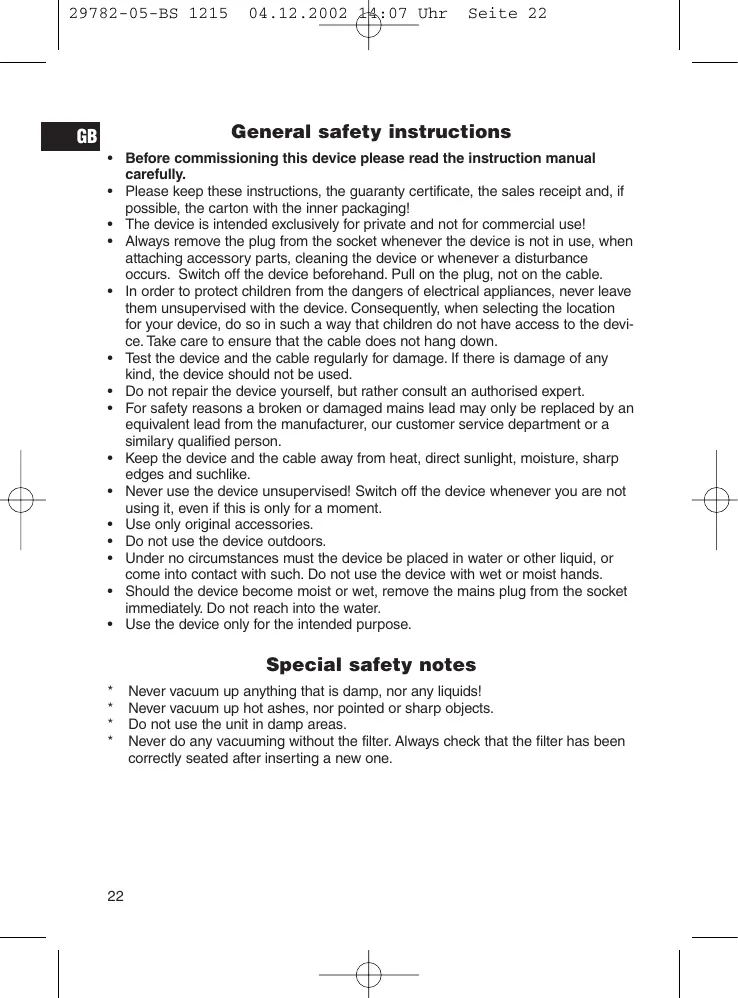

General safety instructions

• Before commissioning this device please read the instruction manual carefully.
• Please keep these instructions, the guaranty certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use!
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device beforehand. Pull on the plug, not on the cable.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device and the cable regularly for damage. If there is damage of any kind, the device should not be used.
• Do not repair the device yourself, but rather consult an authorised expert.
• For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and suchlike.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Use only original accessories.
• Do not use the device outdoors.
• Under no circumstances must the device be placed in water or other liquid, or come into contact with such. Do not use the device with wet or moist hands.
• Should the device become moist or wet, remove the mains plug from the socket immediately. Do not reach into the water.
• Use the device only for the intended purpose.

Special safety notes

• Never vacuum up anything that is damp, nor any liquids!
• Never vacuum up hot ashes, nor pointed or sharp objects.
• Do not use the unit in damp areas.
• Never do any vacuuming without the filter. Always check that the filter has been correctly seated after inserting a new one.

Startup

GB

• Push the vacuum hose into the opening of the dustbag compartment until it clicks in mechanically. In order to remove the hose again, press the two clamps inwards while pulling at the same time.
• Put the suction tube or other accessory onto the handle

Using the unit

1. Install the accessory. Adjust the telescopic tube as necessary.
2. Unwind the necessary amount of cable, put the mains plug into a 230V, 50Hz mains socket and switch the unit on.
3. Set the vacuum strength with the suction strength controller.
4. Start vacuuming at a constant speed. It is not necessary to press. Check that you have not come to the end of the cable.

Suction control (click-stop settings):

Low suction strength: for curtains and delicate materials

Medium suction strength: for deep-file velvet carpets and delicate carpeting

High suction strength: for ordinary carpets and floors.

Telescopic vacuum tube:

This allows the unit to be matched to your size. Adjust it by pressing the knob on the tube and pulling the two tubes apart.

Accessory compartment:

Pull the edge of the lid over the suction tube connection upwards and fold the lid up. The brush and crevice nozzles are located here. The brush nozzle can also be used without the brush as a nozzle for large surfaces. In order to assemble the brush insert the long edge into the plug-in tube and press on the other end of the brush until a click is heard.

Winding device for the power cable:

Unwinding: Pull out the length that you require. The maximum length is shown by a marking on the cable. Do not pull any further! The winding device could be damaged otherwise.

Winding in: Hold the cable firmly to prevent it from whipping around. Press the button for cable winding and guide the cable in.

GB Nozzle sets:

Narrow nozzle: for vacuuming in corners and grooves, for example Brush nozzle: for soft materials such as upholstery, car seats, curtains Floor nozzle: to clean carpets or flat surfaces

The nozzle can be set for the relevant type of operation.

Carpet: press down with your foot on the lever with the symbol for rough surfaces. Smooth floor: press down the other lever. The levers change over. Undoing the units: pull them apart while twisting slightly.

Dustbag indicator:

Hold the suction hose into the air so that it is not vacuuming anything. The bag is full if the display shows "Red". Change the dustbag in that case.

Changing the dustbag:

Pull out the mains plug. Open the dust bag compartment by pulling up the lid above the carrying handle. Then pull the bag out. As the bag is locked in place it is necessary to use a little force to remove it. Push a new bag in. Close the cover again so that it clicks into place.

Air outlet filter:

Replace the filter at the air outlet after the 10th time that the dustbag has been changed. Fold up the black lid, remove the filter and insert a new one. Press the lid until it locks in place.

Cleaning & storage

Cleaning

• Always pull out the mains plug before doing any cleaning!
• Clean the casing with a dry cloth.
• Replace the filter protecting the motor after the 10th time that the dustbag has been changed
• This filter can be found behind the dustbag.

Storage

• Roll up the cable completely.
• Place the unit vertically and push the hook of the vacuum tube into the back.

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice!

GB

Guarantee

Our appliances are guaranteed for a period of 12 months from the date of purchase (receipt).

Faulty appliances will be repaired or replaced free of charge if these are attributed to faulty material or manufacture.

The guarantee will be invalidated if the appliances are tampered with.

For repairs within the guarantee period, please take the complete appliance with the receipt to the place where it was purchased.
