USER MANUAL SPYRO JBL

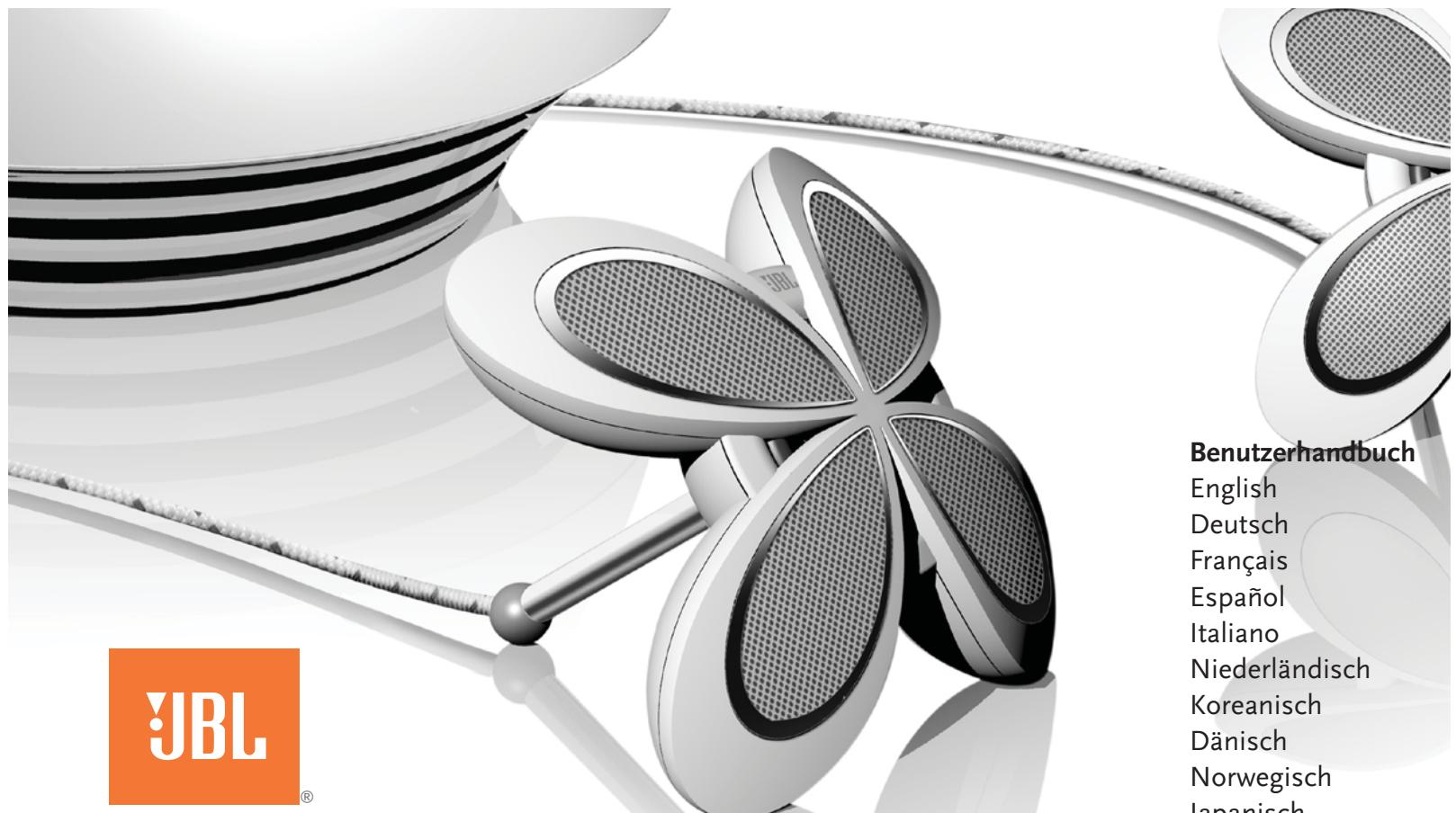

jbI SpyRO™ stereo system with subwoofer

User Guide

English 2

Deutsch. 8

Francais 14

Espanol 20

Italiano 26

Dutch 32

Korean 38

Norwegian 44

Danish. 50

Japanese. 56

Simplified Chinese.....62

fcc regulations

FCC Declaration of Conformity Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radio and Television Interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and then on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Increase the separation between the equipment and receiver.

• Connect the equipment to a different outlet so that the equipment and receiver are on different branch circuits.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by JBL could void the user's authority to operate the equipment.

jbI spyro ^TM safety instructions

Please read the following precautions before use:

• Read instructions. All safety and operating instructions should be read thoroughly before attempting to operate this audio system.
• Retain instructions for future reference.
  Heed warnings. All warnings on this audio system and in the operating instructions should be adhered to.
• Follow instructions. All operating and use instructions should be followed.
  TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). THERE ARE NO USER-SERVICEABLE PARTS INSIDE THIS UNIT. PLEASE REFER SERVICING TO QUALIFIED JBL SERVICE PERSONNEL.
• Do not expose the speakers to liquid or solvent.
• Never remove grille covers in order to service the speaker system. The speaker system does not contain any user-serviceable parts. Refer all servicing to the JBL Technical Support Group.
• Do not expose the speaker system to temperature or humidity extremes, direct sunlight, excessive dust or vibrations.
• Place the speaker system on a stable, level surface. Do not drop, apply excessive force to the controls or put heavy objects on top of the speaker.
• If cleaning is required, use a soft, dry cloth. If necessary, use a damp cloth without any solvents.
  In order to protect the speaker system, avoid microphone feedback, continuous output from electronic musical instruments or distorted output from any signal source.
• Do not place the speakers close to fluorescent light sources or neon light fixtures.
  Although the speakers are magnetically shielded, keep magnetic storage media (disks and tapes) at least four inches from the speaker system in order to avoid data loss.
  WARNING: To reduce the risk of fire or electric shock, do not expose this speaker system to rain or moisture.
• Use only JBL-approved power supplies listed on the product label.

jbI spyro™ easy setup guide

Step 1. Unpack the JBL Spyro subwoofer, satellites, power adapter and input cable. Read these instructions completely.	Step 2. Plug the left and right satellites into position on the rear of the subwoofer.	Step 3. Connect the audio input cable to the rear of the subwoofer. Connect the audio cable to an audio source.	Step 4. Connect the power adapter plug into the position marked on the rear of subwoofer.
Step 5. Plug the power adapter into a wall outlet or power strip.	Step 6. Press the Power button on the back of JBL Spyro. A green LED will light when the JBL Spyro system is on.	Step 7. Adjust the volume using (+) to increase and (−) to decrease. Press both to mute JBL Spyro. Press either button to unmute.	Step 8. Adjust the bass level by turning the Bass-Level knob on the rear of the subwoofer.

troubleshooting your jbl spyro™

JBL Spyro Specifications	Symptom	Possible Problem	Solution
	Troubleshooting
Frequency Range: 40Hz-20kHz Power Consumption: 30W maximum Power Input: 18V/2.5A Satellite Transducer: (1) 1" (25mm) Full-range per channel Amplifier Output Power: 6W RMS per channel Subwoofer Transducer: 6" (152mm)Atlas Amplifier Output Power: 24W RMS Satellites Dimensions: Diameter - 3-1/4" (83mm) Height - 2" (51mm) Subwoofer Dimensions: Diameter - 8" (203mm) Height - 5-1/2" (140mm) System Weight: 4.3 lb (1.95kg)	No sound from the JBL Spyro speaker system.	No power to the system. Power adapter plug is not inserted correctly.	Ensure that the power supply is connected to a live power source and is properly connected to JBL Spyro. Note: When JBL Spyro is powered, a green power LED on the JBL Spyro subwoofer should light up.
		No volume or low volume.	Touch the volume "Up" (+) pad on the volume control to un-mute and/or increase the system volume level. Note: Touching the volume "Down" (-) pad lowers the system volume. Touching both the (+) and (-) volume control pads at the same time will mute the system.
		Input source is low.	Increase the volume level on the audio source device.

If you have any questions or need further assistance, please visit www.jbl.com.
These specifications are subject to change without notice.

Symptom	Possible Problem	Solution
Troubleshooting
No power; green LED is not on.	Wall adapter is not plugged into JBL Spyro correctly. Wall adapter is not receiving AC power.	Check the connection of the wall adapter. Place the wall adapter in a known powered outlet. Test the outlet with a lamp or other device. Connect JBL Spyro to a known audio source. Test the audio source with headphones.
No volume control on right satellite.	Right satellite is not plugged in correctly. Left and right satellites are not connected to correct subwoofer connector.	Check the right satellite connection. Press it firmly into the subwoofer. Check the satellite connections. Press them firmly into the subwoofer.
No bass.	Incorrect bass setting.	Adjust the Sub Level knob on the rear of the subwoofer to the desired bass level.
