Product Type	Ceiling Fan
Brand	Cecotec
Model	Energy Silence 620 Max Flow Smart M
Blade Diameter	62 cm
Number of Blades	3 blades
Blade Material	ABS
Color	White
Power Supply	220-240 V, 50/60 Hz
Motor Power	50 W
Speeds	3 speeds
Reverse Function	Yes (summer/winter)
Remote Control	Yes, included
Timer	Yes, programmable
Noise Level	≤ 35 dB
Housing Dimensions	62 x 62 x 30 cm
Net Weight	4.5 kg
Mounting Height	2.5 m (recommended)
Protection Rating	IP20
Maintenance	Clean blades with a soft, dry cloth
Safety	Do not immerse, unplug before cleaning
Spare Parts	Available from Cecotec customer service
Repairability	Repairability index: 7.5/10

Frequently Asked Questions - Energy Silence 620 Max Flow Smart M CECOTEC

How to install the Cecotec Energy Silence 620 Max Flow Smart M ceiling fan?

Installation must be carried out by a qualified professional. Fix the mounting plate to the ceiling, connect the electrical wires (phase, neutral, ground) according to the supplied diagram, then mount the motor and blades. Ensure safety distances are respected.

How to use the remote control?

The remote control allows you to adjust the speed (3 levels), activate the reverse function for summer/winter, program the timer (1, 2, 4 hours), and turn the fan on/off. Batteries are included.

What to do if the fan does not turn on?

First check the power supply (circuit breaker) and that the wires are correctly connected. Ensure the remote control has working batteries and that there is no infrared reception issue.

How to clean the fan?

Unplug the appliance before any cleaning. Use a soft, dry cloth to wipe the blades and motor. Never use water or abrasive products. For deep cleaning, remove the blades if necessary.

The fan is noisy, what to do?

Check that the blades are well balanced and tightened. If the noise persists, ensure the housing is securely mounted to the ceiling. A slight clicking may be normal, but unusual noise indicates a manufacturing or installation defect.

How to reverse the rotation direction?

Use the remote control to activate the reverse function. In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, clockwise rotation redistributes heat from the ceiling to the floor.

What is the recommended mounting height?

The recommended height is about 2.5 m between the floor and the blades. For high ceilings, an extension rod may be necessary. Ensure the blades are at least 30 cm away from walls or obstacles.

Can I use the fan outdoors?

No, this model is designed for indoor use only (IP20). Do not install it in a humid bathroom or outdoors, as this may cause damage and electrical risk.

How to program the timer?

Press the 'Timer' button on the remote control. Each press increases the duration: 1h, 2h, 4h, then off. The LED blinks to confirm. The fan will automatically turn off after the selected duration.

Where to find spare parts?

Spare parts (blades, remote control, mounting kit) are available from Cecotec customer service or on their official website. Use the model number to order the correct parts.

USER MANUAL Energy Silence 620 Max Flow Smart M CECOTEC

1. Parts and components 29
2. Before use 30
3. Product assembly 30
4. Operation 30
5. Cleaning and maintenance 32
6. Technical specifications 32
7. Disposal of old electrical and electronic appliances 33
8. Technical support and warranty 33
9. Copyright 33

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users. All safety instructions must be closely followed when using the appliance.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Never insert fingers, pencils, or other objects through the air outlet when the appliance is running.
• Make sure that the mains voltage matches the voltage stated on the product marking and that the wall outlet is grounded.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• If the appliance falls accidentally in water, unplug it immediately. Do not touch the water!

• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

• Do not carry or pull the appliance from the power cable. Do not use the power cable as handle. Do not push the cable against corners or sharp edges. Do not crush the power cable with the full weight of the appliance. Keep the cable away from heat sources.

• Do not use the appliance if its cord, plug, or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• Do not use the appliance in spaces with explosive or toxic vapours.
• Keep the appliance away from strong heat sources.
• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.
• Never leave the device unattended during use. Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Always turn off and unplug the device when not in use and before assembling, disassembling, or moving it. To prevent it from tipping over, wind the cord safely.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• Do not place the cord beneath the carpet or cover it. Place the appliance in a room with no obstacles and where it cannot be tipped over. Position the cord in such a way as to avoid obstructing passage and cause tripping hazards.
• Use the product in a well-ventilated area. Allow a free space of at least 20 cm between the appliance and the wall to ensure good air circulation when in operation.

INSTRUCTIONS DE SÉCURITÉ

1. Front grille
2. Blades
3. Rear grille
4. Motor
5. Control panel
6. Power cable
7. Screw B
8. Adjusting nut
9. Base screw
10. Base
11. Base tube
12. Interior tube
13. Fixing nut

14. Cap

15. Central motor shaft

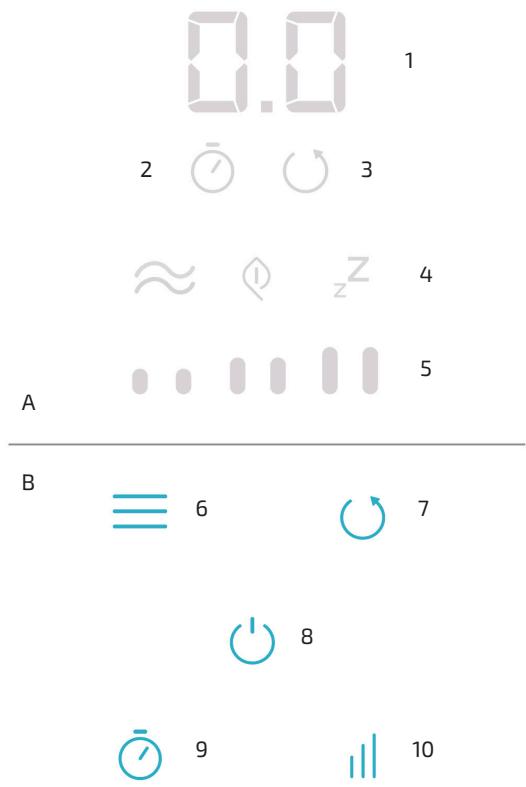

Control panel. Fig. 2

A. Display
1. Time/Temperature
2. Timer
3. Oscillation
4. Modes: Normal, Eco, and Sleep
5. Speed: Low, Medium and High
B. Buttons
6. Modes
7. Oscillation
8. Power icon
9. Timer
10. Speed

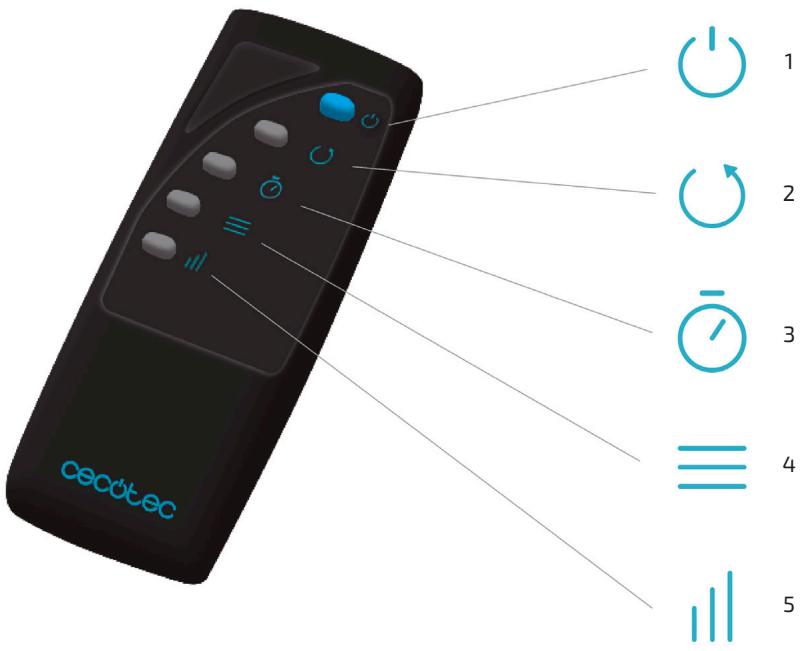

Remote control. Fig. 3

1. Off button
2. Oscillation button
3. Timer
4. Mode button
5. Speed button

ENGLISH

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• EnergySilence 620 Max Flow Smart fan
• Remote control
• Instruction manual

3. PRODUCT ASSEMBLY

• Loosen the cap by turning it clockwise and turn the fixing nut counterclockwise. Fig. 4
• Install the rear grille in the motor shaft and fix it with the adjustment nut. Fig. 5
• Install the blades on the central motor shaft and fix it by turning the fan-blade fixing cap clockwise. Fig. 6.

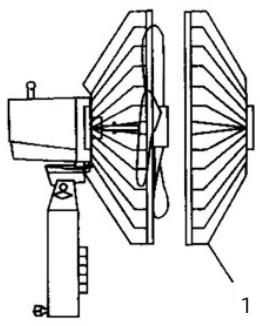

• Match the front and rear grilles by placing the plastic ring around them and screw them with the screw and the nut included in the box. Fig. 7
• Loosen the base screw by turning it counterclockwise and insert the base tube in the base of the appliance. Screw the base screw clockwise into the base tube and tighten it.
• Pull from the interior tube and tighten the lock nut.
• Unscrew the screw on the control panel (screw B) by turning it clockwise. Join the control panel with the interior tube and screw the control panel clockwise.

4. OPERATION

• Install the appliance on a dry and stable surface.

• Plug in the appliance.

• Turn on the fan by pressing the Speed button on the remote control or the power icon on the control panel. Turn off the fan by pressing the off button on the remote control or the power icon on the control panel.

• The speed is set by pressing the speed button as many times as you need until you choose the desired speed. If you press it once, the speed will be low; if twice, it will be medium; if three times, it will be high.
• The corresponding LED indicator light will light up on the control panel display.

Oscillation

Press the oscillation button on the remote control or on the control panel to start or stop the fan oscillation.

Timer

Press the timer button on the remote control or on the control panel to turn the timer on or off. Once the timer is on, select the time from 30 minutes up to 7.5 hours. The corresponding LED indicator light will light up on the control panel display.

Nature mode

Press the mode button once on the remote control or on the control panel to activate this mode. The fan in this mode will range its speed from fast to slow. The corresponding LED indicator light will light up on the control panel display.

Sleep mode

Press the mode button again to enter Sleep mode. This function will decrease speed. The corresponding LED indicator light will light up on the control panel display.

Normal mode

Press the mode button for the third time to return to Normal mode.

Remote control

• The remote control uses 2 AAA batteries (not included).
• To insert the batteries, press the battery cover with your thumb and remove the cover. Place the batteries following the indications on the battery slot. Refit the cover.
• Keep batteries away from children and animals, they could be harmful if swallowed. In case of ingestion, seek medical assistance immediately.
• In case any damage, crack or defect is detected, avoid using it or touching it with skin, eyes or mucosa. In case the batteries' fluid comes into contact with eyes, rinse eyes with abundant water. Seek for medical assistance immediately.

5. CLEANING AND MAINTENANCE

• Unplug the appliance from the power supply and allow it to cool down before cleaning.
• Use a soft, damp cloth to clean the surface of the device.
• Do not immerse the device in water or other liquids.
• Do not use abrasive products such as solvents, acids, or alcohol to clean the plastic components, as these could be deformed or damaged.
• Do not use a wet cloth to clean the motor. Keep the fan clean and store it in a dry place to avoid moisture.
• We recommend using neutral detergent and a soft cloth. Do not use solvents, acid detergents, petrol, alcohol, etc. to clean the plastic parts, as they may be damaged.
• Use a vacuum cleaner to remove the dust which accumulates on the safety grille. Do not remove the safety grille.
• Do not allow water to enter the motor or touch the cord during cleaning.

6. TECHNICAL SPECIFICATIONS

Product reference: 05294

Product: EnergySilence 620 Max Flow Smart

Power: 70 W

Voltage: 220 - 240 V\~

Frequency: 50 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	50.9	m^3/min
Fan power consumption	P	57.5	W
Service value	SV	0.9	(m^3/min)/W
Power consumption on standby mode	P_SB	0.5	W
Fan sound power level	L_WA	61	dB (A)
Maximum air speed	C	3.1	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910,Alfafar (Valencia) SPAIN

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7
