Product Type	Refrigerator with freezer compartment
Brand	Cecotec
Model	Bolero Coolmarket Bc 52
Total net capacity	220 L
Refrigerator volume	180 L
Freezer volume	40 L
Dimensions (H x W x D)	145 x 55 x 57 cm
Net weight	48 kg
Power supply	220-240 V ~ 50 Hz
Energy class	E (old A+)
Climate class	N-ST (16°C to 38°C)
Refrigerant	R600a
Refrigerator defrost	Automatic
Freezer defrost	Manual
Interior lighting	LED
Number of shelves	4 glass shelves
Number of vegetable drawers	1 vegetable drawer
Number of door bins	4 door bins
Number of freezer drawers	1 drawer
Adjustable thermostat	Yes, mechanical dial
Door opening direction	Reversible
Adjustable feet	Yes, at the front
Noise level	40 dB
Annual consumption	220 kWh/year

Frequently Asked Questions - Bolero Coolmarket Bc 52 CECOTEC

How to install the Cecotec Bolero Coolmarket Bc 52 refrigerator?

Place the appliance in a dry and well-ventilated area, away from heat sources. Leave at least 5 cm of space around it for air circulation. Adjust the front feet to ensure stability. Wait 4 hours before plugging in to allow the refrigerant to stabilize.

What is the ideal temperature for the refrigerator and freezer?

The recommended temperature for the refrigerator is 4°C to 5°C, and for the freezer -18°C. Use the thermostat to adjust: position 2-3 for the refrigerator, and position 3-4 for colder settings.

How to clean the interior of the refrigerator?

Unplug the appliance. Remove food. Clean the walls and shelves with a soft cloth soaked in warm water and mild detergent. Rinse and dry. Do not use abrasive products or solvents. Turn it back on after complete drying.

Do I need to defrost the freezer? How?

Yes, the freezer must be defrosted manually when an ice layer of more than 5 mm forms. Unplug the appliance, remove food, leave the door open to melt the ice (do not use sharp objects). Wipe up water and dry before turning back on.

Why is my refrigerator making noise?

A slight humming is normal from the compressor. Clicking sounds may occur during the defrost cycle. Make sure the appliance is level and not touching furniture. If the noise is excessive, contact customer service.

How to adjust the temperature of the Cecotec Bolero Coolmarket Bc 52 refrigerator?

Turn the thermostat located inside the refrigerator. Position 0: off, 1-2: low cold, 3-4: medium cold, 5-6: maximum cold. Avoid placing food against the back wall for optimal air circulation.

What to do in case of a power outage?

Keep the doors closed. Food stays preserved for several hours without electricity. Do not refreeze thawed food. If the outage lasts more than 24 hours, check the condition of the food before consuming.

Where to find spare parts for this model?

Contact Cecotec customer service or check the official website for original spare parts. Shelves, door bins and thermostats are usually available. Keep the purchase receipt for warranty.

How to save energy with this refrigerator?

Place the appliance away from heat sources, do not overload compartments, let food cool before storing, and defrost regularly. Check the door gaskets for tightness.

What to do if the interior light does not turn on?

Check the LED bulb (it may need replacement by a professional). Ensure the door closes properly. If the problem persists, contact customer service.

USER MANUAL Bolero Coolmarket Bc 52 CECOTEC

CoolMarket BC 52 Black

CoolMarket BC 72 Black

CoolMarket BC 88 Black

Nevera Mini Bar/ Mini Bar fridge

Safety instructions 7

1. Parts and components 46

2. Before use 46

3. Assembly and installation 47

4. Operation 47

5. Cleaning and maintenance 49

6. Troubleshooting 50

7. Technical specifications 51

8. Disposal of old electrical

and electronic appliances 52

1. Technical support and warranty 52

2. Copyright 53

3. Simplified EU Declaration of Conformity 53

SOMMAIRE

EU01_100583_Bolero CoolMarket BC 52 Black

EU01_100584_Bolero CoolMarket BC 72 Black

EU01_100585_Bolero CoolMarket BC 88 Black

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children must not play with the appliance.

• Cleaning and user maintenance should not be carried out by unsupervised children.

• WARNING: the appliance must be unplugged during cleaning or maintenance and when replacing parts.
• Do not connect the appliance to the mains if the device itself or the power cord or plug are visibly damaged.
• WARNING: the appliance must be unplugged during cleaning or maintenance and when replacing parts.
• Do not try to repair the appliance by yourself. If the appliance is not working properly, please contact the official Cecotec Technical Support Service.
• Inspect the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• Repairs should only be carried out by a qualified service technician.
• WARNING: keep the ventilation openings in the housing of the appliance or in the built-in structure free of obstructions.
• WARNING: do not use mechanical devices or similar to accelerate the defrosting process other than those recommended by the manufacturer.
• WARNING: do not damage the refrigerant circuit.
• WARNING: do not use electrical devices inside the food storage compartments unless they are of a type recommended by the manufacturer.
• This symbol means: Risk of fire/flammable materials.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• The A-weighted emission sound pressure level is less than 70 dB(A).
• This product has been developed exclusively for hotel,

restaurant and professional use.

- To avoid food contamination, please follow the instructions below:

• Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
  o Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.

• If the appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.

• WARNING: when positioning the appliance, make sure that the power cable does not get trapped or damaged.

• WARNING: doors or covers fitted with locks and keys must be kept out of the reach of children and not in the vicinity of the freezing appliance to prevent children from being locked inside.
• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.

Free of Freon

This freezer uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.

INSTRUCTIONS DE SÉCURITÉ

Note: The number of shelves depends on the model.

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.
• Before connecting the appliance to the mains, let it stand for about 2 hours to reduce the possibility of damage to the cooling system caused by handling during transport.
• Clean the appliance thoroughly, especially inside.
• Make sure that all shelves are correctly positioned.

Box content

• Minibar refrigerator
• Instruction manual

3. ASSEMBLY AND INSTALLATION

Placement and installation

• Place the appliance in a dry and well-ventilated place. Never place the device near other heat-emitting appliances (e.g. stoves, ovens, radiators, water heaters, etc.) and avoid exposing it to direct sunlight. If this is not possible, use a suitable insulating barrier.
• There must be a clearance of at least 75 mm behind the appliance. The appliance must be at least 50 mm away from any furniture to ensure adequate ventilation. In addition, there must be at least 100 mm clearance on both sides of the appliance.
• Place the appliance on a solid base. Use the adjustable feet to level the appliance.

Shelves

The shelves can be placed on the side guides inside the appliance. Perishable products should be stored at the back of the shelves, as they will be more exposed to the cold there.

Each model includes the following shelves:

Reference	Description	Number of shelves	Load weight per shelf
EU01_100583	Bolero CoolMarket BC 52 Black	2	8 kg small shelf/8 kg large shelf/
EU01_100584	Bolero CoolMarket BC 72 Black	3	8 kg small shelf /12 kg medium shelf/ 16 kg large shelf
EU01_100585	Bolero CoolMarket BC 88 Black	4	8 kg small shelf /12 kg medium shelf/ 16 kg large shelf

Defrost water outlet

The inside of the appliance is cooled by a plate on the rear wall. Under the plate there is a duct and an outlet to drain out the water generated from defrosting.

Check both of these elements periodically to make sure that they are not obstructed.

4. OPERATION

The temperature of the appliance is regulated by setting the thermostat knob to the desired value. Fig. 2

The thermostat knob is located on the back side of the appliance.

Temperature setting

To start the appliance, turn the thermostat knob to the desired temperature.

Note: The temperature range is from 0 to 10 °C.

The temperature will vary depending on the number of food items stored and how often the door is opened.

To stop the appliance from cooling, turn the thermostat knob to the "0" position. If the appliance has not been used for some time, set it to the coldest temperature for 2-3 hours and, after this time, select the desired temperature setting. If the appliance is not going to be used for a long period of time, disconnect the power plug and leave the door partially open. This will prevent the formation of mildew.

Changes in the ambient room temperature will affect the internal temperatures of the appliance.

If you turn the thermostat knob to the "0" position, the appliance will not work (the cooling system will be switched off), but the power supply will not be interrupted.

The temperature inside the appliance will also depend on how often the door is opened.

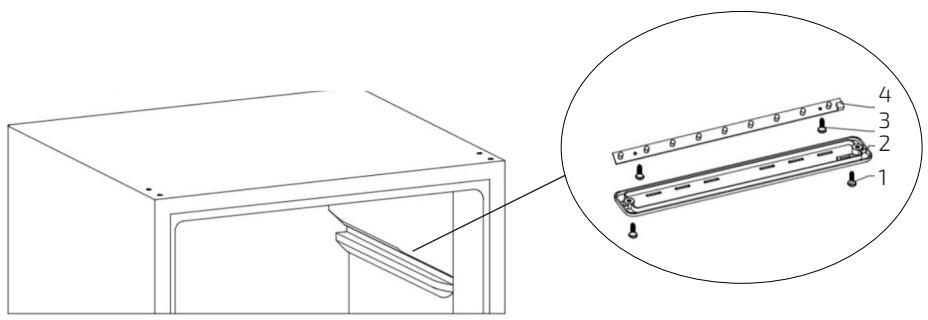

Replacing the LED light Fig. 3

1. Remove the self-tapping screws securing the lampshade with a screwdriver.
2. Remove the self-tapping screws securing the LED panel with a screwdriver.
3. Pull the contact terminal on the right side of the LED panel and install a new LED panel.

Fig. 3 key

1. 4 self-tapping screws 4.2*16
2. LED display
3. 4 self-tapping screws 2.9*6.5
4. LED light

Comments

• Do not put hot food inside the appliance.
• Before putting anything inside the appliance, make sure to remove all packaging material (covers, cardboard, etc.).
• Pack food items properly or seal them in storage containers before placing them inside the appliance and prevent them from touching each other (if this happens, the flavours may get mixed). Ensure adequate air circulation around the storage containers.
• Do not store flammable, volatile or explosive substances.
• Do not overload the appliance with food or drinks beyond its capacity. It may affect the cooling performance and cause motor failure.
• Do not block the ventilation openings of the appliance. It may cause the motor to overheat.

• Do not use the appliance for purposes other than food and beverage storage. There is a risk of compromising the functionality and safety of the appliance.

• Store drinks with a high percentage of alcohol in tightly closed bottles in an upright position.

• Prevent food from touching the rear wall.
• Avoid opening the door too often.
• Adjust the thermostat gradually.
• Some foods (e.g. lemon or orange juice) may damage the plastic surfaces or gasket if they come into contact with them for long periods of time.
• If you notice odours inside the appliance, clean it using a damp cloth and a mild cleaning agent.
• If you plan to go on holidays, be sure to remove perishable products from the appliance.

Energy saving tips

• If the gasket is damaged or the door seal is faulty, the energy consumption will increase considerably. If this happens, replace the gasket.
• Remove the transport bracket attached to the base of the door and adjust the feet before operating the appliance.
• Avoid opening the door too often, especially in hot and humid weather. Once you open the door, close it as soon as possible.
• Check periodically whether the air circulation at the rear of the appliance is adequate.
• Increase the temperature when possible (this will depend on the load, room temperature, etc.).
• If a 3-5 mm thick layer of frost appears, remove it as soon as possible, otherwise energy consumption will increase considerably.

5. CLEANING AND MAINTENANCE

For safe and efficient operation, regular inspections and maintenance are essential.

To do this, carry out monthly visual inspections by checking the power cord and plug, making sure that the ventilation openings are not obstructed, checking that the doors close properly and that the gasket is intact.

Automatic defrost

If there is a layer of frost on the rear wall of the appliance, the refrigerator will remove it automatically, without the need for you to intervene.

Cleaning

• Switch off and unplug the appliance from the mains before cleaning.
• Do not use abrasive cleaning agents, as this may damage the appliance's surface.
• Clean the outside of the appliance with water and a mild cleaning agent.
• Remove the shelves and clean them with water and a liquid cleaning agent. Plastic parts

cannot be washed in the dishwasher.

• Clean the inside of the appliance with lukewarm water. If desired, you can add one or two tablespoons of vinegar.
• After cleaning, connect the appliance to the mains and put the desired food items back in.

Switch off the appliance when not in use

If you are not going to use the appliance for a long time, set the thermostat knob to the "0" position. Then, disconnect the power supply, remove all food items and clean it. Leave the door slightly open.

6. TROUBLESHOOTING

Sometimes you may encounter minor problems which, in most cases, can be easily solved. Please refer to the following guide to help you identify the possible cause and solution to your problem. If, after following these instructions, the problem still persists, please contact the official Cecotec Technical Support Service.

The appliance is connected to the mains, but it does not work

• Check that the power cable is connected correctly.
• Check that there is no blown fuse and that the circuit breaker is not faulty.
• Make sure that the appliance is switched on, i.e. that the thermostat knob is not in the "0" position.

The appliance is not cooling properly

• The door is opened frequently or left open for too long.
  o The door is not closed properly (the gasket may be damaged).
• You have overloaded the appliance.
• The compressor ventilation is not adequate.

A layer of frost forms on the inner rear wall

• If the layer is less than 3 mm thick, the automatic defrost system will be activated.
• If the layer is 3-5 mm thick, it must be removed manually.
• To do this, set the thermostat knob to the "0" position and leave the door open.
• Do not use any electrical device for defrosting and do not scrape off the frost layer with any sharp object.

Once the defrosting process is complete, turn the thermostat knob to the desired position and close the door. Frost build-up may be caused by one of the following reasons:

• The door does not seal properly (clean the gasket if it is dirty or replace it if it is damaged).

• The door is opened frequently or left open for too long.

• You have put hot food inside the appliance.

• A food item is touching the inner rear wall.

The appliance is leaking water

If the defrost water outlet is obstructed, or if water drips onto the duct, the appliance will leak.

• Unclog the outlet and clean it.
• Remove the frost layer manually.

The appliance makes noise

• When the appliance is running, the compressor will produce some noise. This will depend on the location, use and age of the appliance. This is a normal phenomenon and has no influence whatsoever on its useful life.
• Immediately after switching on the appliance, the compressor and the refrigerant flow may produce more noise than usual. This is a normal phenomenon, not a problem. As time goes by, the noise will decrease.
• If you hear a loud noise, it means that the appliance may not be installed correctly. Remember that:

o The appliance must be level and placed on a firm, solid surface.
- The appliance must not touch any walls or furniture.
- All shelves must be correctly positioned and the food items placed inside the appliance must not touch each other.

7. TECHNICAL SPECIFICATIONS

Reference	EU01_100583	EU01_100584	EU01_100585
Appliance	Bolero CoolMarket BC 52 Black	Bolero CoolMarket BC 72 Black	Bolero CoolMarket BC 88 Black
QR code
Rated voltage	220-240 V
Rated frequency	50 Hz
Rated current	0.6 A
Capacity	50 l	72 l	88 l
Refrigerant	R600a (20 g)	R600a (22 g)	R600a (25 g)
Gas	Cyclopentane
Climate class	3, 4, 5
Electrical class	Class I
Lamp power	2 W
Dimensions	44.5 x 50 x 50.3 cm	44.5 x 50 x 67.6 cm	44.5 x 50 x 83.1 cm

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found at the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

3. MONTÁŽ A INSTALACE

Fig./Img./Abb./Afb./ Rys. 1

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./Rys. 3

www.cecotec.es
