Product type	Ionic hair dryer
Brand	Cecotec
Model	Ionicare 5500 Powerstyle
References	04210 / 04211
Power	1600 - 1800 W
Voltage	220 - 240 V ~
Frequency	50/60 Hz
Ionic technology	Yes, emits ions to protect hair and add shine
PerfectColour function	Yes, constant cool air to preserve colored hair
Cool shot button	Yes, manual activation
Speeds and temperatures	2 levels (medium and turbo) combined with 2 temperatures
Included accessories	Diffuser, 2 concentrator nozzles (narrow and wide)
Removable grille	Yes, for cleaning
Overheat protection	Automatic shut-off in case of overheating
Cable length	Approximately 1.8 m
Approx. dimensions	25 × 10 × 8 cm
Approx. weight	0.6 kg
Usage	Household only, do not use near water
Cleaning	Damp cloth, do not immerse
Warranty	Contact official customer service (see manual)

Frequently Asked Questions - Ionicare 5500 Powerstyle CECOTEC

How to use the Ionicare 5500 Powerstyle hair dryer?

Wash and towel-dry your hair, attach the desired accessory (diffuser or concentrator), plug in the device, then select the speed and temperature with the selector. Use the Cool shot button to set the style.

What are the benefits of ionic technology?

Negative ions neutralize static electricity, reduce frizz, and seal the hair cuticle for more shine and softness.

What is the PerfectColour function for?

This function sends a stream of constant cool air to prevent overheating of colored hair, thus preserving the color and slowing fading.

How to activate the cool air?

Press the Cool shot button once (button 5 on the diagram) to switch to cool mode; press again to return to hot mode.

How to clean the hair dryer?

Unplug it and let it cool down. Clean the surface with a damp cloth and dry it. Remove the grille (image 5) to remove hair and dust. Never immerse the device in water.

What to do if the hair dryer suddenly stops?

It is overheat protection. Unplug it, let it cool for a few minutes and check that the air intake grille is not blocked. You can then turn it back on.

What accessories are included?

The box contains: the hair dryer, a diffuser for curly hair, two concentrator nozzles (one narrow and one wide) for precise drying.

Can I use this device in the bathroom?

Yes but with caution. Never use it near a bathtub, shower, or sink filled with water. Unplug it after use to avoid any risk.

What is the power of this device?

Power varies between 1600 and 1800 W depending on the selected mode. Required voltage is 220-240 V ~, 50/60 Hz.

How to achieve natural volume with the diffuser?

Hold the device vertically and insert the diffuser teeth into the hair. Perform circular motions at the scalp level to distribute heat and increase volume.

USER MANUAL Ionicare 5500 Powerstyle CECOTEC

Safety instructions 7

1. Parts and components 30

2. Before use 30

3. Operation 31

4. Cleaning and maintenance 32

5. Technical specifications 32

6. Disposal of old electrical and electronic appliances 32

7. Technical support and warranty 33

8. Copyright 33

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years old and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Not suitable for use in a bath or shower.
• When the hair dryer is used in a bathroom, unplug it after use as the proximity of water presents a hazard even if the dryer is switched off.
• As additional protection, it is recommended that a residual current device (RCD) having a rated operating fault current not exceeding 30 mA be installed in the electrical circuit supplying the bathroom. Ask your installer for advice.
• CAUTION: Do not use this appliance near bathtubs, showers, sinks or other vessels containing water.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.

• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

• This symbol means that this appliance must not be used in a bathtub, shower or tank filled with water.

• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• This symbol means “Caution: hot surface.” The temperature of accessible surfaces may be high when the appliance is in operation. Be careful not to burn yourself.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any danger.
• Ensure that the air inlets and outlets are not blocked.
• Turn off and unplug the appliance from the power supply immediately after use.
• Unplug the appliance immediately under the following circumstances: abnormal operation, needs cleaning, and/or after use.
• Do not insert metal objects through the air inlets to avoid electric shocks.
• Do not wind the cable around the device.
• Keep your face, neck, and scalp away from the device.
• Do not leave the appliance on any surface while in operation.
• Do not use the appliance to dry wigs, natural hair extensions, fake hair nor animal hair.
• The air inlet ensures good ventilation of the appliance. Do not cover or obstruct it, as this may cause overheating.
• Do not insert objects in the air inlet.

INSTRUCTIONS DE SÉCURITÉ

1. Air outlet
2. Air inlet grille
3. Housing
4. lonizer
5. Cool shot
6. Speed and temperature selector
7. Cable
8. Diffuser
9. Narrow concentrator nozzle
10. Wide concentrator nozzle

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the device if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content

• Hair dryer
• Diffuser
• Concentrator nozzle (x2)
• Instruction manual

3. OPERATION

The hair dryer emits ions, which protect both hair and skin, add shine, and seal the hair cuticle for total care during use.

1. Wash and condition your hair.
2. Dry your hair with a towel and comb it.
3. Install the desired attachment (concentrator nozzle or diffuser) at the front part of the hair dryer.
4. Plug the appliance into a power supply.
5. Use the speed and temperature selector to set the desired setting.

Fig. 2

1. Off
2. PerfectColour function
3. Medium speed/Medium temperature
4. Turbo speed/Maximum temperature

Functions

PerfectColour function

The hair dryer features the PerfectColour function, which immediately applies a constant shot of cold air so that coloured hair does not overheat or over-dry, slowing down deterioration and the loss of colour and shine.

Cool-shot function

This function is activated by pressing the cold air shot button once. The hair dryer will start producing cool air. When you have finished using this function, press the same button to deactivate it.

• Once you have finished using the appliance, switch it off and unplug it from the power supply.
• Allow it to completely cool down before cleaning or storing it.

Warning

in case of overheating, the hair dryer will automatically turn off. In this case, unplug it from the power supply and allow it to cool down for a few minutes. Before turning it back on, make sure there are no fluffs, hair, or other objects blocking the air inlet and outlet grille.

Tips

• The hair diffuser is designed to dry straight or curly hair.
• To increase natural hair volume or enhance curls, hold the appliance upright during use. (Fig. 3).

ENGLISH

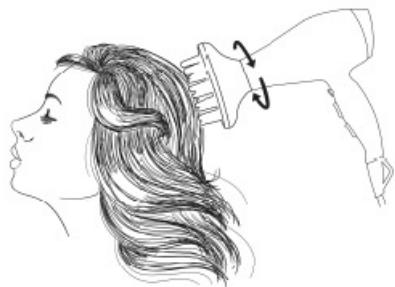

- If you wish to add volume to the roots, place the diffuser pins between hair, and once in contact with the scalp, move the hair dryer in circles to distribute heat. (Fig. 4).

Warning

Hairsprays contain flammable substances. Do not apply hairspray to your hair before using the appliance.

4. CLEANING AND MAINTENANCE

• Turn off and unplug the appliance from the power supply before cleaning or repairing it.
• Use a soft damp cloth with some water to clean the product surface.
• Thoroughly dry the appliance with tissue paper after cleaning it.
• Clean the dust and hair that may block the grille and air inlet or outlet periodically.
• Do not immerse the appliance in water and do not expose it to water while cleaning it.
• To remove the grille, follow the steps shown in figure 5.

5. TECHNICAL SPECIFICATIONS

Product reference: 04210/04211

Product:

IoniCare 5500 PowerStyle

IoniCare 5500 PowerStyle Black

Power: 1600 W - 1800 W

Voltage: 220 V-240 V \~

Frequency: 50/60 Hz

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Moc: 1600 W - 1800 W

Fig. / Img. / Rys. / Obr. 3

Fig. / Img. / Rys. / Obr. 4

Fig. / Img. / Rys. / Obr. 5
