B9 - Industrial Cleaner NILFISK - Free user manual and instructions

USER MANUAL B9 NILFISK

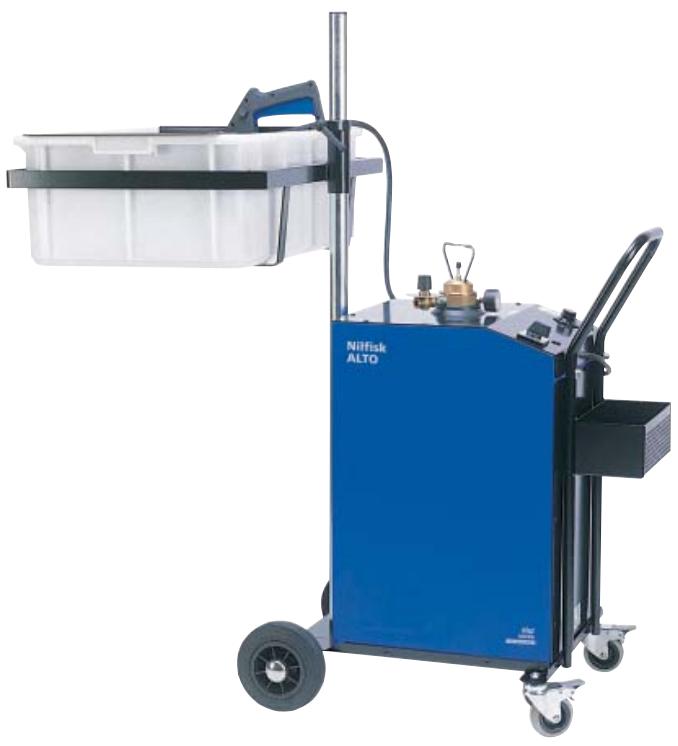

B9 Standard/Stainless

Nilfisk ALTO

Why Compromise

DK Instruktionsbog 3-8
NO Instruksjonsbok 9-14
SEInstruktionsbok 15-20
Fl Kayttoohje 21-26
GB Instruction manual 27 - 32
DE Betriebsanweisung 33-38
FR Manuel d'Instructions 39 - 44
NL Gebruikershandleiding. 45 - 50

B9 Stainless: pH 4 - 13

IMPORTANT: Read this instruction manual before starting up your brake washer for the first time.

This machine produces a water jet of a high temperature which is why severe injuries can occur if the safety precautions are not observed. A complete understanding of the contents of this instruction manual is required in order to prevent injuries to yourself and persons nearby, damage to objects and to the machine itself.

Fields of applications

The Nilfisk-ALTO B9 has been designed for the cleaning of small items in the workshop, in such a way as to minimize the number of moving parts and components. When in operation the Nilfisk-ALTO B9 is ideal for the effective cleaning of brake parts, couplings, ball bearings, valves, machinery parts and electrical motors.

Contents

1.0 Technical data

2.0 Safety precautions and warnings

2.1 WARNING - Mains power connection
2.2 WARNING - Extension cable
2.3 WARNING - Operation

3.0 Starting-up

Instructions for unpacking and preparation of the washer

4.0 Operation

4.1 Ready for operation
4.2 Stop

5.0 Detergents

6.0 Warranty conditions

7.0 Trouble-shooting and correction

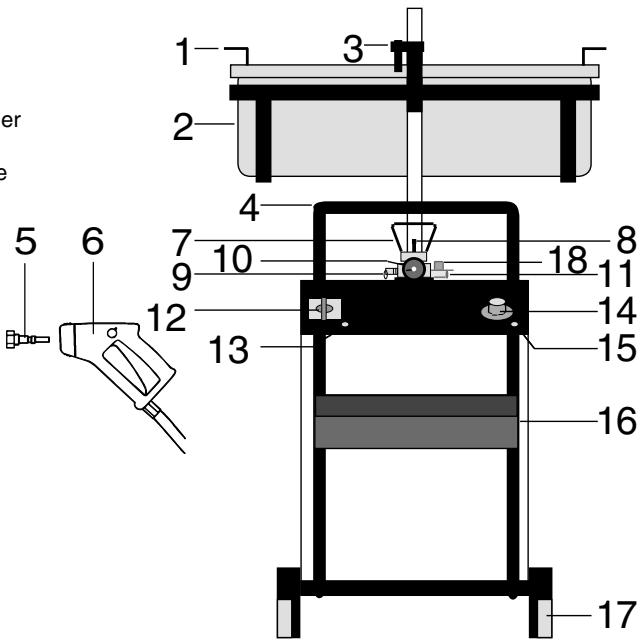

Survey of model

1. Wash basket
2. Wash tray
3. Adjusting handle
4. Transport handle and cable holder
5. Nozzle
6. Spray handle with pressure hose
7. Screw cap for filling
8. Compressed-air valve
9. Safety valve
10. Pressure gauge
11. Outlet for pressure hose
12. Switch
13. Indicator lamp for heating
14. Temperature control
15. Reset button for thermal cut-out
16. Put-away basket
17. Castor wheel with brake
18. Control valve

1.0 Technical data

The Nilfisk-ALTO B9 brake washer features an electrically heated pressure tank, which has been fully insulated. Detergent mixed with water is heated to temperatures up to 85^ and pressurized beneath an air cushion. This pressurized liquid is lead through a hose to a safety spray handle and nozzle. The dirty water drains into the wash tray beneath the parts to be cleaned. The wash tray can be adjusted to any height between 300 and 1100mm .

Model		B9 Stainless	B9 Standard
Voltage	volt	230	230
	single-phase AC	50 Hz	50 Hz
Rated power input	watt	2000	2000
Rated current	A	9	9
Pressure tank
Max. pressure	bar	6	6
Max. flow	l/min.	1.5 (continuous control)	1.5 (continuous control)
Capacity	litre	23	23
Temperature, adjustable	°C	15 - 85	15 - 85
Heating time from 15 to 85°C	min.	approx. 40	approx. 40
Electric cable with plug, length	m	5	5
Pressure hose, length	m	2	2
Dimensions:
Wash tray (LxBxH)	mm	660 x 450 x 220	660 x 450 x 220
Washer (LxBxH)	mm	580 x 490 x 1170	580 x 490 x 1170
Weight	kg	55	55
Detergents, acidity	pH	4 - 13	5 - 9

We reserve the right to make alterations.

2.0 Safety precautions and warnings

Upon the unpacking of your Nilfisk-ALTO B9 brake washer you should check it for any defects. If you find any, we kindly ask you to contact your nearest Nilfisk-ALTO distributor.

Check voltage

Check that the voltage stated on the model tag corresponds to your mains voltage.

Power consumption, fuse

Check the power consumption stated on the model tag and then check that the fuse is correct. The domestic installation should be protected by a 10 A fuse.

(only GB: The electric cable should be protected by a 13 A slow-blow fuse.)

2.1 Mains power connection WARNING!

Faulty connection of the machine can cause electric shock.

1. To protect against short-circuits all live wirings, especially cables and electrical components in the working field, should be splash-proof.
2. Only connect the machine to an installation with earth connection. If you are in any doubt about the earth connection, please contact a qualified electrician for correct installation.
3. Electric cables should be faultless and without any cracks - never use a damaged cable.
4. Never touch any plug and socket with wet hands. If you are in any doubt, please contact a qualified electrician or your nearest Nilfisk-ALTO distributor.
5. We recommend that you connect the machine to a power source with a Residual Current Device (RCD), which will disconnect the power supply if the leakage current exceeds 30mA for 30 milli seconds.
6. The electric supply connection shall be made by a qualified electrician and comply with the latest edition of the IEC Wiring Regulations.

2.2 Extension cable

WARNING!

1. Note: If an extension cable is required it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.
2. If you want to apply an extension cable, we recommend that you use the following cable dimensions:

3 × 1.5 ~mm^2 for lengths up to 10 ~m and 3 × 2.5 ~mm^2 for lengths from 10 to 30 ~m .

1. The whole cable should be unwound from the cable drum.
2. Extension cable, plug and socket should be waterproof.
3. Cable connections should be kept dry and off the ground.

2.3 Operation

WARNING!

1. WARNING! Never direct the water jet towards people, pets, electric wiring, or the machine itself.
2. Never open the pressure tank or detach the hose when the system is under pressure.
3. Do not tamper with the air valve or the safety valve.
4. Only use original Nilfisk-ALTO spare parts for repair and maintenance. Only Nilfisk-ALTO spare parts ensure that your washer is operational and reliable.
5. Do not use the machine if the safety devices, electrical connections or the pressure tank are defective.
6. Persons under the influence of alcohol, drugs and medicine should not operate the machine.
7. When using detergents the enclosed instructions should always be strictly observed. Never use flammable liquids.
8. Always unplug before you perform any cleaning or maintenance of the machine.

Instructions for unpacking and preparation of the washer

1. Unpack the washer and place it on all four wheels. Place the wash tray and the wash basket and secure the adjusting handle to the correct height.
2. Attach the spray handle with the hose by screwing the hose onto the outlet at the top of the washer.
3. Open the detergent tank by unscrewing the cap. Fill the tank with an adequate mixture of water and detergent until the liquid is visible from above (max. capacity: 23 l).

Never use flammable liquids. Only use detergents recommended by the producer.

1. Screw on the cap and tighten it by hand - do not use a tool or overtighten.

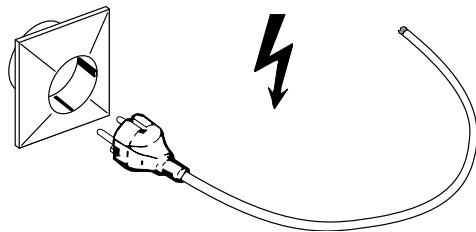

2. Connect the plug to the socket.

1. Start up the washer and set the temperature dial to the required temperature.

The signal lamp will light up to indicate that the heating is on. The max. temperature of 85^ will be reached in approx. 40 min. depending on the temperature of the detergent solution or the ambient temperature. When the required temperature has been reached, the thermostat will ensure that the temperature is kept constant. Disconnect the plug from the socket and wind the cable round the transport handle.

1. The pressure in the tank is increased with ordinary compressed air through the compressed-air valve at the top of the screw cap.

2. Max. pressure of 6 bar must not be exceeded.

WARNING!

• Use only compressed air and no other pressure medium.
• Don't tamper with the safety valve or the compressed-air valve.

• Before pressurizing the tank always check that the safety valve can move freely and that there is no external damage.

• If you want frost protection, set the scale of the temperature adjustment at F.

4.0 Operation

1. Now the washer is ready for operation. Mount the nozzle in the spray handle. Pull forward the grey quick connector (1). Insert the nipple of the nozzle (2) in the connector and release the quick connector. Pull forward the nozzle to ensure correct mounting before starting the washer. Use the nozzle for ordinary cleaning. If the dirt is stubborn we recommend the use of a brush.

1. Activate the trigger of the spray handle (3).

The detergent is sprayed out of the nozzle.

If necessary, adjust the flow on the control valve (18).

WARNING!

Never direct the water jet towards people, pets, electric wiring, or the machine itself.

4.1 Ready for operation

If the washer is not being used but must be ready for operation place the spray handle in the holder of the basket of the wash tray.

• Deactivate the spray handle and lock it by turning the safety knob (4) into pos. O.

4.2 Stop

Always switch off the mains when the washer is being stored.
Depressurize the tank by activating the spray handle or releasing (pulling) the safety valve.
Empty the tank. The life of B9 Standard will be prolonged if it is flushed through with pure water.

WARNING!

Never attempt to open the pressure tank or detach the hose when the system is under pressure.

5.0 Detergents

Only use detergents with the following pH value:

B9 Standard: pH 5 - 9

B9 Stainless: pH 4 - 13

Unsuitable detergents may damage the washer as well as the item which is being cleaned.

Never use flammable liquids..

For B9 Stainless with a stainless steel tank we recommend you to use Nilfisk-ALTO Allosil® which is an alkaline detergent.

Allosil®

Special product for water based degreasing and cleaning with hot or cold water. The product is anti-corrosive and suitable for the cleaning of aluminium and other light metals.

Product type: alkaline (pH = 13)

Contents: tensides, complex builder, corrosion inhibitors and auxiliary elements in an aqueous solution.

Dosing: 1-20%. Delivery: 5, 25 litres

6.0 Warranty conditions

Your Nilfisk-ALTO product is guaranteed for 12 months from date of purchase (purchase receipt must be presented) on the following conditions:

• That defects are attributable to flaws or defects in materials of workmanship.
  (usual wear and tear as well as misuse are not covered by the guarantee).
• That repair has not been attempted by persons other than Nilfisk-ALTO-trained service staff.
• That only original accessories have been applied.
• That the product has not been exposed to abuse such as knocks, bumps or frost.
• That the directions of this instruction manual have been thoroughly observed.

Any illegitimate guarantee repair will be invoiced (i.e. malfunctions due to causes mentioned in section "7.0 Trouble shooting and correction" of the instruction manual)

7.0 Trouble-shooting and correction

You have chosen the best quality and therefore deserve the best service. To avoid unnecessary disappointments, you should check the following before contacting the nearest Nilfisk-ALTO service organisation:

Fault	Cause	Correction
No detergent escapes from the nozzle	Check pressure in pressure tank	Correct pressure is 3-6 bar; if necessary repressurize with compressed air
	Check nozzle in spray handle - nozzle clogged up?	Blow clear with compressed air
	Control valve (18) closed	Open control valve
Heating fails	Check thermostat, temperature below 25°C?	Correct temperature is 60-85°C
	Power supply switched off?	Check switch, socket and fuses
	Is the washer empty?	Refill
No air pressure	Air system leaking?	Check all connections and filler neck
	Spray handle leaking?	Check spray handle
Heating does not switch on after heat-up period	Thermal cut-off tripped	Allow the pressure tank to cool and press the reset button on the safety thermostat

Should malfunctions occur other than those mentioned above, please contact the nearest Nifisk-ALTO service organisation.
