Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 4850 Style
Blade diameter	132 cm
Number of blades	3
Blade material	ABS plastic
Motor material	Metal (steel)
Motor type	Silent AC motor
Number of speeds	6
Reverse function (winter/summer)	Yes, via reverse switch
Remote control included	Yes, with RF receiver
Integrated lighting	Yes, LED (non-dimmable)
Motor power	55 W
Supply voltage	220-240 V ~ 50 Hz
Max sound level	35 dB (A)
Max airflow	150 m³/min
Net weight	6.2 kg
Housing dimensions (L x W x H)	132 x 132 x 35 cm
Minimum ceiling height	2.5 m
Blade pitch angle	12°
Color	White / Black (depending on version)
Warranty	2 years
Maintenance and cleaning	Dust the blades with a soft, dry cloth. Do not use abrasive products.
Safety	Double insulation, automatic shutdown in case of overheating

Frequently Asked Questions - Ventilador Techo Energysilence Aero 4850 Style CECOTEC

How to install the Cecotec Energysilence Aero 4850 Style ceiling fan?

Installation must be carried out by a qualified electrician. Fix the bracket to the ceiling using suitable anchors, connect the electrical wires (phase, neutral, ground) according to the diagram provided, then assemble the blades and the light kit if present. Follow the instructions in the manual strictly.

Can I use the fan without the remote control?

Yes, the fan can be controlled manually via the wall switch (if installed) or the pull cord, but the remote control is required to access all speeds and the reverse function.

How to reverse the rotation direction for winter?

On the fan housing there is a reverse switch. Push it up for summer mode (counterclockwise rotation, cooling airflow) and down for winter mode (clockwise rotation, heat redistribution).

The fan is making an abnormal noise, what should I do?

Check that all screws are tight, the blades are balanced, and no objects are in contact. If the noise persists, an imbalance can be corrected using the provided balancing kit. Contact customer service if necessary.

How to clean the fan blades?

Use a soft, dry or slightly damp cloth (without detergent) to remove dust. Never use abrasive products or solvents. For the motor, simple external dusting is sufficient.

The fan does not turn on, what should I check?

Ensure the power supply is off, then check the connections at the junction box and the remote receiver. Replace the remote control batteries. If nothing works, call a professional.

What is the recommended ceiling height?

The recommended minimum height is 2.5 meters. For optimal operation, the blades should be at least 2.3 meters above the floor.

Is this fan suitable for outdoor use?

No, this model is designed for indoor use only. It is not resistant to moisture or weather conditions.

How to pair the remote control with the fan?

Turn off the fan's power for 10 seconds, then restore it. Within 30 seconds, press the 'Pair' button on the remote control (located in the battery compartment). A beep confirms pairing.

Where can I find spare parts for this fan?

Spare parts (blades, light kit, remote control) are available on the official Cecotec website or from authorized dealers. Check compatibility with the 4850 Style model.

USER MANUAL Ventilador Techo Energysilence Aero 4850 Style CECOTEC

1. Parts and components 44
2. Before use 44
3. Product assembly 44
4. Operation 47
5. Cleaning and maintenance 48
6. Technical specifications 48
7. Disposal of old electrical and electronic appliances 49
8. Technical support and warranty 49
9. Copyright 50

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the product marking and that the wall outlet is grounded.
• If the power cord is damaged, it must be replaced by the official Technical Support Service of Cecotec to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The device must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The fan must be properly grounded to avoid the risk of electric shocks.

• The device must be installed in accordance with national wiring regulations.

• Never install the fan in a damp or wet room.

• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the device works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the product.
• This product is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store

batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Do not subject batteries to mechanical shock.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not use the remote control if powered with batteries that differ in capacity, size, or type.
• Children should be allowed to handle the batteries only under adult supervision.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Use the batteries only for their intended purpose.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

Led: 22 W (max.) LED

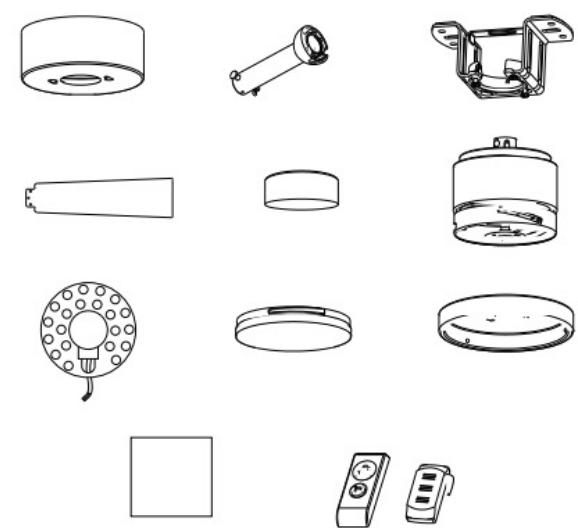

1. Installation bracket
2. Canopy
3. Hanging ball
4. Downrod
5. Clamp cover
6. Upper housing
7. Connector
8. Motor
9. Blade
10. Lamp fitter plate
11. LED
12. Lamp

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If any of them are missing or not in good condition, please contact Cecotec's official Technical Support Service immediately.

3. PRODUCT ASSEMBLY

Warning

To avoid electric shocks, turn the household power supply off before installing the ceiling fan.

General assembly instructions

• If you hang the fan on a hook, it must withstand at least 100 kg.
• To prevent personal injury and damage, make sure that the location where the device is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 3
• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length can be extended by using a longer downrod.

Assembling the fan based on ceiling type (Fig. 4):

1. Standard assembly: the device hangs from a straight flat ceiling.
2. Angled assembly: the device hangs from a vaulted or angled ceiling.

Brick/ concrete ceiling

Fig. 5.

1. Drill 2 8-mm holes on the concrete ceiling.
2. Insert the plugs into the holes in your ceiling or, if using chemical plugs, fill the cavity with the chosen component and follow the instructions for use. Then, insert the bolts into the chemical plug and wait for it to dry.
3. Insert the visible part of the bolts in the mounting-plate holes.
4. Fix the mounting plate to the bolts first by screwing the regular washers, then the lock washers, and finally the nuts.

Wooden ceiling

Fig. 6.

Use the 4 self-tapping screws provided and their 4 corresponding washers to fix the mounting plate to the ceiling.

Assembling the fan

Fig. 9 key:

1. Black and Blue
2. White
3. Earth
4. Phase (Brown/Black)
5. Neutral (Blue)
6. Earth

To assemble the ceiling fan, follow the steps below (Fig. 3-13):

1. Remove the lower and upper pins from the downrod and release the hanging ball at the top of the rod.

2. Pass the wiring from the main body through the downrod.

3. Attach the downrod to the body by inserting the pin through the downrod and the main-body attachment. Tighten the screws provided on the main-body attachment to properly secure the downrod.
4. Remove the 4 screws that fix the upper canopy and the installation bracket. Insert the upper canopy through the downrod. Fig. 7
5. Insert the pin through the pin holes located on the upper end of the downrod. Once inserted, slide the hanging ball upward to the upper end of the downrod and fix it with one of the screws provided.
6. Make sure the pin fits in the slots located inside the hanging ball before screwing it.
7. Mark the centre of the installation bracket and use both self-tapping screws provided with their corresponding washers and pressure washers to fix the installation bracket to a wooden ceiling.

Warning

Self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan to concrete ceilings or joists, use a drill for making the holes and plugs or expansion screws (not included).

1. Remove the screws located on the lower part of the motor through the lamp-bracket hole. Fig. 8
2. Screw the blade brackets to the motor through the hole in the lamp bracket paying attention to the warning sticker located on one of the blade brackets. Fig. 8
3. Screw the blades to the blade supports using the screws, washers, and nuts provided. Because blades are reversible, choose the side you wish to be visible and screw them in such way that the nuts are located on the top part of the blade. Fig. 8
4. Once the installation bracket is screwed, connect the wiring. First connect the quick-connect cord to the terminal block on the installation bracket. (Fig. 9). From the opposite end of the terminal block, connect the wiring from the installation of your home.
5. Lift the fan previously mounted to the installation bracket and insert the hanging ball through the installation-bracket hole. Fig. 10
6. Connect the cords that come out from the downrod to those from the installation bracket using both quick connectors. Fig. 10
7. Slide the canopy upward so that all the connections are stored inside it and screw it to the installation bracket using the 4 screws (2 to each side) removed at the beginning of the installation process. Fig. 11
8. Position the bracket by screwing it to the main body of the fan, then install the LED board and connect the cable to the connector on the fan body. The board will remain attached by magnets to the fan body. Fig. 12 and 13
9. Place the lamp on the bottom of the appliance, inserting the tabs of the lamp holder so that it is fully secured. Fig. 14

Please note

The reversible blades have 2 different high-quality finishes.

By inverting the blades, the device produces a decorative effect and adapts to different room designs.

4. OPERATION

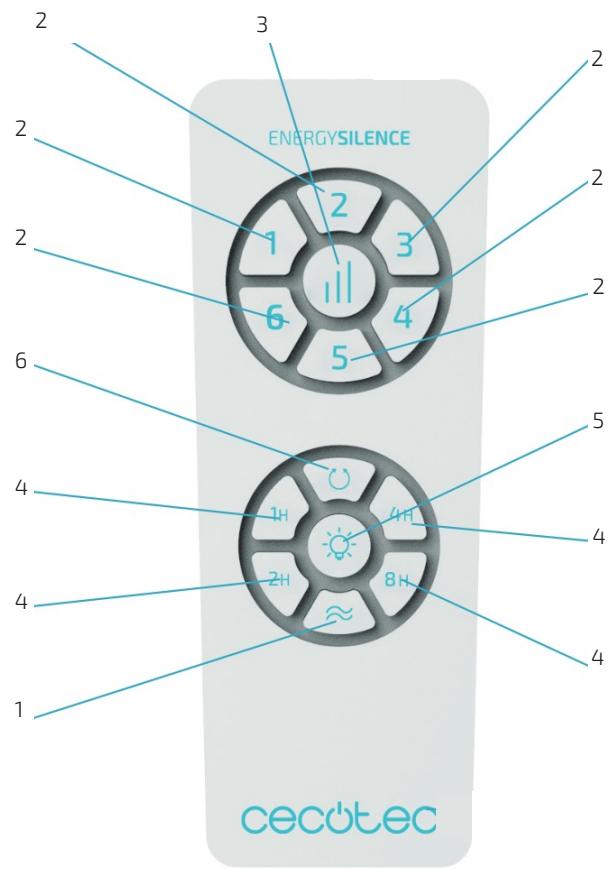

Fig. 15

1. Natural-breeze mode
2. Speed control
3. Off button
4. Timer
5. Light

6. Winter/summer function (blade spinning inversion)

7. The light indicator will light up while the product is running.

8. Use the speed buttons to select the air speed level.
9. Press the off button || to turn the device off.
10. Use the timer buttons to select the fan operating time: 1h, 2h, 4h, and 8h. The fan will turn off once the selected time has elapsed.
11. Press the light button -to turn the lamp on or off and select the different light shades. To switch between these, press repeatedly until selecting the desired shade.
12. The remote control requires 2 x 1.5 V-3AAA batteries.

To activate the switch, press ⏻. This button is used to change the direction of rotation (clockwise or counterclockwise) of the fan blades.

Winter/Summer function

• Winter function: press the button for the blades to start rotating clockwise (causing warm air to be distributed throughout the room). If this does not occur, press the button again.
• Summer function: press the button ○ for the blades to start rotating counterclockwise (causing a cool breeze). If this does not occur, press the button again.

Natural-breeze mode

Press the natural-breeze button ∼ for the fan to start rotating at a speed that simulates a natural breeze.

Warning

Reverse the direction of rotation with the fan running. You will hear a beep and the blades will

progressively stop rotating until they almost stop. After a few seconds, they will start spinning again in the opposite direction.

Warnings

• The remote control operates through RF Wireless digital transmission technology. If both the fan and the lamp are equipped with switch, turn on the fan at top speed and turn the light on before using the remote control.
• If the fan or the light cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if they make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other products with remote control in the same area and check if the transmitter buttons are pressed. Product with similar remote-control systems may cause interference. This includes infrared remote controls.
• Pay attention to the product voltage. Too low a voltage may cause the remote control to not work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

5. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.
• Do not immerse any of the parts of the device in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning it.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 4850 Style White/EnergySilence Aero 4850 Style Black/EnergySilence Aero 4850 Style Steel

Product reference: 05835/ 05836/ 05837

Motor: 30 W, 220-240 V \~ 50/60 Hz

Led: 22 W (max.) LED

This product features a light source with an energy efficiency grade E.

Description	Symbol	Value	Unit
Fan maximum flow	F	110.5	m^3/min

Fan power consumption	P	16.3	W
Service value	SV	6.8	(m^3/min)/W
Power consumption on standby mode	P_SB	0.45	W
Fan sound power level	L_WA	51.6	dB (A)
Maximum air speed	C	1.9	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or cells must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec's official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1-2

LED : 22 W (max.) LED

Led: 22 W (max.) LED

Led: 22 W (max.) LED

LED: 22 W (max.) LED

LED: 22 W (max.) LED

Led: 22 W (max.) LED

Led: 22 W (max.) LED

Fig./Img./Abb./Rys./Obr.1

Fig./Img./Abb./Rys./Obr. 2

Fig./Img./Abb./Rys./Obr. 3

Fig./Img./Abb./Rys./Obr. 4

Fig./Img./Abb./Rys./Obr. 5

Fig./Img./Abb./Rys./Obr. 6

Fig./Img./Abb./Rys./Obr. 7

Fig./Img./Abb./Rys./Obr. 8

Fig./Img./Abb./Rys./Obr. 9

Fig./Img./Abb./Rys./Obr. 10

①

③

Fig./Img./Abb./Rys./Obr. 11

Fig./Img./Abb./Rys./Obr. 12

Fig./Img./Abb./Rys./Obr. 13

Fig./Img./Abb./Rys./Obr. 14

Fig./Img./Abb./Rys./Obr. 15

www.cecotec.es
