Product type	Pedestal fan
Brand	Cecotec
Model	Forcesilence 1040 Smartextreme
Power supply	220-240 V~ 50/60 Hz
Power	28 W (30.8 W measured)
Insulation class	Class II
Ventilation modes	Breeze, Eco, Night, Normal
Speed adjustment	Electronic speed controller (Breeze mode by default with speed 18)
Timer	1 to 18 hours
Oscillation	Yes, with stop function
Remote control	Included
Maximum air flow	55.8 m³/min
Acoustic power level	63.7 dB(A)
Maximum air speed	2.9 m/s
Height adjustment	Telescopic pole with lock nut
Maintenance	Clean with a soft, damp cloth, do not immerse
Repairability	Repairs by the official Cecotec after-sales service only
Box contents	Fan, remote control, instruction manual
General information	Designed in Spain, manufactured in China
Use	Household use only, flat and stable surface

Frequently Asked Questions - Forcesilence 1040 Smartextreme CECOTEC

How to assemble the Forcesilence 1040 Smartextreme fan?

Take all the parts out of the packaging. Insert the tube into the base and tighten the nut. Adjust the height with the lock nut. Attach the fan unit, then the blades (large and small) and finally the front grille. Follow the illustrated steps in the manual.

What are the available ventilation modes?

The fan offers four modes: Breeze, Eco, Night and Normal. The default mode is Breeze. Press the disconnect button to change modes in the indicated order.

How to set the timer?

Press the timer button to select a duration between 1 and 18 hours. The corresponding indicator light turns on to confirm.

How to clean the fan?

Unplug the device and wait for the blades to stop completely. Use a soft, damp cloth for the exterior surfaces. Never immerse the fan in water and avoid abrasive products.

What to do if the remote control does not work?

Check that the fan is powered on and that you are within range. If the problem persists, contact the Official Cecotec After-Sales Service at [phone].

Can the fan be used in a child's room?

Yes, under adult supervision. The device can be used by children over 8 years of age if they have received safety instructions. Keep the product out of reach of children under 8 years.

What safety precautions should be followed?

Never touch the plug with wet hands, keep the fan away from heat sources and curtains, and do not use it in a humid or explosive environment. Regularly check the condition of the cable.

How to adjust the height of the fan?

Loosen the lock nut on the tube, adjust the desired height, then tighten the lock nut to securely fix the tube.

Is this fan noisy?

The acoustic power level is 63.7 dB(A), which is relatively quiet for a fan of this power. Night mode is designed for even quieter operation.

How to maintain the fan in the long term?

When not in use, store it in its original box in a cool, dry place. Clean it regularly with a dry or slightly damp cloth to prevent dust accumulation.

USER MANUAL Forcesilence 1040 Smartextreme CECOTEC

Manual de instrucciones Instruction manual

1. Parts and components 28
2. Before use 28
3. Product assembly 29
4. Operation 29
5. Cleaning and maintenance 30
6. Technical specifications 30
7. Disposal of old electrical and electronic appliances 31
8. Technical support and warranty 31
9. Copyright 31

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the product marking and that the wall outlet is grounded.
• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Never immerse the appliance in water. Do not touch the water!

• Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by the official Technical Support Service of Cecotec to avoid any type of danger.

• Do not move the product or pull from its power cord. Do not use the cord as handle. Do not push the cord against corners or sharp edges. Do not pass the product over the power cord. Keep the cord away from hot surfaces.

• Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.
• Do not use the appliance in confined spaces with explosive or flammable vapours.
• Keep the fan away from heat sources.
• Keep hair, clothes, fingers, and other body parts away from openings and moving parts of the product.
• Do not leave the appliance unattended while in use. Unplug it from the power supply when you finish using it and before leaving the room.
• Do not try to repair the product by yourself. Contact the official Technical Support Service of Cecotec.
• Always turn off and unplug the appliance when not in use, before moving it to a new location, and before assembling or disassembling it. To prevent it from tipping over, wind the cord safely.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• Do not place the cord under carpets or cover it. Place the cord where it will not be tripped over.
• Operate the fan in a wide area. No less than 20 cm should be kept from walls and corners to ensure proper air ventilation during operation.
• Keep this appliance and its power cord out of reach of children under the age of 8.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If any of them are missing or not in good condition, please contact Cecotec's official Technical Support Service immediately.

Box contents

• EnergySilence 1030/1040 Smartextreme fan
• Remote control
• Instruction manual

3. PRODUCT ASSEMBLY

The main body of the fan and other pieces do not come assembled. Follow the instructions on this manual to assemble de product before operating it.

WARNING:

Never operate the appliance without it being completely assembled.

Only operate the fan in an upright position. Any other position could create a dangerous situation.

Follow these instructions to assemble the product:

• Unpack the fan and remove all the packaging materials.
• Insert the lifting tube into the hole located on the bottom, then use the nut to fix it tightly (fig. 2).

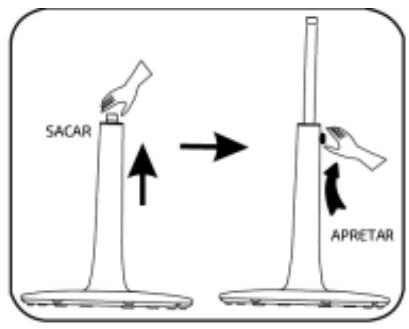

• Loosen the lock nut to lift and extend the lifting tube to the desired height and then fix the lock tightly again (fig. 3).
• Loose the lock nut on the fan body, introduce the lifting tube in the fan body, and tighten the nut (fig. 4).
• Take off the nut and motor shaft protection part, align the back cover with the fan head, and tighten the nut clockwise (fig. 5).
• Insert the large and small blade and tighten the nut counterclockwise (fig. 6).
• Cover the front grille and tighten the nuts (fig. 7).

4. OPERATION

• Before using the fan make sure that it is on a flat and stable surface. Damage may occur if it is placed on an uneven surface.
• Set all the switches to the OFF position, then insert the plug directly into a standard socket. Make sure the plug fits tightly into outlet.
• Press the on button to start and turn off the fan, the default mode setting is normal and the default speed setting is 18.
• Press the mode button to select the desired air mode: Breeze, Eco, Night, and Normal. The air mode selected will activate the corresponding light indicator.
• Set the timer by pressing the button to select the desired operating time, the range is from 1 to 18 hours. The light indicator corresponding to the selected operating time will light up.
• For a greater air flow, press the oscillation button. To stop oscillating, just press this button again, the light indicator will turn off.
• Rotate the control knob beside the control panel, you can change the fan speed. Rotate the knob clockwise to increase the speed and rotate the knob counterclockwise to decrease the speed.

NOTE:

All above functions can be operated from the remote control.

5. CLEANING AND MAINTENANCE

• Always remove the plug from the socket outlet and allow the fan to stop operation before cleaning it.
• Clean the external surfaces of the fan with a soft damp (not dripping wet) cloth.
• Do not immerse the fan in water.
• Do not use any cleaning chemicals such as detergents and abrasives.
• Do not allow the interior (especially the PCB) to get wet, as this could create a hazard.
• When the appliance is not in use, make sure that it is unplugged from the wall socket. To store the fan, you may pack it in the original carton and store it in a cool and dry place until later use.
• In case of malfunction or doubt, do not try to repair the fan yourself, it may result in a fire hazard or electric shock.

6. TECHNICAL SPECIFICATIONS

Product reference: 05915/05916

Model: EnergySilence 1030/1040 SmartExtreme

28 W, 220-240 V\~50/60 Hz

Class II

Description	Symbol	Value	Unit
Fan maximum flow	F	55.8	m^3/min
Fan power consumption	P	30.8	W
Service value	SV	1.8	(m^3/min)/W
Power consumption on standby mode	P_SB	0.5	W
Fan sound power level	L_WA	63,7	dB (A)

Maximum air speed	C	2.9	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or cells must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec's official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Rys./Obr. 7

Fig./Img./Abb./Rys./Obr. 2

Fig./Img./Abb./Rys./Obr. 3
