Product type	Pedestal fan with oscillation and timer
Brand	Cecotec
Model	Forcesilence 520 Power M
Product references	05902 / 05903
Power supply	220-240 V~, 50/60 Hz
Rated power	50 W
Power consumption	38.2 W
Standby consumption	0 W
Number of speeds	4 (Eco, Medium, High, Turbo)
Maximum airflow	37.7 m³/min
Maximum air speed	2.3 m/s
Noise level	52 dB(A)
Timer	Adjustable from 0 to 120 minutes
Oscillation	Yes, can be enabled/disabled
Head tilt	Adjustable
Height	Adjustable via telescopic rod
Protection grilles	Front and rear, removable
Maintenance	Clean with soft damp cloth, vacuum for grilles
Safety	Earthing cable required, automatic stop with timer
Intended use	Household only, indoor
Spare parts	Official Cecotec After-Sales Service
Origin	Made in China, designed in Spain

Frequently Asked Questions - Forcesilence 520 Power M CECOTEC

How to assemble the Forcesilence 520 Power M fan?

Follow the steps in the Device assembly section: install the base on the support, adjust the height, attach the head, then install the rear grille, the blades and the front grille. Use the provided screws and make sure everything is securely fastened.

How do I adjust the height of the fan?

Loosen the height adjustment nut, raise the rod to the desired height, then tighten the nut and the thumbscrew to secure it. Refer to the images in the manual for more details.

How do I activate the oscillation function?

Press the oscillation button to activate the left-right movement. To deactivate it, pull the button outward.

How do I use the timer?

Turn the timer clockwise to set the operating time up to 120 minutes. Once the time is up, the fan stops automatically.

What is the power consumption of the fan?

The rated power is 50 W, but during operation the power consumption is 38.2 W according to the technical specifications. The standby consumption is 0 W.

How do I clean the fan?

Before any cleaning, unplug the device. Use a soft damp cloth for the surfaces, and a vacuum cleaner for the grilles to remove dust and lint.

Can children use this fan?

The device can be used by children aged 8 and above under supervision. Cleaning and maintenance should not be performed by children, and the device must be kept out of reach of children under 8 years old.

What to do if the fan does not turn on?

First check the electrical connection and that the outlet works. If it still does not work, contact the official Cecotec after-sales service at [phone].

Can I use the fan outdoors?

No, this fan is designed for exclusively household and indoor use. It should not be used outdoors or near windows or damp places.

How do I disassemble the fan for storage?

Turn off and unplug the device, remove the front grille by opening the ring closure, then unscrew the blade screw and the rear grille nut. Detach the head from the support and unfold the base. Store all parts in a dry place.

USER MANUAL Forcesilence 520 Power M CECOTEC

1. Parts and components 26
2. Before use 26
3. Product assembly 26
4. Operation 27
5. Cleaning and maintenance 27
6. Technical specifications 27
7. Disposal of old electrical appliances 28
8. Technical support and warranty 28
9. Copyright 29

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

- Make sure that the mains voltage matches the voltage stat-

ed on the rating label of the appliance and that the wall outlet is grounded.

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• Do not immerse the cord, plug or any part of the appliance in water or any other liquid, nor expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.
• If the appliance falls accidentally into water, unplug it immediately. Do not reach into the water!
• Do not operate the device if any fault or unusual sign is detected.
• Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the appliance.
• Make sure the appliance is placed on a flat and stable surface during operation.
• Do not use the appliance near window or other places where it could get wet or next to heat sources.
• Do not operate the product below or next to curtains.
• Do not cover the grids and do not place the product's cord under carpets or other objects during operating.
• Keep a minimum safety distance from the appliance to any object or wall on each side, back and front.
• Do not leave the appliance unattended while in use.
• Do not use the appliance with accessories or spare parts that are not provided by Cecotec, this could case danger to people and damage to the product.
• Always turn off and unplug the appliance when not in use and before assembling, disassembling or moving it. Pull

from the plug, not the cord, to disconnect it from the outlet.

• This product is designed only for household use. It is not suitable for commercial or industrial use. Do not operate it outdoors.
• Cleaning and maintenance tasks should be carried out according to this manual to ensure correct operation of the device.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep this appliance and its power cord out of reach of children under the age of 8.

INSTRUCTIONS DE SÉCURITÉ

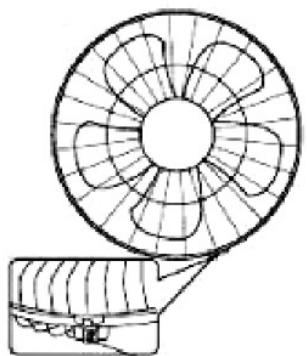

1. Control panel
2. Height-adjustment bar
3. Support
4. Base
5. Base fixing screw
6. Back grid
7. Back grid fixing nut
8. Blades
9. Blade-fixing nut
10. Front grid
11. Grid ring fastener
12. Adjusting wing screw
13. Height-adjustment nut

(*) The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• Take the product out of the box.
• Remove all packaging material and labels before connecting the device. Keep the original box.
• Make sure all parts and components are included and in good conditions. If any sign of visible damage is observed, immediately contact with the official Technical Support Service of Cecotec.

3. PRODUCT ASSEMBLY

• Step 1: Assembly the base and fan support (Fig. 2). Use the base-fixing nut to assemble the base to the fan support (Fig. 3).
• Step 2: Loosen the height-adjustment nut and lift the height-adjustment bar to the desired level. Use the adjustment wing screw to fix the bar's height. Fig. 4

• Step 3: Place the fan's head on the height-adjustment bar and fix it with the adjusting wing screw provided. Fig. 5

• Step 4: Remove the blade-fixing nut from the motor shaft by turning it clockwise and unscrew the back grid fixing nut anticlockwise from the fan's head. Fig. 6

• Aligning the position holes, place the back grid in the fan's head and tighten it with the back-grid fixing nut. Do not over screw the nut. Fig. 6
• Step 5: Align the grooves on the blades center with the fan shaft and introduce them. Make sure that they match correctly and screw the blade fixing nut anticlockwise to fix them tightly to the motor shaft's end. Fig. 7
• Step 6: Install the front grid in its position with the ring making sure the last groove is facing upwards and that the grid ring fastener is facing downwards. Once both grids are fixed and kept together, lock them with the screw. Fig. 8

4. OPERATION

• Place the fan on a flat and dry surface and plug its cord in a power outlet.
• Select the desired speed: 0-Off, 1-Eco, 2-Medium, 3-High, 4-Turbo.
• Press the oscillation knob to activate the oscillation function. To deactivate it, pull it out.
• To adjust the fan head's tilt angle, loosen the adjusting wing screw and press the fan front grid and screw it back to tighten it.
• Set the desired operating time by turning the timer anticlockwise, the timer can be set from 0 to 120 minutes. After the selected time, the fan will turn automatically off.
• Warning: Make sure the fan is turned off before assembling, disassembling or adjusting it.

5. CLEANING AND MAINTENANCE

• Always turn the device off and unplug it from the power supply before carrying out cleaning and maintenance tasks.
• Use a soft, damp cloth to clean the device surface.
• Keep the air vents at the rear of the main body free from dust or fluff– use a vacuum cleaner to remove these when necessary.

6. TECHNICAL SPECIFICATIONS

Models: EnergySilence 520 Power/Black

Product references: 05902/05903

Power: 50 W

Voltage and frequency: 220-240 V\~, 50/60 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	37,7	m3/min
Fan power consumption	P	38,2	W
Service value	SV	1.0	(m3/min)/W
Power consumption on standby mode	PSB	0	W
Fan sound power level	LWA	52	dB (A)
Maximum air speed	C	2.3	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

(*) Technical specifications may change without prior notification to improve product quality.

Manufactured in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.
