Product type	Wooden pedestal fan (tripod)
Brand	Cecotec
Model	Force Silence 1600 Woody Smart
Reference	05918
Power	50 W
Power supply	220-240 V ~ 50/60 Hz
Speeds	3 speeds: low, medium, high
Operating modes	Night, Eco, Normal
Timer	0.5 h to 7.5 h (in 0.5 h intervals)
Oscillation	Yes, dedicated button on the motor
Remote control	Yes, wireless
Control panel	Yes, integrated on the tube
Maximum air flow	66.8 m³/min
Sound power level	65.8 dB(A)
Maximum air speed	3.6 m/s
Standby power consumption	0 W
Materials	Wooden feet, protective grilles, metal tube
Safety	Front and rear protective grilles, CE certified
Care and cleaning	Soft damp cloth with neutral soap, do not immerse
Assembly	Easy assembly with screws and nuts provided, adjustable height
Remote control batteries	2 AAA batteries
Box contents	Fan, remote control, instruction manual

Frequently Asked Questions - Force Silence 1600 Woody Smart CECOTEC

How to assemble the Force Silence 1600 Woody Smart fan?

Follow the steps in section 3 of the manual: screw the wooden feet to the tripod support, install the rod supports, place the main unit on the tube, attach the rear grille then the blades, and assemble the grilles. Tighten all screws with the provided screwdriver.

What speeds are available on this fan?

The fan has 3 speeds: low, medium, and high. Use the ON button on the panel or the remote control to change speed.

How to activate the timer?

Press the timer button to set the operating time from 0.5 h to 7.5 h, in 0.5 h intervals. The fan will turn off automatically after the set time.

How to use the oscillation function?

The oscillation function is controlled via the dedicated button located at the rear of the motor. Press it to activate or deactivate the oscillating movement.

What operating modes are available?

The fan offers Night, Eco, and Normal modes, selectable with the wireless remote control. These modes adjust the speed and consumption.

How to clean the fan?

Unplug the appliance, let it cool down, then use a soft damp cloth with neutral soap. Never immerse the fan in water and avoid solvents.

What to do if the remote control does not respond?

Check that the batteries (2 x AAA) are correctly inserted and sufficiently charged. Also check that no obstacles interfere between the remote control and the reception panel.

What is the electric power of the fan?

The fan has a power of 50 W and operates on a power supply of 220-240 V ~ 50/60 Hz. Its standby power consumption is 0 W.

Is the fan safe for children?

This product can be used by children aged 8 and above, under adult supervision. It is important to keep hands, hair, and clothing away from the blades and openings.

What does the product box contain?

The box contains the fan, a wireless remote control, and the instruction manual. Check that all parts are present before assembly.

USER MANUAL Force Silence 1600 Woody Smart CECOTEC

Manual de instrucciones Instruction manual

1. Parts and components 27
2. Before use 27
3. Product assembly 28
4. Operation 28
5. Cleaning and maintenance 29
6. Technical specifications 29
7. Disposal of old electrical and electronic appliances 30
8. Technical support and warranty 30
9. Copyright 30

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Make sure that the mains voltage matches the voltage stated on the product marking.

- Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

- Warning: if the device falls accidentally in water, unplug it immediately. Do not touch the water!

- Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec to avoid any type of danger.

- Do not stretch or carry the appliance by the cord. Do not use the cord as a handle. Do not pull the cord close to sharp edges or corners. Do not place or operate the appliance on the cord. Keep the cord away from hot surfaces.

- Do not use the appliance if the cord, plug, or the appliance itself is damaged, malfunctioning, or has been dropped.

- Do not use the appliance in confined spaces where flammable or toxic vapours are present.

• Keep the fan away from heat sources.
• Keep hair, loose clothing, fingers, and other body parts away from openings and moving parts of the appliance.
• Never leave the appliance unattended while in use. Unplug the device after use and when you leave the room where it is installed.
• Do not try to repair the device by yourself. Contact the official Technical Support Service of Cecotec for advice.
• Switch off and disconnect the appliance from the mains when not in use, when transporting it from one place to another, or before assembling or disassembling it. To prevent the appliance from tipping over, properly wind the cord.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the device functions properly. Turn off and unplug the appliance before moving and cleaning it.
• Do not expose people, especially infants or the elderly, to a continuous airflow.
• Make sure the fan is not placed near curtains or any other object it may become entangled with.
• Do not run the cord under carpets, rugs, or similar. Keep the appliance cord out of the way.

INSTRUCTIONS DE SÉCURITÉ

1. Front guard
2. Blades
3. Rear guard
4. Motor and oscillation button
5. Power cord
6. Tube
7. Heigh-adjustment knob
8. Tripod bracket
9. Wooden leg-support connector
10. Nut
11. Through screw
12. Wooden legs
13. Rod support
14. Thumbscrew
15. Remote control
16. Control panel

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If any of them are missing or not in good condition, please contact Cecotec's official Technical Support Service immediately.

Box contents

• EnergySilence 1600 Woody Smart fan
• Remote control

ENGLISH

• Instruction manual
• The fan comes packed with the grilles separately. Fix the grilles in place before switching on the fan.
• Do not switch on the fan unless all parts are correctly assembled.
• Switch on the fan only when it is in an upright position. Switching it on in any other position could be dangerous.

3. PRODUCT ASSEMBLY

Fig. 2

• Remove the safety screw from the tripod bracket. Use a screwdriver to screw the wooden legs to the tripod bracket. Screw the safety screw between the holes in the rod supports and the tripod bracket. Do the same for through screws and through nuts. Each leg has a through screw and through nut.
• Install the rod supports with the thumbscrew. Place the three rods on the central leg and screw them together with the thumbscrew and nut.
• Install the main body of the fan on top of the tube. Make sure they are in place.
• Install the motor in the rear guard. To do this, remove the four screws from the motor, install the rear guard, and screw the four screws back on.

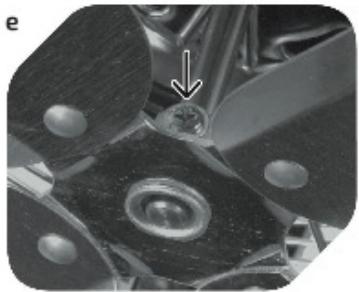

• Install the blades on the motor shaft and tighten it with the through screw.

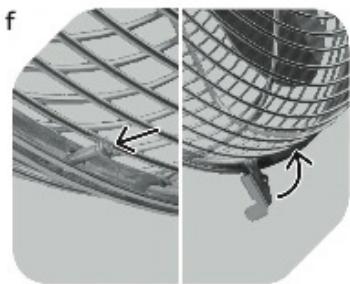

• Join the front and rear guards and close them with the holding tab. Then, fix the through screw of the guard.
• The fan height is adjustable.
• To install the control panel, first loosen the screw on the metal tube, then place the control panel on the tube so that the plastic protrusion on the panel matches the hole in the tube. Lastly, tighten the retaining screw.

4. OPERATION

• The fan can be operated from both the control panel and the remote control.
• Press the ON button to switch the fan on and change the speed.
• The fan has 3 speeds:
• Low speed
• Medium speed
• High speed
• Press the OFF button to turn off the device.

• Press the operating-mode button on the remote control to change the operating mode: night, eco, or normal.

• Press the timer button to set the switch-off time: from 0.5 to 7.5 hours, in 0.5-hour intervals.

• The fan can operate in oscillation or stationary mode. Press the oscillation button, located on the rear of the fan (motor), to activate oscillation mode.

5. CLEANING AND MAINTENANCE

• To get the most out of the fan, follow these instructions:
• Before cleaning the fan, unplug the power cord and allow the fan to come to a complete stop.
• Do not allow water to drip onto or into the housing.
• Use a soft, damp cloth and a neutral soap.
• Do not use any of the following to clean the appliance: petrol, solvent, or benzene.
• In case of malfunction or doubt as to whether the appliance is working properly, do not attempt to repair it yourself, as this may result in fire or electric shock.
• Check the fan base periodically.
• Do not immerse the appliance in water or any other liquid or place it under running water.

6. TECHNICAL SPECIFICATIONS

Product reference: 05918

Product: EnergySilence 1600 Woody Smart

Power: 50 W

Voltage: 220-240 V \~, 50/60 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	66.8	m^3/min
Fan power consumption	P	47.0	W
Service value	SV	1.4	(m^3/min)/W
Energy consumption in off mode	P_OFF	0.0	W
Fan sound power level	L_WA	65.8	dB (A)
Maximum air speed	C	3.6	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

Technical specifications may change without prior notification to improve product quality.
Made in China | Designed in Spain
Battery type: 2 x 3AAA

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or cells must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec's official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

- Wentylator EnergySilence 1600 Woody Smart

b

Fig./Img./Abb./Rys./Obr. 2
